LDK-OFDM-MMDS2Point to Point wireless data link

1 Cisco Systems, Inc. All rights reserved. 170 West Tasman Drive San Jose, CA 95134-1706 USA Cisco Systems, Inc. Corporate Headquarters Copyright © 1999 Text Part Number: ALPHA DRAFT - CISCO CONFIDENTIAL CiscouBR7200 Series Universal Broadband Router Wireless Modem Card and Subsystem Installation and Configuration Product Numbers: UBR-MCW-PDA, UBR-MCW-PDA=, UBR-WPFD, UBR-WPFD=, UBR-ODU-PAA, UR-ODU-PAA=, UBR-ODD-01A, UBR-ODD-01A=, UBR-ODD-02A, UBR-ODD-02A=, UBR-ODD-03A, UBR-ODD-03A= This document explains how to install and configure the components for a high-speed point-to-point fixed broadband wireless system using CiscouBR7200 series universal broadband routers. It includes instructions for installing a wireless modem card, power feed panel, and outdoor unit, as well as instructions for configuring and verifying the system and troubleshooting the configuration. The CiscouBR7200 series consists of the 6-slot CiscouBR7246 (four modem card slots and two port adapter slots) and the 3-slot CiscouBR7223 (two modem card slots and one port adapter slot). NoteUse this configuration note in conjunction with the CiscouBR7200 Series Universal Broadband Router Installation and Configuration Guide and Regulatory Compliance and Safety Information for the CiscouBR7200 Series Universal Broadband Router that shipped with your CiscouBR7200 series router, and the Cisco Wireless Broadband Router Site Planning Guide The following sections are included in this document: •If You Need More Information, page2 •Wireless Modem Card and Subsystem Overview, page2 •Installation Prerequisites, page7 •Removing and Installing a Wireless Modem Card, page12 •Installing a Power Feed Panel, page16 •Installing an Outdoor Unit, page21 •Configuring a Wireless Modem Card, page25 •Using the Debug Commands, page84 •Reference Information, page88 78-6030-01 2CiscouBR7200 Series Universal Broadband Router Wireless Modem Card and Subsystem Installation and Configuration If You Need More Information ALPHA DRAFT - CISCO CONFIDENTIAL •Cisco Connection Online, page88 If You Need More Information The Cisco IOS software running on your router contains extensive features and functionality. The effective use of many of these features is easier if you have more information. For additional information on configuring and maintaining the CiscouBR7200 series, the following documentation resources are available: •Cisco Documentation CD-ROM Cisco documentation and additional literature are available in a CD-ROM package, which ships with your product. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated monthly. Therefore, it might be more current than printed documentation. To order additional copies of the Documentation CD-ROM, contact your local sales representative or call customer service. The CD-ROM package is available as a single package or as an annual subscription. You can also access Cisco documentation on the World Wide Web at http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com. If you are reading Cisco product documentation on the World Wide Web, you can submit comments electronically. Click Feedback in the toolbar and select Documentation. After you complete the form, click Submit to sent it to Cisco. we appreciate your comments. •For Cisco IOS software configuration information, refer to the modular configuration and modular command reference publications in the Cisco IOS software configuration documentation set that corresponds to the software release installed on your Cisco hardware. NoteYou can access CiscoIOS software configuration documentation on the World Wide Web at http://www.cisco.com, http://www-china.cisco.com, http://www-europe.cisco.com. •For hardware installation and maintenance information on the CiscouBR7200 series, refer to the CiscouBR7200 Series Universal Broadband Router Installation and Configuration Guide that shipped with your CiscouBR7246 or CiscouBR7223. •For international agency compliance, safety, and statutory information for wide-area network (WAN) interfaces for the CiscouBR7200 series, refer to the document Regulatory Compliance and Safety Information for the CiscouBR7200 Series Universal Broadband Router. •To obtain general information about documentation, refer to the "Cisco Connection Online" section on page, or call customer service at 800553-6387 or 408526-7208. Customer service hours are 5:00 a.m. to 6:00 p.m. Pacific time, Monday through Friday (excluding Cisco-observed holidays). You can also send e-mail to [email protected], or you can refer to the CiscoInformation Packet that shipped with your router. Wireless Modem Card and Subsystem Overview The Cisco high-speed point-to-point fixed broadband wireless router system provides a fixed, dedicated wireless link from one site to another. This link delivers 44 Mbps full-duplex data in a 12 MHz RF channel in the MDS band (2.500 to 2.690 GHz). This broadband wireless router system consists of a CiscouBR7200 Series Universal Broadband Router (CiscouBR7246, or CiscouBR7223) and one or more wireless modem cards (Figure1), each with a power feed panel (Figure2), and outdoor unit (ODU) (Figure3). The diversity option uses two outdoor units, one for each of two antennas. CiscouBR7200 Series Universal Broadband Router Wireless Modem Card and Subsystem Installation and Configuration 3 Wireless Modem Card and Subsystem Overview ALPHA DRAFT - CISCO CONFIDENTIAL The wireless modem cards are installed in a CiscouBR7200 series router. Each modem card is cabled to a power feed panel installed either in the same equipment rack as the router or mounted on the wall. Cables from the power feed panel are connected to the outdoor unit which is installed either on the antenna pole or on a wall in close proximity to the antenna. The system is managed via a command line interface (CLI) or CiscoWorks. Figure1Wireless Modem Card Figure2Power Feed Panel Figure3Outdoor Unit (ODU) 4CiscouBR7200 Series Universal Broadband Rou…

Text truncated - open the document above for the full version.

BOM Detail Report With Manufacturers and Reference Designators Cisco Systems, Inc CMFRBOMX.sql Module = MFG Sort By = Item Number Explosion Level = 6 Explosion Option = Current Implemented Only = Yes Assembly= 800-05249-02, ASY, ELMECH, WIRELESS RF BD REV=-03 Rev. Date= 01-JUN-99 20:59 Safety Critical= No Network Critical= No Eco: C99-26911 Sole Source= NO Qualified= Yes Obsolete= No In Process= No Disqualified= No COMPONENT ITEM WIP SF NW QTY MANUFACTURER Q REFERENCE ITEM NUMBER SEQ ITEM DESCRIPTION EFF.DATE DIS.DATE SUPL BUYER REV UM IM CR CR ASY MANUFACTURER PART NUMBER S DESIGNATOR ------------------ ---- ------------------------------ --------- ------ --- ---- -------- --- -- -- -- -- --- --------------- ----------------- - - ------------------------- 29-2230-01 6 CON,NTYP,P,ST, 1P,FLANGE MT 04/28/99 VEND -A0 EA Y No No 1 CONNECTING DEVI 8059-1707-1CCNP Q 29-2231-01 8 CON,SMP ,R,ST, 1P,ADAPTER,.25 04/28/99 VEND -A0 EA Y No No 4 CONNECTING DEVI P650-1CC Q 34-0930-01 23 PWRSPLY,AC,FIRESTAR 05/07/99 VEND -01 EA Y No No 1 .95-1734-01 99 SPEC,AC PS,FIRESTAR 05/07/99 BULK -01 EA Y No No 0 47-4565-01 24 LBL,SERIAL NUMBER,CR 05/07/99 BULK -B0 EA Y No No 1 BRADLEY NAMEPLA TBD Q 47-6071-01 25 LBL,AGENCY,UBR-ODU-PAA 05/07/99 BULK -01 EA Y No No 1 .56-4934-01 1 ATWK,LBL,AGENCY,UBR924 05/07/99 BULK -01 EA Y No No 0 471-00020-01 26 LBL,BLANK,CLEI,1 PIECE 05/07/99 BULK -A1 EA Y No No 1 BRADLEY NAMEPLA TBD Q .702065-0000 1 CLEI Code Label 03/28/98 BULK -B0 EA Y No No 0 48-0219 12 SCR,M,PAN,PH, 4-40x0.25,SS 04/28/99 BULK Jones -A0 EA Y No No 5 PRO FASTENERS PAN4CR4CP Q 04/28/99 Y No No VARIOUS ORDER BY DESCRIPTI Q 48-0370-01 14 SCR,M,PAN,PH, 2-56x0.25,SS 04/28/99 BULK Jones -A0 EA Y No No 13 PRO FASTENERS PAN2CR4CP Q 04/28/99 Y No No VARIOUS ORDER BY DESCRIPTI Q 48-0535-01 20 SCR,M,PAN,PH, 4-40x0.37,CSwZN 04/28/99 BULK Jones -A0 EA Y No No 13 OLANDER 4C37PPMZB Q 04/28/99 Y No No OPEN STOCK SCREW PHD 4-40X.37 Q 04/28/99 Y No No VARIOUS ORDER BY DESCRIPTI Q 48-0826-01 15 SCR,M,PAN,PH, 0-80x0.19,SS 04/28/99 BULK -A0 EA Y No No 4 PENCOM SC3677 Q 04/28/99 Y No No CISCO 48-0826-01 Q 48-0828-01 16 SCR,M,PAN,PH, 8-32x0.50,SSwSQC 04/28/99 BULK -A0 EA Y No No 20 PENCOM SC3675 Q 04/28/99 Y No No CISCO 48-0828-01 Q 48-0829-01 13 SCR,M,PAN,PH, 4-40x0.63,SSwSQC 04/28/99 BULK -A0 EA Y No No 36 PENCOM SC3674 Q 04/28/99 Y No No CISCO 48-0829-01 Q 49-0330-01 18 WSHR,FLAT,# 2,.15"OD,.016"T,SS 04/28/99 PUSH Jones -A0 EA Y No No 13 PENCOM WA1370 Q 49-0537-01 19 WSHR,FLAT,# 0,.10"OD,.016"T,SS 04/28/99 BULK -A0 EA Y No No 4 PENCOM WA1424 Q 04/28/99 Y No No CISCO 49-0537-01 Q 49-0538-01 21 WSHR,SPLT,# 0,.09"OD,.016"T,SS 04/28/99 BULK -01 EA Y No No 4 PENCOM WA1421 Q 51-1205-01 9 PLUG,0.625",GASKETED,wCHAIN 04/28/99 BULK -A0 EA Y No No 1 GILBERT ENGINEE NS-9156-1 Q 61-2033-02 99 PCAMAP, WIRELESS RF BD 04/28/99 06/01/99 BULK -01 EA Y No No 1 700-04412-01 1 FABMTL,BASE,AL 04/28/99 VEND -01 EA Y No No 1 700-04414-01 2 FABMTL,COVER,AL 04/28/99 VEND -01 EA Y No No 1 72-1788-01 22 ASY,CONTROL CABLE,ODU,WIRELESS 05/07/99 ASSY -01 EA Y No No 1 73-4054-02 3 PCA, SUB, WIRELESS RF BD 04/28/99 ASSY -01 EA Y No No 1 .28-3138-02 1 PCBFAB, SUB, WIRELESS RF BD 03/25/99 06/01/99 VEND -01 EA Y No No 1 ACI ELECTRONICS 28-3138-02 Q .471-00013-01 6 LBL,BLANK,PRIMARY SN BARCODE,P 03/25/99 06/01/99 BULK Dana -B0 EA Y No No 1 ..701806-0000 10 Mfg Ident/Serial/Label 09/19/97 BULK -C0 EA Y No No 0 ..95-1269-01 5 SPEC,PRIMARY SN BARCODE LABEL, 07/16/97 BULK -B0 EA Y No No 0 .471-00015-01 7 LBL,BLANK,800-LEVEL PN BARCODE 03/25/99 06/01/99 BULK -B0 EA Y No No 1 ..701806-0000 10 Mfg Ident/Serial/Label 09/19/97 BULK -C0 EA Y No No 0 ..95-1276-01 5 SPEC,800-LEVEL PN BARCODE LABE 07/16/97 BULK -B0 EA Y No No 0 .60-3071-02 2 PCADWG, WIRELESS RF BD 03/25/99 06/01/99 BULK -01 EA Y No No 0 .86-1221-02 3 PCA, PUR, WIRELESS RF BD 03/25/99 06/01/99 ASSY -01 EA Y No No 1 ..11-0711-01 1 CAP,TA, 22uF, 25V,20%,SM,2816 06/01/99 PUSH Jones -A0 EA Y No No 18 AVX TAJD226M025 Q C10,C11,C12,C125,C126, 06/01/99 Y No No KEMET T491D226M025AS Q C139,C15,C150,C158,C17, 06/01/99 Y No No NEC NRD226M25 Q C190,C192,C206,C218,C225, 06/01/99 Y No No NEMCO PCT22/25DM Q C226,C228,C245 06/01/99 Y No No SPRAGUE 293D226X0025D2 Q 06/01/99 Y No No SAMSUNG TCSCS1E226MD Q 06/01/99 Y No No KOA TMC1EE226M Q ..11-0818-01 2 CAP,CE, .22uF, 50V,20%,SM,0805 06/01/99 PUSH Jones -A0 EA Y No No 2 NOVA CAP 0805Z224M500N Q C166,C176 ..11-0835-01 3 CAP,TA, 10uF, 20V,10%,SM,2412 06/01/99 PUSH Jones -A0 EA Y No No 3 AVX TAJC106K020 Q C13,C14,C49 06/01/99 Y No No KEMET T491C106K020AS Q 06/01/99 Y No No NEMCO PCT10/20CK Q 06/01/99 Y No No NEC NRC106K20 Q 06/01/99 Y No No SPRAGUE 293D106X9020C2 Q ..11-0979-01 4 CAP,CE, 330pF, 50V,10%,SM,0603 06/01/99 ASSY Jones -A0 EA Y No No 1 NIC NMC0603X7R331K50 Q C2 06/01/99 Y No No AVX 06035C331KATA Q 06/01/99 Y No No KEMET C0603C331K5RAC Q 06/01/99 Y No No MURATA ERIE GRM39X7R331K050A Q ..11-0988-01 5 CAP,CE, .01uF, 50V,10%,SM,0603 06/01/99 ASSY Jones -A0 EA Y No No 79 TAIYO UMK107B103KZ Q C1,C102,C105,C107,C109, 06/01/99 Y No No AVX 06035C103KATA Q C113,C123,C127,C137,C138, 06/01/99 Y No No KEMET C0603C103K5RAC Q C145,C146,C147,C152,C155, 06/01/99 Y No No MURATA ERIE GRM39X7R103K050A Q C156,C168,C170,C171,C172, 06/01/99 Y No No VITRAMON VJ0603Y103KXA Q C173,C182,C184,C185,C186, 06/01/99 Y No No SAMSUNG CL10B103KBN Q C187,C188,C194,C196,C197, 06/01/99 Y No No Q C198,C199,C201,C207,C208, 06/01/99 Y No No Q C209,C22,C227,C230,C235, 06/01/99 Y No No Q C236,C237,C238,C241,C247, 06/01/99 Y No No Q C252,C259,C274,C280,C281, 06/01/99 Y No No Q C282,C283,C287,C288,C289, 06/01/99 Y No No Q C295,C317,C329,C33,C331, 06/01/99 Y No No Q C336,C34,C344,C347,C348, 06/01/99 Y No No Q C35,C352,C353,C354,C355, 06/01/99 Y No No Q C36,C62,C65,C68,C70,C8, 06/01/99 Y No No Q C83,C92,C93 ..11-0992-01 6 CAP,CE,.033uF, 16V,10%,SM,0603 06/01/99 ASSY Jones -A0 EA Y No No 5 TAIYO EMK107BJ333KA Q C120,C154,C163,C180,C191 06/01/99 Y No No MURATA ERIE GRM39X7R333K016A Q 06/01/99 Y No No AVX 0603YC333KA…

Text truncated - open the document above for the full version.

BOM Detail Report With Manufacturers and Reference Designators Cisco Systems, Inc CMFRBOMX.sql Module = MFG Sort By = Item Number Explosion Level = 6 Explosion Option = Current Implemented Only = Yes Assembly= 800-05249-02, ASY, ELMECH, WIRELESS RF BD REV=-03 Rev. Date= 01-JUN-99 20:59 Safety Critical= No Network Critical= No Eco: C99-26911 Sole Source= NO Qualified= Yes Obsolete= No In Process= No Disqualified= No COMPONENT ITEM WIP SF NW QTY MANUFACTURER Q REFERENCE ITEM NUMBER SEQ ITEM DESCRIPTION EFF.DATE DIS.DATE SUPL BUYER REV UM IM CR CR ASY MANUFACTURER PART NUMBER S DESIGNATOR ------------------ ---- ------------------------------ --------- --------- ---- -------- --- -- -- -- -- --- --------------- ------------------ - ------------------------- 29-2230-01 6 CON,NTYP,P,ST, 1P,FLANGE MT 04/28/99 VEND -A0 EA Y No No 1 CONNECTING DEVI 8059-1707-1CCNP Q 29-2231-01 8 CON,SMP ,R,ST, 1P,ADAPTER,.25 04/28/99 VEND -A0 EA Y No No 4 CONNECTING DEVI P650-1CC Q 34-0930-01 23 PWRSPLY,AC,FIRESTAR 05/07/99 VEND -01 EA Y No No 1 .95-1734-01 99 SPEC,AC PS,FIRESTAR 05/07/99 BULK -01 EA Y No No 0 47-4565-01 24 LBL,SERIAL NUMBER,CR 05/07/99 BULK -B0 EA Y No No 1 BRADLEY NAMEPLA TBD Q 47-6071-01 25 LBL,AGENCY,UBR-ODU-PAA 05/07/99 BULK -01 EA Y No No 1 .56-4934-01 1 ATWK,LBL,AGENCY,UBR924 05/07/99 BULK -01 EA Y No No 0 471-00020-01 26 LBL,BLANK,CLEI,1 PIECE 05/07/99 BULK -A1 EA Y No No 1 BRADLEY NAMEPLA TBD Q .702065-0000 1 CLEI Code Label 03/28/98 BULK -B0 EA Y No No 0 48-0219 12 SCR,M,PAN,PH, 4-40x0.25,SS 04/28/99 BULK Jones -A0 EA Y No No 5 PRO FASTENERS PAN4CR4CP Q 04/28/99 Y No No VARIOUS ORDER BY DESCRIPTI Q 48-0370-01 14 SCR,M,PAN,PH, 2-56x0.25,SS 04/28/99 BULK Jones -A0 EA Y No No 13 PRO FASTENERS PAN2CR4CP Q 04/28/99 Y No No VARIOUS ORDER BY DESCRIPTI Q 48-0535-01 20 SCR,M,PAN,PH, 4-40x0.37,CSwZN 04/28/99 BULK Jones -A0 EA Y No No 13 OLANDER 4C37PPMZB Q 04/28/99 Y No No OPEN STOCK SCREW PHD 4-40X.37 Q 04/28/99 Y No No VARIOUS ORDER BY DESCRIPTI Q 48-0826-01 15 SCR,M,PAN,PH, 0-80x0.19,SS 04/28/99 BULK -A0 EA Y No No 4 PENCOM SC3677 Q 04/28/99 Y No No CISCO 48-0826-01 Q 48-0828-01 16 SCR,M,PAN,PH, 8-32x0.50,SSwSQC 04/28/99 BULK -A0 EA Y No No 20 PENCOM SC3675 Q 04/28/99 Y No No CISCO 48-0828-01 Q 48-0829-01 13 SCR,M,PAN,PH, 4-40x0.63,SSwSQC 04/28/99 BULK -A0 EA Y No No 36 PENCOM SC3674 Q 04/28/99 Y No No CISCO 48-0829-01 Q 49-0330-01 18 WSHR,FLAT,# 2,.15"OD,.016"T,SS 04/28/99 PUSH Jones -A0 EA Y No No 13 PENCOM WA1370 Q 49-0537-01 19 WSHR,FLAT,# 0,.10"OD,.016"T,SS 04/28/99 BULK -A0 EA Y No No 4 PENCOM WA1424 Q 04/28/99 Y No No CISCO 49-0537-01 Q 49-0538-01 21 WSHR,SPLT,# 0,.09"OD,.016"T,SS 04/28/99 BULK -01 EA Y No No 4 PENCOM WA1421 Q 51-1205-01 9 PLUG,0.625",GASKETED,wCHAIN 04/28/99 BULK -A0 EA Y No No 1 GILBERT ENGINEE NS-9156-1 Q 1 of 126/10/1999 3:54 PM BOM with Mfg and Ref. Dsg. [Assembly = 800-05249-02; REV= -03]file:///C|/WINDOWS/DESKTOP/CCM_CustomBOM.html 61-2033-02 99 PCAMAP, WIRELESS RF BD 04/28/99 06/01/99 BULK -01 EA Y No No 1 700-04412-01 1 FABMTL,BASE,AL 04/28/99 VEND -01 EA Y No No 1 700-04414-01 2 FABMTL,COVER,AL 04/28/99 VEND -01 EA Y No No 1 72-1788-01 22 ASY,CONTROL CABLE,ODU,WIRELESS 05/07/99 ASSY -01 EA Y No No 1 73-4054-02 3 PCA, SUB, WIRELESS RF BD 04/28/99 ASSY -01 EA Y No No 1 .28-3138-02 1 PCBFAB, SUB, WIRELESS RF BD 03/25/99 06/01/99 VEND -01 EA Y No No 1 ACI ELECTRONICS 28-3138-02 Q .471-00013-01 6 LBL,BLANK,PRIMARY SN BARCODE,P 03/25/99 06/01/99 BULK Dana -B0 EA Y No No 1 ..701806-0000 10 Mfg Ident/Serial/Label 09/19/97 BULK -C0 EA Y No No 0 ..95-1269-01 5 SPEC,PRIMARY SN BARCODE LABEL, 07/16/97 BULK -B0 EA Y No No 0 .471-00015-01 7 LBL,BLANK,800-LEVEL PN BARCODE 03/25/99 06/01/99 BULK -B0 EA Y No No 1 ..701806-0000 10 Mfg Ident/Serial/Label 09/19/97 BULK -C0 EA Y No No 0 ..95-1276-01 5 SPEC,800-LEVEL PN BARCODE LABE 07/16/97 BULK -B0 EA Y No No 0 .60-3071-02 2 PCADWG, WIRELESS RF BD 03/25/99 06/01/99 BULK -01 EA Y No No 0 .86-1221-02 3 PCA, PUR, WIRELESS RF BD 03/25/99 06/01/99 ASSY -01 EA Y No No 1 ..11-0711-01 1 CAP,TA, 22uF, 25V,20%,SM,2816 06/01/99 PUSH Jones -A0 EA Y No No 18 AVX TAJD226M025 Q C10,C11,C12,C125,C126, 06/01/99 Y No No KEMET T491D226M025AS Q C139,C15,C150,C158,C17, 06/01/99 Y No No NEC NRD226M25 Q C190,C192,C206,C218,C225, 06/01/99 Y No No NEMCO PCT22/25DM Q C226,C228,C245 06/01/99 Y No No SPRAGUE 293D226X0025D2 Q 06/01/99 Y No No SAMSUNG TCSCS1E226MD Q 06/01/99 Y No No KOA TMC1EE226M Q ..11-0818-01 2 CAP,CE, .22uF, 50V,20%,SM,0805 06/01/99 PUSH Jones -A0 EA Y No No 2 NOVA CAP 0805Z224M500N Q C166,C176 ..11-0835-01 3 CAP,TA, 10uF, 20V,10%,SM,2412 06/01/99 PUSH Jones -A0 EA Y No No 3 AVX TAJC106K020 Q C13,C14,C49 06/01/99 Y No No KEMET T491C106K020AS Q 06/01/99 Y No No NEMCO PCT10/20CK Q 06/01/99 Y No No NEC NRC106K20 Q 06/01/99 Y No No SPRAGUE 293D106X9020C2 Q ..11-0979-01 4 CAP,CE, 330pF, 50V,10%,SM,0603 06/01/99 ASSY Jones -A0 EA Y No No 1 NIC NMC0603X7R331K50 Q C2 06/01/99 Y No No AVX 06035C331KATA Q 06/01/99 Y No No KEMET C0603C331K5RAC Q 06/01/99 Y No No MURATA ERIE GRM39X7R331K050A Q ..11-0988-01 5 CAP,CE, .01uF, 50V,10%,SM,0603 06/01/99 ASSY Jones -A0 EA Y No No 79 TAIYO UMK107B103KZ Q C1,C102,C105,C107,C109, 06/01/99 Y No No AVX 06035C103KATA Q C113,C123,C127,C137,C138, 06/01/99 Y No No KEMET C0603C103K5RAC Q C145,C146,C147,C152,C155, 06/01/99 Y No No MURATA ERIE GRM39X7R103K050A Q C156,C168,C170,C171,C172, 06/01/99 Y No No VITRAMON VJ0603Y103KXA Q C173,C182,C184,C185,C186, 06/01/99 Y No No SAMSUNG CL10B103KBN Q C187,C188,C194,C196,C197, 06/01/99 Y No No Q C198,C199,C201,C207,C208, 06/01/99 Y No No Q C209,C22,C227,C230,C235, 06/01/99 Y No No Q C236,C237,C238,C241,C247, 06/01/99 Y No No Q C252,C259,C274,C280,C281, 06/01/99 Y No No Q C282,C283,C287,C288,C289, 06/01/99 Y No No Q C295,C317,C329,C33,C331, 06/01/99 Y No No Q C336,C34,C344,C347,C348, 06/01/99 Y No No Q C35,C352,C353,C354,C355, 06/01/99 Y No No Q C36,C62,C65,C68,C70,C8, 2 of 126/10/1999 3:54 PM BOM with Mfg and Ref. Dsg. [Assembly = 800-05249-02; REV= -03]file:///C|/WINDOWS/DESK…

Text truncated - open the document above for the full version.

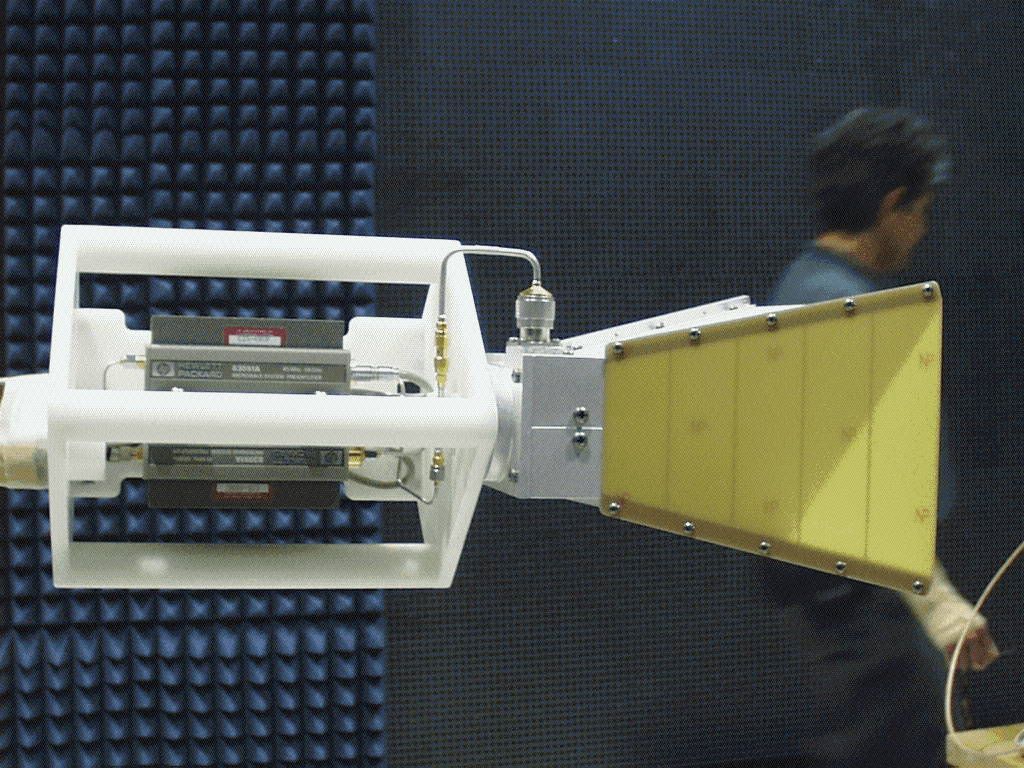

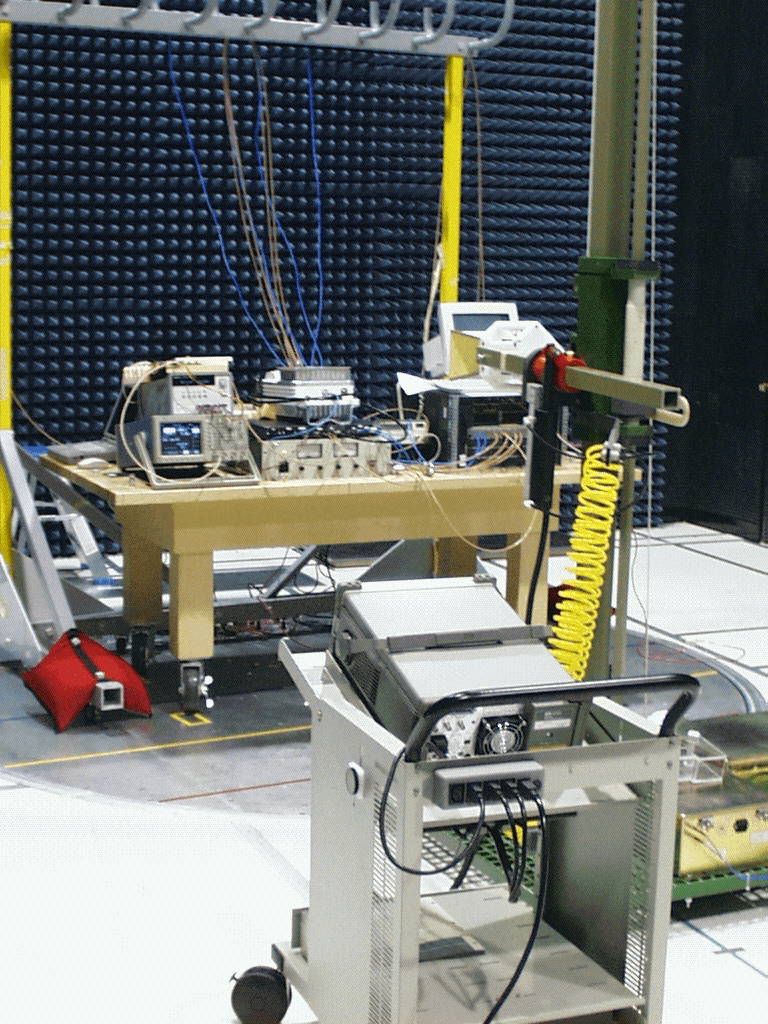

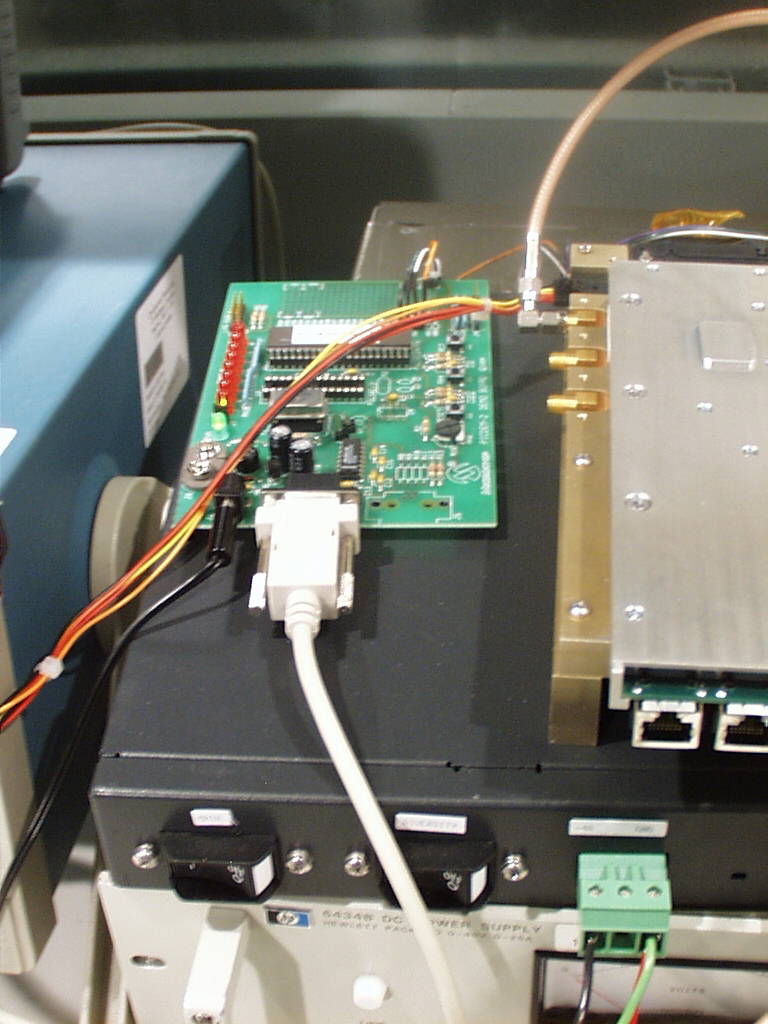

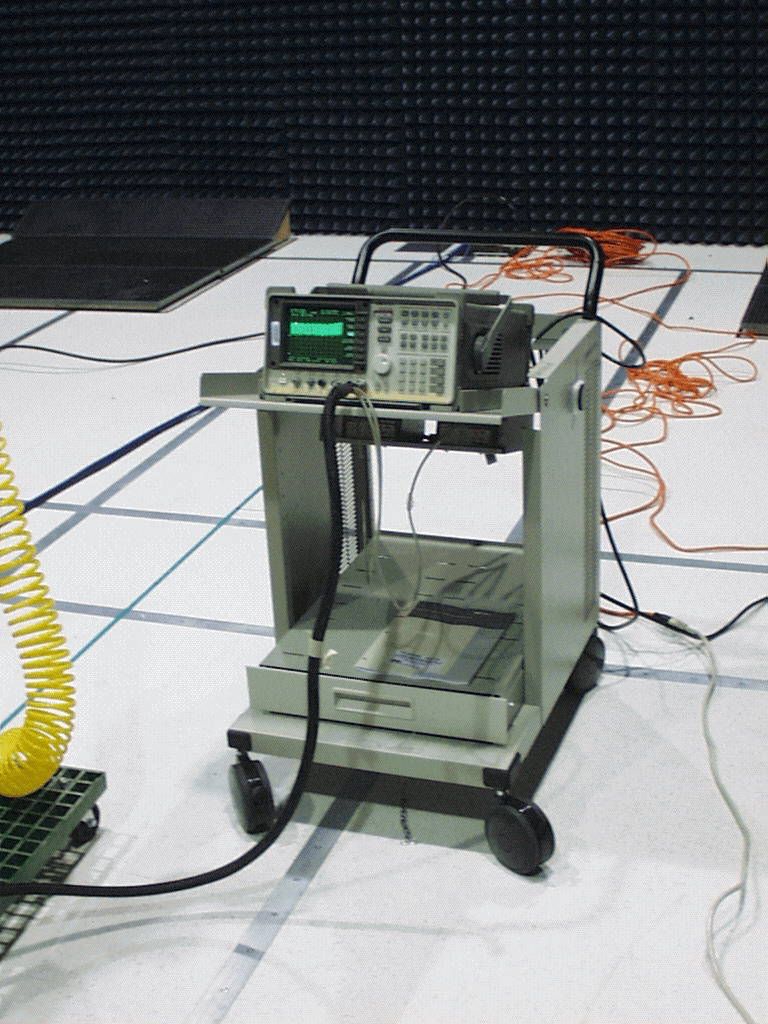

Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 1 EXHIBITS EXHIBIT 1:Letter Requesting Confidentiality under Sec. 0.457(d) EXHIBIT 2: Product Description and Operation Overview EXHIBIT 3:Information for which Confidentiality is Requested Schematics Block Diagrams Theory of Operation EXHIBIT 4:Product Photographs EXHIBIT 5:Bill of Materials (BOM) EXHIBIT 6:User Manual and FCC ID Label EXHIBIT 7:RF Hazard Information per Sec. 1.1307 EXHIBIT 8: Report of Measurements EXHIBIT 9: Data Graphs – Emissions Masks EXHIBIT 10: Data Graphs - Out of Band Emissions EXHIBIT 11: IF Card TX Signals to RF Module Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 2 EXHIBIT 1:Letter Requesting Confidentiality under Sec. 0.457(d) Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 3 Thomas N. CokeniasEMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 22 May 1999 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: Cisco Systems Inc. FCC ID: LDK-OFDM-MMDS2 To whom it may concern, Request is hereby submitted, on behalf of my client Cisco Systems Inc., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block diagrams Theory of operation (P2P Architecture) Rationale for request for confidentiality: Cisco Systems has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. The $135 fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for Cisco Systems Inc. Tel 650 726 1263 fax 650 726 [email protected] Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 4 EXHIBIT 2:Product Description and Operation Overview Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 5 The Cisco FCC ID: LDKOFDMMMDSU is a MMDS transceiver operating under the provisions of Part 21 of the Rules. The product functions as a point to point (P2P) wireless router. Refer to the system module diagram below: Product development strategy is to follow a modular approach. Digital data I/O for the initial version of the system will be a line card that will fit into a standard Cisco uBR7246 or 7223 router chassis. For test purposes, a Tektronix arbitrary waveform generator will simulate the signal output of the router/line card combination. The “Flint” IF card up-link performs the modulation functions of the system. A 324 MHz signal is modulated with the digital data stream using Orthogonal Frequency Division Multiplexing (OFDM) techniques. The system is capable of producing channel bandwidths in 6 MHz multiples. The system will be configurable for use with 6 MHz and 12 MHz channel bandwidths. For the down-link signal, the IF card demodulates the receiver IF signal from the RF head and routes the demodulated digital information to the digital I/O card. It is anticipated that the Flint IF card will be used with a number of different RF heads, but will provide the same kind of OFDM modulation, the same IF signals, and at the same channel spacing Digital data I/O A B “Flint” IF Card SPI IF Card RS 232 Cable PC Controller -48volts “Blaze” RF Head RS 232 Cable Bias “T” Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 6 as will be provided for the present application. The Flint output RF spectrum is shown for 6 MHz channel spacings and 12 MHz channel spacings in Exhibit 11. The bias “T” provides DC and the 324 MHz IF signal on a single coaxial cable for routing to the RF head. The “Blaze” RF head produces the RF transmit link at 2.5 – 2.7 GHz , and houses the receiver LNAs, receiver local oscillator, and the 139 MHz receiver IF bandpass filters and IF amplifiers. The RF head also houses the TX-RF diplexer. The PC controller and RS 232 cables are for system control and set-up for testing purposes. The antenna shown in the diagram is specified but not supplied by Cisco. The –48 VDC supply shown in the diagram is telephone central office (CO) power or a customer provided supply. SPECIFICATIONS RF Head Frequency range: 2.5 – 2.7 GHz Power output:30 dBm Channel Bandwidth:6 MHz and 12 MHz, configurable IF Head Frequency range:324 MHz 24 MHz clock Power output:324 MHz: -13 dBm nominal (programmable) 24 MHz: -12 dBm nominal Data transfer rate, air link:44 Mbs/sec (12 MHz channels) A detailed description of the theory of operation and product configuration is found in the attached document, “P2P OEM Product Architecture” (P2P-Architecture.doc, Microsoft Word file). Page 46 of this document is the system signal path block diagram.

7 System Interconnection uBR 7246/7223 ROUTER POWER FEED PANEL (UBR-WPFD) 1 per line card IF Ca bl e C on tr ol Ca 48V DC Power Supply C on tr ol Ca Lightning Protector for Control Cable 10 MHz Clock Wireless Modem Line Card (UBN-MCW-PDA) Up to 4 depending upon router Bulkhead Outdoor Unit (UBR-ODU-PAA) Duplexor (UBR-ODD-XXA) IF Ca bl e RF Cable ** Provided by Cisco Alignment port Optional cable kit one required for each line card to Power Feed Panel connection Through bulkhead connector ** Mounting Bracket Kit ** Mounting Bracket Kit Between-Series Adapter Monitor Cable ** Pluggable Terminal Block Receptacle RJ45 (M) RJ45 (M) SMA (M) SMA (M) RJ45 (F) RJ45 (F) SMA (F) SMA (F) SMA(F) SMA(F) SMA(M) SMA(M) BNC(F)BNC(M)BNC(M) BNC(F) DB9(M) DB9(F) N(F) N(M) N(M) N(F) N(M) N(M) N(F) ** Lemo(M) Lemo(F) N(F) N(M) xx Ω Spectrum Analyzer N(M) N(F) BNC(F) 3.5 mm Mono Phone Jack 3.5 mm Mono Phone Plug ** Ground Lug Pigtail between unit and top of rack Stress relief cable Lightning Protector for Coaxial Cable N(M) Adapter N(F)

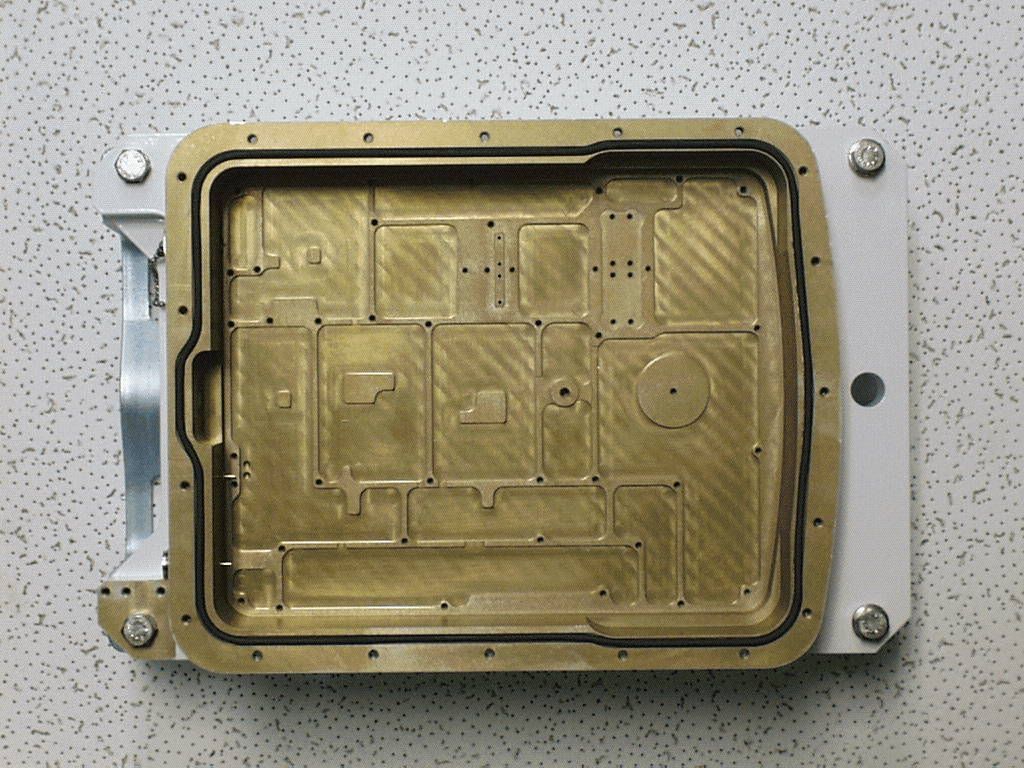

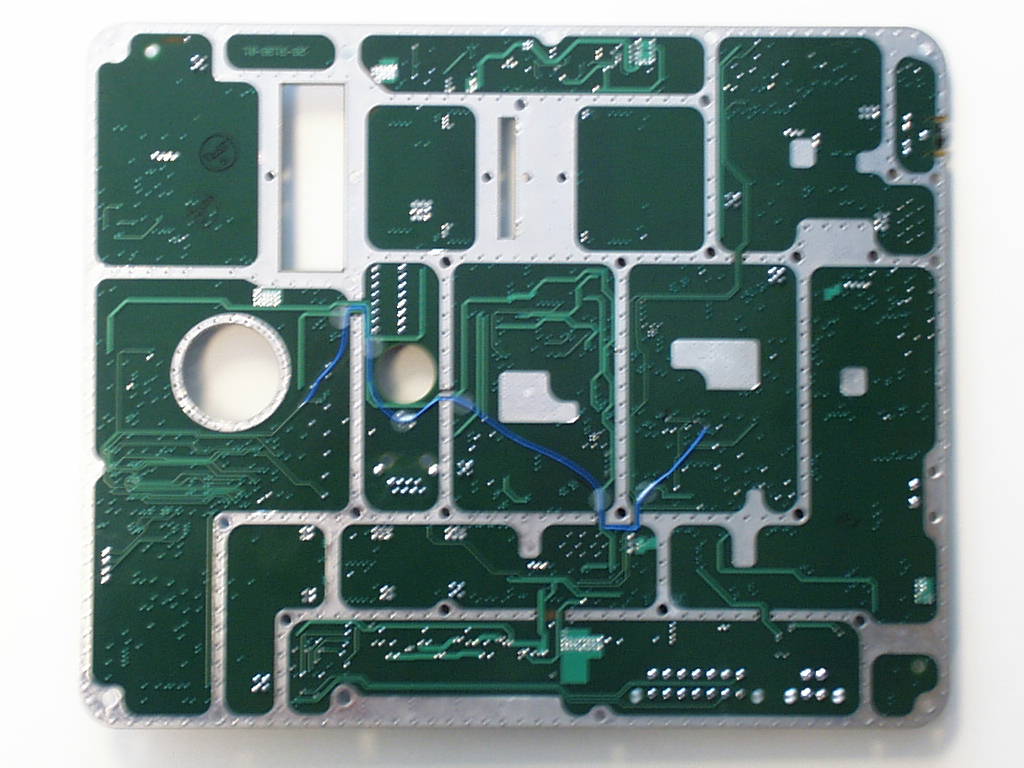

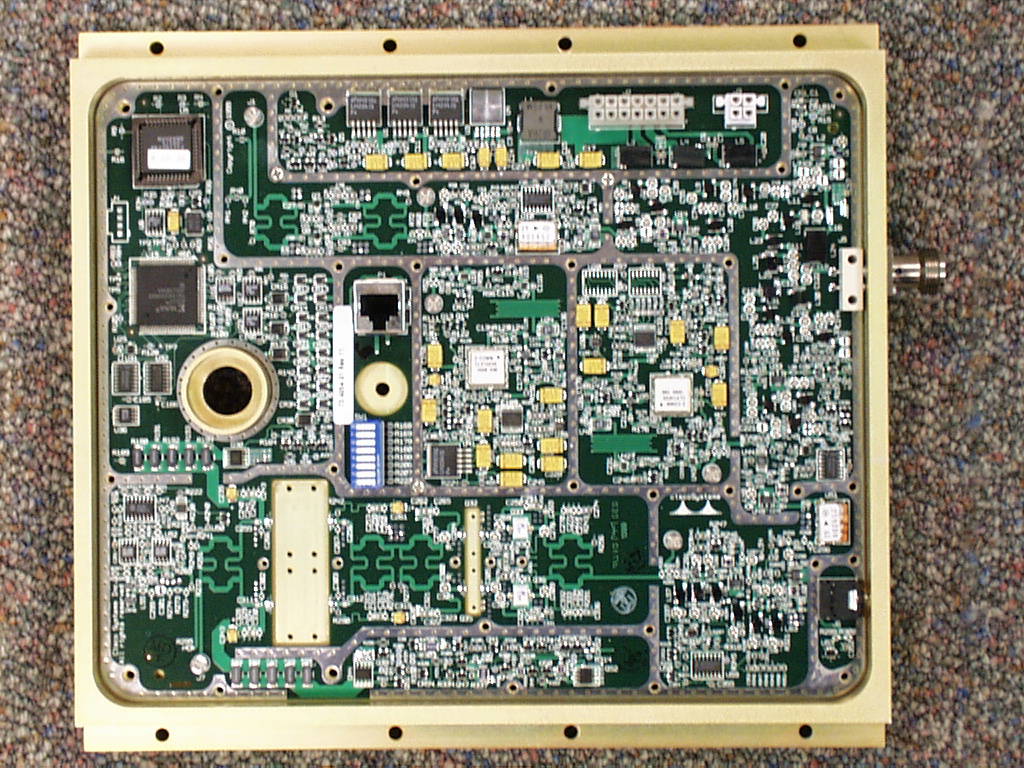

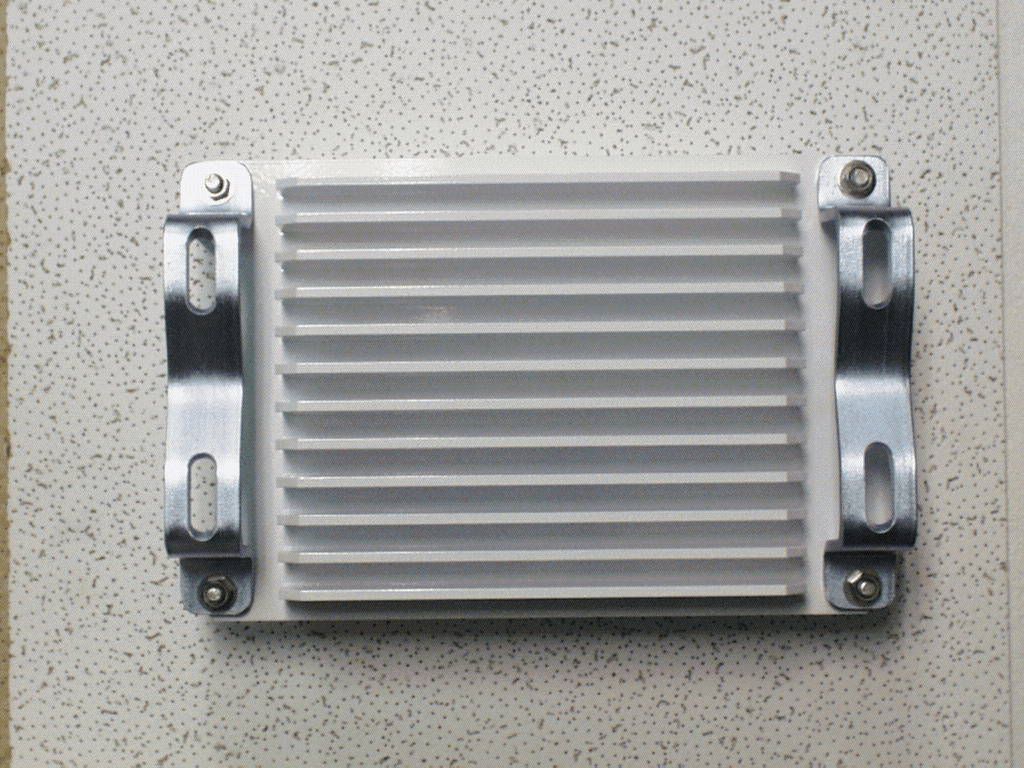

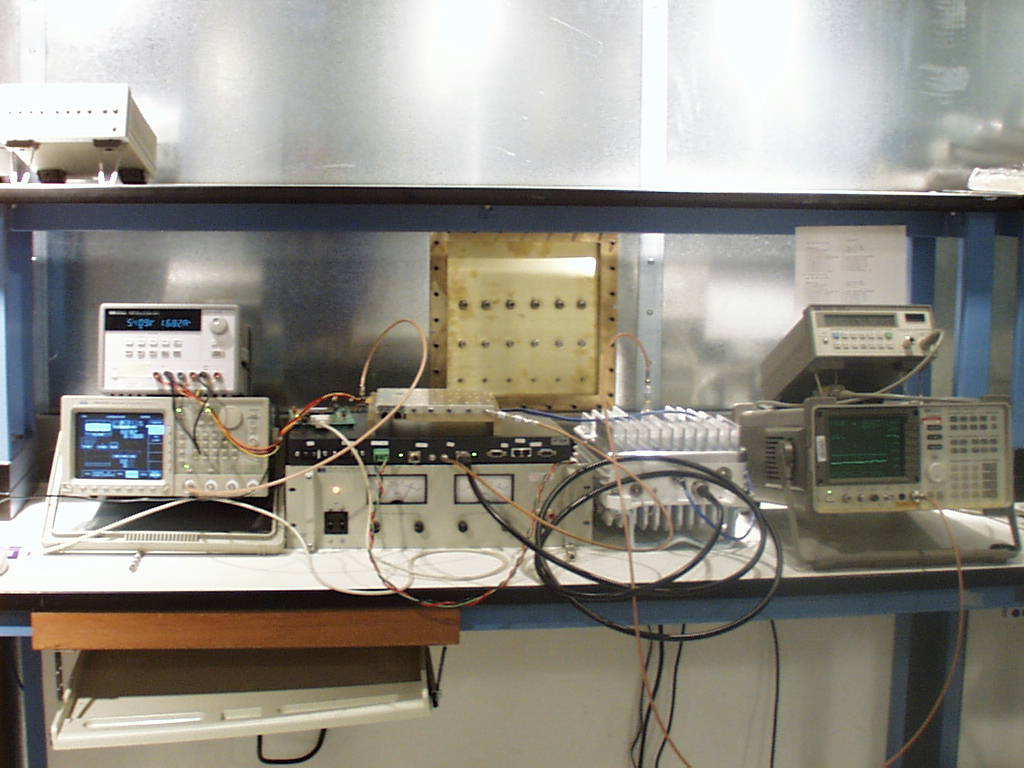

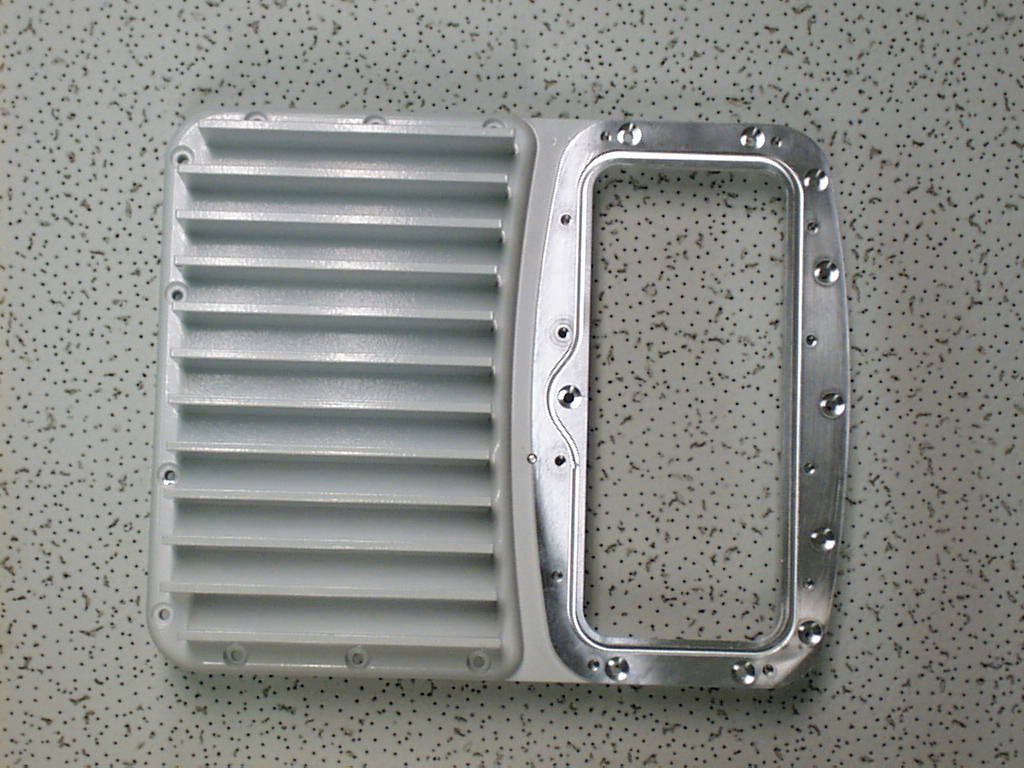

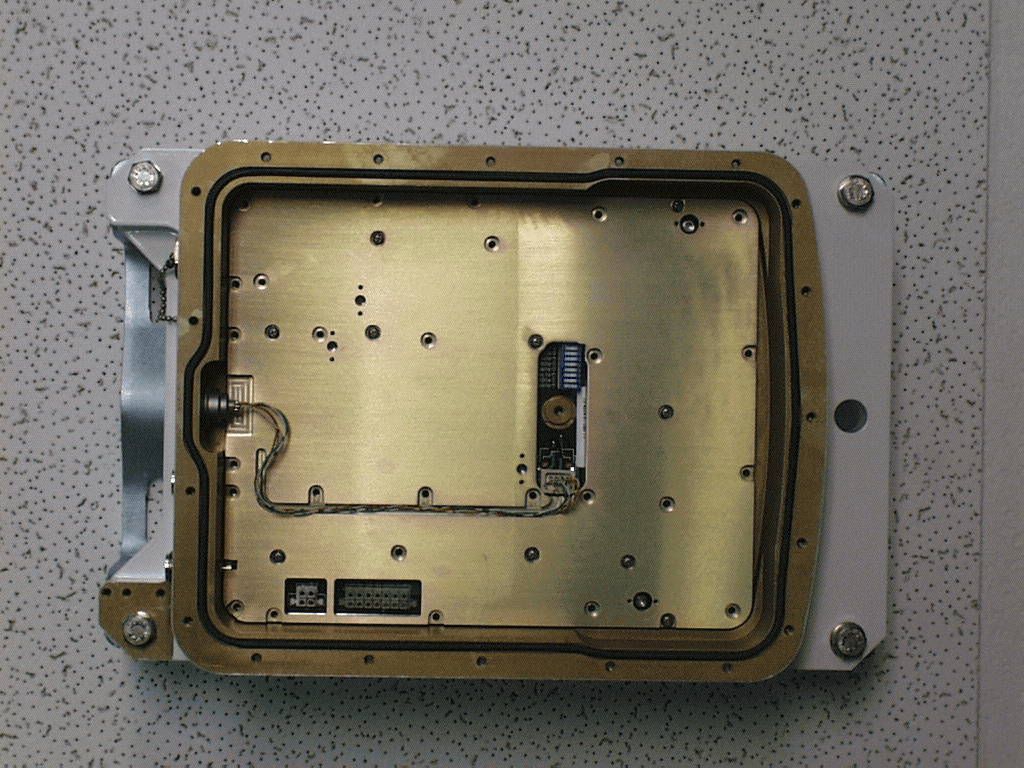

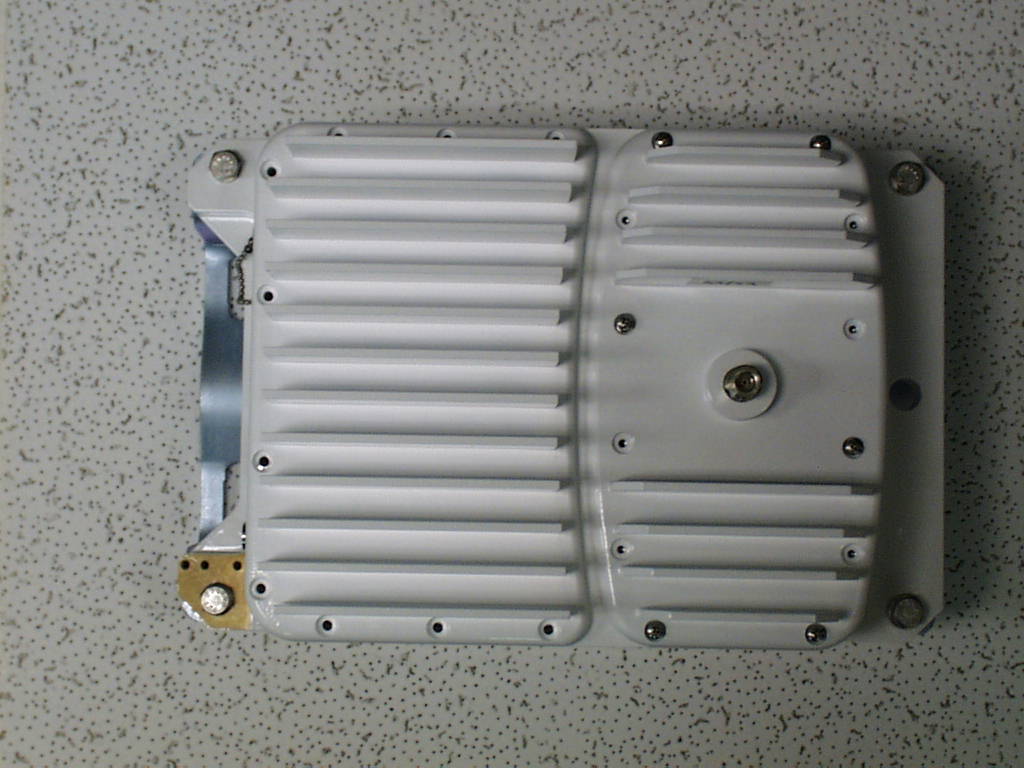

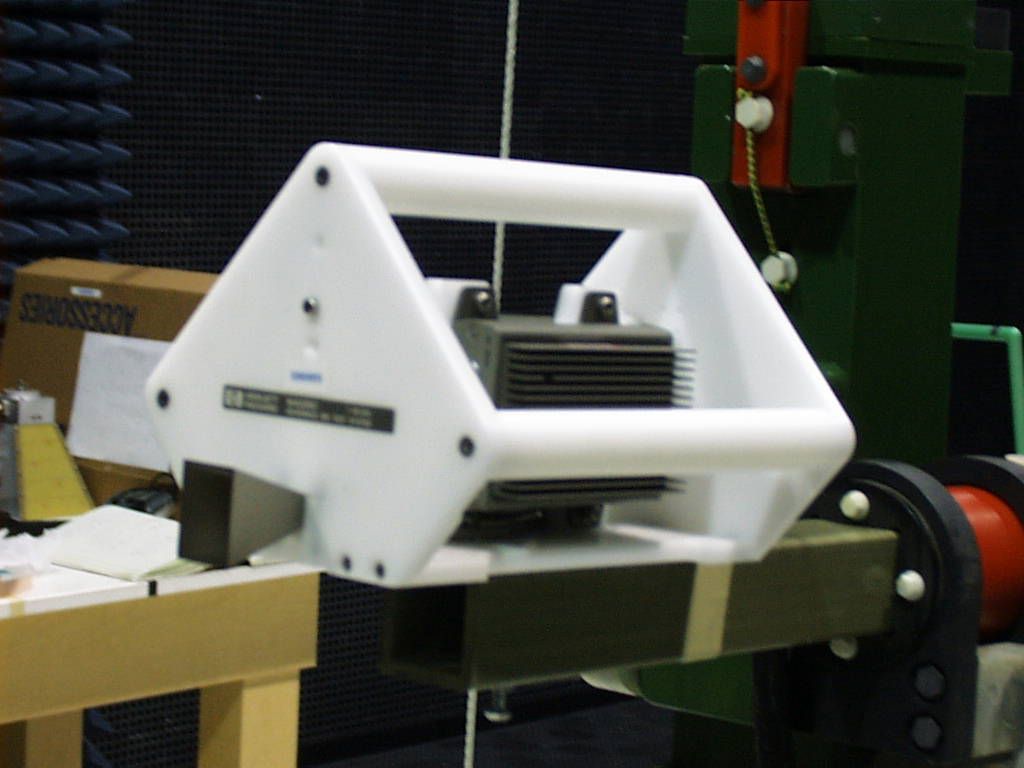

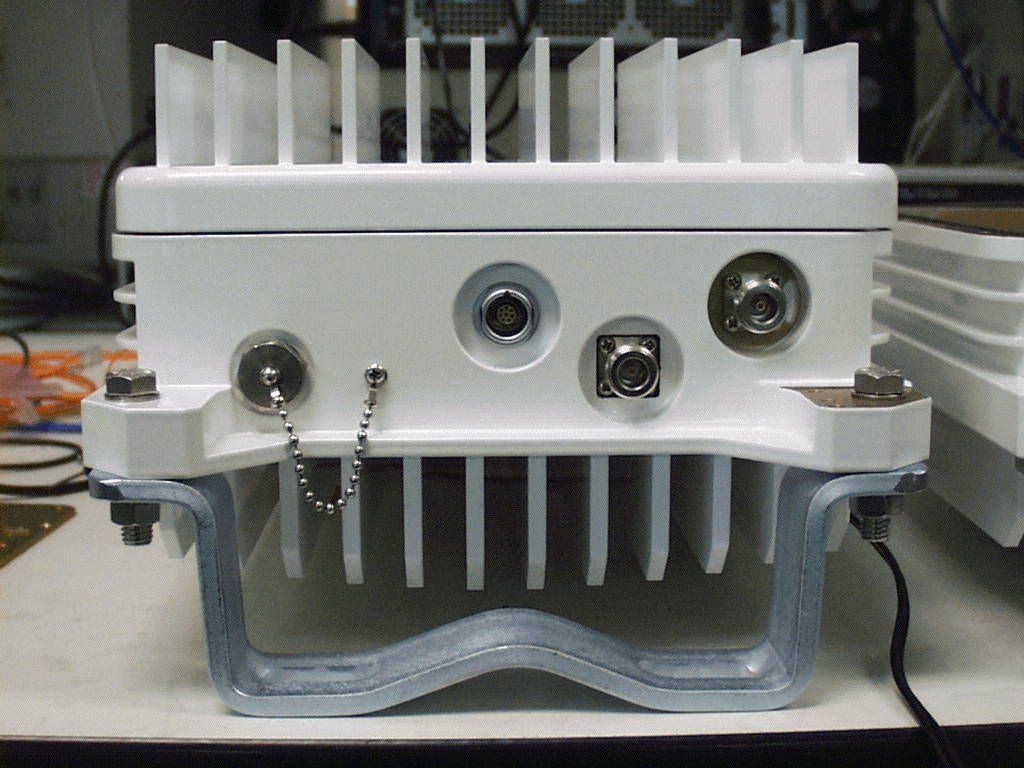

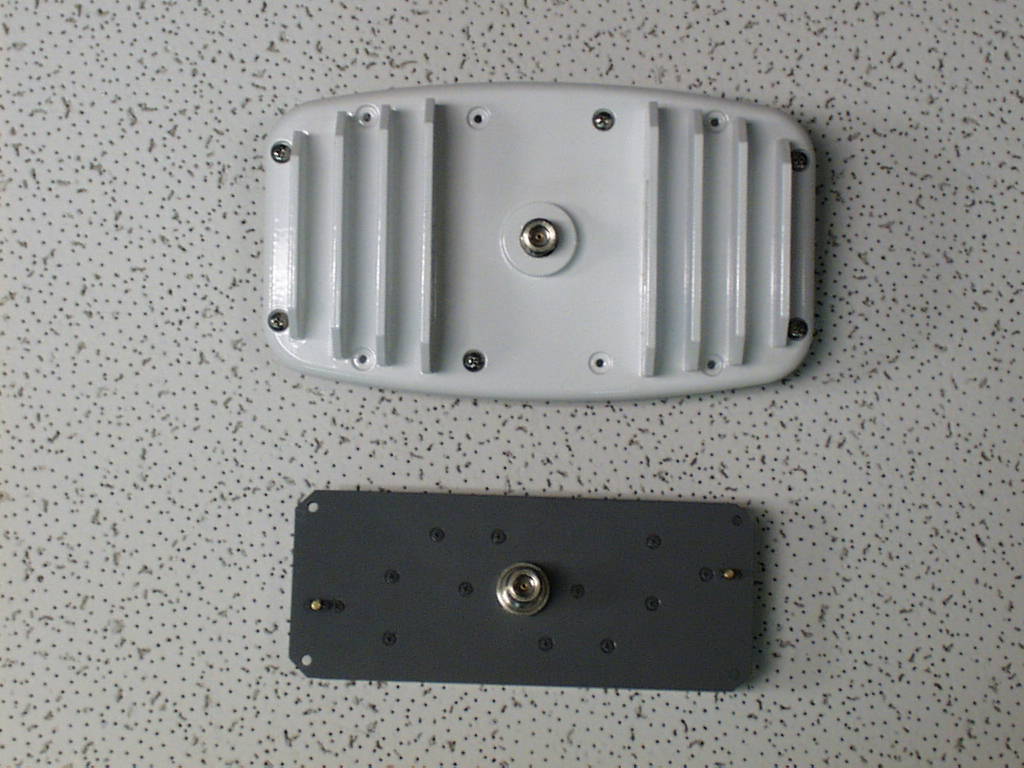

Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 8 EXHIBIT 3:Information for which Confidentiality is Requested Schematics Block Diagrams (p. 46, P2P Architecture) Theory of Operations (P2P Architecture) Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 9 EXHIBIT 4: Product Photographs Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 10 EXHIBIT 5:Bill of Materials (BOM) Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 11 EXHIBIT 6:User Manual and FCC ID Label Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 12 EXHIBIT 7: RF Hazard Information Per Sec. 1.1307 For transmitters operating in the 2.5-2.7 GHz frequency range, paragraph 1.1310 limits maximum permissible exposure (MPE) to 1 mW/cm2 for uncontrolled environments, and 5 mW/cm2 for controlled environments. The maximum distance from the antenna at which MPE is met or exceeded is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain, and separation distance in meters: E,V/m = (√(30*P*G))/d Power density, mW/m2 = E 2 /3770 E for MPE 1mW/m2 = 61.4 V/mE for MPE 5 mW/m2 = 136 V/m Cisco does not provide an antenna with their MMDS radio system. The licensee is responsible for placing a label on the antenna providing adequate information regarding hazardous RF exposure ( such as the maximum distance at which MPE is achieved) and including reference to the applicable FCC regulations. Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 13 EXHIBIT 8:Report of Measurements Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 14 FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part 2. 2.1033(c)1Applicant:Cisco Systems Inc. 170 W. Tasman Drive San Jose. CA 95134 2.1033(c)2FCC ID: LDK-OFDM-MMDSU 2.1033(c)3 Installation instructions are found in attached document. 2.1033(c)4 Emission type is OFDM in 6MHz or 12 MHz channel configuration 6M0D1D and 12M0D1D 2.1033(c)5 Frequency range: 2500-2700 MHz 2.1033(c)6 Range of Operating Power 0 – 30 dBm, TX attenuation settings via software 2.1033(c)7 Maximum Power Rating Maximum allowed per 21.904: 33 dBw Maximum rated output power of EUT: 30 dBm into customer-supplied antenna with gain less than 33 dBi 2.1033(c)8 Applied voltages and currents into the final transistor elements Refer to electronic format (PDF) schematics accompanying this application 2.1033(c)9 Tune-up procedure Refer to electronic format file installation.pdf for hardware configuration instructions. RF channel selection and RF power output of the “Blaze” outdoor unit are selected via control and set-up PC software via GUI. 2.1033(c)10 Circuit and Functional Block Diagram, Description of Circuitry Complete product schematics (17 total) are attached as electronic (PDF) files. Circuit description and theory of operation are found in the attached electronic file named P2P-Architecture.doc. 2.1033(c)11 FCC ID Label Attached as JPEG electronic file 2.1033(c)12 Product Photographs Attached as JPEG electronic files Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 15 2.1033(c)13 Description of Modulation System Refer to appropriate chapters in attached electronic file P2P-Architecture.doc 2.1033(c)14 Test Data per 2.1046 – 2.1057 2.1055 RF Output Power Measurements Measurement equipment used: HP 437B Power meter HP 8381A power sensor Test set-up: “Flint” DC supply 20 dB attn Arbitrary waveform gen. “Blaze” HP8481A HP 437B “Flint” Test Procedures 1.Set the “Flint” channel bandwidth parameters and output level to desired values. Output level is chosen to maximize RF output level from “Blaze” while keeping spectral re-growth and spurious emissions from “Blaze” at acceptably low levels. 2.Set “Blaze” output power and channel bandwidth parameters as required. 3.Zero HP 437/HP8481A and enter HP8481A cal factors. 4.Connect HP8481A to 20 dB attenuator and record value. Test Results F(MHz)Pout, 6 MHz Ch. BW Pout, 12 MHz Ch BW 2506(20)+8.54 = 28.54 dBm (20)+6.5 = 26.5 dBm 40 VDC Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 16 Section 2.1047 Modulation Characteristics Measurement equipment used: HP 8565E spectrum analyzer Cisco Special Test Fixture Test set-up: “Flint” DC supply 20 dB attn Arbitrary waveform gen. “Blaze” HP 8565E “Flint” Special Test Fixture Test Procedures 1.The output of the “Blaze” unit is first coupled to the input of the Special Test Fixture. This test equipment is described in a document entitled Special Test Fixture. This equipment extends the measurement system dynamic range to meet the attenuation requirements of paragraph 21.908(e): At more than 3 MHz removed from channel edge: 60 dB down from flat top, measured with 100 kHz bandwidth 40 VDC Cisco Systems Inc.FCC ID: LDKOFDMMMDS2 17 The dynamic range of commercially available spectrum analyzers is limited to 50-55 dB. 2.Set transmitter output power and channel bandwidth parameters as required to meet the 60 dB attenuation requirement. 3.Record the output power level settings. This is the maximum permitted operating power level for each channel. 4.Connect the transmitter to the spectrum analyzer. Use the Digital Radio Personality utility to compare the transmitter output to a peak power relative mask. 5.Plot/photograph resultant spectrum analyzer trace. Test Results PASS. The Special Test Fixture yielded the following results: TX Output Frequency: 2506 MHz Channel BW/ Output power Reading, fcReading, fLReading, fHATTN, fLATTN, fH 6 MHz/ 28.54 dBm -12.7 dBm-73.7 dBm-73.0 dBm61 dB60.3 dB 12 MHz/ 26.5 dBm -13.4 dBm-73.7 dBm-73.7 dBm60.3 dB60.3 dB Refer to spectrum analyzer graphs in Exhibit 9. Section 2.1049 Occupied Bandwidth Measurement Equipment Used: HP 856EE Spectrum Analyzer Test Set-up - Same as for 2.1047 above, but without the Special Test Fixture Test Procedures and Results: Using MKR DELTA function of the analyzer: -26 dB Occupied Bandwidth: 6 MHz and 12 MHz Section 2.1051 Spurious and Harmonic Emissions at Antenna Terminals Measurement Equipment Used: HP 856EE Spectrum Analyzer Test Set-up Cisco Systems Inc.FCC …

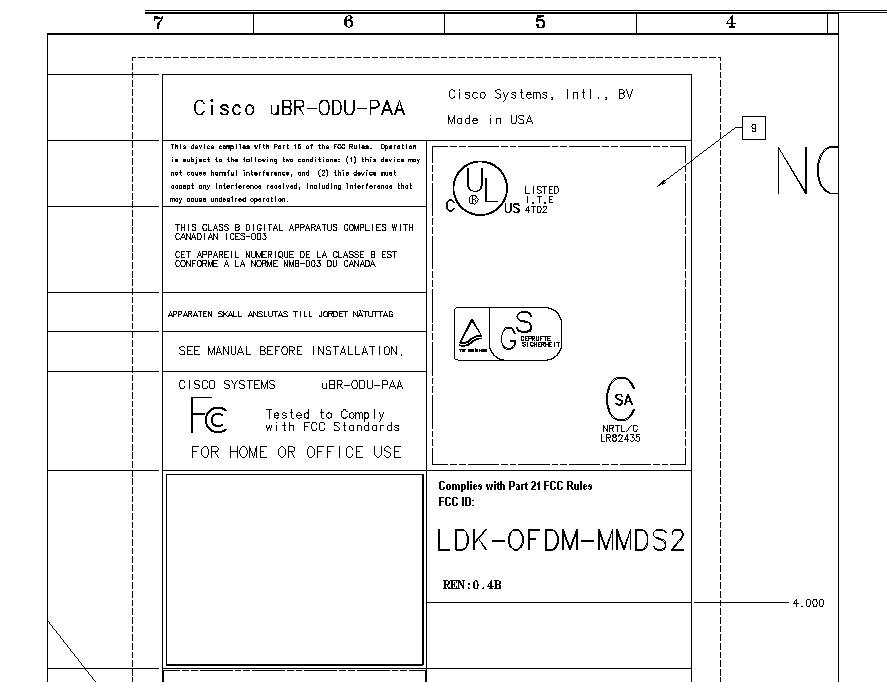

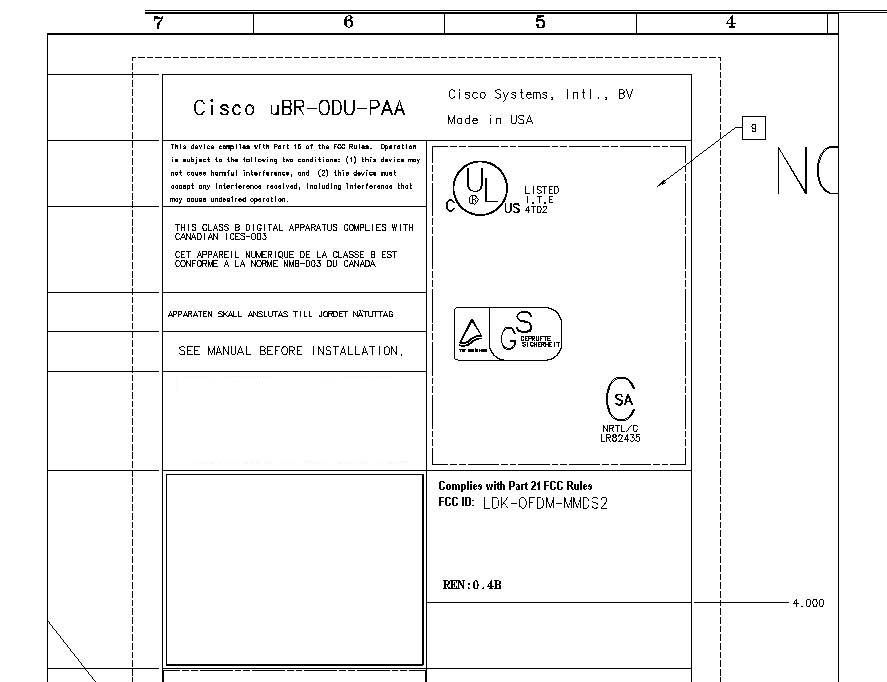

Text truncated - open the document above for the full version.
