LDK-SMST9105AXWCatalyst 9105AX 802.11ax Access Point

Cisco Systems Inc
Catalyst 9105AX 802.11ax Access Point - FCC ID LDK-SMST9105AXW - Cisco Systems Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 10, 2020
Application Purpose
Original Equipment
Date of Application
Jun 02, 2020
Equipment Note
Catalyst 9105AX 802.11ax Access Point
Frequency Range
2405.00000000 - 2480.00000000
Company
Cisco Systems Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

Internal Photos

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗
↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

JP Statement: 5GHz band (W52, W53): Indoor use only (except communicate to high power radio) IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

Cover Letter(s)

Cisco Systems, Inc. 125 West Tasman Drive, San Jose, California, United States, 95134-1706 Confidential Letter Date: 2020/5/12 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID : LDK-SMST9105AXW To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ●Internal Photos ●Test Setup photos ●Users Manuals Sincerely, Applicant’s company name:Cisco Systems, Inc. Applicant’s company address:125 West Tasman Drive, San Jose, California, United States, 95134-1706 Signature: Name and Job Title:Haiwen Lu / Compliance Manager E-Mail:[email protected] Tel:(8621) 2405 7511 Fax:408 526 4110

Cover Letter(s)

EDCS-1216337 11/19/19 Subject : Authorized signatures The following people are authorized by Cisco Systems to sign documents for FCC product approval under FCC Grantee code LDK, and ISED product approval under ISED registration 2461N on behalf of the company. Further this right is extended to any regular Cisco employee as deemed necessary. David A, Case Louie Castro Howard Ji Jose Aguirre Emily Jaser Andy Griffin Mark King Allan Beecroft Steve Granzella Adam Walb Rekha Simha Guangmin Ouyang Marie Higa Rochelle Jacobsen Jialei Xue Lillian Yao Haiwen Lu Regards Gerard Thorpe Cisco Systems

Cover Letter(s)

Cisco Systems, Inc. 125 West Tasman Drive, San Jose, California, United States, 95134-1706 Power of Attorney Date: 2020/5/12 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address:No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name:Leo Huang Job Title:Manager e-mail:[email protected] I am therefore responsible for the contents of the application. FCC ID: LDK-SMST9105AXW Sincerely, Applicant’s company name:Cisco Systems, Inc. Applicant’s company address:125 West Tasman Drive, San Jose, California, United States, 95134-1706 Signature: Name and Job Title:Haiwen Lu / Compliance Manager E-Mail:[email protected] Tel:(8621) 2405 7511 Fax:408 526 4110

Cover Letter(s)

Cisco Systems, Inc. 125 West Tasman Drive, San Jose, California, United States, 95134-1706 TPC Declaration Letter Date: 2020/5/12 FCC ID:LDK-SMST9105AXW To Whom It May Concern: We, Cisco Systems, Inc., declare that the device supports the TPC function in final F/W when EUT is sold to FCC market. Regards, Sincerely yours, Applicant’s company name:Cisco Systems, Inc. Applicant’s company address:125 West Tasman Drive, San Jose, California, United States, 95134-1706 Signature: Name and Job Title:Haiwen Lu / Compliance Manager E-Mail:[email protected] Tel:(8621) 2405 7511 Fax:408 526 4110

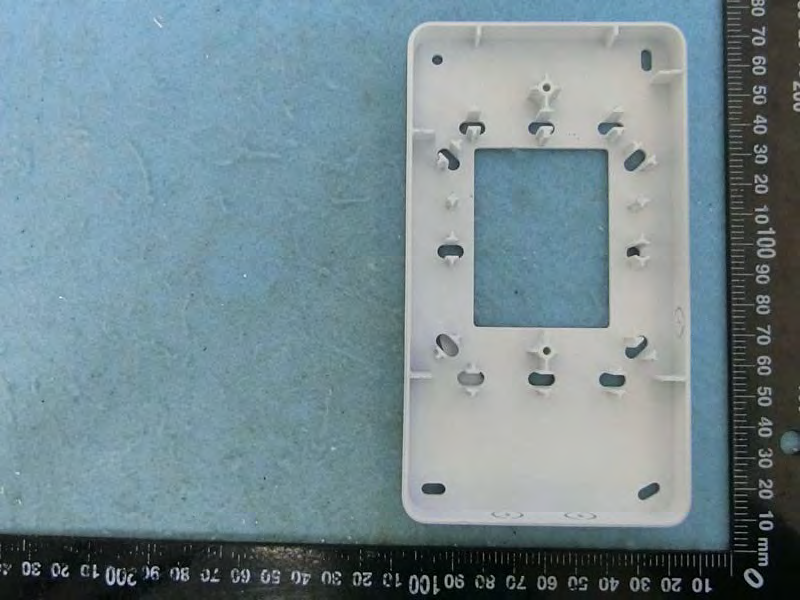

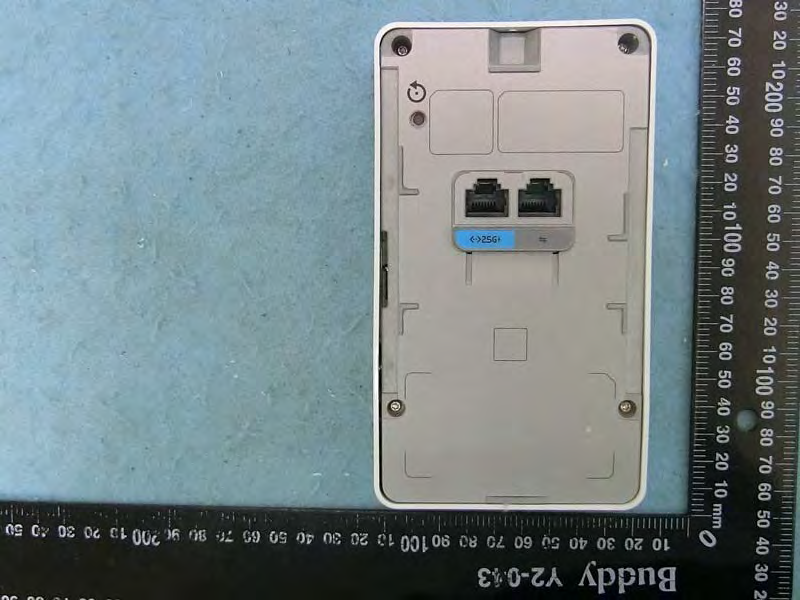

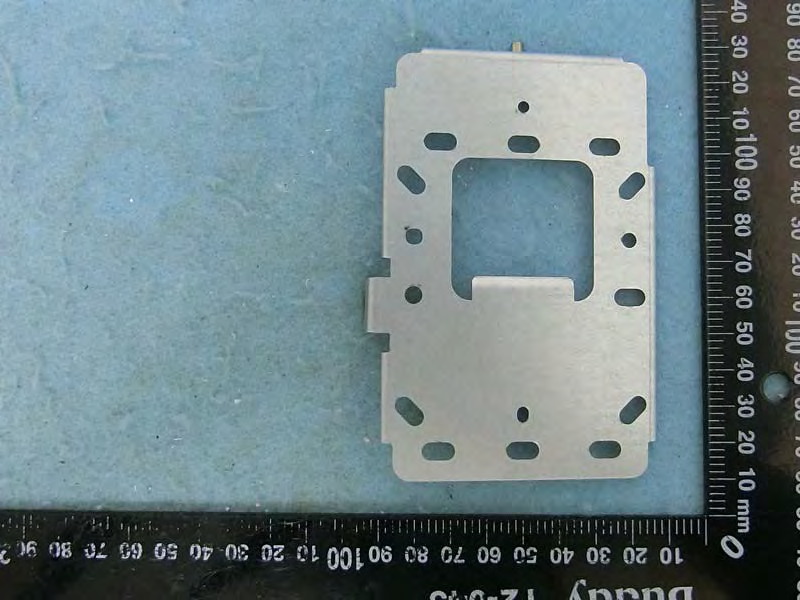

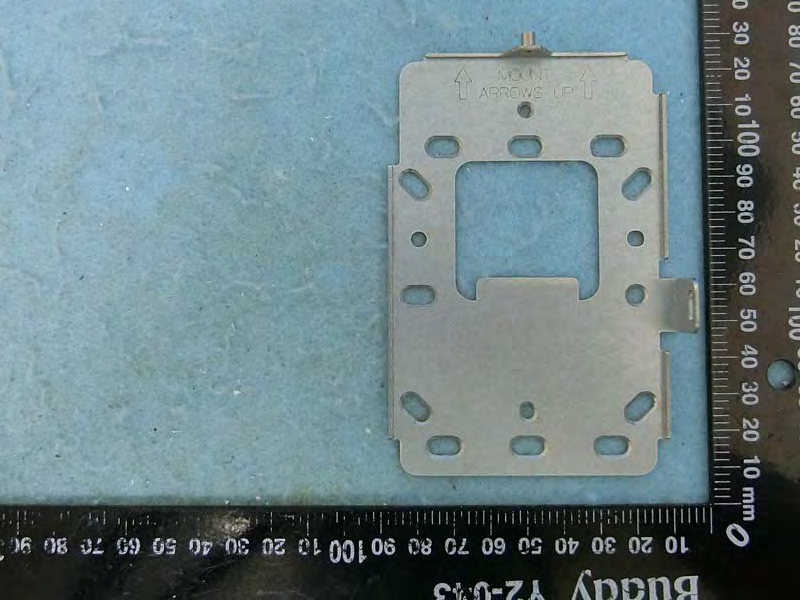

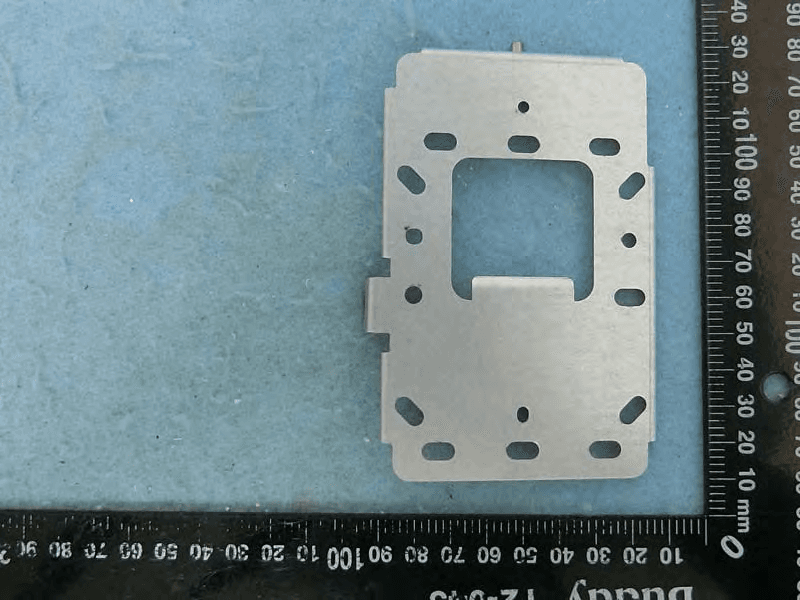

External Photos

PHOTOGRAPHS OF EUT Report No. : EP992017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 6 TEL : 886-3-656-9065 Issued Date : May 29, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: Cisco Model Name: C9105AXW-B, C9105AXW-C, C9105AXW-D, C9105AXW-F, C9105AXW-N, C9105AXW-S, C9105AXW-K, C9105AXW-x (The detail information refer to test report) PHOTOGRAPHS OF EUT Report No. : EP992017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 6 TEL : 886-3-656-9065 Issued Date : May 29, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP992017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 6 TEL : 886-3-656-9065 Issued Date : May 29, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP992017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 6 TEL : 886-3-656-9065 Issued Date : May 29, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Mounting bracket PHOTOGRAPHS OF EUT Report No. : EP992017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 6 TEL : 886-3-656-9065 Issued Date : May 29, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Jumper Cable (Optional) PHOTOGRAPHS OF EUT Report No. : EP992017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 6 of 6 TEL : 886-3-656-9065 Issued Date : May 29, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Spacer box (Optional)

RF Exposure Info

FCC RADIO EXPOSURE TEST REPORT Report No. : FA992017-02 TEL : 886-3-656-9065 Page Number : 2 of 8 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Table for Multiple Listing ........................................................................................................................ 5 1.3 Testing Location ..................................................................................................................................... 6 2 Maximum Permissible Exposure ........................................................................................................ 7 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 7 2.2 MPE Calculation Method ........................................................................................................................ 7 2.3 Calculated Result and Limit .................................................................................................................... 8 Photographs of EUT v01 FCC RADIO EXPOSURE TEST REPORT Report No. : FA992017-02 TEL : 886-3-656-9065 Page Number : 3 of 8 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 History of this test report Report No. Version Description Issued Date FA992017-02 01 Initial issue of report May 29, 2020 FCC RADIO EXPOSURE TEST REPORT Report No. : FA992017-02 TEL : 886-3-656-9065 Page Number : 4 of 8 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PA SS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Sandy Chuang FCC RADIO EXPOSURE TEST REPORT Report No. : FA992017-02 TEL : 886-3-656-9065 Page Number : 5 of 8 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5240 5260-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) Bluetooth 2400-2483.5 2402-2480 GFSK Zigbee 2400-2483.5 2405-2480 O-QPSK 1.2 Table for Multiple Listing The model names in the following table are all refer to the identical product. Model Name Description C9105AXW-B All the models are identical, the difference model for difference marketing strategy. C9105AXW-C C9105AXW-D C9105AXW-F C9105AXW-N C9105AXW-S C9105AXW-K C9105AXW-x (x can be A-Z, regional country code) From the above models, model: C9105AXW-B was selected as representative model for the test and its data was recorded in this report. FCC RADIO EXPOSURE TEST REPORT Report No. : FA992017-02 TEL : 886-3-656-9065 Page Number : 6 of 8 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1.3 Testing Location Testing Location HW A YA ADD : No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Test site registered number IC 4086D with Industry Canada. FCC RADIO EXPOSURE TEST REPORT Report No. : FA992017-02 TEL : 886-3-656-9065 Page Number : 7 of 8 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Method The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: E (V/m) = d GP××30 Power Density: Pd…

Text truncated - open the document above for the full version.

Test Report

FCC RADIO TEST REPORT Report No. : FR992017-02AA TEL : 886-3-656-9065 Page Number : 2 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_10 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 9 1.3 Testing Location Information .................................................................................................................. 9 1.4 Measurement Uncertainty ...................................................................................................................... 9 2 Test Configuration of EUT ................................................................................................................. 10 2.1 Test Channel Mode .............................................................................................................................. 10 2.2 The Worst Case Measurement Configuration ...................................................................................... 11 2.3 EUT Operation during Test .................................................................................................................. 12 2.4 Accessories .......................................................................................................................................... 12 2.5 Support Equipment ............................................................................................................................... 13 2.6 Test Setup Diagram ............................................................................................................................. 14 3 Transmitter Test Result ..................................................................................................................... 16 3.1 AC Power-line Conducted Emissions .................................................................................................. 16 3.2 DTS Bandwidth..................................................................................................................................... 18 3.3 Maximum Conducted Output Power .................................................................................................... 19 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 24 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 25 4 Test Equipment and Calibration Data .............................................................................................. 30 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of DTS Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Power Spectral Density Appendix E. Test Results of Emissions in Non-restricted Frequency Bands Appendix F. Test Results of Emissions in Restricted Frequency Bands Appendix G. Test Results of Radiated Emission Co-location Appendix H. Test Photos Photographs of EUT v01 FCC RADIO TEST REPORT Report No. : FR992017-02AA TEL : 886-3-656-9065 Page Number : 3 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_10 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FR992017-02AA 01 Initial issue of report May 29, 2020 FCC RADIO TEST REPORT Report No. : FR992017-02AA TEL : 886-3-656-9065 Page Number : 4 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_10 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PA SS - 3.1 15.207 AC Power-line Conducted Emissions PA SS - 3.2 15.247(a) DTS Bandwidth PA SS - 3.3 15.247(b) Maximum Conducted Output Power PA SS - 3.4 15.247(e) Power Spectral Density PA SS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PA SS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PA SS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: 1. The test configuration, test mode and test software were written in this test report are declared by the manufacturer. 2. The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Sandy Chuang FCC RADIO TEST REPORT Report No. : FR992017-02AA TEL : 886-3-656-9065 Page Number : 5 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_10 Ver1.1 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Frequency (MHz) Channel Number 2400-2483.5 b, g, n (HT20), ax (HEW20) 2412-2462 1-11 [11 ] Band Mode BWch (MHz) Nant 2.4-2.4835GHz 802.11b 20 1TX, 2TX 2.4-2.4835GHz 802.11g 20 1TX, 2TX 2.4-2.4835GHz …

Text truncated - open the document above for the full version.

Test Report

FCC RADIO TEST REPORT Report No. : FR992017-02AD TEL : 886-3-656-9065 Page Number : 2 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_6 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 9 1.3 Testing Location Information .................................................................................................................. 9 1.4 Measurement Uncertainty ...................................................................................................................... 9 2 Test Configuration of EUT ................................................................................................................. 10 2.1 Test Channel Mode .............................................................................................................................. 10 2.2 The Worst Case Measurement Configuration ...................................................................................... 11 2.3 EUT Operation during Test .................................................................................................................. 12 2.4 Accessories .......................................................................................................................................... 12 2.5 Support Equipment ............................................................................................................................... 13 2.6 Test Setup Diagram ............................................................................................................................. 14 3 Transmitter Test Result ..................................................................................................................... 16 3.1 AC Power-line Conducted Emissions .................................................................................................. 16 3.2 DTS Bandwidth..................................................................................................................................... 18 3.3 Maximum Conducted Output Power .................................................................................................... 19 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 24 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 25 4 Test Equipment and Calibration Data .............................................................................................. 30 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of DTS Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Power Spectral Density Appendix E. Test Results of Emissions in Non-restricted Frequency Bands Appendix F. Test Results of Emissions in Restricted Frequency Bands Appendix G. Test Photos Photographs of EUT v01 FCC RADIO TEST REPORT Report No. : FR992017-02AD TEL : 886-3-656-9065 Page Number : 3 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_6 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FR992017-02AD 01 Initial issue of report May 29, 2020 FCC RADIO TEST REPORT Report No. : FR992017-02AD TEL : 886-3-656-9065 Page Number : 4 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_6 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PA SS - 3.1 15.207 AC Power-line Conducted Emissions PA SS - 3.2 15.247(a) DTS Bandwidth PA SS - 3.3 15.247(b) Maximum Conducted Output Power PA SS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PA SS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PA SS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: 1. The test configuration, test mode and test software were written in this test report are declared by the manufacturer. 2. The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Sandy Chuang FCC RADIO TEST REPORT Report No. : FR992017-02AD TEL : 886-3-656-9065 Page Number : 5 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_6 Ver1.1 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MHz) Channel Number 2400-2483.5 LE 2402-2480 0-39 [40] Band Mode BWch (MHz) Nant 2.4-2.4835GHz BT-LE(1Mbps) 1 1TX 2.4-2.4835GHz BT-LE(500Kb/s) 1 1TX 2.4-2.4835GHz BT-LE(125Kb/s) 1 1TX 2.4-2.4835GHz BT-LE(2Mbps) 2 1TX Note:  Bluetooth LE uses a GFSK mod…

Text truncated - open the document above for the full version.

Test Report

FCC RADIO TEST REPORT Report No. : FR992017-02AE TEL : 886-3-656-9065 Page Number : 2 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_9 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 9 1.3 Testing Location Information .................................................................................................................. 9 1.4 Measurement Uncertainty ...................................................................................................................... 9 2 Test Configuration of EUT ................................................................................................................. 10 2.1 Test Channel Mode .............................................................................................................................. 10 2.2 The Worst Case Measurement Configuration ...................................................................................... 11 2.3 EUT Operation during Test .................................................................................................................. 12 2.4 Accessories .......................................................................................................................................... 12 2.5 Support Equipment ............................................................................................................................... 13 2.6 Test Setup Diagram ............................................................................................................................. 14 3 Transmitter Test Result ..................................................................................................................... 16 3.1 AC Power-line Conducted Emissions .................................................................................................. 16 3.2 DTS Bandwidth..................................................................................................................................... 18 3.3 Maximum Conducted Output Power .................................................................................................... 19 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 24 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 25 4 Test Equipment and Calibration Data .............................................................................................. 30 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of DTS Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Power Spectral Density Appendix E. Test Results of Emissions in Non-restricted Frequency Bands Appendix F. Test Results of Emissions in Restricted Frequency Bands Appendix G. Test Photos Photographs of EUT v01 FCC RADIO TEST REPORT Report No. : FR992017-02AE TEL : 886-3-656-9065 Page Number : 3 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_9 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FR992017-02AE 01 Initial issue of report May 29, 2020 FCC RADIO TEST REPORT Report No. : FR992017-02AE TEL : 886-3-656-9065 Page Number : 4 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_9 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PA SS - 3.1 15.207 AC Power-line Conducted Emissions PA SS - 3.2 15.247(a) DTS Bandwidth PA SS - 3.3 15.247(b) Maximum Conducted Output Power PA SS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PA SS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PA SS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: 1. The test configuration, test mode and test software were written in this test report are declared by the manufacturer. 2. The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Sandy Chuang FCC RADIO TEST REPORT Report No. : FR992017-02AE TEL : 886-3-656-9065 Page Number : 5 of 31 FAX : 886-3-656-9085 Issued Date : May 29, 2020 Report Template No.: CB-A10_9 Ver1.1 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) IEEE Std. Ch. Frequency (MHz) Channel Number 2400-2483.5 802.15.4 2405-2480 11-26 [16] Band Mode BWch (MHz) Nant 2.4-2.4835GHz Zigbee 5 1TX Note:  Zigbee uses a O-QPSK (250kbps) modulation.  BWch is the nominal channel bandwidth.  Nss-…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Samuel Kim(Manager, Engineering)
[email protected]408-527-1446Fax: 408-527-1446

Test Firm

SPORTON International Inc.Sharon Jiang
[email protected]886-3-656-9065Fax: 886-3-656-9085

Technical Specifications

#Rule PartsFrequency RangePower Output
315C2.40 GHz - 2.48 GHz3.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons, and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. This device has 20 MHz bandwidth modes.
