LDK-SPA232DMOBILITY ENHANCED ATA

Quick Start Guide Cisco SPA232D Mobility Enhanced ATA Package Contents •Analog Telephone Adapter •Ethernet Cable •Phone Cable •Power Adapter •Quick Start Guide •Product CD-ROM Version française sur page 17 pour 32 Deutsche Version auf CD Versione in italiano su CD Versión espagñola en CD Versão em português em CD 2Cisco SPA232D Quick Start Guide Welcome Thank you for choosing a Cisco SPA232D Mobility Enhanced ATA. This guide describes how to physically install the equipment and how to get started configuring the ATA. This guide also explains how to register a Cisco SPA302D Mobility Enhanced Cordless Handset with the Cisco SPA232D, which has an integrated DECT Base Station. Cisco SPA302D handsets registered to the Cisco SPA232D can make and receive calls through a Voice over IP (VoIP) service provider and through the local telephone system (via the LINE port). Only Cisco SPA302D handsets are supported with the Cisco SPA232D. Before You Begin Before you begin the installation, make sure that you have the following equipment and services: •An active Internet account and Voice over IP account •Ethernet cable to connect to your broadband network device •Phone to connect to your ATA •Phone cable to connect your phone •Optional: Uninterruptible Power Supply (UPS) to provide backup power •Optional: Cisco SPA302D Mobility Enhanced Cordless Handsets 1 Cisco SPA232D Quick Start Guide3 Product Features Top Panel Back Panel FeatureDescription Page/ Registration Steady green—One or more handsets is registered. Fast flashing green—The base is in registration mode. To activate registration mode, press the button for at least 7 seconds. Slow flashing green—The base is in paging mode or a handset is off hook. To activate paging mode to locate a handset, press the button for a few seconds; handsets ring. Off—No handset is registered to the base. LINE Steady green—The line is off hook and connected to the local telephone system. Slow flashing green—The line is off hook. Off—Th e p or t is n o t rea d y. PHONE Steady green—The device is on hook and registered to a SIP proxy. Slow flashing green—The device is off hook. Off—Th e p or t is n o t rea d y. INTERNET Flashing green—Transmitting or receiving data through the WAN port. Off—No link. SYSTEM Steady green—The system is ready. Slow flashing green—Acquiring an IP address, if applicable. (DHCP is used by default.) Fast flashing green—Upgrading the firmware. Off—There is no power or the system cannot boot up. FeatureDescription RESETPerforms two functions: Restart the ATA: Press quickly (less than a second) with a paperclip or similar object. Restore the factory default settings: Press and hold for 10 seconds. LINE (Green)Connects to an analog phone line, using an RJ-11 phone cable. 2 4Cisco SPA232D Quick Start Guide Default Settings PHONE (Gray)Connects to an analog phone, using an RJ-11 phone cable. ETHERNET (Yellow) Connects to a device on your local area network (LAN), such as a computer by using an Ethernet cable. INTERNET (Blue)Connects to a broadband network device (DSL or cable modem) or a network router by using an Ethernet cable. POWERConnects to a power by using the provided adapter. ParameterDefault Value Administrator Usernameadmin Administrator Passwordadmin User Usernamecisco User Passwordcisco Internet Connection TypeAutomatic Configuration - DHCP LAN IP Address (Also the address for the web- based configuration utility.) 192.168.15.1 DHCP Range (DHCP server enabled by default.) 192.168.15.100-149 Netmask255.255.255.0 PIN for handset registration, IP settings, and SIP settings Blank FeatureDescription Cisco SPA232D Quick Start Guide5 Connecting the Equipment NOTEFor wall-mounting instructions, see Additional Information, page 8. STEP1Connect the provided Ethernet cable to the INTERNET (Blue) port. Connect the other end of the cable directly to your broadband network device. STEP2Connect the provided phone cable to the PHONE 1 (Gray) port. Connect the other end of the cable to your analog phone or fax machine. STEP3Optionally, connect an Ethernet network cable to the ETHERNET (Yellow) port of the ATA. Connect the other end of the cable to a device on your network, such as a computer. STEP4Connect an analog phone line to the LINE (Green) port to connect the ATA to your local telephone system. STEP5Connect the provided power adapter to the POWER port. The unit powers on. 3 239756 WAN 6Cisco SPA232D Quick Start Guide Configuration and Management of the ATA You can use the web-based configuration utility to set up your ATA. You also can use the built-in Interactive Voice Response (IVR) system. (See Using the IVR for Administration, page 8.) STEP1Connect the provided Ethernet network cable to the ETHERNET (Yellow) port of the ATA. Connect the other end of the cable to the Ethernet port of your PC. STEP2Power on your computer. NOTE: Make sure your computer’s Ethernet adapter is set to obtain an IP address automatically (DHCP). For more information, refer to the Help for your operating system. STEP3Start a web browser on your computer. STEP4In the Address bar, enter: 192.168.15.1 Note: 192.168.15.1 is the default local IP address of the ATA. STEP5To log in for the first time, enter the default username, admin, and the default password, admin. The password is case sensitive. NOTE: A user account allows access to limited settings and status pages. To log in as a user, enter cisco as the username and the password. STEP6Use the Quick Setup page as needed to register your VoIP accounts in the fields for Line 1 and DECT Line 1. Your VoIP service may require only a few basic parameters to successfully register the Cisco SPA232D. The Quick Setup page offers a shortcut to enter the basic parameters. For a more comprehensive listing of parameters, choose the Voice menu, and then use the links in the navigation tree. •Enter Proxy: Enter the domain name or URL of the service provider’s proxy server. •Display Name: Enter the name of the business. This name typica…

Text truncated - open the document above for the full version.

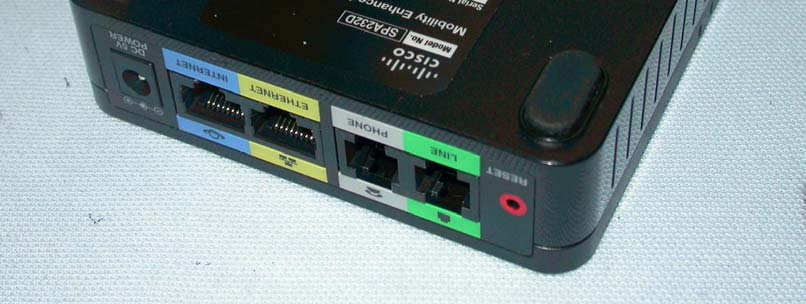

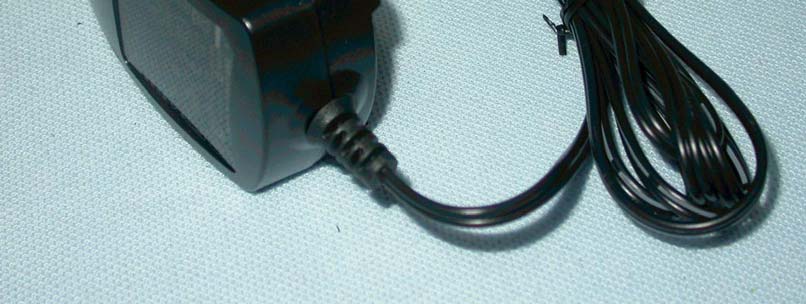

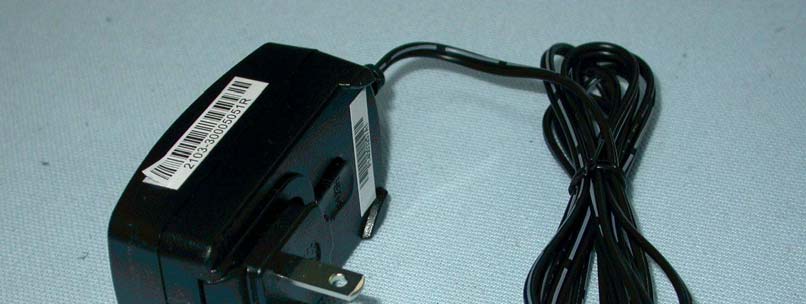

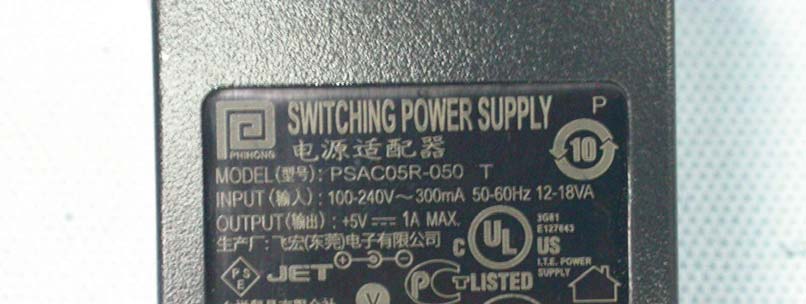

FCC ID: LDK-SPA232D ETC Report No.: 12-01-MAS-118-02 IC ID: 5005A-SPA232D Page A1 of A3 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT FCC ID: LDK-SPA232D ETC Report No.: 12-01-MAS-118-02 IC ID: 5005A-SPA232D Page A2 of A3 3. Outside view 1 of Adapter 4. Outside view 2 of Adapter FCC ID: LDK-SPA232D ETC Report No.: 12-01-MAS-118-02 IC ID: 5005A-SPA232D Page A3 of A3 5. Outside view 3 of Adapter

FCC ID: LDK-SPA232D ETC Report No.: 12-01-MAS-118-02 IC ID: 5005A-SPA232D Page B1 of B3 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: LDK-SPA232D ETC Report No.: 12-01-MAS-118-02 IC ID: 5005A-SPA232D Page B2 of B3 3. Front view of PCB 4. Rear view of PCB FCC ID: LDK-SPA232D ETC Report No.: 12-01-MAS-118-02 IC ID: 5005A-SPA232D Page B3 of B3 5. Module

FCC ID: LDK-SPA232D Sheet 1 of 88 Sheets IC ID: 5005A-SPA232D ETC Report No.: 12-01-MAS-118-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D and Industry Canada RSS-213, Issue 2（4.3.4b） Report No.: 12-01-MAS-118-02 Client: (1) Cisco Systems, Inc. (USA) (2) CyberTAN Technology, Inc (Canada) Product: Mobility Enhanced ATA Model: SPA232D FCC ID: LDK-SPA232D IC ID: 5005A-SPA232D Manufacturer/supplier: CyberTAN Technology, Inc. Date test item received: 2012/01/04 Date test campaign completed: 2012/03/19 Date of issue: 2012/06/28 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 88 pages Total number of pages of photos: External photos 3 pages Internal photos 3 pages Setup photos 2 pages Test Engineer Checked By Approved By John Li Perry Lin James Cheng FCC ID: LDK-SPA232D Sheet 2 of 88 Sheets IC ID: 5005A-SPA232D ETC Report No.: 12-01-MAS-118-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Table of Contents Page 1 GENARAL INFORMATION......................................................................................................... 4 1.1 Testing Laboratory..................................................................................................................... 4 1.2 Client Information....................................................................................................................... 4 1.3 Manufacturer...............................................................................................................................4 2 TEST INFORMATION................................................................................................................... 5 2.1 Description of Tested Device(s)............................................................................................... 5 2.2 Test Environment....................................................................................................................... 5 3 TEST REPORT SUMMARY......................................................................................................... 6 3.1 Test Summary............................................................................................................................ 6 3.2 Other Comments........................................................................................................................ 7 4 TEST SETUP.................................................................................................................................. 8 4.1 Frequency and Timing Measurements................................................................................... 8 4.2 Conducted Emission Tests....................................................................................................... 8 4.3 Radiated Emission Tests.......................................................................................................... 9 4.4 Power line Conducted Tests.................................................................................................... 9 4.5 Monitoring Tests....................................................................................................................... 10 5 TEST EQUIPMENT LIST............................................................................................................ 11 6 TEST RESULT............................................................................................................................. 12 6.1 Coordination with fixed microwave........................................................................................ 12 6.2 Cross Reference...................................................................................................................... 13 6.3 Labeling Requirements........................................................................................................... 15 6.4 Power line Conducted Emissions.......................................................................................... 16 6.5 Antenna Requirement............................................................................................................. 19 6.6 Digital Modulation Techniques............................................................................................... 19 6.7 Peak Transmit Power.............................................................................................................. 20 6.8 Power Spectral Density........................................................................................................... 24 6.9 Antenna Gain............................................................................................................................ 28 6.10 Automatic discontinuation of transmission......................................................................... 28 6.11 Safety exposure levels.......................................................................................................... 29 6.12 Emission Bandwidth B.......................................................................................................... 31 6.13 Monitoring time....................................................................................................................... 35 6.14 Monitoring threshold.............................................................................................................. 36 6.15 Maximum transmit period..................................................................................................... 37 FCC ID: LDK-SPA232D Sheet 3 of 88 Sheets IC ID: 5005A-SPA232D ETC Report No.: 12-01-MAS-118-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiS…
