LDK-SPA302DMOBILITY ENHANCED CORDLESS HANDSET

Quick Start Guide Cisco SPA302D Mobility Enhanced Cordless Handset Versión en Español en el CD Version en français sur CD Versione italiana sul CD Deutsch Version auf CD Versão em português em CD 2Cisco SPA302D Welcome Thank you for choosing the Cisco SPA302D. This guide describes how to physically set up and register your Cisco SPA302D to the Cisco SPA232D ATA. It also describes how to perform some basic tasks, such as placing and answering calls, and configuring basic phone options. Package Contents •Cisco SPA302D Mobility Enhanced Cordless Handset •Charging Cradle •Belt Clip •Power Adapter •Power Clip •Two rechargeable AAA batteries •Product CD-ROM •Quick Start Guide Before You Begin Before you begin the installation, make sure that you have the following equipment and services: •Cisco SPA232D Mobility Enhanced ATA, which has an integrated DECT Base Station to provide telephone service for the SPA302D •Active Internet connection •Active Public Switched Telephone Network (PSTN) connection or Voice over IP (VoIP) phone service account •PC with web browser, for using web-based system management tools (Microsoft Internet Explorer, Mozilla Firefox, and Apple Safari are supported) Battery Warning CAUTIONUse only size AAA Ni-MH 800 mAh (1.2V) rechargeable batteries in the Cisco SPA302D handset. Place the handset in the charging cradle for a recommended initial charge of 10 hours before using the handset for the first time. Cisco SPA302D3 Cisco SPA302D Features Table 1 Handset Features 1Receiver. 2Handset display. 3Right softkey. Press the softkey to perform the action shown in the lower right of the handset display. 4End Call button. Press the button and hold it to turn off the handset. 5Keypad. 6Mute button. 7Microphone. 8Speakerphone button. Press this button during a call to use the speakerphone. 9Start Call button. 10Left softkey. Press the softkey to perform the action shown in the lower left of the handset display. 114-way navigation keypad. Press the arrow buttons to move up, down, left, or right through menus displayed on the handset. 12Center Select button. 13Headset port. 14Speaker. 4Cisco SPA302D Handset Setup and Registration Charging the Handset STEP1Remove the back cover of the handset. STEP2Insert the two AAA rechargeable batteries (included) into the handset. (See Battery Warning in “Before You Begin.”) Correct battery placement is shown on the label inside the battery compartment. If the batteries are charged, the handset turns on when the batteries are inserted. If the batteries are not charged, the handset turns on when it is placed into the charging cradle. STEP3Remove the protective film from the handset and charging cradle. STEP4Insert the power clip into the power adapter. STEP5Plug the power adapter into the power source. STEP6Connect the power adapter into the charging cradle in the port shown below. CAUTIONOnly use the power adapter designed for use with Cisco SPA300 Series devices. STEP7Place the handset into the charging cradle. The light on the charging cradle appears solid green when the handset is charging. Charge the handset for a minimum of 10 hours before using the handset for the first time to ensure that the handset is fully charged. Cisco SPA302D5 Registering the Handset to the Cisco SPA232D Mobility Enhanced ATA STEP1Install and configure the Cisco SPA232D. See the Cisco SPA232D Quick Start Guide for more information. STEP2On the Cisco SPA302 handset, press the Select button in the center of the 4-way navigation keypad. STEP5Select Register. STEP6On the Cisco SPA232D, press the Page/Registration button and hold it down for at least seven seconds until the green status light flashes quickly. TIPIf you press the button for fewer than seven seconds, the green status light flashes slowly, indicating the unit is in “paging” mode and is not in registration mode. Registration will not work if the unit is in paging mode. STEP3 S TEP4 Using the navigation arrows, scroll to the Settings icon and press the center navigation button to select it. Select Handset Registration. 6Cisco SPA302D STEP7The default PIN is blank, so do not enter a PIN. Press the left softkey to confirm that you want to register the handset. The “registering” message appears. Using Your Cisco SPA302D Placing a Call To place a call, do one of the following tasks: •Enter the number on the keypad and press the green Start Call button. Depending on your phone system configuration, you may have to enter a digit, such as 9, before entering the number to place an external call. •To use the speakerphone, enter the number on the keypad and press the Speakerphone button. Answering or Ignoring a Call To answer an incoming call, do one of the following tasks: •Press the Start Call button. •Press the left softkey to select Answer. •Press the Speakerphone button to answer with the speakerphone. To decline to answer a call, press the right softkey to select Ignore. Putting a Call on Hold STEP8To verify that the handset registered to the base station, confirm that the signal strength icon is solid (not flashing) and that the handset ID, such as Handset 1 or Handset 2, appears near the top right corner of the display screen. To put a call on hold, press the left softkey to select Options. Scroll to Hold and press the center Select button. The hold icon and on-screen message indicates a call is on hold. To resume the call, press the left softkey to select Options. Scroll to Resume and press the center Select button. The active call icon indicates the call is active again. Cisco SPA302D7 Ending a Call To end a call, do one of the following tasks: •Press the red End Call button. •Press the right softkey to select End Call. Using Call Waiting If call waiting is enabled, while on a call, a beep tone will alert you of a second incoming call. To answer the call, press the left softkey to select Answer and put the first call on hold. To ignore the call, press the right softkey to select Ignore. To return to the first c…

Text truncated - open the document above for the full version.

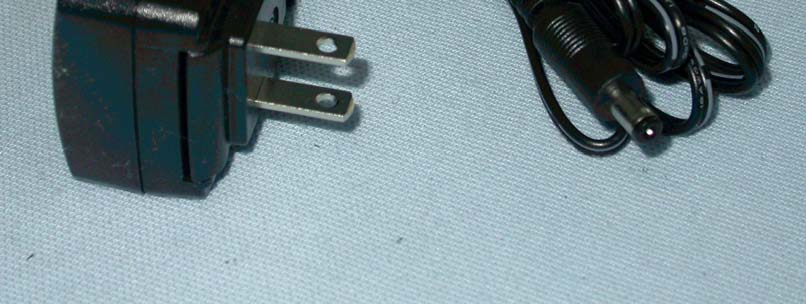

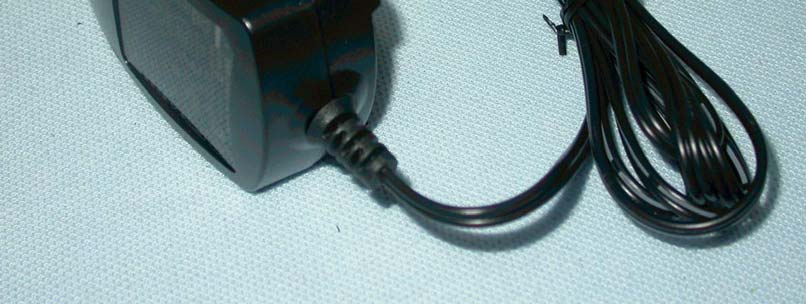

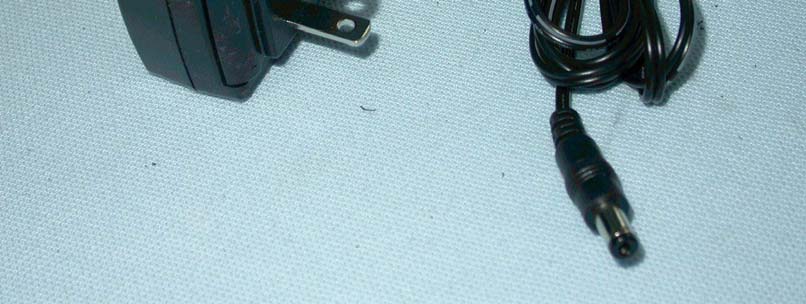

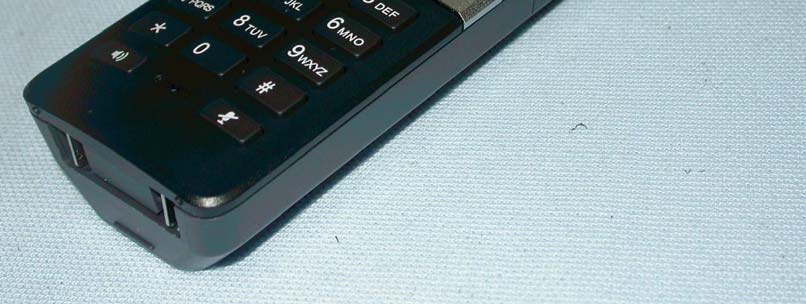

FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID:5005A-SPA302D Page A1 of A5 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID:5005A-SPA302D Page A2 of A5 3. Outside view 1 of cradle 4. Outside view 2 of cradle FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID:5005A-SPA302D Page A3 of A5 5. Outside view 1 of Adapter1 6. Outside view 2 of Adapter1 FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID:5005A-SPA302D Page A4 of A5 7. Outside view 3 of Adapter1 8. Outside view 1 of Adapter2 FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID:5005A-SPA302D Page A5 of A5 9. Outside view 2 of Adapter2 10. Outside view 3 of Adapter2

SPA302D label location

FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID: 5005A-SPA302D Page B1 of B6 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID: 5005A-SPA302D Page B2 of B6 3. Inside View 3 of EUT 4. Inside View 4 of EUT FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID: 5005A-SPA302D Page B3 of B6 5. Front view of PCB 6. Rear view of PCB FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID: 5005A-SPA302D Page B4 of B6 7. Rear view of PCB 8. Module FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID: 5005A-SPA302D Page B5 of B6 9. Inside View 1 of cradle 10. Inside View 2 of cradle FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID: 5005A-SPA302D Page B6 of B6 11. Front view of PCB 12. Rear view of PCB

FCC ID: LDK-SPA302D Page 1 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 1 Report No.: 12-01-MAS-118-03 Client: (1) Cisco Systems, Inc. (USA) (2) CyberTAN Technology, Inc (Canada) Product: Mobility Enhanced Cordless Handset Model: SPA302D FCC ID: LDK-SPA302D IC ID: 5005A-SPA302D Manufacturer/supplier: CyberTAN Technology, Inc. Date test item received: 2012/01/04 Date test campaign completed: 2012/03/19 Date of issue: 2012/06/28 Test Result: ■ Compliance □ Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 W/kg averaged over any 1g tissue according to Industry Canada RSS-102 (Issue 4, 2010) and FCC OET Bulletin 65 Supplement C (Edition 01-01). The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 83 pages Test Engineer Perry Lin Checked by Perry Lin Approved by James Cheng The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. SAR Evaluation Report for Industry Canada RSS-102 Issue 4 and FCC OET Bulletin 65 Supplement C FCC ID: LDK-SPA302D Page 2 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 2 Applicant Information (1) Client : Cisco Systems, Inc. Address : 170 West Tasman Drive San Jose, CA 95134-1706 USA (2) Client : CyberTAN Technology, Inc Address : 99 Park Avenue III, Science Park Hsinchu 308, Taiwan Manufacturer : CyberTAN Technology, Inc. Address : 99 Park Avenue III, Science Park Hsinchu 308, Taiwan. EUT : Mobility Enhanced Cordless Handset Trade Name ---- Model No. : SPA302D Standard Applied : Industry Canada RSS-102 Issue 4 (March, 2010) FCC OET 65 Supplement C (Edition 01-01, June 2001) IEEE Standard 1528-2003 Test Location : Electronics Testing Center, Taiwan (www.etc.org.tw) No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang,Taoyuan County 33383, Taiwan, R.O.C. The Mobility Enhanced Cordless Handset is in compliance with the FCC Report and Order 93-326 and Health Canada Safety Code 6, and the tests were performed according to the FCC OET65c and RSS-102 for uncontrolled exposure. FCC ID: LDK-SPA302D Page 3 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 3 Table of Contents EXECUTIVE SUMMARY........................................................................................................................ 5 1 GENERAL INFORMATION............................................................................................................. 6 1.1 Description of Equipment Under Test ..................................................................................... 6 1.2 Photograph of EUT .................................................................................................................. 6 1.3 Environment Conditions .......................................................................................................... 7 1.4 FCC Requirements for SAR Compliance Testing ................................................................... 7 1.4.1 RF Exposure Limits ..........................................................................................................................7 1.5 The SAR Measurement Procudure for Mobile ........................................................................ 8 1.5.1 General Requirements.......................................................................................................................8 1.5.2 Phantom Requirements .....................................................................................................................8 1.5.3 Test Positions ....................................................................................................................................8 1.5.4 Test Procedures ...............................................................................................................................10 1.5.5 Test Procedures for Handset with Pendent ........................................................................................10 2 DESCRIPTION OF THE TEST EQUIPMENT.................................................................................. 11 2.1 Test Equipment List ............................................................................................................... 11 2.2 DASY4 Measurement System Diagram ................................................................................ 12 2.3 DASY4 Measurement Server................................................................................................. 14 2.4 DAE (Data Acquisition Electronics)...................................................................................... 15 2.5 Phantom.................................................................................................................................. 16 2.6 Device Holder ........................................................................................................................ 17 2.7 Specifications of Probes ......................................................................................................... 18 2.8 SAR Measurement Procedures in DASY4 ............................................................................ 18 2.9 Simulating Liquids ................................................................................................................. 19 2.10 Justification for Extended SAR Dipole Calibrations ............................................................. 19 2.11 System Performance Check ..........................................................…

Text truncated - open the document above for the full version.

FCC ID: LDK-SPA302D Page 59 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 59 ANNEX C: DIPOLE CERTIFICATE FCC ID: LDK-SPA302D Page 60 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 60 FCC ID: LDK-SPA302D Page 61 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 61 FCC ID: LDK-SPA302D Page 62 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 62 FCC ID: LDK-SPA302D Page 63 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 63 FCC ID: LDK-SPA302D Page 64 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 64 FCC ID: LDK-SPA302D Page 65 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 65 FCC ID: LDK-SPA302D Page 66 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 66 FCC ID: LDK-SPA302D Page 67 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 67 FCC ID: LDK-SPA302D Page 68 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 68 ANNEX D: PROBE CERTIFICATE FCC ID: LDK-SPA302D Page 69 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 69 FCC ID: LDK-SPA302D Page 70 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 70 FCC ID: LDK-SPA302D Page 71 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 71 FCC ID: LDK-SPA302D Page 72 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 72 FCC ID: LDK-SPA302D Page 73 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 73 FCC ID: LDK-SPA302D Page 74 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 74 FCC ID: LDK-SPA302D Page 75 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 75 FCC ID: LDK-SPA302D Page 76 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 76 FCC ID: LDK-SPA302D Page 77 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 77 FCC ID: LDK-SPA302D Page 78 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 78 FCC ID: LDK-SPA302D Page 79 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 79 FCC ID: LDK-SPA302D Page 80 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 80 FCC ID: LDK-SPA302D Page 81 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 81 FCC ID: LDK-SPA302D Page 82 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 82 FCC ID: LDK-SPA302D Page 83 of 83 IC ID: 5005A-SPA302D Report No.: 12-01-MAS-118-03 Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 83

FCC ID: LDK-SPA302D Sheet 1 of 83 Sheets IC ID: 5005A-SPA302D ETC Report No.: 12-01-MAS-118-01 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D and Industry Canada RSS-213, Issue 2（4.3.4b） Report No.: 12-01-MAS-118-01 Client: (1) Cisco Systems, Inc. (USA) (2) CyberTAN Technology, Inc (Canada) Product: MobilityEnhanced Cordless Handset Model: SPA302D FCC ID: LDK-SPA302D IC ID: 5005A-SPA302D Manufacturer/supplier: CyberTAN Technology, Inc. Date test item received: 2012/01/04 Date test campaign completed: 2012/03/19 Date of issue: 2012/06/28 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 83 pages Total number of pages of photos: External photos 5 pages Internal photos 6 pages Setup photos 4 pages Test Engineer Checked By Approved By John Li Perry Lin James Cheng FCC ID: LDK-SPA302D Sheet 2 of 83 Sheets IC ID: 5005A-SPA302D ETC Report No.: 12-01-MAS-118-01 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Table of Contents Page 1 GENARAL INFORMATION......................................................................................................... 4 1.1 Testing Laboratory..................................................................................................................... 4 1.2 Client Information....................................................................................................................... 4 1.3 Manufacturer...............................................................................................................................4 2 TEST INFORMATION................................................................................................................... 5 2.1 Description of Tested Device(s)............................................................................................... 5 2.2 Test Environment....................................................................................................................... 5 3 TEST REPORT SUMMARY......................................................................................................... 6 3.1 Test Summary............................................................................................................................ 6 3.2 Other Comments........................................................................................................................ 7 4 TEST SETUP.................................................................................................................................. 8 4.1 Frequency and Timing Measurements................................................................................... 8 4.2 Conducted Emission Tests....................................................................................................... 8 4.3 Radiated Emission Tests.......................................................................................................... 9 4.4 Power line Conducted Tests.................................................................................................... 9 4.5 Monitoring Tests....................................................................................................................... 10 5 TEST EQUIPMENT LIST............................................................................................................ 11 6 TEST RESULT............................................................................................................................. 12 6.1 Coordination with fixed microwave........................................................................................ 12 6.2 Cross Reference...................................................................................................................... 13 6.3 Labeling Requirements........................................................................................................... 15 6.4 Power line Conducted Emissions.......................................................................................... 16 6.5 Antenna Requirement............................................................................................................. 19 6.6 Digital Modulation Techniques............................................................................................... 19 6.7 Peak Transmit Power.............................................................................................................. 20 6.8 Power Spectral Density........................................................................................................... 24 6.9 Antenna Gain............................................................................................................................ 28 6.10 Automatic discontinuation of transmission......................................................................... 28 6.11 Safety exposure levels.......................................................................................................... 29 6.12 Emission Bandwidth B.......................................................................................................... 30 6.13 Monitoring time....................................................................................................................... 34 6.14 Monitoring threshold.............................................................................................................. 35 6.15 Maximum transmit period..................................................................................................... 36 6.16 System Acknowledgement................................................................................................... 38 FCC ID: LDK-SPA302D Sheet 3 of 83 …

Text truncated - open the document above for the full version.

FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID: 5005A-SPA302D Page 1 of 4 Photos of Radiation Measuring Setup Adapter 1 FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID: 5005A-SPA302D Page 2 of 4 Adapter 2 FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID: 5005A-SPA302D Page 3 of 4 Photos of Conduction Measuring Setup Adapter 1 FCC ID: LDK-SPA302D ETC Report No.: 12-01-MAS-118-01 IC ID: 5005A-SPA302D Page 4 of 4 Adapter 2
