LDK-TEI301IP Managed Services Home Gateway

4038767 Rev A Cisco Managed Services Residential Gateway User Guide Please Read Important Please read this entire guide. If this guide provides installation or operation instructions, give particular attention to all safety statements included in this guide. Notices Trademark Acknowledgments Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1005R) The Wi-Fi Protected Setup mark is a mark of the Wi-Fi Alliance. Wi-Fi Protected Setup is a trademark of the Wi-Fi Alliance. <<WRITERS: Use this statement if your product and document uses the WPS (Wi-Fi Protected Setup) logo. You MUST also include a wireless product disclaimer (Object 137283) in your doc.>> Disclaimer The maximum performance for wireless is derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions. Publication Disclaimer Cisco Systems, Inc. assumes no responsibility for errors or omissions that may appear in this publication. We reserve the right to change this publication at any time without notice. This document is not to be construed as conferring by implication, estoppel, or otherwise any license or right under any copyright or patent, whether or not the use of any information in this document employs an invention claimed in any existing or later issued patent. Copyright © 2010 Cisco Systems, Inc. All rights reserved. Printed in the United States of America. Information in this publication is subject to change without notice. No part of this publication may be reproduced or transmitted in any form, by photocopy, microfilm, xerography, or any other means, or incorporated into any information retrieval system, electronic or mechanical, for any purpose, without the express permission of Cisco Systems, Inc. Notice to Installers The servicing instructions in this notice are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions, unless you are qualified to do so. Notice à l’attention des installateurs de réseaux câblés Les instructions relatives aux interventions d’entretien, fournies dans la présente notice, s’adressent exclusivement au personnel technique qualifié. Pour réduire les risques de chocs électriques, n’effectuer aucune intervention autre que celles décrites dans le mode d'emploi et les instructions relatives au fonctionnement, à moins que vous ne soyez qualifié pour ce faire. Mitteilung für CATV-Techniker Die in dieser Mitteilung aufgeführten Wartungsanweisungen sind ausschließlich für qualifiziertes Fachpersonal bestimmt. Um die Gefahr eines elektrischen Schlags zu reduzieren, sollten Sie keine Wartungsarbeiten durchführen, die nicht ausdrücklich in der Bedienungsanleitung aufgeführt sind, außer Sie sind zur Durchführung solcher Arbeiten qualifiziert. Aviso a los instaladores de sistemas CATV Las instrucciones de reparación contenidas en el presente aviso son para uso exclusivo por parte de personal de mantenimiento cualificado. Con el fin de reducir el riesgo de descarga eléctrica, no realice ninguna otra operación de reparación distinta a las contenidas en las instrucciones de funcionamiento, a menos que posea la cualificación necesaria para hacerlo. 20080814_Installer800_Intl 4038767 Rev A iii Contents Notice à l’attention des installateurs de réseaux câblés ........................................ 5 Mitteilung für CATV-Techniker ............................................................................... 5 Aviso a los instaladores de sistemas CATV ............................................................ 6 IMPORTANT SAFETY INSTRUCTIONS vii Power Source Warning ........................................................................................... vii Ground the Product ................................................................................................. vii Protect the Product from Lightning ..................................................................... viii Verify the Power Source from the On/Off Power Light ................................... viii Eliminate AC Mains Overloads ............................................................................ viii Provide Ventilation and Select a Location .......................................................... viii Protect from Exposure to Moisture and Foreign Objects .................................. viii Service Warnings ....................................................................................................... ix Check Product Safety ................................................................................................ ix Protect the Product When Moving It ...................................................................... ix Telephone Equipment Notice .................................................................................. ix United States FCC Compliance xii Declaration of Conformity ....................................................................................... xii Canada EMI Regulation ........................................................................................... xii RF Exposure Statements .........................................................................................xiii CE Compliance xvi Declaration of Conformity with Regard to the EU Directive 1999/5/EC (R&TTE D…

Text truncated - open the document above for the full version.

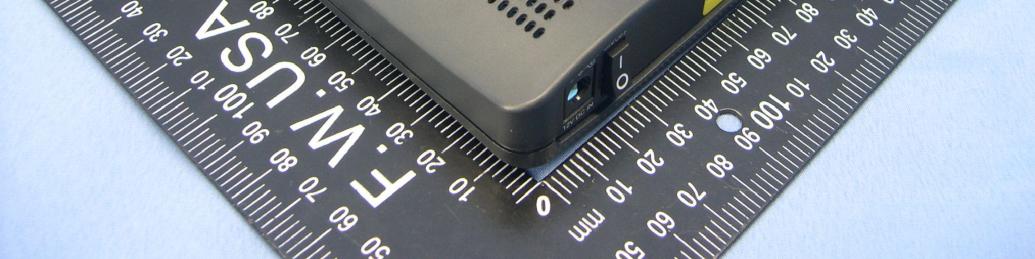

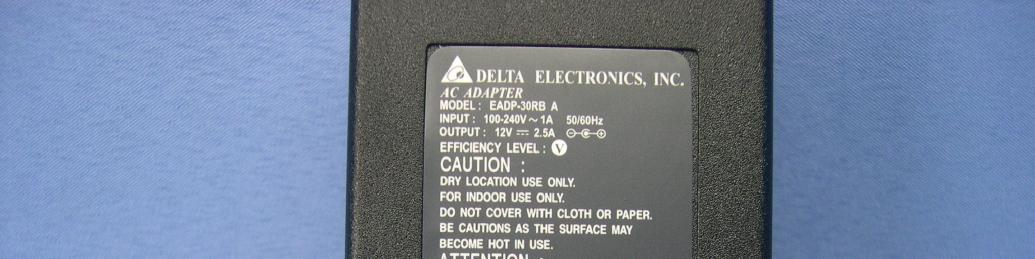

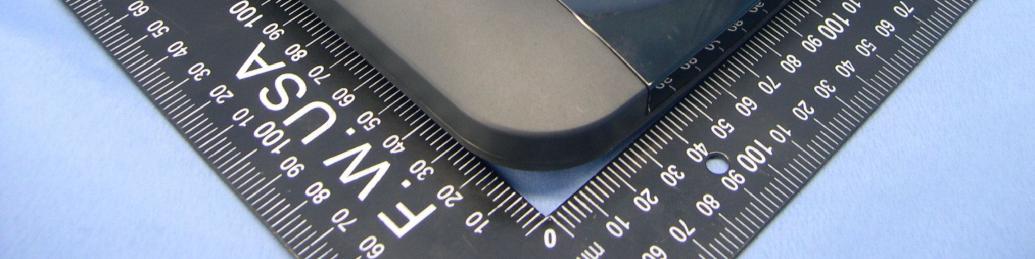

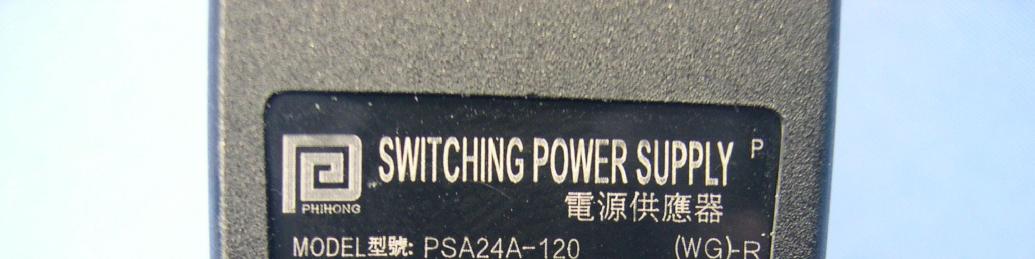

Page 1 CONSTRUCTION PHOTOS OF EUT Models : TEI301, TES301 Page 10 Model : REN301 Page 20 Adapter : PSA24A-120 Page 21 Page 22 Adapter : EADP-30RB A Page 23

FCC ID：LDK-TEI301 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 2 Models : TEI301, TES301 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 11 Model : REN301 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19

FCC ID: LDK-TEI301 Report No.: RF991006E01 Operational Description This device is an IP Managed Services Home Gateway which operates in 2.4GHz band; the maximum data rate could be up to 150Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc from the power adapter. There are two antennas provided to this EUT, please refer the following table: The other instruction, please have a look at the users manual.

Report No.: SA991006E01 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA991006E01 MODEL NO.: REN301-xx, TES301-xx, TEI301-xx FCC ID: LDK-TEI301 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco Systems Inc. ADDRESS: 170 West Tasman Drive, San Jose, CA 95134-1706, USA. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA991006E01 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA991006E01 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA991006E01 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: No. Antenna Type Antenna Connector Antenna Gain (dBi) Cable loss(dB) Net Gain (dBi) Cable Length (cm) Frequency range (GHz) 1 PIFA I-PEX 3 1 2 26 2.4~2.5 2 PIFA I-PEX 3 1 2 21 2.4~2.5 Report No.: SA991006E01 Report Format Version 3.0.1 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 151.4 0.048 1.0 6 2437 151.4 0.048 1.0 11 2462 147.9 0.047 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 199.5 0.063 1.0 6 2437 338.8 0.107 1.0 11 2462 173.8 0.055 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 241.0 0.076 1.0 6 2437 625.3 0.197 1.0 11 2462 188.8 0.060 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 224.9 0.071 1.0 4 2437 296.5 0.093 1.0 7 2452 242.8 0.077 1.0 --- END ---
