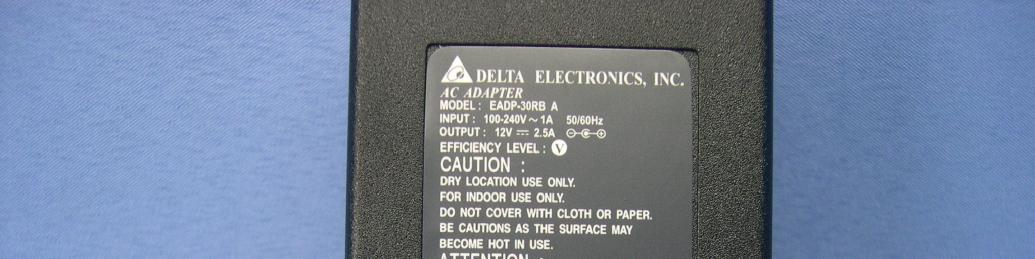

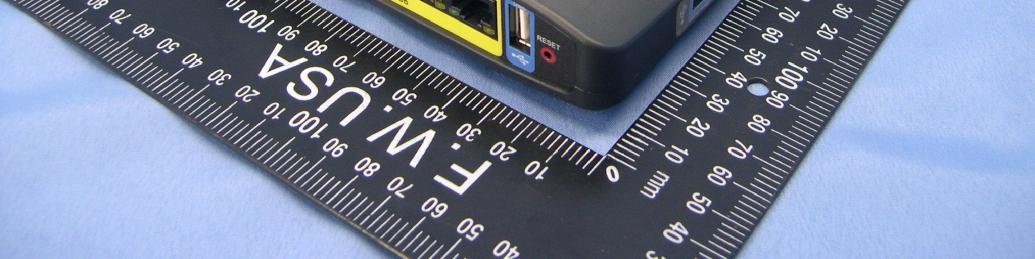

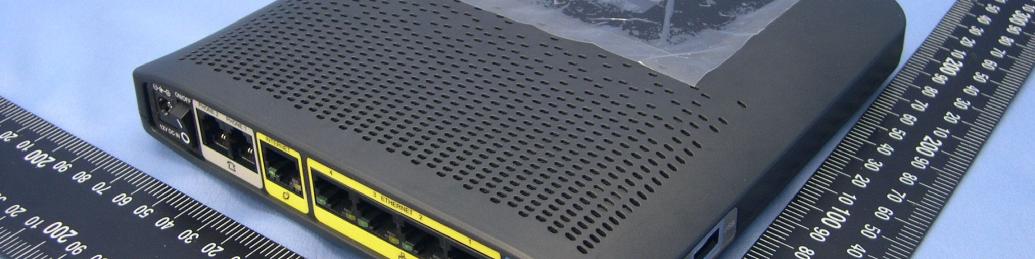

Page 1 CONSTRUCTION PHOTOS OF EUT Models : TEI301W, TES301W Page 13 Model : REN301W Page 25 Adapter : PSA24A-120 Page 26 Page 27 Adapter : EADP-30RB A Page 28

FCC ID：LDK-TEI301W LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 2 Models : TEI301W, TES301W Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Model : REN301W Page 14 Model : REN301W

Cisco Model TES301 IP Managed Services Home Gateway Introduction The Cisco® Model TES301 IP Managed Services Home Gateway (TES301) is an advanced, high-performance home gateway that combines Ethernet, Voice over IP (VoIP), router, Zigbee and wireless access point technologies in a single device providing a cost-effective voice and networking solution for Connected Home and Managed Home experiences. Benefits and Features Highlights Open Software Environment  flexible OSGi/JVM software platform enables third party application support and quicker time-to-revenue for new services LCD  Liquid Crystal Display simplifies setup and troubleshooting Managed Service Support  enhanced processing power and extended memory Triple Play Services Support  Gigabit Ethernet LAN ports, 802.11n Wi-Fi, and SIP enabled VoIP ports offer high performance delivery of Data, Voice, and Video services ZigBee  support for embedded controllers for Home Automation, Home Security, and Energy Control applications Flexible Deployment  Gigabit Ethernet WAN allows deployment in FTTH, DSL, and DOCSIS® networks Remote Management  TR-069 paired with TR-111 enables comprehensive management Simplified Home Networking  powerful setup, local management, and remote troubleshooting tools DLNA Support  Digital Living Network Alliance (DLNA) support provides simplified access and sharing of personal content across the home network Simplified Connected Home The TES301 simplifies and enhances the Connected Home experience with improved setup and management of the home network. Easy to use color LCD combined with embedded Network Management to simplify connections and settings of devices in the home Gigabit Ethernet WAN port provides high performance deployment in FTTH, xDSL, or DOCSIS networks Gigabit Ethernet LAN ports provide high performance interface to home peripherals – Set Top boxes, PCs, network printers, femtocells, etc. Easy wireless setup with WPS Push Button Personal Content Sharing and Storage The TES301 incorporates a DLNA media server, providing access to all content within the home network—digital photos, music, and video. Content can be shared with any PC or compatible device connected to the home network Supports streaming content to media players and TVs In-home discovery and control of media sources and players Provides both local and remote access to in-home media Factory-installed embedded microSD card for intelligent caching of digital video, pictures, music, and other files Application Environment The Cisco TES301 represents a next generation gateway for your home that is designed to support IP Managed Services. These services allow you to remotely access the home network to upload and download digital content, or monitor activity with a webcam or other event triggering devices. The TES301 has the necessary processing power and memory to allow for new services to be added over time. OSGi/JVM software platform enabling third-party application support Supports Home Security, Home Automation, Smart Metering, and Energy Control Services Z-Wave or ZigBee support via external dongle or optional embedded module High-Speed Wireless Interfaces Wi-Fi 802.11 b/g/n 2.4 GHz for basic home networking service Internal antenna design supports omnidirectional and beamforming techniques that provide excellent 3-D coverage, isolation and pattern diversity Phone Services Two ATA Ports with SIP Client support Supports separate phone numbers on each port Management and Troubleshooting Embedded network management client for simplified out of the box setup and configuration Local device management via web-based GUI or online user portal Supports Broadband Forum Industry standards (TR-069, TR-098, TR-104, and TR-111) for remote management and configuration of the TES301 settings, VoIP parameters, and connected home network devices Customer Service portal allows easier remote troubleshooting and problem resolution Internal Antenna designs supports omni-directional techniques that provide excellent 3-D coverage, isolation & pattern diversity in all bands

FCC ID: LDK-TEI301W Report No.: RF991006E02 Operational Description This device is an IP Managed Services Home Gateway which operates in 2.4GHz band; the maximum data rate could be up to 150Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc from the power adapter. There are two antennas provided to this EUT, please refer the following table: The other instruction, please have a look at the users manual.

Report No.: SA991006E02 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA991006E02 MODEL NO.: TEI301W-xx, REN301W-xx, TES301W-xx FCC ID: LDK-TEI301W ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco Systems Inc. ADDRESS: 170 West Tasman Drive, San Jose, CA 95134-1706, USA. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA991006E02 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA991006E02 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA991006E02 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain There are three antennas provided to this EUT, please refer to the following table: For WLAN No. Antenna Type Antenna Connector Antenna Gain (dBi) Cable loss(dB) Net Gain (dBi) Cable Length (cm) Frequency range (GHz) 1 PIFA I-PEX 3 1 2 26 2.4~2.5 2 PIFA I-PEX 3 1 2 21 2.4~2.5 For Zwave No. Antenna Type Antenna Connector Antenna Gain (dBi) Frequency range (MHz) 3 chip NA -4 902~928 Report No.: SA991006E02 Report Format Version 3.0.1 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: There are Zwave technology and WLAN technology used for the EUT. This report was only recorded at the WLAN technology. 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 151.4 0.048 1.0 6 2437 151.4 0.048 1.0 11 2462 147.9 0.047 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 199.5 0.063 1.0 6 2437 338.8 0.107 1.0 11 2462 173.8 0.055 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 241.0 0.076 1.0 6 2437 625.3 0.197 1.0 11 2462 188.8 0.060 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 224.9 0.071 1.0 4 2437 296.5 0.093 1.0 7 2452 242.8 0.077 1.0 --- END ---

Report No.: RF991006E02-2 R1 1 Report Format Version 3.0.1 Cancels and replaces the report No.: RF991006E02-2 dated Jan. 18, 2011 Supplemental “Transmit Simultaneously” Test Report REPORT NO.: RF991006E02-2 R1 MODEL NO.: TEI301W-xx, REN301W-xx, TES301W-xx FCC ID: LDK-TEI301W IC ID: 2461B-TEI301W RECEIVED: Oct. 06, 2010 TESTED: Oct. 14 to 26, 2010 ISSUED: Feb. 09, 2011 APPLICANT: Cisco Systems Inc. ADDRESS: 170 West Tasman Drive, San Jose, CA 95134-1706, USA. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 27 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by any government agencies. The test results in the report only apply to the tested sample. Report No.: RF991006E02-2 R1 2 Report Format Version 3.0.1 Cancels and replaces the report No.: RF991006E02-2 dated Jan. 18, 2011 Table of Contents RELEASE CONTROL RECORD.................................................................................3 1 CERTIFICATION...........................................................................................4 2 SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY...........................................................................5 3 GENERAL INFORMATION............................................................................6 3.1 GENERAL DESCRIPTION OF EUT........................................................................6 3.2 DESCRIPTION OF TEST MODES..........................................................................9 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:.........................10 3.4 DESCRIPTION OF SUPPORT UNITS...................................................................12 3.5 CONFIGURATION OF SYSTEM UNDER TEST....................................................13 4 TEST TYPES AND RESULTS.....................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT.........................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................14 4.1.2 TEST INSTRUMENTS.................................................................................14 4.1.3 TEST PROCEDURES.................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD........................................................15 4.1.5 TEST SETUP..............................................................................................15 4.1.6 EUT OPERATING CONDITIONS................................................................16 4.1.7 TEST RESULTS..........................................................................................17 4.2 RADIATED EMISSION MEASUREMENT..............................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................19 4.2.2 TEST INSTRUMENTS.................................................................................20 4.2.3 TEST PROCEDURES.................................................................................22 4.2.4 TEST SETUP..............................................................................................23 4.2.5 EUT OPERATING CONDITIONS................................................................23 4.2.6 TEST RESULTS..........................................................................................24 4.2.7 TEST RESULTS..........................................................................................25 5 INFORMATION ON THE TESTING LABORATORIES................................26 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB......................................................27 Report No.: RF991006E02-2 R1 3 Report Format Version 3.0.1 Cancels and replaces the report No.: RF991006E02-2 dated Jan. 18, 2011 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Jan. 18, 2011 RF991006E02-2 R1 Modified the product name of the EUT Feb. 09, 2011 Report No.: RF991006E02-2 R1 4 Report Format Version 3.0.1 Cancels and replaces the report No.: RF991006E02-2 dated Jan. 18, 2011 1 CERTIFICATION PRODUCT : IP Managed Services Home Gateway BRAND NAME : Cisco MODEL NO. : TEI301W-xx, REN301W-xx, TES301W-xx TESTED : Oct. 14 to 26, 2010 APPLICANT : Cisco Systems Inc. TEST SAMPLE : MASS-PRODUCTION STANDARDS : FCC Part 15, Subpart C (Section 15.247) ANSI C63.4-2003 Canada RSS-210 issue 7 Canada RSS-Gen issue 2 The above equipment (Model: TEI301W-NA) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Feb. 09, 2011 ( Midoli Peng, Specialist ) TECHNICAL ACCEPTANCE : , DATE: Feb. 09, 2011 ( Hank Chung, Deputy Manager ) APPROVED BY : , DATE: Feb. 09, 2011 (May Chen, Deputy Manager ) Note: Per a request of the FCC, the IP Managed Services Home Gateway was tested for conducted emissions and radiated emissions in restricted bands while transmitting on both WLAN and Zwave at simultaneously. Report No.: RF991006E02-2 R1 5 Report Fo…
