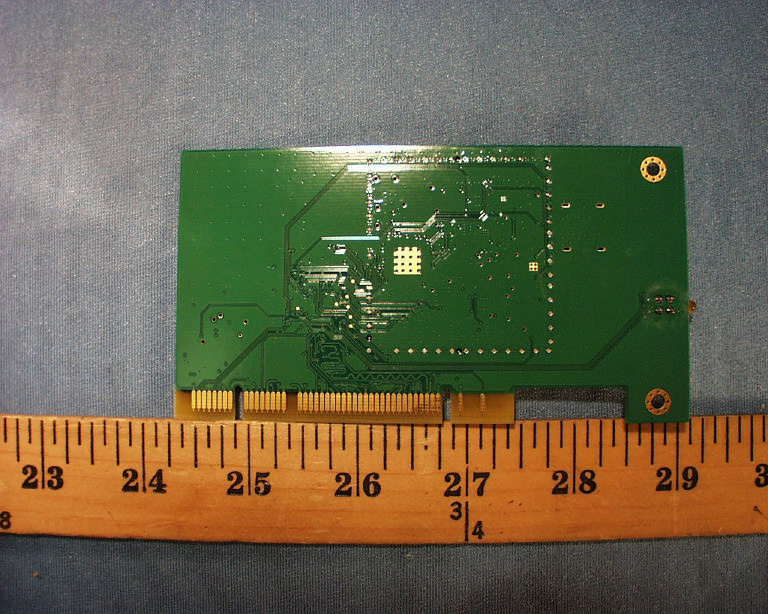

LDK102051802.11 a/g PCI Adapter

BETA DRAFT - CISCO CONFIDENTIAL Corporate Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 526-4100 Cisco Aironet 802.11a/b/g Wireless LAN Client Adapters (CB21AG and PI21AG) Installation and Configuration Guide Customer Order Number: Text Part Number: OL-4211-01 BETA DRAFT - CISCO CONFIDENTIAL THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS. THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY. The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense. The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures: • Turn the television or radio antenna until the interference stops. • Move the equipment to one side or the other of the television or radio. • Move the equipment farther away from the television or radio. • Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits controlled by different circuit breakers or fuses.) Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product. The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California. NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE. IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. CCIP, CCSP, the Cisco Arrow logo, the Cisco Powered Network mark, Cisco Unity, Follow Me Browsing, FormShare, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, the Cisco IOS logo, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Empowering the Internet Generation, Enterprise/Solver, EtherChannel, EtherSwitch, Fast Step, GigaStack, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, MGX, MICA, the Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing, RateMUX, Registrar, ScriptShare, SlideCast, SMARTnet, StrataView Plus, Stratm, SwitchProbe, TeleRouter, The Fastest Way to Increase Your Internet Quotient, TransPath, and VCO are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. All other trademarks mentioned in this document or Web site are the property of their respective owners. The use of the word partner does not imply a partn…

Text truncated - open the document above for the full version.

Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] October 3, 2003 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality To Whom It May Concern: In reference to the application under FCC ID: LDK102051, the following information is to be held confidential pursuant to 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided is proprietary and contains trade secrets. If made public, the information might be used to the disadvantage of the Cisco Systems, Inc. in the market place. Block Diagram Schematic Diagrams Technical Description Best Regards, Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc.

1 Mike Kuo From: Claire Hoque Sent: November192003Wednesday 2:08 PM To: Mike Kuo Cc: Michael Heckrotte Subject: RE: CISCO System FCC ID:LDK102051, AN03T3393 ( UNII ) Hi Mike, Pls see the answers as follows. Question #1: Page 1-3 of user manual indicates the antenna gain for this device is 2 dBi gain which does not agree with EMC test report and antenna specification sheet. Please explain and make necessary correction. <Ambit>Please the attached user's manual for LDK102051 modified. Please note that P159 mentioned: "The above range numbers assume that the client adapter is being used with a Cisco Aironet 1200 Series Access Point with a 2.2-dBi antenna. Different range characteristics are likely when using the client adapter with a non-Cisco access point or a Cisco Aironet 1200 Series Access Point with a different antenna." Due to that only mentioned the range test data is done at this condition, and it did mentioned different antenna may has different result. So we cannot change this part. Hope this time this user's manual can be acceptable. User Manual(updated).pdf Question #2: Per the information provided in the user manual, the antenna will be permanently affixed on the PCI card. Please provide detail description on the mounting mechanism to ensure the antenna and its cable will not be removed by the user and to comply with section 15.407(d) integral antenna requirement in 5.15-5.25GHz band. <Ambit>The male MMCX connector with the antenna cable is snapped on to the female MMCX connector of PCI card and there is a metal cover permentantly soldered on top of the MMCX connector set and the cable goes through the hole of this cover. Please refer to the attached drawing. (See attached file: ANT_PCI-02-0521.pdf) ANT_PCI-02-0521. pdf Question #3: Please provide technical information to address section 15.407(C). <Ambit/Atheros> pls see the attached technical info. sheet to address 15.407(C), PCI is very similar to Cardbus, we use same chipset for PCI and Cardbus, the only different thing is the physical interface, form factor and antenna. The operation technology of the major protocol are totally identical. Since CB32 is the one we used for KittyHawk Cardbus co-submission, so this document of CB32 should be able to apply on the PCI as well. CB32 updated Tech Descr.pdf 2 Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION CISCO SYSTEMS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: LDK102051 FCC ID LABEL LOCATION

J J J O O O Y Y Y M M M A A A X X X T T T H H H F F F - - - 6 6 6 2 2 2 8 8 8 0 0 0 B B B - - - 5 5 5 6 6 6 6 6 6 D D D u u u a a a l l l - - - B B B a a a n n n d d d A A A n n n t t t e e e n n n n n n a a a r r r e e e p p p o o o r r r t t t Prepared byChecked byChecked byRelease to Howard MeiSteven ChangSteve TengSteve Teng COMPANY CONFIDETIAL 92.6.13 2 1. Joymax THF-6280B-566 antenna measurement results : (a) IEEE 802.11B/G (2 meter cable is included the measurement) Frequency range - 2.45 GHz Peak Gain (dBi ) 1.17 Average (dBi ) -5.59 Cross-Polarization ( dB ) -12.45 (b) IEEE 802.11A (2 meter cable is included the measurement) Frequency range - 5.25 GHz Peak Gain (dBi ) 0.93 Average (dBi ) -6.36 Cross-Polarization ( dB ) -10.79 Frequency range - 5.825 GHz Peak Gain (dBi ) 0.60 Average (dBi ) -5.75 Cross-Polarization ( dB ) -9.77 COMPANY CONFIDETIAL 92.6.13 3 2. Antenna diagram (a) YZ-plane (b) XZ-plane X YZ COMPANY CONFIDETIAL 92.6.13 4 3.1.1 x-y plane Horizontal Polarization 2.45 GHz 5.25 GHz COMPANY CONFIDETIAL 92.6.13 5 3.1.2 x-y plane Vertical Polarization 5.825 GHz 2.45 GHz COMPANY CONFIDETIAL 92.6.13 6 5.25 GHz 5.825 GHz COMPANY CONFIDETIAL 92.6.13 7 3.2.1 x-z plane Horizontal Polarization 2.45 GHz 5.25 GHz COMPANY CONFIDETIAL 92.6.13 8 3.2.2 x-z plane Vertical Polarization 5.825 GHz 2.45 GHz COMPANY CONFIDETIAL 92.6.13 9 5.25 GHz 5.825 GHz COMPANY CONFIDETIAL 92.6.13 10 3.3.1 y-z plane Horizontal Polarization 2.45 GHz 5.25 GHz COMPANY CONFIDETIAL 92.6.13 11 3.3.2 y-z plane Vertical Polarization 5.825 GHz 2.45 GHz COMPANY CONFIDETIAL 92.6.13 12 5.25 GHz 5.825 GHz COMPANY CONFIDETIAL 92.6.13 13 4. Joymax THF-6280B-566 PCI Antenna Gain (a) Antenna Peak Gain Peak Gain (dBi ) 2.45GHz5.25GHz5.825GHz Y-Z Plane (dBi) -2.33-3.57-3.90 X-Y Plane (dBi) 1.170.930.60 X-Z Plane (dBi) 1.501.050.60 (b) Antenna Average Gain Y-Z Plane (dBi) 2.45GHz5.25GHz5.825GHz Vertical -3.97-5.55-8.62 Horizontal -21.01-15.61-15.38 X-Y Plane (dBi) 2.45GHz5.25GHz5.825GHz Vertical -18.05-17.15-15.52 Horizontal -5.59-6.36-5.75 X-Z Plane (dBi) 2.45GHz5.25GHz5.825GHz Vertical -13.86-9.96-10.13 Horizontal -5.88-7.57-7.53 COMPANY CONFIDETIAL 92.6.13 14 APPROVAL SHEET CUSTOMER MODEL NO . THF-6280B-566(Rev.01) DESCRIPTION Tri-Band Flying Lead Straight Antenna Customer Approval AMBIT Microsystems Corporation J OYMAX ELECTRONICS CO.,LTD. J Taiwan, R.O.C. Tel:+886-3-4931401 Fax:+886-3-4931126 [email protected] 17,Hsin-Jung Rd., Ping-Chen, Tao-Yuan, THF-6280B-566SpecificationsModel No . 1.Description: traight The Antenna is tri-band flying lead and santenna. Which is useful for the construction of an accesspoint. 3. Mechanical Properties 3-1 Connector...................... 3-2 Cable............................. 3-3 Houshing....................... 3-4 Attachment Strength....... MMCX PLUG HPP100 Polycarbonate 5.0 Kg-cm 2. Electrical Properties¡G 2-1 Frequency Range............ 2-2 Impedance..................... 2-3 SWR.............................. 2-4 Return Loss................... 2-5 Gain............................... 2-6 Polarization................... 2.4~2.5GHz 5.15~5.35GHz 5.725~5.85GHz 50 Ohms nominal 2.0 -10 dB 2.4~2.5GHz 4.0dBi 5.15~5.35GHz 5.0dBi 5.725~5.85GHz 5.5dBi Vertical OYMAX ELECTRONICS CO.,LTD.J Test ReportModel No . Return Loss SWR THF-6280B-566 OYMAX ELECTRONICS CO.,LTD.J MMCX PLUGSpecifications 1.Description: The connector is a MMCX right angle plug crimp for HPP-100 cable. 2. Electrical Properties¡G 2-1 Impedance..................................... 2-2 Frequency Range........................... 2-3 SWR............................................. 2-4 Working Voltage............................ 2-5 Dielectric Withstanding Voltage..... 2-6 Insulation Resistance..................... 2-7 Contact Resistance......................... 2-8 Insertion Loss................................ 50 Ohms 0~6 GHz 1.30 (Max.) 170 V rms (Max.) 500 V rms (Min.) 1000 Megohms Center contact: 5.0 Milliohms (Max.) Outer contact: 2.5 Milliohms (Max.) 0.3 dB 3. Mechanical Properties 3-1 Engagement Force......................... 3-2 Disengagement Force.................... 3-3 Contact Retention......................... 3-4 Durability..................................... 8 lbs.Max. 1.4 lbs.Min. 2.0 lbs.Min.axial force 500 CyclesMin. 4. Environmental Ratings¡G 4-1 Operating Temperature.................. 4-2 Thermal Shock.............................. 4-3 Corrosion...................................... 4-4 Shock........................................... 4-5 Vibration...................................... 4-6 Moisture Resistance...................... 65165 MIL-STD-202, Method 107, Condition C, Except 55155 MIL-STD-202, Method 101, Condition B MIL-STD-202, Method 213, Condition B MIL-STD-202, Method 204, Condition D MIL-STD-202, Method 106 5. Material Specifications¡G 5-1 Body............................................. 5-2 Contact......................................... 5-3 Insulator....................................... 5-4 C-Ring.......................................... Brass Per JIS H3250 C3604 BD, Gold Plated Per MIL-G-45204 Beryllium Copper Per QQ-C-530, Gold Plated Per MIL-G-45204 PTFE Fluorocarbon Per ASTM D 1710 Beryllium Copper Per QQ-C-530, Gold Plated Per MIL-G-45204 Model No . OYMAX ELECTRONICS CO.,LTD.J CableModel No . HPP100 OYMAX ELECTRONICS CO.,LTD.J

REPORT NO: 03U2286-2 DATE: OCTOBER 30, 2003 EUT: 802.11a/g PCI adapter FCC ID: LDK102051 Page 21 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 7.3. MAXIMUM PERMISSIBLE EXPOSURE LIMITS §15.247 (b) (5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §1.1307(b)(1) of this chapter. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = distance in meters S = Power Density in milliwatts / square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d = √ ((30 * P * G) / (3770 * S)) Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 * √ ((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 * √ (P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm^2 REPORT NO: 03U2286-2 DATE: OCTOBER 30, 2003 EUT: 802.11a/g PCI adapter FCC ID: LDK102051 Page 22 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yields d = 0.282 * 10 ^ ((P + G) / 20) / √ S Equation (1) where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / cm^2 Equation (1) and the measured peak power is used to calculate the MPE distance. LIMITS S = 1.0 mW / cm^2 from 1.1310 Table 1 RESULTS No non-compliance noted: NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. Power Density LimitOutput PowerAntenna GainMPE Distance (mW/cm^2)(dBm)(dBi)(cm) 1.015.050.931.78

FCC CFR47 PART 15 SUBPART E CERTIFICATION TEST REPORT FOR 802.11A/G PCI ADAPTER MODEL NUMBER: AIR-PI21AG-A-K9 FCC ID: LDK102051 REPORT NUMBER: 03U2286-2 ISSUE DATE: OCTOBER 30, 2003 Prepared for CISCO SYSTEMS, INC. 170 WEST TASMAN SAN JOSE, CA 95134 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U2286-2 DATE: OCTOBER 30, 2003 EUT: 802.11a/g PCI adapter FCC ID: LDK102051 Page 2 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. TEST METHODOLOGY..................................................................................................................5 4. FACILITIES AND ACCREDITATION..........................................................................................5 5. CALIBRATION AND UNCERTAINTY.........................................................................................6 5.1. MEASURING INSTRUMENT CALIBRATION............................................................................6 5.2. MEASUREMENT UNCERTAINTY..............................................................................................6 5.3. TEST AND MEASUREMENT EQUIPMENT...............................................................................7 6. SETUP OF EQUIPMENT UNDER TEST.......................................................................................8 7. APPLICABLE LIMITS AND TEST RESULTS...........................................................................12 7.1. EMISSION BANDWIDTH..........................................................................................................12 7.2. PEAK POWER............................................................................................................................16 7.3. MAXIMUM PERMISSIBLE EXPOSURE...................................................................................21 7.4. AVERAGE POWER....................................................................................................................23 7.5. PEAK POWER SPECTRAL DENSITY.......................................................................................24 7.6. PEAK EXCURSION...................................................................................................................28 7.7. CONDUCTED SPURIOUS EMISSIONS...................................................................................32 7.8. RADIATED EMISSIONS............................................................................................................36 7.8.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS................................................36 7.8.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ..........................................39 7.8.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHZ............................................48 7.8.4. POWERLINE CONDUCTED EMISSIONS.....................................................................52 8. SETUP PHOTOS..............................................................................................................................55 REPORT NO: 03U2286-2 DATE: OCTOBER 30, 2003 EUT: 802.11a/g PCI adapter FCC ID: LDK102051 Page 3 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: CISCO SYSTEMS, INC. 170 WEST TASMAN SAN JOSE, CA 95134, USA EUT DESCRIPTION: 802.11A/G PCI ADAPTER MODEL: AIR-PI21AG-A-K9 DATE TESTED: OCTOBER 6 - OCTOBER 30, 2003 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART E NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Note: The 5.2 GHz band is applicable to this report; other bands of operation (2.4 and 5.8 GHz) are documented in a separate report. Approved & Released For CCS By: Tested By: MICHAEL HECKROTTE CHIN PANG CHIEF ENGINEER EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03U2286-2 DATE: OCTOBER 30, 2003 EUT: 802.11a/g PCI adapter FCC ID: LDK102051 Page 4 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is…

Text truncated - open the document above for the full version.

REPORT NO: 03U2286-2 DATE: OCTOBER 30, 2003 EUT: 802.11a/g PCI adapter FCC ID: LDK102051 Page 55 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 03U2286-2 DATE: OCTOBER 30, 2003 EUT: 802.11a/g PCI adapter FCC ID: LDK102051 Page 56 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 03U2286-2 DATE: OCTOBER 30, 2003 EUT: 802.11a/g PCI adapter FCC ID: LDK102051 Page 57 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 03U2286-2 DATE: OCTOBER 30, 2003 EUT: 802.11a/g PCI adapter FCC ID: LDK102051 Page 58 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 03U2286-2 DATE: OCTOBER 30, 2003 EUT: 802.11a/g PCI adapter FCC ID: LDK102051 Page 59 of 59 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
