30 10 Declarations of Conformity and Regulatory Information This section provides declarations of conformity and regulatory information for the Cisco Aironet 3500 Series Access Point. Manufacturers Federal Communication Commission Declaration of Conformity Statement Manufacturer: Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA This device complies with Part 15 rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This ModelsCertification Numbers AIR-SAP3501I-A-K9 AIR-CAP3501E-A-K9 AIR-CAP3501I-A-K9 LDK102072 AIR-SAP3502I-A-K9 AIR-CAP3502E-A-K9 AIR-CAP3502I-A-K9 LDK102073 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE ap3500getstart.fm Page 30 Friday, July 31, 2009 12:53 PM 31 equipment generates, uses, and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference. However, there is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures: •Reorient or relocate the receiving antenna. •Increase separation between the equipment and receiver. •Connect the equipment to an outlet on a circuit different from which the receiver is connected. •Consult the dealer or an experienced radio/TV technician. CautionThe Part 15 radio device operates on a non-interference basis with other devices operating at this frequency when using the integrated antennas. Any changes or modification to the product not expressly approved by Cisco could void the user’s authority to operate this device. CautionWithin the 5.15 to 5.25 GHz band (5 GHz radio channels 34 to 48) the UNII devices are restricted to indoor operations to reduce any potential for harmful interference to co-channel Mobile Satellite System (MSS) operations. VCCI Statement for Japan Warning This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. ap3500getstart.fm Page 31 Friday, July 31, 2009 12:53 PM 32 Guidelines for Operating Cisco Aironet Access Points in Japan This section provides guidelines for avoiding interference when operating Cisco Aironet access points in Japan. These guidelines are provided in both Japanese and English. Japanese Translation English Translation This equipment operates in the same frequency bandwidth as industrial, scientific, and medical devices such as microwave ovens and mobile object identification (RF-ID) systems (licensed premises radio stations and unlicensed specified low-power radio stations) used in factory production lines. 1.Before using this equipment, make sure that no premises radio stations or specified low-power radio stations of RF-ID are used in the vicinity. 2.If this equipment causes RF interference to a premises radio station of RF-ID, promptly change the frequency or stop using the device; contact the number below and ask for recommendations on avoiding radio interference, such as setting partitions. 3.If this equipment causes RF interference to a specified low-power radio station of RF-ID, contact the number below. Contact Number: 03-6434-6500 03-6434-6500 43768 ap3500getstart.fm Page 32 Friday, July 31, 2009 12:53 PM 33 Statement 371—Power Cable and AC Adapter English Translation When installing the product, please use the provided or designated connection cables/power cables/AC adaptors. Using any other cables/adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL-certified cables (that have the “UL” shown on the code) for any other electrical devices than products designated by CISCO. The use of cables that are certified by Electrical Appliance and Material Safety Law (that have “PSE” shown on the code) is not limited to CISCO-designated products. Industry Canada Canadian Compliance Statement This Class B Digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada. AIR-SAP3501I-A-K9 AIR-CAP3501E-A-K9 AIR-CAP3501I-A-K9 2461B-102072 AIR-SAP3502I-B-K9 AIR-CAP3502E-B-K9 AIR-CAP3502I-B-K9 2461B-102073 ap3500getstart.fm Page 33 Friday, July 31, 2009 12:53 PM 34 This device complies with Class B Limits of Industry Canada. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. Cisco Aironet Access Points are certified to the requirements of RSS-210. The use of this device in a system operating either partially or completely outdoors may require the user to obtain a license for the system according to the Canadian regulations. For further information, contact your local Industry Canada office. European Community, Switzerland, Norway, Iceland, and Liechtenstein Models: AIR-SAP3501E-E-K9 AIR-SAP3502E-E-K9 AIR-CAP3501E-E-K9 AIR-CAP3502E-E-K9 AIR-SAP3501I-E-K9 AIR-SAP3502I-E-K9 AIR-CAP3501I-E-K9 AIR-CAP3502I-E-K9 ap3500getstart.fm Page 34 Friday, July 31, 2009 12:53 PM 35 Declaration of Conformity with Regard to the…

Text truncated - open the document above for the full version.

August 31, 2009 Attestation Statements on compliance for FCC ID: LDK102072 The above device meets the various requirements as specified under Part 15 and RSS-210 Rev 7 . The above referenced FCC ID number meets the following requirements below as specified Technical Specifications In review of this product we have verified that it has been designed and manufactured in accordance with good engineering practices and is capable of meeting all required regulations. 15.15 Compliance / RSS -210 In accordance with the requirements spelled out in Part 15.15 and RSP100, this device has no user accessible controls that would allow the user to configure the device to operate outside the regulations or rules. 15.21 Information to User The user manual or instruction manual for an intentional radiator cautions the user that changes or unauthorized modifications other then by the responsible party for compliance could void the user’s authority to operate the equipment. 15.27(a) Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories , such as shielded cables or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, the special accessories . In lieu of shipping with the special accessories, the responsible party may employ other methods to ensure that the special accessories are provided to the consumer without additional charge. This device does not require any special cables or special accessories to comply with the Part 15 and RSS-210 requirements. 15.202 Non US channels Master devices: This device is pre configured at the factory and can only operate on US frequency band. The user has no access to select non US channels or select non US country setting 15.203 / RSS-210 Section 5.5 Antenna Requirements An intentional radiator shall be designed to ensure that no other antenna other then furnished by the responsible party shall be attached to the device. The use of a permanently mounted antenna or an antenna that uses a unique coupler shall be considered sufficient to comply with the provisions of this section. This requirement does not apply to intentional radiators that must be professionally installed such as perimeter protection systems or some field disturbance sensors or other intentional radiators which in accordance with 15.31(d) must be measured at the installation site. Statement of Compliance to 15.203 / RSS-210 Section 5.5 The Cisco Systems Inc. transmitter is compliant to 15.203 based on the following: 1) The device uses a unique connector and incorporates antennas that use this same unique connector in accordance with the requirements specified in 15.203. The antenna connector is not ready available to the general public in compliance with the above regulations. Weather Radar Band In order to avoid possible interference to weather radar operating in the 5600-5650MHz band, the device has been notched out to exclude operation in this band at this time Best Regards, Jim Nicholson EMC Compliance Engineer

Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] August 31, 2009 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: LDK102073 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential documents from public disclosure indefinitely. Schematic Diagram Block Diagram Hardware Theory of Operation Software Theory of Operation Antenna Specifications Best Regards, Jim Nicholson EMC Compliance Engineer

Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] November 10, 2009 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Removal of Grant Deferral Dat FCC ID: LDK102073 (EA163155) To Whom It May Concern: Referencing LDK102072 (EA174130), please remove the current grant deferral date of March 1, 2010 and issue this grant immediately. The following exhibits have been posted in support of this request: • Short Term Confidentiality Request • Test_Setup_Photos_Revised.pdf (to supersede the originally filed Test Setup Photos Exhibit) • 3500_Series_2400_2483.5_Test_Report_Revised.pdf (to supersede the originally filed 3500_Series_2400_2483.5_Test_Report.pdf Exhibit) • 3500_Series_5725_5850_Test_Report_Revised.pdf (to supersede the originally filed 3500_Series_5725_5850_Test_Report.pdf Exhibit) Best Regards, Jim Nicholson EMC Compliance Engineer

Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] November 5, 2009 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: LDK102072 / LDK102073 To Whom It May Concern: Pursuant to sections 0.407(d)(1)(ii) and 0.459 of the Commission’s rules, this letter requests confidential treatment of following material filed in support of the above-referenced application. Cisco requests the following documents be held as confidential until such time as the product is released per FCC Public Notice 04-1705 • Set Up Photos • Product Exterior Photos • Product Internal Photos • User Manual • Product literature or description The information contained in these documents presents information about a Cisco product that is being certified for commercial development. If competitors were to have access to these documents both before release, they would have knowledge of Cisco’s proprietary technology and would be able to use this advance knowledge to their advantage. This could result in substantial competitive harm to Cisco’s ability to bring future product to market, should that decision be made. 1. Identification of any measures taken by the submitting party to prevent unauthorized disclosure. • Information about Cisco’s products currently under development is considered by the company to be commercially sensitive information that employees are not permitted to discuss outside the company. 2. Identification of whether the information is available to the public and the extent of any previous disclosure of information to third parties. • Information about product development is not routinely provided to the public, and is not available on Cisco’s web site. No information about this product has been disclosed. 3. Justification of the period during which the submitting party asserts that material should not be available for public disclosure. Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] • We further authorize the release of the above information after the official product launch scheduled for April 1, 2010 (or a period not to exceed 6 months whichever comes first). This request is in addition to our request to withhold specific Cisco technology confidential for the life of the product per applicable regulations. Best Regards, Jim Nicholson EMC Compliance Engineer

Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] November 5, 2009 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: LDK102073 To Whom It May Concern: Pursuant to sections 0.407(d)(1)(ii) and 0.459 of the Commission’s rules, this letter requests confidential treatment of following material filed in support of the above-referenced application. Cisco requests the following documents be held as confidential until such time as the product is released per FCC Public Notice 04-1705 • Set Up Photos • Product Exterior Photos • Product Internal Photos • User Manual • Product literature or description The information contained in these documents presents information about a Cisco product that is being certified for commercial development. If competitors were to have access to these documents both before release, they would have knowledge of Cisco’s proprietary technology and would be able to use this advance knowledge to their advantage. This could result in substantial competitive harm to Cisco’s ability to bring future product to market, should that decision be made. 1. Identification of any measures taken by the submitting party to prevent unauthorized disclosure. • Information about Cisco’s products currently under development is considered by the company to be commercially sensitive information that employees are not permitted to discuss outside the company. 2. Identification of whether the information is available to the public and the extent of any previous disclosure of information to third parties. • Information about product development is not routinely provided to the public, and is not available on Cisco’s web site. No information about this product has been disclosed. 3. Justification of the period during which the submitting party asserts that material should not be available for public disclosure. Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] • We further authorize the release of the above information after the official product launch scheduled for April 1, 2010 (or a period not to exceed 6 months whichever comes first). This request is in addition to our request to withhold specific Cisco technology confidential for the life of the product per applicable regulations. Best Regards, Jim Nicholson EMC Compliance Engineer

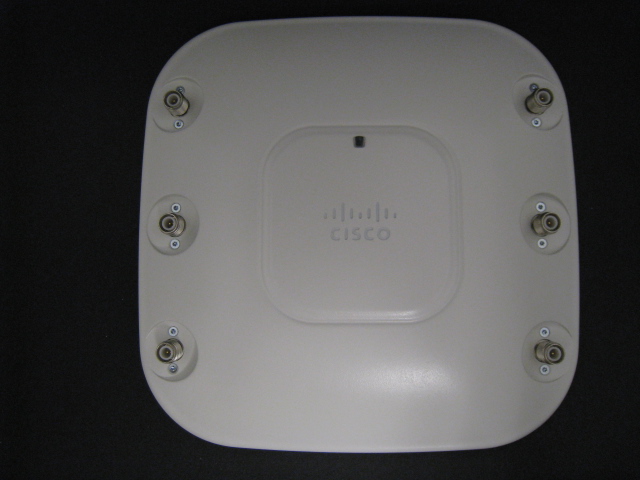

AP3502 Series External Photos

ID/Label Location can be found in the External Photos Document.

AP3502 Series Internal Photos

Custom EMC Test Report No: EDCS - 789831 Page No: 1 of 103 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Test Report Cisco Aironet 802.11n Single Band Access Points FCC ID: LDK102072 Cisco Aironet 802.11n Dual Band Access Points FCC ID: LDK102073 2400-2483.5 MHz Against the following Specifications: CFR47 Part 15.247 RSS210 Cisco Systems 170 West Tasman Drive San Jose, CA 95134 Custom EMC Test Report No: EDCS - 789831 Page No: 2 of 103 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential This test report has been electronically authorized and archived using the CISCO Engineering Document Control system. SECTION 1: OVERVIEW ......................................................................................................................................... 3 1.1 TEST SUMMARY ...................................................................................................................................................... 3 SECTION 2: ASSESSMENT INFORMATION ...................................................................................................... 4 2.1 GENERAL ................................................................................................................................................................. 4 2.4 TESTING FACILITIES ............................................................................................................................................... 5 2.6 EUT DESCRIPTION .................................................................................................................................................. 5 SECTION 4: SAMPLE DETAILS ............................................................................................................................. 7 APPENDIX A: EMISSION TEST RESULTS .................................................................................................. 8 AVERAGE OUTPUT POWER ........................................................................................................................................... 8 6DB BANDWIDTH ........................................................................................................................................................... 9 99% AND 26DB BANDWIDTH ....................................................................................................................................... 21 PEAK OUTPUT POWER ................................................................................................................................................ 33 POWER SPECTRAL DENSITY ....................................................................................................................................... 46 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................................... 58 APPENDIX B: EMISSION TEST RESULTS ................................................................................................ 70 RADIATED BANDEDGE .................................................................................................................................................. 70 RADIATED SPURIOUS EMISSIONS .................................................................................................................................. 90 2.4GHZ 5.2DBI OMNICONDUCTED EMISSIONS ............................................................................................................. 99 CONDUCTED EMISSIONS ............................................................................................................................................... 99 RADIATED EMISSIONS ................................................................................................................................................. 100 MAXIMUM PERMISSIBLE EXPOSURE (MPE) CALCULATIONS ................................................................................... 101 APPENDIX C: TEST EQUIPMENT/SOFTWARE USED TO PERFORM THE TEST ............................. 103 Custom EMC Test Report No: EDCS - 789831 Page No: 3 of 103 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Section 1: Overview 1.1 Test Summary samples were assessed against the tests detailed in section 3 under the requirements of the following specifications: Emission Immunity CFR47 Part 15.247 RSS210 N/A The specifications listed above represent actual tests performed to demonstrate compliance against the specifications and basic standards listed on the front cover of this report. This list is not a one to one match to the front cover for one or more of the following reasons. 1. Basic standards call up many different test phenomena specifications such as the 61000-4-X series. The basic standards define which elements and levels shall be applied from these specifications and as such it is not appropriate to list the individual specifications on the front cover. 2. A Standard listed on the front cover may be required in a particular country but is not appropriate for the particular technologies included in the equipment under test. E.g. You cannot test a DC product to the mains Harmonics requirements in EN61000-3-2. See section 3.2. 3. Test results against a particular standard or specification may be included in a different test report. See section 3.2 for an EDCS reference of this data. 4. Where appropriate, Cisco may have substituted a later revision of a basic standard to those referenced in the specification on the front sheet of this test report. This decision was based upon improved test methodology and repeatability and/or where the newer revision represented a more stringent test. 5. Where relevant, testi…

Text truncated - open the document above for the full version.

Custom EMC Test Report No: EDCS - 789860 Page No: 1 of 49 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Test Report Cisco Aironet 802.11n Dual Band Access Points FCC ID: LDK102073 5725-5850 MHz Against the following Specifications: CFR47 Part 15.247 RSS210 Cisco Systems 170 West Tasman Drive San Jose, CA 95134 Custom EMC Test Report No: EDCS - 789860 Page No: 2 of 49 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential This test report has been electronically authorized and archived using the CISCO Engineering Document Control system. SECTION 1: OVERVIEW ......................................................................................................................................... 3 1.1 TEST SUMMARY ...................................................................................................................................................... 3 SECTION 2: ASSESSMENT INFORMATION ...................................................................................................... 4 2.1 GENERAL ................................................................................................................................................................. 4 2.4 TESTING FACILITIES ............................................................................................................................................... 5 2.6 EUT DESCRIPTION .................................................................................................................................................. 5 SECTION 4: SAMPLE DETAILS ............................................................................................................................. 6 APPENDIX A: EMISSION TEST RESULTS .................................................................................................. 7 AVERAGE OUTPUT POWER ........................................................................................................................................... 7 6DB BANDWIDTH ........................................................................................................................................................... 8 99% AND 26DB BANDWIDTH ....................................................................................................................................... 13 PEAK OUTPUT POWER ................................................................................................................................................ 18 POWER SPECTRAL DENSITY ....................................................................................................................................... 23 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................................... 28 APPENDIX B: EMISSION TEST RESULTS ................................................................................................ 33 RADIATED BANDEDGE .................................................................................................................................................. 33 RADIATED SPURIOUS EMISSIONS .................................................................................................................................. 38 MAXIMUM PERMISSIBLE EXPOSURE (MPE) CALCULATIONS ..................................................................................... 47 APPENDIX C: TEST EQUIPMENT/SOFTWARE USED TO PERFORM THE TEST ............................... 49 Custom EMC Test Report No: EDCS - 789860 Page No: 3 of 49 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Section 1: Overview 1.1 Test Summary samples were assessed against the tests detailed in section 3 under the requirements of the following specifications: Emission Immunity CFR47 Part 15.247 RSS210 N/A The specifications listed above represent actual tests performed to demonstrate compliance against the specifications and basic standards listed on the front cover of this report. This list is not a one to one match to the front cover for one or more of the following reasons. 1. Basic standards call up many different test phenomena specifications such as the 61000-4-X series. The basic standards define which elements and levels shall be applied from these specifications and as such it is not appropriate to list the individual specifications on the front cover. 2. A Standard listed on the front cover may be required in a particular country but is not appropriate for the particular technologies included in the equipment under test. E.g. You cannot test a DC product to the mains Harmonics requirements in EN61000-3-2. See section 3.2. 3. Test results against a particular standard or specification may be included in a different test report. See section 3.2 for an EDCS reference of this data. 4. Where appropriate, Cisco may have substituted a later revision of a basic standard to those referenced in the specification on the front sheet of this test report. This decision was based upon improved test methodology and repeatability and/or where the newer revision represented a more stringent test. 5. Where relevant, testing has been carried out to the requirements of both EN and IEC Specifications. This was possible because of the similarities of the test methods involved and the Cisco EMC test procedures. 6. Testing may have been performed to an equivalent test that satisfies the requirements of the standards and specifications listed on the front cover of the report. See section 3.2. 7. Where radiated emissions testing has been performed to EN55022/CISPR22 the additional requirements of VCCI: V- 3/2006.04, EN55022: 1994 +A1/2 and CAN/CSA- CISPR 22-02 have also been…

Text truncated - open the document above for the full version.

Title: Conducted Test Setup 2.4GHz 6dBi MIMO patch co-located with 5GHz 6dBi MIMO patch 2.4GHz 5.2dBi Omni Title: Conducted Emissions Configuration Photograph Title: Radiated Emissions Configuration Photograph DFS Setup
