LDK102073PCisco Aironet 802.11n Single Band Access Points

GETTING STARTED GUIDE Cisco Aironet 3502P Lightweight Access Point 1About this Guide 2Safety Instructions 3Unpacking 4Overview 5Configuring the Access Point 6Mounting the Access Point 7Deploying the Access Point on the Wireless Network 8Troubleshooting 9Declarations of Conformity and Regulatory Information 10Configuring DHCP Option 43 and DHCP Option 60 11Access Point Specifications ap3502getstart.fm Page 1 Wednesday, December 22, 2010 8:51 AM 2 1 About this Guide This Guide provides instructions on how to install and configure your Cisco Aironet 3502P Access Point. This guide also provides mounting instructions and limited troubleshooting procedures. 2 Safety Instructions Translated versions of the following safety warnings are provided in the translated safety warnings document that is shipped with your access point. The translated warnings are also in the Translated Safety Warnings for Cisco Aironet Access Points, which is available on your documentation CD and Cisco.com. WarningIMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071 SAVE THESE INSTRUCTIONS WarningOnly trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030 WarningIn order to comply with radio frequency (RF) exposure limits, the antennas for this product should be positioned no less than 6.56 ft (2 m) from your body or nearby persons. Statement 339 WarningRead the installation instructions before you connect the system to its power source. Statement 1004 ap3502getstart.fm Page 2 Wednesday, December 22, 2010 8:51 AM 3 WarningThis product must be connected to a Power-over-Ethernet (PoE) IEEE 802.3af compliant power source or an IEC60950 compliant limited power source. Statement 353 WarningInstallation of the equipment must comply with local and national electrical codes. Statement 1074 WarningThis product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 20A. Statement 1005 WarningDo not operate your wireless network device near unshielded blasting caps or in an explosive environment unless the device has been modified to be especially qualified for such use. Statement 245B CautionThe fasteners you use to mount an access point on a ceiling must be capable of maintaining a minimum pullout force of 20 lbs (9 kg) and must use all 4 indented holes on the mounting bracket. CautionThis product and all interconnected equipment must be installed indoors within the same building, including the associated LAN connections as defined by Environment A of the IEEE 802.af Standard. NoteThe access point is suitable for use in environmental air space in accordance with section 300.22.C of the National Electrical Code and sections 2-128, 12-010(3), and 12-100 of the Canadian Electrical Code, Part 1, C22.1. You should not install the power supply or power injector in air handling spaces. NoteUse only with listed ITE equipment. ap3502getstart.fm Page 3 Wednesday, December 22, 2010 8:51 AM 4 3 Unpacking Follow these steps: Step 1Unpack and remove the access point and the accessory kit from the shipping box. Step 2Return any packing material to the shipping container and save it for future use. Step 3Verify that you have received the items listed below. If any item is missing or damaged, contact your Cisco representative or reseller for instructions. –3502P access point –Mounting bracket (selected when you ordered the access point) –Adjustable ceiling-rail clip (selected when you ordered the access point) ap3502getstart.fm Page 4 Wednesday, December 22, 2010 8:51 AM 5 4 Overview The following illustrations show the access point connections and features. Figure 1Access Point Ports and Connections (top) 1 2.4-GHz antenna connector B (labelled with black text) 4 5-GHz antenna connector A (labelled with blue text) 2 2.4-GHz antenna connector C (labelled with black text) 5 5-GHz antenna connector C (labelled with blue text) 3 2.4-GHz antenna connector A (labelled with black text) 6 5-GHz antenna connector B (labelled with blue text) 207613 52 3 1 6 4 ap3502getstart.fm Page 5 Wednesday, December 22, 2010 8:51 AM 6 Figure 2Access Point Ports and Connections (bottom) 1 Kensington lock slot 4 Console port 2 Power connection 5 Security padlock and hasp (padlock not included) 3 Ethernet port 6 Mounting bracket pins (feet for desk or table-top mount) 272377 234 15 66 ap3502getstart.fm Page 6 Wednesday, December 22, 2010 8:51 AM 7 5 Configuring the Access Point This section describes how to connect the access point to a wireless LAN controller. Because the configuration process takes place on the controller, see the Cisco Wireless LAN Controller Configuration Guide for additional information. This guide is available on Cisco.com. The Controller Discovery Process The 3502P access point uses the IETF standard Control and Provisioning of Wireless Access Points Protocol (CAPWAP) to communicate between the controller and other wireless access points on the network. CAPWAP is a standard, interoperable protocol which enables an access controller to manage a collection of wireless termination points. The discovery process using CAPWAP is identical to the Lightweight Access Point Protocol (LWAPP) used with previous Cisco Aironet access points. LWAPP-enabled access points are compatible with CAPWAP and conversion to a CAPWAP controller is seamless. Deployments can combine CAPWAP and LWAPP software on the controllers. The functionality provided by the controller does not change except for customers who have Layer 2 deployments, which CAP…

Text truncated - open the document above for the full version.

Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] November 9, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: LDK102073P To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential documents from public disclosure indefinitely. Schematic Diagram Block Diagram Hardware Theory of Operation Software Theory of Operation Antenna Specifications Best Regards, Jim Nicholson EMC Compliance Engineer

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134 December 8, 2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jim Nicholson Compliance Engineer Cisco Systems, Inc

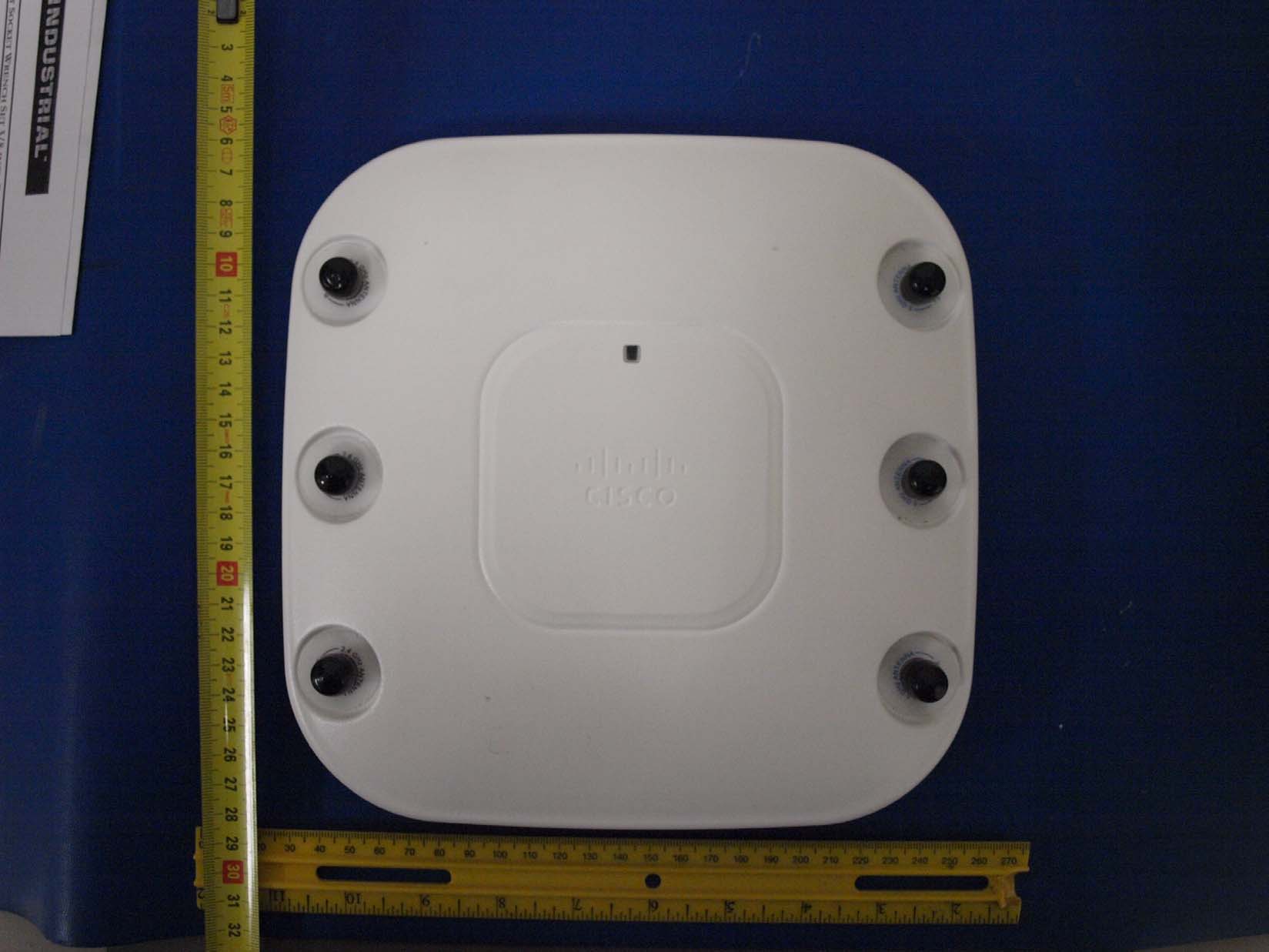

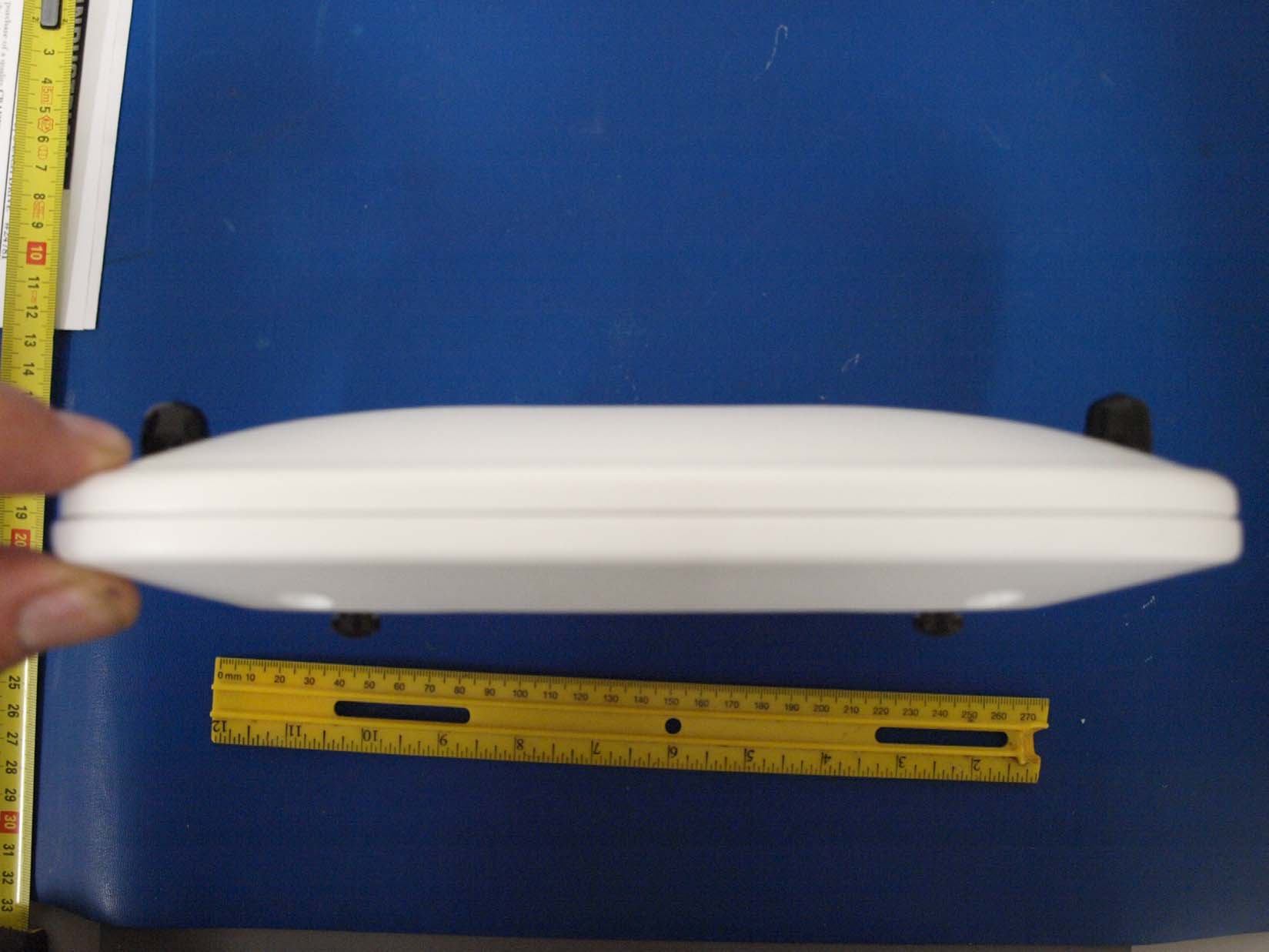

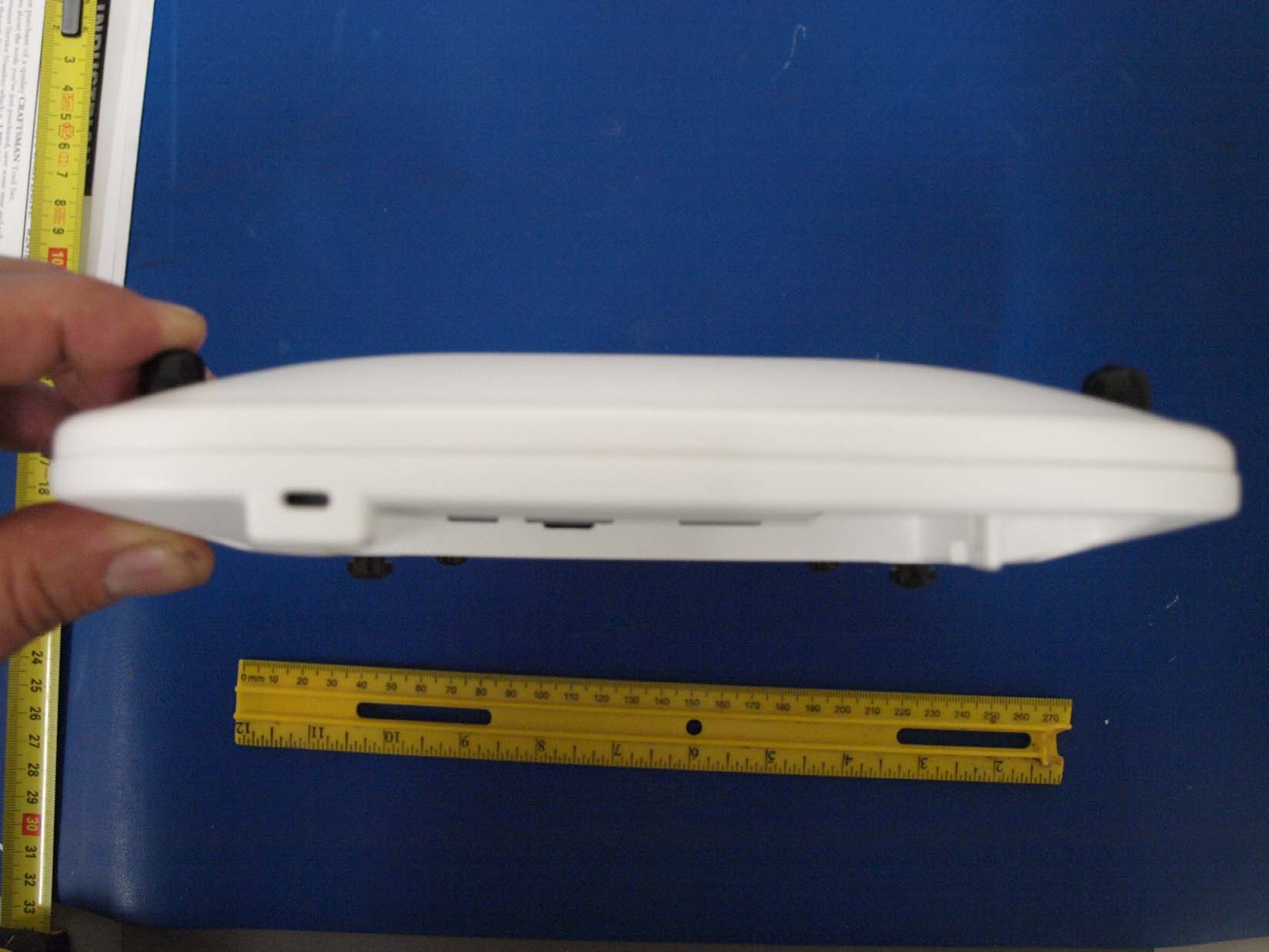

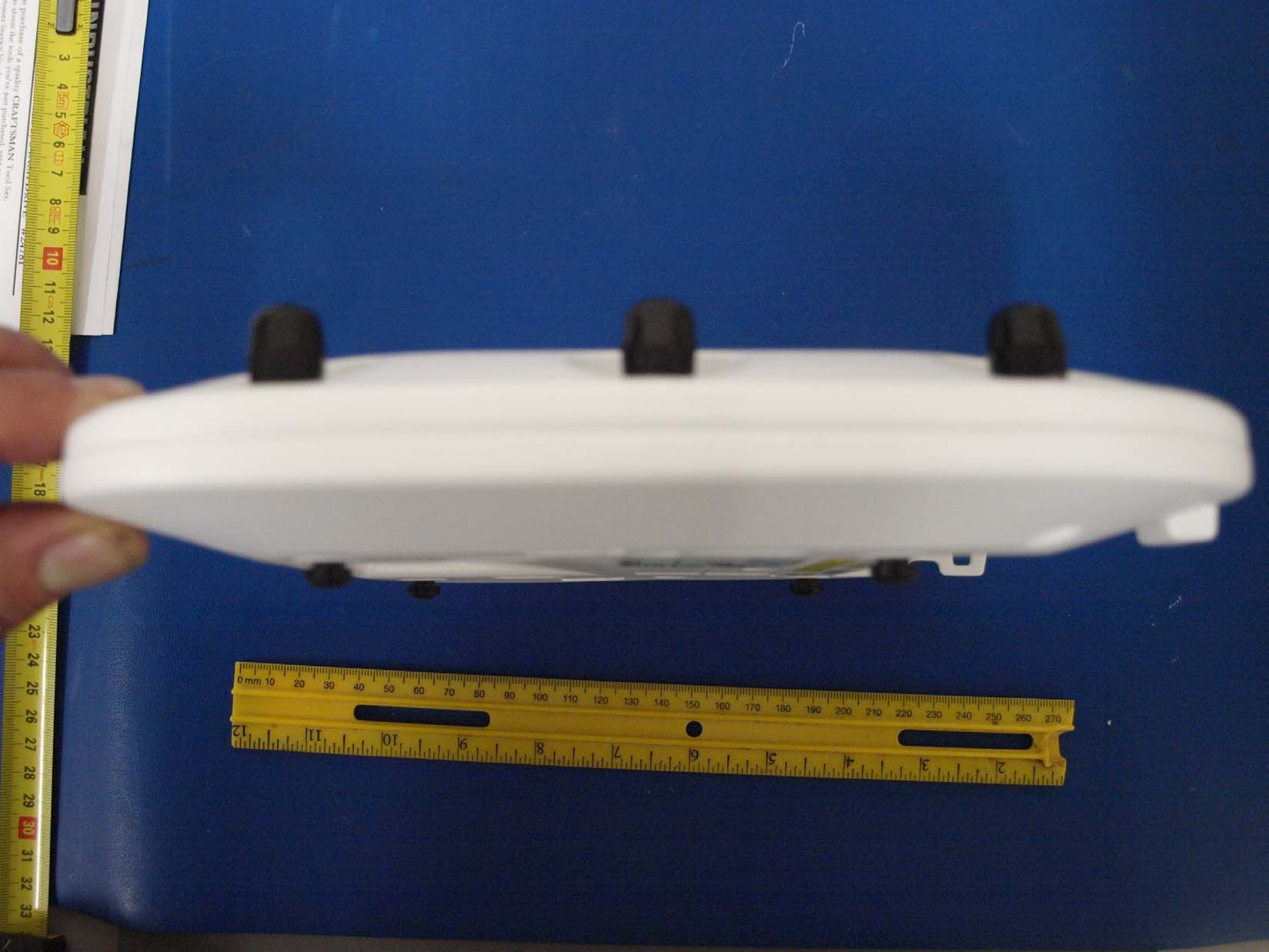

3502 & 1262 Series Internal Photos

Custom EMC Test Report No: EDCS - 895817 Page No: 164 of 166 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Maximum Permissible Exposure (MPE) Calculations 15.247: U-NII devices are subject to the radio frequency radiation exposure requirements specified in Sec. 1.1307(b), Sec. 2.1091 and Sec. 2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a ``general population/uncontrolled'' environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. Given E=√(30*P*G)/d and S=E^2/3770 where E=Field Strength in Volts/meter P=Power in Watts G=Numeric Antenna Gain d=Distance in meters S=Power Density in mW/cm^2 Combine equations and rearrange the terms to express the distance as a function of the remaining variables: d=√((30*P*G)/(3770*S)) Changing to units of power in mW and distance in cm, using: P(mW)=P(W)/1000 d(cm)=100*d(m) yields d=100*√((30*(P/1000)*G)/(3770*S)) d=0.282*√(P*G/S) where d=Distance in cm P=Power in mW G=Numerica Antenna Gain S=Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P(mW)=10^(P(dBm)/10) G(numeric)=10^(G(dBi)/10) yields d=0.282*10^((P+G)/20)/√S Equation (1) and s=((0.282*10^((P+G)/20))/d)^2 Equation (2) where d=MPE distance in cm P=Power in dBm G=Antenna Gain in dBi S=Power Density in mW/cm^2 Custom EMC Test Report No: EDCS - 895817 Page No: 165 of 166 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Equation (1) and the measured peak power are used to calculate the MPE distance. Note that for mobile or fixed location transmitters such as an access point, the minimum separation distance is 20 cm even if the calculations indicate that the MPE distance may be less. S=1mW/cm^2 maximum. The highest supported antenna gain is 13.5 dBi (16.5dBi with beamforming). Using the peak power levels recorded in the test report along with Equation 1 above, the MPE distances are calculated as follows. Frequency (MHz) Bit Rate (Mbps) Power Density (mW/cm^2) Peak Transmit Power (dBm) Antenna Gain (dBi) MPE Distance (cm) Limit (cm) Margin (cm) 241211121.116.521.3920-1.39 243711123.216.527.2420-7.24 246211121.316.521.8920-1.89 241254119.316.517.39202.61 243754120.916.520.9020-0.90 246254117.616.514.30205.70 MPE Calculations To maintain compliance, installations will assure a separation distance of at least 20cm. Installations utilizing antennas with gain greater than 10 dBi will assure a separation distance of at least 30 cm. Using Equation 2, the MPE levels (s) at 20 cm are calculated as follows: Frequency (MHz) Bit Rate (Mbps) MPE Distance (cm) Peak Transmit Power (dBm) Antenna Gain (dBi) Power Density (mW/cm^2) Limit (mW/cm^2) Margin (mW/cm^2) Power Density (W/m^2) 2412112021.116.51.141-0.1411.4 2437112023.216.51.861-0.8618.6 2462112021.316.51.201-0.2012.0 2412542019.316.50.7610.247.6 2437542020.916.51.091-0.0910.9 2462542017.616.50.5110.495.1

Custom EMC Test Report No: EDCS - 895816 Page No: 52 of 54 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Maximum Permissible Exposure (MPE) Calculations 15.247: U-NII devices are subject to the radio frequency radiation exposure requirements specified in Sec. 1.1307(b), Sec. 2.1091 and Sec. 2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a ``general population/uncontrolled'' environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. Given E=√(30*P*G)/d and S=E^2/3770 where E=Field Strength in Volts/meter P=Power in Watts G=Numeric Antenna Gain d=Distance in meters S=Power Density in mW/cm^2 Combine equations and rearrange the terms to express the distance as a function of the remaining variables: d=√((30*P*G)/(3770*S)) Changing to units of power in mW and distance in cm, using: P(mW)=P(W)/1000 d(cm)=100*d(m) yields d=100*√((30*(P/1000)*G)/(3770*S)) d=0.282*√(P*G/S) where d=Distance in cm P=Power in mW G=Numerica Antenna Gain S=Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P(mW)=10^(P(dBm)/10) G(numeric)=10^(G(dBi)/10) yields d=0.282*10^((P+G)/20)/√S Equation (1) and s=((0.282*10^((P+G)/20))/d)^2 Equation (2) where d=MPE distance in cm P=Power in dBm G=Antenna Gain in dBi S=Power Density in mW/cm^2 Custom EMC Test Report No: EDCS - 895816 Page No: 53 of 54 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Equation (1) and the measured peak power are used to calculate the MPE distance. Note that for mobile or fixed location transmitters such as an access point, the minimum separation distance is 20 cm even if the calculations indicate that the MPE distance may be less. S=1mW/cm^2 maximum. The highest supported antenna gain is 7 dBi (10dBi with beamforming). Using the peak power levels recorded in the test report along with Equation 1 above, the MPE distances are calculated as follows. Frequency (MHz) Bit Rate (Mbps) Power Density (mW/cm^2) Peak Transmit Power (dBm) Antenna Gain (dBi) MPE Distance (cm) Limit (cm) Margin (cm) 574554120.4109.342010.66 578554120.4109.342010.66 582554120.7109.672010.33 MPE Calculations To maintain compliance, installations will assure a separation distance of at least 20cm. Using Equation 2, the MPE levels (s) at 20 cm are calculated as follows: Frequency (MHz) Bit Rate (Mbps) MPE Distance (cm) Peak Transmit Power (dBm) Antenna Gain (dBi) Power Density (mW/cm^2) Limit (mW/cm^2) Margin (mW/cm^2) 5745542020.4100.2210.78 5785542020.4100.2210.78 5825542020.7100.2310.77
