LDK102085Cisco Aironet 700 Series Access Point

Cisco Confidential -- Review Draft GETTING STARTED GUIDE Cisco Aironet 700 Series Access Points September, 2012 1About this Guide 2Introduction to the Access Point 3Safety Instructions 4Unpacking 5Configurations 6Access Point Ports and Connectors 7Configuring the Access Point 8Mounting the Access Point 9Deploying the Access Point on the Wireless Network 10Troubleshooting 11Declarations of Conformity and Regulatory Information 12Configuring DHCP Option 43 and DHCP Option 60 13Access Point Specifications 2 Cisco Confidential -- Review Draft 1 About this Guide This Guide provides instructions on how to install and configure your Cisco Aironet 700 Series Access Point. The 700 Series Access Point is referred to as the 700 series or the access point in this document. 2 Introduction to the Access Point The 700 series supports high-performing two spatial stream rates over a deployable distance with high reliability when serving clients. The 700 series provides high reliability and overall wireless performance. The 700 series offers dual-band radios (2.4 GHz and 5 GHz) with integrated internal antennas. The access point support s full inter-operability with leading 802.11n clients, and supports a mixed deployment with other access points and controllers. The 700 series access point is available in the controller-based (Unified) configuration and supports: •Simultaneous single-band or dual-band (2.4 GHz/5 GHz) radios •Integrated antennas on 702I access point models (AIR-CAP702I-x-K9) NoteThe ‘x’ in the model numbers represents the regulatory domain. Refer to “Regulatory Domains” section on page 5 for a list of supported regulatory domains. The features of the 700 series are: •Processing sub-systems (including CPUs and memory) and radio hardware which supports: –Unified –FlexConnect –Monitor-mode AP •The following processor features: –128 MB NAND flash size –1 MB NOR flash size –128 MB DDR2 memory bus, x32 •2.4 GHz and 5 GHz 802.11n radios with the following features: –All 802.11n standards –A-MPDU TX –HT Duplicate Mode –2TX x 2RX 3 Cisco Confidential -- Review Draft –2-spatial streams, 300 Mbps PHY rate –Maximal ratio combining (MRC) –Cyclic Shift Diversity (CSD) –MCS0-MCS15; Short or Long Guard Intervals –DFS (Bin 5) for UNII-2 and UNII-2 Extended channels, including 0.5us radar pulse detection 3 Safety Instructions Translated versions of the following safety warnings are provided in the translated safety warnings document that is shipped with your access point. The translated warnings are also in the Translated Safety Warnings for Cisco Aironet Access Points, which is available on Cisco.com. WarningIMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071 SAVE THESE INSTRUCTIONS WarningRead the installation instructions before you connect the system to its power source. Statement 1004 WarningInstallation of the equipment must comply with local and national electrical codes. Statement 1074 WarningThis product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 20A. Statement 1005 4 Cisco Confidential -- Review Draft WarningDo not operate your wireless network device near unshielded blasting caps or in an explosive environment unless the device has been modified to be especially qualified for such use. Statement 245B WarningIn order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum of 7.9 inches (20 cm) or more from the body of all persons. Statement 332 CautionThe fasteners you use to mount an access point on a ceiling must be capable of maintaining a minimum pullout force of 20 lbs (9 kg) and must use all 4 indented holes on the mounting bracket. CautionThis product and all interconnected equipment must be installed indoors within the same building, including the associated LAN connections as defined by Environment A of the IEEE 802.af Standard. NoteThe access point is suitable for use in environmental air space in accordance with section 300.22.C of the National Electrical Code and sections 2-128, 12-010(3), and 12-100 of the Canadian Electrical Code, Part 1, C22.1. You should not install the power supply or power injector in air handling spaces. NoteUse only with listed ITE equipment. 4 Unpacking To unpack the access point, follow these steps: Step 1Unpack and remove the access point and the accessory kit from the shipping box. Step 2Return any packing material to the shipping container and save it for future use. 5 Cisco Confidential -- Review Draft Step 3Verify that you have received the items listed below. If any item is missing or damaged, contact your Cisco representative or reseller for instructions. –The access point –Mounting bracket (if purchased when the access point was purchased) –Adjustable ceiling-rail clip (if purchased when the access point was purchased) 5 Configurations The 700 series access point contains two simultaneous dual-band radios, the 2.4-GHz and 5-GHz 802.11n MIMO radios, in a controller-based mode. The 700 series access point configuration is AIR-CAP702I-x-K9—two 2.4-GHz/5-GHz dual-band radios, with integrated dual-band inverted-F antennas For information on the regulatory domains (shown as “x” in the model numbers) see “Regulatory Domains” section on page 5. Internal Antennas The 702I model access points are configured with up to four dual-band inverted-F antennas and two 2.4-GHz/5-GHz dual-band radios. There are four antennas deployed inside the access point with one deployed on each corner of the access point top housing. Each antenna covers both …

Text truncated - open the document above for the full version.

March 4, 2013 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: In reference to the application under FCC ID: LDK102085 and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagram Radio Theory of Operation Series Software Theory of Operation These documents contain detailed system and equipment description and related information about the product that Cisco considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Cisco considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Best Regards, Jim Nicholson EMC Compliance Engineer 4125 Highlander Parkway Richfield, Ohio 44286 Email: [email protected] Direct: (330)523-2094

Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] March 13, 2013 UL LLC Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL LLC to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL LLC on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). [Remove this section if Regulatory Authority is not FCC] In authorizing UL LLC as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Best Regards, Jim Nicholson EMC Compliance Engineer

EDCS-1216337 12/04/2012 Subject : Authorized signatures The following people are authorized by Cisco Systems to sign documents for FCC product approval under FCC Grantee code LDK on behalf of the company. Further this right is extended to any regular Cisco employee as deemed necessary. David A, Case Jim Nicholson Trinh Tien Donn Foster Bruce Touzel Howard Ji Phil Carranco Jose Aguirre Collin Wilson Lisa Bevington Andy Griffin Mark King Dave Wilson Allan Beecroft Bob Lyall Pushpinder Sawanni Julius “ Bud” Chiller Chuck Troia Francois Caron Steve Granzella Regards Kenny Wee Cisco Systems

702I External Photo os

Label Location

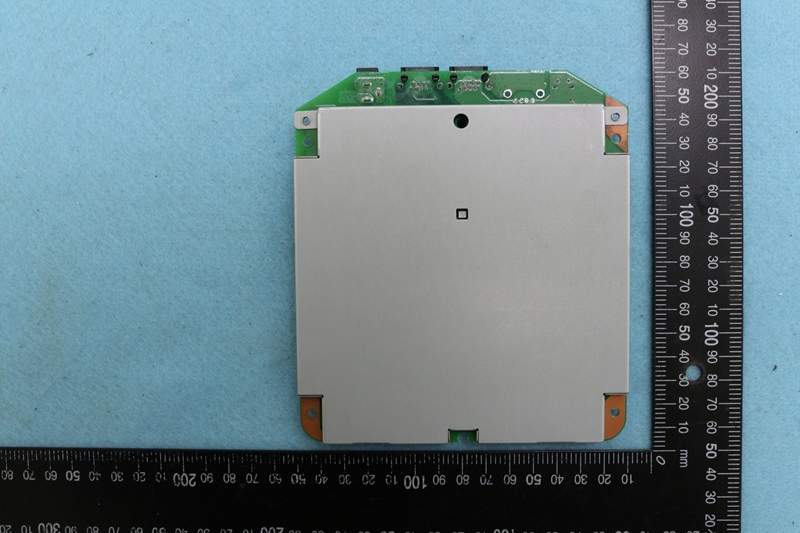

702I Internal Photos Back side with shields Back side without shields Top sid Top sid de with shield de without sh ds hields

Report No.: FR281405-03 FCC ID: LDK102085 Page No. : B1 of B4 IC: 2461B-102085 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE Report No.: FR281405-03 FCC ID: LDK102085 Page No. : B2 of B4 IC: 2461B-102085 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and RSS-102 Issue 4 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR281405-03 FCC ID: LDK102085 Page No. : B3 of B4 IC: 2461B-102085 1.3. Calculated Result and Limit For 2.4GHz DTS: Antenna Type : PIFA Max Conducted Power for Non HT-20, Beam Forming, 6Mbps: 20.42 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.01 3.9905 20.42 110.0611 0.087421 1 Complies Note: Directional Antenna Gain = G ANT + 10 log(N TX ) For 5GHz DTS Band 4: Antenna Type : PIFA Max Conducted Power for HT-40, Beam Forming, M0: 20.73dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.01 6.3246 20.73 118.2746 0.148892 1 Complies Note: Directional Antenna Gain = G ANT + 10 log(N TX ) For 5GHz UNII Band 1: Antenna Type : PIFA Max Conducted Power for HT-20, Beam Forming, M0 : 14.08dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.01 6.3246 14.08 25.5805 0.032202 1 Complies Note: Directional Antenna Gain = G ANT + 10 log(N TX ) For 5GHz UNII Band 2: Antenna Type : PIFA Max Conducted Power for HT-20, Beam Forming, M0 : 20.23dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.01 6.3246 20.23 105.5306 0.132849 1 Complies Note: Directional Antenna Gain = GANT + 10 log(NTX) Report No.: FR281405-03 FCC ID: LDK102085 Page No. : B4 of B4 IC: 2461B-102085 For 5GHz UNII Band 3: Antenna Type : PIFA Max Conducted Power for HT-40, Beam Forming, M0 : 21.99dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.01 6.3246 21.99 158.1139 0.199045 1 Complies Note: Directional Antenna Gain = G ANT + 10 log(N TX ) CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.087421 / 1 + 0.199045 / 1 = 0.286466, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

FCC and IC Radio Test Report Report No. : FR281405-03AA SPORTON INTERNATIONAL INC. Page No. : 2 of 174 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION ....................................................................................................................5 1.1 Information..............................................................................................................................................5 1.2 Accessories ............................................................................................................................................7 1.3 Support Equipment.................................................................................................................................7 1.4 Testing Applied Standards .....................................................................................................................7 1.5 Testing Location Information ..................................................................................................................7 1.6 Measurement Uncertainty ......................................................................................................................8 2 TEST CONFIGURATION OF EUT ........................................................................................................9 2.1 The Worst Case Modulation Configuration ............................................................................................9 2.2 Test Channel Frequencies Configuration...............................................................................................9 2.3 The Worst Case Power Setting Parameter ..........................................................................................10 2.4 Target Maximum Channel Power.........................................................................................................10 2.5 EUT Operation during Test ..................................................................................................................10 2.6 The Worst Case Measurement Configuration......................................................................................11 2.7 Test Setup Diagram .............................................................................................................................13 3 TRANSMITTER TEST RESULT ..........................................................................................................15 3.1 AC Power-line Conducted Emissions ..................................................................................................15 3.2 6dB Bandwidth .....................................................................................................................................18 3.3 26dB Bandwidth ...................................................................................................................................26 3.4 RF Output Power..................................................................................................................................33 3.5 Power Spectral Density ........................................................................................................................57 3.6 Transmitter Conducted Bandedge Emissions......................................................................................81 3.7 Transmitter Conducted Unwanted Emissions ....................................................................................129 3.8 Transmitter Radiated Unwanted Emissions .......................................................................................142 4 TEST EQUIPMENT AND CALIBRATION DATA ..............................................................................173 APPENDIX A. TEST PHOTOS.............................................................................................A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE.............................................................B1 ~ B4 APPENDIX C. CO-LOCATION.............................................................................................C1 ~ C3 FCC and IC Radio Test Report Report No. : FR281405-03AA SPORTON INTERNATIONAL INC. Page No. : 3 of 174 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause FCC Std. Clause IC Std. Clause Description Measured Limit Result 1.1.2 15.203 - Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 RSS-Ge n 7.2.4 AC Power-line Conducted Emissions [dBuV]: 21.169MHz 38.62 (Margin 11.38dB) - AV 40.70 (Margin 19.30dB) - QP FCC 15.207 / RSS-Gen 7.2.4 Complied 3.2 15.247(a) RSS-210 A8.2 6dB Bandwidth 6dB Bandwidth Unit [MHz] :17.68 ≥500kHz Complied 3.3 15.247 RSS-210 26dB Bandwidth 26dB Bandwidth [MHz]:25.24 Information only Complied 3.4 15.247(b) RSS-210 A8.4 RF Output Power (Maximum Conducted Output Power) Power [dBm]:20.43 Power [dBm]:30 Complied 3.5 15.247(d) RSS-210 A8.2 Power Spectral Density PSD [dBm/3kHz]:-2.99 PSD [dBm/3kHz]:8 Complied 3.6 15.247(c) RSS-210 A8.5 Transmitter Conducted Bandedge Emissions [dBm]: -21.35 (Margin 0.10dB) - PK -41.37 (Margin 0.12dB) - AV Restricted Bands: FCC 15.209 / RSS-Gen 7.2.5 PK: -21.25dBm AV: -41.25dBm Complied 3.7 15.247(c) RSS-210 A8.5 Transmitter Conducted Unwanted Emissions 45.04dB (Margin 15.04dB) Non-Restricted Bands: > 30 dBc Complied 3.8 15.247(c) RSS-210 A8.5 Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 41.09MHz 36.65 (Margin 3.35dB) - QP Restricted Bands: FCC 15.209 / RSS-Gen 7.2.5 Complied FCC and IC Radio Test Report Report No. : FR281405-03AA SPORTON INTERNATIONAL INC. Page No. : 4 of 174 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR281405-03AA Rev. 01 Initial issue of report Apr. 17, 2013 2500-2690 FCC and IC Radio Test Report Report No. : FR281405-03AA SPORTON INTERNATIONAL INC. Page No…

Text truncated - open the document above for the full version.

FCC and IC Radio Test Report Report No. : FR281405-03AB SPORTON INTERNATIONAL INC. Page No. : 2 of 146 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION ....................................................................................................................5 1.1 Information..............................................................................................................................................5 1.2 Accessories ............................................................................................................................................7 1.3 Support Equipment.................................................................................................................................7 1.4 Testing Applied Standards .....................................................................................................................7 1.5 Testing Location Information ..................................................................................................................7 1.6 Measurement Uncertainty ......................................................................................................................8 2 TEST CONFIGURATION OF EUT ........................................................................................................9 2.1 The Worst Case Modulation Configuration ............................................................................................9 2.2 Test Channel Frequencies Configuration...............................................................................................9 2.3 The Worst Case Power Setting Parameter ..........................................................................................10 2.4 Target Maximum Channel Power.........................................................................................................10 2.5 EUT Operation during Test ..................................................................................................................10 2.6 The Worst Case Measurement Configuration......................................................................................11 2.7 Test Setup Diagram .............................................................................................................................13 3 TRANSMITTER TEST RESULT ..........................................................................................................15 3.1 AC Power-line Conducted Emissions ..................................................................................................15 3.2 6dB Bandwidth .....................................................................................................................................18 3.3 26dB Bandwidth ...................................................................................................................................27 3.4 RF Output Power..................................................................................................................................36 3.5 Power Spectral Density ........................................................................................................................51 3.6 Transmitter Conducted Unwanted Emissions ......................................................................................66 3.7 Transmitter Radiated Unwanted Emissions .........................................................................................78 4 TEST EQUIPMENT AND CALIBRATION DATA ..............................................................................145 APPENDIX A. TEST PHOTOS.............................................................................................A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE.............................................................B1 ~ B4 APPENDIX C. CO-LOCATION.............................................................................................C1 ~ C3 FCC and IC Radio Test Report Report No. : FR281405-03AB SPORTON INTERNATIONAL INC. Page No. : 3 of 146 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause FCC Std. Clause IC Std. Clause DescriptionMeasured Limit Result 1.1.2 15.203 - Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 RSS-Gen 7.2.4 AC Power-line Conducted Emissions [dBuV]: 21.169MHz 38.62 (Margin 11.38dB) - AV 40.70 (Margin 19.30dB) - QP FCC 15.207 / RSS-Gen 7.2.4 Complied 3.2 15.247(a) RSS-210 A8.2 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 17.76 / 40M: 36.48 ≥500kHz Complied 3.3 15.247 RSS-210 26dB Bandwidth Bandwidth [MHz] 20M:26.41 / 40M:49.12 Information only Complied 3.4 15.247(b) RSS-210 A8.4 RF Output Power (Maximum Conducted Output Power) Power [dBm] 20M:20.64 / 40M:20.73 Power [dBm]:30 Complied 3.5 15.247(d) RSS-210 A8.2 Power Spectral Density PSD [dBm/3kHz] 20M: -4.28 / 40M:-7.74 PSD [dBm/3kHz]:8 Complied 3.6 15.247(c) RSS-210 A8.5 Transmitter Conducted Unwanted Emissions 38.75 (Margin 8.75dB) Non-Restricted Bands: > 30 dBc Complied 3.7 15.247(c) RSS-210 A8.5 Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 41.09MHz 36.65 (Margin 3.35dB) - QP Restricted Bands: FCC 15.209 / RSS-Gen 7.2.5 Complied FCC and IC Radio Test Report Report No. : FR281405-03AB SPORTON INTERNATIONAL INC. Page No. : 4 of 146 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR281405-03AB Rev. 01 Initial issue of report Apr. 17, 2013 2500-2690 FCC and IC Radio Test Report Report No. : FR281405-03AB SPORTON INTERNATIONAL INC. Page No. : 5 of 146 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Operating Mode Ch. Freq. (MHz) Channel Number Co-location 5725-5850 Non HT-20, 6 to 54Mbps 5745-58…

Text truncated - open the document above for the full version.

Report No.: FR281405-03 FCC ID: LDK102085 Page No. : A1 of A5 IC: 2461B-102085 APPENDIX A. TEST PHOTOS Report No.: FR281405-03 FCC ID: LDK102085 Page No. : A2 of A5 IC: 2461B-102085 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR281405-03 FCC ID: LDK102085 Page No. : A3 of A5 IC: 2461B-102085 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR281405-03 FCC ID: LDK102085 Page No. : A4 of A5 IC: 2461B-102085 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR281405-03 FCC ID: LDK102085 Page No. : A5 of A5 IC: 2461B-102085 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
