LDK102086Cisco Aironet 802.11ac Module

GETTING STARTED GUIDE Cisco Aironet 3600 Series Lightweight Access Points 1About this Guide 2Introduction to the Access Point 3Safety Instructions 4Unpacking 5Configurations 6Access Point Ports and Connectors 7Configuring the Access Point 8Mounting the Access Point 9Deploying the Access Point on the Wireless Network 11Troubleshooting 12Declarations of Conformity and Regulatory Information 13Configuring DHCP Option 43 and DHCP Option 60 14Access Point Specifications 2 1 About this Guide This Guide provides instructions on how to install and configure your Cisco Aironet 3600 Series Access Point and how to install any port modules. This guide also provides mounting instructions and limited troubleshooting procedures. The 3600 Series Access Point is referred to as the access point in this document. 2 Introduction to the Access Point The 3600 series supports high-performing Spectrum Intelligence which sustains three spatial stream rates over a deployable distance with high reliability when serving clients. The 3600 series provides high reliability and overall wireless performance. The 3600 series offers dual-band radios (2.4 GHz and 5 GHz) with integrated and external antenna options. The access points support full inter-operability with leading 802.11n clients, and support a mixed deployment with other access points and controllers. The 3600 series access point is a controller-based (Unified) product and supports: •Simultaneous dual-band (2.4 GHz/5 GHz) radios •Integrated antennas on the 3602I access point model (AIR-CAP3602I-x-K9) •External antennas for rugged 3602E access point model (AIR-CAP3602E-x-K9) NoteThe ‘x’ in the model numbers represents the regulatory domain. Refer to “Regulatory Domains” section on page 6 for a list of supported regulatory domains. The features of the 3600 series are: •Processing sub-systems (including CPUs and memory) and radio hardware which supports: –Network management –CleanAir—Automatic detection, classification, location and mitigation of RF interference –ClientLink+—BeamForming to 802.11n clients as well as legacy 802.11a/g OFDM clients –VideoStream –Location –WIDS/WIPS –Security –Radio Resource Management (RRM) –Rogue detection –Management Frame Protection (MFP) 3 –Throughput, forwarding, and filtering performance scaled to meet 3 spatial stream 450 Mbps data-rates •32 MB flash size •802.11af/at –CDP (Cisco Discovery Protocol) •2.4 GHz and 5 GHz 802.11n radios with the following features: –4TX x 4RX –3-spatial streams, 450 Mbps PHY rate –Spectrum intelligence –DPD (Digital Pre-Distortion) technology –Cisco Vector Beamforming—Implicit Co-phase beamforming for .11ag clients and 1x1 11n clients –Radio hardware is capable of explicit compressed beamforming (ECBF) per 802.11n standard 3 Safety Instructions Translated versions of the following safety warnings are provided in the translated safety warnings document that is shipped with your access point. The translated warnings are also in the Translated Safety Warnings for Cisco Aironet Access Points, which is available on Cisco.com. WarningIMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071 SAVE THESE INSTRUCTIONS WarningRead the installation instructions before you connect the system to its power source. Statement 1004 4 WarningInstallation of the equipment must comply with local and national electrical codes. Statement 1074 WarningThis product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 20A. Statement 1005 WarningDo not operate your wireless network device near unshielded blasting caps or in an explosive environment unless the device has been modified to be especially qualified for such use. Statement 245B WarningIn order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum of 7.9 inches (20 cm) or more from the body of all persons. Statement 332 CautionThe fasteners you use to mount an access point on a ceiling must be capable of maintaining a minimum pullout force of 20 lbs (9 kg) and must use all 4 indented holes on the mounting bracket. CautionThis product and all interconnected equipment must be installed indoors within the same building, including the associated LAN connections as defined by Environment A of the IEEE 802.af Standard. NoteThe access point is suitable for use in environmental air space in accordance with section 300.22.C of the National Electrical Code and sections 2-128, 12-010(3), and 12-100 of the Canadian Electrical Code, Part 1, C22.1. You should not install the power supply or power injector in air handling spaces. NoteUse only with listed ITE equipment. 5 4 Unpacking To unpack the access point, follow these steps: Step 1Unpack and remove the access point and the accessory kit from the shipping box. Step 2Return any packing material to the shipping container and save it for future use. Step 3Verify that you have received the items listed below. If any item is missing or damaged, contact your Cisco representative or reseller for instructions. –The access point –Mounting bracket (selected when you ordered the access point) –Adjustable ceiling-rail clip (selected when you ordered the access point) 5 Configurations The 3600 series access point contains two simultaneous dual-band radios, the 2.4-GHz and 5-GHz 802.11n MIMO radios. The 3600 series access point configurations are: •AIR-CAP3602E-x-K9—two 2.4-GHz/5-GHz dual-band radios, up to 4 external dual-band diopole antennas •AIR-CAP3602I-x-K9—two 2.4-GHz/5-GHz dual-band radios, with integrated dual-band inver…

Text truncated - open the document above for the full version.

January 28, 2013 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: In reference to the application under FCC ID: LDK102086 and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagram Radio Theory of Operation Series Software Theory of Operation These documents contain detailed system and equipment description and related information about the product that Cisco considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Cisco considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Best Regards, Jim Nicholson EMC Compliance Engineer 4125 Highlander Parkway Richfield, Ohio 44286 Email: [email protected] Direct: (330)523-2094

Applicant/Grantee Cisco Systems, Inc. FCC ID: LDK102086 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Y 3 The modular transmitter must have its own power supply regulation. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Permanently attached internal antenna Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting The module will be attached to the exterior of a Cisco access point in the manner in which it will always be deployed Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

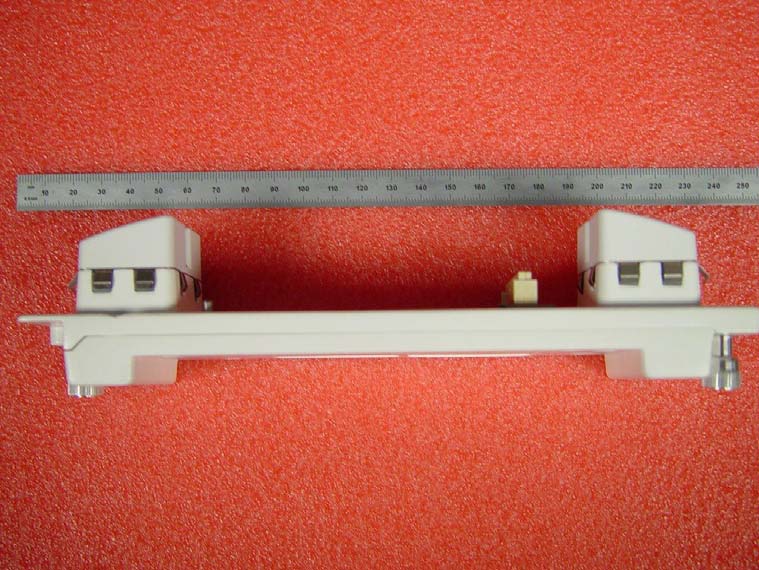

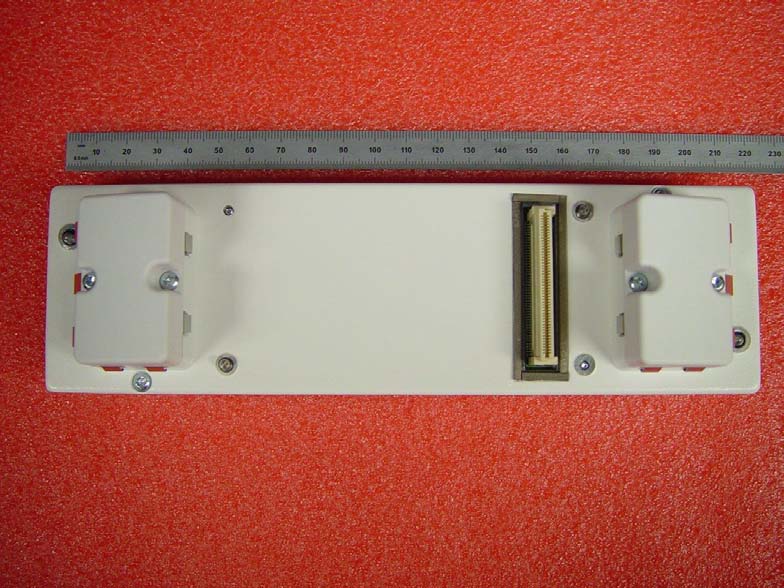

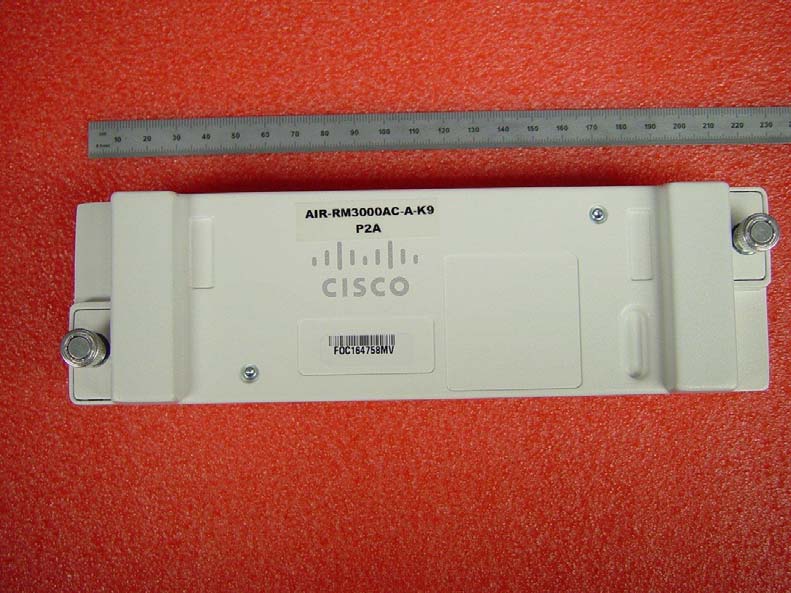

RM3000 Photos Top view Bottom view Side view 1 Side view 2

RM3000 Label Location Label view

RM3000 Internal photos

Custom EMC Test Report No: EDCS - 1228210 Page No: 130 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Maximum Permissible Exposure (MPE) Calculations 15.247: U-NII devices are subject to the radio frequency radiation exposure requirements specified in Sec. 1.1307(b), Sec. 2.1091 and Sec. 2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a ``general population/uncontrolled'' environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. Given E=√(30*P*G)/d and S=E^2/3770 where E=Field Strength in Volts/meter P=Power in Watts G=Numeric Antenna Gain d=Distance in meters S=Power Density in mW/cm^2 Combine equations and rearrange the terms to express the distance as a function of the remaining variables: d=√((30*P*G)/(3770*S)) Changing to units of power in mW and distance in cm, using: P(mW)=P(W)/1000 d(cm)=100*d(m) yields d=100*√((30*(P/1000)*G)/(3770*S)) d=0.282*√(P*G/S) where d=Distance in cm P=Power in mW G=Numeric Antenna Gain S=Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P(mW)=10^(P(dBm)/10) G(numeric)=10^(G(dBi)/10) yields d=0.282*10^((P+G)/20)/√S Equation (1) and s=((0.282*10^((P+G)/20))/d)^2 Equation (2) where d=MPE distance in cm P=Power in dBm G=Antenna Gain in dBi S=Power Density in mW/cm^2 Custom EMC Test Report No: EDCS - 1228210 Page No: 131 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Equation (1) and the measured peak power are used to calculate the MPE distance. Note that for mobile or fixed location transmitters such as an access point, the minimum separation distance is 20 cm even if the calculations indicate that the MPE distance may be less. S=1mW/cm^2 maximum. The highest supported antenna gain is 6 dBi (12dBi with beam forming). Using the peak power levels recorded in the test report along with Equation 1 above, the MPE distances are calculated as follows. Frequency (MHz) Bit Rate (Mbps) Power Density (mW/cm^2) Peak Transmit Power (dBm) Antenna Gain (dBi) MPE Distance (cm) Limit (cm) Margin (cm) 5745m0123.010 12.60 207.40 5785m0123.010 12.60 207.40 5825m0123.010 12.60 207.40 MPE Calculations To maintain compliance, installations will assure a separation distance of at least 20cm. Using Equation 2, the MPE levels (s) at 20 cm are calculated as follows: Frequency (MHz) Bit Rate (Mbps) MPE Distance (cm) Peak Transmit Power (dBm) Antenna Gain (dBi) Power Density (mW/cm^2) Limit (mW/cm^2) Margin (mW/cm^2) 5745112023.010 0.40 10.60 5785112023.010 0.40 10.60 5825112023.010 0.40 10.60

Custom EMC Test Report No: EDCS - 1228210 Page No: 1 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Test Report AIR-RM3000AC-A-K9 Cisco Aironet 802.11ac Module FCC ID: LDK102086 IC: 2461B-102086 Also covers: AIR-RM3000AC-N-K9, AIR-RM3000AC-N-K9 AIR-RM3000AC-T-K9, AIR-RM3000AC-T-K9 AIR-RM3000AC-Z-K9, AIR-RM3000AC-Z-K9 5725-5850 MHz Against the following Specifications: CFR47 Part 15.247 RSS210 Cisco Systems 170 West Tasman Drive San Jose, CA 95134 Custom EMC Test Report No: EDCS - 1228210 Page No: 2 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential This test report has been electronically authorized and archived using the CISCO Engineering Document Control system. SECTION 1: OVERVIEW ......................................................................................................................................... 3 1.1 TEST SUMMARY ...................................................................................................................................................... 3 SECTION 2: ASSESSMENT INFORMATION ...................................................................................................... 4 2.1 GENERAL ................................................................................................................................................................. 4 2.4 TESTING FACILITIES ............................................................................................................................................... 5 2.6 EUT DESCRIPTION .................................................................................................................................................. 6 SECTION 4: SAMPLE DETAILS ............................................................................................................................. 8 APPENDIX A: EMISSION TEST RESULTS ................................................................................................... 9 TARGET MAXIMUM CHANNEL POWER ........................................................................................................................... 9 6DB BANDWIDTH ......................................................................................................................................................... 10 99% AND 26DB BANDWIDTH ....................................................................................................................................... 18 PEAK OUTPUT POWER ................................................................................................................................................ 20 P OWER SPECTRAL DENSITY ................................................................................................... .....36 C ONDUCTED SPURIOUS EMISSIONS .............................................................................. ..................43 APPENDIX B: C ONDUCTED BANDEDGE MEASUREMENTS........................................................................................50 R ECEIVER RADIATED EMISSION ...................................................................................................56 C ONDUCTED EMC EMISSIONS ....................................................................................................58 R ADIATED EMC EMISSIONS ........................................................................................................60 MAXIMUM PERMISSIBLE EXPOSURE (MPE) CALCULATIONS .................................................................................. 130 APPENDIX C: TEST EQUIPMENT/SOFTWARE USED TO PERFORM THE TEST ............................. 132 Custom EMC Test Report No: EDCS - 1228210 Page No: 3 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Section 1: Overview 1.1 Test Summary The samples were assessed against the tests detailed in section 3 under the requirements of the following specifications: Emission Immunity CFR47 Part 15.247 RSS210 N/A The specifications listed above represent actual tests performed to demonstrate compliance against the specifications and basic standards listed on the front cover of this report. This list is not a one to one match to the front cover for one or more of the following reasons. 1. Basic standards call up many different test phenomena specifications such as the 61000-4-X series. The basic standards define which elements and levels shall be applied from these specifications and as such it is not appropriate to list the individual specifications on the front cover. 2. A Standard listed on the front cover may be required in a particular country but is not appropriate for the particular technologies included in the equipment under test. E.g. You cannot test a DC product to the mains Harmonics requirements in EN61000-3-2. See section 3.2. 3. Test results against a particular standard or specification may be included in a different test report. See section 3.2 for an EDCS reference of this data. 4. Where appropriate, Cisco may have substituted a later revision of a basic standard to those referenced in the specification on the front sheet of this test report. This decision was based upon improved test methodology and repeatability and/or where the newer revision represented a more stringent test. 5. Where relevant, testing has been carried out to the requirements of both EN and IEC Specifications. This was possible because of the similarities of the test methods involved and the Cisco EMC test procedures. 6. Testing may have been performed to an equivalent test that satisfies the requirements of the standards and specifications listed on the front cover of the report. See section 3.2. 7. Where radiated emissions testing ha…

Text truncated - open the document above for the full version.

Custom EMC Test Report No: EDCS - 1228210 Page No: 51 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5745 MHz, HT/VHT80 Beam Forming, M0 to M7, M0.1 to M9.1 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 52 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5745 MHz, HT/VHT80 Beam Forming, M8 to M15, M0.2 to M9.2 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 53 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5745 MHz, HT/VHT80 Beam Forming, M16 to M23, M0.3 to M9.3 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 54 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5745 MHz, HT/VHT80 STBC, M0 to M7, M0.1 to M9.1 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 55 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, Non HT/VHT20, 6 to 54 Mbps Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 56 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, Non HT/VHT20 Beam Forming, 6 to 54 Mbps Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 57 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT20, M0 to M7, M0.1 to M9.1 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 58 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT20, M8 to M15, M0.2 to M9.2 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 59 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT20, M16 to M23, M0.3 to M9.3 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 60 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT20 Beam Forming, M0 to M7, M0.1 to M9.1 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 61 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT20 Beam Forming, M8 to M15, M0.2 to M9.2 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 62 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT20 Beam Forming, M16 to M23, M0.3 to M9.3 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 63 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT20 STBC, M0 to M7, M0.1 to M9.1 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 64 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, Non HT/VHT40, 6 to 54 Mbps Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 65 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT40, M0 to M7, M0.1 to M9.1 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 66 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT40, M8 to M15, M0.2 to M9.2 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 67 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT40, M16 to M23, M0.3 to M9.3 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 68 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT40 Beam Forming, M0 to M7, M0.1 to M9.1 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 69 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Peak Output Power, 5785 MHz, HT/VHT40 Beam Forming, M8 to M15, M0.2 to M9.2 Antenna A Antenna B Antenna C Custom EMC Test Report No: EDCS - 1228210 Page No: 70 of 132 Thi…

Text truncated - open the document above for the full version.

Custom EMC Test Report No: EDCS - 1228210 Page No: 101 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Conducted Bandedge Average, 5745 MHz, Non HT/VHT20, 6 to 54 Mbps Conducted Bandedge Average, 5745 MHz, Non HT/VHT20 Beam Forming, 6 to 54 Mbps Custom EMC Test Report No: EDCS - 1228210 Page No: 102 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Conducted Bandedge Average, 5745 MHz, HT/VHT20, M0 to M7, M0.1 to M9.1 Conducted Bandedge Average, 5745 MHz, HT/VHT20, M8 to M15, M0.2 to M9.2 Custom EMC Test Report No: EDCS - 1228210 Page No: 103 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Conducted Bandedge Average, 5745 MHz, HT/VHT20, M16 to M23, M0.3 to M9.3 Conducted Bandedge Average, 5745 MHz, HT/VHT20 Beam Forming, M0 to M7, M0.1 to M9.1 Custom EMC Test Report No: EDCS - 1228210 Page No: 104 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Conducted Bandedge Average, 5745 MHz, HT/VHT20 Beam Forming, M8 to M15, M0.2 to M9.2 Conducted Bandedge Average, 5745 MHz, HT/VHT20 Beam Forming, M16 to M23, M0.3 to M9.3 Custom EMC Test Report No: EDCS - 1228210 Page No: 105 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Conducted Bandedge Average, 5745 MHz, HT/VHT20 STBC, M0 to M7, M0.1 to M9.1 Conducted Bandedge Average, 5745 MHz, Non HT/VHT40, 6 to 54 Mbps Custom EMC Test Report No: EDCS - 1228210 Page No: 106 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Conducted Bandedge Average, 5745 MHz, HT/VHT40, M0 to M7, M0.1 to M9.1 Conducted Bandedge Average, 5745 MHz, HT/VHT40, M8 to M15, M0.2 to M9.2 Custom EMC Test Report No: EDCS - 1228210 Page No: 107 of 132 This document is uncontrolled. Please refer to the electronic copy within EDCS for the most up to date version. Cisco Systems, Inc. Company Confidential Conducted Bandedge Average, 57…

Text truncated - open the document above for the full version.
