LDKASA-AP702ASA 5506-X WiFi Internal Module

1 Kenton WLAN module User Guide Model name: ASA5506-AP702 2 1 Purpose The purpose of this document is to give an overall description of the hardware requirements of the WLAN module used in Kenton project.  1.1 Scope This document contains the requirements for the subject system and its top-level or architectural design for an ODM partner. This document should only contain information needed to design the system, since this document will go to multiple ODM vendors during the RFQ process. The requirements specify the behavior of the system, both hardware and software. They do not specify "how" the system will be built except for necessary constraints on the design such as needed interfaces to other systems or valid constraints on size, shape, processor and memory utilization, power consumption, etc. The behavior may be described in terms of how the system enables the end user to perform work (i.e., the functions, performance, quality requirements, etc). The architectural design describes the components of the system, their individual functions and performance, and how they interface with each other. Development considerations such as schedule, cost, development process, and staffing are not included in this specification. 2 Functional Overview 2.1 System Overview The Kenton WLAN module is designed f to be a pluggable module assembly to the wireless version of Kenton Desktop Security Appliance. It will provide the following functionalities: 2x2 100mW Dual Radios, 802.11n Internal Antennas 3 Compliance to standards based Dual Radio, 2x2, 802.11n Dual Radio, 2x2, 100mW, Internal Antenna Shall support Dual Concurrent Radios Dual Radio, 2x2, 100mW, Internal Antenna Shall support limited lifetime warranty Operating Temp: 0ºC to 40ºC Storage Temp: -30ºC to 70ºC Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 5% to 95% Non-condensing The PCB must include a printed “Manufactured for Cisco” marking (using the Cisco Logo as shown in EDCS-775872. The minimum width of the Cisco logo is ½”. The location is preferable on the top of the PCB, but the back is acceptable if spacing doesn’t allow it to be on the top. It cannot be underneath a soldered component (but can be underneath a mini-PCI card if one exists). 4 FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated simultaneously without C2P. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. Devices will not permit operations on channels 120-132 for 11a and 11n/a which overlap the 5600 - 5650 MHz band. 5 IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. Additional testing and certification may be necessary when multiple modules are used. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with th…

Text truncated - open the document above for the full version.

EDCS-1216337 07/09/2014 Subject : Authorized signatures The following people are authorized by Cisco Systems to sign documents for FCC product approval under FCC Grantee code LDK on behalf of the company. Further this right is extended to any regular Cisco employee as deemed necessary. David A, Case Jim Nicholson Trinh Tien Donn Foster Howard Ji Jose Aguirre Lisa Bevington Andy Griffin Mark King Allan Beecroft Bob Lyall Pushpinder Sawanni Julius “ Bud” Chiller Chuck Troia Steve Granzella Rekha Simha Regards Gerard Thorpe Cisco Systems

Page No. : 24 Module Approval Request Letter Subject: Module Approval Date: 2014/12/16 FCC ID: LDKASA-AP702 Dear Reviewer, We, Sporton International Inc., are authorized by Cisco Systems Inc to have their state-of-the-art ASA 5506-X WiFi Internal Module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip W9751G6KV-25. 3. The requirement of power supply regulation: The part number of the power regulator is TPS65251. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

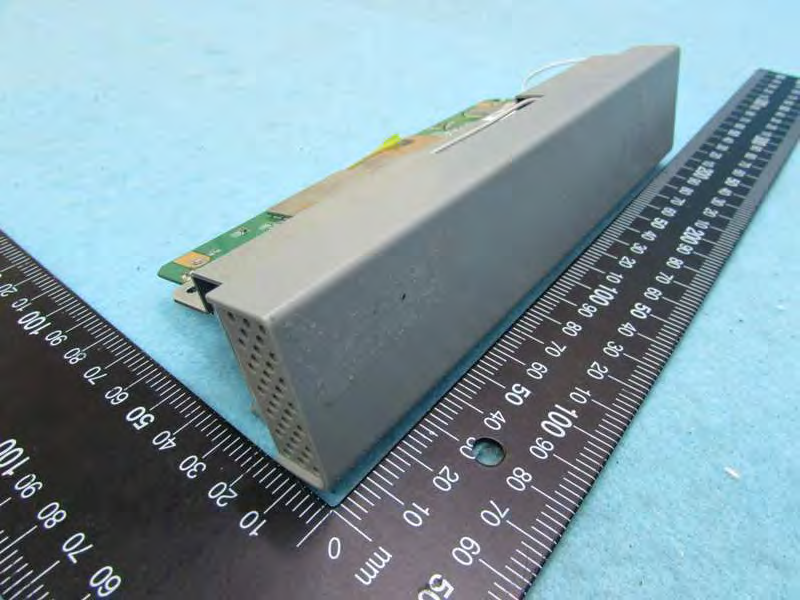

Report No.:461329 SPORTON International Inc. PAGE NUMBER : 1 OF 1 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Photographs of EUT

Label: Label Here

Report No.:461329 SPORTON International Inc. PAGE NUMBER : 1 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:461329 SPORTON International Inc. PAGE NUMBER : 2 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 3 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 4 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 5 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 6 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 7 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 8 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 9 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 10 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 11 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 12 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 13 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 14 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 15 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973 Report No.:461329 SPORTON International Inc. PAGE NUMBER : 16 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Dec. 09, 2014 FAX : 886-3-327-0973

Report No.: FR461329AB FCC ID: LDKASA-AP702 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR461329AB FCC ID: LDKASA-AP702 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR461329AB FCC ID: LDKASA-AP702 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz UNII Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11a: 21.22dBm Average Output Power Distance (m) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 6.90 4.8981 21.2228 132.5190 0.129199 1 Complies Note: For 2.4GHz Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11g: 20.67 dBm Average Output Power Distance (m) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 5.98 3.9631 20.6684 116.6389 0.092008 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.092008 / 1 + 0.129199 / 1 = 0.221207, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : C1 of C3 Appendix C. Radiated Emission Co-location Report Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 24°C Humidity 68% Test Engineer YC Chen Configurations 2.4GHz + 5GHz Horizontal Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 02 FCC RADIO TEST REPORT Applicant’s company Cisco Systems Inc. Applicant Address 125 West Tasman Drive San Jose, CA 95134-1706 FCC ID LDKASA-AP702 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308 Taiwan Product Name ASA 5506-X WiFi Internal Module Brand Name CISCO Model No. ASA5506-AP702 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250 MHz / 5725 ~ 5850 MHz Received Date Jun. 12, 2014 Final Test Date Aug. 06, 2014 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01 and KDB662911 D01 v02r01 The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR461329AB Report Format Version: Rev. 02 Page No. : i of ii FCC ID: LDKASA-AP702 Issued Date : Jan. 16, 2015 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. EUT Operation during Test .................................................................................................................................................................12 3.10. Duty Cycle ........................................................................................................................................................................................13 3.11. Test Configurations ...........................................................................................................................................................................14 4. TEST RESULT ................................................................................................................................................... 17 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................17 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................21 4.3. 6dB Spectrum Bandwidth and 99% Occupied Bandwidth Measurement........................................................................................34 4.4. Maximum Conducted Output Power Measurement .........................................................................................................................43 4.5. Power Spectral Density Measurement ..............................................................................................................................................49 4.6. Radiated Emissions Measurement ....................................................................................................................................................66 4.7. Band Edge Emissions Measurement ...............................................................................................................................................105 4.8. Frequency Stability Measurement ..................................................................................................................................................119 4.9. Antenna Requirements ...................................................................................................................................................................122 5. LIST OF MEASURING EQUIPMENTS .........…

Text truncated - open the document above for the full version.

Report No.: FZ461329 FCC ID: LDKASA-AP702 Page No. : A1 of A2 Appendix A. Test Photos Report No.: FZ461329 FCC ID: LDKASA-AP702 Page No. : A2 of A2 1. Photographs of Dynamic Frequency Selection Test Configuration FRONT VIEW REAR VIEW

Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : A1 of A8 Appendix A. Test Photos Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : A2 of A8 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : A3 of A8 CLOSE-UP VIEW Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : A4 of A8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : A5 of A8 Test Configuration: 30MHz~1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : A6 of A8 CLOSE-UP VIEW Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : A7 of A8 Test Configuration: Above 1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR461329 FCC ID: LDKASA-AP702 Page No. : A8 of A8 CLOSE-UP VIEW
