LDKCEED3700CISCO Education Enabled Development 3700

CEED 3700 User Guide Release 2.2 R& D Office: SEZ Unit, Cessna Business Park, Kadubeesanahalli Village, Varthur Hobl i, Sarjapur - M arathahalli Outer ring road, Bangalore - 560087 Karnataka India Text Part Num ber: THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS. THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY. The Cisco implementation of TCP header compression is an adaptation of a program dev eloped by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California. NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE. IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Cisco and the Cisco l ogo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their r espective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R) Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental. CEED 3700 User Guide © 2014 Cisco Systems, Inc. All rights reserved. R E V I E W D R AFT — CISC O C O N F I D E N T I A L CEED 3700 User Guide Index C H A P T E R 1 Introduction 1-1 CEED Operating Environment Overview 1-1 Installation Prerequisites 1-3 CEED 3700 Components and Prerequisites 1-3 Safety Guidelines 1-4 Usage Guidelines and Restrictions 1-5 CEED 3700 Hardware Summary 1-7 C H A P T E R 2 Installation 2-1 Mounting Prerequisites 2-1 Mounting of the CEED 37002-1 Accessories, Peripherals and Cable Assembly 2-6 External Wiring and Placement of Accessories 2-6 Assembling of the Accessories 2-8 C H A P T E R 3 Configuring LAN and Connectivity 3-1 Configuring LAN 3-1 Powering On CEED 37 00 3-3 C H A P T E R 4 Configuring CEED 3700 Software 4-1 First Time Log in 4-1 C H A P T E R 5 Configuring the Browser 5-1 Launching the Browser 5-1 Verification of the Browser Settings 5-3 C H A P T E R 6 Configuring the Router 6-1 Configuring WAN 6-1 Configuring 3G 6-5 78-xxxxx-xx iii Contents R E V I E W D R A F T— CISC O C O N F I D E N T I A L Configuring Wi-Fi 6-6 Powering Down/Shutting Down the CEED 37 00 6-7 C H A P T E R 7 Configuring the Live Session 7-1 Hosting a WebEx Session 7-1 Joining a WebEx Session 7-3 Verification of the Accessories 7-4 iv 78-xxxxx-xx R E V I E W D R AFT — CISC O C O N F I D E N T I A L C H A P T E R 1 Introduction This chapter describes the overview and the operating environment overvi ew and installation prerequisites of the CEED 3700 and contains the fo llowing sections: This section contains the following sections: • CEED Operating Environment Overview • Installation Prerequisites • Usage Guidelines and Restrictions • CEED 3700 Hardware Summary CEED Operating Environment Overview This section provides a detailed overview of CEED 3700 and its operating environment. CEED 3700 series is a comprehensive integrated and open platform designed to leverage collaboration and live content video to enable session. It is a high end reliable router with video conferencing capability. It includes an intelligen t edge device and leverages cl oud capabilities of Cisco to deliver secure, high definition video using the latest collaboration tools from the cloud. 1-1 R E V I E W D R AFT — CISC O C O N F I D E N T I A L At one end CEED is connected. Other end can be a CEED, Desktop or Laptops The CEED 3700 provides additional capabilities such as: • 4th Generation Intel Processor. • Operating temperature between (0°C to 40 °C). • Projection lamp light brig htness of 3000 Lumen for 4000 hours in standard mode and up to 6000 hours in Eco Mode. • Field Replaceable Unit (FRU) based projection lamp. • 3G Wireless Capability with Subscriber Identified Module (SIM)/ User Identify Module (UIM). 1-2 Chapter 1 Introduction Installation Prerequisites R E V I EW DR AFT — CISC O C O N F I DE N T I AL Installation Prerequisites This section describes how to install CEED 3700 unit, precautions, prerequisites and unpacking of the CEED 3700 unit and contains the following sections: • CEED 3700 Components and Prerequisites, page 1-3 • Safety Guidelines, page 1-4 • Usage Guidelines and Restrictions, page 1-5 CEED 3700 Components and Prerequisites The prerequisites and the required components to install the CEED 3700 are as follows: • 100 V to 240V, 5 Amps Uninterrupted Power Supply (UPS) • 1 Mbps Internet Leased Line (ILL) with static IP availability Note You need a mi…

Text truncated - open the document above for the full version.

EDCS-1216337 07/09/2014 Subject : Authorized signatures The following people are authorized by Cisco Systems to sign documents for FCC product approval under FCC Grantee code LDK on behalf of the company. Further this right is extended to any regular Cisco employee as deemed necessary. David A, Case Jim Nicholson Trinh Tien Donn Foster Howard Ji Jose Aguirre Colin Wilson Lisa Bevington Andy Griffin Mark King Dave Wilson Allan Beecroft Bob Lyall Pushpinder Sawanni Julius “ Bud” Chiller Chuck Troia Steve Granzella Rekha Simha Regards Gerard Thorpe Cisco Systems

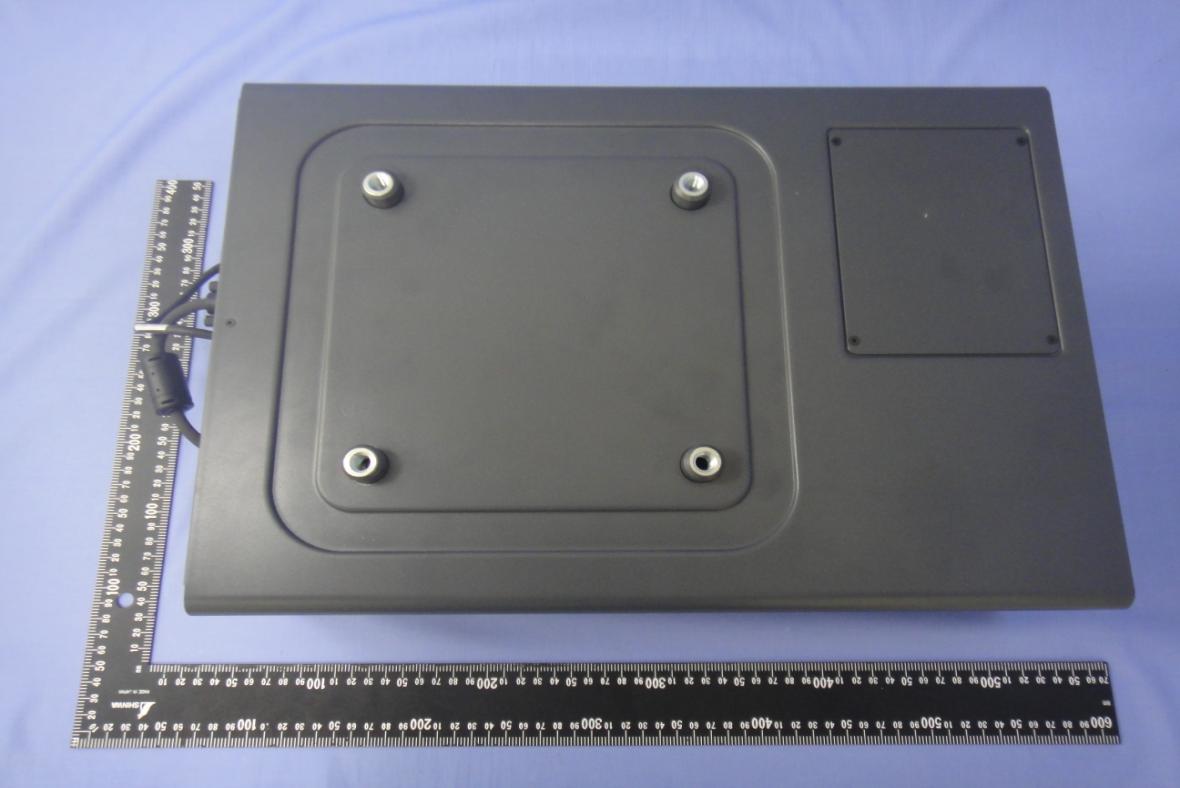

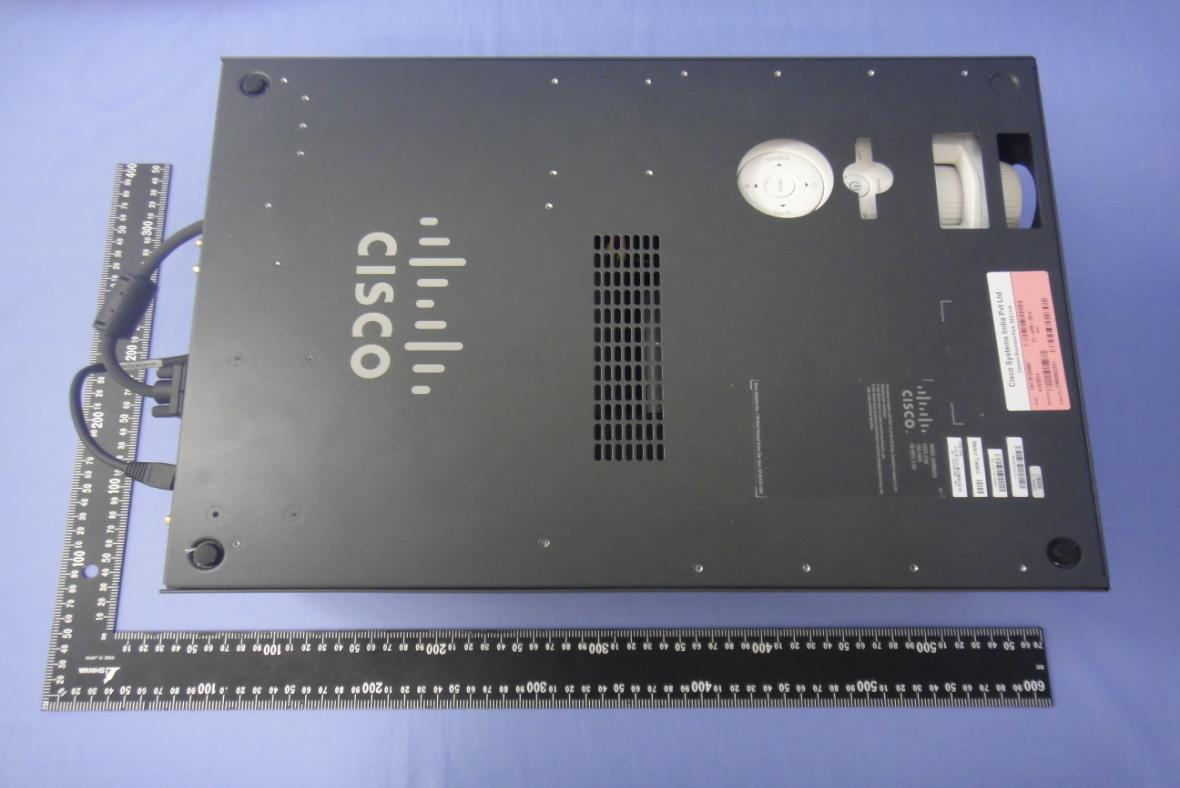

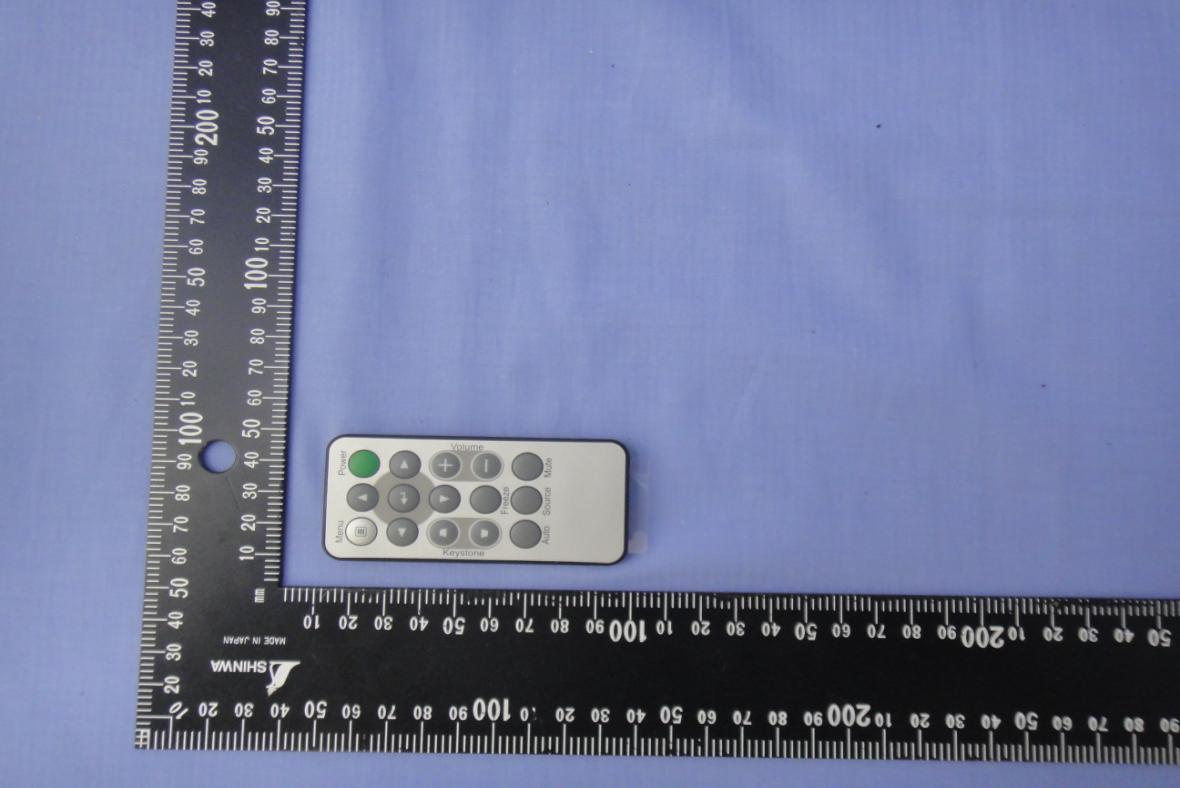

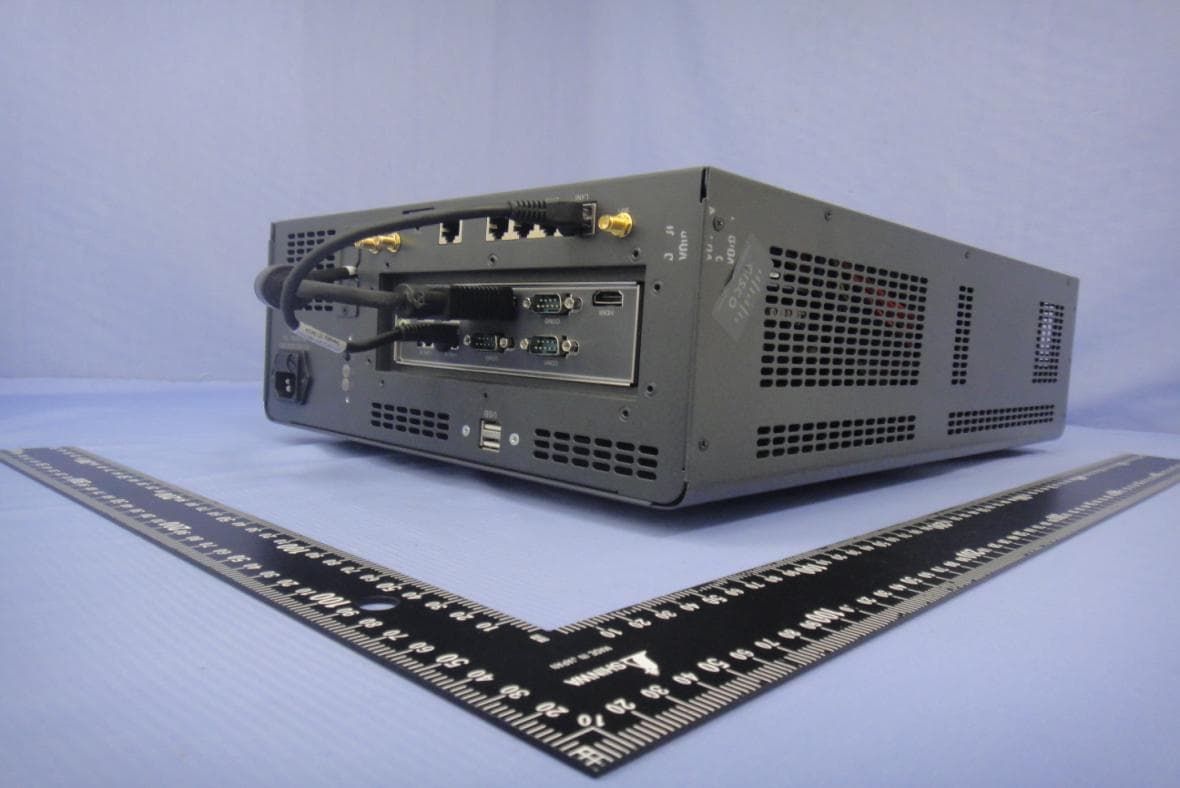

Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 1 / 19 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 3 Rev. 00

Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 4 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 11 Rev. 00 Antenna For 3G Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 14 Rev. 00 For WIFI Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 15 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 16 Rev. 00 Module For 3G Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 17 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 18 Rev. 00 Compliance Certification Services Inc. Report No.: T140519W01 Date of Issue: June 4, 2014 A1 - 19 Rev. 00 For WIFI

Compliance Certification Services Inc. Report No.: T140519W01-MF Date of Issue: June 4, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT CISCO EDUCATION ENABLED DEVELOPMENT 3700 Model CEED 3700 Frequency band (Operating) GSM 850MHz: 824.2MHz ~ 848.8MHz GSM 1900MHz: 1850.2MHz ~ 1909.8MHz WCDMA Band II: 1852.4MHz ~ 1907.6MHz WCDMA Band IV: 1712.4MHz ~ 1752.6MHz WCDMA Band V: 826.4MHz ~ 846.6MHz 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification GSM 850: Antenna Gain :2.70 dBi (Numeric gain:1.86) GSM 1900: Antenna Gain :1.70 dBi (Numeric gain:1.48) WCDMA Band II: Antenna Gain :1.70 dBi (Numeric gain:1.48) WCDMA Band II: Antenna Gain :2.70 dBi (Numeric gain:1.86) 2.4GHz: Antenna Gain :3.16 dBi (Numeric gain:2.07) Measurement Average output power SystemPower GSM850 31.70 dBm (1479.11 mW) GPRS850 (1 slot) 31.70 dBm (1479.11 mW) EDGE850 (1 slot) 26.80 dBm (478.63 mW) GSM1900 28.10 dBm (645.65 mW) GPRS1900 (1 slot) 28.10 dBm (645.65 mW) EDGE1900 (1 slot) 25.30 dBm (338.84 mW) WCDMA Band II 25.20 dBm (331.13 mW) WCDMA Band V 25.30 dBm (338.84 mW) IEEE 802.11b Mode 16.58 dBm (45.50 mW) IEEE 802.11g Mode 13.62 dBm (23.01 mW) IEEE 802.11n HT 20 Mode 13.95 dBm (24.83 mW) IEEE 802.11n HT 40 Mode 11.87 dBm (15.38 mW) Compliance Certification Services Inc. Report No.: T140519W01-MF Date of Issue: June 4, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Power Target / Tolerance SystemTarget PowerTolerance GSM850 32.0 dBm ± 1 dB GPRS850 32.0 dBm ± 1 dB EGPRS850 26.0 dBm ± 1 dB GSM1900 28.0 dBm ± 1 dB GPRS1900 28.0 dBm ± 1 dB EGPRS1900 25.0 dBm ± 1 dB WCDMA Band II 24.0 dBm ± 1.5 dB WCDMA Band V 24.0 dBm ± 1.5 dB IEEE 802.11b Mode 16.0 dBm ± 1 dB IEEE 802.11g Mode 13.0 dBm ± 1 dB IEEE 802.11n HT 20 Mode 13.3 dBm ± 1 dB IEEE 802.11n HT40 Mode 12.1 dBm ± 1 dB Max tune up Power / Max time Average Power System GSM85033.0dBm (1995.262mW) 24.0dBm (251.189mW) GPRS850 (1 slot)33.0dBm (1995.262mW) 24.0dBm (251.189mW) EGPRS850 (1 slot)27.0dBm (501.187mW) 18.0dBm (63.096mW) GSM190029.0dBm (794.328mW) 20.0dBm (100.000mW) GPRS1900 (1 Slot)29.0dBm (794.328mW) 20.0dBm (100.000mW) EGPRS1900 (1 slot)26.0dBm (398.107mW) 17.0dBm (50.119mW) WCDMA Band II25.5dBm (354.813mW) 25.5dBm (354.813mW) WCDMA Band V 25.5dBm (354.813mW) 25.5dBm (354.813mW) IEEE 802.11b17.0dBm (50.119mW) 17.0dBm (50.119mW) IEEE 802.11g14.0dBm (25.119mW) 14.0dBm (25.119mW) IEEE 802.11n HT 2014.3dBm (26.915mW) 14.3dBm (26.915mW) IEEE 802.11n HT 4013.2dBm (20.893mW) 13.2dBm (20.893mW) Time Average Power Max Tune up Power Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140519W01-MF Date of Issue: June 4, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/03/21 Initial Issue ALL Scott Hsu Compliance Certification Services Inc. Report No.: T140519W01-MF Date of Issue: June 4, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140519W01-MF Date of Issue: June 4, 2014 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 GSM850 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 128824.2251.1892.49200.12450.549 GPRS850 mode (1 Slot): Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 128824.2251.1892.49200.12450.549 EGPRS850 mode (1 Slot): Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 128824.263.0962.49200.03130.549 GSM1900 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 5121850.2100.0002.49200.04961.000 GPRS1900 mode (1 Slot): Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 5121850.2100.0002.49200.04961.000 EGPRS1900 mode (1 Slot): Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 5121850.250.1192.49200.02481.000 WCDMA Band II mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 92621852.4354.8132.92200.20621.000 WCDMA Band V mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 4132826.4354.8132.92200.20620.551 C…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: LDKCEED3700 Report No.: T140519W01-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 106 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For CISCO EDUCATION ENABLED DEVELOPMENT 3700 Model: CEED 3700 Trade Name: CISCO SYSTEMS Issued to CISCO SYSTEMS BANGALORE, INDIA Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: June 04, 2014 Compliance Certification Services Inc. FCC ID: LDKCEED3700 Report No.: T140519W01-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 04, 2014 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: LDKCEED3700 Report No.: T140519W01-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ....................................................................................... 10 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 11 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 12 5.1 FACILITIES ....................................................................................................................................... 12 5.2 EQUIPMENT ...................................................................................................................................... 12 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 13 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 14 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 14 6.2 SUPPORT EQUIPMENT ............................................................................................................... 14 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 15 7.1 6DB BANDWIDTH ............................................................................................................................. 15 7.2 PEAK POWER .................................................................................................................................... 29 7.3 BAND EDGES MEASUREMENT ................................................................................................ 31 7.4 PEAK POWER SPECTRAL DENSITY .................................................................................................... 57 7.5 SPURIOUS EMISSIONS ................................................................................................................. 71 7.6 RADIATED EMISSIONS .............................................................................................................. 84 7.7 POWERLINE CONDUCTED EMISSIONS ............................................................................................. 101 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................. 104 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: LDKCEED3700 Report No.: T140519W01-RP1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: CISCO SYSTEMS BANGALORE, INDIA Equipment Under Test: CISCO EDUCATION ENABLED DEVELOPMENT 3700 Trade Name: CISCO SYSTEMS Model: CEED 3700 Date of Test: May 27 ~ 31, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: LDKCEED3700 Report No.: T140519W01-RP1 Page 104 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: LDKCEED3700 Report No.: T140519W01-RP1 Page 105 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: LDKCEED3700 Report No.: T140519W01-RP1 Page 106 Rev. 00 Powerline Conducted Emissions Setup Photos
