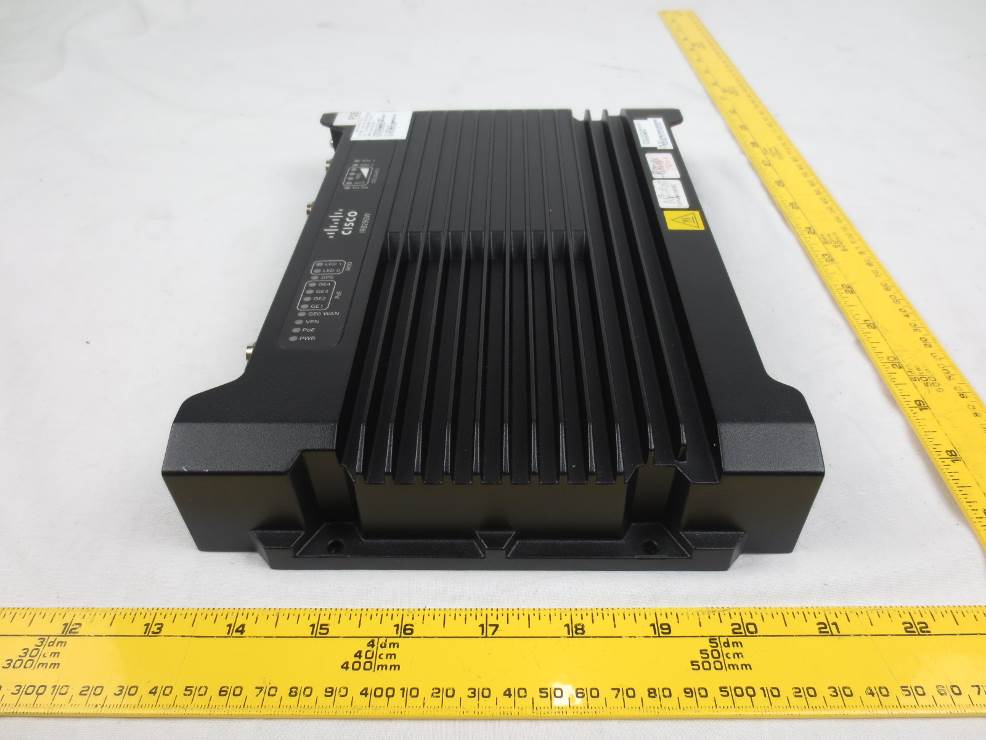

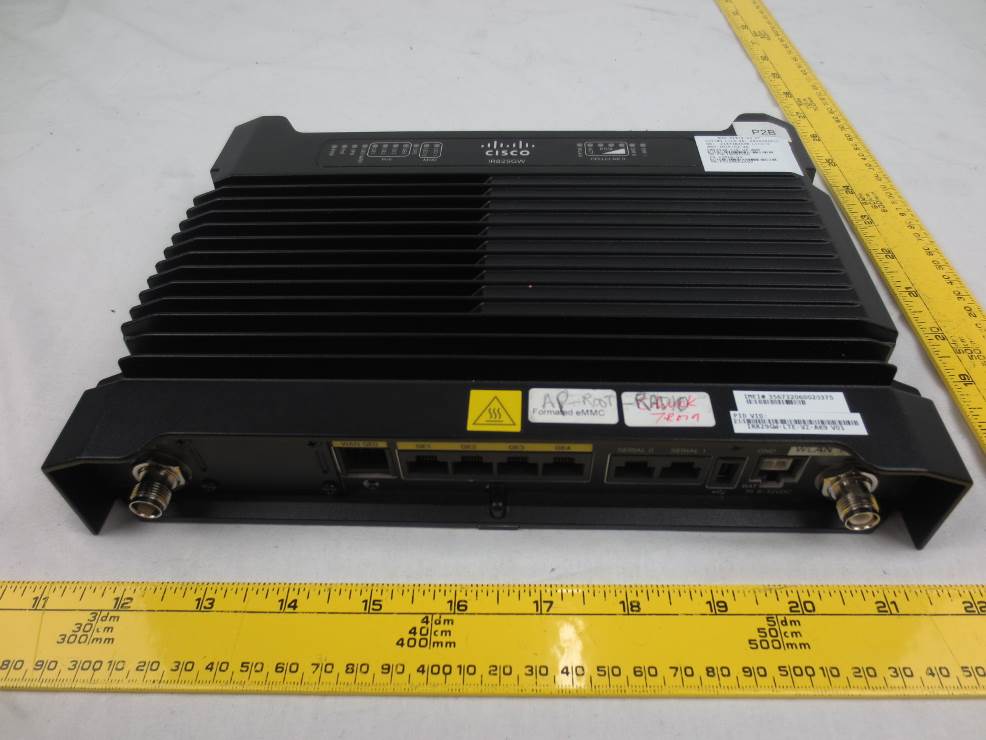

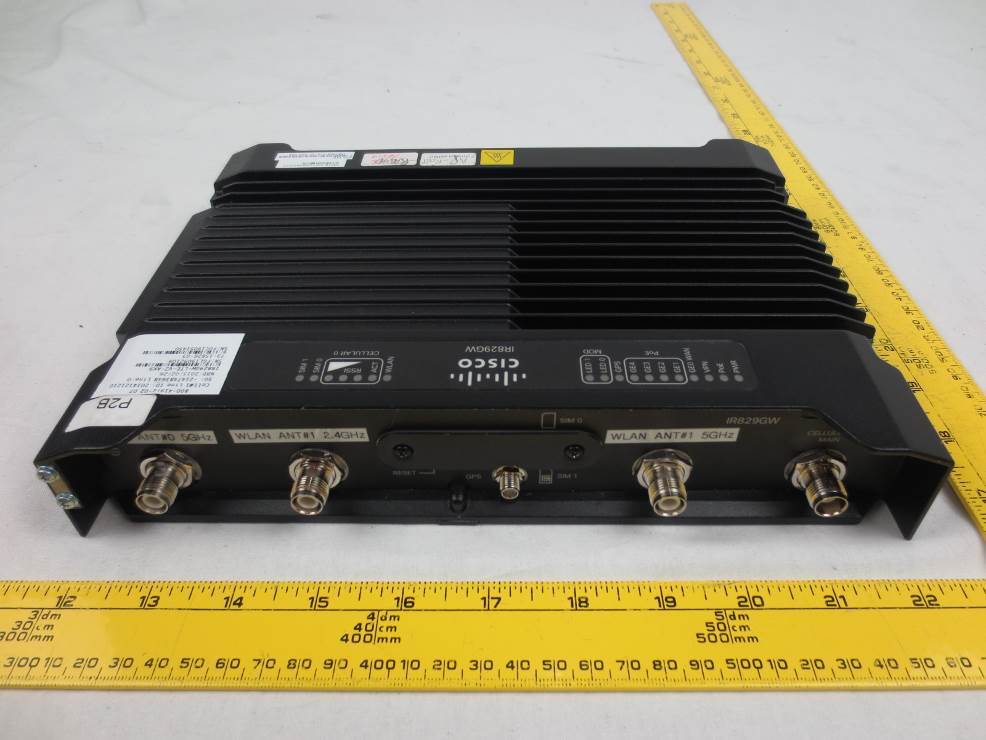

Cisco System, Inc. FCC ID: LDKIR829GW-LTE; IC: 2461B-IR829GWLTE Report Number: R1506011-247 Page 139 of 143 FCC Part 15C/IC RSS-247 Test Report 14 Exhibit C – EUT Photographs 14.1 EUT Top View 14.2 EUT Bottom View Cisco System, Inc. FCC ID: LDKIR829GW-LTE; IC: 2461B-IR829GWLTE Report Number: R1506011-247 Page 140 of 143 FCC Part 15C/IC RSS-247 Test Report 14.3 EUT Front View 14.4 EUT Rear View Cisco System, Inc. FCC ID: LDKIR829GW-LTE; IC: 2461B-IR829GWLTE Report Number: R1506011-247 Page 141 of 143 FCC Part 15C/IC RSS-247 Test Report 14.5 EUT Side 1 View 14.6 EUT Side 2 View

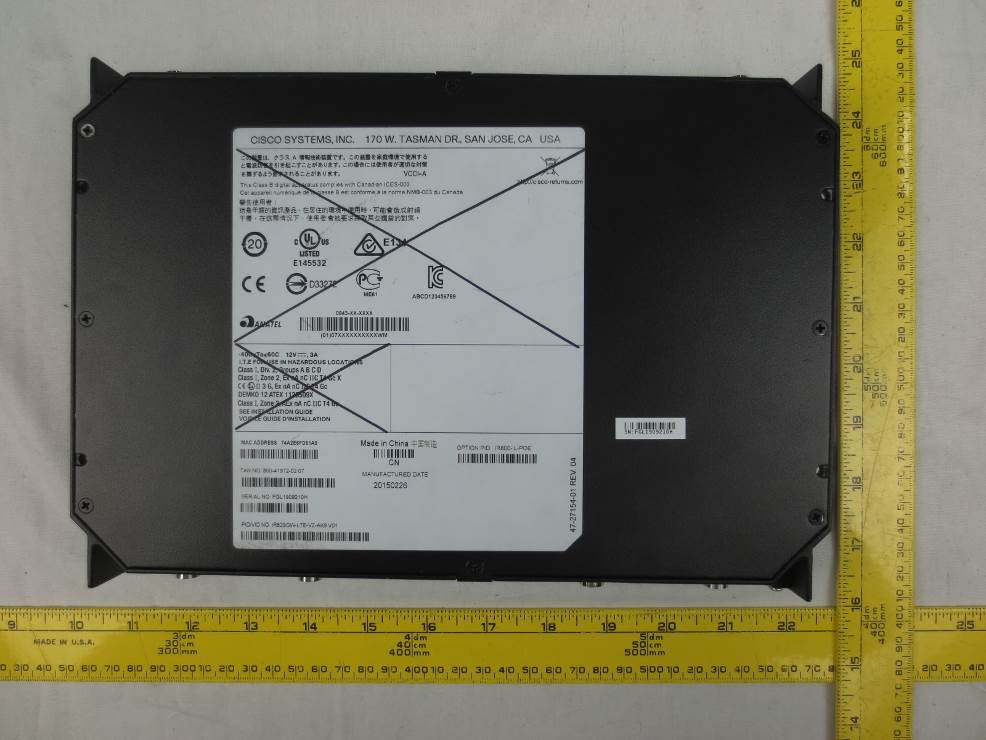

Label Location (Back side)

Cisco System, Inc. FCC ID: LDKIR829GW-LTE; IC: 2461B-IR829GWLTE Report Number: R1506011-247 Page 142 of 143 FCC Part 15C/IC RSS-247 Test Report 14.7 EUT Open Case View 14.8 EUT Main Board Top View Cisco System, Inc. FCC ID: LDKIR829GW-LTE; IC: 2461B-IR829GWLTE Report Number: R1506011-247 Page 143 of 143 FCC Part 15C/IC RSS-247 Test Report 14.9 EUT Main Board Bottom View 14.10 EUT Power Adaptor --- END OF REPORT ---

Cisco System, Inc. FCC ID: LDKIR829GW-LTE; IC: 2461B-IR829GWLTE Report Number: R1506011-247 Page 10 of 143 FCC Part 15C/IC RSS-247 Test Report 4 FCC §15.247(i), §2.1091 & IC RSS-102 – RF Exposure 4.1 Applicable Standard According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF field According to IC RSS-102 Issue 5 section 4, RF limits used for general public will be applied to the EUT. Cisco System, Inc. FCC ID: LDKIR829GW-LTE; IC: 2461B-IR829GWLTE Report Number: R1506011-247 Page 11 of 143 FCC Part 15C/IC RSS-247 Test Report 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Antenna gain=2.2 dBi Maximum peak output power at antenna input terminal (dBm): 24.38 Maximum peak output power at antenna input terminal (mW): 274.16 Prediction distance (cm): 20 Prediction frequency (MHz): 2412 Maximum Antenna Gain, typical (dBi): 2.2 Maximum Antenna Gain (numeric): 1.66 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.091 Power density of prediction frequency at 20.0 cm (W/m 2 ): 0.91 FCC MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 IC MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ): 5.4 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.091 mW/cm 2 (0.91 W/m 2 ). Limit is 1.0 mW/cm 2 (10.0 W/m 2 ). Antenna gain=6.5 dBi Maximum peak output power at antenna input terminal (dBm): 24.27 Maximum peak output power at antenna input terminal (mW): 267.30 Prediction distance (cm): 20 Prediction frequency (MHz): 2437 Maximum Antenna Gain, typical (dBi): 6.5 Maximum Antenna Gain (numeric): 4.47 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.238 Power density of prediction frequency at 20.0 cm (W/m 2 ): 2.38 FCC MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 IC MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ): 5.4 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.238 mW/cm 2 (2.38 W/m 2 ). Limit is 1.0 mW/cm 2 (5.4 W/m 2 ). Cisco System, Inc. FCC ID: LDKIR829GW-LTE; IC: 2461B-IR829GWLTE Report Number: R1506011-247 Page 12 of 143 FCC Part 15C/IC RSS-247 Test Report Antenna gain=13 dBi Maximum peak output power at antenna input terminal (dBm): 18.27 Maximum peak output power at antenna input terminal (mW): 67.14 Prediction distance (cm): 20 Prediction frequency (MHz): 2412 Maximum Antenna Gain, typical (dBi): 13.0 Maximum Antenna Gain (numeric): 19.95 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.267 Power density of prediction frequency at 20.0 cm (W/m 2 ): 2.67 FCC MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 IC MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ): 5.4 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.267 mW/cm 2 (2.67 W/m 2 ). Limit is 1.0 mW/cm 2 (5.4 W/m 2 ). Co-location: 2.4 GHz and 5 GHz bands can transmit simultaneously. A certified 2G/3G/4G module (FCC ID: N7NMC7355, IC: 2417C-MC7355) was built in the host. Per FCC KDB 447498, when RF sources have difference frequencies, the fraction of the FCC power density limit shall be determined and the sum of all fractional components shall be less than 1. WLAN Co-location Frequency Band Evaluated Distance (cm) Worst-Case MPE (mW/cm 2 ) MPE Limit (mW/cm 2 ) Worst-Case MPE Ratios Sum of MPE Ratios Limit 2.4 GHz 20 0.246 1.0 24.6 % 57.2 % 100 % 5 GHz 20 0.572 1.0 32.6 % 2.4 GHz WLAN + 5 GHz WLAN + 850 MHz Co-Location Frequency Band Evaluated Distance (cm) Worst-Case MPE (mW/cm 2 ) MPE Limit (mW/cm 2 ) Worst-Case MPE Ratios Sum of MPE Ratios Limit 2.4 GHz 20 0.246 1.0 24.6 % 93.3 % 100 % 5 GHz 20 0.572 1.0 32.6 % 850 MHz 20 0.198 0.549 36.1 % Cisco System, Inc. FCC ID: LDKIR829GW-LTE; IC: 2461B-IR829GWLTE Report Number: R1506011-247 Page 13 of 143 FCC Part 15C/IC RSS-247 Test Report 2.4 GHz WLAN + 5 GHz WLAN + 1900 MHz Co-Location Frequency Band Evaluated Distance (cm) Worst-Case MPE (mW/cm 2 ) MPE Limit (mW/cm 2 ) Worst-Case MPE Ratios Sum of MPE Ratios Limit 2.4 GHz 20 0.246 1.0 24.6 % 69.8 % 100 % 5 GHz 20 0.572 1.0 32.6 % 1900 MHz 20 0.126 1.0 12.6 % 2.4 GHz WLAN + 5 GHz WLAN + 700 MHz Co-Location Frequency Band Evaluated Distance (cm) Worst-Case MPE (mW/cm 2 ) MPE Limit (mW/cm 2 ) Worst-Case MPE Ratios Sum of MPE Ratios Limit 2.4 GHz 20 0.246 1.0 24.6 % 99.6 % 100 % 5 GHz 20 0.572 1.0 32.6 % 700 MHz 20 0.199 0.469 42.4 % 2.4 GHz WLAN + 5 GHz WLAN + 1700 MHz Co-Location Frequency Band Evaluated Distance (cm) Worst-Case MPE (mW/cm 2 ) MPE Limit (mW/cm 2 ) Worst-Case MPE Ratios Sum of MPE Ratios Limit 2.4 GHz 20 0.246 1.0 24.6 % 77.1 % 100 % 5 GHz 20 0.572 1.0 32.6 % 1700 MHz 20 0.199 1.0 19.9 % Conclusion: Simultaneous transmission MPE test exclusion applied to this device …
