LDKVEHVR2777Cisco Catalyst 9136I Access Point

1 Cisco Systems, Inc.www.cisco.com GETTING STARTED GUIDE Cisco Catalyst 9136I Series Access Points First Published: October 12, 2021 2 Cisco Catalyst 9136I Series Access Points 1About this Guide 2About the Cisco Catalyst 9136I Series Wireless Access Point 3Safety Instructions 4Unpacking 5AP Views, Ports, and Connectors 6Preparing the AP for Installation 7Installation Overview 8Performing a Pre-Installation Configuration 9Mounting the Access Point 10Powering the Access Point 11Configuring and Deploying the Access Point 12Checking the Access Point LEDs 13Miscellaneous Usage and Configuration Guidelines 14FAQs 15Related Documentation 16Declarations of Conformity and Regulatory Information Communications, Services, and Additional Information Cisco Bug Search Tool 3 Cisco Catalyst 9136I Series Access Points 1 About this Guide This guide provides instructions on how to install your Cisco Catalyst 9136I series access point and provides links to resources that can help you configure it. This guide also provides mounting instructions and troubleshooting information. Note that the C9136I series access point is referred to as the access point or the AP in this document. 2 About the Cisco Catalyst 9136I Series Wireless Access Point The Cisco Catalyst 9136I series wireless access point is a tri-band (2.4-GHz, 5-GHz, 6-GHz), enterprise 802.11ax (Wi-Fi 6) AP. The AP has one model which has integrated antennas, and are designed to use 2.4 GHz, the 5 GHz and the 6 GHz bands. This AP series supports a greater overall High Density Experience (HDX), which provides a more predictable performance for advanced applications such as 4K or 8K videos, high-density and high-definition collaboration applications, all-wireless offices, and Internet-of-Things (IoT). The AP supports full interoperability with leading 802.11ax and 802.11ac clients, along with a mixed deployment with other APs and controllers. These APs provide integrated security, resiliency and operational flexibility as well as increased network intelligence. A full listing of the AP's features and specifications are provided in the Cisco Catalyst 9136I Series Access Point Data Sheet, at the following URL: https://www.cisco.com/c/en/us/products/collateral/wireless/catalyst-9100ax-access-points/nb-06-cat-9130-ser-ap -ds-cte-en.html Cisco Catalyst 9136I Series Wireless Access Point Features The C9136I series AP is a wireless controller-based product, and supports: Five radios: a 6-GHz radio, a dual-band 5 GHz (8x8) flexible radio with 2.4 GHz, and a 4x4 5 GHz, a single-band 5 GHz radio, and an Omni IoT radio. The BLE, Zigbee, Thread, and other multi-protocol 802.15.4 devices use the Omni IoT radio Four 2.4-GHz and 5-GHz dual-band, four 5-GHz single-band, four 6-GHz single bands, and one 2.4-GHz IoT integrated antennas on the C9136I-x models. NoteThe ‘x’ in the model numbers represents the regulatory domain. For information on supported regulatory domains, see the“AP Model Numbers and Regulatory Domains” section on page 4. Integrated internal antennas that are omni directional in azimuth, for 2.4-GHz, 5-GHz bands, and 6-GHz bands. Multiuser Multiple-Input Multiple-Output (MU-MIMO) technology for uplink and downlink. Orthogonal Frequency Division Multiple Access (OFDMA)-based scheduling for both uplink and downlink. Multigigabit Ethernet (mGig) The following hardware external interfaces: —2x100/1000/2500/5000 Multigigabit Ethernet (RJ-45) —RS-232 Console Interface through RJ-45 —Recovery push button (enables partial or full system configuration recovery) —USB 2.0 Port —One multi-color LED. 4 Cisco Catalyst 9136I Series Access Points Integrated Bluetooth Low Energy (BLE) radio to enable IoT use cases such as location tracking and wayfinding. Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. Spatial Reuse (also known as Basic Service Set (BSS) coloring) which allows APs and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions. New power savings mode called Target Wake Time (TWT) which allows the client to stay asleep and wake up only at pre-scheduled (target) times to exchange data with the AP. This provides significant energy savings for battery-operated devices. Cisco Digital Network Architecture (DNA) support enables Cisco DNA Spaces, Apple FastLane and Cisco Identity Services Engine. Optimized AP Roaming for ensuring that client devices associate with the AP in their coverage range that offers the fastest data rate available. Cisco CleanAir technology enhanced with 160MHz channel support. CleanAir delivers proactive, high-speed spectrum intelligence across 20-, 40-, and 80-, and 160-MHz-wide channels to combat performance problems arising from wireless interference. The AP supports lightweight deployments (using Cisco Wireless Controllers). The AP also supports the following operating modes: Local—This is the default mode for the Cisco AP. In this mode, the AP serves clients. In local mode, the AP creates two CAPWAP tunnels to the Cisco WLC, one for management and the other for data traffic. This is known as central switching because the data traffic is switched (bridged) from the AP to the controller where it is then routed. FlexConnect—In FlexConnect mode (previously known as HREAP), the data traffic is switched locally and is not sent to the controller. In this mode, the Cisco AP behaves like an autonomous AP, but is managed by the Cisco WLC. Here, the AP continues to function even if connection to the controller is lost. Monitor—In the monitor mode, specified Cisco APs can exclude themselves from handling data traffic between clients and the infrastructure. These APs act as dedicated sensors for location based services (LBS), rogue AP detection, and intrusion detection (IDS). When APs are in monitor mode, they actively monitor the airwaves and typically do not serve clients. Sniffer—In the wireless sniffer mode, the AP starts sniffing the air on a given …

Text truncated - open the document above for the full version.

Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134 USA Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: LDK FCC ID: LDKVEHVR2777 Cisco Systems Inc. (“the applicant”) certifies that, as of the date of the application filing, we designate ourselves as the U.S. agent for the service of process. The applicant, as required by section 2.911(d)(7), will also serve as the agent for the service of process for the above-referenced FCC Grantee Code. The service of the process includes but is not limited to, the delivery of any correspondence, notices, orders, decisions, and requirements of administrative, legal, or judicial procedures related to Commission proceedings. The applicant acknowledges that they will maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the following agent information changes. Designated U.S. Agent Information FRN: 0004968939 Company Name: Cisco Systems Inc. Sincerely, Applicant’s company name Cisco Systems Inc Applicant’s company address 125 West Tasman Drive San Jose California United States 95134-1706 Signature Name and Job Title Samuel Kim / Leader, Hardware Engineering E-Mail [email protected] Tel 408-527-1446 Date June 11, 2023

Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134 USA Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: LDKVEHVR2777 RE: Attestation Statements Part 2.911(d)(5)(i) Filing Cisco Systems Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. RE: Attestation Statements Part 2.911(d)(5)(ii) Filing Cisco Systems Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Applicant’s company name Cisco Systems Inc Applicant’s company address 125 West Tasman Drive San Jose California United States 95134-1706 Signature Name and Job Title Samuel Kim / Leader, Hardware Engineering E-Mail [email protected] Tel 408-527-1446 Date June 10, 2023

Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134 USA Authority TO ACT AS AGENT-FCC To Whom It May Concern: On our behalf, I appoint Sporton International Inc. Hsinchu Laboratory to act as our agent in preparing this application for equipment certification (FCC ID: LDKVEHVR2777). I certify that the submitted documents properly describe the device or system for which equipment certification is sought. Sporton International Inc. Address: No. 52, Huaya 1 st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Contact Person: Leo Huang Job Title: VP Email: [email protected] In signing this letter, the applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Sporton International Inc., still resides with us. This letter also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Applicant’s company name Cisco Systems Inc Applicant’s company address 125 West Tasman Drive San Jose California United States 95134-1706 Signature Name and Job Title Samuel Kim / Manager, Engineering E-Mail [email protected] Tel 408-527-1446 Date June 10, 2023

Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134 USA Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: LDKVEHVR2777 To whom it may concern: Short-term Confidentiality Pursuant to Public Notice DA 04-1705, and to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are requesting the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos. Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as a confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description / Software Security For U-NII Devices We understand that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant’s company name Cisco Systems Inc Applicant’s company address 125 West Tasman Drive San Jose California United States 95134-1706 Signature Name and Job Title Samuel Kim / Leader, Hardware Engineering E-Mail [email protected] Tel 408-527-1446 Date June 10, 2023

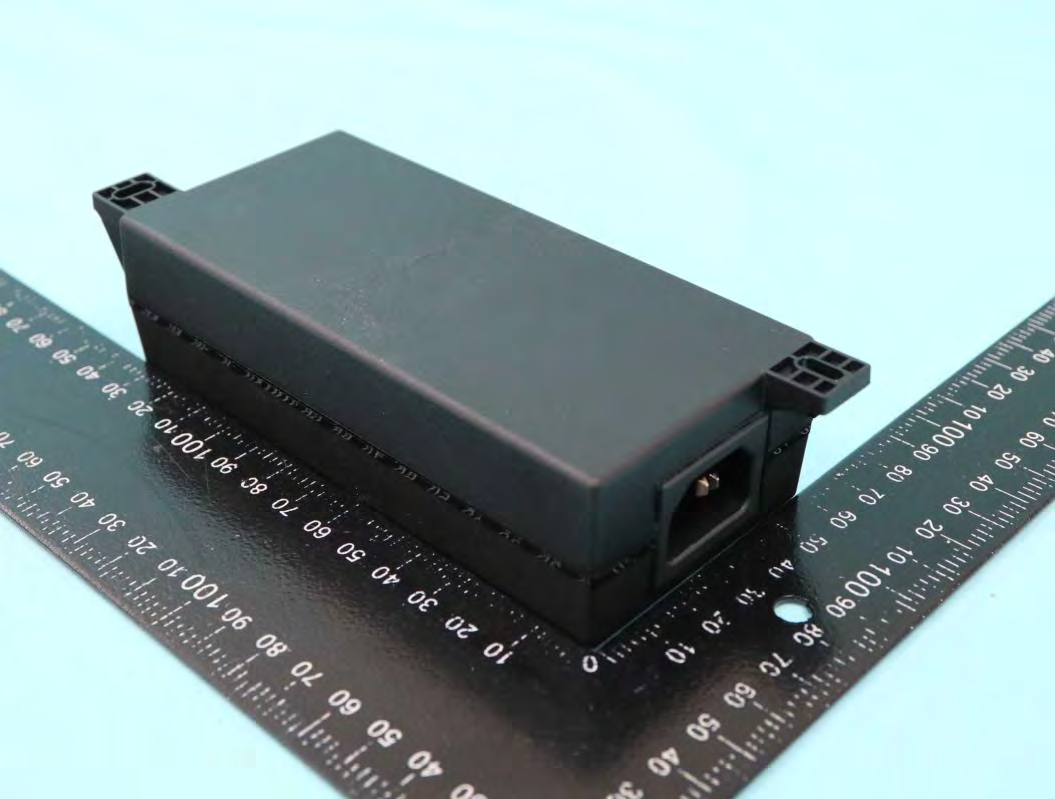

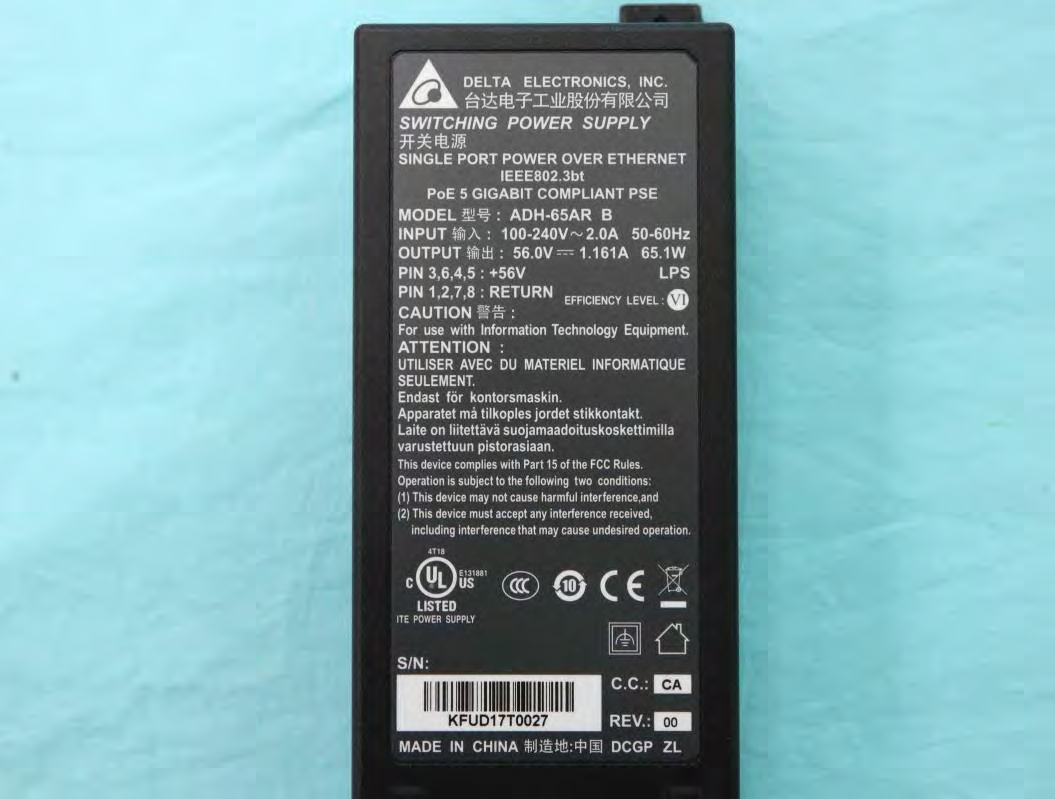

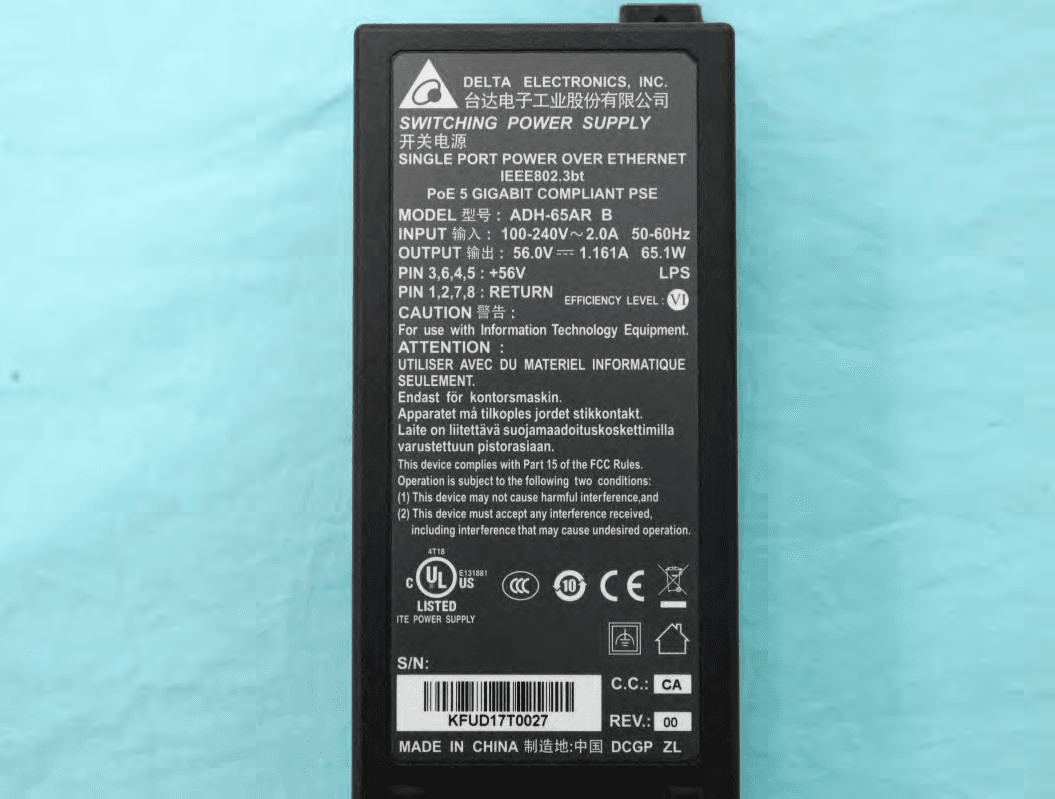

PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 1 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 2 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 3 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 4 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 56 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PoE PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 57 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 58 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 ______________THE END______________

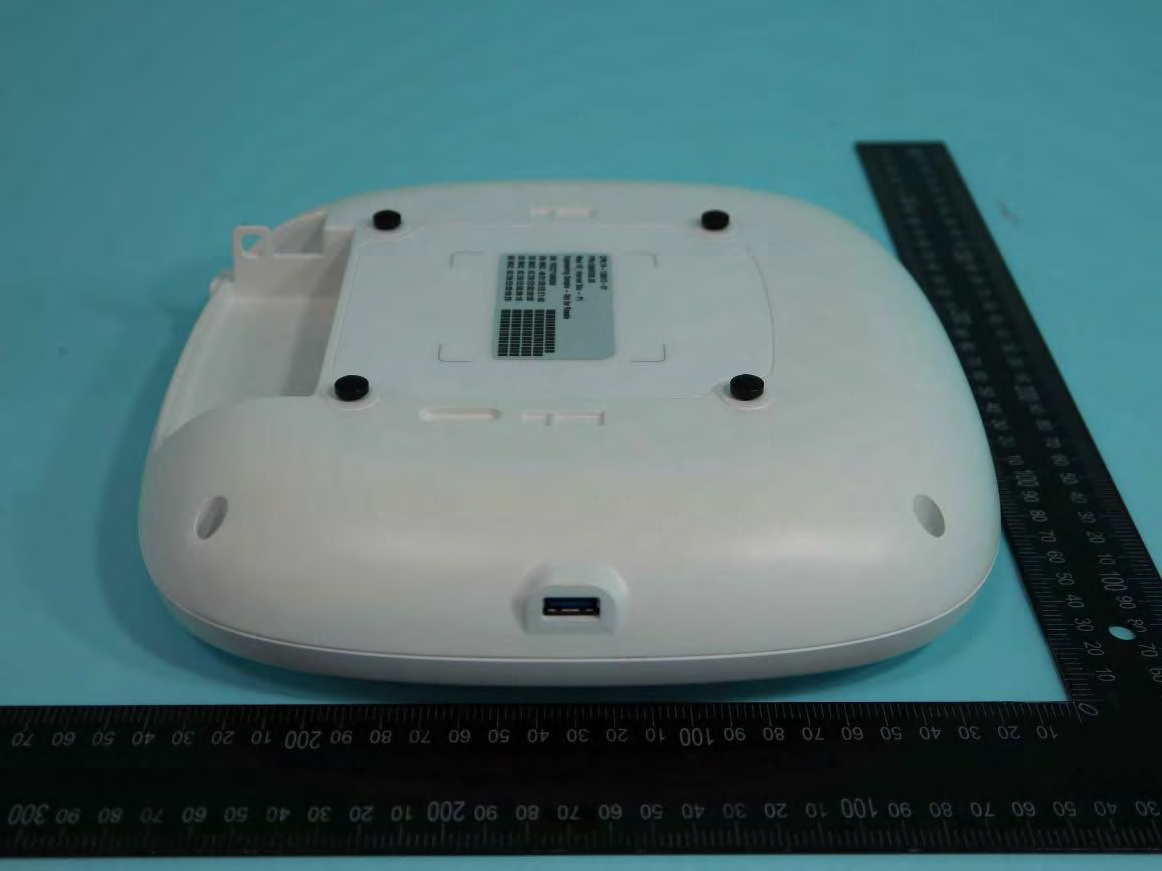

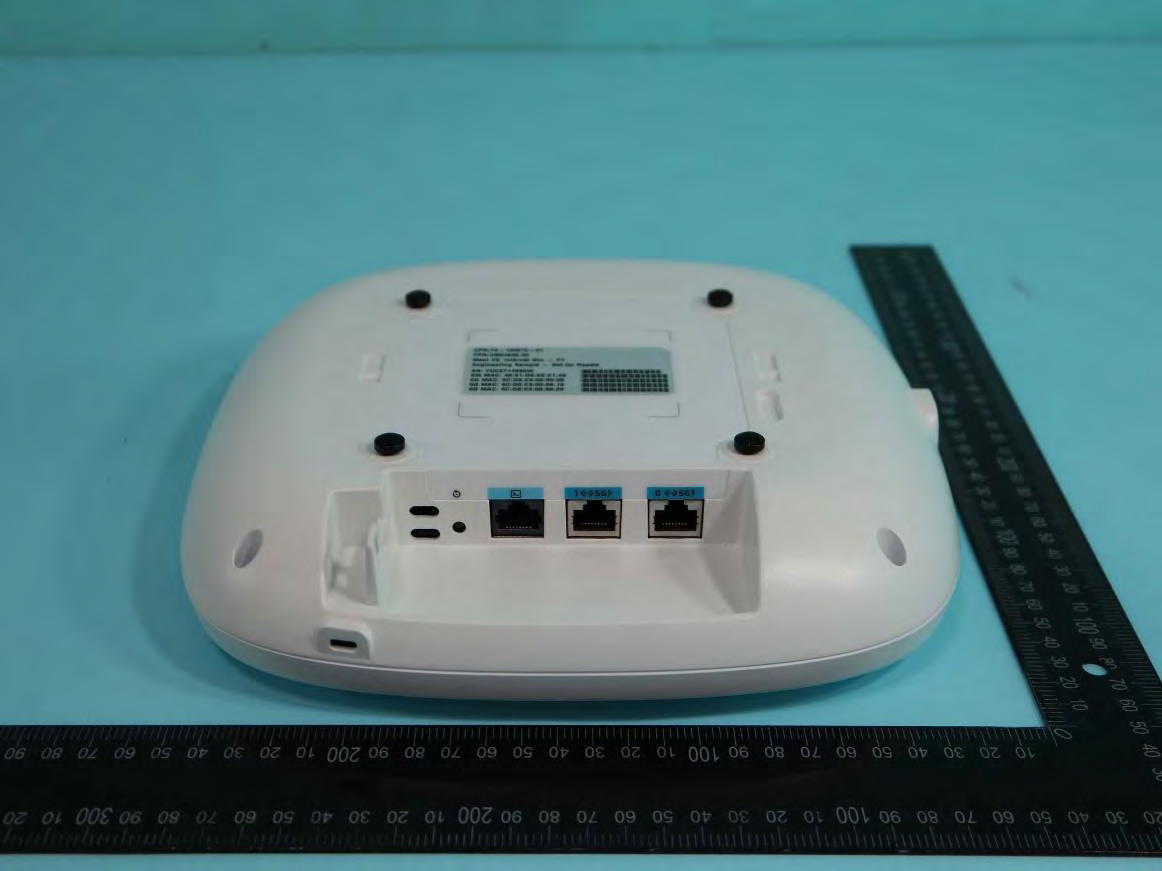

EUT ( Bottom View) Label Location

PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 6 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 7 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 8 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 9 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 10 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 11 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 12 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 13 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 14 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 15 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 16 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 17 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 18 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 19 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 20 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 21 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 22 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 23 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 24 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 25 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 26 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 27 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP180526-13 Sporton International Inc. Page No. : 28 of 58 Report Template No.: SE Ver 1.0_EP Issued Date : 26/Jun/2023 Report Version : 01

Radio Exposure Evaluation Report Report No. : FA180526-13 TEL : 886-3-327-3456 Page Number : 1 of 17 FAX : 886-3-327-0973 Issued Date : Jun. 26, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: LDKVEHVR2777 Radio Exposure Evaluation Report FCC ID : LDKVEHVR2777 Equipment : Cisco Catalyst 9136I Access Point Brand Name : Cisco Model Name : C9136I-B Applicant : Cisco Systems Inc 125 West Tasman Drive , San Jose, CA 95134, USA. Manufacturer : Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134, USA. Standard : 47 CFR FCC Part 2 Subpart J, section 2.1091 The product was received on Aug. 09, 2021, and testing was started from Aug. 12, 2021 and completed on Jun. 02, 2023. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR FCC Part 2 Subpart J, section 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA180526-13 TEL : 886-3-327-3456 Page Number : 2 of 17 FAX : 886-3-327-0973 Issued Date : Jun. 26, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: LDKVEHVR2777 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 8 1.3 Testing Location ..................................................................................................................................... 8 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 9 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 9 2.2 RF Exposure Exempt Measurement .................................................................................................... 10 2.3 Multiple RF Sources Exposure ............................................................................................................. 11 2.4 MPE Calculation Method ...................................................................................................................... 12 2.5 Calculated Result and Limit .................................................................................................................. 13 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA180526-13 TEL : 886-3-327-3456 Page Number : 3 of 17 FAX : 886-3-327-0973 Issued Date : Jun. 26, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: LDKVEHVR2777 History of this test report Report No. Version Description Issued Date FA180526-13 01 Initial issue of report Jun. 26, 2023 Radio Exposure Evaluation Report Report No. : FA180526-13 TEL : 886-3-327-3456 Page Number : 4 of 17 FAX : 886-3-327-0973 Issued Date : Jun. 26, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: LDKVEHVR2777 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Note 1: From Sporton Project No.: FA180526 (Serving Radio) Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None Reviewed by: Ryan Hsiao Report Producer: Ann Hou Radio Exposure Evaluation Report Report No. : FA180526-13 TEL : 886-3-327-3456 Page Number : 5 of 17 FAX : 886-3-327-0973 Issued Date : Jun. 26, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: LDKVEHVR2777 1 General Description 1.1 Information 1.1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5240 5260-5320 5500-5700 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 6GHz WLAN 5925-7125 5955-7095 5965-7085 5985-7025 6025-6985 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) Bluetooth 2400-2483.5 2402-2480 LE: DSSS (GFSK) Identify EUT HW Version V03 Radio Exposure Evaluation Report Report No. : FA180526-13 TEL : 886-3-327-3456 Page Number : 6 of 17 FAX : 886-3-327-0973 Issued Date : Jun. 26, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: LDKVEHVR2777 1.1.2 Antenna Information Ant. Brand Model Name Antenna Type Connector 1 Foxconn 361.01530.005 PIFA I-PEX 2 Foxconn 361.01530.005 PIFA I-PEX 3 Foxconn 361.015…

Text truncated - open the document above for the full version.

361.01530.005 Antenna Measurement Report 11F, No.32, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan 2 Antenna Sub-system Overview Antenna Performance Overview MIMO1 Performance MIMO2 Performance MIMO3 Performance Aux Performance IoT Performance Antenna Test Report Agenda Measurement Environment 3 MIMO1 (Ant1-4) MIMO2 (Ant5-8) MIMO3 (Ant9-12) Aux (Ant13-14) IoT (Ant15) Working Frequency (MHz) 2400-2500 5150-5850 5150-5850 5935-7125 2400-2500 5150-7125 2400-2500 Type PIFA Dipole PIFA PIFA PIFA Polarization V-pol H-pol V-pol Mix Mix Efficiency 2G : 60% 5G : 60% 5G : 60% 6G : 60% 2G : 60% 5, 6G : 60% 2G : 65% MIMO1 (Ant1-4) MIMO2 (Ant5-8) MIMO3 (Ant9-12) Aux (Ant13-14) IoT (Ant15) Working Frequency (MHz) 2400-2500 5150-5850 5150-5850 5935-7125 2400-2500 5150-7125 2400-2500 Type PIFA Dipole PIFA PIFA PIFA Polarization V-pol H-pol V-pol Mix Mix Efficiency 2G : 60% 5G : 60% 5G : 60% 6G : 60% 2G : 60% 5, 6G : 60% 2G : 65% Peak gain 2G : 4 dBi 5G : 5 dBI 5G : 5 dBi 6G : 6 dBi 2G : 6 dBi 5, 6G : 6 dBi 2G : 5 dBi Connector IPEX 1L 1 2 4 3 5 6 8 7 15 10 9 11 12 13 14 4 Antenna Cable length Overview Antenna cable length Ant No. Total length Color 1 297.5 Black 2 359.5 Gray 3 288 White 4 347.5 Blue 5 247 Black + red tube 3mm 6 250 Gray + red tube 3mm 7 224.5 White + red tube 3mm 8 279 Blue + red tube 3mm 9 161 Blue + yellow tube 3mm 10 259 White + yellow tube 3mm 11 256 Gray + yellow tube 3mm 12 210 Black + yellow tube 3mm 13 179 Red 14 233 Red + white tube 3mm 15 106.5 White + black tube 3mm 2.4 G Phi 0 Phi 90 Theta 60 5 G Phi 0 Phi 90 Theta 60 -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.1 (Theta 60) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.1 (Phi 0) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.1 (Phi 90) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.1 (Phi 0) 5150 MHz5500 MHz5850 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.1 (Phi 90) 5150 MHz5500 MHz5850 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.1 (Theta 60) 5150 MHz5500 MHz5850 MHz 1 2 43 5 6 87 15 10 9 11 12 1314 MIMO1 Performance – Radiation Pattern (A1) Y X Y X Y Z X Z Y X Y Z X Z 2.4 G Phi 0 Phi 90 Theta 60 5 G Phi 0 Phi 90 Theta 60 -40 -35 -30 -25 -20 -15 -10 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.2 (Theta 60) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.2 (Phi 0) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.2 (Phi 90) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.2 (Phi 0) 5150 MHz5500 MHz5850 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.2 (Phi 90) 5150 MHz5500 MHz5850 MHz -40 -35 -30 -25 -20 -15 -10 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.2 (Theta 60) 5150 MHz5500 MHz5850 MHz MIMO1 Performance – Radiation Pattern (A2) 1 2 43 5 6 87 15 10 9 11 12 1314 Y X Y X Y Z X Z Y X Y Z X Z 2.4 G Phi 0 Phi 90 Theta 60 5 G Phi 0 Phi 90 Theta 60 -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.3 (Theta 60) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.3 (Phi 0) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.3 (Phi 90) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.3 (Phi 0) 5150 MHz5500 MHz5850 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.3 (Phi 90) 5150 MHz5500 MHz5850 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.3 (Theta 60) 5150 MHz5500 MHz5850 MHz MIMO1 Performance – Radiation Pattern (A3) 1 2 43 5 6 87 15 10 9 11 12 1314 Y X Y X Y Z X Z Y X Y Z X Z 2.4 G Phi 0 Phi 90 Theta 60 5 G Phi 0 Phi 90 Theta 60 -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.4 (Phi 0) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.4 (Phi 90) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.4 (Theta 60) 2400 MHz2450 MHz2500 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.4 (Phi 0) 5150 MHz5500 MHz5850 MHz -4 0 -3 5 -3 0 -2 5 -2 0 -1 5 -1 0 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Ant.4 (Phi 90) 5150 MHz5500 M…

Text truncated - open the document above for the full version.

CSE Bandedge_ Non-Beamforming_Serving Radio Dual_4T1S Appendix E.12 Sporton International Inc. Page No. : E40 of E65 Report No. : FR180526-13AN CSE Bandedge_ Non-Beamforming_Serving Radio Dual_4T1S Appendix E.12 Sporton International Inc. Page No. : E41 of E65 Report No. : FR180526-13AN CSE Bandedge_ Non-Beamforming_Serving Radio Dual_4T1S Appendix E.12 Sporton International Inc. Page No. : E42 of E65 Report No. : FR180526-13AN CSE Bandedge_ Non-Beamforming_Serving Radio Dual_4T1S Appendix E.12 Sporton International Inc. Page No. : E43 of E65 Report No. : FR180526-13AN CSE Bandedge_ Non-Beamforming_Serving Radio Dual_4T1S Appendix E.12 Sporton International Inc. Page No. : E44 of E65 Report No. : FR180526-13AN CSE Bandedge_ Non-Beamforming_Serving Radio Dual_4T1S Appendix E.12 Sporton International Inc. Page No. : E45 of E65 Report No. : FR180526-13AN CSE Bandedge_ Non-Beamforming_Serving Radio Dual_4T1S Appendix E.12 Sporton International Inc. Page No. : E46 of E65 Report No. …

Text truncated - open the document above for the full version.
