LFU00000002Induction Cooker

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.

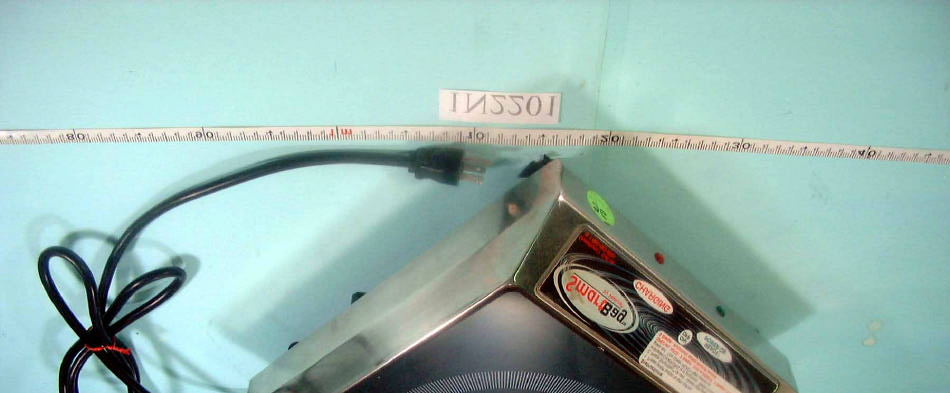

FCC ID : LFU00000002 FRONT SIDE OF EUT Number 1 FCC ID : LFU00000002 REAR SIDE OF EUT Number 2

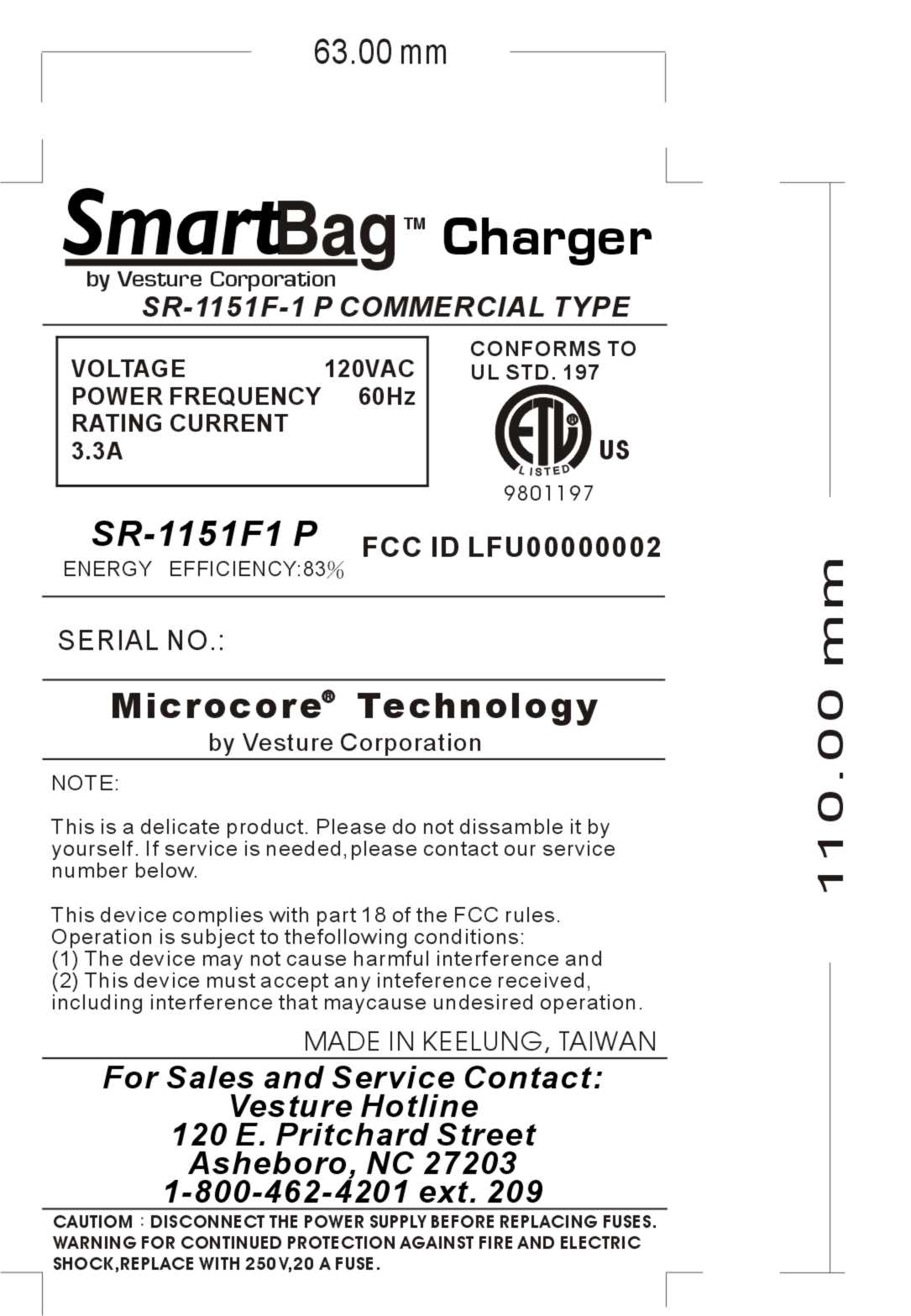

FCC ID : LFU00000002 FCC ID LOCATION

FCC ID : LFU00000002 Number 1 Mechanical Construction FCC ID : LFU00000002 Number 2 Mechanical Construction 1 FCC ID : LFU00000002 Number 3 Front SIDE Control panel board FCC ID : LFU00000002 Number 4 REAR SIDE Control panel board FCC ID : LFU00000002 Number 5 Mechanical Construction FCC ID : LFU00000002 Number 6 Mechanical Construction FCC ID : LFU00000002 Number 7 Front SIDE Module board FCC ID : LFU00000002 Number 8 REAR SIDE Module board FCC ID : LFU00000002 Number 9 Front SIDE Main board FCC ID : LFU00000002 Number 10 REAR SIDE Main board FCC ID : LFU00000002 Number 11 Front SIDE Module board FCC ID : LFU00000002 Number 12 REAR SIDE Module board FCC ID : LFU00000002 Number 13 FCC ID : LFU00000002 Number 14

FCC TEST REPORT Report No. : F1N2201 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for PART 18, SUBPART C Equipment : Induction Cooker Model No. : SR-1151F-1P FCC ID : LFU00000002 Filing Type : Certification Applicant : Sunpentown Electric Co., Ltd. No. 13, Gong Jain S. Rd., Keelung, Taiwan, R.O.C. † The test result refers exclusively to the test presented test model / sample. † Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. † Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F1N2201 SPORTON International Inc. FCC ID : LFU00000002 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Oct. 09, 2002 Table of Contents History of this test report.........................................................................................................................ii CERTIFICATE OF COMPLIANCE..............................................................................................................1 1. General Description of Equipment under Test.....................................................................................2 1.1. Applicant.......................................................................................................................................................................................2 1.2. Manufacturer.................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test...................................................................................................................................2 1.4. Feature of Equipment under Test..................................................................................................................................................2 2. Test Configuration of Equipment under Test.......................................................................................3 2.1. Test Manner..................................................................................................................................................................................3 2.2. Description of Test System...........................................................................................................................................................3 3. EUT OPERATION CONDITION..............................................................................................................4 4. General Information of Test.................................................................................................................5 4.1. Test Facility...................................................................................................................................................................................5 4.2. Standard for Methods of Measurement.........................................................................................................................................5 4.3. Test in Compliance with................................................................................................................................................................5 4.4. Frequency Range Investigated......................................................................................................................................................5 4.5. Test Distance................................................................................................................................................................................5 5. Test of Conducted Powerline...............................................................................................................6 5.1. Major Measuring Instruments........................................................................................................................................................6 5.2. Test Procedures............................................................................................................................................................................7 5.3. Typical Test Setup Layout of Conducted Powerline......................................................................................................................8 5.4. Test Result of AC Powerline Conducted Emission........................................................................................................................9 6. Test of Radiated Emission..................................................................................................................10 6.1. Major Measuring Instruments......................................................................................................................................................10 6.2. Test Procedures..........................................................................................................................................................................11 6.3. Typical Test Setup Layout of Radiated Emission........................................................................................................................12 6.4. Test Result of Radiated Emission...............................................................................................................................................13 7. EMI Suppression Component List.......................................................................................................14 8. Cable Loss..........................................................................................................................................15 9. List of Measuring Equipments Used........…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F1N2201 SPORTON International Inc. FCC ID : LFU00000002 TEL : 886-2-2696-2468 Page No. : 1 of 3 FAX : 886-2-2696-2255 Issued Date : Nov, 19, 2002 1.1. Photographs of Conducted Powerline Test Configuration l The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No. : F1N2201 SPORTON International Inc. FCC ID : LFU00000002 TEL : 886-2-2696-2468 Page No. : 2 of 3 FAX : 886-2-2696-2255 Issued Date : Nov, 19, 2002 SIDE VIEW FCC TEST REPORT Report No. : F1N2201 SPORTON International Inc. FCC ID : LFU00000002 TEL : 886-2-2696-2468 Page No. : 3 of 3 FAX : 886-2-2696-2255 Issued Date : Nov, 19, 2002 1.2. Photographs of Radiated Emission Test Configuration l The photographs show the configuration that generates the maximum emission. Handset FRONT VIEW REAR VIEW
