LG4T6510Occupancy Sensor

100024-300 Operation Manual-T6510 Thermostat The T6510 thermostat is a control and display unit that allows total management and visual monitoring of all the functions of the HVAC unit. It also gives you a greater measure of control over how your HVAC unit will operate in varying conditions. The Display The LCD display shows you all the settings you have selected for the operation of your HVAC unit. In the center of the display, the large number in the center is the desired room temperature. (If you don’t see this number, push the On/Off button in the lower right corner of the thermostat once). On the right side of the display, you see the current room temperature. On the left side of the screen, there are three symbols. The top symbol indicates the mode that has been selected. (More about this in the next section). Underneath the mode symbol is the fan icon. When it is spinning, your HVAC fan is on. Along the bottom are three more symbols. They indicate what the pushbuttons directly beneath them do. The °C/°F button toggles the display between Centigrade and Fahrenheit temperature measurement. The backlight switch keeps the display backlight on continuously. (When you use any control, the backlight will glow for a moment, and then automatically turns off in a few seconds). The Room Temp button toggles the room temperature display on and off. The Controls The large button in the lower right hand corner of the display is the On/Off control. It selects the desired mode of operation. The current mode is displayed with the icon in the upper left hand corner of the display. The "Off" mode turns both cooling and heating off. Next is the "Auto" mode. The icon pictures both a cooling symbol (a snowflake) and a heat symbol (a flame). Depending on the temperature you've selected, either the AC or the Heat will be turned on, until the room has reached the selected temperature. When the air conditioner is running, the snowflake will change to a "falling snowflake". When the heat is running, the fire will flicker. The third mode is the "Cool" mode. It activates cooling. When the air conditioner is running, the snowflake will change to a "falling snowflake". The last mode is the "Heat" mode, which turns on the heating unit. When the heat is running, the fire will flicker. 100024-300 To the left of the On/Off switch is the fan switch. It selects between fan "On", and fan "Auto". In "Auto" position, the fan turns on when cooling or heating is required. In the "On" position, the fan is on continuously. This setting can be used to circulate air in the room, even when heating or cooling is not taking place. In the upper right hand corner of the unit are two large switches used to set the desired temperature. Push the top switch to raise the temperature, and the lower switch to decrease it. Installation Considerations When installing the T6510 a Ferrite Bead (Fair-Rite 0431167281) or equivalent must be used. To install the bead, thread the cable from the AC unit through the bead, loop the cable around the bead once and thread it back through. Ensure that the bead is as close to the thermostat as possible. This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation between the equipment or devices Connect the equipment to an outlet other than the receiver's Consult a dealer or an experienced radio/TV technician for assistance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Smart Systems International could void the user's authority to operate the equipment. 100024-300 Smart Systems International 3271 S. Highland Drive Ste. 715 Las Vegas, NV 89109 This Class B digital apparatus complies with Canadian ICES- 003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

File: R61049 September 2, 2005 American TCB 6731 Whittier Avenue, Suite C110 McLean, VA. 22101 Gentlemen: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC Rules (CFR 47) and Industry Canada RSS 210 regarding intentional radiators. Data within this report demonstrates that the equipment tested complies with the FCC limits for intentional radiators. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Mark Briggs Principal Engineer MB/ Enclosures: Agent Authorization Letter Emissions Test Report with Exhibits

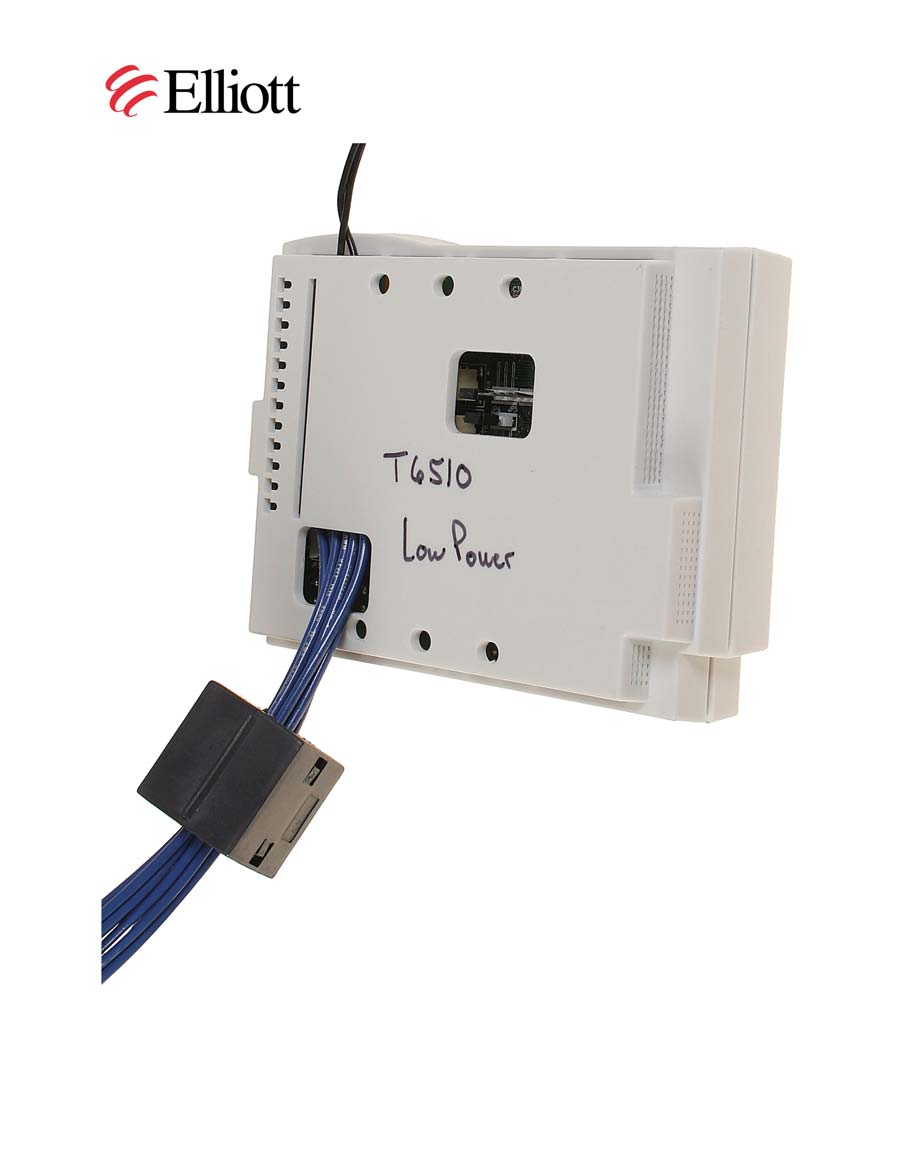

External Photos

Label Placement T6510 Outside Back Cover Smart Systems International 3271 S. Highland drive Ste 715 Las Vegas, NV 89109 702-734-0044 www.2getsmart T6510 24VAC Carry/Break 1A (8) Places Covered by US and ForeignPatents Patent No. x,xxx,xxx All Labels are Permanent and Self-Adhesive This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. FCC ID: LG4T6510 Model T6510 Made in China IC ID:6211A-LG4T6510 FCC and IC Product Labels FCC and IC Label Product Interior Label T6510 This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. 1" W 1 1/16" H 1 ½"W 1"H FCC ID: LG4T6510 Model T6510 Made in China IC ID:6211A-LG4T6510 Smart Systems International 3271 S. Highland Drive Ste 715 Las Vegas, NV 89109 702-734-0044 www.2getsmart.com

Internal Photos

File: R61049 Page 1 of 15 2016-01 Electromagnetic Emissions Test Report In Accordance With Industry Canada Radio Standards Specification 210 And FCC Part 15 Sections 15.249 on the Smart Systems International Transmitter Model: T6510 Thermostat UPN: 6211A-LG4T6510 FCC ID: LG4T6510 GRANTEE: Smart Systems International 3271 S. Highland Drive Las Vegas, NV 89109 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: September 2, 2005 FINAL TEST DATE: July 11, July 29, August 3, August 5 and August 25, 2005 AUTHORIZED SIGNATORY: ______________________________ Mark Briggs Principal Engineer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: September 2, 2005 File: R61049 Page 2 of 15 pages Equipment Name and Model: Transceiver, T6510 Thermostat Manufacturer: Smart Systems International 3271 S. Highland Drive Las Vegas, NV 89109 Tested to applicable standard: RSS-210, Issue 5, November 2001 (Low Power License-Exempt Radiocommunication Devices) FCC Part 15.249 Test Report Prepared For: Robert Zirpoli Smart Systems International 3271 S. Highland Drive Las Vegas, NV 89109 Measurement Facility Description Filed With Department of Industry: Departmental Acknowledgement Number: IC2845 SV1 Dated August 16, 2007 Declaration of Compliance I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above mentioned departmental standards (through the use of ANSI C63.4: 2003 as referenced by FCC Part 15 and RSS-212, “Test Facilities and Test Methods for Radio Equipment” as referenced by section 4 of RSS-Gen Issue 1); and that the equipment performed in accordance with the data submitted in this report. Signature ______________________________ Name Mark Briggs Title Principal Engineer Elliott Laboratories Inc. Address 684 W. Maude Ave Sunnyvale, CA 94086 USA Date: September 2, 2005 Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: September 2, 2005 File: R61049 Page 3 of 15 pages TABLE OF CONTENTS COVER PAGE..................................................................................................................................................................................1 DECLARATION OF COMPLIANCE.........................................................................................................................................2 TABLE OF CONTENTS...............................................................................................................................................................3 SCOPE.............................................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................................4 STATEMENT OF COMPLIANCE..............................................................................................................................................5 TEST RESULTS SUMMARY......................................................................................................................................................5 DEVICES OPERATING IN THE 902 – 928 / 2400 – 2483.5 / 5725 – 5850 MHZ BANDS................................................5 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS.........................................................................................5 MEASUREMENT UNCERTAINTIES.........................................................................................................................................6 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................7 GENERAL...................................................................................................................................................................................7 OTHER EUT DETAILS............................................................................................................................................................7 ENCLOSURE..............................................................................................................................................................................7 SUPPORT EQUIPMENT..........................................................................................................................................................7 EXTERNAL I/O CABLING......................................................................................................................................................7 EUT OPERATION.....................................................................................................................................................................7 TEST SITE......................................................................................................................................................................................8 GENERAL INFORMATION....................................................................................................................................................8 CONDUCTED EMISSIONS CONSIDERATIONS................................................................................................................8 RADIATED EMISSIONS CONSIDERATIONS....................................................................................................................8 MEASUREMENT INSTRUMENTATION.........................................................................................................…
