LMZ-19033BTBluetooth Speaker

Caractéristiques électriques Adaptateur CA/CC : Entrée : 100-240 V CA 50/60 Hz 0,6 A Sortie : 12 V CC, 2 A Caractéristiques techniques Technologie sans fi l Bluetooth MD : Bluetooth v2.1 + EDR, profi l A2DP/ AVRCP Puissance de sortie audio (10 % THD) : 10 W x 2 © 2012 Audiovox Accessories Corporation Une fi liale en propriété exclusive de VOXX International Corporation Indianapolis, IN La marque Bluetooth MD et ses logos sont des marques déposées de Bluetooth SIG, Inc. et toute utilisation de ces marques par Audiovox Electronics Corporation est faite avec son autorisation. Les autres marques de commerce et noms commerciaux sont la propriété de leur propriétaire respectif. Si cet appareil cause de l’interférence nuisible à la réception de signaux de radio ou de télévision, ce qui peut être validé en fermant et en allumant l’appareil, l’utilisateur est invité à corriger cette interférence par une ou plusieurs des mesures suivantes : • Réorienter ou déplacer de l’antenne de réception. • Augmenter de la distance entre l’appareil et le récepteur. • Brancher de l’appareil dans une prise murale faisant partie d’un circuit d’alimentation électrique autre que celui du récepteur. • Consultez votre revendeur ou un technicien radio/télévision compétent pour obtenir de l’aide. Les changements ou modifi cations non expressément approuvés par Audiovox peuvent annuler le droit de l’utilisateur d’utiliser cet appareil. Cet appareil ne contrevient pas aux dispositions de la section 15 du Règlement sur les perturbations radioélectriques de la Federal Communications Commission (FCC) des États-Unis. Son fonctionnement est assujetti aux deux conditions suivantes : (1) cet appareil ne cause pas d’interférence nuisible, et (2) cet appareil peut capter toute interférence, y compris une interférence qui pourrait causer un fonctionnement imprévu. FCC ID: LMZ-19033BT IC: 10306A-19033BT Product registration Thank you for purchasing an Acoustic Research product. We pride ourselves on the quality and reliability of all our electronic products but if you ever need service or have a question, our customer service staff stands ready to help. Contact us at www.acoustic-research.com. PURCHASE REGISTRATION: Registering On-line will allow us to contact you in the unlikely event a safety notifi cation is required under the Federal Consumer Safety Act. Register Online at: WWW.ACOUSTIC-RESEARCH.COM. Click on Product Registration and Fill Out the Brief Questionnaire. Enregistrement du produit Merci d’avoir acheté un produit Acoustic Research. Nous sommes fi ers de la qualité et de la fi abilité de tous nos produits électroniques, mais en cas de nécessité de réparation ou pour toute question, le personnel de notre service clientèle est prêt à vous aider. Contactez-nous sur www.acoustic-research.com. ENREGISTREMENT D’ACHAT: Enregistrer votre produit en ligne nous permettra de communiquer avec vous pour tout avis de sécurité au sujet du produit en vertu du Federal Consumer Safety Act (Loi fédérale de protection du consommateur). Enregistrez votre produit en ligne sur: WWW.ACOUSTIC-RESEARCH.COM. Cliquez sur Enregistrement produit et remplissez le court questionnaire. Enregisregistro del productotrement du produit Gracias por comprar un producto Acoustic Research. Nos enorgullece la calidad y fi abilidad de todos nuestros productos electrónicos, pero si alguna vez necesita servicios técnicos o si tiene alguna pregunta, nuestro personal de atención al cliente está a su disposición para ayudarle. Comuníquese con nosotros en www.acoustic-research.com. REGISTRO DE COMPRA: El registro en línea nos permitirá comunicarnos con usted en el caso de tener que enviarle algún aviso de seguridad en virtud de la Ley Federal de Seguridad del Consumidor. Registre el producto en línea en: WWW.ACOUSTIC-RESEARCH.COM. Haga clic en Registro del producto y responda al cuestionario. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: LMZ-19033BT IC: 10306A-19033BT RF Exposure Warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Industry Canada Regulatory Information This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The user is cautioned that this device should be used only as specifi ed within this manual to meet RF exposure shall be placed on the apparatus. • Always leave suffi cient space around the product for ventilation. Do not place product in or on a bed, rug, in a bookcase or cabinet that may prevent air fl ow through vent openings. • Do not place lighted candles, cigarettes, cigars, etc. on the product. • Care should be taken so that objects do not fall into the product. • Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components. • The marking information is located at the rear panel of apparatus. • To be completely disconnect the power input, the AC/DC adaptor of apparatus shall be disconnected from the mains. • AC/DC adaptor is a disconnect device. The AC/DC adaptor should not be obstructed OR should be easily accessed during intended use. • The ventilation should not be impeded by covering the ventilation openings wit…

Text truncated - open the document above for the full version.

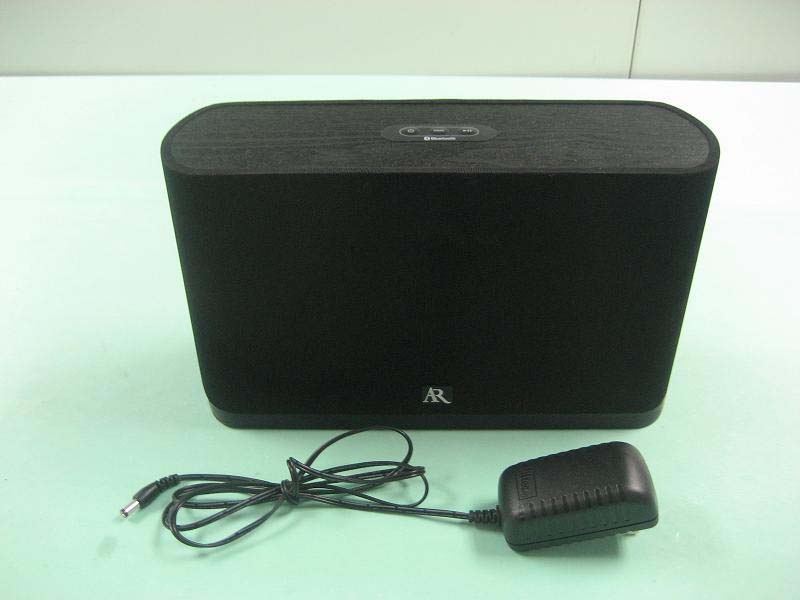

Front View of the project Rear View of the project

OSA00N09210001 ARS70 SN: 40.00 mm 1 4 . 0 0 m m Code 39 “OSA00N09210001” Mode No OSA00N09210001 Year(生產年份） (A= 2000..N=2012, 跳過I, O, S, Z) Pseudo Code (固定值） Week (生產周期） Day 產日 (1=星期日 7=星期六) Line code 生產線組別 Serial code 流水號（從0001流起 OSA00N09210001 ARS70-A SN: 60.00 mm This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,and (2) this device must accept any interference received , including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003 Cet appareil num rique de la classe B est Conforme la norme NMB-003 du Canada. Bluetooth Audio System Model: ARS70 Input: DC 12V 2A FCC ID: LMZ-19033BT IC ID: 10306A-19033BT Made in China CONFORMS TO ANSI/UL STD. 60065 CERTIFIED TO CAN/CSA STD. C22.2 No. 60065 4005405 S This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,and (2) this device must accept any interference received , including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003 Cet appareil num rique de la classe B est Conforme la norme NMB-003 du Canada. Bluetooth Audio System Model: ARS70-A Input: DC 12V 2A FCC ID: LMZ-19033BT IC: 10306A-19033BT Made in China CONFORMS TO ANSI/UL STD. 60065 CERTIFIED TO CAN/CSA STD. C22.2 No. 60065 4005405 S 7 5 . 0 0 m m

OSA00N09210001 ARS70 SN: 40.00 mm 1 4 . 0 0 m m Code 39 “OSA00N09210001” Mode No OSA00N09210001 Year(生產年份） (A= 2000..N=2012, 跳過I, O, S, Z) Pseudo Code (固定值） Week (生產周期） Day 產日 (1=星期日 7=星期六) Line code 生產線組別 Serial code 流水號（從0001流起 OSA00N09210001 ARS70-A SN: 60.00 mm This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,and (2) this device must accept any interference received , including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003 Cet appareil num rique de la classe B est Conforme la norme NMB-003 du Canada. Bluetooth Audio System Model: ARS70 Input: DC 12V 2A FCC ID: LMZ-19033BT IC ID: 10306A-19033BT Made in China CONFORMS TO ANSI/UL STD. 60065 CERTIFIED TO CAN/CSA STD. C22.2 No. 60065 4005405 S This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,and (2) this device must accept any interference received , including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003 Cet appareil num rique de la classe B est Conforme la norme NMB-003 du Canada. Bluetooth Audio System Model: ARS70-A Input: DC 12V 2A FCC ID: LMZ-19033BT IC: 10306A-19033BT Made in China CONFORMS TO ANSI/UL STD. 60065 CERTIFIED TO CAN/CSA STD. C22.2 No. 60065 4005405 S 7 5 . 0 0 m m

Inner Photo PCB-A PCB-B

FCC ID: LMZ-19033BT RF Exposure Test Requirement: FCC 47CFR 15.247(i) Test Date: 2012-4-28 Ambient Temperature: 23 o C Relative Humidity: 57 % Mode of Operation: Tx mode Test Method: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. Test Results: The EUT complied with the requirement(s) of this section. EUT meets the requirements of these sections as proven through MPE calculation The MPE calculation for EUT @ 20cm Based on the highest P =1.48 mW Pd = PG/ 4pi*R 2 = (1.48 x 2.512)/12.566* (20) 2 = (3.718)/12.566x 400= 3.718 /5026.4 = 0.00074 mW/cm 2 where: *Pd = power density in mW/cm2 * G = Antenna numeric gain (2.512); Log G = g/10 ( g = 4 dBi ). * P = Conducted RF power to antenna (1.48 mW). * R = Minimum allowable distance.(20 cm) *The po wer density Pd = 0.00074 mW/cm 2 is less than 1 mW/cm 2 (listed MPE limit) *The SAR evaluation is not needed ( this is a desk top device, R> 20 cm ) * The EUT( antenna ) must be 0.2 meters away from the General Population.

STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date : 2012-05-03 Page 1 of 81 No. : DM107777 Applicant (C01430): Ocean Star Electronics Limited. Unit D, 6/F., Valiant Industrial Centre, 2-12 Au Pui Wan Street, Fo Tan, Hong Kong Manufacturer: DONGGUAN OCEAN SOUND TECHNOLOGY LTD Dai Hong Industrial Park, Chajiao Village, Zhongtang Zhen, Dongguan City, Guangdong, CHINA. Zip Code: 523231 Description of Sample(s): Product: Bluetooth speaker Brand Name: Acoustic Research Model Number: ARS70 FCC ID: LMZ-19033BT Date Sample(s) Received: 2012-04-03 Date Tested: 2012-04-05 to 2012-04-28 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, see page 3 LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date : 2012-05-03 Page 2 of 81 No. : DM107777 CONTENT: Cover Page 1 of 81 Content Page 2 of 81 1.0 General Details 1.1 Test Laboratory Page 3 of 81 1.2 Equipment Under Test [EUT] Page 3 of 81 Description of EUT operation 1.3 Date of Order Page 3 of 81 1.4 Submitted Sample Page 3 of 81 1.5 Test Duration Page 3 of 81 1.6 Country of Origin Page 3 of 81 2.0 Technical Details 2.1 Investigations Requested Page 4 of 81 2.2 Test Standards and Results Summary Page 4 of 81 3.0 Test Results 3.1 Emission Page 5 - 75 of 81 Appendix A List of Measurement Equipment Page 76 of 81 Appendix B Ancillary Equipment Page 77 of 81 Appendix C Photographs Page 78- 81 of 81 STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date : 2012-05-03 Page 3 of 81 No. : DM107777 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Bluetooth speaker Manufacturer: DONGGUAN OCEAN SOUND TECHNOLOGY LTD Brand Name: Acoustic Research Model Number: ARS70 Additional Brand Name(s): OCEAN Additional Model Number(s): 19033,20009 Input Voltage: 12Vd.c. with Jack The AC/DC adapter was provided by the applicant with following details: Brand name: Ktec; Model no.: KSAS0241200200HU; Input: 100-240Va.c. 50/60Hz 0.6A; Output: 12Vd.c. 2.0A. 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is an Ocean Star Electronics Limited., Bluetooth speaker. Is bluetooth 2.1+EDR. modulation by IC; and type is GFSK, π/4 DQPSK , 8DPSK modulation. 1.3 Date of Order 2012-04-03 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2012-04-05 to 2012-04-28 1.6 Country of Origin China STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date : 2012-05-03 Page 4 of 81 No. : DM107777 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 Regulations and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Output Power of Fundamental Emissions FCC 47CFR 15.247(b)(1)ANSI C63.4:2009N/A Radiated Spurious Emissions FCC 47CFR 15.209 ANSI C63.4:2009N/A AC Mains Conducted Emissions FCC 47CFR 15.207 N/A N/A Number of Operating Channel FCC 47CFR 15.247(a)(2)(b)(1) N/A N/A Band-edge compliance of Conducted Emission FCC 47CFR 15.247© N/A N/A Channel Separation FCC 47CFR 15.247(a)(1)N/A N/A Pseudorandom Hopping Algorithm FCC 47CFR 15.247(a)(1)N/A N/A Time of Occupancy FCC 47CFR 15.247(a)(1)(iii) N/A N/A 20dB Bandwidth FCC 47CFR 15.247(a)(1)N/A N/A Antenna requirement FCC 47CFR 15.203 N/A N/A Note: N/A - Not Applicable STC Test Report STC (Dongguan) Company Limited 68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770) Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : [email protected] Homepage : www.dgstc.org This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage. Date : 2012-05-03 Page 5 of 81 No. : …

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emission Radiated Emission-Above 1GHz
