XW-BTS1 -K/-W WIRELESS SPEAKER SYSTEM Enceinte sans fil Sistema de Altavoces Inalámbrico Operating Instructions Mode d’emploi Manual de instrucciones 2 WARNING This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A1_En WARNING Before plugging in for the first time, read the following section carefully. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the AC adapter label. D3-4-2-1-4*_A1_En WARNING To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A1_En VENTILATION CAUTION When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side). WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b*_A1_En Operating Environment Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c*_A1_En WARNING Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately. If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation). D3-4-2-2-1a_A1_En CAUTION The  STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power plug serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power plug can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power plug should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2-2a*_A1_En This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_A1_En The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN IMPORTANT D3-4-2-1-1_A1_En 3 English POWER-CORD CAUTION Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. S002*_A1_En AC adapter CAUTION • Make sure to grasp the body of the AC adapter when removing it from the power outlet. If you pull the power cord, it may become damaged which could lead to fire and/or electrocution. • Do not attempt to plug in or remove the AC adapter with wet hands. This may result in electrocution. • Do not insert the power cord of AC adapter into a power outlet where the connection remains loose despite inserting the prongs all the way into the outlet. Heat may be generated which could lead to fire. Consult with the retailer or an electrician regarding replacement of the power outlet. Store the AC adapter out of the reach of children and infants. The AC adapter cord may accidentally wind around the neck and it may cause suffocation. Radio wave caution This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (Microwave ovens and Cordless phones, etc.). In this event noise appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit). • Pioneer is not responsible for any m…

Text truncated - open the document above for the full version.

11 Français Lecture audio Bluetooth • Le pairage est nécessaire quand vous utilisez pour la première fois un appareil muni de la technologie sans fil Bluetooth et cet appareil. • Pour autoriser la communication Bluetooth, le pairage doit être réalisé à la fois avec votre système et le périphérique muni de la technologie sans fil Bluetooth. 1. Appuyez sur la touche [INPUT] pour sélectionner le mode Bluetooth. (Indicateur de mode: vert) 2. Maintenez enfoncée la touche [PAIRING] sur la télécommande jusqu’à ce que vous entendiez deux “bips” consécutifs. Puis, l’indicateur bleu sur le panneau supérieur clignote rapidement et l’appareil entre en mode de pairage. 3. Mettez sous tension le périphérique muni de la technologie sans fil Bluetooth pour laquelle vous souhaitez réaliser le pairage, placez le périphérique à moins d’1 m (3,2 pieds) du système et placez le en mode de pairage. Le pairage commence. • En cas d’entre le code PIN, utilisez “0000”. ( Le code PIN “0000” seulement marche pour ce produit. ) 4. Quand le périphérique muni de la technologie sans fil Bluetooth est connecté, l’indicateur bleu sur le panneau supérieur s’arrête de clignoter et reste allumé. 5. Démarrez la lecture du contenu musical mémorisé sur le périphérique muni de la technologie sans fil Bluetooth. Connectez le dernier périphérique muni de la technologie sans fil Bluetooth pour lequel le pairage a été réalisé La prochaine fois que l’appareil est mis sous tension en mode Bluetooth, il se connecte automatiquement à l’appareil qui a été connecté en dernier. Connexion d’un appareil Bluetooth apparié précédent 1. Si vous souhaitez connecter un autre appareil apparié à la place du dernier appareil apparié, assurez-vous que la connexion Bluetooth du dernier appareil est déconnectée. Puis, l’indicateur bleu sur le panneau supérieur clignote doucement et l’appareil passe du mode de veille en mode de connexion. *Ou alors, il y a une autre façon de mettre l’appareil en mode de pairage. 12 Lecture audio Bluetooth 2. Mettez sous tension l’autre appareil apparié et sélectionnez cet appareil à partir de la liste des périphériques Bluetooth. 3. La connexion avec les autres périphériques a réussi et l’indicateur bleu arrête de clignoter et reste allumé. • La plage de fonctionnement de l’audio Bluetooth est de 10 m (32 pieds) maximum. (Mesuré en espace ouvert. Les murs et les structures peuvent affecter la plage du périphérique.) Précaution au sujet des ondes radio Cet appareil utilise une fréquence radio de 2,4 GHz, qui est une bande utilisée par les autres systèmes sans fil (voir la liste ci-dessous). Pour éviter le bruit ou l’interruption de la communication, n’utilisez pas cet appareil près de tels autres appareils, ou assurez-vous que ces périphériques sont hors tension pendant l’utilisation. • Téléphone sans fil • Télécopie sans fil • Four à micro-ondes • Périphérique réseau sans fil • Appareil AV sans fil. • Contrôleur sans fil pour console de jeu • Assistant de santé à micro-ondes • Certains moniteurs pour bébés Autres appareils moins ordinaires qui peuvent fonctionner sur la même fréquence: • Systèmes anti-vol • Stations radio amateur (HAM) • Systèmes de gestion d’entrepôts logistiques • Systèmes de discrimination pour les véhicules ferroviaires ou d’urgence Remarque • Dans le cas où du bruit apparaît sur l’image de votre téléviseur, il est possible qu’un périphérique sans fil Bluetooth activé ou cet appareil (y compris les produits pris en charge par cet appareil) cause des interférences du signal avec le connecteur d’entrée d’antenne de votre téléviseur, platine vidéo, tuner satellite, etc Dans ce cas, augmentez la distance entre le connecteur d’entrée d’antenne et le périphérique sans fil Bluetooth activé ou cet appareil (y compris les produits pris en charge par cet appareil). 13 Français Lecture audio Bluetooth • S’il y a quelque chose qui bloque le chemin entre cet appareil (y compris les périphériques pris en charge par cet appareil) et le périphérique muni de la technologie sans fil Bluetooth (comme une porte en métal, mur en béton ou isolation contenant du papier d’aluminium), vous devrez peut-être modifier l’emplacement de votre système pour empêcher le bruit et les interruptions. Plage d’utilisation L’utilisation de cet appareil est limitée à une utilisation domestique. (La distance de transmission peut être réduite en fonction de l’environnement de communication.) Dans les endroit suivant, des mauvaises conditions ou une impossibilité de recevoir les ondes radio peuvent entraîner une interruption ou un arrêt du son. • Dans les constructions en béton armé ou en acier ou les bâtiments à structure métallique. • Près d’un grand meuble en métal. • Dans une foule ou près d’un immeuble ou d’un obstacle. • Dans un endroit exposé à un champ magnétique, à de l’électricité statique ou des interférence d’ondes radio d’un appareil de communication radio utilisant la même bande de fréquence (2,4 GHz) que cet appareil, comme un appareil réseau sans fil 2,4 GHz ou un four à micro-ondes. • Si vous habitez dans une zone résidentielle très peuplée (appartement, maison en ville, etc.) et que le four à micro-ondes de votre voisin est placé près de votre système, vous pouvez faire l’expérience d’interférence d’ondes radio. Si cela se produit, déplacez votre appareil dans un endroit différent. Quand les micro-ondes ne sont pas utilisées, il n’y a pas d’interférences radio. Réflexions des ondes radio Les ondes radio reçues par cet appareil comprennent les ondes radio provenant directement de l’appareil muni de la technologie sans fil Bluetooth (onde directe) et les vagues venant de directions différentes en raison de la réflexion des murs, des meubles et des bâtiments (ondes réfléchies). Les ondes réfléchies (en raison des obstacles et des objets réfléchissants) produisent en outre une variété d’ondes réfléchies ainsi que des variations dans les conditions de réception selon les endroits. Si le son ne peut pas être reçu correctement en …

Text truncated - open the document above for the full version.

OCEAN STAR ELECTRONICS LTD. Unit 07, 3/F., Wah Lai Industrial Center, 10-14 Kwei Tei Street, Fo Tan, N.T., Hong Kong TelΚ (852) 2670 2341 | FaxΚ (852) 2672 1122 | E-mail: [email protected] Website: www.os-hk.com www.oceangroup.com.hk Appendix B Letter of Agency "I, an officer of Ocean Star Electronics Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 22 Nov of 2012 By Signature Jacky Chan Product Manager Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

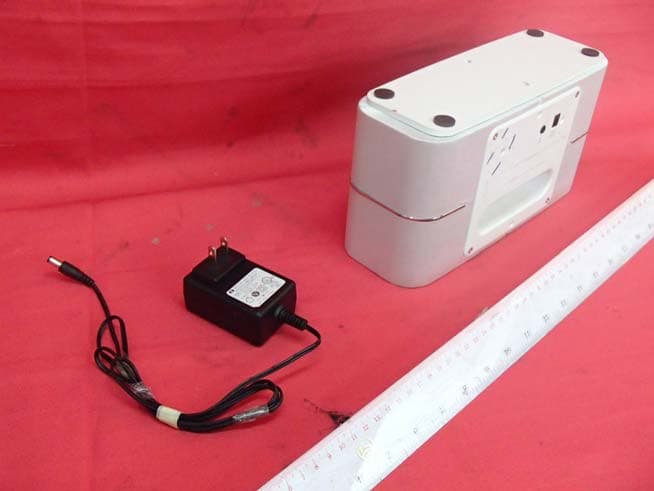

INTERTEK TESTING SERVICE Report No.: HK12110333-1(R1) FCC ID: LMZ-20009BT Equipment Photographs Model : XW-BTS1-K & XW-BTS1-W (External)

Label size : (W) 90 ×(H) 30 Label size : (W) 90 ×(H) 50 (CMXE only) MADE IN CHINA / FABRIQUE EN CHINE 18 V 0.0 A 00 W WIRELESS SPEAKER SYSTEM MODEL / MODELE XW-BTS3-K ENCEINTE SANS FIL Contains FCC ID / Contient FCC ID : XXXXXXXXXXXX Contains IC / Contient IC : XXXXXXXXXXXX AUDIO/VIDEO APPARATUS 4NP2 E244239 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS3-W 18 V 1.5 A 27 W ENCEINTE SANS FIL FCC ID : LMZ-20133BT IC : 10306A-20133BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS3-K 18 V 1.5 A 27 W ENCEINTE SANS FIL Serial No. FCC ID : LMZ-20133BT IC : 10306A-20133BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. MADE IN CHINA WIRELESS SPEAKER SYSTEM MODEL XW-BTS3-W 18 V 1.5 A 27 W Complies with IDA Standards DB03074 Serial No. MADE IN CHINA WIRELESS SPEAKER SYSTEM MODEL XW-BTS3-K 18 V 1.5 A 27 W Complies with IDA Standards DB03074 Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE XW-BTS3-W 18 V 1.5 A 27 W ENCEINTE SANS FIL MO04 Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE XW-BTS3-K 18 V 1.5 A 27 W ENCEINTE SANS FIL MO04 Serial No. FCC ID : LMZ-20009BT IC : 10306A-20009BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS1-W 9 V 1.66 A 14.94 W ENCEINTE SANS FIL Serial No. FCC ID : LMZ-20009BT IC : 10306A-20009BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS1-K 9 V 1.66 A 14.94 W ENCEINTE SANS FIL AUDIO/VIDEO APPARATUS 15VA Serial No. MADE IN CHINA ワイヤレススピーカーシステム MODEL XW-BTS1-W 9 V 1.66 A 14.94 W XXX-XXXXXX Serial No. MADE IN CHINA WIRELESS SPEAKER SYSTEM MODEL XW-BTS1-W 9 V 1.66 A 14.94 W Complies with IDA Standards DB03074 Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM 9 V 1.66 A 14.94 W MODEL / MODELE XW-BTS1-W ENCEINTE SANS FIL Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM 9 V 1.66 A 14.94 W MODEL / MODELE XW-BTS1-K ENCEINTE SANS FIL Serial No. 92 52 20 Label size : (W) 90 ×(H) 30 Label size : (W) 90 ×(H) 50 (CMXE only) MADE IN CHINA / FABRIQUE EN CHINE 18 V 0.0 A 00 W WIRELESS SPEAKER SYSTEM MODEL / MODELE XW-BTS3-K ENCEINTE SANS FIL Contains FCC ID / Contient FCC ID : XXXXXXXXXXXX Contains IC / Contient IC : XXXXXXXXXXXX AUDIO/VIDEO APPARATUS 4NP2 E244239 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS3-W 18 V 1.5 A 27 W ENCEINTE SANS FIL FCC ID : LMZ-20133BT IC : 10306A-20133BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS3-K 18 V 1.5 A 27 W ENCEINTE SANS FIL Serial No. FCC ID : LMZ-20133BT IC : 10306A-20133BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 d…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No.: HK12110333-1(R1) FCC ID: LMZ-20009BT Equipment Photographs Model: XW-BTS1-K & XW-BTS1-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110333-1(R1) FCC ID: LMZ-20009BT Equipment Photographs Model: XW-BTS1-K & XW-BTS1-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110333-1(R1) FCC ID: LMZ-20009BT Equipment Photographs Model: XW-BTS1-K & XW-BTS1-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110333-1(R1) FCC ID: LMZ-20009BT Equipment Photographs Model: XW-BTS1-K & XW-BTS1-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110333-1(R1) FCC ID: LMZ-20009BT Equipment Photographs Model: XW-BTS1-K & XW-BTS1-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110333-1(R1) FCC ID: LMZ-20009BT Equipment Photographs Model: XW-BTS1-K & XW-BTS1-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110333-1(R1) FCC ID: LMZ-20009BT Equipment Photographs Model: XW-BTS1-K & XW-BTS1-W (Internal)

Technical Description Product Function: 1. 2 x 5Watt RMS output power 2. Bluetooth V2.1 + EDR included profiles: A2DP, AVRCP 3. Advanced Audio Distribution Profile (A2DP) for wireless music streaming 4. Connects wirelessly to mobile phone, tablet or other Bluetooth Device 5. 3.5mm Aux input for non-Bluetooth device music playback 6. 9V 1.66A AC/DC adaptor Operational Description: The EUT is driven by external AC/DC adaptor which provide DC9V 1.66A to the main unit. When the unit is turn ON by pressing the Power Key, the Bluetooth Module would wake up and start the operation. If this is the first time the unit ON, Blue-tooth module would go to Pairing mode to search if any blue-tooth device like mobile is available for connect, when it is connected with a device, it can playback the device music wirelessly though A2DP profile. The key pad signal Play/Pause can control the music playback of the device though Bluetooth AVRCP profile. When the unit is turn OFF, the module would remember the device. If the unit is turn ON from standby again, it would auto connected with the latest paired device. Under unit On, if Aux in jack is inserted, and the power/input key is pressed shortly, the unit would switch to Aux in mode and the signal go to the Class D Amplifier directly. Bluetooth Module Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Antenna Gain: 0dBi Nominal rated field strength: 104.0 dBμV/m at 3m Maximum allowed field strength error: +/- 3dB The functions of main components are mentioned below. 1. Power supply: 1) ZD1, Q1, Q2, Q3 act as 9V regulator. ZD3, Q8 act as 3.3V DC regulator . 2) Q9, Q10, Q11 acts as 3.3V DC supply for Bluetooth module. 3) U8 (AX1110-3.3V) acts as LED display power supply. 2. MCU : 1) U9 (SC51C1316) acts as system MCU . 2) X1 (16.384MHz) acts as system clock for MCU (U9). 3) U7 is Bluetooth module (see related Bluetooth module description below). 3. BlueTooth module (U7): 1) U1 (BC57F687A05) acts as the 2.4GHz radio core of Bluetooth module 2) L1, L2, C1, F1 (DBF81F104) act as antenna matching network. 3) U3 provides system clock (oscillation frequency 26MHz). 4) U2 (M24C32) is 4Kbyte serial EEPROM for the Bluetooth module. 4. Audio signal processing : 1) U4 (SC7313) acts as analog audio signal input selector and volume control. 2) U5 (DRV602) acts as difference opamp for audio signal from BT/iPod ducking. 3) U6 (TDA7491LP) acts as 5W X 2 class D power amplifier. 4) L16, L19, L20, L23, C30, C46 act as output filters of class D amplifier (U6) ChannelFrequency Table of Bluetooth Module CH.NO. FRE. Hex Valu e CH.NO. FRE. Hex Value CH.N O FRE. Hex Value CH.N O FRE. Hex Value CHO 2402MHz 0 CH26 2428MHz !A CH52 2454MHz 34 CH78 2480MHz 4E CHl 2403MHz 1 CH27 2429MHz lB CH53 2455MHz 35 CH2 2404MHz 2 CH28 2430MHz lC CH54 2456MHz 36 CH3 2405MHz 3 CH29 2431MHz lD CH55 2457MHz 37 CH4 2406MHz 4 CH30 2432MHz lE CH56 2458MHz 38 CH5 2407MHz 5 CH31 2433MHz lF CH57 2459MHz 39 CH6 2408MHz 6 CH32 2434MHz 20 CH58 2460MHz 3A CH7 2409MHz 7 CH33 2435MHz 21 CH59 2461MHz 3B CH8 2410MHz 8 CH34 2436MHz 22 CH60 2462MHz 3C CH9 2411MHz 9 CH35 2437MHz 23 CH61 2463MHz 3D CHlO 2412MHz A CH36 2438MHz 24 CH62 2464MHz 3E CHll 2413MHz B CH37 2439MHz 25 CH63 2465MHz 3F CH12 2414MHz c CH38 2440MHz 26 CH64 2466MHz 40 CH13 2415MHz D CH39 2441MHz 27 CH65 2467MHz 41 CH14 241GMH<:: E CH40 2442MH<:: 28 CHGG 24G8MH<:: 42 CH15 2417MHz F CH41 2443MHz 29 CH67 2469MHz 43 CH16 2418MHz 10 CH42 2444MHz 2A CH68 2470MHz 44 CH17 2419MHz 11 CH43 2445MHz 2B CH69 2471MHz 45 CH18 2420MHz 12 CH44 2446MHz 2C CH70 2472MHz 46 CH19 2421MHz 13 CH45 2447MHz 2D CH71 2473MHz 47 CH20 2422MHz 14 CH46 2448MHz 2E CH72 2474MHz 48 CH21 2423MHz 15 CH47 2449MHz 2F CH73 2475MHz 49 CH22 2424MHz 16 CH48 2450MHz 30 CH74 2476MHz 4A CH23 2425MHz 17 CH49 2451MHz 31 CH75 2477MHz 4B CH24 2426MHz 18 CH50 2452MHz 32 CH76 2478MHz 4C CH25 2427MHz 19 CH51 2453MHz 33 CH77 2479MHz 4D Features _äìÉqìåÉë ∆ =olj=nck ■ Cost-effective single-chip solution for stereo headset and wireless speaker applications ■ A2DP1.2 and AVRCP1.0 profiles enabled with SBC encoder for streaming audio over Bluetooth and for remote control functionality ■ MP3 decoder for improved audio quality and reduced power consumption (MP3 decode functionality requires an appropriate licence from Thomson, see Section 17.1) ■ Configurable A2DP 5-band EQ ■ High-quality audio 95dB SNR on DAC playback ■ 64MIPS Kalimba DSP coprocessor ■ FastStream, CSR’s low-latency codec for video and gaming applications ■ HFP 1.5 (includes 3-way calling) and HSP 1.0 support ■ cVc support for echo and noise reduction ■ Low-power consumption: over 10 hours of audio playback from a 180mAh battery ■ Fully qualified Bluetooth v2.1 + EDR specification system with support for secure simple pairing ■ Best-in-class Bluetooth radio with 8dBm transmit power and -92dBm receive sensitivity ■ 2 integrated linear regulators with 1.5V output from 1.7V to 1.95V input ■ Integrated switch-mode regulator ■ Integrated lithium battery charger ■ 68-lead 8 x 8 x 0.9mm, 0.4mm pitch QFN package ■ Green (RoHS compliant and no antimony or halogenated flame retardants) ■ BlueTunes ROM stereo headset solution development kit available, includes example design. Order code BTN-003-1A _äìÉqìåÉë=olj=píÉêÉç=eÉ~ÇëÉí=pçäìíáçå Single-chip Bluetooth ® v2.1 + EDR System Production Information BC57F687A05 Issue 2 General Description Based on _äìÉ`çêÉ ∆ RJjìäíáãÉÇá~=olj=nck, the _äìÉqìåÉë=olj=nck integrates a Bluetooth radio, baseband, DSP, high-quality audio codec, SMPS, LDO and a battery charger for minimal BOM, component count and PCB area. BlueTunes ROM QFN uses advanced DSP features for the latest stereo enhancements and to improve audio quality, including SBC and MP3 decoder, support for FastStream (low-latency codec) and 5‑band EQ. 2.4 GHz Radio I/O RF IN RF OUT RAM MCU Kalimba DSP ROM EEPROM UART PIO SPI I 2 C Audio In/Out XTAL Applications ■ Stereo headset so…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: LMZ-20009BT Analysis Report Report No.: HK12110333-1(R1) The Equipment Under Test (EUT) is a 2.4GHz Bluetooth speaker, which is operating between 2402MHz and 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 100-240VAC. When the EUT is switched ON, the LED will flash. It is required to press the pairing button to pair with the corresponding device before playing audio. After pairing, the LED will stay lit. The EUT has an AUX IN jack to connect corresponding device to play audio. Antenna Type: Integral antenna Antenna Gain: 0dBi Nominal rated field strength: 104.0 dBμV/m at 3m Maximum allowed field strength error: +/- 3dB Modulation Type: GFSK For Maximum Permissible Exposure (MPE) evaluation of the speaker unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the wireless speaker system unit of tested model of XW-BTS1-W, XW-BTS1-K, the worst-case field strength measured (FS) was 104.0 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor is 3.125%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: Based on the Maximum allowed field strength error was +/-3dB, thus the maximum allowed field strength shall be considered; Maximum allowed field strength was 107.0 dBμV/m, thus; The radiated power = (FS*D) 2 / 30 = 15.036 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.00299 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: INTERTEK TESTING SERVICE FCC ID: LMZ-20009BT “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

55 44 33 22 11 D D C C B B A A 20009 (BTS-1) IP_R+IP_R-A_GNDV_GND RXTX IP_WAKEACC_PIP_L+IP_L- ON/OFFIP_L+IP_L-IP_R+IP_R-SCLMUTESDABT_L+BT_R-BT_R+BT_L- CVBS/PBIP_DET ACC_PA_GND ON/OFF V_GNDCVBS/PB SDA ON/OFF BT_SW CP_RST SCL IP_DET RXTX MUTEIP_WAKELED BT_SW ACC_P AUDIO_DET IR_INCP_SDACP_SCL LED1 ADIN2 BT_R-BT_R+BT_L-BT_L+ PAIR USB_D- CP_RST CP_SCL USB_D+ LED2 PAIR CP_SDA CP_RST AUDIO_DET LEDLED1IR_INLED2ADIN2 9VDD GND PVDD PVDD 9V PVDD P+9V GND IP_5V 3.3VS GND GND GND GND 3.3VS GND 3.3V GND 3.3VS 9V GND BT3.3V GND GND GND GND GND GND GND IP_5V GND GND BT3.3V 3.3VS GND GND IP_5V GND GND 3.3VS SD 2 IP_L+ 2 IP_L- 2 IP_R+ 2 IP_R- 2 SCL 2 MUTE 2 SDA 2 BT_L+ 2 BT_L- 2 BT_R+ 2 BT_R- 2 ACC_P 2 A_GND 2 AUDIO_DET2 TitleSize Document Number Rev Date: Sheet of 3 POWER&MCU&CP&BLUETOOTH A3 13 Wednesday, October 24, 2012 Ocean Star Electronic Limited TitleSize Document Number Rev Date: Sheet of 3 POWER&MCU&CP&BLUETOOTH A3 13 Wednesday, October 24, 2012 Ocean Star Electronic Limited TitleSize Document Number Rev Date: Sheet of 3 POWER&MCU&CP&BLUETOOTH A3 13 Wednesday, October 24, 2012 Ocean Star Electronic Limited D1NCD1NC J1 NC J1 NC 2 2 3 3 4 4 Q38050Q38050 C7 22pFC7 22pF L5 NC L5 NC R320RR320R C571uFC571uF R20100KR20100K TP6TP6 !! L2NCL2NC R125NCR125NC U7 F3088 V6- IDOCK U7 F3088 V6- IDOCK VOL+ 1 VOL- 2 SKIP+ 3 SKIP- 4 POW 5 1V8 6 GND1 7 VCC 8 LED1 9 LED2 10 MIC 11 ROUT- 12 ROUT+ 13 LOUT- 14 LOUT+ 15 AGND 16 MOST 17 CLK 18 CS# 19 MISO 20 RST 21 VBUS 22 PIO9 23 PIO5 24 R26NCR26NC TP9TP9TP10TP10 R8…
