XW-BTS3 -K/-W WIRELESS SPEAKER SYSTEM Enceinte sans fil Sistema de Altavoces Inalámbrico Operating Instructions Mode d’emploi Manual de instrucciones 2 WARNING This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A1_En WARNING Before plugging in for the first time, read the following section carefully. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the AC adapter label. D3-4-2-1-4*_A1_En WARNING To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A1_En VENTILATION CAUTION When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 15 cm at top, 10 cm at rear, and 10 cm at each side). WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b*_A1_En WARNING Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately. Operating Environment Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c*_A1_En If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation). D3-4-2-2-1a_A1_En CAUTION The  STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power plug serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power plug can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power plug should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2-2a*_A1_En This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_A1_En The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN IMPORTANT D3-4-2-1-1_A1_En 3 English POWER-CORD CAUTION Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. S002*_A1_En AC adapter CAUTION • Make sure to grasp the body of the AC adapter when removing it from the power outlet. If you pull the power cord, it may become damaged which could lead to fire and/or electrocution. • Do not attempt to plug in or remove the AC adapter with wet hands. This may result in electrocution. • Do not insert the power cord of AC adapter into a power outlet where the connection remains loose despite inserting the prongs all the way into the outlet. Heat may be generated which could lead to fire. Consult with the retailer or an electrician regarding replacement of the power outlet. Store the AC adapter out of the reach of children and infants. The AC adapter cord may accidentally wind around the neck and it may cause suffocation. Radio wave caution This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (Microwave ovens and Cordless phones, etc.). In this event noise appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit). • Pioneer is not responsible for any m…

Text truncated - open the document above for the full version.

OCEAN STAR ELECTRONICS LTD. Unit 07, 3/F., Wah Lai Industrial Center, 10-14 Kwei Tei Street, Fo Tan, N.T., Hong Kong TelΚ (852) 2670 2341 | FaxΚ (852) 2672 1122 | E-mail: [email protected] Website: www.os-hk.com www.oceangroup.com.hk Appendix B Letter of Agency "I, an officer of Ocean Star Electronics Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 22 Nov of 2012 By Signature Jacky Chan Product Manager Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

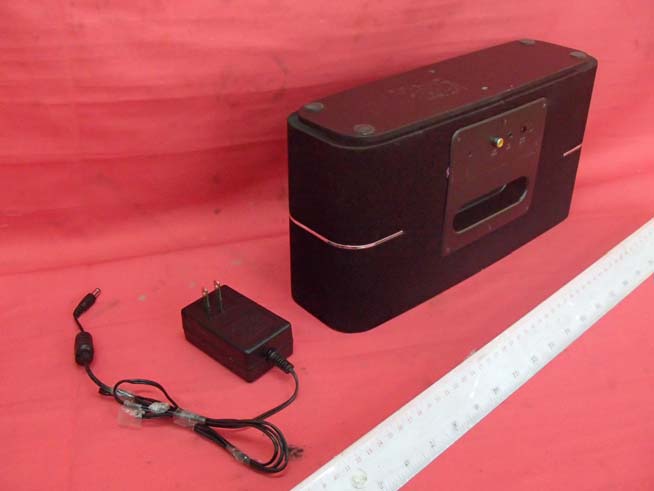

INTERTEK TESTING SERVICE Report No.: HK12110334-1(R1) FCC ID: LMZ-20133BT Equipment Photographs Model : XW-BTS3-K & XW-BTS3-W (External)

Label size : (W) 90 ×(H) 30 Label size : (W) 90 ×(H) 50 (CMXE only) MADE IN CHINA / FABRIQUE EN CHINE 18 V 0.0 A 00 W WIRELESS SPEAKER SYSTEM MODEL / MODELE XW-BTS3-K ENCEINTE SANS FIL Contains FCC ID / Contient FCC ID : XXXXXXXXXXXX Contains IC / Contient IC : XXXXXXXXXXXX AUDIO/VIDEO APPARATUS 4NP2 E244239 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS3-W 18 V 1.5 A 27 W ENCEINTE SANS FIL FCC ID : LMZ-20133BT IC : 10306A-20133BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS3-K 18 V 1.5 A 27 W ENCEINTE SANS FIL Serial No. FCC ID : LMZ-20133BT IC : 10306A-20133BT This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA WIRELESS SPEAKER SYSTEM MODEL XW-BTS3-W 18 V 1.5 A 27 W Complies with IDA Standards DB03074 Serial No. MADE IN CHINA WIRELESS SPEAKER SYSTEM MODEL XW-BTS3-K 18 V 1.5 A 27 W Complies with IDA Standards DB03074 Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE XW-BTS3-W 18 V 1.5 A 27 W ENCEINTE SANS FIL MO04 Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE XW-BTS3-K 18 V 1.5 A 27 W ENCEINTE SANS FIL MO04 Serial No. FCC ID : LMZ-20009BT IC : 10306A-20009BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS1-W 9 V 1.66 A 14.94 W ENCEINTE SANS FIL Serial No. FCC ID : LMZ-20009BT IC : 10306A-20009BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS1-K 9 V 1.66 A 14.94 W ENCEINTE SANS FIL AUDIO/VIDEO APPARATUS 15VA Serial No. MADE IN CHINA ワイヤレススピーカーシステム MODEL XW-BTS1-W 9 V 1.66 A 14.94 W 204-2D0001 Serial No. MADE IN CHINA WIRELESS SPEAKER SYSTEM MODEL XW-BTS1-W 9 V 1.66 A 14.94 W Complies with IDA Standards DB03074 Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM 9 V 1.66 A 14.94 W MODEL / MODELE XW-BTS1-W ENCEINTE SANS FIL Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM 9 V 1.66 A 14.94 W MODEL / MODELE XW-BTS1-K ENCEINTE SANS FIL Serial No. 92 52 20 Label size : (W) 90 ×(H) 30 Label size : (W) 90 ×(H) 50 (CMXE only) MADE IN CHINA / FABRIQUE EN CHINE 18 V 0.0 A 00 W WIRELESS SPEAKER SYSTEM MODEL / MODELE XW-BTS3-K ENCEINTE SANS FIL Contains FCC ID / Contient FCC ID : XXXXXXXXXXXX Contains IC / Contient IC : XXXXXXXXXXXX AUDIO/VIDEO APPARATUS 4NP2 E244239 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Serial No. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS3-W 18 V 1.5 A 27 W ENCEINTE SANS FIL FCC ID : LMZ-20133BT IC : 10306A-20133BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. MADE IN CHINA FABRIQUE EN CHINE WIRELESS SPEAKER SYSTEM MODEL / MODELE : XW-BTS3-K 18 V 1.5 A 27 W ENCEINTE SANS FIL Serial No. FCC ID : LMZ-20133BT IC : 10306A-20133BT This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired o…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No.: HK12110334-1(R1) FCC ID: LMZ-20133BT Equipment Photographs Model: XW-BTS3-K & XW-BTS3-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110334-1(R1) FCC ID: LMZ-20133BT Equipment Photographs Model: XW-BTS3-K & XW-BTS3-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110334-1(R1) FCC ID: LMZ-20133BT Equipment Photographs Model: XW-BTS3-K & XW-BTS3-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110334-1(R1) FCC ID: LMZ-20133BT Equipment Photographs Model: XW-BTS3-K & XW-BTS3-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110334-1(R1) FCC ID: LMZ-20133BT Equipment Photographs Model: XW-BTS3-K & XW-BTS3-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110334-1(R1) FCC ID: LMZ-20133BT Equipment Photographs Model: XW-BTS3-K & XW-BTS3-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110334-1(R1) FCC ID: LMZ-20133BT Equipment Photographs Model: XW-BTS3-K & XW-BTS3-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110334-1(R1) FCC ID: LMZ-20133BT Equipment Photographs Model: XW-BTS3-K & XW-BTS3-W (Internal) INTERTEK TESTING SERVICE Report No.: HK12110334-1(R1) FCC ID: LMZ-20133BT Equipment Photographs Model: XW-BTS3-K & XW-BTS3-W (Internal)

Technical Description Product Function: 1. 2 x 15Watt RMS output power 2. Bluetooth V2.1 + EDR included profiles: A2DP, AVRCP 3. Advanced Audio Distribution Profile (A2DP) for wireless music streaming 4. Connects wirelessly to mobile phone, tablet or other Bluetooth Device 5. 3.5mm Aux input for non-Bluetooth device music playback 6. Docking for iPod/iPhone music playback and charging 7. 18V 1.5A AC/DC adaptor ; Input 100-240VAC 50/60Hz 800mA Operational Description: The Equipment Under Test (EUT) is driven by external AC/DC adaptor which provide DC18V 1.5A to the main unit. When the unit is turn ON by pressing the Power Key, the Bluetooth Module would wake up and start the operation. If there is no iPhone/iPod is inserted on the docking and this is the first time the unit ON, Blue-tooth module would go to Pairing mode to search if any blue-tooth device like mobile is available for connect, when it is connected with a device, the EUT would go to connection mode, it can then playback the device music wirelessly though A2DP profile. The key pad signal Play/Pause can control the music playback of the device though Bluetooth AVRCP profile. When the unit is turn OFF, the module would remember the device. If the unit is turn ON from standby again, it would auto connected with the latest paired device. When an iPod/iPhone is docked on the EUT, the unit would go to iPhone mode. The EUT would go though a authorization process for the iPod/iPhone first, which is under Apple protocol. After the process success, the unit can playback iPod/iPhone music, user can also use remote control to access the menu of the iPod. Besides, the unit also provide 5V charging though the dock to iPod/iPhone. Under unit On, if Aux in jack is inserted, and the power/input key is pressed shortly, the unit would switch to Aux in mode and the signal go to the Class D Amplifier directly. Bluetooth Module Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Antenna Gain: 0dBi Nominal rated field strength: 104.0 dBμV/m at 3m Maximum allowed field strength error: +/- 3dB The functions of main components are mentioned below. 1. Power supply: 1) ZD1, Q1, Q2, Q3 act as 9V regulator. ZD3, Q8 act as 3.3V DC regulator . 2) Q9, Q10, Q11 acts as 3.3V DC supply for Bluetooth module. 3) U1 (FP6101) acts as 2A buck regulator providing 5V DC for iPod ducking. 4) U8 (AX1110-3.3V) acts as LED display power supply. 2. MCU : 1) U9 (SC51C1316) acts as system MCU . 2) X1 (16.384MHz) acts as system clock for MCU (U9). 3) U3 (CP chip 2.0C) is co-processor of iPod/iPhone Authentication. 4) U7 is Bluetooth module (see related Bluetooth module description below). 3. BlueTooth module (U7): 1) U1 (BC57F687A05) acts as the 2.4GHz radio core of Bluetooth module 2) L1, L2, C1, F1 (DBF81F104) act as antenna matching network. 3) U3 provides system clock (oscillation frequency 26MHz). 4) U2 (M24C32) is 4Kbyte serial EEPROM for the Bluetooth module. 4. Audio signal processing : 1) U4 (SC7313) acts as analog audio signal input selector and volume control. 2) U5 (DRV602) acts as difference opamp for audio signal from BT/iPod ducking. 3) U6 (TDA7492P) acts as 15W X 2 class D power amplifier. 4) L16, L19, L20, L23, C30, C46 act as output filters of class D amplifier (U6) 5. Infra-red control: 1) U11 (HM338) acts as infra-red receiver module . ChannelFrequency Table of Bluetooth Module CH.NO. FRE. Hex Valu e CH.NO. FRE. Hex Value CH.N O FRE. Hex Value CH.N O FRE. Hex Value CHO 2402MHz 0 CH26 2428MHz !A CH52 2454MHz 34 CH78 2480MHz 4E CHl 2403MHz 1 CH27 2429MHz lB CH53 2455MHz 35 CH2 2404MHz 2 CH28 2430MHz lC CH54 2456MHz 36 CH3 2405MHz 3 CH29 2431MHz lD CH55 2457MHz 37 CH4 2406MHz 4 CH30 2432MHz lE CH56 2458MHz 38 CH5 2407MHz 5 CH31 2433MHz lF CH57 2459MHz 39 CH6 2408MHz 6 CH32 2434MHz 20 CH58 2460MHz 3A CH7 2409MHz 7 CH33 2435MHz 21 CH59 2461MHz 3B CH8 2410MHz 8 CH34 2436MHz 22 CH60 2462MHz 3C CH9 2411MHz 9 CH35 2437MHz 23 CH61 2463MHz 3D CHlO 2412MHz A CH36 2438MHz 24 CH62 2464MHz 3E CHll 2413MHz B CH37 2439MHz 25 CH63 2465MHz 3F CH12 2414MHz c CH38 2440MHz 26 CH64 2466MHz 40 CH13 2415MHz D CH39 2441MHz 27 CH65 2467MHz 41 CH14 241GMH<:: E CH40 2442MH<:: 28 CHGG 24G8MH<:: 42 CH15 2417MHz F CH41 2443MHz 29 CH67 2469MHz 43 CH16 2418MHz 10 CH42 2444MHz 2A CH68 2470MHz 44 CH17 2419MHz 11 CH43 2445MHz 2B CH69 2471MHz 45 CH18 2420MHz 12 CH44 2446MHz 2C CH70 2472MHz 46 CH19 2421MHz 13 CH45 2447MHz 2D CH71 2473MHz 47 CH20 2422MHz 14 CH46 2448MHz 2E CH72 2474MHz 48 CH21 2423MHz 15 CH47 2449MHz 2F CH73 2475MHz 49 CH22 2424MHz 16 CH48 2450MHz 30 CH74 2476MHz 4A CH23 2425MHz 17 CH49 2451MHz 31 CH75 2477MHz 4B CH24 2426MHz 18 CH50 2452MHz 32 CH76 2478MHz 4C CH25 2427MHz 19 CH51 2453MHz 33 CH77 2479MHz 4D Features _äìÉqìåÉë ∆ =olj=nck ■ Cost-effective single-chip solution for stereo headset and wireless speaker applications ■ A2DP1.2 and AVRCP1.0 profiles enabled with SBC encoder for streaming audio over Bluetooth and for remote control functionality ■ MP3 decoder for improved audio quality and reduced power consumption (MP3 decode functionality requires an appropriate licence from Thomson, see Section 17.1) ■ Configurable A2DP 5-band EQ ■ High-quality audio 95dB SNR on DAC playback ■ 64MIPS Kalimba DSP coprocessor ■ FastStream, CSR’s low-latency codec for video and gaming applications ■ HFP 1.5 (includes 3-way calling) and HSP 1.0 support ■ cVc support for echo and noise reduction ■ Low-power consumption: over 10 hours of audio playback from a 180mAh battery ■ Fully qualified Bluetooth v2.1 + EDR specification system with support for secure simple pairing ■ Best-in-class Bluetooth radio with 8dBm transmit power and -92dBm receive sensitivity ■ 2 integrated linear regulators with 1.5V output from 1.7V to 1.95V input ■ Integrated switch-mode regulator ■ Integrated lithium battery charger ■ 68-lead 8 x 8 x 0.9mm, 0.4mm pitch QFN package ■ Green (RoHS compliant and no antimony or halogenated flam…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: LMZ-20133BT Analysis Report Report No.: HK12110334-1(R1) The Equipment Under Test (EUT) is a 2.4GHz Bluetooth speaker, which is operating between 2402MHz and 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 100-240VAC. When the EUT is switched ON, the LED will flash. It is required to press the pairing button to pair with the corresponding device before playing audio. After pairing, the LED will stay lit. The EUT has a AUX IN jack to connect corresponding device to play audio. The EUT has a dock for iPod/iPhone to play audio. And the EUT has video output jack to connect television to watch iPod/iPhone images. Antenna Type: Integral antenna Antenna Gain: 0dBi Nominal rated field strength: 104.0 dBμV/m at 3m Maximum allowed field strength error: +/- 3dB Modulation Type: GFSK For Maximum Permissible Exposure (MPE) evaluation of the speaker unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. 1) For the wireless speaker system unit of tested model of XW-BTS3-W, XW-BTS3-K, the maximum field strength measured (FS) was 102.5 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor is 3.125%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: Based on the Maximum allowed field strength error was +/-3dB, thus the maximum allowed field strength shall be considered; Maximum allowed field strength was 107.0 dBμV/m, thus; The radiated power = (FS*D) 2 / 30 = 15.036 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.00299 mW cm -2 INTERTEK TESTING SERVICE FCC ID: LMZ-20133BT In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

55 44 33 22 11 D D C C B B A A 20133 (BTS-3) IP_R+IP_R-A_GNDV_GND RXTX IP_WAKEACC_PIP_L+IP_L- ON/OFFIP_L+IP_L-IP_R+IP_R-SCLMUTESDABT_L+BT_R-BT_R+BT_L- CVBS/PBIP_DET ACC_PA_GND ON/OFF V_GNDCVBS/PB SDA ON/OFF BT_SW CP_RST SCL IP_DET RXTX MUTEIP_WAKELED BT_SW ACC_P AUDIO_DET IR_INCP_SDACP_SCL LED1 ADIN2 BT_R-BT_R+BT_L-BT_L+ PAIR USB_D- CP_RST CP_SCL USB_D+ LED2 PAIR CP_SDA CP_RST AUDIO_DET LEDLED1IR_INADIN2LED2 9VDD GND PVDD PVDD IP_5V PVDD P+18V GND IP_5V 3.3VS GND GND GND GND 3.3VS GND 3.3V GND 3.3VS IP_5V GND BT3.3V GND GND GND GND GND GND GND IP_5V GND GND BT3.3V 3.3VS GND GND IP_5V GND GND 3.3VS SD 2 IP_L+ 2 IP_L- 2 IP_R+ 2 IP_R- 2 SCL 2 MUTE 2 SDA 2 BT_L+ 2 BT_L- 2 BT_R+ 2 BT_R- 2 ACC_P 2 A_GND 2 AUDIO_DET 2 TitleSize Document Number Rev Date: Sheet of 3 POWER&MCU&CP&BLUETOOTH A3 13 Tuesday, November 13, 2012 Ocean Star Electronic Limited TitleSize Document Number Rev Date: Sheet of 3 POWER&MCU&CP&BLUETOOTH A3 13 Tuesday, November 13, 2012 Ocean Star Electronic Limited TitleSize Document Number Rev Date: Sheet of 3 POWER&MCU&CP&BLUETOOTH A3 13 Tuesday, November 13, 2012 Ocean Star Electronic Limited R20100KR20100K !! C571uFC571uF R320RR320R L5 FB/NC L5 FB/NC C7 22pFC7 22pF Q38050Q38050 J1 RCA-107 J1 RCA-107 2 2 3 3 4 4 D1SR260D1SR260 R88 10K R88 10K TP10TP10TP9TP9 R2633RR2633R U7F3088 V6- IDOCK U7F3088 V6- IDOCK VOL+ 1 VOL- 2 SKIP+ 3 SKIP- 4 POW 5 1V8 6 GND1 7 VCC 8 LED1 9 LED2 10 MIC 11 ROUT- 12 ROUT+ 13 LOUT- 14 LOUT+ 15 AGND 16 MOST 17 CLK 18 CS# 19 MISO 20 RST 21 VBUS 22 PIO9 23 PIO5 24 R125100KR125100K L233uHL233uH TP6TP6 J6NCJ6NC 234 5 1 6 R910KR910K + EC2 470uF/10V + EC2 470uF/10V R1264.7KR1264.7K L10 FB L10 FB R1515KR1515K R362.7KR362.7K C40.1uFC40.1uF Q98050Q98050 TP12TP12 + C9 47uF/16V + C9 47uF/16V R810KR810K L1 42R/100M/0805 L1 42R/100M/0805 R1110KR1110K L14 120uHL14 120uH R25 10K R25 10K R67750RR67750R R31KR31K Q88050Q88050 C5 22pFC5 22pF TP3TP3 R96100KR96100K C15 1uF C15 1uF Q28550Q28550 L7 FB L7 FB TP8TP8 CON2 16PIN / 1.0/ ST/SMD CON2 16PIN / 1.0/ ST/SMD 123456789 101112131415161718 R34NCR34NC R12120R/2WR12120R/2W R44.7K 1%R44.7K 1% R27 0R/NCR27 0R/NC C10.47uFC10.47uF C120.1uFC120.1uF L3 FB L3 FB FP6101U1FP6101U1 VCC 1 SCP 2 IN 3 FB 4 GND 5 GND 6 LX 7 LX 8 R39100KR39100K Q118550Q118550 2 1 3 U10NCU10NC MODE1 2 nRESET 4 VCC 5 Vss 11 SCL 12 SDA 13 MODE0 14 !! TP13TP13TP7TP7 C80.1uFC80.1uF CN1NCCN1NC 2 2 1 1 CN22P/2.5MM/NCCN22P/2.5MM/NC 2 2 1 1 U9 SC51C1316-SOP24 U9 SC51C1316-SOP24 VDD 1 VSS 2 P3.2/CPP 3 P3.3/CPN 4 P0.0/INT0 5 P0.3/T0 6 P0.4/T1 7 P0.5/T2 8 P0.6/PDAT 9 P0.7/PCLK 10 P1.0 11 P1.1 12 P1.2 13 P1.3 14 P1.4 15 P1.5 16 P1.6 17 P1.7 18 TXD 19 RXD 20 P3.0 21 nRST/VPP 22 XIN 23 XOUT 24 J2 DC JACK 2.0mm J2 DC JACK 2.0mm 213 + EC4 100uF/16V + EC4 100uF/16V R19100KR19100K R28 33R R28 33R R22 10K/NC R22 10K/NC 75pFC1375pFC13 R85100KR85100K Q10 8050 Q10 8050 L6 FB L6 FB C60.1uFC60.1uF !! L9 FB L9 FB R610KR610K L11 FB L11 FB R92 2.7KR92 2.7K C32200pFC32200pF CON1 7PIN /2.0 ST CON1 7PIN /2.0 ST 1234567 TP18TP18 R23390K 1%R23390K 1% + EC3100uF/16V + EC3100uF/16V R16 10K R16 10K U8AX1110-3.3VU8AX1110-3.3V VIN 1 VO 3 GND 2 R8933KR8933K !! R35NCR35NC R8110KR8110K TP17TP17 R2115KR2115K R1315KR1315K TP14TP14 C110.1uFC110.1uF R21KR21K R510KR510K L4 FB L4 FB U3 CP CHIP 2.0C U3 CP CHIP 2.0C GND 1 SDA 2 NC 3 NC 4 NC 5 SCL 6 RST 7 VCC 8 R3810KR3810K R761KR761K R93 1KR93 1K ZD33.9VZD33.9V ZD110VZD110V R83100KR83100K !! X1 16.384MHZ X1 16.384MHZ Q4SSP3401NQ4SSP3401N 2 3 1 Rt RT1NC Rt RT1NC R29 0RR29 0R TP5TP5 R1 43.2K R1 43.2K L8 FB L8 FB C58NCC58NC C140.1uFC140.1uF R17 10K R17 10K R8422RR8422R C20.1uFC20.1uF R370R/NCR370R/NC R18 10K R18 10K + EC7NC + EC7NC TP16TP16 R710KR710K !! Q18050Q18050 C60 2.2uF C60 2.2uF C561uFC561uF TP4TP4TP15TP15 + EC1 100uF/25V + EC1 100uF/25V R33 10K R33 10K R1010KR1010K R14 2.2K R14 2.2K 55 44 33 22 11 D D C C B B A A 20133 (BTS-3) MUTE VDDS1 AR_IN VDDS1 AL_IN L_DET IP_RINIP_LIN IP_R+ AR_IN SDA SCL BT_L-BT_L+BT_R-BT_R+ ACC_P A_GND MUTE1STBY1 SD R_DET IP_L-IP_L+IP_R- IP_LINIP_RIN AL_IN BT_L+BT_R-BT_R+BT_L-SDIP_L+IP_L-IP_R+IP_R-SCLSDAA_GNDACC_PMUTE AUDIO_DET R_DETL_DETAUDIO_DET P+18V AGNDAGND AGND AGND AGND AGND GNDGND GND GNDGND GND GND GND GND GND GND GND GND GND 3.3V AGND AGND AGND GND AGND 9VDD AGND GND 3.3VS GND GND GND MUTE 1 SD 1 IP_L+ 1 IP_L- 1 IP_R+ 1 IP_R- 1 BT_L+ 1 BT_L- 1 BT_R+ 1 BT_R- 1 SCL 1 SDA 1 ACC_P 1 A_GND 1 AUDIO_DET 1 TitleSize Document Number Rev Date: Sheet of 3 AUDIO PROCESSOR&DIGTAL AMP B 24 Tuesday, November 13, 2012 Ocean Star Electronic Limited TitleSize Document Number Rev Date: Sheet of 3 AUDIO PROCESSOR&DIGTAL AMP B 24 Tuesday, November 13, 2012 Ocean Star Electronic Limited TitleSize Document Number Rev Date: Sheet of 3 AUDIO PROCESSOR&DIGTAL AMP B 24 Tuesday, November 13, 2012 Ocean Star Electronic Limited C16 2.2uF C16 2.2uF C20 10uF C20 10uF R42100RR42100R R6222.1KR6222.1K D805 LL4148D805 LL4148 R74 1KR74 1K R139 1K R139 1K C640.15uFC640.15uF C622.2uFC622.2uF R68 33K R68 33K C351uFC351uF R9147KR9147K C48 2.2uF C48 2.2uF C105100pFC105100pF C1070.1uFC1070.1uF L19 33uHL19 33uH 1 2 R5822.1KR5822.1K !! R7910RR7910R R61100RR61100R R137100KR137100KR5122.1KR5122.1K R954.7KR954.7K R5410KR5410K C42 2.2uF C42 2.2uF R785.1KR785.1K C95 0.12uF C95 0.12uF C47 33pF C47 33pF C19100pFC19100pF C672.2uFC672.2uF C104100pFC104100pF R57 51K R57 51K C25 0.1uF C25 0.1uF R5022RR5022R C44 2.2uF C44 2.2uF R5218KR5218K R13510KR13510K C800.1uFC800.1uF C30 MEF 0.22uF C30 MEF 0.22uF C37 2.2uF C37 2.2uF C50330pFC50330pF C41 0.1uF C41 0.1uF R4018KR4018K + EC8100uF/16V + EC8100uF/16V R5510KR5510K R13610nFR13610nF R945.1KR945.1K L23 33uHL23 33uH 1 2 R4522.1KR4522.1K C450.1uFC450.1uF C10947nFC10947nF R49NCR49NCC91 2.2uF C91 2.2uF L22 FBL22 FB R64 39K R64 39K C29 0.1uF C29 0.1uF C96 1500pF C96 1500pF R4618KR4618K C972.2uFC972.2uF C49 0.1uF C49 0.1uF R7347KR7347K C40 2.2uF C40 2.2uF L21 FB L21 FB C22 33pF C22 33pF C24 2.2uF C24 2.2uF C260.1uFC260.1uF R974.7KR974.7K C922.2uFC922.2uF C551uFC551uF R6518KR6518K C53 0.1uF C53 0.1uF C54100pFC54100pF C21 2.2uF C21 2.2uF…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.:HK12110334-1(R1) Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail)

INTERTEK TESTING SERVICES Report No.: HK12110334-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 150 kHz 51.47 N -14.52 2 CISPR Average208.5 kHz 30.26 L1 -23.00 2 CISPR Average231 kHz 28.30 L1 -24.10 1 Quasi Peak 249 kHz 48.46 L1 -13.32 1 Quasi Peak 379.5 kHz 45.37 L1 -12.91 2 CISPR Average388.5 kHz 35.37 N -12.72 1 Quasi Peak 411 kHz 35.03 L1 -22.59
