LMZ-21008BTPocket Size Wireless Speaker and Speakerphone

Imported by : Toshiba of Canada Limited (191 McNabb St., Markham, ON L3R 8H2 Canada) • Thank you for purchasing this product. • Please read this manual carefully in order to operate the device properly and safely. • After reading, keep this manual handy for your future reference. Description of signs Indicates that there is a risk of death or serious injury. Indicates that there is a risk of light injury or property damage. To reduce the risk of fi re, electric shock or product damage, • Do not expose this unit to rain, moisture, dripping or splashing. • Do not place objects fi lled with liquids, such as vases, on this unit. • Do not use near bathtubs, washbowls, kitchen sinks, laundry tubs, in a wet basement, near a swimming pool, or anywhere else that water is present. • Do not expose this unit to excessive heat such as direct sunlight, fi re or the like. • Do not storage or use this unit inside cars in hot weather, where it can be exposed to temperatures in excess of 60°C (115°F). • Do not attempt to charge the battery in temperatures outside the temperature range of 0°-40°C (32°-104°F). • Do not step on, throw, or drop battery or the power supply or unit, or expose them to a strong shock. • Do not continue charging the battery if it does not reach full charge within the specifi ed charging time. Overcharging may cause the battery to become hot, rupture, or ignite. • Do not short-circuit the battery. Doing so may cause the battery and power supply to generate heat, rupture, or ignite. If the battery begins to leak, do not allow the liquid to come in contact with your skin or eyes. If contact has been made, wash the affected area with plenty of water and seek medical attention immediately. • The power supply must be used indoors only. It is neither designed nor tested for charging outdoors, in recreation vehicles, or on boats. • Do not remove covers. • Use only the recommended accessories. Make no modifi cations to the product or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system performance, and will void the warranty. • Do not lubricate any part of the unit. • Do not repair this unit by yourself. Refer servicing to qualifi ed service personnel. Opening or removing covers may expose you to dangerous voltages or other hazards and will void the manufacturer’s warranty. • The unit contains small parts that may be a choking hazard and is not suitable for children under age 3. • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Do not place any fl ame sources, such as lit candles, on or near the unit. • Do not place the unit on other electrical equipment. • Protect your furniture when placing the unit on a natural wood and lacquered fi nish. A cloth or other protective material should be placed between it and the furniture. • Do not place the unit on high surfaces such as shelves. During music playback the unit may vibrate and move which could cause the it to shift and fall off of the edge. • This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone. Disclaimer • Toshiba shall not be responsible for any damage caused by an earthquake, thunderstorm, fl ood damage, fi re for which Toshiba is not responsible, acts of a third party, other accidents, or damages caused by the user’s willful acts or negligence, misuse, or use in abnormal conditions. • Toshiba shall not compensate for recordings not recorded due to failure of this product. • Toshiba shall not be responsible for any damage caused by failure to observe the information described in the operation manual. About Using Bluetooth ® This unit is designed for use with Bluetooth ® wireless devices compatible with the HFP, HSP, A2DP and AVRCP streaming audio profi les. Refer to your Bluetooth ® device’s user manual or technical support to determine if your Bluetooth ® device supports these profi les. ■ Frequency band used This unit uses the 2.4GHz frequency band, however other devices may use this frequency as well. To avoid interference with other wireless devices, please follow the cautions listed below. ■ Certifi cation of this device This unit conforms to frequency restrictions and has received certifi cation based on frequency laws, so a wireless permit is not necessary. However, the following action is punishable by law in some countries: • Taking apart/modifying the unit. ■ Usage restrictions • Wireless transmission and/or usage with all Bluetooth ® equipped devices is not guaranteed. • A device featuring the Bluetooth ® function is required to conform to the Bluetooth ® standard specifi ed by Bluetooth SIG, and be authenticated. Even if the connected device conforms to the above mentioned Bluetooth ® standard, some devices may not be connected or work correctly, depending on the features or specifi cations of the device. ■ Range of use Use this device within an unobstructed 10 m range. The range of usage or perimeter may be shortened depending on any obstructions, devices causing interference, other people in the room, or the construction of the building. Please note that the range mentioned above is not guaranteed. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and are used under license. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed…

Text truncated - open the document above for the full version.

TY-SP1模块方框图.sch-1 - Thu Mar 21 17:18:16 2013 Cryst PDF !"# "pdfFactory Pro" $#%&'(www.fineprint.cn

OCEAN STAR ELECTRONICS LTD. Unit 07, 3/F., Wah Lai Industrial Center, 10-14 Kwei Tei Street, Fo Tan, N.T., Hong Kong Tel： (852) 2670 2341 | Fax： (852) 2672 1122 | E-mail: [email protected] Website: www.os-hk.com www.oceangroup.com.hk "I, an officer of Ocean Star Electronics Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 8 Mar of 2013 By Signature Jacky Chan Product Manager Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

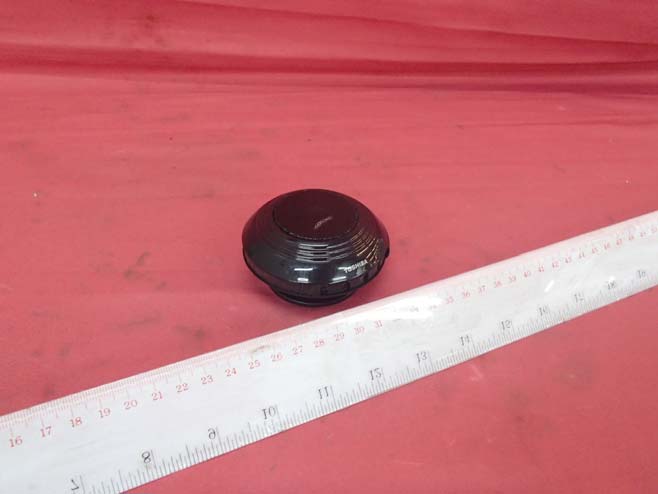

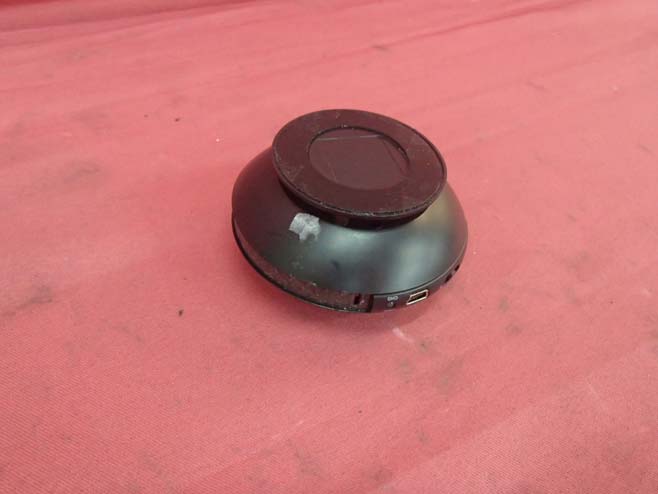

INTERTEK TESTING SERVICE Report No.:HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Equipment Photographs Model : TY-SP1 (External) INTERTEK TESTING SERVICE Report No.:HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Equipment Photographs Model : TY-SP1 (External)

Location of Rating Label for Jupiter

INTERTEK TESTING SERVICE Report No.: HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Equipment Photographs Model : TY-SP1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Equipment Photographs Model : TY-SP1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Equipment Photographs Model : TY-SP1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Equipment Photographs Model : TY-SP1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Equipment Photographs Model : TY-SP1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Equipment Photographs Model : TY-SP1 (Internal)

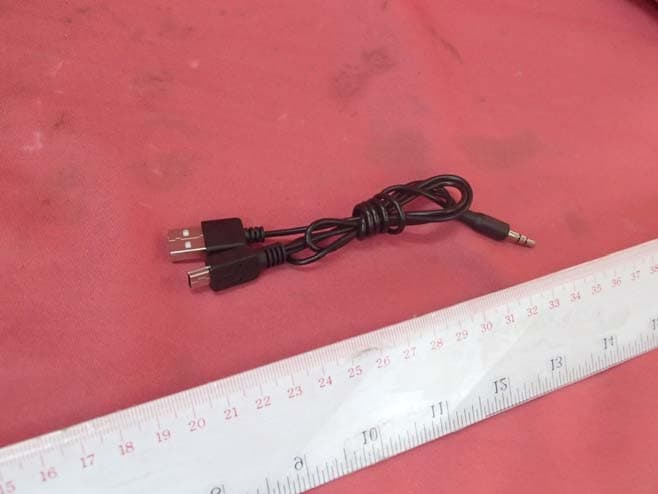

Technical Description The Equipment Under Test (EUT) is a Pocket Size Wireless Speaker and Speakerphone. It can pair with a Bluetooth device as the audio source. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by internal 3.7VDC Ni-MH rechargeable battery which can be charged by 5VDC from USB port. The USB cable is integrating with 3.5 mm phone plug which can accept external analog input source. Moreover, the EUT can receive phone call when it is pairing with the mobile device by Bluetooth function. 2.4 GHz Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Nominal field strength is 93.9dB μV/m @ 3m Production Tolerance of field strength is +/- 2dB Antenna gain is +1dB The functions of main ICs are mentioned below: 1. Bluetooth module BM81SPK01NB2 (FP1): BM81SPK01NB2 (FP1) is Bluetooth module which consists of: 1) U1(IS1681S) acts as the 2.4GHz radio core of Bluetooth module FP1 (BM81SPK01NB2) which is integrating with audio CODEC. 2) 16MHz crystal (X1) provides clock for Bluetooth RF IC IS1681S (U1). 3) U2 (24C32) is serial EEPROM for parameter backup of U1 (IS1681S). 2. Class D Audio Power Amplifier 1. U1 (TMPA3057DM) is a mono 3W power amplifier driving a 4ohm loudspeaker. 2. L1, L2, C5, C6 are filters for suppressing EMC interference. 3. Battery Charger and Power Control 1. The 4054 (U3) is a complete constant-current/constant- voltage linear charger for internal 3.7V lithium-ion rechargeable battery. Channel Frequency Table of Bluetooth Module Preliminary Datasheet BM81SPK01
4F,
No.8,
Dusing
Rd.,
Hsinchu
Science
Park,
Hsinchu
city
30078,
Taiwan,
R.O.C






























Version:0.92


































Phone:
886%3%577%8385

















































































9/20/2011


















































































Fax:
886%3%577%8501
BM81SPK01 Bluetooth 3.0+EDR Wireless Speaker Module Preliminary Datasheet BM81SPK01 Version: 0.92 - 2 - 9/20/2011 Product Description The
ISSC
BM81SPK01
is
a
highly
integrated
Bluetooth
3.0+EDR
stereo
module,
designed
for
high
data
rate,
short%range
wireless
communication
in
the
2.4
GHz
ISM
band.
With
ISSC
Bluetooth
stack
and
profile,
the
ISSC
BM81SPK01
provides
a
low
power
and
ultra%low
cost
Bluetooth
3.0+EDR
solution
for
wireless
voice/audio
applications.
Features

Main
Chip:
ISSC
IS1681S


Bluetooth
3.0+EDR
compliant


Typical
+2dBm
Class
2
output
power


Receiver
Sensitivity:
GFSK
typical
%91dBm,
π/4
PSK
typical
%92dBm,
8DPSK
typical
%84dBm



Piconet
and
Scatter
net
support


HCI
UART
interface


CVSD,
A%law,
μ%law
CODEC
algorithms
for
voice
applications


SBC
decode
for
Bluetooth
audio
streaming


Build%in
High
performance
stereo
audio
codec


Cap%less/single
end
headphone
driver


Audio
DAC:
94dB
SNR



Build
in
Max.
350mAH
Li%ion
battery
charger


HSP,
HFP,
A2DP,
AVRCP
profile
support


3V
operating
voltage


ROM
version:
32Kb
EEPROM



34
pins
for
DIP
module,
35pins
for
SMT
module
(with
additional
35th
pin
antenna
port
for
external
antenna
option)



Size:
15mm
x29mm


Build%in
PCB
Antenna


RoHS
compliant

Preliminary Datasheet BM81SPK01 Version: 0.92 - 3 - 9/20/2011 Device Pinout Diagram P02 27 AIL 13 P27 28 MIC_BIAS 11 SPKR 5 P30 1 P00 3 AGND 8 P20 2 SYS_PWR 19 MIC1_P 9 GND 21 VDD_IO 15 P24 25 RST 14 P01 33 P16 32 P22 26 P05 29 HCI_TXD 30 P04 4 HCI_RXD 31 MFB 22 SPKL 6 BT_RF 35 VDDA 7 GND 34 BAT_IN 17 MIC1_N 10 LED1 23 ADAP_IN 16 AIR 12 SK1/P03 18 LED2 24 BK_OUT 20 Preliminary Datasheet BM81SPK01 Version: 0.92 - 4 - 9/20/2011 Pin Definition Pin No. I/O Name Description 1
P
P30
GPIO,
default
pull%high
input
Line%in
detection,
1:
no
line%in
detected;
0:
line%in
detected
2
I/O
P20
GPIO,
default
pull%high
input
System
Configuration,
H:
Application
L:
Baseband(IBDK
Mode)
3
I/O
P00
GPIO,
default
pull%low
input.
Slide
Switch
Detector
4
I/O
P04
GPIO,
default
pull%high
input
Audio
AMP
Enable
5
AO
SPKR
R%channel
analog
headphone
output,
single% ended
application
only
6
AO
SPKL
L%channel
analog
headphone
output,
single%ended
application
only
7
AP
VDDA
Reserve
for
external
cap
to
fine
tune
audio
frequency
response
8
AP
AGND
Audio
ground
9
AI
MIC1_P
Mic
1
mono
differential
analog
positive
input
10
AI
MIC1_N
Mic
1
mono
differential
analog
negative
input
11
AP
MIC_BIAS
Microphone
biasing
voltage
12
AI
AIR
Stereo
analog
line
in,
R%channel
13
AI
AIL
Stereo
analog
line
in,
L%channel
14
I/O
RST_N
System
Reset
Pin
15
P
VDDIO
VDDIO
pin,
for
calibration
only
Do
not
add
external
power
to
this
pin
16
P
ADAP_IN
Power
adaptor
input
17
P
BAT_IN
Battery
input
18
I/O
SK1/P03
Default
SAR
input
for
battery
detection
This
pin
can
be
re%defined
as
GPIO
P03
19
P
SYS_PW
System
Power
Output
20
P
BK_OUT
Buck
feedback
sense
pin
21
P
GND
Digital
ground
Preliminary Datasheet BM81SPK01 Version: 0.92 - 5 - 9/20/2011 22
P
MFB
Multi%Function
Push
Button
key
Combined
Play/Pause
key
when
A2DP
enabled.
23
P
LED1
LED
Driver
1
24
P
LED2
LED
Driver
2
25
I/O
P24
GPIO,
default
pull%high
input
System
Configuration,
H:
Boot
Mode
26
I/O
P22
GPIO,
default
pull%low
input.
External
LDO
enable
27
I/O
P02
GPIO,
default
pull%high
input
PLAY/PAUSE
button
28
I/O
P27
GPIO,
default
pull%high
input
Foward
button
29
I/O
P05
GPIO,
default
pull%high
input
REW
button
30
O
HCI_TXD
HCI
TX
data
31
I
HXI_RXD
HCI
RX
data
32
I/O
P16
GPIO,
default
pull%high
input
Volumn
down
button
33
I/O
P01
GPIO,
default
pull%high
input
Volumn
up
button
34
P
GND
Digital
ground
35
AIO
BT_RF…

Text truncated - open the document above for the full version.

Analysis Report Report No.: HK13030183-1 The Equipment Under Test (EUT) is a Pocket Size Wireless Speaker and Speakerphone. It can pair with a Bluetooth device as the audio source. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by internal 3.7VDC Ni-MH rechrgeable battery which can be charged by 5VDC from USB port. The USB cable is integrating with 3.5mm phone plug which can accept external analog input source. Moreover, the EUT can receive phone call when it is pairing with the mobile device by Bluetooth function. Antenna Type: Internal integral (PCB Trace) Antenna Gain: +1dB Nominal rated field strength: 93.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 2dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 95.9dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.2mW Conducted power = Radiated Power (EIRP) - Antenna Gain So; Conducted Power = 0.9mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mWm Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Board Name Size Title Rev Date: Sheet of P/N MAIN CIRCUIT BM81 STEREO SPEAKER PHONE (SLIDE SW) ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 1 1 C Wednesday, October 26, 2011 ???? ?.? HCI_RXD P2_0 GND HCI_TXD BAT+ ADAP BK_OUT BLUE PUSH BUTTON ADAP_IN_IC GND REV FWD VOL+ VOL- PLAY TEST POINT GPIO vs. APPLICATIO FUNCTION STEREO AMP CIRCUIT BM81 MODULE 5V Adapter In POWER TREE Li Battery *Charge Current Formula: Ichg=Kset x Vset /Rset Kset=1000, Vset=1V, Rset=3.3K=> Ichg=300mA EXTERNAL CHARGER P05 GPIO Audio Amp. Enable P16 P23 Volume - Forward Audio Amp. Enable P02 Volume + APPLICATION P15 Reverse P27 Play/Pause GPIO APPLICATION P04 EEPROM_CLK EEPROM_DATA P12 P13 MIC- MIC+ MIC INPUT *CLOSE TO MODULE FP1 *MIC GND should be layout out independantly OPTIONAL CIRCUIT BT_RF GND SPKR SPKL LINE INPUT A B C D 5 4 3 2 1 D C B A 1 2 3 4 5 1 2 3 4 5 6 7 8 9 10 STOP TALK RED BLUE D3 D4 D1 D2 4148 4148 5817/5819 5817/5819 SWITCH-1 SWITCH-2 600 R@100MHZ 600 R@100MHZ C16 NP-0402C NP-0603 1 2 R10 0 2K 1 2 R25 0 2K 1 2 R19 0 3K3 1 2 R26 0 1K 1 2 R7 0 1K 1 2 R23 0 5.1K 1 2 R6 0 1K 1 2 R24 0 5.1K 1 2 C37 0.01U/16V 0.1uF 1 2 C26 0.01U/16V 0.015u/16V 1 2 C17 0.01U/16V 4.7u/10V 1 2 C28 0.01U/16V 10u/16V 1 2 C18 0.01U/16V 4.7u/10V 1 2 C30 0.01U/16V 0.015u/16V 1 2 C19 0.01U/16V 0.047u/25V 1 2 C22 0.01U/16V 220p/50V 1 2 C29 0.01U/16V 0.015u/16V 1 2 C23 0.01U/16V 0.047u/25V 1 2 SW4 PT-6038N PT-6038N 1 2 SW2 PT-6038N PT-6038N 1 2 SW3 PT-6038N PT-6038N 1 2 LED-SR 1 2 FB6 FB-0402 FB-0603 1 TP2 TP-1 1 TP9 TP-1 1 TP7 TP-1 1 TP8 TP-1 1 TP6 TP-1 1 TP1 TP-1 1 TP14 TP-1 1 TP3 TP-1 1 TP17 TP-1 1 TP10 TP-1 1 TP12 TP-1 1 TP4 TP-1 1 TP13 TP-1 1 TP16 TP-1 1 TP15 TP-1 1 2 LED1 LED-B LED-B VBUS D- D+ ID GND 1 2 3 4 5 6 7 8 9 P2 CU04SCM15B0 MINI-B 1 STAT 3 BATT 4 VIN 5 ISET 2 GND U3 APL3202B_0 4054 2 1 3 SJP_1X2_0 + 1 2 C15 1U/10V 10u/16V 4 P04 1 P30 30 HCI_TXD 5 SPKR 6 SPKL 8 AGND 7 VDDA 19 SYS_PWR 17 BAT_IN 21 GND 23 LED1 25 P24 24 LED2 26 P22 27 P02 29 P05 28 P27 31 HCI_RXD 11 MIC_BIAS 22 MFB 3 P00 35 BT_RF 2 P20 34 GND 9 MIC1_P 10 MIC1_N 15 VDD_IO 16 ADAP_IN 14 RST 20 BK_OUT 32 P16 12 AIR 13 AIL 33 P01 18 SK1/P03 FP1 BM1612NMA2_FP_20 BM81SPK01NB2 1 SDNB 2 INP 3 INN 4 VDD 5 OUTP 6 OUTN 7 VDD 8 GND U1 TMPA3057DM 1 2 R3 0 1K 1 2 R4 0 1K 1 2 C1 0.01U/16V 4.7NF 1 2 C2 0.01U/16V 0.1uF 1 2 C3 0.01U/16V 0.1uF 1 2 R8 0 1K 1 2 R9 0 3.9K 1 2 R11 0 3.9K 1 2 L1 1 2 L2 1 2 C5 0.01U/16V 39pF 1 2 C6 0.01U/16V 39pF + 1 2 C7 1U/10V 470U 1 2 C8 0.01U/16V 1uF 1 2 C9 0.01U/16V 0.1uF 1 2 R12 0 10R 1 2 C31 0.01U/16V 0.015u/16V 1 2 SW1 PT-6038N PT-6038N 1 2 C12 0.01U/16V NP 1 2 R13 0 NP 1 2 C4 0.01U/16V 10UF 1 2 C10 0.01U/16V 10u/16V 1 2 C11 0.01U/16V 10u/16V 2 1 LL4148 G:LIBRARY1LIBRARY1.OLB 3 2 1 Q1 MMBT3904 Z:LIBRARYORCADDISCRETE.OLB MMBT3904 1 2 R14 0 1K 1 2 R15 0 NP 1 2 LED-SR 1 2 R5 0 10K 2 1 LL4148 G:LIBRARY1LIBRARY1.OLB 2 1 LL4148 G:LIBRARY1LIBRARY1.OLB 2 1 LL4148 G:LIBRARY1LIBRARY1.OLB 1 2 R1 0 1K 1 2 R2 0 0R 1 2 R16 0 1K 2 1 3 SJP_1X2_0 2 1 D7 LL4148 G:LIBRARY1LIBRARY1.OLB SS14 ADAP_IN BAT_IN BK_OUT SYS_PWR BAT ADAP_IN MIC_BIAS BAT_IN ADAP_IN_IC BK_OUT SYS_PWR CODEC_VD VDD_IO MIC_P P02 P20 P01 HCI_RXD HCI_TXD P16 LED1 MIC1_N MIC1_P SPKL SPKR GND BT_RF ADAP_IN_IC GND SPKR P02 P00 P20 P05 RST_N P01 P30 HCI_RXD MIC_BIAS HCI_TXD P16 P27 MIC1_N MIC1_P LED2 MFB SPKL AIR AIL P04 BT_RF MIC_N BAT BAT_LIN P04 SPKR SPKL ADAP_IN IN_R IN_L P05 BAT BAT_IN BAT_IN BAT_LIN BAT_LIN 5 5 4 4 3 3 2 2 1 1 DD CC BB AA P12 P13 MIC_BIAS MFB P00 P27 P05 P02 HCI_RXD HCI_TXD SPKL MIC_P1 MIC_N1 RST_N P24 LED2 LED1 EAN P20 BT_RF AIR AIL P04 P16 P22 P30 SK1 SPKR P03P01 SPKR P04 P00 P20 P30 RST_N MIC_BIAS MIC_N1 AIR AIL MIC_P1 SPKL P01 BT_RF MFB LED1 P16 HCI_RXD HCI_TXD P05 LED2 P24 P22 P02 P27 SK1 P03 P13P12 VDD_IO VDD_IO 1V8 SYS_PWR 1V8 BAT_IN ADAP_IN 1V8 BK_OUT 1V8 BK_OUT SYS_PWR CODEC_VO VDD_IO VDD_IO VDD_IO CODEC_VO CODEC_VIN CODEC_VIN VDD_IO SYS_PWR ADAP_IN BAT_IN BK_OUT Board Name Size TitleRev Date:Sheetof P/N SCH_BM81SPK01NB2_V1_20110809 BM81SPK01NB2 / BM81SPK01NB3 ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 B 11Monday, September 19, 2011 Board Name Size TitleRev Date:Sheetof P/N SCH_BM81SPK01NB2_V1_20110809 BM81SPK01NB2 / BM81SPK01NB3 ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 B 11Monday, September 19, 2011 Board Name Size TitleRev Date:Sheetof P/N SCH_BM81SPK01NB2_V1_20110809 BM81SPK01NB2 / BM81SPK01NB3 ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 B 11Monday, September 19, 2011 EEPROM 24C32 PIN DEFINATION GPIO Description P00 P22 P04 P27 P16 P24 P05 P20 Slide Switch Detect/TX_IND REV Audio AMP Enable FWD Play/Pause System Configuration System Configuration Keep alive for external LDO V1 P01 P02 Volume up Volume down P03 P30 RX_IND Line-in detect BOM_BM81SPK01NB2_V1_20110809 BOM_BM81SPK01NB3_V1_20110809 R3R4BOM NAME 0 OHMNP 0 OHMNP SCH_BM81SPK01NB3_V1_20110809 Pin 18 = SK1 Pin 18 = P03 NOTE C13 1u/6.3V C13 1u/6.3V IS1681N U1 IS1681N IS1681N U1 IS1681N VDDAO 1 AOHPM 2 VSSAO 3 AOHPL 4 VDDA 5 VSSA 6 VCOM 7 MICP1 8 MICN1 9 MIC_BIAS 10 VDD_IO 13 RST_N 14 P1_2 15 P1_3 16 CODEC_VO 19 3V1_IN 20 ADAP_IN 21 BAT_IN 22 SAR_VDD 24 SYS_PWR 25 BK_VDD 26 BK_LX 27 XO_N 42 XO_P 41 VDD_IO 40 HCI_RXD 38 HCI_TXD 37 1V8 17 P0_5 36 P0_2 34 P2_4 32 LED2 31 LED1 30 MFB 29 BK_OUT 28 AOHPR 56 1V8 55 EAN 54 VDD_IO 52 P0_0 50 P2_0 49 P3_0 48 P0_3 47 P0_1 46 RTX 45 VCC_RF 43 P3_5 53 P2_7 35 3V1_O 18 GND 57 AIR 11 AIL 12 SK1 23 P1_6 39 RX_CLS1 44 P0_4 51 P2_2 33 ANT1 ANT-MP8 ANT1 ANT-MP8 1 C11 1u/10V C11 1u/10V C15 10u/16V C15 10u/16V R1 0 R1 0 1 2 C6 1u/6.3V C6 1u/6.3V C5 1p/50V C5 1p/50V TP1 RF-TP2 TP1 RF-TP2 R3 0 R3 0 12 C16 10u/16V C16 10u/16V R2 NP-0402 R2 NP-0402 L11.8nHL11.8nH C12 1u/6.3V C12 1u/6.3V C10 10u/16V C10 10u/16V L3 10uH L3 10uH C9 NP-0402 C9 NP-0402 C19 0.1u/16V C19 0.1u/16V R8 1K R…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.:HK13030183-1 Sample No.: 2/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Bluetooth Transmitting and Charging 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 11.MAR.2013 12:12:45 EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 40.57 N -25.18 1 Quasi Peak 235.5 kHz 54.86 L1 -7.39 2 CISPR Average235.5 kHz 44.27 L1 -7.97 1 Quasi Peak 357 kHz 46.05 N -12.74 2 CISPR Average357 kHz 35.70 L1 -13.09 1 Quasi Peak 474 kHz 45.89 L1 -10.55 2 CISPR Average474 kHz 41.73 L1 -4.71 1 Quasi Peak 685.5 kHz 33.70 L1 -22.29 2 CISPR Average775.5 kHz 25.25 N -20.74 1 Quasi Peak 793.5 kHz 29.47 L1 -26.52 2 CISPR Average811.5 kHz 16.64 L1 -29.35 1 Quasi Peak 1.4145 MHz 29.48 L1 -26.51 2 CISPR Average1.419 MHz 22.25 N -23.74 1 Quasi Peak 1.536 MHz 24.82 N -31.17 2 CISPR Average1.536 MHz 16.87 N -29.12 1 Quasi Peak 2.2335 MHz 29.90 L1 -26.09 2 CISPR Average2.2335 MHz 19.80 L1 -26.19 1 Quasi Peak 3.0525 MHz 31.50 N -24.49 2 CISPR Average3.4305 MHz 22.17 N -23.82 1 Quasi Peak 4.9515 MHz 34.17 L1 -21.82 Date: 11.MAR.2013 12:12:12 INTERTEK TESTING SERVICES Report No.:HK13030183-1 Sample No.: 2/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average4.965 MHz 27.07 L1 -18.92 2 CISPR Average5.892 MHz 29.01 L1 -20.98 2 CISPR Average10.599 MHz 26.26 N -23.73 1 Quasi Peak 10.6035 MHz 34.84 N -25.15 1 Quasi Peak 11.661 MHz 35.49 N -24.50 2 CISPR Average12.705 MHz 30.73 N -19.26 Date: 11.MAR.2013 12:12:29 Conducted Emission – Pursuant to FCC Part 15 (Pass/Fail )

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13030183-1 i FCC ID: LMZ-21008BT IC: 10306A-21008BT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Ocean Star Electronics Ltd. BRAND NAME: TOSHIBA, MODEL: TY-SP1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Grantee: Ocean Star Electronics Ltd. Grantee Address: Unit 07, 3/F., Wah Lai Industrial Centre, 10-14 Kwei Tei Street, Fotan, N.T., Hong Kong. Contact Person: Jacky Chan Tel: 852-2110 2116 Fax: 852-2798 0858 e-mail: [email protected] Manufacturer: Dongguan Ocean Sound Technology Ltd. Manufacturer Address: Dai Hong Industrial Park, Chajiao Village, Zhongtang Zhen, Dongguan City, Guangdong, China. Brand Name: TOSHIBA Model: TY-SP1 Type of EUT: Transceiver Description of EUT: Pocket Size Wireless Speaker and Speakerphone Serial Number: N/A FCC ID / IC: LMZ-21008BT / 10306A-21008BT Date of Sample Submitted: November 05, 2012 Date of Test: April 05, 2013 Report No.: HK13030183-1 Report Date: April 09, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13030183-1 ii FCC ID: LMZ-21008BT IC: 10306A-21008BT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Ocean Star Electronics Ltd. BRAND NAME: TOSHIBA, MODEL: TY-SP1 FCC ID: LMZ-21008BT IC: 10306A-21008BT TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13030183-1 iii FCC ID: LMZ-21008BT IC: 10306A-21008BT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 3 2.6 Support Equipment List and Description........................................................ 3 3.0 Emission Results........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 3.4 Conducted Emission Configuration Photograph ............................................ 4 3.5 Conducted Emission Data............................................................................. 4 4.0 Equipment Photographs......................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : TY-SP1 Model: TY-SP1 HK13030183-1 INTERTEK TESTING SERVICE Report No: HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : TY-SP1 Model: TY-SP1 HK13030183-1

INTERTEK TESTING SERVICE Report No: HK13030183-1 FCC ID: LMZ-21008BT IC: 10306A-21008BT Configuration Photographs Worst-Case…
