LQP-RX220Wireless Door Chime Receiver

Instructions for chime kit wireless ( Model no.WC206L ) 1. Use a small screwdriver to open the cover of transmitter. Insert the supplied 1pc 3V CR2032 button cell with positive (+) up, observe polarity. 2. Locate a good position for the pushbutton next to the door. Do not mount on or next to a metal surface. Drill two 4.76mm holes and insert the wall plugs. Place the back plate in the right position and tighten the plate on wall with the screws (2.6 x 26mm BA type) supplied. Close the cover. 3. Open the battery door of chime receiver, insert 4pcs 1.5V “D” cell battery in the chime, observe polarity. 4. Press “Learn” button ( symbol ) once on receiver (see fig.1). The LED light up, it indicates the receiver is in learn mode process. 5. Press the transmitter once, and you will hear the melody from chime receiver. This indicates the receiver is learning the signal from transmitter properly. Press the transmitter to hear the built-in melodies in the receiver. Stop pressing the transmitter when you hear the desire melody. There are total 16 different melodies for selection. - Westminster - Ding Dong - Ding Dong Ding - Tubular 1 - Orchestra - Tubular 2 - Trumpet - Dog Barking - Mirage - Bird - Pang - So me do - Knock Knock - Cuckoo - Old phone - Buzzer 6. After that, press again “learn” button on the receiver, the LED light off and the receiver exit the learn mode. Or, just wait approx. 20secs, the LED light off and the receiver will exit the learn mode automatically. 7. Press the transmitter, the receiver will sound the melody selected. 8. There are 4 selectable volume level, press “Volume” button ( symbol ) on the receiver. (See fig.1) to select the desire volume. 9. Receiver can learn up to 4pcs of transmitter. Repeat the above step.4, 5, 6, 7. 10. Locate the chime receiver within the working range 300ft. 11. It is possible to erase all learned transmitters. Press & hold the “learn” button on the receiver approx. 15secs until LED light off. It indicates all learned transmitter has been erased successfully. Fig.1 Notes: The radio signal’s strength depends on constructional conditions when being transmitted through walls, paneling, furniture and other obstacles- walls, in particular reinforced concrete walls and ceilings lead to a reduction in range. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or Volume button Learn button LED television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

Instructions for wireless chime ( Model no.WC507L, WC506L, WC512L, WC510L, WC276L) 1. Use a small screwdriver to open the cover of transmitter. Insert the supplied 1pc 3V CR2032 button cell with positive (+) up, observe polarity. 2. Locate a good position for the pushbutton next to the door. Do not mount on or next to a metal surface. Drill two 4.76mm holes and insert the wall plugs. Place the back plate in the right position and tighten the plate on wall with the screws (2.6 x 26mm BA type) supplied. Close the cover. 3. Open the battery door of chime receiver, insert 4pcs 1.5V “C” cell battery in the chime, observe polarity. 4. Press “Learn” button ( symbol ) once on receiver (see fig.1). The LED light up, it indicates the receiver is in learn mode process. 5. Press the transmitter once, and you will hear the melody from chime receiver. This indicates the receiver is learning the signal from transmitter properly. Press the transmitter to hear the built-in melodies in the receiver. Stop pressing the transmitter when you hear the desire melody. There are total 16 different melodies for selection. - Westminster - Ding Dong - Ding Dong Ding - Tubular 1 - Orchestra - Tubular 2 - Trumpet - Dog Barking - Mirage - Bird - Pang - So me do - Knock Knock - Cuckoo - Old phone - Buzzer 6. After that, press again “learn” button on the receiver, the LED light off and the receiver exit the learn mode. Or, just wait approx. 20secs, the LED light off and the receiver will exit the learn mode automatically. 7. Press the transmitter, the receiver will sound the melody selected. 8. There are 4 selectable volume level, press “Volume” button ( symbol ) on the receiver. (See fig.1) to select the desire volume. 9. Receiver can learn up to 4pcs of transmitter. Repeat the above step.4, 5, 6, 7. 10. Locate the chime receiver within the working range 300ft. 11. It is possible to erase all learned transmitters. Press & hold the “learn” button on the receiver approx. 15secs until LED light off. It indicates all learned transmitter has been erased successfully. Fig.1 Notes: The radio signal’s strength depends on constructional conditions when being transmitted through walls, paneling, furniture and other obstacles- walls, in particular reinforced concrete walls and ceilings lead to a reduction in range. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or Volume button Learn button LED television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

Instructions for Chime Wireless ( Model no.WC815L, WC532L, WC533L, WC805L) 1. Use a small screwdriver to open the cover of transmitter. Insert the supplied 1pc 3V CR2032 button cell with positive (+) up, observe polarity. 2. Locate a good position for the pushbutton next to the door. Do not mount on or next to a metal surface. Drill two 4.76mm holes and insert the wall plugs. Place the back plate in the right position and tighten the plate on wall with the screws (2.6 x 26mm BA type) supplied. Close the cover. 3. Open the battery door of chime receiver, insert 3pcs 1.5V “D” cell battery in the chime, observe polarity. 4. Press “Learn” button ( symbol ) once on receiver (see fig.1). The LED light up, it indicates the receiver is in learn mode process. 5. Press the transmitter once, and you will hear the melody from chime receiver. This indicates the receiver is learning the signal from transmitter properly. Press the transmitter to hear the built-in melodies in the receiver. Stop pressing the transmitter when you hear the desire melody. There are total 16 different melodies for selection. - Westminster - Ding Dong - Ding Dong Ding - Tubular 1 - Orchestra - Tubular 2 - Trumpet - Dog Barking - Mirage - Bird - Pang - So me do - Knock Knock - Cuckoo - Old phone - Buzzer 6. After that, press again “learn” button on the receiver, the LED light off and the receiver exit the learn mode. Or, just wait approx. 20secs, the LED light off and the receiver will exit the learn mode automatically. 7. Press the transmitter, the receiver will sound the melody selected. 8. There are 4 selectable volume level, press “Volume” button ( symbol ) on the receiver. (See fig.1) to select the desire volume. 9. Receiver can learn up to 4pcs of transmitter. Repeat the above step.4, 5, 6, 7. 10. Locate the chime receiver within the working range 300ft. 11. It is possible to erase all learned transmitters. Press & hold the “learn” button on the receiver approx. 15secs until LED light off. It indicates all learned transmitter has been erased successfully. Fig.1 Notes: The radio signal’s strength depends on constructional conditions when being transmitted through walls, paneling, furniture and other obstacles- walls, in particular reinforced concrete walls and ceilings lead to a reduction in range. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Volume button Learn button LED However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

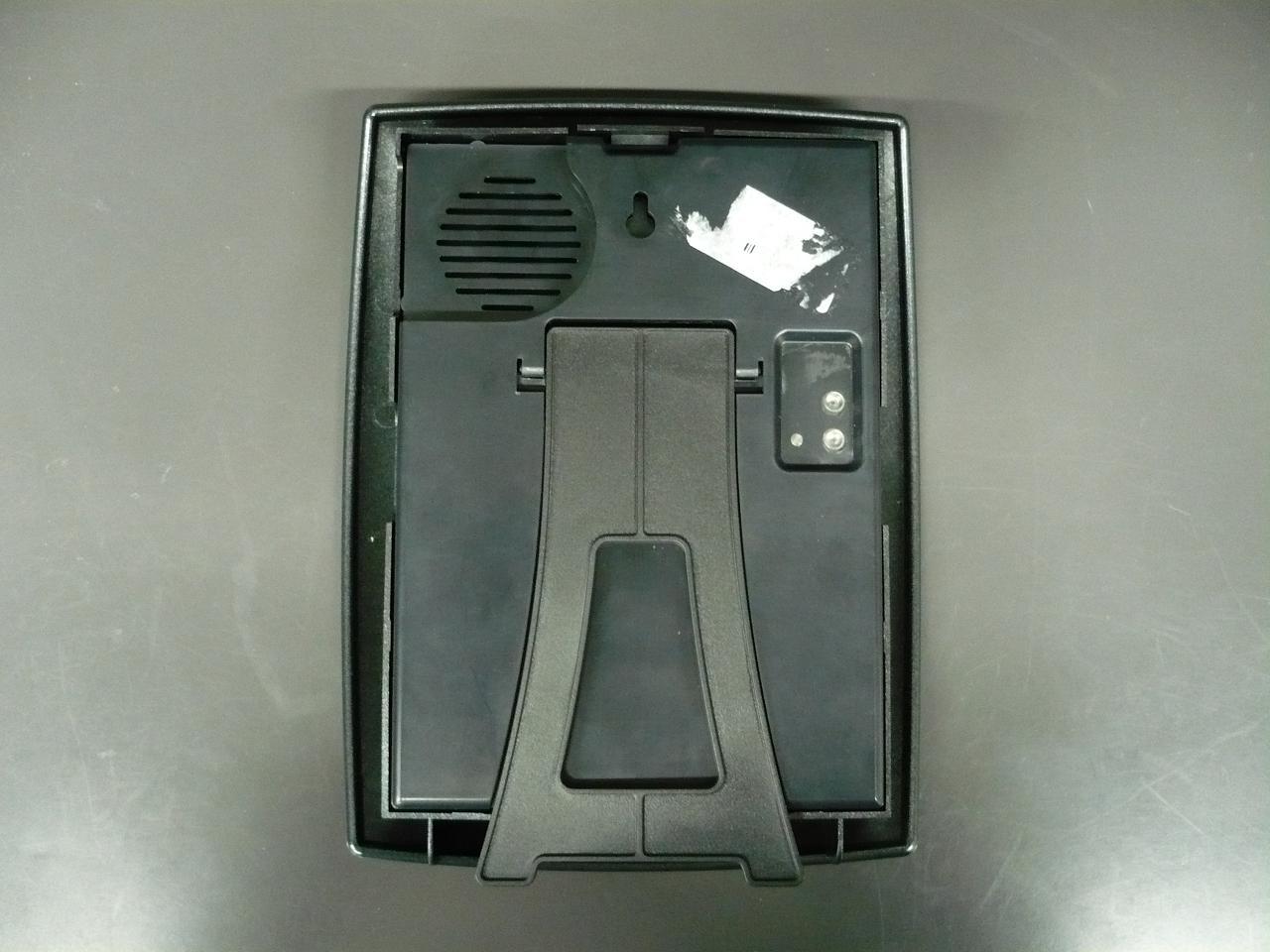

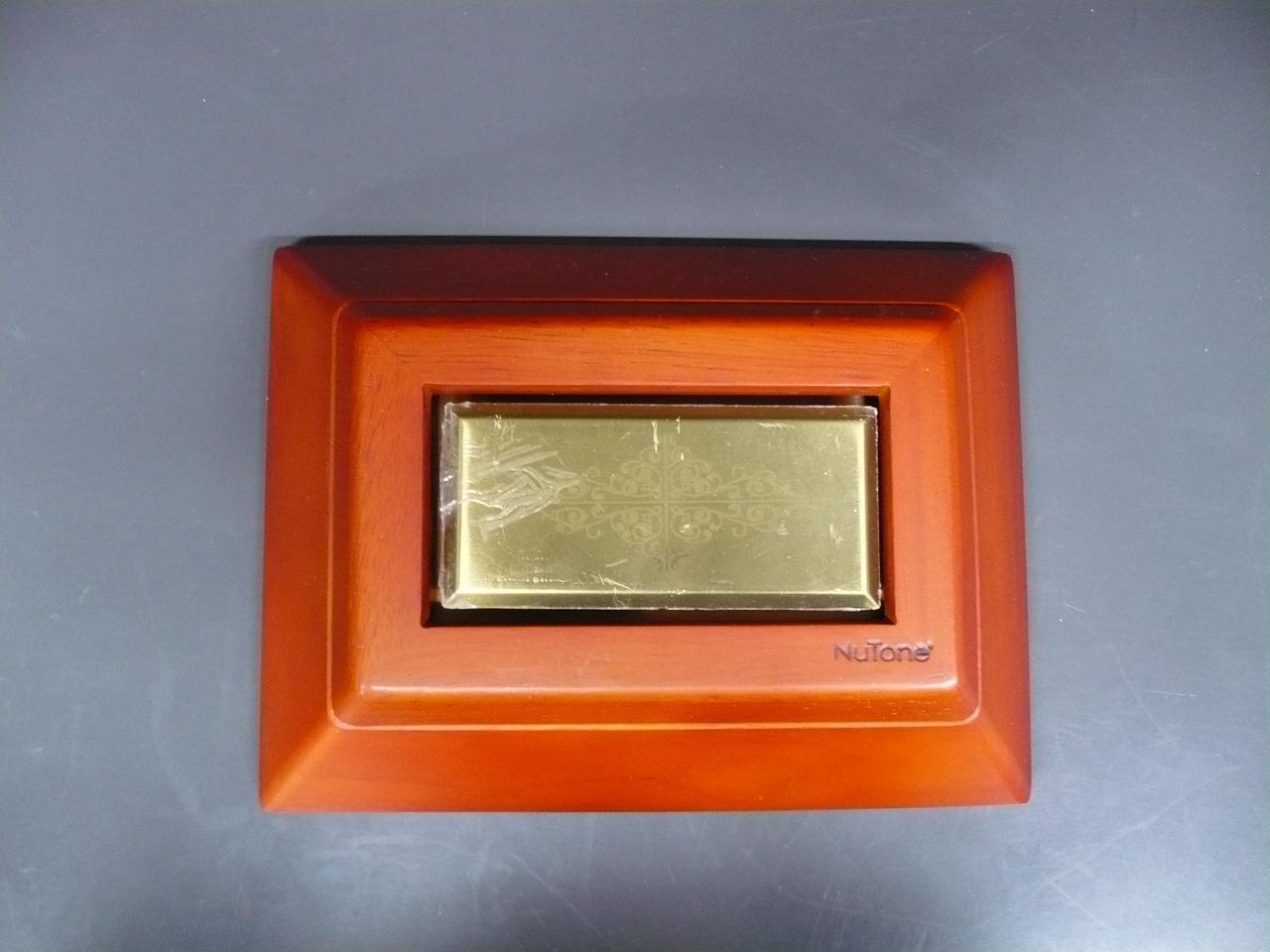

External Photo WC507L WC507L WC506L WC506L WC510L WC510L WC512L WC512L WC276L WC276L WC206L and LA206WH WC206L and LA206WH WC533L and LA533WH WC533L and LA533WH WC532L and LA532 RW WC532L and LA532RW WC805L WC805L WC815L and LA522WH WC815L and LA522WH

Internal Photo

Internal Photo

TEST REPORT Report No. : AS0075939(0) Date : 22 Dec 2014 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 33 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: LQP-RX220 Application No. : LS040587(0) Applicant : Smarthome Products Ltd Rm B808-9, 8/F., Sea View Estate 2-8 Watson Road, North Point Hong Kong Sample Description : One(1) item of submitted sample stated to be : Sample Description Model number 433MHz Wireless Door Chime Receiver WC506L / WC507L / WC512L / WC510L / WC206L / WC815L / WC532L / WC533L / WC805L / WC276L / LA206WH / LA522WH / LA532RW and LA533WH Radio Frequency : 433.92MHz Receiver Rating Model number 4 x 1.5V C size batteries 3 x 1.5V D size batteries 4 x 1.5V D size batteries WC507L / WC506L / WC510L / WC512L and WC276L WC532L / WC533L / WC805L / WC815L / LA522WH / LA532RW and LA533WH WC206L and LA206WH No. of submitted sample : Twenty (20) piece (s) Date Received : 24 Oct 2014, 02 Dec 2014, 03 Dec 2014. Test Period : 27 Oct 2014 to 15 Dec 2014. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-12 Edition), ANSI C63.4 – 2009 Test Result : See attached sheet(s) from page 2 to 33. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. Remark : All fourteen models are same in circuitry and components and construction, and therefore model WC507L was chosen to be representative of the test sample. The difference(s) between the tested model and the declared model(s) is/are Model no., and Outlook. TEST REPORT Report No. : AS0075939(0) Date : 22 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 2 of 33 FCC ID: LQP-RX220 Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 6 2 Description of the radiated emission test ................................................................................................... 7 2.1 Test Procedure .................................................................................................................................... 7 2.2 Test Result .......................................................................................................................................... 8 2.3 Radiated Emission Measurement Data ............................................................................................... 9 3 Description of the Line-conducted Test ................................................................................................... 10 3.1 Test Procedure .................................................................................................................................. 10 3.2 Test Result ........................................................................................................................................ 10 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 10 4 Photograph ............................................................................................................................................... 11 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 11 4.2 Photographs of the External and Internal Configurations of the EUT .............................................. 11 5 Supplementary document ......................................................................................................................... 12 5.1 Bandwidth ......................................................................................................................................... 12 5.2 Duty cycle ......................................................................................................................................... 12 5.3 Transmission time ............................................................................................................................. 12 6 Appendices ............................................................................................................................................... 13 TEST REPORT Report No. : AS0075939(0) Date : 22 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 3 of 33 FCC ID: LQP-RX220 1 General Information 1.1 General Description The equipment under test (EUT) is a receiver for doorbell. It operates at 433.92MHz and the oscillation of radio receiving circuit is generated by a crystal. The EUT is powered by DC 3V. When the EUT received the radio signal from transmitter, it will decode the signal and play the sound.. The brief circuit description is listed as follows: - U6 and its associated circuit act as RF receiver - Y1 and its associated circuit act as oscillator - F1 and its associated circuit act as RF filter - U3 and its associated circuit act as voice MCU - U2 and its associated circuit act as sound amplifier - U5 and its associated circuit act as MCU - U4 and its associated circuit act as flash memory - U1 and its associated circuit act as voltage regulator TEST REPORT Report No. : AS0075939(0) Date : 22 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 4 of 33 FCC ID: LQP-RX220 1.2 Location of the test site FCC Registration Numb…
