LQP-WB035433MHz Wireless Transmitter

Instructions for Wireless pushbutton ( Model no.WB035A, WB013BR, WC013SN) 1. Use a small screwdriver to open the cover of transmitter. Insert the supplied 1pc 3V CR2032 button cell with positive (+) up, observe polarity. 2. Locate a good position for the pushbutton next to the door. Do not mount on or next to a metal surface. Drill two 4.76mm holes and insert the wall plugs. Place the back plate in the right position and tighten the plate on wall with the screws (2.6 x 26mm BA type) supplied. Close the cover. 3. Open the battery door of chime receiver, insert 3pcs 1.5V “D” cell battery in the chime, observe polarity. 4. Press “Learn” button ( symbol ) once on receiver (see fig.1). The LED light up, it indicates the receiver is in learn mode process. 5. Press the transmitter once, and you will hear the melody from chime receiver. This indicates the receiver is learning the signal from transmitter properly. Press the transmitter to hear the built-in melodies in the receiver. Stop pressing the transmitter when you hear the desire melody. There are total 16 different melodies for selection. - Westminster - Ding Dong - Ding Dong Ding - Tubular 1 - Orchestra - Tubular 2 - Trumpet - Dog Barking - Mirage - Bird - Pang - So me do - Knock Knock - Cuckoo - Old phone - Buzzer 6. After that, press again “learn” button on the receiver, the LED light off and the receiver exit the learn mode. Or, just wait approx. 20secs, the LED light off and the receiver will exit the learn mode automatically. 7. Press the transmitter, the receiver will sound the melody selected. 8. There are 4 selectable volume level, press “Volume” button ( symbol ) on the receiver. (See fig.1) to select the desire volume. 9. Receiver can learn up to 4pcs of transmitter. Repeat the above step.4, 5, 6, 7. 10. Locate the chime receiver within the working range 300ft. 11. It is possible to erase all learned transmitters. Press & hold the “learn” button on the receiver approx. 15secs until LED light off. It indicates all learned transmitter has been erased successfully. Fig.1 Notes: The radio signal’s strength depends on constructional conditions when being transmitted through walls, paneling, furniture and other obstacles- walls, in particular reinforced concrete walls and ceilings lead to a reduction in range. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Volume button Learn button LED However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

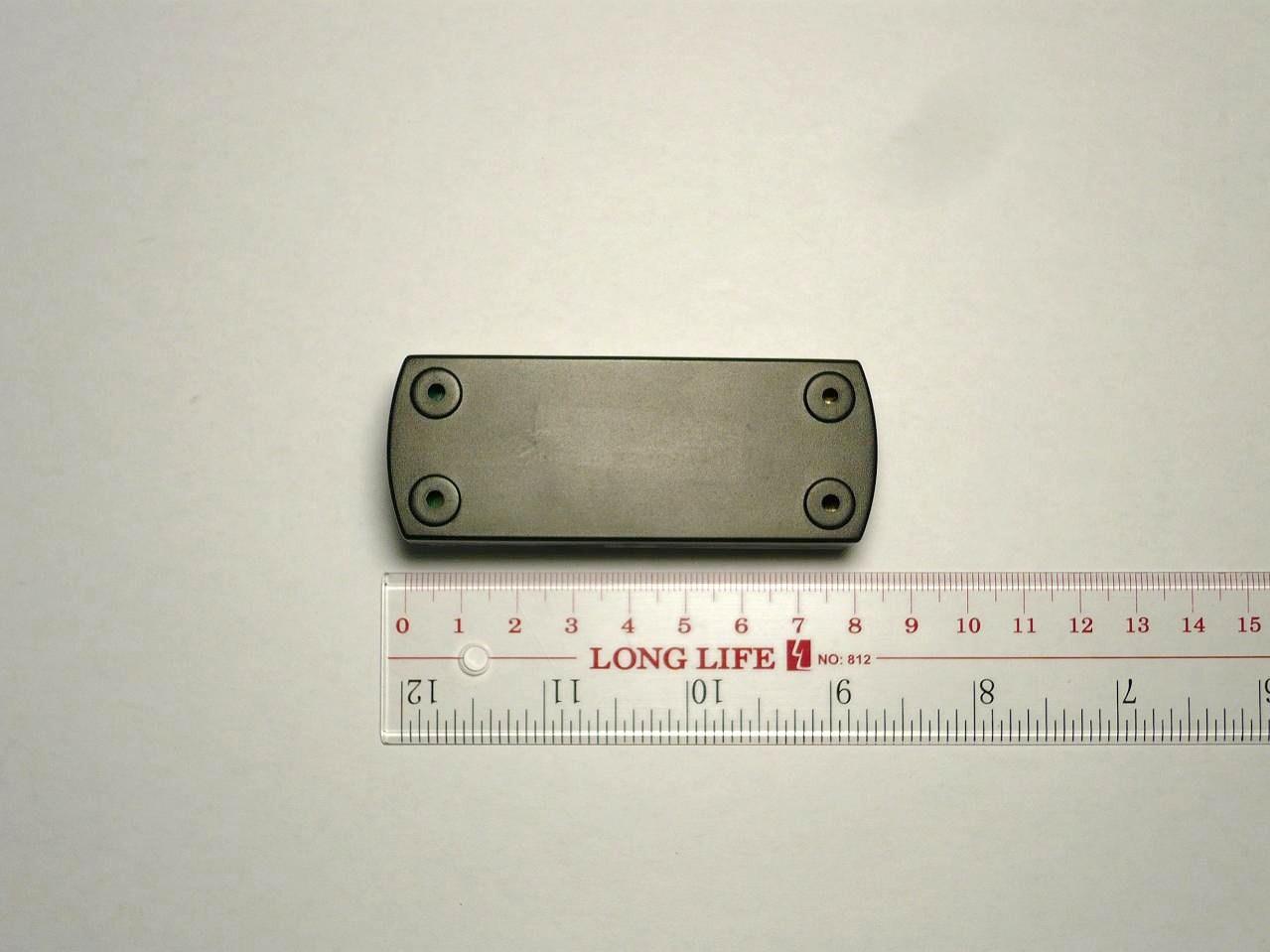

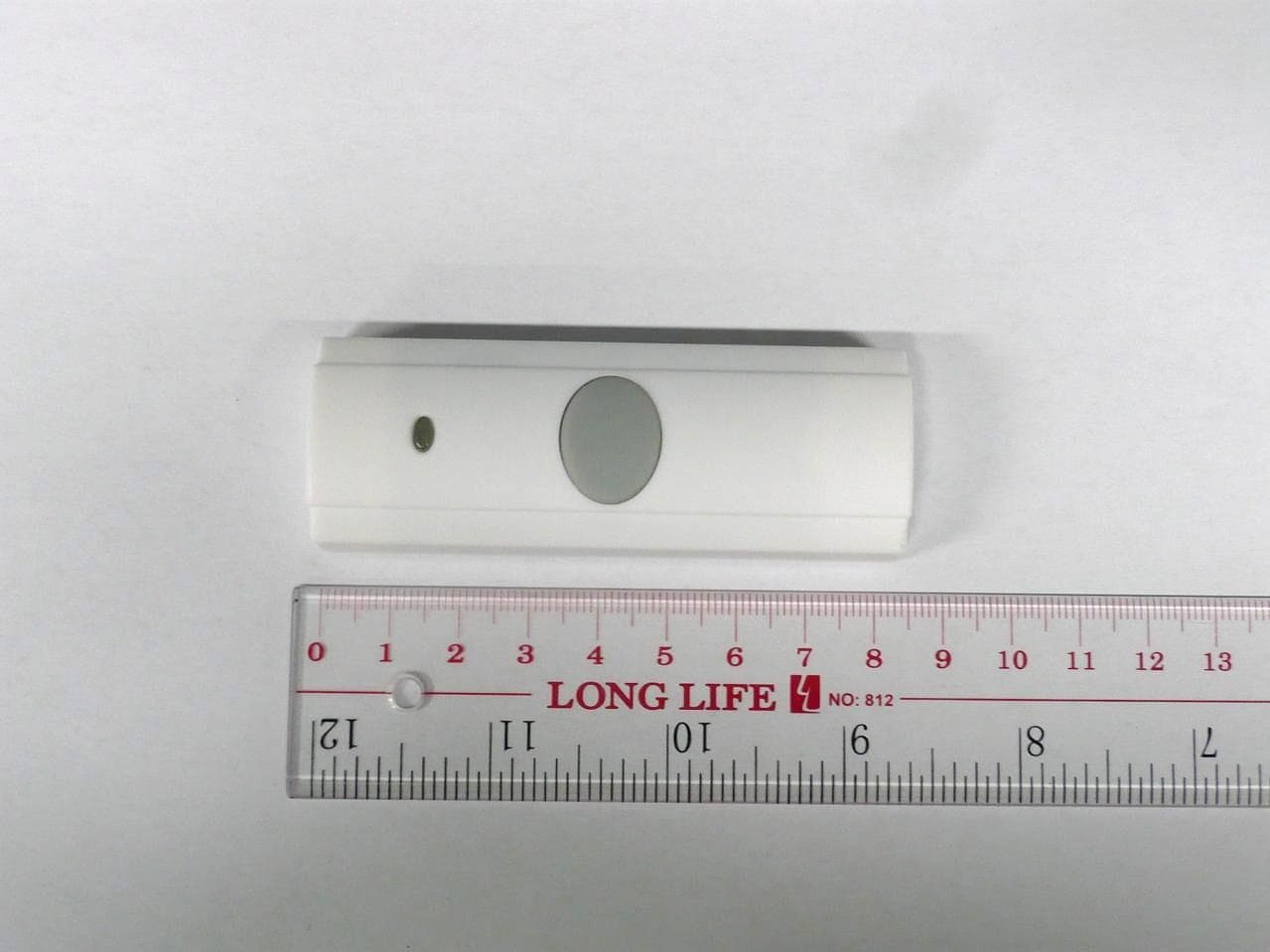

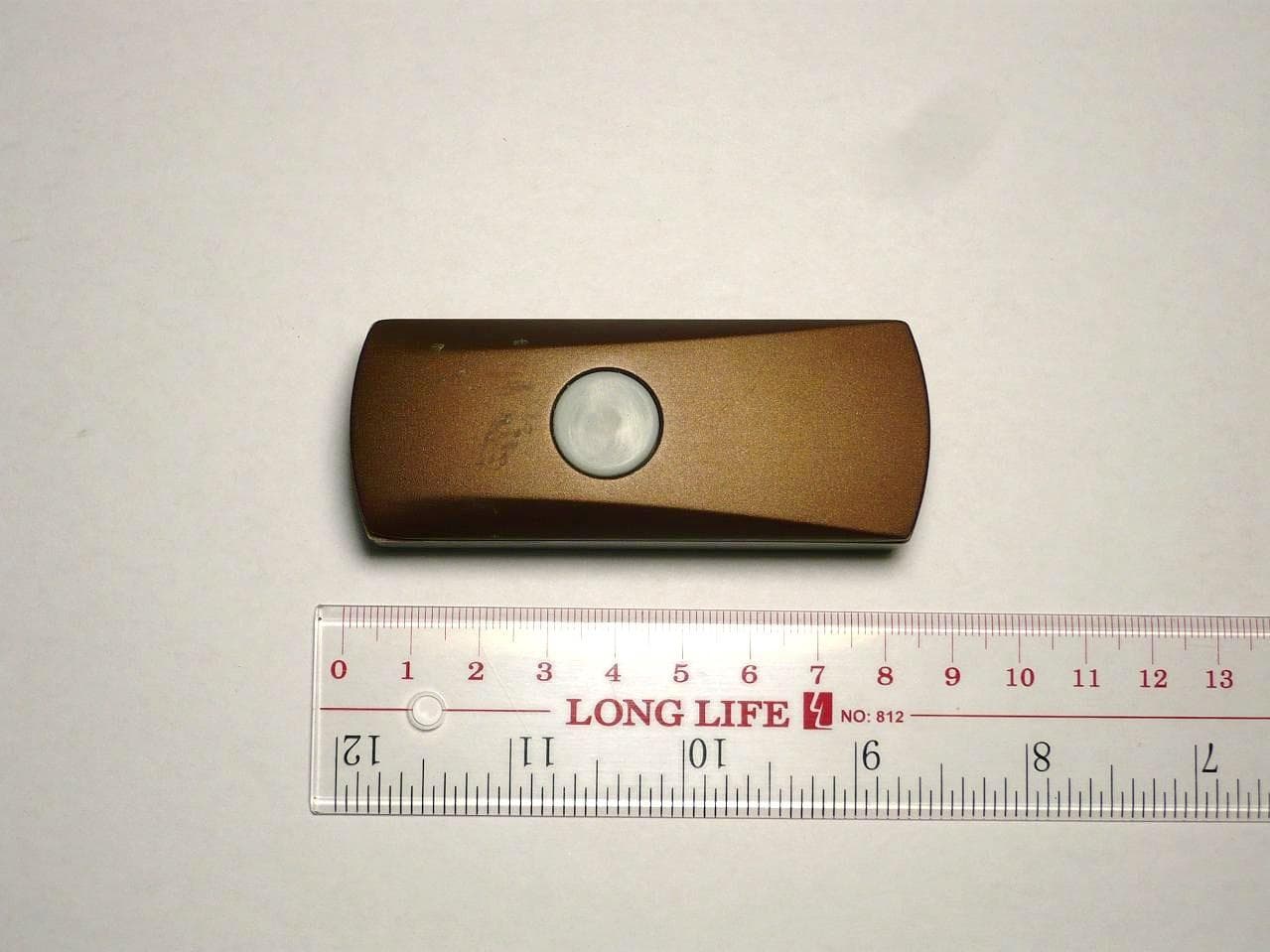

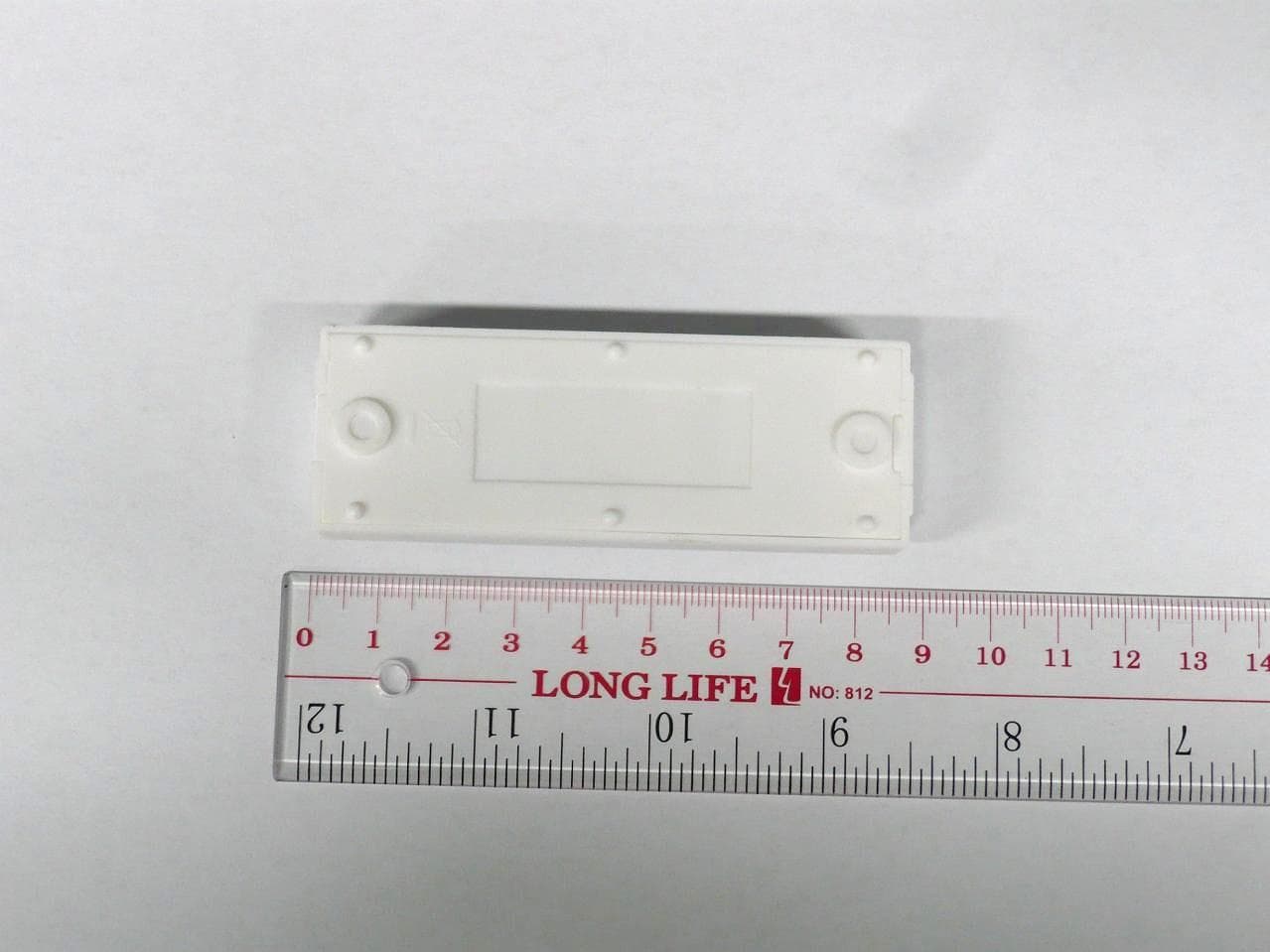

External Photo WB035A and PB72WH WB035A and PB72WH WB013BR and PB75BR WB013BR and PB75BR WB013SN and PB75SN WB013SN and PB75SN

Label Sample

Internal Photo WB035A and PB72WH WB013BR, WB013SN, PB75BR and PB75SN All models All models

TEST REPORT Report No. : AS0075937(9) Date : 22 Dec 2014 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 28 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: LQP-WB035 Application No. : LS040587(0) Applicant : Smarthome Products Ltd Rm B808-9, 8/F., Sea View Estate 2-8 Watson Road, North Point Hong Kong Sample Description : One(1) item of submitted sample stated to be : Sample Description Model number 433MHz Wireless Transmitter WB035A / WB013BR / WB013SN / PB72WH / PB75BR and PB75SN Radio Frequency : 433.92MHz Transmitter Rating : 1 x 3V button cell No. of submitted sample : Eight (8) piece (s) Date Received : 24 Oct 2014, 02 Dec 2014, 11 Dec 2014. Test Period : 27 Oct 2014 to 15 Dec 2014. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-12 Edition) ANSI C63.4 – 2009 Test Result : See attached sheet(s) from page 2 to 28. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. Remark : All six models are same in circuitry and components and construction, and therefore model WB035A was chosen to be representative of the test sample. The difference(s) between the tested model and the declared model(s) is/are Model no., Color and Outlook. TEST REPORT Report No. : AS0075937(9) Date : 22 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 2 of 28 FCC ID: LQP-WB035 Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 6 2 Description of the radiated emission test ................................................................................................... 7 2.1 Test Procedure .................................................................................................................................... 7 2.2 Test Result .......................................................................................................................................... 8 2.3 Radiated Emission Measurement Data ............................................................................................... 9 3 Description of the Line-conducted Test ................................................................................................... 11 3.1 Test Procedure .................................................................................................................................. 11 3.2 Test Result ........................................................................................................................................ 11 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 11 4 Photograph ............................................................................................................................................... 12 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 12 4.2 Photographs of the External and Internal Configurations of the EUT .............................................. 12 5 Supplementary document ......................................................................................................................... 13 5.1 Bandwidth ......................................................................................................................................... 13 5.2 Duty cycle ......................................................................................................................................... 13 5.3 Transmission time ............................................................................................................................. 14 6 Appendices ............................................................................................................................................... 15 TEST REPORT Report No. : AS0075937(9) Date : 22 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 3 of 28 FCC ID: LQP-WB035 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for doorbell. It operates at 433.92MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 1 x 3V button cell. There is a button to trigger on the EUT to transmit the radio signal to receiver.. The antenna terminal is permanently attached in EUT and the radio output power is unable to adjust. The brief circuit description is listed as follows: - U2 and its associated circuit act as RF IC - U1 and its associated circuit act as MCU - Y1 and its associated circuit act as oscillator - L2, L3, C7, C10 and its associated circuit act as RF filter - Q1, Q2 and its associated circuit act as battery detect TEST REPORT Report No. : AS0075937(9) Date : 22 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 4 of 28 FCC ID: LQP-WB035 1.2 Location of the test site FCC Registration Number: 552221 Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are i…

Text truncated - open the document above for the full version.

TEST REPORT Report No. : AS0075937(9) Date : 22 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 25 of 28 FCC ID: LQP-WB035 A5. Bandwidth Plot 20dB bandwidth

TEST REPORT Report No. : AS0075937(9) Date : 22 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 26 of 28 FCC ID: LQP-WB035 A6. Duty Cycle Duty Cycle 1 Duty Cycle 2 TEST REPORT Report No. : AS0075937(9) Date : 22 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 27 of 28 FCC ID: LQP-WB035 A6. Duty Cycle Duty Cycle 3 Duty Cycle 4

TEST REPORT Report No. : AS0075937(9) Date : 22 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 28 of 28 FCC ID: LQP-WB035 A7. Transmission time Transmission time 1 Transmission time 2 ***** End of Report *****

Test Setup Photo Front view (30MHz – 1GHz) Rear view (30MHz – 1GHz) Front view (9kHz – 30MHz) Rear view (9kHz – 30MHz) Front view (1GHz – 25GHz) Rear view (1GHz – 25GHz)
