LRUSVR-200MLOW POWER VEHICULAR REPEATER

Page 1 SVR-200 Service Manual SVR-200 Vehicular Repeater This manual is intended for use by qualified technicians and includes all necessary information pertaining to the SVR-200 operation, circuit design and maintenance. Changes that occur after date of printing will be incorporated in supplemental service publications. RF Exposure Warning: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device’s provided external duel antennas must be installed in accordance with provided instructions; and it must be operated with minimum 20 cm spacing between the antennas and all person’s body (excluding extremities of hands, wrist and feet) during wireless mode of operation. Further, this transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Page 2 SVR-200 Service Manual Foreword Scope of this manual This manual contains the specifications, functional description, operating instructions, schematic, parts locator and parts list for the SVR-200 synthesized vehicular repeater. This manual is intended for use by qualified service technicians to aid them with installation, interfacing, alignment and trouble shooting of the SVR-200 when used with other land mobile radios. Service manual revisions Component changes, additions and deletions may occur in the circuit design to improve operation and will be reflected in future releases of this service manual. Specifications and circuit changes are subject to change without prior notice or obligation by Pyramid Communications. Safety Information The SVR-200 is designed to operate within all applicable Federal regulations at the time of manufacture. Proper operation and service procedures will assure continued compliance with these regulations: •Do not operate the SVR-200 without an antenna or appropriate RF load connected to the antenna connector. •Do not operate the SVR-200 in the presence of unshielded electrical blasting caps or explosive environmental conditions. •Do not operate the SVR-200 while refueling the vehicle or in the presence of explosive fumes. •Do not operate the SVR-200 with persons standing closer than 2 feet from the mobile or repeater antenna. FCC information The SVR-200 complies with the FCC rules parts 90 and 22 for radio frequency transmitters. The user must apply for a license to operate the SVR-200 transmitter pursuant to parts 90.243 and 90.247. Other FCC rules may apply depending on the class of service the user qualifies for. A complete listing of FCC rules and regulations may be ordered from: Superintendent of Documents Government printing office Washington DC 20402 The following information pertaining to the SVR-200 should be included in the FCC license application: VHFUHF800 MHz Type Acceptance:LRUSVR-200VBLRUSVR-200UDLRUSVR-200MA Output Power:0.25-2.0W0.25-2.0W0.1-1.0W Emission designator:11K0F3E/16K0F3E16K0F3E11K0F3E/16K0F3E Frequency band:150-174 MHz450-490 MHz850-870 MHz Number of Channels:OneOneOne Page 3 SVR-200 Service Manual Specifications Transmitter:VHFUHF800 Frequency Range:150-174 MHz450-490 MHz850-870 MHz Rf power out:250mW - 2W250mW - 2W100mW - 1W Spurious emissions:-50dbc-52 dbc-50dbc Freq stability -30°~+60°C:3 PPM5 PPM1.5 PPM Modulation:11K0F3E 1 /16K0F3E16K0F3E11K0F3E 1 /16K0f3E Hum and Noise:-40db-40db-40db Audio response (300-3kHz): Flat or +6dB/octaveFlat or +6dB/octaveFlat or +6dB/octave Audio distortion:<3% @ 60% deviation<3% @ 60% deviation<3% @ 60% deviation Local mic sensitivity:300mV-5VPP300mV-5VPP300mV-5VPP FCC Type Acceptance:LRUSVR-200VBLRUSVR-200UDLRUSVR-200MA Industry Canada Approval:Pending2390 212 113APending Receiver: Frequency Range:150-174 MHz450-490 MHz850-870 MHz RF sensitivity:.4μV.35μV.35μV Squelch sensitivity.2μV to 2μV adjustable.2μV to 2μV adjustable.2μV to 2μV adjustable Modulation acceptance:±3.75 1 /±7.5kHz±7.5kHz±3.75 1 /±7.5kHz Selectivity:60db60db60db Spurious/image rejection:60db60db60db IMD response:60db60db60db Frequency stability:3 PPM5 PPM1.5 PPM Audio response (300-3kHz):Flat or -6db/octaveFlat or -6db/octaveFlat or -6db/octave Audio output:0-5VPP AC coupled0-5VPP AC coupled0-5VPP AC coupled Local Rx Audio:400 mW 8 Ohms400 mW 8 Ohms400 mW 8 Ohms Power Requirements: DC Supply13.6 VDC13.6VDC13.6VDC Standby170 mA170mA170mA Receive250 mA250mA250mA Transmit800 mA @ 2W1.1A @ 2W700mA @ 1W Physical: Dimensions:5.275"W x 6"L x 1.12"H Weight:18 oz. Case:One piece extruded aluminium 1 Narrowband operation is special order Page 4 SVR-200 Service Manual Functional Description Generally, vehicular repeaters are used as mobile extenders in cross-band operation: the link is VHF/UHF/800 MHz simplex and the mobile is Lo-band, VHF, UHF or trunking. In-band operation is possible, but care must be taken to prevent interference between the mobile's higher power transmitter and the repeater receiver. Proper frequency selection and antenna placement are important even in cross-band operation, but especially for inband use. The use of low power pre-selector cavities may be placed in line with the repeater antenna cable since it is simplex and low power. Important Note The SVR-200 operates on simplex frequencies; part of the multi-vehicle format dictates that all of the SVR-200s must be able to monitor all link traffic on site and be able to determine if a handheld is transmitting, or if other repeaters are transmitting. The handhelds must transmit CTCSS, but should be carrier squelch receive. The handhelds should not use CTCSS decode if the repeater is utilizing the multi-vehicle format, as this will interfere with the priority sampling which is essential for multi-vehicle operation. Also, the handhelds would have to have different encode and decode tones in order for the repeater to be able to tell the difference between handhelds and other repeaters, so the handhelds would not be able to hear each other. The repeaters should not transmit CTCSS unless used only in a single vehicle environment. W…

Text truncated - open the document above for the full version.

Exhibit A Subpart 2.983 (d) (9) 12VDC Mobile Radio Mobile Regulated Service Monitor Power Supply P1 SVR-200 SVR-200 Service Monitor Under test Ant Jack

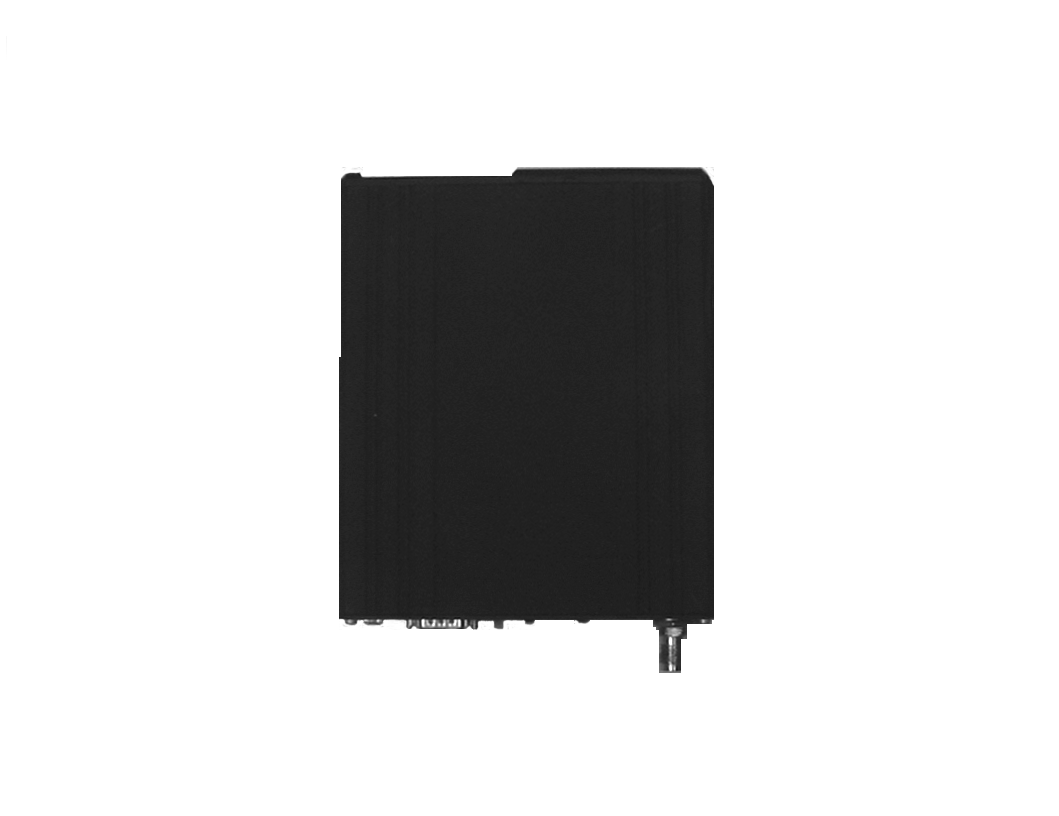

Page: E1 LRUSVR-200M Exhibit E Subpart 2.983 (g) Top View: Page: E2 LRUSVR-200M Exhibit E Subpart 2.983 (g) Bottom View: Page: E3 LRUSVR-200M Exhibit E Subpart 2.983 (g) Rear View: LRUSVR-200M Page: E4 Exhibit E Subpart 2.983 (g) Side View: Left Page: E5 LRUSVR-200M Exhibit E Subpart 2.983 (g) Side View Right Page: E6 LRUSVR-200M Exhibit E Subpart 2.983 (g) Front View Page E7 LRUSVR-200M

Exhibit D Subpart 2.983(f) 2.1003 Equipment Identification Label (See Page E2 for Location)

Exhibit E Subpart 2.983 (g) Bottom View: Page: E3 LRUSVR-200M

Page 8 SVR-200 Service Manual Alignment VHF Before aligning the SVR-200, ensure that the mobile radio is aligned per the manufacturer’s service procedure; Ensure that the SVR-200 is properly programmed and the jumpers are set per the previous section. In order to properly align the SVR-200, you will need two service monitors and the mobile radio that the repeater will be installed with. Refer to figure 1 for alignment points. Dis-assemble the repeater by removing the two cap screws on the rear panel and the phillips screw on the bottom. Slide the main circuit board out of the housing with the rear panel attached. Connect one service monitor to the SVR-200 BNC jack and the other to the mobile antenna jack. Connect the cable from the mobile radio to the SVR-200; turn on the mobile and activate the SVR-200. Adjust the repeater squelch control (RV9) so that the repeater COR led is off. Adjust the mobile so that the audio is squelched. SVR-200 VHF Transmitter 1.Transmitter Output: Short J3 and adjust RV10 for maximum. Adjust C60, C61 and C56 on the RF board for maximum RF power output and minimum spurious output. Adjust RV10 250 mW. The SVR-200 case is integral to the voltage regulator heat sink and the unit should not transmit at full power when removed from the case for extended periods. 2.Transmitter frequency: Adjust the TCXO on the RF board for the transmit frequency. 3.Maximum deviation/lock tone deviation: Adjust RV7 (lock tone deviation) for maximum. If the SVR-200 is programmed for sub-audible encode, adjust RV6 (CTCSS) for minimum. Adjust RV8 (repeater deviation) for 95% deviation. Adjust RV7 for 60% deviation. Remove J3. 4.Mobile COR: Measure the voltage at pin 7 of SVR-200 main connector P1 and record. Set the mobile service monitor for the mobile receive frequency, 1mV RF output and CTCSS modulation of 15%. Measure the voltage again at pin 7 and record. Turn the mobile service monitor off and adjust RV1 on the SVR-200 main board for the halfway point between the two voltage readings as read at pin 3 of U1. 5.RX audio sensitivity/CTCSS deviation: Set the service monitor connected to the mobile for the mobile receive frequency and 1mV RF output. Modulate the signal generator with a 1kHz tone at 60% deviation and CTCSS tone at 15% deviation. Ensure that the SVR-200 mobile COR and repeater PTT LED’s are on. Adjust RV5 on the SVR-200 main board for 60% deviation as read on the service monitor connected to the SVR-200. If programmed for sub-audible encode, remove the 1kHz tone deviation from the mobile service monitor and adjust RV6 on the SVR-200 main board for 15% deviation. Turn the RF output from the mobile service monitor off and ensure that the SVR-200 mobile COR and repeater PTT LEDs are off. 6.Local mic repeat: If the SVR-200 is programmed for local mic repeat, key the mobile local mic and inject an audio signal into the local mic to produce 60% deviation on the service monitor connected to the mobile. Confirm that the SVR-200 repeater PTT LED is on; adjust RV2 for 60% deviation as read on the service monitor connected to the SVR-200. Unkey the mobile radio. 7. RF power out: Short J3 and adjust RV10 for the operating power output. Open J3. Page 9 SVR-200 Service Manual Figure 1 VHF Receiver 1.Receiver front end: Connect a DC voltmeter to TP1 on the SVR-200 main board. Set the service monitor connected to the SVR-200 to the generate mode, receive frequency with a 1kHz tone and 60% deviation. Adjust the RF output of the monitor for a 1VDC reading at TP1. Adjust L1-L4 on the RF board for a maximum reading at TP1. 2.Repeater squelch: Adjust the service monitor RF output for .5μV. Adjust RV9 on the SVR-200 main board so the repeater COR LED is just on. Decrease the service monitor RF output to .3μV and ensure that the repeater COR LED is off. 3.Transmit audio output: Adjust the service monitor RF output for 1mV. Turn the CTCSS modulation on and set for 15% deviation. Confirm that the repeater COR, CTCSS and mobile PTT LED’s are on. Adjust RV3 on the SVR-200 main board for 60% deviation as read on the service monitor connected to the mobile radio. 4.Local Rx audio: Connect an 8 ohm speaker to P4 and set RV4 for the desired listening level. Turn off the CTCSS modulation of the service monitor connected to the SVR-200. Confirm that the repeater CTCSS and mobile PTT LED’s are off. 5.Lock Tone Decode: Change the 1kHz tone modulation to the lock tone frequency. Confirm that the PRI LED goes off after approximately .5 seconds. Page 10 SVR-200 Service Manual Alignment UHF Before aligning the SVR-200, ensure that the mobile radio is aligned per the manufacturer’s service procedure; Ensure that the SVR-200 is properly programmed and the jumpers are set per the previous section. In order to properly align the SVR-200, you will need two service monitors and the mobile radio that the repeater will be installed with. Refer to figure 2 for alignment points. Dis-assemble the repeater by removing the two cap screws on the rear panel and the phillips screw on the bottom. Slide the main circuit board out of the housing with the rear panel attached. Connect one service monitor to the SVR-200 BNC jack and the other to the mobile antenna jack. Connect the cable from the mobile radio to the SVR-200; turn on the mobile and activate the SVR-200. Adjust the repeater squelch control (RV9) so that the repeater COR led is off. Adjust the mobile so that the audio is squelched. SVR-200 UHF Transmitter 1.Transmitter Output: Short J3 and adjust RV10 for 250 mW. The SVR-200 case is integral to the voltage regulator heat sink and the unit should not transmit at full power when removed from the case for extended periods. 2.Transmitter frequency: Adjust the TCXO on the RF board for the transmit frequency. 3.Maximum deviation/lock tone deviation: Adjust RV7 (lock tone deviation) for maximum. If the SVR-200 is programmed for sub-audible encode, adjust RV6 (CTCSS) for minimum. Adjust RV8 (repeater deviation) for 95% devia…

Text truncated - open the document above for the full version.

Page 22 SVR-200 Service Manual Parts List ReferenceDescriptionPart # C1,C5,C6,C9,C10,C12,C15,C18,C35,C37.......................1μfd chip capacitor...............................1010-53-5104 C2..................................................................................................22μfd 16V tantalum chip capacitor....1610-25-6226 C3,C4............................................................................................068μfd chip capacitor...........................1010-53-5683 C7,C8,C13..................................................................................220pfd chip capacitor............................1010-53-5221 C11................................................................................................0033μfd chip capacitor........................1010-53-5332 C16...............................................................................................1000pfd chip capacitor..........................1010-53-5102 C17................................................................................................0022μfd chip capacitor........................1010-53-5222 C19,C20......................................................................................22pfd chip capacitor...............................1010-53-5220 C21A,C21B................................................................................6.8μfd tantalum chip capacitor............1610-35-6685 C22,C31,C32,C33,C34,C39.................................................100μfd elctrolytic cap............................1400-48-7107 C23,C24,C25,C26....................................................................0.47μfd tantalum chip capacitor.........1610-34-6474 C27,C28,C29,C36....................................................................1.0μfd tantalum chip capacitor............1610-34-6105 C14,C30......................................................................................2.2μfd tantalum chip capacitor............1610-34-6225 D1,D2,D3...................................................................................BAV99 dual diode SOT23...................3110-01-0099 D4,D5..........................................................................................Red LED...................................................4003-04-0281 F1..................................................................................................3A Pica fuse.............................................2600-05-0030 JP1.................................................................................................100" 3 position vertical header..........7300-53-0103 P1..................................................................................................DB-9 M right angle PCB......................7400-00-0011 P2...................................................................................................100" 14 position vertical header.......7300-13-0114 P3..................................................................................................2.5mm right angle jack.........................7401-02-0050 P4..................................................................................................3.5mm right angle speaker jack..........7401-02-0051 Q1,Q2,Q5-Q10..........................................................................2N4401 NPN transistor........................3010-01-4401 Q3.................................................................................................TIP 117 PNP transistor.........................3000-08-0117 Q4.................................................................................................TIP 30 PNP transistor...........................3000-08-0030 RV1,RV8,RV9..........................................................................10K 3mm SMT pot................................2030-08-8103 RV2,RV3,RV5,RV7................................................................100K 3mm SMT pot..............................2030-08-8104 RV4,RV10..................................................................................20K 3mm SMT pot................................2030-08-8203 RV6..............................................................................................200K 3mm SMT pot..............................2030-08-8204 R82...............................................................................................10 Ohm chip resistor.............................2010-03-5100 R10,R23,R26,R41,R71,R72,R81.........................................10K chip resistor.....................................2010-03-5103 R8,R11,R16,R21,R22,R24,R30,R35,R43,R44,R73.......100K chip resistor..................................2010-03-5104 R1,R2,R4,R6,R15,R17,R18,R31,R66,R74.......................22K chip resistor.....................................2010-03-5223 R3,R12,R13,R75......................................................................2.2K chip resistor...................................2010-03-5222 R5,R14.........................................................................................820 Ohm chip resistor...........................2010-03-5821 R7,R48,R49,R63......................................................................5.6K chip resistor...................................2010-03-5562 R9,R47,R65................................................................................56K chip resistor.....................................2010-03-5563 R19,R20......................................................................................470K chip resistor..................................2010-03-5474 R25,R29,R34,R51....................................................................1.0M chip resistor..................................2010-03-5105 R27,R33,R36,R37,R38,R45,R46.........................................33K chip resistor.....................................2010-03-5333 R32,R70......................................................................................27K chip resistor........…

Text truncated - open the document above for the full version.

Exhibit B Page: B1 LRUSVR-200M Exhibit B Page: B2 LRUSVR-200M

FCC Type Acceptance Application Submitted By: Pyramid Communications 15182 Triton Lane #102 Huntington Beach, CA 92649 William J. Carlin, President FCC license: PG-18-12732 Prepared: December 16, 2003 Pyramid Model #: SVR-200 Transmitter Type: LRUSVR-200M Test Site: 15182 Triton Lane #102 Huntington Beach, CA 92649 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Prepared in accordance with the requirements of FCC Rules and Regulations Part 2, Subpart J, Paragraphs 2.1033 and 2.1046 through 2.1057 and applicable Portions of parts 22 and 90. Page: LRUSVR-200M List of Exhibits FCC Paragraph Description Exhibit Letter ----- Cover Sheet 2.1033(a) FCC Form 731 ----- List of Exhibits ---- Technical Description A ---- Schematics B 2.1033(c)(3) Owner’s Manual C 2.1033(c)(2) Identification Label D ---- Photographs E 2.1046-2.1057 Report of Measurements F 2.1041 Measurement Procedures G LRUSVR-200M Exhibit A Subpart 2.1033 Form References 1. Name of Applicant Pyramid Communications 15182 Triton Lane #102 Huntington Beach, CA 92649 [Form 731 section 1] Applicant is vendor 2. Identification of equipment LRUSVR-200M [Form 731 Section 1] UHF Transceiver [Form 731 (7) (a)] 3. Production Planned Normal mass production, 500pcs/lot 4. Technical Description (a) Types of emission 11K0F3E [Form 731 (10) (d)] 16K0F3E (806-824) (851-869) MHz only (b) Frequency range 764-776 MHz [Form 731 (10) (a)] 794-806 MHz 806-824 MHz 850-870 MHz 896-901 MHz 935-940 MHz (c) Range of operation power 100mW –800mW continuously variable [Form 731(10)(b)] (d) DC voltage and current to final RF amplifier 5.0 VDC @ 500mA Page: A1 LRUSVR-200M METHOD OF MEASURING: 12VDC Regulated Power Supply Mobile Radio Mobile Service Monitor P1 SVR-200 Under Test Ant Jack SVR-200 Service Monitor Page E7 LRUSVR-200M Exhibit F Subpart 2.1046 RF Power Output/Frequency Minimum Standard Power: 800mW Frequency Tolerance: ±1.5ppm maximum Measurements Power: 878 mW Frequency: 770.100115 MHz Error: +.15ppm Power: 839 mW Frequency: 800.100104 MHz Error +.13ppm Power: 861 mW Frequency: 815.099836 MHz Error -.20ppm Power: 826 mW Frequency: 860.099811 MHz Error -.22ppm Power: 878 mW Frequency: 899.100107 MHz Error +.12ppm Power: 847 mW Frequency: 938.100140 MHz Error +.15ppm To the best of my knowledge, This data is accurate Signed: Page: F1 LRUSVR-200M Exhibit F Subpart 2.1047 Modulation Characteristics Frequency response of the audio modulating circuits. The SVR-200 is designed to interface to a variety of mobile radios; the receiver audio that is available may or may not be de- emphasized. Therefore PC programming provides for flat audio response, or +6db/octave pre-emphasis; both responses were measured and plotted. Frequency Flat +6 db/octave pre-emphasis 200 -8 -22 300 0 -11 400 +.3 -7.5 500 +.5 -6 1000 0 0 1500 -.25 +2.5 2000 -.5 +4.5 2500 -.75 +6 3000 -1.75 +6 3500 -5 +3 4000 -12 -1 4500 -20 -9 5000 -26 -15 To the best of my knowledge, This data is accurate Signed: Page: F2 LRU-SVR200M Exhibit F Subpart 2.1046 Transmit Audio Response To the best of my knowledge this data is accurate. Signed: Page: F3 LRUSVR-200M Exhibit F Subpart 2.1046 Audio Low pass Filter Response Frequency Response 1000 0 db 2000 -.46 3000 -2.6 4000 -10.3 5000 -26.7 6000 -45.6 7000 -52.7 8000 -52.7 {Noise Floor} 9000 -52.7 10000 -52.7 12000 -52.7 14000 -52.7 16000 -52.7 18000 -52.7 20000 -52.7 To the best of my knowledge this Data is accurate: Signed: Page:F4 LRUSVR200-M Exhibit F Subpart 2.1046 Modulation Characteristics Limiter Response 2.5kHz Maximum Deviation 770.1 MHz Input Level 300 Hz 1.0 kHz 2.5 kHz 0 dB .850 .850 .850 2 1.06 1.05 1.04 4 1.32 1.29 1.27 6 1.63 1.62 1.43 8 1.88 1.83 1.52 10 2.00 1.90 1.58 12 2.10 1.95 1.63 14 2.17 2.02 1.67 16 2.25 2.05 1.67 18 2.31 2.08 1.69 20 2.47 2.08 1.69 22 2.49 2.09 1.70 24 2.49 2.10 1.70 26 2.50 2.10 1.70 28 2.50 2.11 1.71 30 2.50 2.11 1.70 To the best of my knowledge this Data is accurate: Signed: Page: F5 LRUSVR-200M Exhibit F Subpart 2.1046 Modulation Characteristics Limiter Response 2.5kHz Maximum Deviation 800.1 MHz Input Level 300 Hz 1.0kHz 2.5 kHz 0 dB .850 .850 .850 2 1.01 1.02 1.01 4 1.28 1.26 1.21 6 1.55 1.58 1.40 8 1.80 1.79 1.47 10 1.95 1.87 1.53 12 2.03 1.92 1.60 14 2.12 2.00 1.64 16 2.20 2.02 1.65 18 2.28 2.05 1.66 20 2.36 2.06 1.67 22 2.38 2.07 1.67 24 2.40 2.08 1.68 26 2.40 2.08 1.68 28 2.40 2.09 1.68 30 2.40 2.09 1.69 To the best of my knowledge this Data is accurate: Signed: Page: F6 LRUSVR-200M Exhibit F Subpart 2.1046 Modulation Characteristics Limiter Response 2.5kHz Maximum Deviation 815.1 MHz Input Level 300 Hz 1.0kHz 2.5 kHz 0 dB .850 .850 .850 2 1.06 1.03 1.04 4 1.25 1.25 1.23 6 1.56 1.63 1.40 8 1.84 1.82 1.51 10 1.97 1.85 1.57 12 2.10 1.96 1.60 14 2.16 2.02 1.64 16 2.25 2.06 1.66 18 2.32 2.08 1.68 20 2.47 2.08 1.69 22 2.49 2.09 1.69 24 2.49 2.09 1.70 26 2.49 2.10 1.71 28 2.49 2.10 1.71 30 2.49 2.11 1.71 To the best of my knowledge this Data is accurate: Signed: Page: F7 LRUSVR-200M Exhibit F Subpart 2.1046 Modulation Characteristics Limiter Response 5kHz Maximum Deviation 815.1 MHz Input Level 300 Hz 1.0kHz 2.5 kHz 0dB 1.6 1.6 1.6 2 2.03 1.94 1.97 4 2.55 2.40 2.57 6 3.10 3.03 2.90 8 3.70 3.50 3.08 10 4.05 3.63 3.17 12 4.21 3.81 3.21 14 4.38 3.90 3.25 16 4.56 3.94 3.27 18 4.65 3.97 3.27 20 4.86 4.02 3.27 22 4.95 4.03 3.27 24 5.00 4.04 3.28 26 4.96 4.04 3.28 28 4.95 4.08 3.27 30 4.95 4.13 3.27 To the best of my knowledge this Data is accurate: Signed: Page: F8 LRUSVR-200M Exhibit F Subpart 2.1046 Modulation Characteristics Limiter Response 2.5kHz Maximum Deviation 860.1 MHz Input Level 300 Hz 1.0kHz 2.5 kHz 0 dB .850 .850 .850 2 1.00 .980 1.05 4 1.32 1.20 1.25 6 1.56 1.61 1.45 8 1.83 1.82 1.52 10 1.95 1.89 1.57 12 2.05 1.93 1.63 14 2.12 2.00 1.66 16 2.26 2.03 1.68 18 2.31 2.07 1.68 20 2.46 2.08 1.69 22 2.46 2.08 1.69 24 2.47 2.09 1.70 26 2.48 2.10 1.70 28 2.49 2.10 1.70 30 2.49 2.10 1.70 To the best of my knowledge this Data is accurate: Signed: Page: F9 LRUSVR-200M Exhibit F Subpart 2.1046 Modul…
