3M™ Dual Comm RF Monitoring System RF (E4) Product Overview 1 1 1 1 Introduction to Introduction to Introduction to Introduction to the the the the 3M™ 3M™ 3M™ 3M™ Dual Comm Dual CommDual Comm Dual Comm RF Monitoring System RF Monitoring SystemRF Monitoring System RF Monitoring System 3M Electronic Monitoring offers the new Dual Comm RF Monitoring System – a multi-client- monitoring unit that is capable of monitoring up to 50 client transmitters within the monitored perimeter. The RF (E4) Receiver unit also has the capability to manage the various program schemes, event configurations, and schedules assigned to each client. RF (E4) Receivers are dual communication units – able to communicate with the central monitoring computer via landline and/or via cellular communication. Users can specify either communication type, or can use both methods together for redundancy. The RF (E4) Receiver unit installation is easy, simple, and quick; all one needs is to plug in the power adapter (and the phone cord when landline communication is being used). The LCD screen and buttons enable a simple, intuitive installation process, and afterwards, they enable easy status monitoring. The unit can start tracking the offender as soon as it is installed (utilizing the default parameters). The installation process is completed after the monitoring center’s Data Communication Computer (DCC) downloads the unit’s parameters (such as curfew schedule, transmitter ID, call-back phone numbers, settings, etc.) into the RF (E4) Receiver unit's memory, thereby setting the unit to active monitoring mode. The RF (E4) Receiver internally connects the backup battery and starts tracking the offender. Main Characteristics Main CharacteristicsMain Characteristics Main Characteristics
Multiple offenders monitoring
Dual communication modules (Landline and Cellular)
3.5” color LCD with 5 buttons
Remote software update capabilities
Flexible scheduling and information management
Four-tamper transmitter support
Two-way communication with emergency and monitoring centers (cellular version)
Highly advanced tilt sensors and tamper alarms
Automatic configurable monitoring range
Encrypted communication protocol in accordance with NSA suite B
Short messaging and GPRS communication capabilities
Enhanced, fast installation

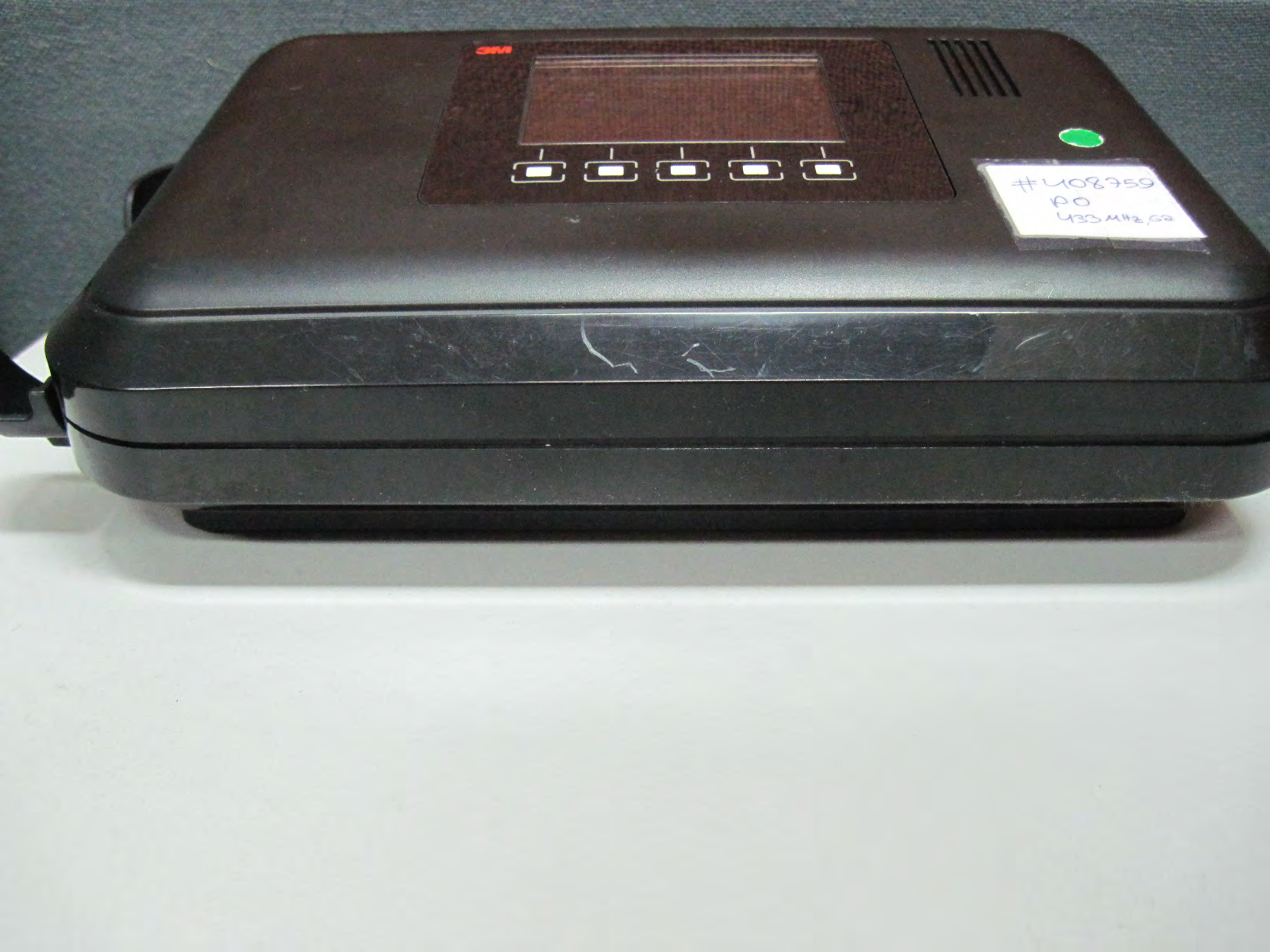

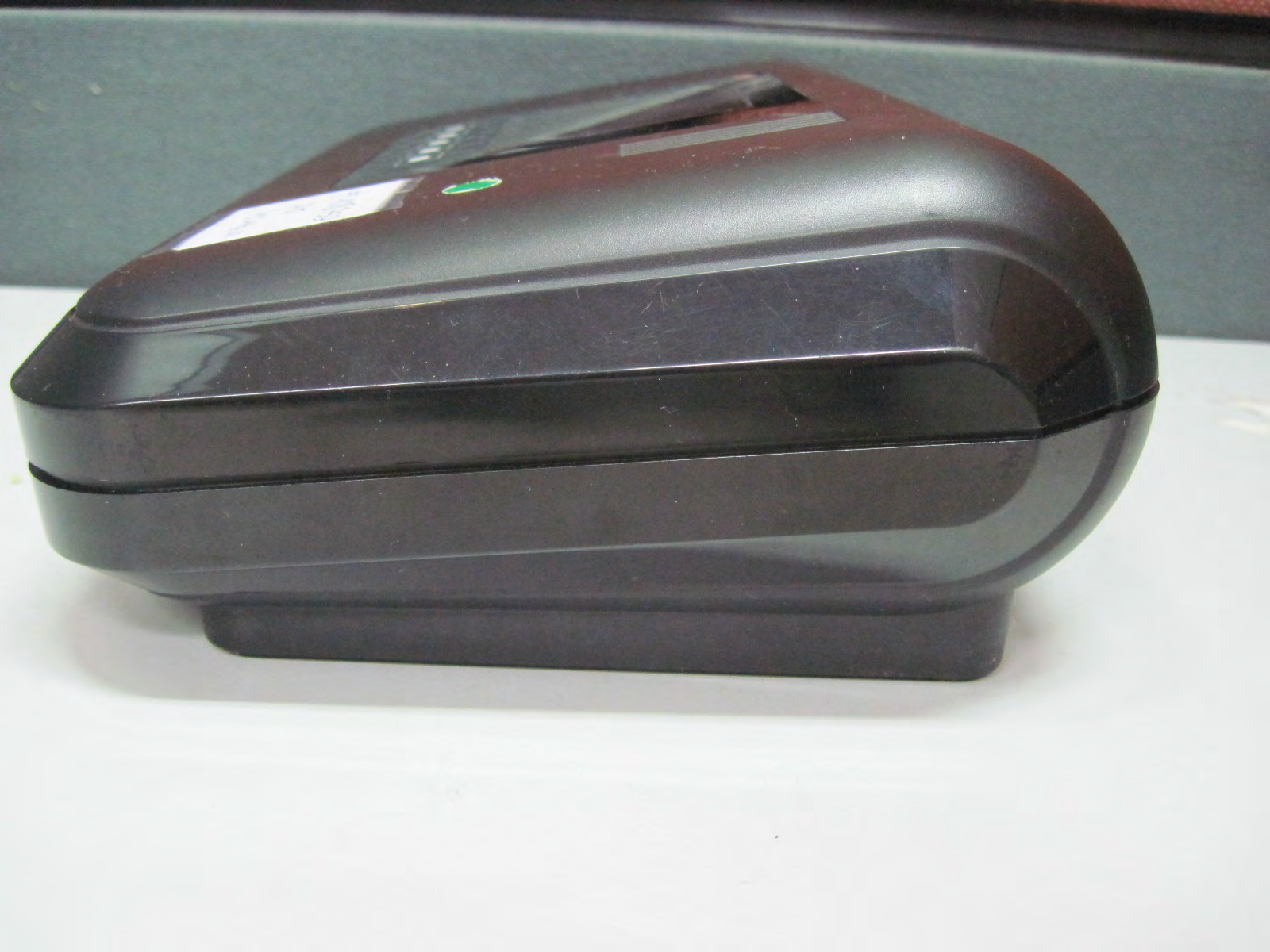

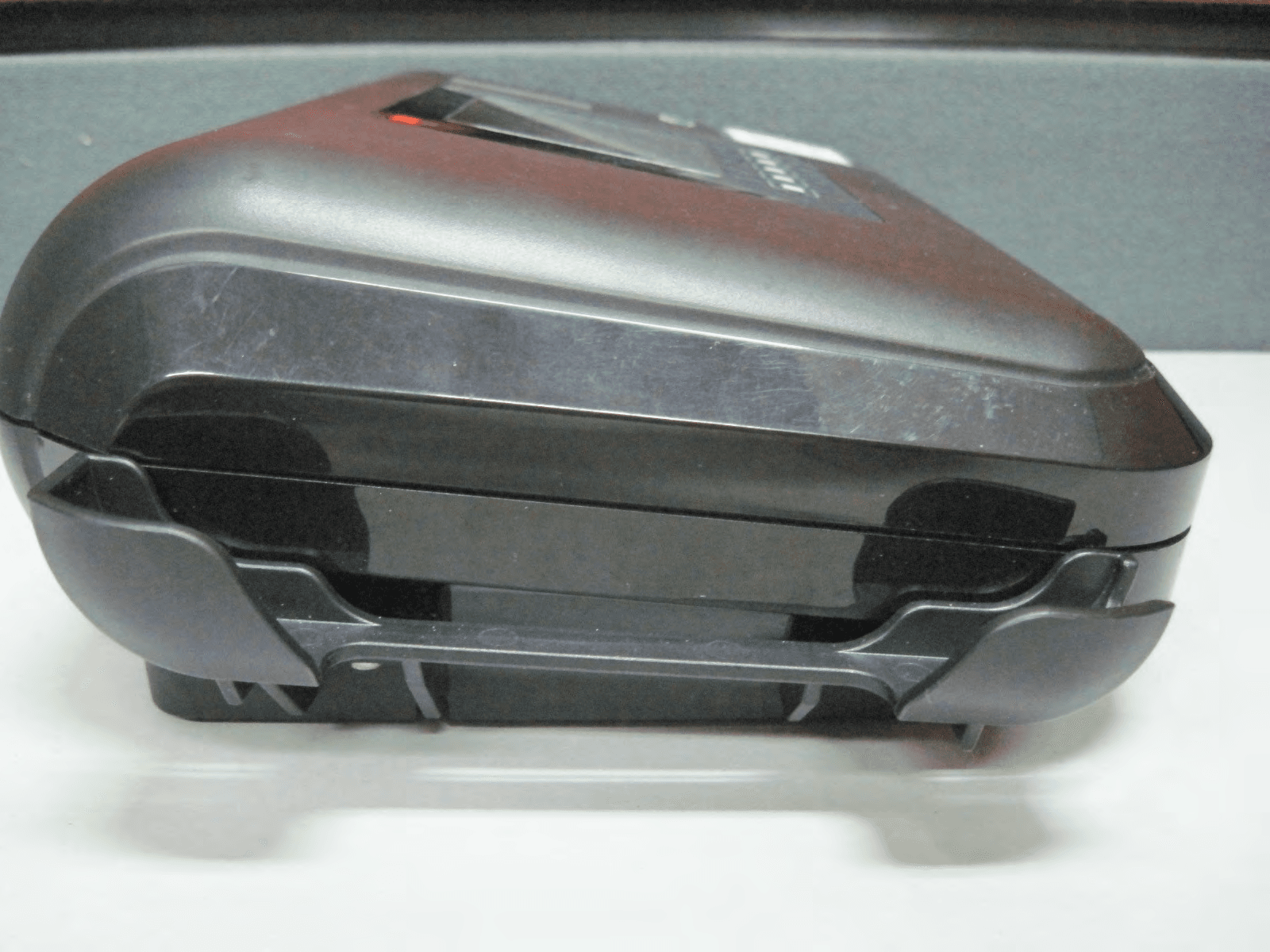

Event capturing even when transmitter is out of receiver range Physical Characteristics Physical CharacteristicsPhysical Characteristics Physical Characteristics Dimensions H=90mm L=285mm W=185mm H=3.5433 in L=11.2205 in W = 7.2835 in Weight 1210 g* 2.667 lbs* * excluding external power adapter and cables Power Supply The 3M™ Dual Comm RF Monitoring Receiver is powered by an external power adapter, which converts the mains 110VAC into a 12VDC 1A supply current. LCD 3.5 Color Resolution: 320 x 240 White LED Backlight Main Features Main FeaturesMain Features Main Features
Monitoring multiple transmitters
The 3M™ Dual Comm RF Monitoring Receiver is capable of receiving transmissions from any 3M Electronic Monitoring transmitter. It's ability to communicate with all types of 3M transmitter enables maximum equipment handling flexibility. The 3M™ Dual Comm RF Monitoring receiver can store up to 50 offender curfew schedules, and concurrently monitor up to 50 offenders. The basic unit is supplied with a software license for monitoring 1 offender; additional monitored offenders are supported depending on the license purchased.
3.5” color LCD with 5 buttons The 3M™ Dual Comm RF Monitoring Receiver is equipped with a 3.5” color LCD and 5 buttons. The LCD screen and the buttons are used to display and interact with the Receiver unit’s User Interface, which includes:
Displaying date and time (synchronized to each offender's schedule)
Displaying status information (such as cellular reception indications)
Displaying error reports
Displaying various configuration options as part of the officers’ configuration screens (which are password protected, and can optionally be totally disabled remotely to ensure absolute security)
Four-tamper transmitter support The 3M Electronic Monitoring ankle and wrist transmitters (TX-860 / TXS-860) are equipped with four tamper-detection mechanisms. The transmitter detects and reports when:
The strap is opened or cut (including when done inside conductive solutions, e.g. salty water)
The transmitter is removed from the offenders’ body, even without opening or cutting the strap (detected using the proximity alarm feature, also referred to as "body alarm").
The transmitter is not moving; this may indicate that the transmitter has either been removed, or the subject is unconscious.
The case is tampered with; any attempt to open or break the case of the transmitter is detected.
Installation and activation The 3M™ Dual Comm RF Monitoring Receiver installation process has been enhanced and improved:
The standard installation process is quick and automatic, and can be performed at an offender’s home independent of the central monitoring center personnel. The receiver unit’s LCD screen displays status information which helps guide the officer through every step of the installation process. If errors occur, they are easy to identify and resolve. The installation and activation process takes only about 5 minutes, when range testing is not performed. When range testing is performed, the installation typically takes an additional 3-5 minutes, depending on the thoroughness of the range testing process.
Advanced configuration options are available using the officer configuration screens.
The unit supports a self-installation option by which an offender can independently install the receiver unit at his or her home, and the system will automatically verify whether the offender installed the unit at the proper location.
Encryption The 3M™ Dual Comm RF Monitoring Receiver unit communication is encrypted using high secured protocols. The communication between the …

Text truncated - open the document above for the full version.

Date: 14.08.12 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to act on our behalf regarding the FCC ID Certification Process for the following application: FCC ID: LSQ-E4-RF-2 Thank you, Sincerely, Signature: Shai Avigdori Quality Assurance Director 3M Electronic monitoring

Date: 14.08.12 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: LSQ-E4-RF-2. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of information accompanying this application as outlined below: CONF APPENDIX E4 RF BlkDia.pdf CONF APPENDIX E4 RF PartsLst.pdf CONF APPENDIX E4 RF Schem.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Shai Avigdori Quality Assurance Director 3M Electronic monitoring

Date: 14.08.12 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to sign FORM 731 on our behalf for the following application: FCC ID: LSQ-E4-RF-2 Thank you, Sincerely, Signature: Shai Avigdori Quality Assurance Director 3M Electronic monitoring

02.09.2012 To : TIMCO-TCB Concerning the E4-RF-2 Product : In the E4-RF product we integrated the cellular modem, in its original form. The modem is integrated in to the PCB with no changes in the module. We are using : for 3G module - PH8-P FCCID - QIPPHS8-P for 2G module - TC63I FCCID - QIPTC63I Both modems are from the Cinterion Company and it is used according to manufacturer's recommendation. Shai Avigdori | Director, Quality Assurance. Six Sigma Black Belt. Security Systems Division 3M Attenti Ltd., 2 Habarzel St. | Tel Aviv, 61131 Israel Office: +972 3 7671700 | Mobile: +972 54 2555870 | Fax: +972 3 7671701 www.3Mattenti.com| www.3M.com| @mmm.comsavigdori










E4 – Label Location

3M Electronic Monitoring offers the new Dual Comm RF Monitoring System – a multi-client-monitoring unit that is capable of monitoring up to 50 client transmitters within the monitored perimeter. The RF (E4) Receiver unit also has the capability to manage the various program schemes, event configurations, and schedules assigned to each client. RF (E4) Receivers are dual communication units – able to communicate with the central monitoring computer via landline and/or via cellular communication. Users can specify either communication type, or can use both methods together for redundancy. The RF (E4) Receiver unit installation is easy, simple, and quick; all one needs is to plug in the power adapter (and the phone cord when landline communication is being used). The LCD screen and buttons enable a simple, intuitive installation process, and afterwards, they enable easy status monitoring. The unit can start tracking the offender as soon as it is installed (utilizing the default parameters). The installation process is completed after the monitoring center’s Data Communication Computer (DCC) downloads the unit’s parameters (such as curfew schedule, transmitter ID, call-back phone numbers, settings, etc.) into the RF (E4) Receiver unit's memory, thereby setting the unit to active monitoring mode. The RF (E4) Receiver internally connects the backup battery and starts tracking the offender. Main Characteristics  Multiple offenders monitoring  Dual communication modules (Landline and Cellular)  3.5” color LCD with 5 buttons  Remote software update capabilities  Flexible scheduling and information management  Four-tamper transmitter support  Two-way communication with emergency and monitoring centers (cellular version)  Highly advanced tilt sensors and tamper alarms  Automatic configurable monitoring range  Encrypted communication protocol in accordance with NSA suite B  Short messaging and GPRS communication capabilities  Enhanced, fast installation  Event capturing even when transmitter is out of receiver range Physical Characteristics Dimensions H=90mm L=285mm W=185mm H=3.5433 in L=11.2205 in W = 7.2835 in Weight 1210 g* 2.667 lbs* * excluding external power adapter and cables Power Supply The 3M™ Dual Comm RF Monitoring Receiver is powered by an external power adapter, which converts the mains 110VAC into a 12VDC 1A supply current. LCD 3.5 Color Resolution: 320 x 240 White LED Backlight Main Features  Monitoring multiple transmitters  The 3M™ Dual Comm RF Monitoring Receiver is capable of receiving transmissions from any 3M Electronic Monitoring transmitter. It's ability to communicate with all types of 3M transmitter enables maximum equipment handling flexibility. The 3M™ Dual Comm RF Monitoring receiver can store up to 50 offender curfew schedules, and concurrently monitor up to 50 offenders. The basic unit is supplied with a software license for monitoring 1 offender; additional monitored offenders are supported depending on the license purchased.  3.5” color LCD with 5 buttons The 3M™ Dual Comm RF Monitoring Receiver is equipped with a 3.5” color LCD and 5 buttons. The LCD screen and the buttons are used to display and interact with the Receiver unit’s User Interface, which includes:  Displaying date and time (synchronized to each offender's schedule)  Displaying status information (such as cellular reception indications)  Displaying error reports  Displaying various configuration options as part of the officers’ configuration screens (which are password protected, and can optionally be totally disabled remotely to ensure absolute security)
