LU9247845Remote Control Toy Transmitter

1.To begin training your CommandoBOT to recognize your voice, press and hold the MODE button (above the microphone on the headset) for 3 seconds. 2.CommandoBOT will request that you begin to say the commands so it can recognize your voice. 3.CommandoBOT will say “CommandoBOT”. 4.You need to say “CommandoBOT” or whatever name you choose for your CommandoBOT. 5.The CommandoBOT will say “Repeat”. 6.Repeat the name again exactly as you spoke it before. IMPORTANT: —If the CommandoBOT does not understand, you will hear an error message such as “Did not compute” or “Too loud” and then the CommandoBOT will ask you to repeat the command. —Train the CommandoBOT in a quiet environment and play in same condition. 7.The CommandoBOT will move on to the next command when it has understood the last voice command you gave it. Repeat steps 3 thru 6 for each command. 8.You will train your CommandoBOT to recognize the following action commands: TRAINING YOUR COMMANDOBOT CommandoBOT is trained to respond only to the Master. Therefore, you will need to train your CommandoBOT to recognize your voice for each of the 18 commands that the robot will follow. Your CommandoBOT will ask you to say each command twice. If the robot understands, it will go onto the next command. If not, the robot will ask you to repeat the command until it has 2 recordings that are similar in tone and tempo. You can use the command names that are programmed into the CommandoBOT or you can rename them as you train the CommandoBOT. For example, the CommandoBOT is programmed with the name “CommandoBOT” but you can call it a different name such as “Robot” or “Tommy”. The CommandoBOT will simply ask you to repeat the name to complete the training of that action. Important! In order for CommandoBOT ® to follow your commands, it must recognize your voice and the command matching the recordings acquired during training (word, tone, tempo). Be sure to call out the commands the same way you trained them. YOU ARE THE MASTER LOOK! Now that you have your CommandoBOT trained to recognize your voice, you are ready to command it to move and shoot. The procedure is simple: say the command as you said it during training and wait for your CommandoBOT to respond and answer you before giving the next command. For example, to have your CommandoBOT move forward. 1.You say “CommandoBOT” or whatever you named the robot. 2.Your CommandoBOT responds "Beep" and Action. 3.You say “Forward”. 4.Your CommandoBOT will responds "Beep" and move forward. IMPORTANT: — —You must speak clearly and use the same intonation as you did when you trained your CommandoBOT. If you get too excited and speak quickly or differently than when you trained your CommandoBOT, it will not understand you. —When your CommandoBOT is unable to understand your command, it will an error message such as “Did not compute. Repeat” or “Too loud. Repeat”. —When you repeatedly make mistakes in giving the voice commands or your CommandoBOT is unable to pick up what you said after 3 tries, you will hear a ‘beep, beep’ sound. Try again, speak clearly and say “ CommandoBOT” (or its new name) to reactivate. —Once you have completed the basic CommandoBOT training, every time you turn on your headset your CommandoBOT will go through its System Check. Sleep Mode If you have not given a voice command to your CommandoBOT in 2 minutes, the robot will go into Sleep Mode. To weak up your CommandoBOT, press the MODE button once on your headset briefly and say "CommandoBOT" or what ever name you choose before to continue play..Do not press and hold the mode button more than 3 seconds.) Room Guard Mode To activate the room guard, press EXE and 6 button to start . the “Room Guard” mode. To sound its siren if an unidentified person enters the room. When your Commandobot detects motion, you will hear a short beep for 15 seconds for you to A siren will sound for 30 seconds if you do not press the correct 4 digit secret code and EXE button within 15 seconds. Walkie Talkie Mode Position your CommandoBOT in a place where you want to get information but don't want to seen. Press the TALK switch on your headset to activate WT mode through your headset to the people near your CommandoBOT. Commandobot Forward Back Left Right Halt Fire Gun Laser Missiles Tomahawk Toggle lights 11.Now, your CommandoBOT is ready to take your commands. Please speak clearly and precisely when you give your “Action Commands” to activate your CommandoBOT ® . IMPORTANT: —You must complete the entire training of your CommandoBOT from “CommandoBOT” to “System Check”. DO NOT switch off the power during training. If you do, even pressing and holding the MODE button for 3 seconds will not allow you to start the training again. You must continue to complete the unfinished training cycle and then start all over again if you wish to change a command. —You can not operate more than one CommandoBOT at the same time. (If they are same frequency Channel) —Position microphone so that it is close enough to pickup your voice, but not so close that your breathing overrides the commands. IMPORTANT: —Your CommandoBOT can not move when in Spy Mode. —Spy and Walkie Talkie range is up to 50 feet. Missions Your CommandoBOT can carry out five different missions. Missions 1-4 are preprogrammed (you can reprogram them - see Programming Missions). Mission 5 must be programmed by you. To run Mission 1, 2, 3 or 4 say, for example, press EXE 1~4..Your CommandoBOT will carry out the programmed actions. Mission 5 will only run immediately after you finish programming it and press EXE on the keypad. Reset If, at any time, your CommandoBOT goes out of control, press the RESET button on it’s back (next of Power ON/ OFF switch) once. Your CommandoBOT will return to normal. Operating Tips -You can stop your CommandoBOT in motion by pressing the MODE button on the headset briefly once. Be careful! If you press and hold the MODE button for longer than 3 seconds, your CommandoBOT will go back…

Text truncated - open the document above for the full version.

Marianne Bosley From:Alice Wong [[email protected]] Sent:Thursday, April 12, 2001 5:15 AM To:Marianne Bosley Cc:[email protected]; Greg Czumak; EED - Choy, Kitty Subject:FCC ID: LU9247845 - MGA Entertainment (HK) Ltd. Dear Marianne, FCC ID: LU9247845 MGA Entertainment (HK) Ltd. Thank you for your e-mail, Here is the service agreement & user manual. Please see attached "Agreement" file for service agreement, "manual 1 and manual 2" for user manual. Thanks. Best Regards Alice ------------------------------------------------------------------------ ---- -------------- > 1. LU9247845 - MGA Entertainment > > a. Service Agreement - I cannot locate this. Did you send one in for > this company? Would you either send me a copy of one you have on record, or > get one completed? > > b. 15.21 Statement - I cannot find this statement in the manual. > Agreement.PDFmanual1.pdfmanual2.pdf

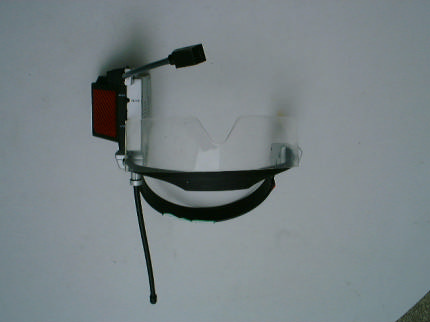

FCC ID: LU9247845 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

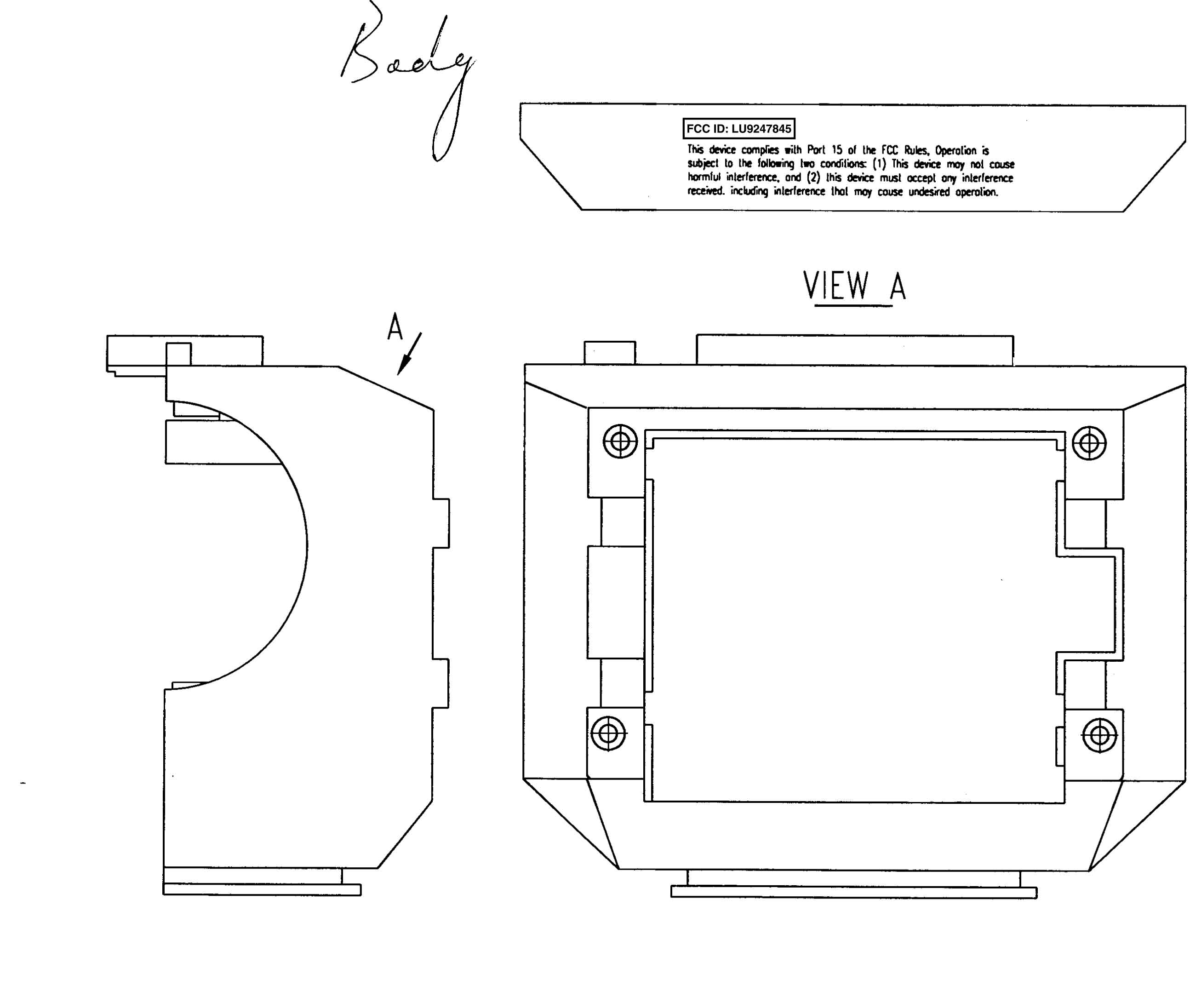

FCC ID: LU9247845 LABEL LOCATION FCC ID:LU9247845 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: LU9247845 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: LU9247845 Circuit Description The 13.5725 (27.145/2)MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by Mic. The output of Q1 has the matching network consisting of L2 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 18cm long metal wire. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

Date: 2001-03-09 TEST REPORT Page 1 of 8 No.: HM104251 Law Man KitSteven TsangPatrick Wong Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE: MGE001) MGA ENTERTAINMENT (HK) LTD. Rm. 1001 Empire Centre, 68 Mody Road, Tsimshatsui East, Kowloon, Hong Kong. DATE OF SAMPLES RECEIVED:2001-03-02 SUBMITTED SAMPLE(S): 1 sample per model DATE OF TESTING: 2001-03-08 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:COMMANDOBOT III Manufacturer:KIN YAT HOLDINGS LTD. Model Number:247845 Brand Name:N/A Rating: 9Vd.c.(“6F22” size battery × 1) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK:Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.227 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2001-03-09 TEST REPORT Page 2 of 8 No.: HM104251 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1) Measurement of Emission of RF energy on the carrier frequency..........Satisfactory (2) Measurement of the out-of band emissions including harmonics...........Satisfactory (3) Measurement of Emission Within Band Edges.......................................Satisfactory (4) Measurement of Line-Conducted Voltage onto AC Power Line............Not applicable T E S T D A T A Please refer to the attached result sheets. Date: 2001-03-09 TEST REPORT Page 3 of 8 No.: HM104251 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2001-03-08 Emission of RF energy on the carrier frequency -- 27.145 MHz (PEAK VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m 27.153.3V+18.571.83890.5100000.0 ================================================================== Emission of RF energy on the carrier frequency -- 27.145 MHz (AVERAGE VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m 27.152.6V+18.571.13589.210000.0 ================================================================== ... to be continued Date: 2001-03-09 TEST REPORT Page 4 of 8 No.: HM104251 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2001-03-08 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m ###54.3<1.0+12.9<13.9<5.0100.0 81.4<1.0+8.9<9.9<3.1100.0 108.6<1.0+12.2<13.2<4.6150.0 135.7<1.0+10.8<11.8<3.9150.0 162.9<1.0+9.5<10.5<3.3150.0 190.0<1.0+11.1<12.1<4.0150.0 217.2<1.0+12.2<13.2<4.6200.0 244.3<1.0+13.5<14.5<5.3200.0 271.5<1.0+16.0<17.0<7.1200.0 298.6<1.0+16.5<17.5<7.5200.0 325.7<1.0+16.6<17.6<7.6200.0 352.9<1.0+16.7<17.7<7.7200.0 380.0<1.0+17.4<18.4<8.3200.0 407.2<1.0+18.2<19.2<9.1200.0 434.3<1.0+19.5<20.5<10.6200.0 461.5<1.0+20.1<21.1<11.4200.0 488.6<1.0+20.3<21.3<11.6200.0 515.8<1.0+20.9<21.9<12.4200.0 542.9<1.0+22.1<23.1<14.3200.0 570.0<1.0+22.8<23.8<15.5200.0 597.2<1.0+23.3<24.3<16.4200.0 624.3<1.0+23.4<24.4<16.6200.0 ... to be continued Date: 2001-03-09 TEST REPORT Page 5 of 8 No.: HM104251 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2001-03-08 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB(μV)H-VdBdB(μV/m)μV/mμV/m ###651.5<1.0+23.6<24.6<17.0200.0 678.6<1.0+24.9<25.9<19.7200.0 705.8<1.0+25.1<26.1<20.2200.0 732.9<1.0+25.4<26.4<20.9200.0 760.1<1.0+26.4<27.4<23.4200.0 787.2<1.0+26.8<27.8<24.5200.0 814.4<1.0+26.7<27.7<24.3200.0 841.5<1.0+26.1<27.1<22.6200.0 868.6<1.0+26.8<27.8<24.5200.0 895.8<1.0+27.1<28.1<25.4200.0 922.9<1.0+27.5<28.5<26.6200.0 950.1<1.0+28.1<29.1<28.5200.0 977.2<1.0+28.2<29.2<28.8500.0 ================================================================== ====================SUMMARY=================== All data is within limits ============================================= Broad-band Antennas were used both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================= Date: 2001-03-09 TEST REPORT Page 6 of 8 No.: HM104251 *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges. TEST REFERENCE: FCC Rules Part 15 section 15.227(26.96-27.28MHz) TEST CONDITION: Normal TEST DATE : 2001-03-08 RESULTS AND NOTES L: FCC Lower Band Edge ..........................................................................-> 26.960MHz H: FCC Higher Band Edge .........................................................................-> 27.280MHz C: Unmodulated carrier at frequency .........................................................-> 27.145MHz D: No. of dB from unmodulated carrier .....................................................-> 40.60dB SPECTRUM ANALYZER SETTINGS Resolution bandwidth: 22.6KHz Frequency span: 10.0KHz/div No. of dB/div: 10.0dB/div FCC Limit Minimum No. of dB from unmodulated carrier required : 26.0dB ================SUMMARY================ All data is within limits ========================================= Date: 2001-03-09 TEST REPORT Pag…

Text truncated - open the document above for the full version.

FCC ID: LU9247845 TEST SET UP PHOTOGRAPH OF THE PRODUCT Measurement of Radiated Emission Test Set up
