LU9253976TX49Remote Control Toy Transmitter

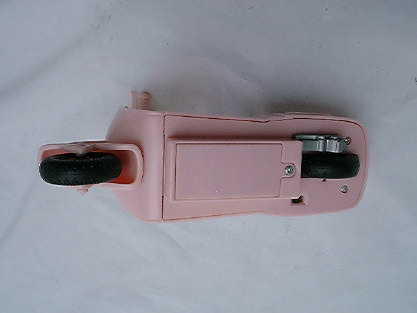

TO INSTALL/REPLACE BATTERIES IN MOTOR SCOOTER 1. The battery compartment is located on the bottom of the Scooter. Slide the switch to "OFF" position. Loosen the screw on battery compartment door with a Phillips screwdriver and remove door. (see Fig.A, B) 2. Install / Replace with 5 "AA" batteries. Replace battery compartment door and tighten screw. (see Fig.C) 0402-0 Ages 6 & up Please keep this manual. It contains important INTRODUCTION Motor Scooter Samantha is the fully articulated doll that rides her motor Scooter via a special remote control-shaped like a Motor Scooter. You can also remove Scooter Samantha (the Doll) from her Scooter and play with her separately! She looks great in her bike outfit! When she's back on her Motor Scooter, ahe turns her handlebars by your control. She comes with a detachable helmet for looking her best and staying safe on and off her Motor Scooter. INSTALLATION OF BATTERIES Fig. B Battery compartment on bottom of scooter Fig. C Insert 5 "AA" batteries Operating Instructions Fig. A On/Off switch on the bottom of scooter. LIMITED 90 DAY WARRANTY MGA Entertainment warrants to the original consumer purchaser this product that the product will be free from defects in material or workmanship for a period of 90 days from the date of original purchase. This warranty does not cover damages resulting from misuse, improper or abnormal usage, negligence, leaking batteries, improper service or other causes not arising from defects in material or workmanship. During this 90 day warranty period, the product will be either repaired or replaced (at MGA's option) at no charge to the purchaser, when returned to either the retailer with it's original sales receipt (containing date of purchase) or to MGA. The foregoing states the purchaser's sole and exclusive remedy for any breach of warranty with respect to the product. All product returned to MGA must be shipped prepaid and insured for loss or damage to: MGA Entertainment Repair Department 16730 Schoenborn Street North Hills, CA 91343-6122 Any returned product should be carefully packed in packing material sufficient to avoid damage during shipment. Please include a written description of the defect, a copy of the original sales receipt (containing date of purchase) and your printed name, address and telephone number. Some states do not allow limitations on how long an implied warranty last or the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific rights and you may also have other rights which vary from state to state. This warranty is only valid within the United States and Canada. TO INSTALL/REPLACE BATTERIES IN REMOTE CONTROL 1. The battery compartment is located on the bottom of the controller. Turn the switch to "OFF" position. Loosen screw on battery compartment door with a Phillips screwdriver and remove door. (see Fig.D, E) 2. Install / Replace with a 9V battery. Replace battery compartment door and tighten screw. (see Fig.F) Fig. F Insert 1 "9V" battery Fig. E Battery compartment on bottom of R/C Fig. D On/Off switch on the bottom of the R/C TM, ® & © 2002 MGA Entertainment All Rights Reserved. 16730 Schoenborn Street North Hills, CA 91343 USA (818) 894-2525 PRINTED IN CHINA 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 6LR61 006P 9V 6LR61 006P 9V 1 4

Fig. G Attach Scooter Samantha to her Motor Scooter securely SAFE BATTERY USAGE 1. Batteries should be replaced by an adult. 2. Non-rechargeable batteries are not to be charged. 3. Only batteries of the same equivalent type as recommended are to be used. 4. Batteries are to be inserted with the correct polarity. 5. Rechargeable batteries are to be removed from the toy before being charged. 6. Exhausted batteries are to be removed from the toy. 7. Different types of batteries or new and used batteries are not to be mixed. 8. The supply terminals are not to be short-circuited. 9. Rechargeable batteries are only to be charged under adult supervision. 10. Do not dispose of batteries in fire; batteries may expolde or leak. 11. Use alkaline batteries for best performance and longer life. QUICK START TO PLAY WITH SCOOTER SAMANTHA 1. Place Scooter Samantha securely on her Scooter by attaching her hands to the handlebars  and her legs to the pegs on the base of Motor Scooter. (see Fig.G) 2. Slide the On/Off switch on the bike to the "ON" position. 3. Slide the On/Off switch on the R/C controller to the "ON" position. 4. To move the Scooter forward and play the stand feature, push and hold the seat on the remote control to the forward position. (see Fig.H) 5. To move the Scooter backward, pull and hold the seat on the remote control to the backward position. (see Fig.H) 6. To make her do awesome 360° spinning, press and hold the button on the top of seat of the remote control (see Fig. H) 7. To move the Scooter to the left or right, switch and hold the seat on the remote control to  the left forward or right forward position. Scooter Samantha's arm turn the handle of her Scooter right and left, depending on what direction you direct her Scooter via the remote control. (see Fig.H) Remember that Scooter Samantha is a fully articulated doll that can be removed from her scooter for extended play. Fig. H You control the seat in different directions where Samantha rides by remote control Motor Scooter Samantha's remote control/scooter is available in 2 different versions based on radio frequency (27MHz and 49MHz, indicated on the bottom of bike and Remote Control) enabling you to race the dolls against each other for added fun! Please do not step or attempt to ride Samantha's Scooter. It is a toy, not an actual Motor Scooter. To avoid malfunctioning, do not play with two scooters that share the same frequency at the same time. Note: 1. Doll's head depicted on packaging for photography purposes only. 2. MotorScooter Samantha is not recommended for use on slippery surfaces, carpets or loose gravel. OPERATION TIPS 1. If Samantha's Scooter is responding slowly or malfunctioning, replace the "AA" batteries on  the bottom of bike and/or the 9V battery in the remote control. NOTE: If the Scooter does not respond at all, please make sure that the remote control and Scooter share the same radio frequency by checking the bottom of both units for matching "MHz" specifications. 2. Optimum operating range is up to 30 feet indoors. However, this may vary depending on  environmental conditions and/or radio interference. 3. Operation performance may be affected by surrounding buildings, structure or equipment. 4. Should this product cause local electrical interference, we recommend moving it away from  other electrical equipment. CAUTION: Modifications not authorized by manufacturer may void users authority to operate this device. Note: This equipment has been tested and found to comply with limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, these is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. OPERATION TIPS 2 3

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: LU9253976TX49 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China FCC ID label for item 253976, 49 MHz Transmitter

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: LU9253976TX49 Circuit Description The 49.86MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC1. The output of Q2 has the matching network consisting of L1 and C7 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
