LU9256588ARC Toy Transmitter

23 STEP 4 : RECHARGING YOUR BATTERY push until you hear a click STEP 3 : USING YOUR LAND-SEA R/C -R/C HANDSET: 1. Unscrew the battery cover on the rear of Handset controller and insert one 9-Volt battery. (see Fig.4) 2. Replace the battery cover and screw. 6LR61 006P 9V 6LR61 006P 9V Fig. 3 Fig. 4 Once you have fully charged your Land-Sea R/C, you are now ready to control it to go anywhere--- on land or on water! -TO USE YOUR LAND-SEA R/C ON LAND: 1. Extend the antenna behind the cockpit on the vehicle. (see Fig.5) 2. Press the On/Off button at the vehicle's right-side back to turn the vehicle on and place it on the ground. (see Fig.5) 3. Press the Mode button (OFF/LAND/SEA) on the Handset once (from Off Mode) to engage Land Mode (the Land LED indicator will light up). (see Fig.6) This sends power to the vehicle's wheels. 4. Press and hold the Deploy button to extend the wheels until the wheels are fully extended. (see Fig.7) 5. You will hear a clicking sound when the wheels are fully extended and in the full down position. When you hear the clicking sound, release the Deploy button. 6. Press the Left & Right control buttons to control the Land-Sea R/C to move forward, backward, left & right on land. After approximately 20 minutes, the performance ability of your Land-Sea R/C will decrease. At this time, it is time to charge your Battery Pack. To do so, simply follow these quick and easy steps: 1. Remove the Battery Pack from your Land-Sea RC with a Phillips screwdriver. If it is warm, please allow up to twenty minutes to cool before recharging. 2. Follow the recharging instructions included with your Battery Pack and Charger. TO USE YOUR LAND-SEA R/C AS A TANK! (Land Only) 1. Press the Deploy or Retract button to adjust the wheels so that they are aimed directly upright. This is approximately the mid-way point in the transition from 4x4 to boat and will require a little skill to get it exactly where is should be. (see Fig.10) STEP 2 : INSTALLATION OF BATTERIES Once you have charged your Battery Pack, you are now ready to install it into your Land-Sea R/C vehicle! You will also need to insert a standard 9-Volt battery into your Handset. -LAND-SEA VEHICLE: 1. Remove the two rubber seal attachments from the cockpit window. (see Fig.1) 2. Unscrew the three screws on top of the cockpit window (battery cover) with a Phillips screwdriver. (see Fig.2) 3. Insert a fully charged NiCd Battery Pack with the positive (+) and negative (-) ends facing in the proper direction as indicated inside the compartment (negative should be on top) and slide it towards the front of the vehicle until you hear a click (see Fig.3). 4. Replace the cockpit cover and rubber seal attachments. Failure to do so may result in damage to the vehicle. Fig. 1 Fig. 2 Fig.5 Fig. 7 Fig. 6 Push ON Fig. 9 Fig. 11 Fig. 10 Helpful Hint: If at anytime during the retraction or extension of the wheels, the wheels appear to be "stuck" or not able to complete the full transition from land to sea or back again, simply lift the vehicle by the cockpit and give the handset command again. Important Note: Do not use your hands to manually switch from Land to Sea mode (and back again) as it may cause damage to the vehicle; always use your Handset. Fig. 8 2. When the wheels are aimed directly upright, turn the vehicle over so that the wheels are touching the ground. Make sure that the antenna is retracted and not touching the ground. ( see Fig.8) 3. Use the Handset to control the Land Sea R/C to move forward, backward, left & right on land. -TO USE YOUR LAND-SEA R/C ON WATER: 1. Extend the antenna behind the cockpit on the vehicle. (see Fig.5) 2. Press the Mode button on the Handset (OFF/LAND/SEA) twice (from Off Mode) to engage Sea Mode (the Sea Mode LED indicator will light up). (see Fig.9) This sends power to the vehicle's boat motor. 3. Make sure your vehicle is turned on. Place your Land-Sea R/C into water. 4. Press and hold the Retract Button to retract the wheels until the wheels are fully retracted. (see Fig.10) 5. You will hear a clicking sound when the wheels are fully retracted and in the full up position. When you hear the clicking sound, release the Retract button. 6. Press the Left & Right control buttons to control the Land-Sea R/C to move forward, backward, left & right in water. (see Fig.11) NOTE: Although water-resistant, do not submerge your R/C Handset underwater for more than a few seconds as it may cause damage. Land-Sea R/C can easily make the transition from water to land in just seconds! Here's an example for non-stop R/C fun: 1. Turn your Land-Sea R/C on, place it on the ground, and press the MODE button to engage Land mode. 2. Control your vehicle to go in any direction with the full-function Handset. 3. When you come upon a body of water, simply drive you vehicle into the water until it begins to float. 4. Press the MODE button to engage Sea Mode and press and hold the Retract button until your wheels are fully retracted. 5. Control your vehicle to go anywhere on water with the full-fuction Handset. 6. When you come upon a body of land, simply ride your vehicle onto the turf until it stops. 7. Press the MODE button to engage Land Mode and press and hold the Deploy button until your wheels are fully extended. 8. Once again, control your vehicle to go anywhere on land with the full-function Handset. DEPLOY WHEELS RETRACT WHEELS LANDSEA O F F / L A N D / S E A Press MODE button once DEPLOY WHEEL RETRACT WHEELS LANDSEA O F F / L A N D / S E A DEPLOY WHEELS RETRACT WHEELS LANDSEA O F F / L A N D / S E A Press MODE button twice DEPLOY WHEELS RETRACT WHEELS LANDSEA O F F / L A N D / S E A D E P L O Y W H E E L S R E T R A C T W H E E L S L A N D S E A O F F / L A N D / S E A DEPLOY WHEELS RETRACT WHEELS LANDSEA O F F / L A N D / S E A DEPLOY WHEELS RETRACT WHEELS LANDSEA O F F / L A N D / S E A Forward Backward Forward Backward DEPLOY WHEELS RETRACT WHEELS LANDSEA O F F / L A N D / S E A D E P L O Y W H E E L S R E T R A C T…

Text truncated - open the document above for the full version.

Operating Instructions 41 1102-B-0 INTRODUCTION STEP 1 : CHARGING THE BATTERY It's a 4 x 4! It's a powerboat! It's a tank! All in one! With just a touch of a button, this incredible R/C vehicle transforms to traverse land or water in just seconds! With the full-functioning radio control handset, control all the action from a distance away! Includes: - Land-Sea R/C Vehicle - Full-Function Handset -Instruction Manual ª FCC Notice: This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, this is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. TROUBLE SHOOTING TIPS IMPORTANT NOTICE Modifications not authorized by the manufacturer may void user's authority to operate this device. SAFETY BATTERY PRECAUTIONS Please keep this manual. It contains important information. OPERATION TIPS AND HELPFUL HINTS - Do not operate during thunderstorms. - Operate only in fresh water and bodies of water with little to no current. - When your vehicle starts to lose power, it may experience loss of functions of performance ability. If this happens, simply recharge your Battery Pack again and/or replace the Handset battery. - Your Land-Sea R/C is operated by radio waves. It is possible the unit may not perform properly due to interference from nearby devices such as a cordless phone, hair dryer, radio, walkie-talkie or other radio-controlled toys. - Avoid sand and snow when operating your vehicle. - Always select a safe place to play. Never drive your vehicle on populated streets or water areas. - Keep fingers. hair and loose clothing away from the tires, wheel hubs and motors while the vehicle is switched on. - Land-Sea R/C may take in water. After playing with Land-Sea R/C in water, locate the drainage valves at the rear of the vehicle and remove the two rubber seals. Drain any water from the vehicle and replace the rubber seals. (see Fig.12) - Clean your Land-Sea R/C with a dry, clean cloth after playing. - If the vehicle goes out of range of the Handset or the battery is low, the propellers will turn on. This is a part of Land-Sea R/C's normal operation. This function is especially useful in water. If the vehicle is in water and goes out of range, the vehicle will move in a circular pattern in an attempt to return back to the Handset range so that the user can once again gain control. - If you turn off the Handset before turning off the vehicle, Land-Sea R/C's propellers will turn on. This is a part of Land-Sea R/C's normal operation and will remind you to turn off the vehicle. - Do not get your rechargeable battery wet. If you do, dry immediately. - Your R/C Handset will automatically shut off after several minutes of non-activity. Simply press the MODE button (and activate Land or Sea Mode) to begin again. TM & © 2002 MGA Entertainment ̈ All Rights Reserved. 16730 Schoenborn Street North Hills, CA 91343 USA www.mgae.com (800) 222-4685 PRINTED IN CHINA Fig. 12 Important: - After use, the Battery Pack may be hot. Allow it cool for at least 20 minutes before recharging. - If the Battery Pack shows signs of leakage or erosion, do not recharge; replace it immediately. - Do not disassemble the battery pack. - If Battery Pack or charging unit becomes wet, dry thoroughly before recharging. - Do not use any other rechargeable battery except for the standard 6.0V NiCd Battery Pack that was intended solely for use with the product. - The Battery Charger used with the toy is to be regularly examined for damage to the plug, enclosure and other parts. In the event of such damage, the toy must not be used with this battery charger until the damage has been repaired. valves If your Land-Sea R/C responds slowly or fails to operate: - Make sure the batteries in both the Handset and Land-Sea R/C are installed properly. - Recharge your Battery Pack and/or replace the Handset battery. - Make sure Vehicle is turned on and Handset is switched to Land or Sea Mode. - Make sure the Battery Contacts have not become dirty. If they have, simply brush with a dry cloth NiCd STANDARD BATTERY PACK & CHARGER(6.0V & 600mA and up) NEEDED! SEPARATE PURCHASE REQUIRED! Before you can experience all the fun and excitement of using your Land-Sea R/C, you must charge your Battery Pack. (sold separately, available wherever R/C vehicles are sold) Follow the instructions included with your 6V NiCd Battery Pack and charger for charging your battery. Note: Battery life varies depending on usage. An average charge should last approximately 20 minutes. 1. Non-rechargeable batteries are not to be recharged. 2. Rechargeable batteries are to be removed from the toy before being charged. 3. Rechargeable batteries are only to be charged under adult supervision. 4. Different types of batteries or new and used batteries are not to be mixed. 5. Only batteries of the same or equivalent type as recommended are to be used. 6. Batteries are to be inserted with the correct polarity. 7. Exhausted batteries are to be removed from the toy. 8. The supply terminals are not to be short-circuited. 9. Do not dispose the batteries in fire; bat…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: LU9256588A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

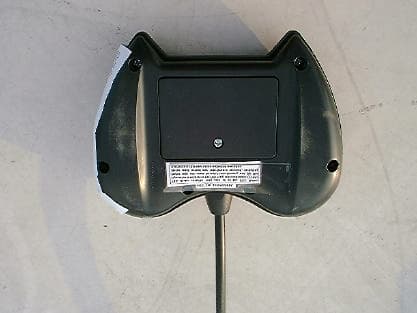

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Model: 256588 Circuit Description The 27.145MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by U1. The output of Q2 has the matching network consisting of L4 and C10 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 20cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

Date: 2002-11-13 TEST REPORT Page 1 of 20 No.: HM109230 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM109097 Equipment Under Test [EUT]:Land Sea RC – 27MHz (with new IC) Model Number:256588 Applicant:MGA Entertainment (HK) Ltd. FCC ID :LU9256588A Date: 2002-11-13 TEST REPORT Page 2 of 20 No.: HM109230 CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 Conclusion Page 4 of 20 1.0 General Details 1.1Test Laboratory Page 5 of 20 1.2Applicant Details Page 5 of 20 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 20 Description of EUT operation 1.4Date of Order Page 6 of 20 1.5Submitted Sample Page 6 of 20 1.6Test Duration Page 6 of 20 1.7Country of Origin Page 6 of 20 1.8 Additional Information of EUT Page 7 of 20 2.0Technical Details 2.1Investigations Requested Page 8 of 20 2.2Test Standards and Results Summary Page 8 of 20 3.0Test Results 3.1Emission Page 9-13 of 20 3.2Bandwidth Measurement Page 14-15 of 20 Date: 2002-11-13 TEST REPORT Page 3 of 20 No.: HM109230 Appendix A List of Measurement Equipment Page 16 of 20 Appendix B Duty Cycle Correction During 100 msec Page 17-18 of 20 Appendix C Photographs Page 19-20 of 20 Date: 2002-11-13 TEST REPORT Page 4 of 20 No.: HM109230 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Chief Executive Date: 2002-11-13 TEST REPORT Page 5 of 20 No.: HM109230 1.0 General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant MGA ENTERTAINMENT (HK) LTD. Room 1001, 10/F., Empire Centre, 68 Mody Road, Tsimshatsui East, Kowloon, Hong Kong. Telephone:852 2926 8008 Fax:852 2312 0101 HKSTC Code Number for ApplicantMGE001 Manufacturer KIN YAT INDUSTRIAL CO., LTD. 7/F., Galaxy Factory Building, 25-27 Lik Hop Street, San Po Kong, Kowloon, Hong Kong. Telephone:852 2995 9073 Fax:852 2351 1867 Date: 2002-11-13 TEST REPORT Page 6 of 20 No.: HM109230 1.3Equipment Under Test [EUT] Description of Sample Product:Land Sea RC – 27MHz (with new IC) Manufacturer:Kin Yat Industrial Co., Ltd. Brand Name:N/A Model Number:258957 Input Voltage:9Vd.c (“6F22” size battery x 1) 1.3.1Description of EUT Operation The Equipment Under Test(EUT) is an MGA Entertainment (HK) Ltd., Land Sea RC – 27MHz (with new IC). The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed, Modulation by IC. and tape is pulse modulation. 1.4Date of Order 2002-11-07 1.5Submitted Sample(s): 1 Sample per model 1.6Test Duration 2002-11-12 1.7Country of Origin China Date: 2002-11-13 TEST REPORT Page 7 of 20 No.: HM109230 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2002-11-13 TEST REPORT Page 8 of 20 No.: HM109230 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result Severit y PassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227ANSI C63.4:2000N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:2000Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:2000Class B Note: N/A - Not Applicable Date: 2002-11-13 TEST REPORT Page 9 of 20 No.: HM109230 3.0 Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.227 Test Method:ANSI C63.4:2000 Test Date:2002-11-12 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2002-11-13 TEST REPORT Page 10 of 20 No.: HM109230 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.227]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz] [μV/m][μV/m] 26.96-27.28100,00010,000 Results: FrequencyCorrectionLimit @3mAntenna FactorPolarity MHz dB μ V/m μ V/m 27.1549.622.371.93,917.4100,000Vertical μ V/mdB μ V/m Field Strength Field Strength of Fundamental Emissions Peak Value Measured Level @3m dB μ V/m Field Strength FrequencyCorrectionLimit @3mAntenna FactorPolarity MHz dB μ V/m μ V/m 27.1543.722.366.01,986.1100,00Vertical Field Strength of Fundamental Emissions Average Measured Level @3m Field Strength μ V/mdB μ V/m Field Strength dB μ V/m According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. Remarks: *: Adjusted by Duty Cycle = -5.9dB…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
