LU9275107Wireless FM Microphone

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: LU9275107 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL FCC ID Label

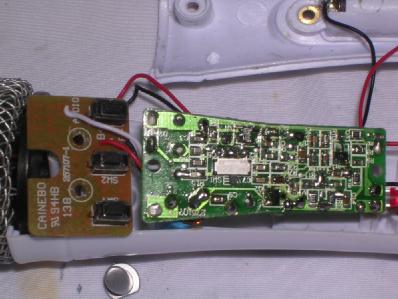

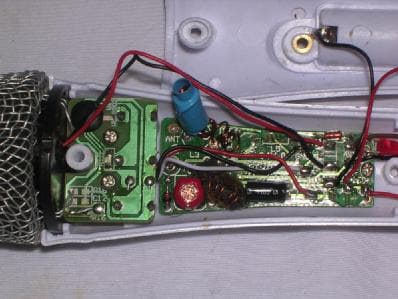

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

HKSTC No.: HM150663 Circuit Description The 100MHz LCR oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by Mic. The output of Q2 has the matching network consisting of that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 7.1cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3Volt (“AAA” size battery x 2) primary battery.

Date: 2004-05-17 TEST REPORT Page 1 of 17 No.: HM150663 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. Applicant: MGA Entertainment (HK) Ltd. Description of Samples: Model name: Bratz Electronic Funk Wireless FM Mic. Model no.: 275107 Brand name: N/A FCC ID: LU9275107 Date Samples Received: 2004-04-13 Date Tested: 2004-05-13 Investigation Requested: FCC Part 15 Subpart C Conclusions: See the attached sheets for details Remarks: ---- K C Lee, EMC for Chief Executive Date: 2004-05-17 TEST REPORT Page 2 of 17 No.: HM150663 CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 Conclusions Page 4 of 17 1.0 General Details 1.1 Test Laboratory Page 5 of 17 1.2 Applicant Details Page 5 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 6 of 17 Description of EUT operation 1.4 Date of Order Page 6 of 17 1.5 Submitted Samples Page 6 of 17 1.6 Test Duration Page 6 of 17 1.7 Country of Origin Page 6 of 17 1.8 Additional Information of EUT Page 7 of 17 2.0 Technical Details 2.1 Investigations Requested Page 8 of 17 2.2 Test Standards and Results Summary Page 8 of 17 3.0 Test Results 3.1 Emission Page 9-13 of 17 3.2 Bandwidth Measurement Page 14 of 17 Date: 2004-05-17 TEST REPORT Page 3 of 17 No.: HM150663 Appendix A List of Measurement Equipment Page 15 of 17 Appendix B Photographs Page 16-17 of 17 Date: 2004-05-17 TEST REPORT Page 4 of 17 No.: HM150663 CONCLUSIONS The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Date: 2004-05-17 TEST REPORT Page 5 of 17 No.: HM150663 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant MGA Entertainment (HK) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong. HKSTC Code Number for Applicant MGE001 Manufacturer N/A Date: 2004-05-17 TEST REPORT Page 6 of 17 No.: HM150663 1.3 Equipment Under Test [EUT] Description of Sample Model Number: Bratz Electronic Funk Wireless FM Mic. Manufacturer: N/A Brand Name: N/A Model Number: 275107 Input Voltage: 3Vd.c (“AAA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test(EUT) is an MGA Entertainment (HK) Ltd., Bratz Electronic Funk Wireless FM Mic The transmitter is a 1 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic. and type is frequency modulation. 1.4 Date of Order 2004-04-13 1.5 Submitted Sample(s): 6 Samples per model 1.6 Test Duration 2004-05-13 1.7 Country of Origin China Date: 2004-05-17 TEST REPORT Page 7 of 17 No.: HM150663 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2004-05-17 TEST REPORT Page 8 of 17 No.: HM150663 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 Class B Note: N/A - Not Applicable Date: 2004-05-17 TEST REPORT Page 9 of 17 No.: HM150663 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.109 Class A Test Method: ANSI C63.4:2003 Test Date: 2004-05-13 Mode of Operation: On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: OATS [Open Area Test Site] located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2004-05-17 TEST REPORT Page 10 of 17 No.: HM150663 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.239]: Frequency Range of Fundamental Peak Limits Average Limits [MHz] [μV/m] [μV/m] 88-108 2,500 250 Results: FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdBμV/mμV/m 100.0026.89.836.667.62,500Vertical μ V/mdB μ V/m Field Strength dB μ V/m Field Strength of Fundamental Emissions Peak Value Measured Level @3m Field Strength FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdB μ V/m μ V/m 100.0026.79.836.566.8250Vertical μ V/mdB μ V/m Field Strength dB μ V/m Field Strength of Fundamental Emissions Average Value Measured Level @3m Field Strength Remarks: Correction Factor included Antenna Factor and Cable Attenuation. Calculated measurement uncertainty : 30MHz to 1GHz ±4.1dB According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency …

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
