LU9275107ABratz Movie Theme Rock Star FM Wireless Microphone

Jennifer Sanchez From: Generic Office of Engineering Technology [[email protected]] Sent: Thursday, July 19, 2007 9:30 AM To: Jennifer Sanchez Subject: Response to Inquiry to FCC (Tracking Number 227260) 7/19/2007 Inquiry: To Whom It May Concern, MET Laboratories, would like to request permission to Grant the following device: Category 1: FM band modulators / transmitters operating under 15.239 of the FCC rules. Description: The Equipment Under Test (EUT) is a MGA Entertainment (HK) Ltd., FM Wireless Microphone. The transmitter is a one button transmitter. The EUT continues to transmit while button is being pressed. Modulation by Microphone; and type is frequency modulation. 1 Describe the operation of the device. This Lil Bratz Wireless FC Microphone is operating at 100Hz and will transmit your voice and the built in sound effect through any FM radio. 1. Turn on the Bratz wireless FM mic. The red LED at the antenna will be lit up. 2. Get your radio and select FM band. 3. Tune your radio to 100MHz. If you find a commerical station, tune a little to either sides of 100MHz. 4. Place this FM microphone close to the radio while tuning! your radio around 100MHz. The frequencies are matched if you hear the feedback sound. 5. Now you can sing to the MIC and hear your voice through the radio. 6. You can add special effect to your singing when pressing the sound buttons. 2 Provide information on the device and its antenna. The antenna consists of a 6.5cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (?AAA? size battery x 2) primary battery. 3 How is it installed? No installation required. 4 Describe the test procedure used. ANSI C63.4 test method is adopted. 5 If tested in a car, describe how was it configured and tested. We just test on test table according to ANSI C63.4 and product not mentions use on the car. 6 At the present time, FM transmitters (subject to 15.239) tested in vehicles must also be tested on a test table. Provide both sets of data. All data must be compliant. Please see test report. 7 Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. The EUT just only operation on 100MHz and it can?t changed. 8 Was the bandwidth properly tested with maximum audio input? During the test, we would use MP3 or CD player input audio signal to EUT and turn max. volume with different sound (e.g.: very loud song) in order to get worst result. 9 Use a typical audio file from a typical device. e.g. do not use a 1 kHz signal from a signal generator. During the test, we would use MP3 or CD player input audio signal to EUT and turn max. volume with different sound (e.g.: very loud song) in order to get worst result. 10 Provide the test report showing compliance with the rules. HKSTC provided test report. If you need more information please contact me. Thank you Jennifer Sanchez TCB Administrator MET Laboratories, Inc. 408-213-2359 [email protected] Response: The information provided was reviewed and was found to be in line with the requirement for approval. The following info will also help you to "fine-tune" your application for approval: The assembly of Form 731 should be concurrent during the final certification testing of the radio. Exhibits to be electronically attached to Form 731 include: z Form 731 Payment Schedule as specified by Form 159 z Letter of Confidentiality (if applicable) z Users Manual with appropriate FCC Compliance Statements consisting of Part 15 Compliance Statement, Change Warning Statement and RF Exposure Statement z Product Label File detailing FCC ID Number assignment z Theory of Operation z Operational Block Diagram z Detailed Schematics z RF Safety Calculations (if applicable) z External photos of marketed product featuring FCC ID Numbering z Internal photos of PCBs with detailed RF Section photos z Radiated Emissions Test Report z Conducted Emissions Test Report (if applicable) Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. 7/19/2007

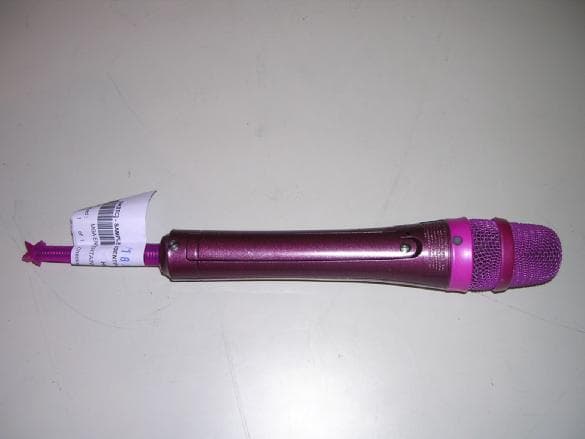

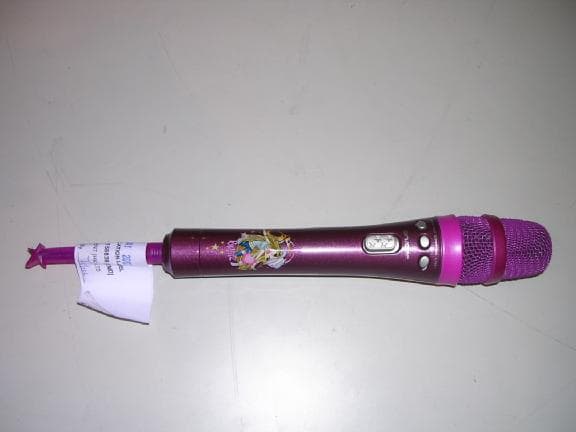

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

Label location REAR VIEW OF THE PRODUCT The label (FCC ID number with statement) is etched and must not be readily detachable.

Label location REAR VIEW OF THE PRODUCT The label (FCC ID number with statement) is etched and must not be readily detachable.

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: LU9275107A Circuit Description The RLC oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by microphone. The output of Q2 has the matching network consisting of C9, L2 and L3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 6.5 cm long Metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AAA” size battery x 2) primary battery Operation Descriptions The transmitter is a voice transmitter operating at 100.1MHz band. The transmitter is powered by a 3V battery (“AAA” size battery x 2) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 100.1 MHz carrier frequency. Remarks: The transmitter is a 4 button transmitter. The EUT continues to transmit while EUT is switch on. It is button transmitter, Modulation by Microphone; and type is Frequency modulation.

FCC ID: LU9275107A Antenna, Ground and Power Source The antenna consists of a 6.5 cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AAA” size battery x 2) primary battery Antenna

STC Test Report Date : 2007-05-28 Page 1 of 16 No. : HM158838 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (MGE001): MGA Entertainment (H.K.) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong. Manufacturer: N/A Description of Samples: Product: FM Wireless Microphone Brand Name: N/A Model Number: 360179 FCC ID: LU9275107A Date Samples Received: 2007-05-18 Date Tested: 2007-05-22 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: For additional models details, see page 5. LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-05-28 Page 2 of 16 No. : HM158838 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 16 Content Page 2-3 of 16 1.0 General Details 1.1 Test Laboratory Page 4 of 16 1.2 Applicant Details Page 4 of 16 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 16 Description of EUT operation 1.4 Date of Order Page 5 of 16 1.5 Submitted Samples Page 5 of 16 1.6 Test Duration Page 5 of 16 1.7 Country of Origin Page 5 of 16 2.0 Technical Details 2.1 Investigations Requested Page 6 of 16 2.2 Test Standards and Results Summary Page 6 of 16 3.0 Test Results 3.1 Emission Page 7-10 of 16 3.2 Bandwidth Measurement Page 11-12 of 16 3.3 Operation Description Page 13 of 16 STC Test Report Date : 2007-05-28 Page 3 of 16 No. : HM158838 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 14 of 16 Appendix B Photographs Page 15-16 of 16 STC Test Report Date : 2007-05-28 Page 4 of 16 No. : HM158838 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant MGA Entertainment (H.K.) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong. Manufacturer N/A STC Test Report Date : 2007-05-28 Page 5 of 16 No. : HM158838 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: FM Wireless Microphone Manufacturer: N/A Brand Name: N/A Model Number: 360179 Additional Model Number: 275107, 305729, 305040, 388659, 366737, 363545, 342935, 366119, 409564, 333463 Input Voltage: 3Vd.c. (“AAA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a MGA Entertainment (H.K.) Ltd., FM Wireless Microphone. The transmitter is a 1 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic. and type is frequency modulation. 1.4 Date of Order 2007-05-18 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-05-22 1.7 Country of Origin China STC Test Report Date : 2007-05-28 Page 6 of 16 No. : HM158838 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requi…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
