LU9287384Spiderman II Dragster 49MHz

Instruction Manual 41 0504-A-0 SPECIFICATIONS STEP 1 : CHARGING THE BATTERY Fig. 1 Fig. 2 Wall Note: Battery life varies depending on usage. An average charge should last approximately 20 minutes. The 6.0V NiCd rechargeable battery should be charged by an adult. Web Stretchin' Dragster A G E S 6 + 1. Click the Battery Pack into the bottom of the Charging Unit with the positive (+) and negative (-) ends facing in the directions indicated. (see Fig.1) 2. Plug the Charging Unit into a standard 120V wall outlet. (see Fig.2) 3. Allow the Battery Pack to charge for 4 hours. 4. Remove the Battery Pack from the Charging Unit by pressing the battery release button and pulling. It should feel warm. Important: - After use, the Battery Pack may be hot. Allow it to cool for at least 20 minutes before recharging. - If the Battery Pack shows signs of leakage or erosion, do not recharge; replace it immediately. - Do not disassemble the Battery Pack. - If the battery pack or charging unit becomes wet, dry thoroughly before recharging. - Do not use any other rechargeable battery except for the standard 6.0V NiCd Battery Pack that was intended solely for use with the product. - The Battery Charger used with the toy is to be regularly examined for damage to the plug, enclosure and other parts. In the event of such damage, the toy must not be used with this battery charger until the damage has been repaired. Before you can experience all the fun and excitement of using your toy, you must charge your Battery Pack. Follow these simple instructions for your initial charge-up and all recharges thereafter. Race against time to help Spider-Man save the city from his arch nemesis, the evil Doc Ock! Simply control where Spidey goes with full-function, six-way operational, radio control! The super-speed of this Web Stretchin' Dragster is the only thing a super-hero like Spider-Man can count on! So speed-up, stretch-out and save the day! FCC NOTICE: This equipment has been tested and found to compy with limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, this is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. IMPORTANT NOTICE: Modifications not authorized by the manufacturer may void user's authority to operate this device. Emissions or interference of surrounding electronic equipment may affect operating performance. CAUTION: - Do not use rechargeable batteries for the Remote Control Handset. - Not suitable for children under 3 years. - May contain small parts. TM & © MGA Entertainment, Inc. 16730 Schoenborn Street North Hills, CA 91343 USA (800) 222-4685 Printed in China The pref er red method of contact f or Customer Service is through our e-mail contact f orm at www.mgae.c om Includes: - Spider-Man 2 Web Stretchin' Dragster - Full-Function Handset - Instruction Manual Requires: - 1x 6V 700mAh NiCd Battery Pack - 4-hour Charger for 6V 700mAh NiCd Battery Pack - 1x 9V Battery Race the 27MHz & 49MHz Web Str et chin' Dragsters against each other for awesome, c ompetitve racing action!

2 3 STEP 4 : RECHARGING THE BATTERY STEP 2 : INSTALLATION OF BATTERIES STEP 3: USING YOUR WEB STRETCHIN' DRAGSTER OPERATION TIPS AND HELPFUL HINTS TROUBLE SHOOTING Remote Controller 1. Switch the power to the "OFF" position. 2. Unscrew and remove the battery compartment cover, located on the back of the handset, with a Phillips screwdriver. (see Fig. 3) 3. Insert 1 x 9V Alkaline battery in the proper direction as indicated inside the battery compartment. (see Fig. 3) 4. Put the battery cover back on & tighten the screw securely. 5. Switch the power to the "ON" position. Vehicle 1. Switch the power to the "OFF" position. 2. Unlock and remove the battery compartment cover located on the rear of the vehicle. (see Fig. 4) 3. Insert a fully charged 6V NiCd battery pack with the positive (+) and negative (-) ends facing in the proper direction as indicated inside the battery compartment. (see Fig. 4) 4. Put the battery cover back on & lock securely. 5. Switch the power to "ON" position. A f t er appr oxima t ely 20 minut es , the p er for manc e abilit y of y our t oy will decr eas e . I t is time t o char ge y our B a tt er y P ack. T o do s o , simply f ollo w thes e quick and easy st eps: 1. R emo v e the B a tt er y P ack fr om y our D r agst er , manually , b y unlo ck ing the le v er on the ba tt er y c ompar tmen t and r emo ving the ba tt er y do or t o e xp ose the B a tt er y P ack. I f the ba t t er y is w ar m , please allo w up t o t w en t y minut es f o r it t o c ool b ef or e r echar ging . 2. F ollo w the r echar g ing instr uc tions included with y our B a tt er y P ack and C har g er . -Do not oper ate during thunderstorms. - When your vehicle starts to lose power , it may exper ience loss of functions or performance ability. I f this happens, simply recharge your Batt ery Pack again and/or replace the Handset batt ery. -The toy is oper ated by radio waves. I t is possible the unit may not perform proper ly due to in terfer ence from nearby devices such as a cordless phone, hair dryer , r adio, walkie-talkie or other radio-contr olled toys. -Avoid water , sand and snow when oper ating your toy. In addition, do not submerge the toy in water. -Always select a safe place to play. Never driv e your vehicle on populated streets or wet areas. -Keep fingers, hair and loose clothing away from the tires, wheel hubs and motors while the vehicle is switched on. -Clean the toy with a dry, clean cloth after playing. -If the vehicle goes out of range of the Handset or the batt ery is low, the vehicle will stop running. - Do not get your rechargeable batt ery wet. I f you do, dry it immediately. SAFETY BATTERY PRECAUTIONS - Non-rechargeable batt er ies are not to be recharged. - Rechargeable batt er ies are to be removed from the toy bef ore being charged. - Rechargeable batt er ies are only to be charged under adult supervision. - Diff er ent types of batt er ies or new and used batt er ies are not to be mixed. - Only batt er ies of the same or equivalent type as recommended are to be used. - Batt er ies are to be inserted with the correct polarit y. - Exhausted batt er ies are to be removed from the toy. - The supply terminals are not to be short-circuited. - Do not dispose of the batt er ies in fire; batt er ies may leak or explode. - Batt er ies should be replaced by an adult. - Use alkaline batt er ies for better performance. - When not in use for an extended time, remove batteries to prevent possible leakage. Left Control Stick Right Control Stick Fig .6 Fig .7 Power LEDPower LED Fig .5 Retract Body SHRINK BODY STRETCH BODY Stretch Body 1. I f your toy responds slowly or fails to oper ate: - Make sure the batt er ies in both the Handset and Dragster are installed proper ly . - Recharge your Batt ery Pack and/or replace the Handset batt ery. - Make sure both the toy and the handset are turned ON. - Make sure the Batt ery Contacts have not become dirty. I f they have, simply brush them with a dry cloth. - Move the remote control handset closer to your toy to determine the best communication between the remote handset and the vehicle. 2. Upon continuous playing, the vehicle may shut down automatically due to overheating. Please allow the vehicle to cool down for at least 10 minutes before restarting. 1 Switch the Remote Contr ol Handset to the "ON" position and the power indicator will light up. (see Fig . 5). 2. S witch the vehicle to the "ON" position. 3. P ress the left and right buttons, on the forwar d end of the handset, t o stret ch and retract the vehicle. (see Fig . 5). 4. Use the Lef t & Right contr ol sticks to make the vehicle run FORWARD, B ACKWARD, LEFT, RIGHT and SPIN. (see Fig . 6 and 7) 5. Upon pressing and holding down the "STRETCH BODY" button, the handset will make mechanical gear noises. 6. C ontr ol the vehicle to run BACKWARD and then fast FORWARD to pop wheelies. (see Fig .8). Fig. 3 9 V 6 L R6 1 X Fig. 4 6V Fig .8 1 2

TX ANT Upon pressing and holding down the "Stretch Body" button,the memory of coder IC sending out mechanical gear sound data to the audio amplifier There is soundness while pressing other control buttons. D731 49MHZ TX Block Diagram AM Modulator RF.OSC 49.860 MHz RF Amplifier SH59006 Micro-controller 3.3V Zener Regulator Audio Amplifier Speaker LEFT RIGHT FORWARD BACKWARD STRETCH RETRACT Main Power Source ON/OFFPOWER

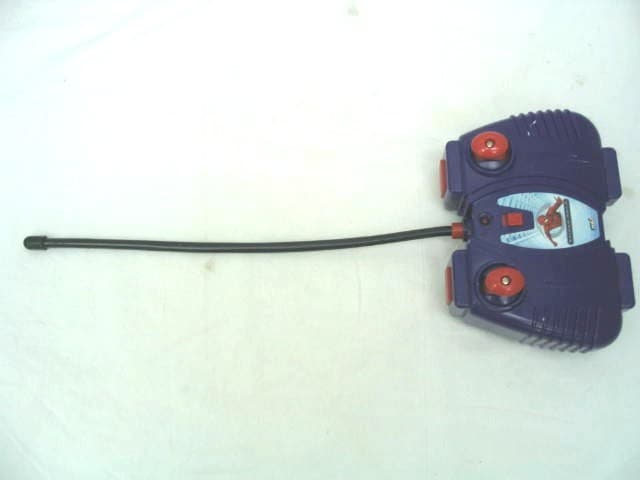

Operation Description of Transmitter for Spiderman II Dragster (49.860 MHz) The Spiderman II Dragster controller is a transmitter operating at 49.860 MHz and is controlled by a crystal. It is powered by a 9V battery. There are two joysticks and two button keys. When the forward or backward joystick is turned, it will transmit a radio frequency for the receiver to move forward or backward. When the left or right joystick is turned, it will transmit a radio frequency for the receiver to move left or right. Upon pressing and holding down the ìStretch Bodyî button, the memory of coder IC sends out mechanical gear sound data to the audio amplifier. There is no sound when other control buttons are pressed. At the same time the controller will transmit a signal to the receiver and the vehicle body of the receiver performs a stretch action. When the ìShrink Bodyî button is pressed, the controller will transmit a signal to the receiver and the vehicle body of the receiver will shrink. Referring to the circuit design, the circuit description is listed as follows: - U1 and associated circuit act as the encoder and produce sound signal - X1, Q1, C3, L1, C1 and associated circuit act as the oscillator - C5, D9, R7 and associated circuit act as voltage control - U1, R3, C2, Q2 and associated circuit act as RF amplifier and modulate the carrier signal - L2, L3, the antenna coil, C6, C7, C8 and associated circuit act as the antenna matching network - Q3 and associated circuit act as the audio amplifier

1 2 34 ABCD 4 3 2 1 D CBA LUNG CHEONG TITLEFUNCTION DWG NO DZXX-XXXXXX-XX DESIGN DRAWING APPROVED SHEET 1 OF 1 L21.0UH Q22SC1959 C815P C727P C100.01U C9103 C633P R6100R C2 15P C115P C35P C40.01U L11.0UH Q12SC1815 R2560R R1100K X1 49.860MHZ R4 560 R310K SW3 SW4 SW5 SW6 R539K R7330 R81.5K D93.3V D10LED C547U B19V 1 ANT1 ANT VCC R 1 TE 2 GND 3 B 4 F 5 TU 6 SC 7 NC 8 F2B 9 SO 10 VDD 11 PC 12 OSCO 13 OSCI 14 F1B 15 L 16 U1SH59006 SW1 SW2 L30.47UH ANT1.5UH Q32SC8050D SPEAKER16R 0.25W D27mm R9270R

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE007127-1 Date : 2004 May 24 Applicant : MGA Entertainment (HK) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsim Sha Tsui, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Spiderman II Dragster 49 MHz of Model No. 287384. Rating : 9 V battery No. of sample(s) : Two(2) pieces *** Date Received : 2004 May 07. Test Period : 2004 May 07 ñ 2004 May 11. 2004 May 18 ñ 2004 May 24. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 ñ Dec 2003 ANSI C63.4 ñ 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : LU9287384 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE007127-1 Date : 2004 May 24 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : LU9287384 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE007127-1 Date : 2004 May 24 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Spiderman II Dragster operating at 49.860 MHz and is controlled by a crystal. The EUT is powered by a 9V battery. There are two joysticks and two button keys. When the forward or backward joystick is turned, it will transmit a radio frequency for the receiver to move forward or backward. When the left or right joystick is turned, it will transmit a radio frequency for the receiver to move left or right. When upon pressing and holding down the ìStretch Bodyî button, the memory of coder IC sends out mechanical gear sound data to the audio amplifier. There is no sound when other control buttons are pressed. At the same time the controller will transmit a signal to the receiver and the vehicle body of the receiver performs a stretch action. When the ìShrink Bodyî button is pressed, the controller will transmit a signal to the receiver and the vehicle body of the receiver will shrink. The brief circuit description is saved with filename : OpDes.pdf 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is authorized by Certification procedure. Page 3 of 11 FCC ID : LU9287384 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CM…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories Report No.: AE007127-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories Report No.: AE007127-1 Duty Cycle Duty Cycle 1 CMA Testing and Certification Laboratories Report No.: AE007127-1 Duty Cycle Duty Cycle 2 Duty Cycle 3
