LU9322245RC Car

FCC ID: LU9322245 Ophoto1 Ophoto2 FCC ID: LU9322245 Ophoto3 Ophoto4

FCC ID: LU9322245 Iphoto1 Iphoto2 FCC ID: LU9322245 Iphoto3 Iphoto4

FCC ID: LU9322245 Technical Description : The brief circuit description is listed as follows : - X1, L1, C2 and associated circuit act as 27.149 MHz Oscillator. - U1 and associated circuit act as Encoder and Modulator. - Z1 and associated circuit act as Voltage Regulator (4.3V). - Q1 and associated circuit act as RF Amplifier. - SW1-SW3 act as Control Keys. Antenna Used : An integral antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : LU9322245 MGA Entertainment (HK) Ltd. Application For Certification (FCC ID: LU9322245) Transmitter Sample Description : Spiderman Jr. Firetruck R/C Vehicle Model : 322245 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-2004] 0603637 BC/at April 3, 2006 INTERTEK TESTING SERVICES FCC ID: LU9322245 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: LU9322245 ii MEASUREMENT/TECHNICAL REPORT MGA Entertainment (HK) Ltd. - MODEL: 322245 FCC ID: LU9322245 April 3, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1- 2004 Edition] provision. Report prepared by: Billy Chow Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: LU9322245 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories............................................................................................. 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information................................................................................... 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor ............................................................................ 26 8.4 Emission Test Procedures ................................................................................ 27 8.4 Emission Test Procedures (Cont’d).................................................................... 28 INTERTEK TESTING SERVICES FCC ID: LU9322245 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: LU9322245 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: LU9322245 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC Car operating at 27.149 MHz which is controlled by a crystal. The EUT is powered by a 9V batter…

Text truncated - open the document above for the full version.

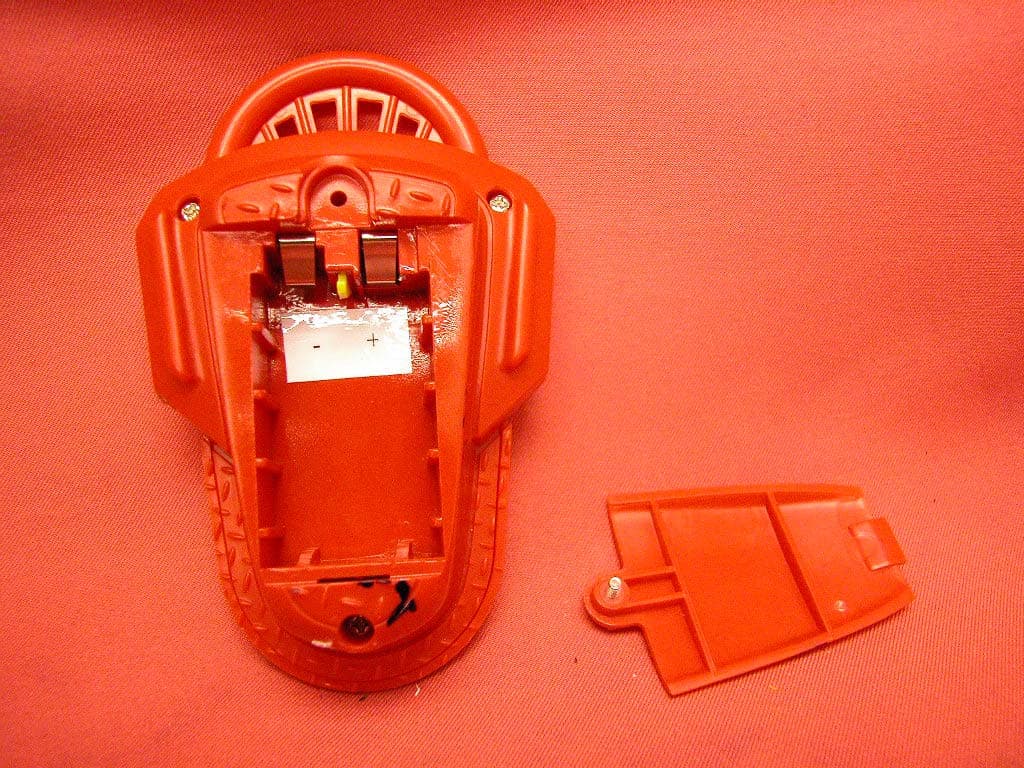

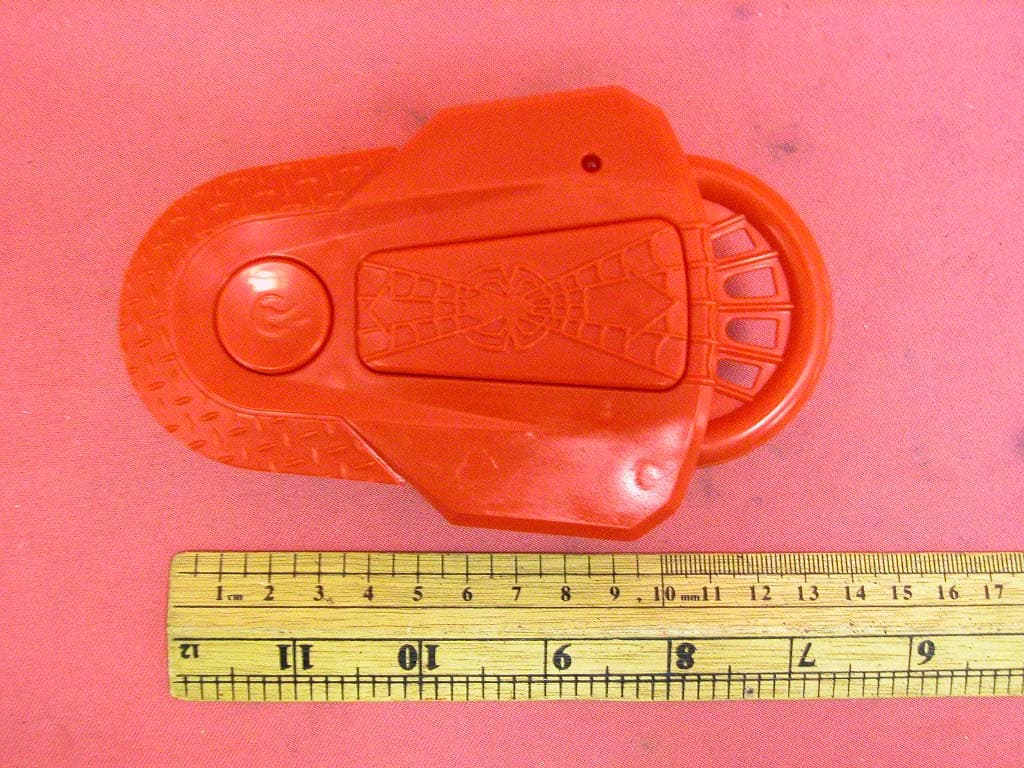

INTERTEK TESTING SERVICES Front View Back View
