LU9324201Remote Control Toy Transmitter

SPIDER-MAN® AND FRIENDS™ CRIME CRUISER AGES 3+ INTRODUCTION It’s Spider-Man to the rescue, but this time he’s not swinging on webs, he’s working with the everyday heroes and riding in cool rescue vehicles – just like they do! CONTENTS Before you rush to put out any fires, make sure your package contains: • 1 - Spider-Man® and Friends™ Crime Cruiser with Battering Ram • 1 - Remote Control Transmitter [HK please add illustration of contents] BEFORE YOU BEGIN To power up your Spider-Man® and Friends™ Crime Cruiser you will need to install the following: • Two (2) AA batteries (not included) in the remote control transmitter. • Three (3) AA batteries (not included) in the vehicle. INSTALLING BATTERIES In the Remote Control Transmitter: 1. Use a Philips screwdriver (not included) to remove the battery door screw and battery door. [HK please add illustrations of Remote Control battery door and battery installation] 2. Insert two (2) AA batteries (not included) in the battery compartment with the positive (+) and negative (-) ends facing to the proper direction as indicated inside the compartment. 3. Replace the battery door and tighten the screw In the Spider-Man® and Friends™ Crime Cruiser: 4. Slide the vehicle ON/OFF switch to the OFF position. 5. Turn the unit over and, using a Philip’s screwdriver (not included) remove the battery door screw and battery door. [HK please add illustrations of Vehicle battery door and battery installation] 6. Insert three (3) AA batteries (not included) in the battery compartment with the positive (+) and negative (-) ends facing the proper direction as indicated inside the compartment. 7. Replace the battery door and tighten the screw. SAFETY BATTERY USAGE • Use alkaline batteries for best performance and longer life. • Use only the type battery recommended for the unit. • Batteries should be replaced only by an adult. • Insert batteries with the correct polarity ( + and – ). • Do not mix different types of batteries or old and new batteries. • Do not short-circuit batteries. • When not in use for an extended time, remove batteries to prevent possible leakage and damage to the unit. • Do not mix rechargeable and non-rechargeable batteries. • Rechargeable batteries are to be recharged only under adult supervision. • Rechargeable batteries are to be removed from the toy before charging. • Non-rechargeable batteries are not to be recharged. • Do not dispose of batteries in fire as they may leak or explode. QUICK START 1. Slide the vehicle ON/OFF switch to the ON position. 2. Use the remote control transmitter to drive your vehicle. a. Press the front of the control pad to go forward. b. Press the back of the control pad to go backward and turn. [HK please add illustration of Forward and Reverse/Turn pads ] 3. The emergency lights will light only when the vehicle is moving. 4. Impact with another object triggers the Crime Cruiser battering ram to pop out of the front of the Cruiser. 5. After you’ve practiced driving the vehicle for awhile, invite your friends and show them what your Spider-Man® and Friends™ Crime Cruiser can do! HELPFUL HINTS • Since your vehicle is controlled by radio frequency, it may interfere with other radio controlled devices. If this occurs, move the vehicle to another location away from the interference. • The vehicle must remain in remote control range to operate correctly. The range depends on the surrounding area and on the strength of the battery. Obstructions such as buildings, fences, etc., between the remote control transmitter and the vehicle, reduce the range. • If the vehicle runs slowly, replace the batteries. • KEEP AWAY FROM WATER! Do not run your vehicle through puddles, or expose to liquid of any kind as moisture may damage the unit. CAUTION • MODIFICATIONS NOT AUTHORIZED BY THE MANUFACTURER MAY VOID THE USER’S AUTHORITY TO OPERATE THIS DEVICE. • EMISSIONS OR INTERFERENCE OF SURROUNDING ELECTRONIC EQUIPMENT MAY AFFECT OPERATING PERFORMANCE. FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Modifications not authorized by the manufacturer may void user’s authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

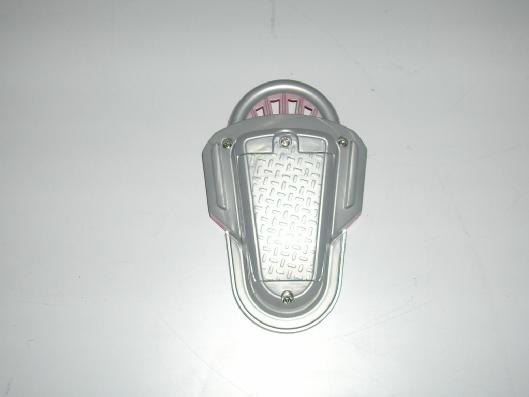

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: LU9324201 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

Application No.: HM155365 Date: 1 November 2005 FCC ID: LU9324201 Circuit Description The 27.145 MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC. The output of Q2 has the matching network consisting of L3 and C14 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AA” size battery x 2) primary battery. Operation Descriptions The transmitter is a toy car operating at 27.145MHz band. The transmitter is powered by a 3Volt battery (AA x 2) and the transmitting frequency is crystal controlled. There are 2 button to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 27.145MHz carrier frequency. Remarks: The transmitter is a 2 Button transmitter. The EUT continues to transmit while Button is being pressed. It is Pulse transmitter, Modulation byIC; and type is Pulse modulation.

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-27 TEST REPORT Page 1 of 17 No. : HM155365 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: MGA Entertainment (H.K.) Ltd. 9th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong. Description of Samples: Model name: Spiderman Crime Cruiser(27 MHz) Model no.: 324201 Brand name: N/A FCC ID: LU9324201 Date Samples Received: 2005-10-20 Date Tested: 2005-10-25 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMD for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-27 TEST REPORT Page 2 of 17 No. : HM155365 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 Bandwidth Measurement Page 11-12 of 17 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-27 TEST REPORT Page 3 of 17 No. : HM155365 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-27 TEST REPORT Page 4 of 17 No. : HM155365 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant MGA Entertainment (H.K.) Ltd. 9th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong. Manufacturer N/A 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-27 TEST REPORT Page 5 of 17 No. : HM155365 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Spiderman Crime Cruiser(27 MHz) Manufacturer: N/A Brand Name: N/A Model Number: 324201 Rating: 3.0Vd.c (“AA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a MGA Entertainment (HK) Ltd., Spiderman Crime Cruiser (27 MHz). The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed, It is pulse transmitter, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2005-10-20 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2005-10-20 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-10-27 TEST REPORT Page 6 of 17 No. : HM155365 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-1…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
