LU9331223Inductive Toys

MGA Entertainment (HK) Ltd.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jul 17, 2006
Application Purpose: Original Equipment
Date of Application: Jul 17, 2006
Equipment Note: Inductive Toys
Frequency Range: 13.56000000 - 13.56000000
Company: MGA Entertainment (HK) Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

FCC ID: LU9331223 Iphoto1 Iphoto2 FCC ID: LU9331223 Iphoto3 Iphoto4 FCC ID: LU9331223 Iphoto5 Iphoto6 FCC ID: LU9331223 Iphoto7 Iphoto8 FCC ID: LU9331223 Iphoto9 Iphoto10 FCC ID: LU9331223 Iphoto11 Iphoto12 FCC ID: LU9331223 Iphoto13 Iphoto14 FCC ID: LU9331223 Iphoto15 Iphoto16

External Photos

FCC ID: LU9331223 Ophoto17 Ophoto18 FCC ID: LU9331223 Ophoto19 Ophoto20 FCC ID: LU9331223 Ophoto21 Ophoto22 FCC ID: LU9331223 Ophoto23 Ophoto24 FCC ID: LU9331223 Ophoto25 Ophoto26 FCC ID: LU9331223 Ophoto27 Ophoto28 FCC ID: LU9331223 Ophoto29 Ophoto30 FCC ID: LU9331223 Ophoto31 Ophoto32

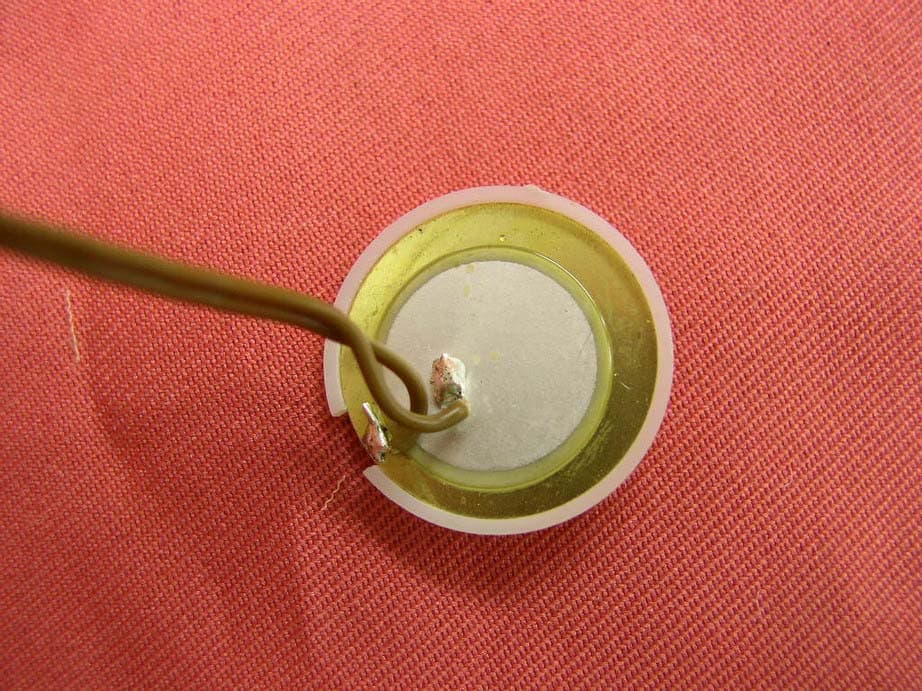

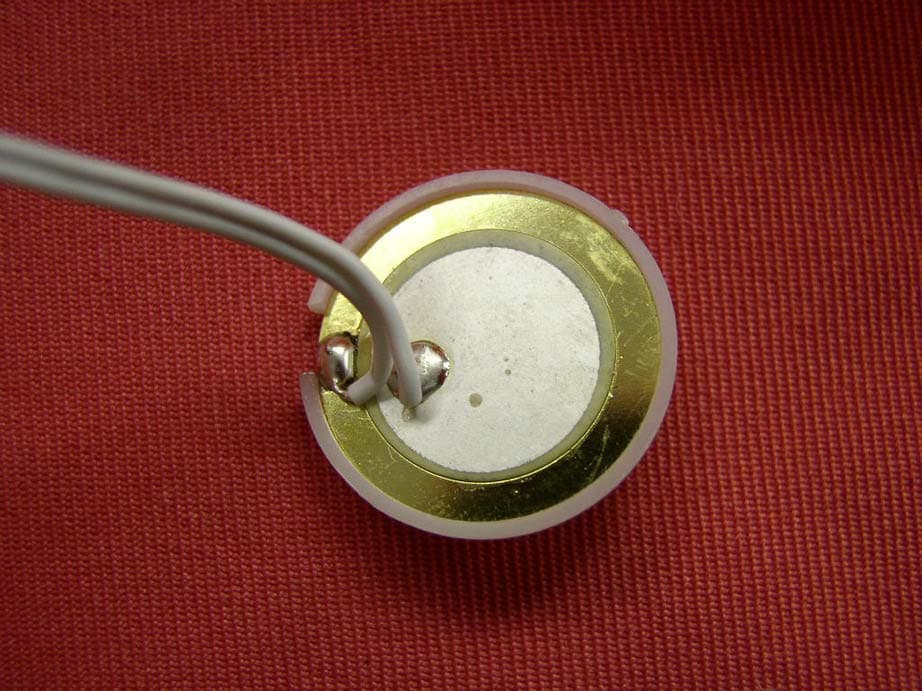

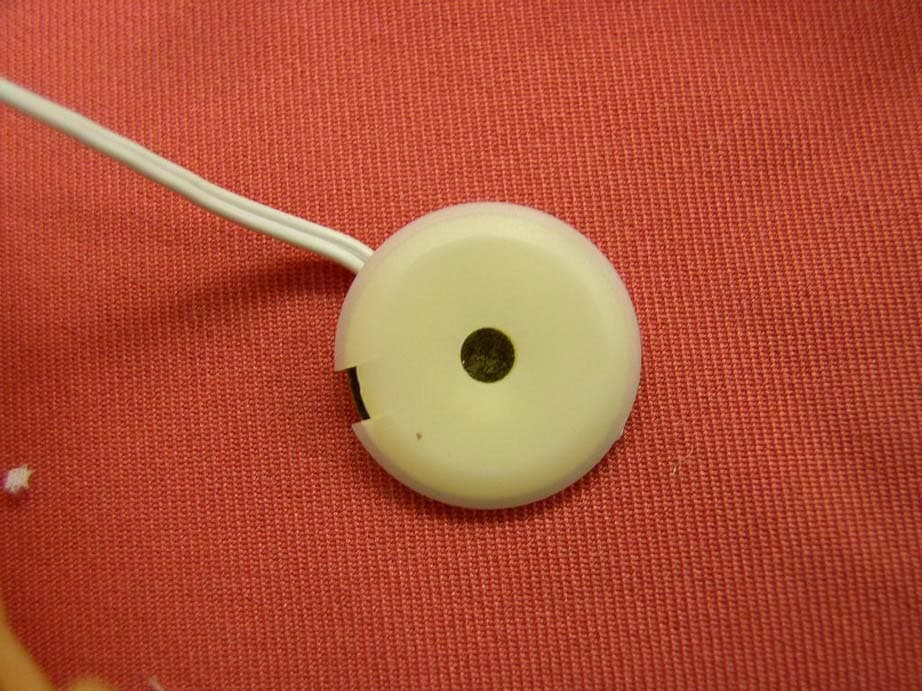

Internal Photos

FCC ID: LU9331223 Iphoto17 Iphoto18 FCC ID: LU9331223 Iphoto19 Iphoto20 FCC ID: LU9331223 Iphoto21 Iphoto22 FCC ID: LU9331223 Iphoto23 Iphoto24 FCC ID: LU9331223 Iphoto25 Iphoto26 FCC ID: LU9331223 Iphoto27 Iphoto28 FCC ID: LU9331223 Iphoto29 Iphoto30 FCC ID: LU9331223 Iphoto31 Iphoto32

Internal Photos

FCC ID: LU9331223 Iphoto33 Iphoto34 FCC ID: LU9331223 Iphoto35 Iphoto36 FCC ID: LU9331223 Iphoto37 Iphoto38 FCC ID: LU9331223 Iphoto39 Iphoto40 FCC ID: LU9331223 Iphoto41 Iphoto42 FCC ID: LU9331223 Iphoto43 Iphoto44 FCC ID: LU9331223 Iphoto45 Iphoto46

Internal Photos

FCC ID: LU9331223 Iphoto47 Iphoto48 FCC ID: LU9331223 Iphoto49 Iphoto50 FCC ID: LU9331223 Iphoto51 Iphoto52 FCC ID: LU9331223 Iphoto53 Iphoto54 FCC ID: LU9331223 Iphoto55 Iphoto56 FCC ID: LU9331223 Iphoto57 Iphoto58 FCC ID: LU9331223 Iphoto59 Iphoto60 FCC ID: LU9331223 Iphoto61 Iphoto62

Internal Photos

FCC ID: LU9331223 Iphoto63 Iphoto64 FCC ID: LU9331223 Iphoto65 Iphoto66 FCC ID: LU9331223 Iphoto67 Iphoto68 FCC ID: LU9331223 Iphoto69 Iphoto70 FCC ID: LU9331223 Iphoto71 Iphoto72 FCC ID: LU9331223 Iphoto73 Iphoto74

Internal Photos

FCC ID: LU9331223 Iphoto75 Iphoto76 FCC ID: LU9331223 Iphoto77 Iphoto78 FCC ID: LU9331223 Iphoto79 Iphoto80 FCC ID: LU9331223 Iphoto81 Iphoto82 FCC ID: LU9331223 Iphoto83 Iphoto84 FCC ID: LU9331223 Iphoto85 Iphoto86 FCC ID: LU9331223 Iphoto87 Iphoto88

Internal Photos

FCC ID: LU9331223 Iphoto89 Iphoto90 FCC ID: LU9331223 Iphoto91 Iphoto92 FCC ID: LU9331223 Iphoto93 Iphoto94 FCC ID: LU9331223 Iphoto95 Iphoto96 FCC ID: LU9331223 Iphoto97 Iphoto98 FCC ID: LU9331223 Iphoto99 Iphoto100 FCC ID: LU9331223 Iphoto101 Iphoto102 FCC ID: LU9331223 Iphoto103 Iphoto104

Operational Description

FCC ID: LU9331223 Technical Description : The brief circuit description is listed as follows : - ANT1, ANT2 and ANT3 and associated circuit act as Loop Antennas and Matching Circuit for the tag reader. - U1 W55MID50, XTAL1 and associated circuit act as RFID Reader & 13.56 MHz Oscillator. - U2 RSC-4128 and associated circuit act as Speech Recognition Processor. - U3 74HC374 and associated circuit act as 3-State Octal d-type Flip- Flop. - U4 MR27V802F and associated circuit act as Programmed ROM. - U5 SPY0030A and associated circuit act as Amplifier for Speaker. - Q2(9014D), Q3(9014D), Q4(WPTS-565WC) and associated circuit act as Light Detector. - S1 – S9, BZ1 and BZ2 act as Control Keys. - Q4(9014D), Q5(8550D) and associated circuit act as Eye Motor Driver. - Q1(3904), Q2(3904), Q3(8550D), Q4(8050D), Q5(8550D), Q6(8050D), Q7(3904) and associated circuit act as Body Motor Driver. - Q1(9014D), Q2(A928) and associated circuit act as Lip Motor Driver. - L1 and C1 act as Loop Antenna and Matching Circuit for the tag. - U1 W55MID15 and associated circuit act as RFID Tag. Antenna Used : Loop antennas have been used.

Test Report

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : LU9331223 MGA Entertainment (HK) Ltd. Application For Certification (FCC ID: LU9331223) Transmitter Sample Description : Baby Love and Glow (WS# 6378) Model : 331223 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2005] 0613116 AC/at July 12, 2006 INTERTEK TESTING SERVICES FCC ID: LU9331223 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: LU9331223 ii MEASUREMENT/TECHNICAL REPORT MGA Entertainment (HK) Ltd. - MODEL: 331223 FCC ID: LU9331223 July 12, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2005 Edition] provision. Report prepared by: Chan Kar Ming, Anthony Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: LU9331223 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories............................................................................................. 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 3.4 Frequency Tolerance......................................................................................... 15 4.0 Equipment Photographs ....................................................................................... 17 5.0 Product Labelling.................................................................................................. 19 6.0 Technical Specifications....................................................................................... 21 7.0 Instruction Manual ................................................................................................ 23 8.0 Miscellaneous Information ................................................................................... 25 8.1 Measured Bandwidth......................................................................................... 26 8.2 Emission Test Procedures ................................................................................ 27 8.2 Emission Test Procedures (Cont’d).................................................................... 28 INTERTEK TESTING SERVICES FCC ID: LU9331223 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: LU9331223 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: LU9331223 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is transmitter for an Inductive toy doll (RFID tag reader) operating at 13.56 MHz which is controlled by a crystal. The EUT is powered by four C size batteries. This toy consists of a toy doll (RFID tag reader) and nine passive type powered tags (a diaper, a …

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICES Front View Back View
