LU9337966F7Mobile Handset

5 6 7 8 1 2 3 4 MESSAGES • In Mode “B,” access the Menu, highlight the envelope diagram, then press “OK”. NOTE: You can save 9 Inbox messages and 8 messages in the Sent Folder. CONTACTS In Mode “B,” press the and keys until the “CONTACTS” icon is highlighted (Fig. 7). Press “OK”. QUICK START IMPORTANT NOTE WHEN REPLACING BATTERIES: If batteries are removed and replaced within a ONE MINUTE TIME SPAN, SAVED messages in both the INBOX and SENT area and messages in the phone book will be retained. (Clock will need to be reset and To-Do List messages and Notepad messages will be lost.) If the unit loses power for more than one minute due to battery change or static shock, ALL messages will be lost. OTHER NOTES • Each Mobile Handset’s preset ID number is 0000 0000. • To TEXT message another Mobile Handset, an ID number must be set in each unit. • To set or change an ID number see page 12. • To see the ID number of your Mobile Handset see page 3. • To enter/store ID numbers of other units to your contact list, see “functions” on page 5. • For VOICE chat, there is no need to know the ID of the unit with which you are chatting. • To turn your unit on and off, press and HOLD the ON/OFF button for several seconds. • Before using the unit, turn the volume control on the side of the unit to mid-range. • Before text messaging it’s best to set up an ID number for each unit. To do so: 1. In Text Mode with no icons highlighted on the Menu, press **00000000## and “OK” to confirm. 2. Press 9, then “OK” to confirm. 3. Enter a new 8 digit ID number and press “OK” to confirm. 4. To check that your number is entered correctly, go to Menu and, with no icons highlighted, press the ID key on the side of the unit. INTRODUCTION These single channel FRS Mobile Handsets allow friends to talk or text message up to 2 miles! Mobile Handset units also include a clock, note pad, alarm and phone book. CONTENTS • 2 SMS Mobile Handsets BEFORE YOU BEGIN Get ready to talk and text to friends by first installing batteries in your Mobile Handsets. 1. Using a Phillips screwdriver (not included) remove the screw and battery compartment cover from the back of the Mobile Handset. (Fig. A) 2. Install four (4) AAA alkaline batteries (not included) making sure the (+) and (-) ends face the proper direction as indicated inside the battery compartment. 3. Replace the compartment cover and tighten the screw. KEY LAYOUTS AND FUNCTIONS Keypad Item no. 337966F7, 337966F7C ADULT BATTERY INSTALLATION AAA/1.5V/LR03 AAA/1.5V/LR03 AAA/1.5V/LR03 AAA/1.5V/LR03 Fig. A 46 5 1 2 3 Slide switch, which allows you to select Talk mode or Text mode. Mode “A” is Talk mode. Mode “B” is Text mode. Key 1. Talk/Text switch Go to Menu. With no icons highlighted, press to see your current ID number. To view your ID the unit must be in “B” (Text) Mode. 2. ID Press to talk, release to listen. To transmit your voice, unit must be in “A” Talk Mode. 3. Talk Press and HOLD to switch the unit ON or OFF. (Welcome Screen and ID number will appear, followed by the Menu screen.) To switch ON and OFF unit can be in either “A” (Talk) Mode or “B” (Text) Mode. 4. Power Highlights and selects menu and other items. (Center “OK” key confirms selection.) 5. Four Direction Keys and “OK” key. Cancels your selection. 6. Cancel FunctionsNotes Symbol Screen in Text (“B”) mode. To switch from upper to lower case, Press * (or the Shift Key) Example: ABC, or abc # * , . ? ! ; @ + - / = : _ \ / $ % ^ ( ) < > { } [ ] To access symbols: 1. Highlight Message Mode (envelope) on Menu and press “OK” to confirm. 2. Highlight “New”, then press “OK” to confirm. 3. Press #, rapidly until you reach the desired symbol. NOTES: Use directional keys to go back. Use the #1 Key for Commas and Periods. MAIN FEATURES TALKING FUNCTION Talking and Listening In “A” Mode, (the screen will say Talk/Listen) press and hold the Talk button and speak into the unit. Release the button to listen. Adjusting the Volume FunctionStep Adjust the volume using control dial on side of unit. Press “Talk” to talk with the other Mobile Handset user. Release “Talk” to listen to the other user voice. In Mode A 1. Highlight the “envelope” on the menu and press “OK”. 2. Press to highlight “NEW” then Press “OK” 3. Type your message using the keypad. Press “OK”. 4. Use the or to highlight “NEW NUMBER” then press “OK”. 5. Input the new ID number, then press “OK”. 6. A new menu will appear. 7. Select “SEND ONLY” to send the message only. 8. Select “SAVE” to save the message only. 9. Select “SAVE SEND” to save and send the message. NOTE: Number will NOT be saved to your address book. To create a message to be sent to a Mobile Handset which has already had its ID number saved on your contact list. To create a message to a Mobile Handset which has NOT had its ID saved to your contact list. To check the messages in your “Inbox”. FunctionStep 1. Highlight the “envelope” on the menu and press “OK”. 2. Press or to highlight “INBOX” (Fig. 1) then press “OK”. 3. The sender of your first message will be shown. 4. Press “OK” to read the message. Press “OK” again to see time and date sent. 5. Press Cancel to return to beginning of message. 6. Use the or keys to scroll to the next message. 1. Highlight the “envelope” on the menu and press “OK”. Press to highlight “NEW”, then Press “OK”. 2. Type your message using the keypad by pressing the keys quickly until you reach the desired letter, then press OK. 3. When finished, press “OK” and the CONTACT screen will appear. 4. Press or to highlight CONTACT. Press “OK”. 5. Using or to select the message recipient. Press “OK”. 6. A new menu will appear. 7. Select “SEND ONLY” to send the message but not save it. Select “SAVE” to save the message only. Select “SAVE SEND” to save and send the message. Similar to the steps in “Check Inbox.” 7. Press to go to the screen shown in Fig. 6. 8. Select “SAVE” and Press “OK” to save the message. 9. Select “DELETE” and Press “OK” to delete the message. 10. Select “FORWARD” …

Text truncated - open the document above for the full version.

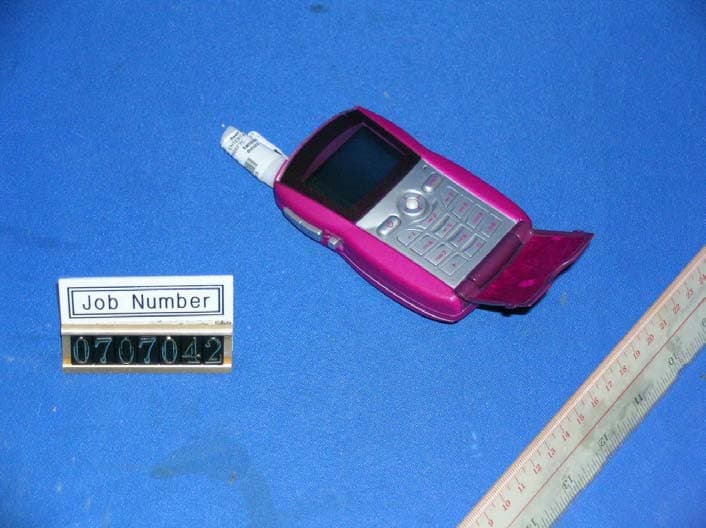

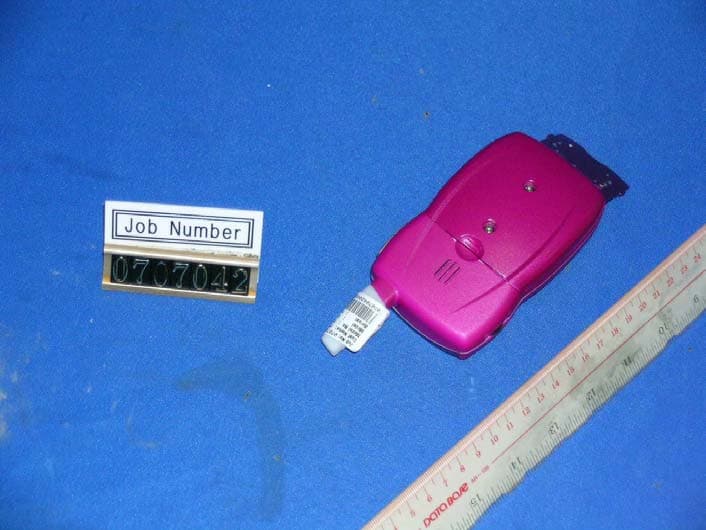

INTERTEK TESTING SERVICES External Photos FCC ID: LU9337966F7 external photos - 1 of 1 External Photo – Front External Photo - Rear

INTERTEK TESTING SERVICES Internal photos FCC ID: LU9337966F7 internal photos - 1 of 2 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: LU9337966F7 internal photos - 2 of 2 Internal Photo - 3 Internal Photo - 4

bom |-------------------------------------------------------------------------------| |Bill Of Materials for TW309V3.sch on Thu May 24 17:16:00 2007 | |-------------------------------------------------------------------------------| |Item|Qty |Reference|Part Name |Manufacturer |Description | |----+----+---------+--------------+--------------+-----------------------------| |1 |1 |X301 |20.95MHz | | | | | | |CL=17.5PF | | | |2 |1 |FL301 |21.4M | | | |3 |2 |D5 D303 |1SV214 | | | |4 |1 |Q202 |2SA1162, | | | |5 |2 |Q307-308 |2SC4901 | | | |6 |1 |Q301 |2SK3078A | | | |95 |5 |Q302-304 |2sc4901 | | | | | |Q306 Q310| 2sc4901 |7 |1 |FD201 |450KHz | | | |8 |1 |U2 |AIC1730, | | | | | | |LP2985-3.6V | | | |9 |1 |ANT301 |ANT | | | |10 |1 |U5 |AT24C64 | | | |11 |1 |C282 |CAP-5A,100U | | | |12 |1 |C267 |CAP-5A, | | | | | | |100UF/6.3V | | | |13 |1 |C265 |CAP-5A, | | | | | | |220U/6.3V | | | |14 |1 |BAT1 |CELL,6V | | | |15 |21 |C121 C218|CMC,100P | | | | | |C221 C224| | | | | | |C233 C258| | | | | | |C308-309 | | | | | | |C313 C318| | | | | | |C334 C342| | | | | | |C355 C357| | | | | | |C361 C364| | | | | | |C371 C374| | | | | | |C378-380 | | | | |16 |3 |C201 C270|CMC,102P | | | | | |C321 | | | | |17 |1 |C222 |CMC,103 | | | |18 |7 |C111 C116|CMC,103P | | | | | |C273 C279| | | | | | |C319 C343| | | | | | |C346 | | | | |19 |33 |AC1 |CMC,104 | | | | | |C102-103 | | | | | | |C105-108 | | | | | | |C110 C113| | | | | | |C115 C117| | | | | | |C120 C122| | | | | | |C202 | | | | | | |C204-206 | | | | | | |C208 | | | | | | |C215-216 | | | | | | |C220 C269| | | | | | |C272 C278| | | | | | |C281 C285| | | | | | |C289 C310| | | | | | |C314 C333| | | | | | |C340 C345| | | | | | |C372 | | | | |20 |11 |C101 C109|CMC,105 | | | | | |C203 | | | | | | |C225-226 | | | | | | |C259 C261| | | | | | |C277 C280| | | | | | |C356 C373| | | | |21 |5 |C304-305 |CMC,10P | | | | | |C320 C331| | | | | | |C402 | | | | |22 |3 |C118-119 |CMC,12P | | | | | |C317 | | | | |23 |1 |C303 |CMC,15P | | | |24 |3 |C301 C338|CMC,1P | | | | | |C344 | | | | |25 |1 |C339 |CMC,2.5P | | | |26 |1 |C358 |CMC, | | | 第 1 页 bom | | | |2.5P=USA/2.7P=| | | | | | |UK | | | |27 |1 |C341 |CMC,220P | | | |28 |3 |C104 |CMC,222P | | | | | |C230-231 | | | | |29 |1 |C370 |CMC,223/X7R | | | |30 |3 |C211 C223|CMC,223P | | | | | |C254 | | | | |31 |4 |C207 C260|CMC,224 | | | | | |C266 C268| | | | |32 |2 |C332 C377|CMC,22P | | | |33 |1 |C306 |CMC,27P | | | |34 |1 |C383 |CMC,2P | | | |35 |4 |C217 C219|CMC,332P | | | | | |C257 C362| | | | |36 |1 |C271 |CMC,333 | | | |37 |4 |C350 C352|CMC,3P | | | | | |C359 C401| | | | |38 |4 |C232 C354|CMC,470P | | | | | |C365 C388| | | | |39 |2 |C255-256 |CMC,472P | | | |40 |1 |C2 |CMC,473P | | | |41 |1 |C363 |CMC,474/X7R | | | |42 |1 |C337 |CMC,47P | | | |43 |1 |C330 |CMC,4P | | | |44 |1 |C385 |CMC,5P | | | |45 |1 |C312 |CMC,6.8P | | | |46 |2 |C209-210 |CMC,680P | | | |47 |2 |C375-376 |CMC,68P | | | |48 |1 |C302 |CMC,6P | | | |49 |1 |C360 |CMC,8P | | | |50 |2 |C351 C353|CMC,9P | | | |51 |5 |C29 C112 |CMC,NU | | | | | |C114 C288| | | | | | |C307 | | | | |52 |1 |L302 |COIL-3T,2T | | | |53 |1 |L315 |COIL-3T,3T | | | |54 |2 |L301 L310|COIL-3T,5T | | | |55 |1 |L304 |COIL-3T,USA=2T| | | | | | | UK=3T | | | |56 |1 |L309 |COIL-4T,4T | | | |57 |1 |L305 |COIL-4T,5T | | | |58 |3 |D101-102 |D-1206,1N4148 | | | | | |D201 | | | | |59 |3 |D301-302 |D3.5MM,KDS114 | | | | | |D306 | | | | |60 |1 |U301 |DBL5018, | | | | | | |TB31202 | | | |61 |4 |Q101-104 |DTA143ZE,??? | | | |62 |1 |S301 |F465A,HDF465A | | | |63 |1 |U201 |KA3361D | | | |64 |1 |D304 |KDS114,KDS114 | | | |65 |1 |K24 |KEY-5-5, | | | | | | |#SYMBOL | | | |66 |1 |K22 |KEY-5-5,*CPAS | | | |67 |1 |K23 |KEY-5-5,0SPACE| | | |68 |1 |K12 |KEY-5-5,1ABC | | | |69 |1 |K13 |KEY-5-5,2DEF | | | |70 |1 |K15 |KEY-5-5,3GHI | | | |71 |1 |K16 |KEY-5-5,4JKL | | | |72 |1 |K17 |KEY-5-5,5MNO | | | |73 |1 |K18 |KEY-5-5,6PQRS | | | |74 |1 |K19 |KEY-5-5,7TUV | | | |75 |1 |K20 |KEY-5-5,8WXYZ | | | |76 |1 |K21 |KEY-5-5, | | | | | | |9SYMBOL | | | |77 |1 |K1 |KEY-5-5,CANCEL| | | |78 |1 |K8 |KEY-5-5,DOWN | | | |79 |1 |K7 |KEY-5-5,ID | | | |80 |1 |K4 |KEY-5-5,LEFT | | | |81 |1 |K5 |KEY-5-5,OK | | | |82 |1 |K3 |KEY-5-5,POWER | | | |83 |1 |K6 |KEY-5-5,RIGHT | | | |84 |1 |K9 |KEY-5-5,TALK | | | |85 |1 |K2 |KEY-5-5,UP | | | 第 2 页 bom |86 |2 |L306 L308|L,12nH | | | |87 |2 |L311-312 |L,15nH | | | |88 |1 |L303 |L,2.2UH | | | |89 |1 |L313 |L,2.2uH | | | |90 |1 |L314 |L,22nH | | | |91 |1 |LCD101 |LCD1A | | | |92 |1 |LED101 |LED | | | |93 |2 |U202-203 |LM358 |MOTOROLA |DUAL DIFFERENTIAL INPUT | | | | | | |OPERATIONAL AMPLFIER | |94 |1 |MIC2 |MIC,CMT-64 | | | | | | |96 |3 |R111 R288|R,0 | | | | | |R316 | | | | |97 |1 |R336 |R,0R | | | |98 |1 |R258 |R,1.2K | | | |99 |2 |R323 R341|R,1.5K | | | |100 |1 |R259 |R,1.8K | | | |101 |7 |R107 R117|R,10 | | | | | |R201-202 | | | | | | |R268 R329| | | | | | |R337 | | | | |102 |6 |R105-106 |R,100K | | | | | |R118 R219| | | | | | |R273 R339| | | | |103 |1 |R318 |R,102P | | | |104 |16 |R113 R116|R,10K | | | | | |R211-212 | | | | | | |R218 R223| | | | | | |R226 R236| | | | | | |R238-239 | | | | | | |R243-244 | | | | | | |R254-255 | | | | | | |R283 R328| | | | |105 |1 |R340 |R,120K | | | |106 |2 |R322 |R,150R | | | | | |R316A | | | | |107 |1 |R302 |R,15K | | | |108 |1 |R261 |R,18K | | | |109 |6 |R115 R209|R,1K | | | | | |R301 R315| | | | | | |R320 RT1 | | | | |110 |3 |R207 R224|R,1M | | | | | |R235 | | | | |111 |6 |R1 |R,2.2K | | | | | |R108-109 | | | | | | |R252 R326| | | | | | |R380 | | | | |112 |2 |R308 R402|R,2.7K | | | |113 |2 |R205 R332|R,220K | | | |114 |1 |R333 |R,27K | | | |115 |3 |R210 R229|R,3.3K | | | | | |R317 | | | | |116 |1 |R203 |R,3.9K | | | |117 |1 |R303 |R,30K | | | |118 |1 |R342 |R,330K | | | |119 |2 |R227 R280|R,33K | | | |120 |1 |R321 |R,3K | | | |121 |11 |R110 R114|R,4.7K | | | | | |R206 R213| | | | | | |R256 R309| | | | | | |R325 R327| | | | | | |R330-331 | | | | | | |R401 | | | | |122 |3 |R250-251 |R,4.7R | | | | | |R307 | | | | |123 |1 |AR1 |R,4.7k | | | |124 |2 |R312-313 |R,47 …

Text truncated - open the document above for the full version.

337966F7 Tune Up Procedure Test Testing model(进入测试模式)： Entering the test pattern before test: Under the SMS state, input” **00000000##OK” , Enter the main menu, Then ”1=TALK RX; 2=TALK TX; 3=SMS RX; 4=SMS TX; 9=change ID; 0=clear 24C64 message : (在对产品进行测试时先进入测试模式:在SMS状态下按:**00000000##OK进入主菜单:按1=TALK RX; 2=TALK TX ;3=SMS RX; 4=SMS TX; 9=更改ID; 0=清除24C64的信息J Note(注意事项) : 1. Remove 24C64 content before test (meaning a new 24C64) (在测试前先清除24C64的内容(即是新 的24C64) 2. ID should become 00000000 before Ex-factory (在出厂前要把ID设成00000000(八个0) Recommended Test Equipment (推荐的测试设备 ): 1．HP8920A -Integrated Communication Tester (HP8920A 通信综合测试仪) 2．Digital Voltmeter (数字电压表) 3．Digital Power Adjustable Regulators (数字可调稳压电源) 4．Digital ammeter (数字电流表) Equipment connected before the test(测试前的设备连接)： 1、Put 6V DC Power connect with COB board power supply end, please pay attention for polarity (把直流6V电源接到COB板的电源供应端，注意极性。) 2、Put COB plate antenna output connect with comprehensive tester’s end of RF/INPUT/OUTPUT/ (把COB板的天线输出端接到综合测试仪的RF/INPUT/OUTPUT/端 ) 3、Connecting a 4 Ohm resistance to the COB plate SPK end. (连接一个4奥姆的电阻到COB板的SPK端). 4、SPK port of the positive test should receive comprehensive instrument on AUDIO IN HI (SPK埠的正极应接到综合测试仪的AUDIO IN HI上) 5、Negative of SPK port should be connect with Comprehensive Test Instrument’s AUDIO IN LO, (SPK埠的负极应接到综合测试仪的AUDIO IN LO上) One . Current Testing(电流测试) 1. Standby current(待机电流): Note : the power supply of the products has been opened at the standby current. (说明：指产品的电源已打开 在待机的电流) 2. Transmit current (发射电流): Note : Working current while pressing the PTT switch(说明：指产品在按下PTT开关下的工作电流) 3. Off Electricity (关机电流)： Note : The current after products shut down(说明：指产品关机后的电流) Two .VCO Debugging (VCO调试) 1、 TALK /TX/VCO voltage (TALK /TX/VCO电压) PDF created with pdfFactory Pro trial version www.pdffactory.com Page 1 of 4 Description : the test voltage in TALK-TX VCO mode, if the VCO is not rated voltage reference, can adjust VCO coils (说明：在TALK-TX模式下的VCO测试电压，如果VCO的电压不在额定范围时，可以适当调节VCO 线圈) 2、 TALK/RX/VCO voltage (TALK/RX/VCO电压) Description : VCO test voltage in TALK-RX VCO mode, if the VCO is not rated voltage reference, can adjust VCO coils(说明：在TALK-RX模式下的VCO测试点电压，如果VCO的电压不在额定范围时，可以适当调节 VCO线圈) 3、 SMS/TX/VCO voltage (SMS/TX/VCO电压) Description : VCO test voltage in SMS-TX VCO mode, if the VCO is not rated voltage reference, can adjust VCO coils(说明：在SMS-TX模式下的VCO测试点电压，如果VCO的电压不在额定范围时，可以适当调节VCO 线圈) 4、 SMS/RX/VCO voltage (SMS/RX/VCO电压) Description : VCO test voltage in SMS-RX VCO mode, if the VCO is not rated voltage reference, can adjust VCO coils (说明：在SMS-RX模式下的VCO测试点电压，如果VCO的电压不在额定范围时，可以适当调节 VCO线圈)， Three、VCO frequency of the lock-in debugging ( VCO锁相频率的调试) Description : Adjust TC301 In TALK/TX model, so that the nominal frequency is in range of 462.6625MHZ. Switch to TALK/RX mode frequency is 441.2625MHZ (说明：在TALK/TX模式下调节TC301，使频率在额定的 462.6625MHZ范围内。切换为TALK/RX模式时频率为: 441.2625MHZ) Four、Transmit power Test(发射功率测试) 1、 Transmit power in Talk model (TALK模式下的发射功率) Measure the conducted transmit power between >25dBm and <= 26dBm (6.5dB antenna loss) Note : the output power on 50 Ohm load (说明：50欧姆负载下对讲机的输出功率) Measure the conducted transmit power between >25dBm and <= 26dBm (6.5dB antenna loss) 2、 Transmit power in SMS model (SMS模式下的发射功率) Note : the output power on 50 Ohm load (说明：50欧姆负载下对讲机的输出功率) Five、Sensitivity tests (灵敏度的测试) 1, Receiver sensitivity in TALK mode (TALK模式下接收灵敏度) Note: Sensitivity in TALK model(说明：在TALK模式的灵敏度) 2,Receiver sensitivity in SMS mode(SMS模式下接收灵敏度) Note: Sensitivity in SMS model(说明：在SMS模式的灵敏度) Six、Transmit modulation Test (发射调制的测试) 1、 TALK modulation (TALK调制) Note: Transmit modulation in Talk model (说明：在TALK模式的发射调制) 2、 SMS modulation (SMS调制) Note: Transmit modulation in SMS model (说明：在SMS模式的发射调制) NOTE: If transmit modulation isn’t in rating scope, Can appropriate adjustments VR2(注意：如果发射 调制不在额定范围时，可以适当调节VR2) Seven、RSSI control debugging (RSSI控制调试) Note: Adjust VR201 so that RSSI control sensitivity is in nominal range(说明：调节VR201使RSSI控制灵敏度 在额定的范围内。) PDF created with pdfFactory Pro trial version www.pdffactory.com Page 2 of 4 Eight、Output Radio level 输出音频电平 Note : When modulation frequency of Signal Source is 1KHZ, modulation is 1.5KHZ,and volume is turned up at the largest, Speakers output will have four ohm load output level (说明：信号源的调制频率=1KHZ 调制度 =1.5KHZ时在音量电位器拨到最大，喇叭输出端带4欧负载的输出电平) Walkie talkie Specification Model:Tw309(USA) Item Min Typical Max Units TALK Transmit Frequency 462.662 462.6625 462.663 MHz SMS Transmit Frequency 462.687 462.6875 462.688 MHz TALK Reveiver Frequency 462.662 462.6625 462.663 MHz SMS Reveiver Frequency 462.687 462.6875 462.688 MHz TALK TX VCO Frequency 462.662 462.6625 462.663 MHz TALK RX VCO Frequency 441.262 441.2625 441.263 MHz SMS TX VCO Frequency 462.687 462.6875 462.688 MHz SMS RX VCO Frequency 441.287 441.2875 441.288 MHz RF Bandwidth 3 4 5 KHZ IF Frequency 21.399 21.4 21.401 MHz IF Limiting Sensitivity (Sina=20db) -95 -100 -105 dBm RF Output Power (Load=50ohm) 25 25.5 26 dBm Limiting Sensitivity (Sina= 10dB) -120 -115 -110 dBm Transmitter Deviation (Mic Input 50mv 1KHz) 1 1.5 2 KHz RSSI Control Sensitivity -115 - -110 dBm Audio Output Power ( Load =4ohm) 230 250 270 mW Audio Distortion Amp Output 1 5 10 % S/N Ratio 45 50 55 dB Operation Voltage 4 5 6 V Talk Current 150 170 200 mA No Talk Current 9 15 20 mA PDF created with pdfFactory Pro trial version www.pdffactory.com Page 3 of 4 Standby Current 4 4.5 4.8 mA Battery size AAA VCO voltage range in TX/RX (TX/RX 模式下的 VCO 电压范围) 1 1.6 2 V PDF created with pdfFactory Pro trial version www.pdffactory.com Page 4 of 4

- The evaluation data of the report will be kept for 3 years from the date of issuance. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com MGA Entertainment (HK) Ltd. Application For Certification Mobile Handset (FCC ID: LU9337966F7) 07070421 TL/ ac May 31, 2007 INTERTEK TESTING SERVICES FCC ID: LU9337966F7 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Digital Data Transmission EXHIBIT 9: Technical Specifications EXHIBIT 10: Product Labelling EXHIBIT 11: Photographs EXHIBIT 12: Instruction Manual EXHIBIT 13: Tune Up Procedure EXHIBIT 14: Part List EXHIBIT 15: Input Current EXHIBIT 16: RF Exposure Info EXHIBIT 17: Confidentially Request INTERTEK TESTING SERVICES FCC ID: LU9337966F7 ii MEASUREMENT/TECHNICAL REPORT Application : MGA Entertainment (HK) Ltd. Trade Name/Model No : Bratz 337966F7C Bratz 337966F7 Date : May 31, 2007 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Leung Wai Leung, Tommy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: LU9337966F7 iii Table of Contents 1.0 General Description......................................................................................................... 2 1.1 Product Description .................................................................................................... 2 1.2 Related Submittal(s) Grants ...................................................................................... 3 1.3 Test Methodology ...................................................................................................... 3 1.4 Test Facility................................................................................................................ 3 2.0 System Test Configuration .............................................................................................. 5 2.1 Justification................................................................................................................. 5 2.2 EUT Exercising Software........................................................................................... 6 2.3 Special Accessories................................................................................................... 6 2.4 Measurement Uncertainty.......................................................................................... 6 2.5 Equipment Modification .............................................................................................. 6 2.6 Support Equipment ..................................................................................................... 6 3.0 RF Output Power (Section 95.639(d)) .............................................................................. 8 4.0 Modulation Characteristics (Section 95.637(a)) ............................................................ 12 4.1 Modulation Frequiency Response ............................................................................ 13 4.2 Modulation Limiting Characteristic ............................................................................ 15 4.3 Audio Low Pass Filter Response............................................................................. 17 5.0 Occupied Bandwidth (Section 95.633(c)) .................................................................... 19 6.0 Spurious Emission (Section 95.635(b)) ........................................................................ 21 6.1 Field Strength of Spurious Radiation......................................................................... 22 7.0 Frequency Stability (Section 95.627) ............................................................................ 28 7.1 Frequency Tolerance................................................................................................ 29 7.2 Temperature Extreme Condition ............................................................................... 31 7.3 Voltage Extreme Condition ....................................................................................... 34 8.0 Digital Data Transmisison (Section 95.193(b)(2))........................................................ 37 9.0 Technical Specifications ............................................................................................... 39 10.0 Product Labelling .......................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Occupied Bandwidth Plots FCC ID: LU9337966F7 bw - 1 of 1 Plot CHA Plot CHB

INTERTEK TESTING SERVICES Digital Data Transmission Plots FCC ID: LU9337966F7 ddt - 1 of 1 Plot A Plot B

INTERTEK TESTING SERVICES A udio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseTIA/EIA-603B Audio Input Strength = 1000mVrms FCC ID: LU9337966F7 lpf - 1 of 1

INTERTEK TESTING SERVICES Modulation Frequency Response 0.0000.5001.0001.5002.0002.500 200 700 1200 1700 2200 2700 3200 3700 4200 4700 Modulation Frequency (Hz) Frequency Deviation (kHz) FCC ID: LU9337966F7 mfr - 1 of 2 INTERTEK TESTING SERVICES Modulation Frequency Response 0.000.501.001.502.002.503.003.504.004.505.005.506.006.507.007.50 300 800 1300 1800 2300 2800 3300 3800 4300 4800 Modulation Frequency (Hz) Modulation Index (%) FCC ID: LU9337966F7 mfr - 2 of 2

INTERTEK TESTING SERVICES Modulation Limiting Characteristic 0.0000.5001.0001.5002.0002.500 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID: LU9337966F7 mlc - 1 of 1

INTERTEK TESTING SERVICES Spurious Emission Plots FCC ID: LU9337966F7 spurious - 1 of 1 Plot CHA Plot CHB

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: LU9337966F7 config photos - 1 of 1 Radiated Emission Front View Rear View
