LU9354291Bratz Kidz Winter Vacation RC Snowmobile

EI IERYA I .HENydP Date:2/1/2007 TheHongKongStandardsandTestingCentreLtd., 10DaiWangStreet, TaipoIndustrialEstate, Taipo,NT, HongKong. Attn.:Mr.PatrickWong DearSir, Re.:LetterofAttestation ThisequipmenthasbeentestedinaccordancewiththerequirementscontainedintheappropriateCommission Regulations.Tothebestofmyknowledge,thesetestswereperformedusingmeasurementproceduresconsistent withindustryorCommissionstandardsanddemonstratethattheequipmentcomplieswiththeappropriate standards.Eachunitmanufactured,importedormarketed,asdefinedintheCommission'sregulations,willconform tothesamplestestedwithinthevariationsthatcanbeexpectedduetoquantityproductionandtestingonastatistical basis.I furthercertifythatthenecessarymeasurementsweremadebytheHongKongStandardsandTestingCentre Ltd.,10DaiWangStreet,TaipoIndustrialEstate,Taipo,N.T.,HongKong. '--- RayChan QualityDirector MGAEntertainment(H.K.)Ltd. 9thFloor,Tower6, TheGateway HarbourCity,9 CantonRoad Tsimshatsui,Kowloon,HongKong Tel:(852)2732 9200 Fax:(852)27329242 t.

PRODUCTNUMBER: PRODUCTNAME: PAGE OF DRAWN: CHECKED: APPROVED: REV:DETAIL OF CHANGEDATECHECKEDAPPROVEDPREPARED Encoder U1 12 354291(27.145MHz) FUNCTIONBLOCKDIAGRAM ANT ControlKeys Oscillator 27.145MHz AmplifterAndModulator Q2 BratzKidzSnowmobileTX MGA F,R,B,L CY1,Q1 PowerSupply DC 9.0VBat1 VoltageRegulator ZD1/ 3.6V Osc 128KHz R1,C3

Date:2/1/2007 FederalCommunicationsCommission EquipmentApprovalServices P.O.Box358315 Pittsburgh,PA15251-5315 USA DearSirs, Re.:LetterofAppointment Thisis theletterof authorizationtoacceptourappointmentof TheHonQKonQStandardsandTestinq CentreLtd.asagentforMGAEntertainment(HK)Ltd.,9thFloor,Tower6,TheGatewayHarbour City,9 CantonRoad,Tsimshatsui,Kowloon,HongKongto signapplicationsbeforetheCommission onourbehalf,tomakerepresentationsto youonourbehalf,andtoreceiveandexchangedata betweenourcompanyandtheCommissionin connectionwithCertificationof thefollowingproductof MGAEntertainment(H.K.)Ltd.. ProductnameBratzKidzWinterVacationRCSnowmobile Model354291 Thisauthorizationwillexpireoneyearfromtheqateof,thisletter. ~~ Signaturewithtitre RayChan QualityDirector MGAEntertainment(H.K.)Ltd. 9thFloor,Tower6, TheGateway HarbourCity,9 CantonRoad Tsimshatsui,Kowloon,HongKong Tel:(852)27329200 Fax:(852)27329242

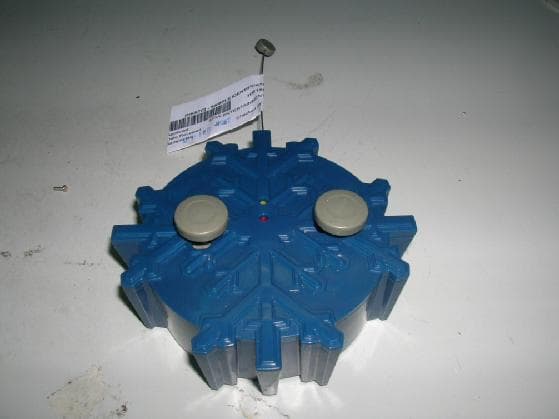

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

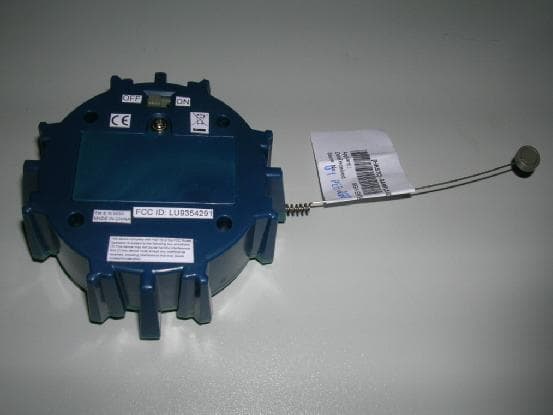

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: LU9354291 Made in China

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: LU9354291 Circuit Description The 27.145 MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC. The output of Q2 has the matching network consisting of C6, C7, C8, L3 and L4 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 11.5 cm long Metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery Operation Descriptions The transmitter is a remote control toy operating at 27.145MHz band. The transmitter is powered by a 9V battery (“6F22” size battery x1) and the transmitting frequency is crystal controlled. There are 2 joystick to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 27.145 MHz carrier frequency. Remarks: The transmitter is a 2 Joystick transmitter. The EUT continues to transmit while Joystick is being pressed. It is Pulse transmitter, Modulation by IC; and type is Pulse modulation.

ECB-354291-01P1-RH PBLS-354291CPA1-BRH 354291A REV01 1/8W ±5% 0805 ROHs R9 2.2 1/8W ±5% 0805 ROHs R2 RSSM-1020250805-RH 1K 1/8W ±5% 0805 ROHs R3,R5,R7,R8 1.5RSSM-2030250805-RH 20K 1/8W ±5% 0805 ROHs R6,R4 1.6RSSM-1240250805-RH 120K 1/8W ±5% 0805 ROHs R1 1.7 8pF / 50V ±0.5PF 0805 ROHs C8 CPSM-1200510805-RH 12pF / 50V ±5% 0805 ROHs C4 1.9CPSM-2500510805-RH 25pF / 50V ±5% 0805 ROHs 1 CPSM-3000510805-RH 30pF / 50V ±5% 0805 ROHs 1 CPSM-5600510805-RH 56pF / 50V ±5% 0805 ROHs C6 CPSM-3910520805-RH ± C5 CPSM-1040240805-RH 0.1uF /16V +80%-20% 0805 ROHs C1 TRSM-C945H01A-RHC945LT1-H SOT-23 ROHs Q1,Q2 1.15TRSM-1815-C4G01-RH1815-C4G SOT-23 ROHs Q1,Q2 DIZS-036051206-RH 3.6V 0.5W 1206 ROHs ZD1 150pF /50V ±10% ROHs L4 CLIN-33A25-RH ± L3 CLIN-22A25-RH ± L2 CLIN-47A25-RH ± L1 CPEL-2270130612-12 C2 LDRO-2230225GB-RH LED1 LED2 XLMT-2714511113-RH 27.145MHz ±30p.p.m 11x13 ROHs Y1 ICDP-ATS302T-RHICATS302T ROHs U1 ICDP-TX2C-RHICTX2C ROHs U1 MGA Entertainment SMT Paste piece semi-finished goods

PRODUCTNUMBER: PRODUCTNAME: PAGE OF DRAWN: CHECKED: APPROVED: REV:DETAIL OF CHANGEDATECHECKEDAPPROVEDPREPARED 12 354291(27.145MHz) Bratz Kidz Snowmobile TX MGA U1 TX2C{ATS302T} DC:9.0V C5 390pF C656pF CY1 Q1 1815G Q2 1815G L1 4.7uH L2 2.2uH ANT1 C4 12pF 27.145MHz R5 1KOhm L3 3.3uH R3 1KOhm C1 0.1uF L4 150pF C8 8pF C7 25pF C3 30pF ZD1 3.6V C2 220uF RBF R1 120KOhm R L B F L R8 1KOhm LED1 3mmGR R2 2.2Ohm BAT1 SW1 R2 1KOhm LED1 3mmRE

STC Test Report Date : 2007-02-07 Page 1 of 17 No. : HM158163 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: MGA Entertainment (HK) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong. Description of Samples: Model name: Bratz Kidz Winter Vacation RC Snowmobile Model no.: 354291 Brand name: N/A FCC ID: LU9354291 Date Samples Received: 2007-02-02 Date Tested: 2007-02-05 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: --- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-02-07 Page 2 of 17 No. : HM158163 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 Bandwidth Measurement Page 11-12 of 17 STC Test Report Date : 2007-02-07 Page 3 of 17 No. : HM158163 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 STC Test Report Date : 2007-02-07 Page 4 of 17 No. : HM158163 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant MGA Entertainment (HK) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong Manufacturer N/A STC Test Report Date : 2007-02-07 Page 5 of 17 No. : HM158163 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Bratz Kidz Winter Vacation RC Snowmobile Manufacturer: N/A Brand Name: N/A Model Number: 354291 Rating: 9Vd.c (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a MGA Entertainment (HK) Ltd., Bratz Kidz Winter Vacation RC Snowmobile. The transmitter is a 2 joystick transmitter. The EUT continues to transmit while joystick is being pressed, It is pulse transmitter, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2007-02-02 1.5 Submitted Sample(s): 2 Samples 1.6 Test Duration 2007-02-05 1.7 Country of Origin China STC Test Report Date : 2007-02-07 Page 6 of 17 No. : HM158163 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
