LU9355083Bratz Dancing Divaz Asst � FM Wireless Microphone

Date:March5,2007 TheHongKongStandardsandTestingCentreLtd., 10DaiWangStreet, TaipoIndustrialEstate, Taipo,NT, HongKong. Attn.:Mr.KCLee DearSir, Re.: LetterofAttestation ThisequipmenthasbeentestedinaccordancewiththerequirementscontainedintheappropriateCommission Regulations.Tothebestofmyknowledge,thesetestswereperformedusingmeasurementproceduresconsistent withindustryorCommissionstandardsanddemonstratethattheequipmentcomplieswiththeappropriate standards.Eachunitmanufactured,importedormarketed,asdefinedintheCommission'sregulations,willconform tothesamplestestedwithinthevariationsthatcanbeexpectedduetoquantityproductionandtestingonastatistical basis.I furthercertifythatthenecessarymeasurementsweremadebytheHongKongStandardsandTestingCentre Ltd.,10DaiWangStreet,TaipoIndustrialEstate,Taipo,N.T.,HongKong. Title. RAYCIIAN QUALITYDIRECTOR MGAEntertainment(H.K.)Ltd. 9thFloor,Tower6, TheGateway HarbourCity,9 CantonRoad Tsimshatsui,Kowloon,HongKong Tel:(852)27329200 Fax:(852)27329242

Date:March5,2007 FederalCommunicationsCommission EquipmentApprovalServices P.O.Box358315 Pittsburgh,PA15251-5315 USA DearSirs, Re.:LetterofAppointment Thisis theletterofauthorizationtoacceptourappointmentofTheHonqKonqStandardsandTestinq CentreLtd.asagentforCOMPANYNAME,ADDRESSto signapplicationsbeforetheCommissionon ourbehalf,tomakerepresentationstoyouonourbehalf,andtoreceiveandexchangedatabetween ourcompanyandtheCommissioninconnectionwithCertificationofthefollowingproductof COMPANYNAME.. Productname Model BratzDancingDivazAsst -FMWirelessMicrophone 355083 Thisautho~ex~:~oneyearfromthedateofthisletter. ~ S ' t . th \ IgnaureWI ""~.' RAYCHAN QUALITYDIRECTOR MGAEntertainment(H.K.)Ltd. 9thFloor,Tower6, TheGateway HarbourCity,9 CantonRoad Tsimshatsui,Kowloon,HongKong Tel:(852)27329200 Fax:(852)27329242

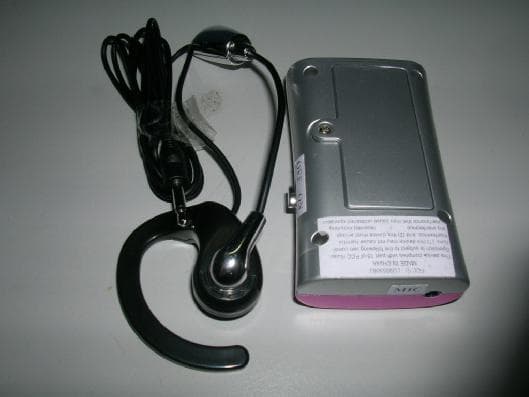

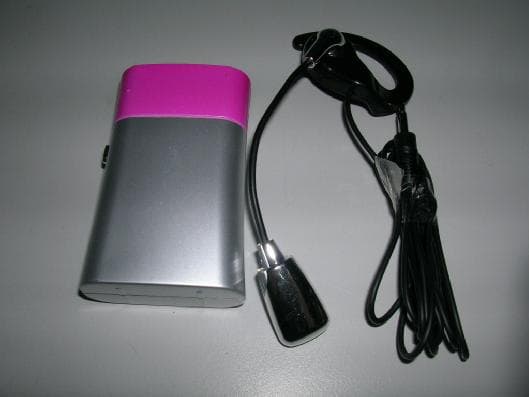

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: LU9355083 Circuit Description The transistor Q1 drives the base of transistor Q2 the final/buffer amplifier. The modulation provided by Q3. The output of Q2 has the matching network consisting of L3 and C14 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 1.2m cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery Operation Descriptions The transmitter is a voice transmitter operating at 99.95MHz band. The transmitter is powered by a 3V battery (“AAA” size battery x 2) the operation is achieved by frequency modulating signal on the 99.95MHz carrier frequency. Remarks: The transmitter is a 1 Button transmitter. The EUT continues to transmit while Button is being pressed. It is Data / Voice / Pulse transmitter, Modulation by Microphone; and type is Frequency modulation.

ItemDescriptionQty.Location 1355083PCB38*37.5*1.6mm1 2TR.9014C(SMT)1Q3 3TR.9015C(SMT)1Q2 4TR.9018F(SMT)1Q1 5RES.100 OHM(CR0603)1R4 6RES.330 OHM(CR0603)1R12 7RES.1K5(CR0603)2R3R9 8RES.4K7(CR0603)1R8 9RES.6K8(CR0603)1R14 10RES.10K(CR0603)2R5R13 11RES.150K(CR0603)1R7 12RES.220K(CR0603)1R10 13RES.390K(CR0603)2R2R6 14RES.1M(CR0603)1R11 15DIODE.FV10431D2 16CERCAP.1P(CC0603)2C7,C14 17CERCAP.8P(CC0603)1C4 18CERCAP.10P(CC0603)2C5C6 19CERCAP.30P(CC0603)1C2 20CERCAP.33P(CC0603)1C9 21CERCAP.35P1C3 22CERCAP.102(CC0603)3C1C11C12 23CERCAP.203(CC0603)1C8 24CERCAP.403(CC0603)1C10 25ELECAP.4.7uF(4*8mm)1C13 26FMCOIL2.5*4.5T*0.4mm1L1 27FMCOIL2.5*7.5T*0.4mm1L2 28FMCOIL4*6.5T*0.4mm1L3 29Chockcoil100uH2L4L5 30MIC.-50dB1 31LED3mmRED1 32PVC20P D=6mmH=5mm1 33J.W.50MM2 34J.W.120MM2 35PHONEJACK ST-35301 36PHONEPLUGL=1”ÓÚÎ≥≥1 37switch SK-12D01(1P2T)1 38batteryclip +1 39batteryclip -1 40batteryclip+/-1 41SCREW2.6*6PM1 42SCREW2.3*4PT5 43SCREW2.0*4PT2 44SCREW1.7*4PT3 45SCREW2.6*6PWT1 B.O.M.OF#355083 11

FMCOIL2.5*7.5T LED3mmRED

STC Test Report Date : 2007-03-23 Page 1 of 16 No. : HM158303 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: MGA Entertainment (H.K.) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong. Description of Samples: Model name: Bratz Dancing Divaz Asst – FM Wireless Microphone Model no.: 355083 Brand name: N/A FCC ID: LU9355083 Date Samples Received: 2007-03-05 Date Tested: 2007-03-08 to 2007-03-23 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-03-23 Page 2 of 16 No. : HM158303 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 16 Content Page 2-3 of 16 1.0 General Details 1.1 Test Laboratory Page 4 of 16 1.2 Applicant Details Page 4 of 16 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 16 Description of EUT operation 1.4 Date of Order Page 5 of 16 1.5 Submitted Samples Page 5 of 16 1.6 Test Duration Page 5 of 16 1.7 Country of Origin Page 5 of 16 2.0 Technical Details 2.1 Investigations Requested Page 6 of 16 2.2 Test Standards and Results Summary Page 6 of 16 3.0 Test Results 3.1 Emission Page 7-10 of 16 3.2 Bandwidth Measurement Page 11-12 of 16 3.3 Operation Description Page 13 of 16 STC Test Report Date : 2007-03-23 Page 3 of 16 No. : HM158303 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 14 of 16 Appendix B Photographs Page 15-16 of 16 STC Test Report Date : 2007-03-23 Page 4 of 16 No. : HM158303 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant MGA Entertainment (H.K.) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong. Manufacturer N/A STC Test Report Date : 2007-03-23 Page 5 of 16 No. : HM158303 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Bratz Dancing Divaz Asst – FM Wireless Microphone Manufacturer: N/A Brand Name: N/A Model Number: 355083 Input Voltage: 3Vd.c. (“AAA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a MGA Entertainment (H.K.) Ltd., Bratz Dancing Divaz Asst – FM Wireless Microphone. The transmitter is a 1 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmitter, modulation by Microphone and type is frequency modulation. 1.4 Date of Order 2007-03-05 1.5 Submitted Sample(s): 2 Sample 1.6 Test Duration 2007-03-08 to 2007-03-23 1.7 Country of Origin China STC Test Report Date : 2007-03-23 Page 6 of 16 No. : HM158303 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 Class B …

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
