1 2 3 4 ABCD 4 3 2 1 D CBA ANT ModulatorRF Power Amplifier CrystalOscillator49.860MHz IC:SLTX-2BS Power Supply PEWI00445 2007-4-10 The clock ferquency is123KHz Encoder 3.3 V Voltage Regulator Control keys S1-S5 9v And 366881EU Bratz The Movie RC Cruiser TX Block Diagram FILE NAME:PRODUCT NO: VERSION: PAGE: 1 1OF1 PREDARED BY: APPROVED BY: DATE: FILE NO: Company Name: MGA Entertainment(H.K.)ltdBratz The Movie RC Cruiser TX BLOCK Diagram Chen Guo

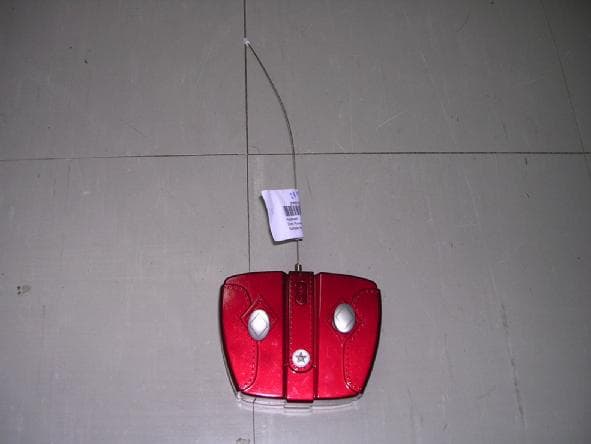

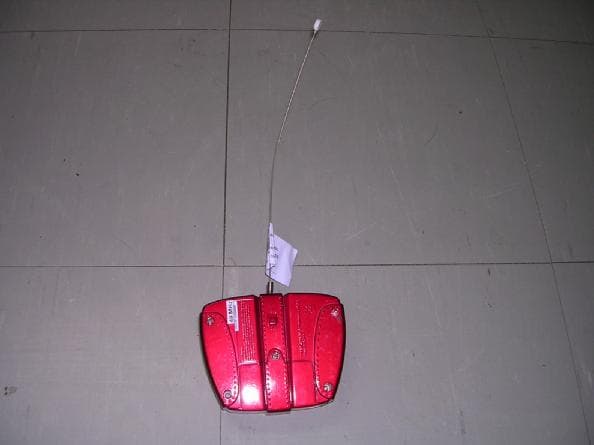

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: LU9366881 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: LU9366881 Antenna, Ground and Power Source The antenna consists of a 25 cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery Antenna

FCC ID: LU9366881 Circuit Description The 49.86 MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC. The output of Q2 has the matching network consisting of C5, C7, C8 and T1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 25 cm long Metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6f22” size battery x 1) primary battery Operation Descriptions The transmitter is a remote control toy operating at 49.86MHz band. The transmitter is powered by a 9V battery (“6F22” size battery x 1) and the transmitting frequency is crystal controlled. There are 2 joystick to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 49.86 MHz carrier frequency. Remarks: The transmitter is a 2 joystick transmitter. The EUT continues to transmit while joystick is being pressed. It is joystick transmitter, Modulation by IC ; and type is Pulse modulation.

ItemMaterial CodeMaterial NameStandardQuantityLocationParameterNote 1PCBG68TXR11PCSCEM-1 CU76×42.8×1.6mm 2ICSL-TX2BS 1PCSSOP-16 3 Transistor SL62PCSQ1 Q2SOT-23 4 Zener 3.3V / 0.5W1PCSZ1DO-35 5 Capacitor 1043PCSC2 C9 C11±20%SMD 0603 6 Capacitor 30PF1PCSC8±5%SMD 0603 7 Capacitor 47pF3PCSC3 C4 C5 ±5% SMD 0603 8 Capacitor 150pF2PCSC7/C10 ±10% SMD 0603 9Capacitor 1031PCSC6±20%SMD 0603 10Capacitor 33PF1PCSC12 ±5% 11 Electro Capacitor 47uF/ 16V1PCSC1±20% 12Resistor 30Ω 1PCSR11±5%SMD 0603 13Resistor 100Ω 1PCS R11±5%SMD 0603 14Resistor 1K1PCSR5±5%SMD 0603 15Resistor 22k1PCSR8±5%SMD 0805 16Resistor 150k1PCSR7 ±1% SMD 0603 17Resistor 270k1PCSR9±5%SMD 0603 18Inductor 2.2uH2PCSL1 L2 ±10% EC-24 19Crystal 27.145MHz1PCSX1 ±5PPM HC-49U 20Latex 10×6.8×3㎜ 1PCSXI 21 Trimming Inductor IFT-S3-1.5uH1PCST1 22 Switch KT-0045PCS S1/S2/S3/S4/S5 23 Antenna 260㎜ 1PCSANT 24Slide Switch SS-12F15-G71PCS 25Lead Wire UL#28 26 Red Wire 3+80+32PCSVCC 27Black Wire 3+80+31PCSGND 28 29 30 31 32 33 34 Remark FORM NO：PE0006 REV：0 AUDITED BY:APPROVED BY： B.O.M PREDA BY:CHEN GUO PRODUCT NAME：Bratz Movice Stars R C vehicle 2 pc Asst PRODUCT NO： 366355-361237 NAME OF PART：Transmit Board 27.145MHz FILE NO：PEWI00445 EDITI ON：1 PAGE：1OF1 DATE：2007-4-13

1 2 3 4 ABCD 4 3 2 1 D CBA S1S2S3S4 R7150K Q1 L6 Q2 L6 X1 49.860MHZ R9270K L11.0UH R10100R R822K R11 30R C422P C322P C6103 C782P C8 5P C5 22P L21.0UH C9104 C11104 Z13.3V C1 47UF/16V C2104 R51K T1 11.5T vcc9V C10150P CODER CPU REGULATOR 49.860MHz TX ANT CONTROL PANEL POWER OSCILLATOR MIXER S1 ON OFF 2007-4-10 VCC 366881EU Chen Guo S5 RIGHTB 1 TESTB 2 GND 3 BACK 4 FORW 5 TURBOB 6 SC 7 NC 8 NC 9 SO 10 VDD 11 PC 12 OSCO 13 OSCI 14 FOSC 15 LEFTB 16 U1TX-2BS PEWI00445 Bratz The Movie RC Cruiser Tx Circuit Diagram FILE NAME:PRODUCT NO: VERSION: PAGE: 1 1OF1 PREDARED BY: APPROVED BY: DATE: FILE NO: Company Name: MGA Entertainment(H.K.)ltd Bratz The Movie RC Cruiser Tx Circuit Diagram

STC Test Report Date : 2007-05-17 Page 1 of 17 No. : HM158479 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: MGA Entertainment (H.K.) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong Description of Samples: Model name: Bratz The Movie RC Cruiser (49MHz) Model no.: 366881 Brand name: N/A FCC ID: LU9366881 Date Samples Received: 2007-03-28 Date Tested: 2007-04-03 to 2007-04-10 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-05-17 Page 2 of 17 No. : HM158479 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 Bandwidth Measurement Page 11-12 of 17 STC Test Report Date : 2007-05-17 Page 3 of 17 No. : HM158479 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 STC Test Report Date : 2007-05-17 Page 4 of 17 No. : HM158479 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant MGA Entertainment (H.K.) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong Manufacturer N/A STC Test Report Date : 2007-05-17 Page 5 of 17 No. : HM158479 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Bratz The Movie RC Cruiser (49MHz) Manufacturer: N/A Model Number: 366881 Brand Name: N/A Input Voltage: 9Vd.c (“6F22 size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a MGA Entertainment (H.K.) Ltd., Bratz The Movie RC Cruiser (49MHz). The transmitter is a 2 joystick transmitter. The EUT continues to transmit while joystick is being pressed, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2007-03-28 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-04-03 to 2007-04-10 1.7 Country of Origin China STC Test Report Date : 2007-05-17 Page 6 of 17 No. : HM158479 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applic…
