14 Start your engines! Because now your Mini’s can cruize to the silly, wonderful world of Lalaloopsy™ in their very own Cruiser! a) 1 Mini Lalaloopsy™ RC Cruiser b) 1 Remote Control c) 1 Mini Lalaloopsy™ Charlotte Charades™ Doll INTRODUCTION CONTENTS ‘Let’s care for the environment!’ The wheelie bin symbol indicates that the product must not be disposed of with other household waste. Please use designated collection points or recycling facilities when disposing of the item. Do not treat old batteries as household waste. Take them to a designated recycling facility. Age 4+ years Adult Battery Installation Required Item No. 513032 – 27 MHz Item No. 513049 – 49 MHz Please keep this manual as it contains important information. 0811-0-E Illustrations are for reference only. Styles may vary from actual contents. www.lalaloopsy.com © MGA Entertainment, Inc. LALALOOPSY™, MINI LALALOOPSY™ and LALALOOPSY LITTLES™ are trademarks of MGA in the U.S. and other countries. All logos, names, characters, likenesses, images, slogans, and packaging appearance are the property of MGA. 16300 Roscoe Blvd. Van Nuys, CA 91406 U.S.A. (800) 222-4685 Printed in China TROUBLESHOOTING: IF THERE IS NO FUNCTION BETWEEN THE REMOTE CONTROL AND THE CRUISER: • Make sure the Remote Control and the Cruiser switches are in the “ON” position. • Make sure the batteries are inserted properly. • Replace the old batteries with new alkaline batteries. • Move the Remote Control closer to the Cruiser to determine the best communication between the two. • Use alkaline batteries for best performance and longer life. • Use only the type battery recommended for the unit. • Batteries should be replaced only by an adult. • Insert batteries with the correct polarity ( + and – ). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable(nickel-cadmium) batteries. • Do not short-circuit batteries. • When not used for an extended time, remove batteries to prevent possible leakage and damage to the unit. • Do not mix rechargeable and non-rechargeable batteries. • Rechargeable batteries are to be removed from the toy before charging. • Rechargeable batteries are to be recharged only under adult supervision. • Do not recharge non-rechargeable batteries. • Exhausted batteries are to be removed from the toy. • Do not dispose of batteries in fire as they may leak or explode. SAFE BATTERY USAGE FCC COMPLIANCE NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. Warning : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. TM a. b. c. 23 1. Slide the ON/OFF switch on the bottom of the Cruiser to the “ON” position. 2. Slide the ON/OFF switch on the back of the Remote Control to the “ON” position. 3. Place the Cruiser on a flat, level surface. 4. Straighten the Antenna. 5. Use the Remote Control to drive your Cruiser by doing the following: a. Press down on the left side of the Remote Control to go forward. (Fig. 5) b. Press down the right side of the Remote Control to back up and turn to the left. (Fig. 6) • When driving two RC Cruiser, they must be of different radio frequencies (e.g. one Cruiser 49MHz and one Cruiser 27MHz) or they may not perform as designed. • When Cruiser is not being played with, turn the ON/OFF switches on both the Cruiser and Remote “OFF” to save battery power. • Your Cruiser is controlled by radio frequency. It may interfere with nearby devices such as cordless phones, hair dryers, radios, walkie-talkies, or other radio controlled devices. If this occurs, move the Cruiser to a location away from the interference. • The Cruiser must remain in remote control range to operate correctly. The range depends on the surrounding area and on the strength of the battery. Obstructions such as buildings, fences, etc., between the remote control transmitter and the Cruiser, reduce the range. • If the Cruiser runs slowly, replace the batteries. • KEEP AWAY FROM WATER! Do not run your Cruiser through puddles, or expose it to liquid of any kind as moisture may damage the unit. • DO NOT sit or stand on any part of the Cruiser. • DO NOT lift and/or drop the Cruiser as doing so may cause bodily injury to the user and irreparable damage to the Cruiser. • Play with the Cruiser on the floor or ground only. • DO NOT operate this Cruiser during thunderstorms. • Keep hair, fingers, loose clothing and other items away from rotating wheels of the unit. Before going for a drive, make sure that your dolls are in place and buckled up: 1. Lift the elastic band. (Fig. 3) 2. Secure your doll in the seat under the elastic band. (Fig. 4) Ready …

Text truncated - open the document above for the full version.

Tra n s m i tt er B l oc k D i ag ram Assortment Number: 510291 Product Description: Mini Lalaloopsy RC Car Item number: 513032 Antenna Matching Network (C1, C2, T1) RF IC W55RFS27T1B Encoder, mixer and amplifier (U1) Controller Keys (Key 1, Key 2) Oscillator 27.145MHz (Y1) 27.145MHz ANT

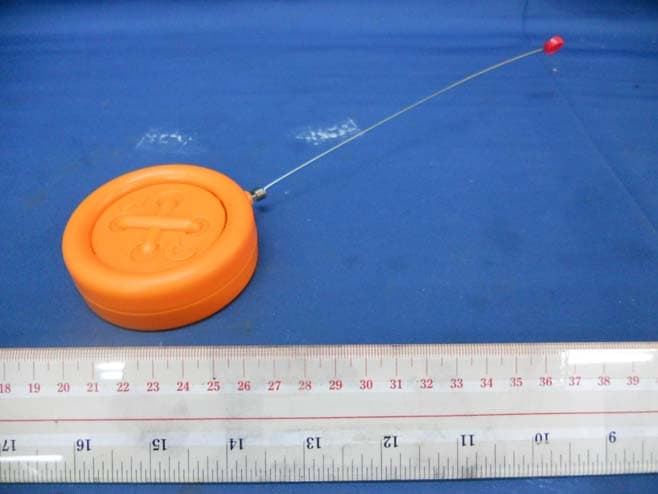

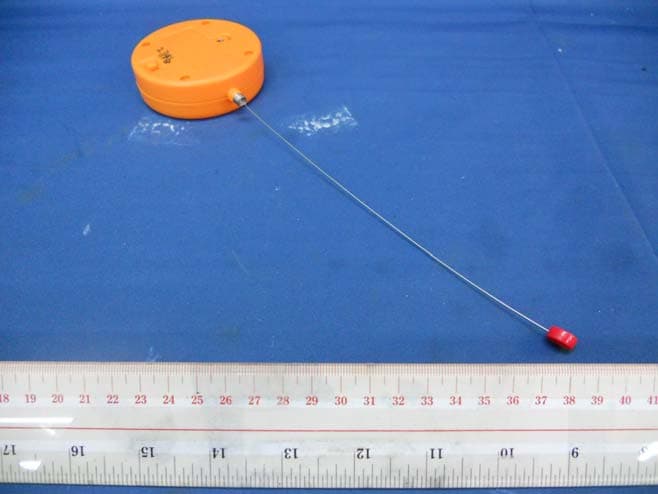

INTERTEK TESTING SERVICE Report No.: HK11071415-1 FCC ID: LU9513032 Equipment Photographs Model : 513032 (External)

FCC ID: LU9513032 Model: 513032 Labeling Artwork 2.5 mm 5.0 mm mm mm mm 11.4 mm

INTERTEK TESTING SERVICE Report No.: HK11071415-1 FCC ID: LU9513032 Equipment Photographs Model: 513032 (Internal) INTERTEK TESTING SERVICE Report No.: HK11071415-1 FCC ID: LU9513032 Equipment Photographs Model: 513032 (Internal)

FCC ID: LU9513032 Model: 513032 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward and backward-right. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: KEY1, KEY2 2. An RF Oscillator consisting: Y1 3. An Antenna Matching Network consisting: C1, C2, T1 4. An Encoder, Mixer and Amplifier consisting: U1 (W55RFS27T1B) 5. A Power Supply consisting: two 1.5V AAA batteries The transmitter uses an external, integral and non-detachable antenna.

12345678 A B C D 87654321 D C B A FORWARD WINSOME IND. LTD. PROJECT NO: PROJECT NAME: PROJECTION: COMPONENT NO: COMPONENT NAME: SCALE:UNIT:MAT DWG.NO: DRN.BY:DATE: CKD.BY:DATE: APVD.BY:DATE: REV:SHEET NO: mm1:1 ENG-SC REV.MODIFIED DESCRIPTIONBY: / DATEAPR. / DATE SCHEMATIC INITAL RELEASE WJ Lai 1.All resistor values are indicated in "ohm" (1K=1000ohm),unless otherwise noted. Note: 2.All capacitance values are indicated in "uF",inductance in "uH",unless otherwise noted. 510291 Mini Lalaloopsy RC Car 51029-20 51029-3120 513032 (27MHz) TX NQ Chen NQ Chen 6/28/2011 1.01 of 1 C7 4.7nF Forward KEY1 Backward KEY2 R1 20K S3 1 S4 2 CKSEL 3 TEST 4 CKSEL1 5 ANT 6 VSS 7 VSPLY 8 S2 16 S1 15 TXOUT 14 ID0 13 ID1 12 X2 11 X1 10 RESET 9 U1 W55RFS27T1B L1 4.7uH L3 1uH T1 0.4uH C3 100pF C2 150pF C4 180pF C1 100pF C10 33pF C9 33pF Y1 27.145MHz C15 0.1uF C14 0.1uF C5 100pF L2 1uH C8 33P C16 47nF BT1 2AA*2 C18 10uF C17 0.1uF ANTENNA 6/28/2011 6/28/2011 R2 10 T P 1 VDD VDD PTC1 500mA SW1 SW-SPDT VCC CK0 CK1 Tx Data R3 20 CK1 CK0 FOR 27.145MHz C13 0.1uF PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

INTERTEK TESTING SERVICES Report No. : HK11071415-1 Sample No. : 1/4 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11071415-1 MGA Entertainment (HK) Ltd. Application For Certification (Original Grant) (FCC ID: LU9513032) Transmitter Prepared and Checked by: Approved by: Signed On File Lee Kin Lok, Brian Assistant Engineer Chan Chi Hung, Terry Assistant Supervisor Date: August 23, 2011 INTERTEK TESTING SERVICES Report No.: HK11071415-1 FCC ID: LU9513032 i GENERAL INFORMATION MGA Entertainment (HK) Ltd. BRAND NAME: MGA Entertainment, MODEL: 513032 FCC ID: LU9513032 Grantee: MGA Entertainment (HK) Ltd. Grantee Address: 30th Floor, One Kowloon, 1 Wang Yuen Street, Kowloon Bay, Kowloon, Hong Kong. Contact Person: Fanny Ko Tel: (852) 2732-9200 Fax: (852) 2732-9242 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: MGA Entertainment Model: 513032 Type of EUT: Transmitter Description of EUT: Mini Lalaloopsy RC Car (27MHz) Serial Number: N/A FCC ID: LU9513032 Date of Sample Submitted: July 26, 2011 Date of Test: August 01, 2011 Report No.: HK11071415-1 Report Date: August 23, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11071415-1 FCC ID: LU9513032 ii SUMMARY OF TEST RESULT MGA Entertainment (HK) Ltd. BRAND NAME: MGA Entertainment, MODEL: 513032 FCC ID: LU9513032 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 Pass Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11071415-1 FCC ID: LU9513032 iii Table of Contents 1.0 General Description........................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants............................................................................... 1 1.3 Test Methodology.............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ............................................................................. 2 2.1 Justification ....................................................................................................... 2 2.2 EUT Exercising Software................................................................................... 2 2.3 Special Accessories .......................................................................................... 2 2.4 Equipment Modification ..................................................................................... 2 2.5 Measurement Uncertainty.................................................................................. 2 2.6 Support Equipment List and Description ............................................................ 2 3.0 Emission Results ............................................................................................ 3 3.1 Field Strength Calculation.................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11071415-1 FCC ID: LU9513032 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 513032 INTERTEK TESTING SERVICE Report No: HK11071415-1 FCC ID: LU9513032 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 513032
