LU9517719MBratz RC Cruiser

E. Age 6+ years Âge : 6 ans et + Un adulte doit insérer les piles Edad: +6 años ENG FR ES Adult Battery Installation Required Es necesaria la supervisión de un adulto para la instalación de pilas 517719M - 27 MHz 517719M - 27 MHz517719M - 27 MHz RC CRUISER - 27 MHZ VOITURE TÉLÉCOMMANDÉE - 27 MHZ DESCAPOTABLE RC - 27 MHZ A. 1 Bratz® Yasmin™ Doll B. 1 Pair of Earrings C. 1 Pair of Shoes CONTENTS D. 1 Bratz® RC Cruiser E. 1 Remote Control F. 1 Audio Cord Illustrations are for reference only. Styles may vary from actual contents. Fig. 2 OFF ON 1 x 9V Battery 6LR61 006P 9V REMOTE CONTROL An ADULT must install batteries in the Remote Control. Here’s how: 1. Set the ON/OFF switch to “OFF” then, using a Phillips screwdriver (not included), remove the screw and battery compartment cover on the back of the Remote Control. (Fig. 2) 2. Install one (1) 9V alkaline battery (not included) making sure the (+) and (-) ends face the proper direction as indicated inside the battery compartment. (Fig. 2) 3. Replace the compartment cover and tighten the screw. SAFETY BELT Before going for a drive, make sure that your doll is in place and buckled up: 1. Open the RC Cruiser’s door. (Fig. 3) 2. Place the doll in the driver or passenger seat. 3. Bring the seat belt down around the front of the doll’s chest and secure it to the slot. (Fig. 4) 4. Close the door. An ADULT must install batteries in the Cruiser. Here’s how: CRUISER 1. Open the trunk of the RC Cruiser by pressing star-shaped button to access the battery compartment. 2. Set the ON/OFF switch to “OFF” then, using a Phillips screwdriver (not included), remove the screw and battery compartment cover. (Fig. 1) 3. Install six (6) AA alkaline batteries (not included) making sure the (+) and (-) ends face the proper direction as indicated inside the battery compartment. 4. Replace the compartment cover and tighten the screw. 5. Close the trunk. BATTERY INSTALLATION Fig. 4Fig. 3 INSERT 6 x AA Batteries 1.5V AA/LR61.5V AA/LR61.5V AA/LR61.5V AA/LR61.5V AA/LR61.5V AA/LR6 A. C. B. D. F. Fig. 1 • DO NOT sit or stand on any part of the RC Cruiser. • DO NOT lift and/or drop the RC Cruiser as doing so may cause bodily injury to the user and irreparable damage to the RC Cruiser. • Play with the RC Cruiser on the floor or ground only. • DO NOT operate this RC Cruiser during thunderstorms. • Keep hair, fingers, loose clothing and other items away from rotating wheels of the unit. • KEEP AWAY FROM WATER! Do not run your RC Cruiser through puddles, or expose to liquid of any kind as moisture may damage the unit. • DO NOT operate the RC Cruiser in the street or other places where motor vehicles are driven. CAUTION 1. Open the trunk of the RC Cruiser. 2. Slide the ON/OFF switch of the RC Cruiser to the “ON” position. Close the trunk. 3. Slide the ON/OFF switch on the back of the Remote Control to the “ON” position. 4. Place the RC Cruiser on a flat surface. 5. Straighten the antenna. 6. Use the Remote Control to drive your RC Cruiser by doing the following: a. Push the left button up to go forward. (Fig. 5) b. Push the left button down to go backward. (Fig. 5) c. Push the right button of the Remote Control to the right to turn right. (Fig. 6) d. Push the right button of the Remote Control to the left to turn left. (Fig. 6) 1. Connect the Audio Cord into your MP3 Player (not included). (Fig. 7) 2. Plug the other end of the Audio Cord into the trunk of RC Cruiser as shown. (Fig. 8) 3. Ensure that the ON/OFF switch on the RC Cruiser is set to ON and play a song on your MP3 Player to rock out! • When driving two RC Cars, they must be of different radio frequencies (e.g. one Car 49MHz and one Car 27MHz) or they may not perform as designed. • When the RC Cruiser is not being played with, turn the ON/OFF switches on both the Car and Remote “OFF” to save battery power. • Your RC Cruiser is controlled by radio frequency. It may interfere with nearby devices such as cordless phones, radios, walkie-talkies, or other radio controlled devices. If this occurs, move the RC Cruiser to a location away from the interference. • The RC Cruiser must remain in remote control range to operate correctly. The range depends on the surrounding area and on the strength of the battery. Obstructions such as buildings, fences, etc., between the remote control transmitter and the Cruiser, reduce the range. IMPORTANT INFORMATION Fig. 8 OPERATING THE RC CRUISER LISTENING TO MUSIC Fig. 6 Fig. 5 Fig. 7 ‘Let’s care for the environment!’ The wheelie bin symbol indicates that the product must not be disposed of with other household waste. Please use designated collection points or recycling facilities when disposing of the item. Do not treat old batteries as household waste. Take them to a designated recycling facility. • Use alkaline batteries for best performance and longer life. • Use only the type battery recommended for the unit. • Batteries should be replaced only by an adult. • Insert batteries with the correct polarity ( + and – ). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not short-circuit batteries. • When not used for an extended time, remove batteries to prevent possible leakage and damage to the unit. • Do not mix rechargeable and non-rechargeable batteries. • Rechargeable batteries are to be removed from the toy before charging. • Rechargeable batteries are to be recharged only under adult supervision. • Do not recharge non-rechargeable batteries. • Exhausted batteries are to be removed from the toy. • Do not dispose of batteries in fire as they may leak or explode. SAFE BATTERY USAGE FCC COMPLIANCE NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio freq…

Text truncated - open the document above for the full version.

1234 A B C D 4 321 D C B A ANT 27.145MHz MODULATION RF POWER AMP (Q2) CRYSTAL OSCILLATOR 27.145MHz IC-TX2B POWER SUPPLY (9V) MGA Entertainment (H.K) Ltd 2012-4-25 Item Name: Item NO: Company Name: Asst No: Date: Page: 1of 1 G103 Bratz Style Starz RC Car 517719M PDF 文件使用 "pdfFactory Pro" 试用版本创建 ° www.fineprint.com.cn

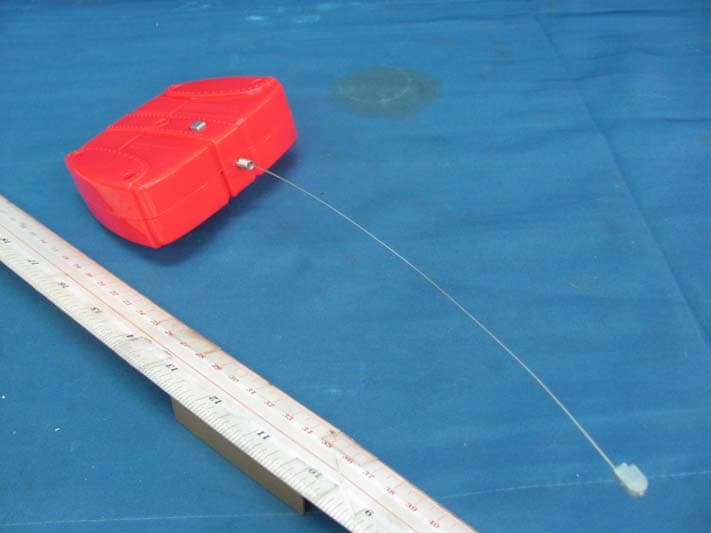

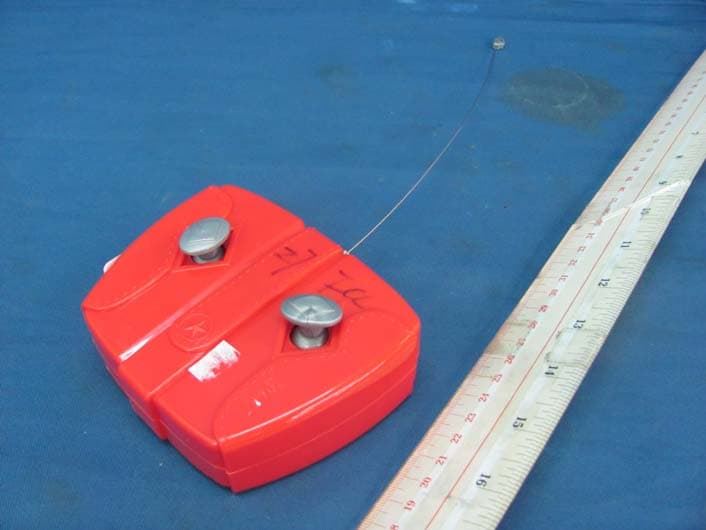

INTERTEK TESTING SERVICE Report No.: HK12050647-1 FCC ID: LU9517719M Equipment Photographs Model : 517719M (External)

INTERTEK TESTING SERVICE Report No.: HK12050647-1 FCC ID: LU9517719M Equipment Photographs Model: 517719M (Internal) INTERTEK TESTING SERVICE Report No.: HK12050647-1 FCC ID: LU9517719M Equipment Photographs Model: 517719M (Internal) INTERTEK TESTING SERVICE Report No.: HK12050647-1 FCC ID: LU9517719M Equipment Photographs Model: 517719M (Internal)

FCC ID: LU9513049 Model: 517719M (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward, backward, left-turn and right-turn. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: S1, S2 , S3, S4, U1 2. An RF Oscillator consisting: X1, Q1 3. An Antenna Matching Network consisting: C11, C13, T1, L3 4. A RF Amplifier consisting: Q2 5. A Power Supply consisting: one 9V battery The transmitter uses an external, integral and non-detachable antenna.

1234 A B C D 4 321 D C B A S1 S2 S3 S4 R4 180K Q1 SL6 Q2 SL6 X1 27.145MHZ R3 680K L2 2.2UH R6 100R R5 22K R7 30R C6 47P C7 27P C12 103 C11 100P C13 22P C8 47P L1 2.2UH C3 104 C4 104 Z1 3.3V C5 47UF/16V C2 104 R2 560R T1 1.8UH 27.145MHz ANT VCC 9V C10 200P ENCODER IC TX ANT C O N T R O L P A N E L P O W E R S5 ON OFF GND VCC VCC X1Q1-C Q1-E Q2-B Q2-CTI Q2-EVDD OSC OSCI SO LR B F VCC C9 27P MGA Entertainment (H.K) Ltd 2012-4-25 Item Name: Item NO: Company Name: Asst No: Date: Page: 1of 1 L3 3.3UH R 1 TEST 2 GND 3 B 4 F 5 T 6 SC 7 NC 8 NC 9 SO 10 VDD 11 PC 12 OSCO 13 OSCI 14 FOSC 15 L 16 U1 TX-2B G103 Bratz Style Starz RC Car 517719M PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12050647-1 MGA Entertainment (HK) Ltd. Application For Certification (Original Grant) (FCC ID: LU9517719M) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: May 31, 2012 INTERTEK TESTING SERVICES Report No.: HK12050647-1 FCC ID: LU9517719M i GENERAL INFORMATION MGA Entertainment (HK) Ltd. BRAND NAME: MGA Entertainment, MODEL: 517719M FCC ID: LU9517719M Grantee: MGA Entertainment (HK) Ltd. Grantee Address: 30th Floor, One Kowloon, 1 Wang Yuen Street, Kowloon Bay, Kowloon, Hong Kong. Contact Person: Edmond Lee Tel: (852) 2732 9480 / 2732 9499 / 2732 9484 Fax: (852) 2732 9242 e-mail: [email protected]; [email protected], [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: MGA Entertainment Model: 517719M Type of EUT: Transmitter Description of EUT: Bratz RC Cruiser Serial Number: N/A FCC ID: LU9517719M Date of Sample Submitted: May 11, 2012 Date of Test: May 16, 2012 Report No.: HK12050647-1 Report Date: May 31, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12050647-1 FCC ID: LU9517719M ii SUMMARY OF TEST RESULT MGA Entertainment (HK) Ltd. BRAND NAME: MGA Entertainment, MODEL: 517719M FCC ID: LU9517719M TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12050647-1 FCC ID: LU9517719M iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ..........................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12050647-1 Sample No.: 1/3 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK12050647-1 FCC ID: LU9517719M Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 517719M INTERTEK TESTING SERVICE Report No: HK12050647-1 FCC ID: LU9517719M Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 517719M
