LU9521174Mini Lala-Oopsies RC Boat

On land or on sea your Mini Lala-oOpsies™ will travel in style and safety with this cool remote control boat. A. 1 Mini Lala-oOpsies™ RC Boat B. 1 Remote Control C. 1 Mini Lala-oOpsies™ Princess Sesame™ Doll INTRODUCTION CONTENTS ‘Let‛s care for the environment!‛ The wheelie bin symbol indicates that the product must not be disposed of with other household waste. Please use designated collection points or recycling facilities when disposing of the item. Do not treat old batteries as household waste. Take them to a designated recycling facility. Age 4+ years ADULT BATTERY INSTALLATION REQUIRED521174 (27 MHz) / 521181 (49MHz) Please keep this manual as it contains important information. Illustrations are for reference only. Styles may vary from actual contents. • Use alkaline batteries for best performance and longer life. • Use only the type battery recommended for the unit. • Batteries should be replaced only by an adult. • Insert batteries with the correct polarity ( + and – ). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable(nickel-cadmium) batteries. • Do not short-circuit batteries. • When not used for an extended time, remove batteries to prevent possible leakage and damage to the unit. • Do not mix rechargeable and non-rechargeable batteries. • Rechargeable batteries are to be removed from the toy before charging. • Rechargeable batteries are to be recharged only under adult supervision. • Do not recharge non-rechargeable batteries. • Exhausted batteries are to be removed from the toy. • Do not dispose of batteries in fire as they may leak or explode. SAFE BATTERY USAGE FCC COMPLIANCE NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user‛s authority to operate the equipment. 1012-0-E 1 4 Visit .com to register your product and to enter our sweepstakes (No purchase necessary) TROUBLESHOOTING: IF THERE IS NO FUNCTION BETWEEN THE REMOTE CONTROL AND THE BOAT: • Make sure the Remote Control switch is in the “ON” position and the Button on the back of the Boat has been pressed. • Make sure the batteries are inserted properly. • Replace the old batteries with new alkaline batteries. • Move the Remote Control closer to the Boat to determine the best communication between the two. WARNING: • DO NOT allow children to play around water unsupervised. • DO NOT allow children to play in water near any electrical source or apparatus in order to avoid electrical shock and/or electrocution. • DO NOT leave doll or near any electrical source or apparatus when wet. A. B. C. www.lalaloopsy.com © MGA Entertainment, Inc. LALA-OOPSIES™, MINI LALA-OOPSIES™ and LALA-OOPSIES LITTLES™ are trademarks of MGA in the U.S. and other countries. All logos, names, characters, likenesses, images, slogans, and packaging appearance are the property of MGA. 16300 Roscoe Blvd. Van Nuys, CA 91406 U.S.A. (800) 222-4685 Printed in China 1. Press the switch on the rear deck of the Boat (behind the seat) to turn it ON. (Press again to turn it OFF.) 2. Slide the ON/OFF switch on the back of the Remote Control to the “ON” position. 3. Place the Boat on a flat, level surface. 4. Use the Remote Control to drive your Boat by doing the following: a. Press down on the left side of the Remote Control to go forward. (Fig. 5) b. Press down the right side of the Remote Control to back up and turn to the left. (Fig. 6) 1. Press the switch on the rear deck of the Boat (behind the seat) to turn it OFF. 2. Using a Phillips screwdriver (not included), remove the screw and battery compartment cover located on the bottom of the Boat. (Fig. 1) 3. Install three (3) AAA alkaline batteries (not included) making sure the (+) and (-) ends face the proper direction as indicated inside the battery compartment. 4. Replace the compartment cover and tighten the screw. • When driving two RC Boats, they must be of different radio frequencies (e.g. one Boat 49MHz and one Boat 27MHz) or they may not perform as designed. • When Boat is not being played with, press the button on the back of the Boat to turn it OFF and slide the switch on the Remote to “OFF” to save battery power. • Your Boat is controlled by radio frequency. It may interfere with nearby devices such as cordless phones, radios, walkie-talkies, or other radio controlled devices. If this occurs, move the Boat to a location away from the interference. • The Boat must remain in remote control range to operate correctly. The range depends on the surrounding area and on the strength of the battery. Obstructions such as buildings, fences, etc., betwe…

Text truncated - open the document above for the full version.

ANT 27.145Mhz RF MODULATOR Block Diagram of TX unit RF OSC 27.145Mhz IC CODER CAR RF MODULATOR AMP Battery 3V IC CODER CAR U1(TX-2B) IC Frequency:128Khz control key (F/B)

ANT 27.145Mhz RF MODULATOR Block Diagram of TX unit RF OSC 27.145Mhz IC CODER CAR RF MODULATOR AMP Battery 3V IC CODER CAR U1(TX-2B) IC Frequency:128Khz control key (F/B)

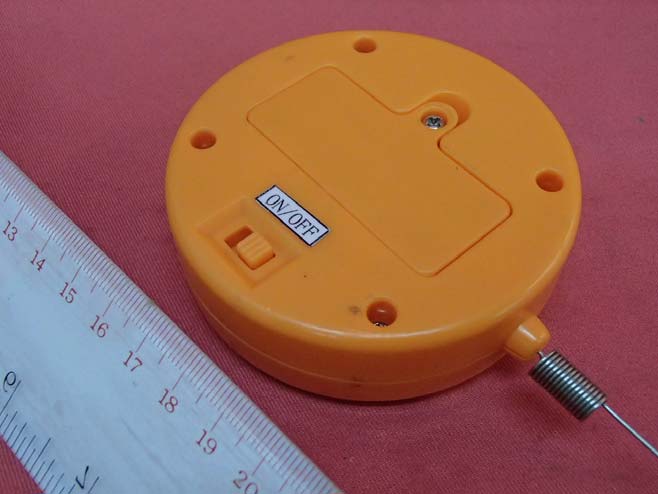

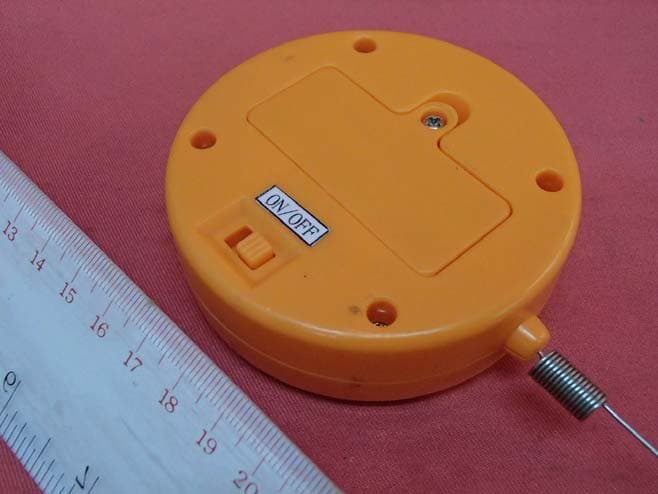

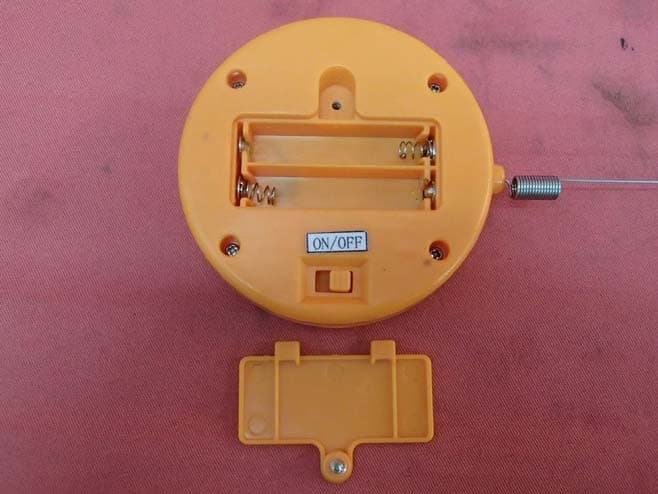

INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (External) FCC ID: LU9521174 INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (External) FCC ID: LU9521174

INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (External) FCC ID: LU9521174 INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (External) FCC ID: LU9521174

INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (Internal) FCC ID: LU9521174 INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (Internal) FCC ID: LU9521174 INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (Internal) FCC ID: LU9521174 INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (Internal) FCC ID: LU9521174

INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (Internal) FCC ID: LU9521174 INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (Internal) FCC ID: LU9521174 INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (Internal) FCC ID: LU9521174 INTERTEK TESTING SERVICE Report No.:HK12090533-1 Equipment Photographs Model : 521174 (Internal) FCC ID: LU9521174

Model: 521174 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward and turn left backward. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: S1, S2, U1 2. A RF Oscillator (27.145MHz) Consisting: Y1 3. A Filter Network Consisting: C9, C16, T1, L3, C12 4. A RF Modulator and Amplifier Consisting: Q1, Q2 5. A Power Supply Consisting: 2 x AAA size batteries The antenna used: The transmitter uses an external, integral and non-detachable antenna.

RIG TEST GND BW FW TU SCSO VDD PC OSCO OSCI NC LEFT U1 TX-2B Q1 2SC1815 Q2 2SC1815 R1 240K R2 18K R4 47K R5 68R R6 NC Y1 27.145MHZ L1 2.2UH L2 2.2UH C13 0.1uF C2 1uF C4 47P C5 100P C6 0.01uF C7 180P C9100P C8 0.01uF R7 10R ANT 3V R8 1R 1 2 3 SW1 SS12F46G3 B+ GND S1 B S2 F C1 NC C3 18P C16 150P C12 82P T1 7.5T L3 7.5uH C14 NC 2012-09-10 520214 TX SCH(27MHZ) 01 GYD Date Drawn By Pro NO. REV

RIG TEST GND BW FW TU SCSO VDD PC OSCO OSCI NC LEFT U1 TX-2B Q1 2SC1815 Q2 2SC1815 R1 240K R2 18K R4 47K R5 68R R6 NC Y1 27.145MHZ L1 2.2UH L2 2.2UH C13 0.1uF C2 1uF C4 47P C5 100P C6 0.01uF C7 180P C9100P C8 0.01uF R7 10R ANT 3V R8 1R 1 2 3 SW1 SS12F46G3 B+ GND S1 B S2 F C1 NC C3 18P C16 150P C12 82P T1 7.5T L3 7.5uH C14 NC 2012-09-10 520214 TX SCH(27MHZ) 01 GYD Date Drawn By Pro NO. REV

INTERTEK TESTING SERVICES Report No.: HK12090533-1 Sample No.: 1/1 Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12090533-1 MGA Entertainment (HK) Ltd. Application For Certification (Original Grant) (FCC ID: LU9521174) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: October 25, 2012 INTERTEK TESTING SERVICES Report No.: HK12090533-1 FCC ID: LU9521174 i GENERAL INFORMATION MGA Entertainment (HK) Ltd. BRAND NAME: MGA Entertainment, MODEL: 521174 FCC ID: LU9521174 Grantee: MGA Entertainment (HK) Ltd. Grantee Address: 30 th Floor, One Kowloon, 1 Wang Yuen Street, Kowloon Bay, Kowloon, Hong Kong. Contact Person: Mr. Edmond Lee Tel: (852) 2732 9200 Fax: (852) 2732 9242 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: MGA ENTERTAINMENT Model: 521174 Asst. No.: 520214 Type of EUT: Transmitter Description of EUT: Mini Lala-Oopsies RC Boat Serial Number: N/A FCC ID : LU9521174 Date of Sample Submitted: September 18, 2012 Date of Test: September 18, 2012 to September 24, 2012 Report No.: HK12090533-1 Report Date: October 25, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12090533-1 FCC ID: LU9521174 ii SUMMARY OF TEST RESULT MGA Entertainment (HK) Ltd. BRAND NAME: MGA ENTERTAINMENT, MODEL: 521174 FCC ID: LU9521174 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12090533-1 FCC ID: LU9521174 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ..................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12090533-1 Sample No.: 1/1 Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12090533-1 MGA Entertainment (HK) Ltd. Application For Certification (Original Grant) (FCC ID: LU9521174) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: October 25, 2012 INTERTEK TESTING SERVICES Report No.: HK12090533-1 FCC ID: LU9521174 i GENERAL INFORMATION MGA Entertainment (HK) Ltd. BRAND NAME: MGA Entertainment, MODEL: 521174 FCC ID: LU9521174 Grantee: MGA Entertainment (HK) Ltd. Grantee Address: 30 th Floor, One Kowloon, 1 Wang Yuen Street, Kowloon Bay, Kowloon, Hong Kong. Contact Person: Mr. Edmond Lee Tel: (852) 2732 9200 Fax: (852) 2732 9242 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: MGA ENTERTAINMENT Model: 521174 Asst. No.: 520214 Type of EUT: Transmitter Description of EUT: Mini Lala-Oopsies RC Boat Serial Number: N/A FCC ID : LU9521174 Date of Sample Submitted: September 18, 2012 Date of Test: September 18, 2012 to September 24, 2012 Report No.: HK12090533-1 Report Date: October 25, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12090533-1 FCC ID: LU9521174 ii SUMMARY OF TEST RESULT MGA Entertainment (HK) Ltd. BRAND NAME: MGA ENTERTAINMENT, MODEL: 521174 FCC ID: LU9521174 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12090533-1 FCC ID: LU9521174 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ..................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12090533-1 FCC ID: LU9521174 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 521174 INTERTEK TESTING SERVICE Report No: HK12090533-1 FCC ID: LU9521174 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 521174

INTERTEK TESTING SERVICE Report No: HK12090533-1 FCC ID: LU9521174 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 521174 INTERTEK TESTING SERVICE Report No: HK12090533-1 FCC ID: LU9521174 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 521174
