LU9532538Lalaloopsy Girls RC Convertible - 49MHz

1 4 Start your engines! Because now your Mini‛s can coast to the silly, wonderful world of Lalaloopsy™ in their very own Cruiser! A. 1 Lalaloopsy Girls™ RC Convertible (27 MHz OR 49 MHz) B. 1 Remote Control INTRODUCTION CONTENTS Age 5+ years Adult Battery Installation Required Asst. # 530633 Item No. 532521 – 27 MHz Item No. 532538 – 49 MHz Illustrations are for reference only. Styles may vary from actual contents. A. B. Please keep this manual as it contains important information. ‘Let‛s care for the environment!‛ The wheelie bin symbol indicates that the product must not be disposed of with other household waste. Please use designated collection points or recycling facilities when disposing of the item. Do not treat old batteries as household waste. Take them to a designated recycling facility. FCC COMPLIANCE NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user‛s authority to operate the equipment. MGA Entertainment UK Ltd. 50 Presley Way Crownhill Milton Keynes, MK8 0ES Bucks, UK + 0800 521 558 Printed in China www.lalaloopsy.com © 2014 MGA Entertainment, Inc. LALALOOPSY™, MINI LALALOOPSY™, LALALOOPSY LITTLES™ and LALALOOPSY BABIES™ are trademarks of MGA in the U.S. and other countries. All logos, names, characters, likenesses, images, slogans, and packaging appearance are the property of MGA. 16300 Roscoe Blvd. Van Nuys, CA 91406 U.S.A. (800) 222-4685 Printed in China The preferred method of contact for Customer Service is through our e-mail contact form at www.mgae.com Visit our website at www. .com to register your product online! • When driving two RC Cruiser, they must be of different radio frequencies (e.g. one Cruiser 49MHz and one Cruiser 27MHz) or they may not perform as designed. • When Cruiser is not being played with, turn the ON/OFF switches on both the Cruiser and Remote “OFF” to save battery power. • Your Cruiser is controlled by radio frequency. It may interfere with nearby devices such as cordless phones, radios, walkie-talkies, or other radio controlled devices. If this occurs, move the Cruiser to a location away from the interference. • The Cruiser must remain in remote control range to operate correctly. The range depends on the surrounding area and on the strength of the battery. Obstructions such as buildings, fences, etc., between the remote control transmitter and the Cruiser reduce the range. • If the Cruiser runs slowly, replace the batteries. • KEEP AWAY FROM WATER! Do not run your Cruiser through puddles, or expose it to liquid of any kind as moisture may damage the unit. IMPORTANT INFORMATION 0514-0-E • Use alkaline batteries for best performance and longer life. • Use only the type battery recommended for the unit. • Batteries should be replaced only by an adult. • Insert batteries with the correct polarity ( + and – ). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable(nickel-cadmium) batteries. • Do not short-circuit batteries. • When not used for an extended time, remove batteries to prevent possible leakage and damage to the unit. • Do not mix rechargeable and non-rechargeable batteries. • Rechargeable batteries are to be removed from the toy before charging. • Rechargeable batteries are to be recharged only under adult supervision. • Do not recharge non-rechargeable batteries. • Exhausted batteries are to be removed from the toy. • Do not dispose of batteries in fire as they may leak or explode. SAFE BATTERY USAGE Fig. 3a. 23 1. Slide the ON/OFF switch on the bottom of the Cruiser to the “ON” position. 2. Slide the ON/OFF switch on the back of the Remote Control to the “ON” position. 3. Place the Cruiser on a flat, level surface. 4. Use the Remote Control to drive your Cruiser by doing the following: a. Press down on the left side of the Remote Control to go forward. (Fig. 5) b. Press down the right side of the Remote Control to back up and turn to the left. (Fig. 6) • DO NOT sit or stand on any part of the Cruiser. • DO NOT lift and/or drop the Cruiser as doing so may cause bodily injury to the user and irreparable damage to the Cruiser. • Play with the Cruiser on the floor or ground only. • DO NOT operate this Cruiser during thunderstorms. • Keep hair, fingers, loose clothing and other items away from rotating wheels of the unit. Before going for a drive, make sure that your dolls are in place and buckled up. To do so simply: 1. Remove the top from the car. (Fig. 3) 2. Lift the elastic band. (Fig. 3a) 3. Secure your doll in the seat under the elastic band. (Fig. 4 & 4a) 4. Top down or top up...you…

Text truncated - open the document above for the full version.

ANT 49.860MHz RF MODULATOR AMP IC CODER CAR U1(TX-2B) IC frequency:128khz control key (F/B) Block Diagram of TX unit RF OSC 49.860Mhz Battery 3V

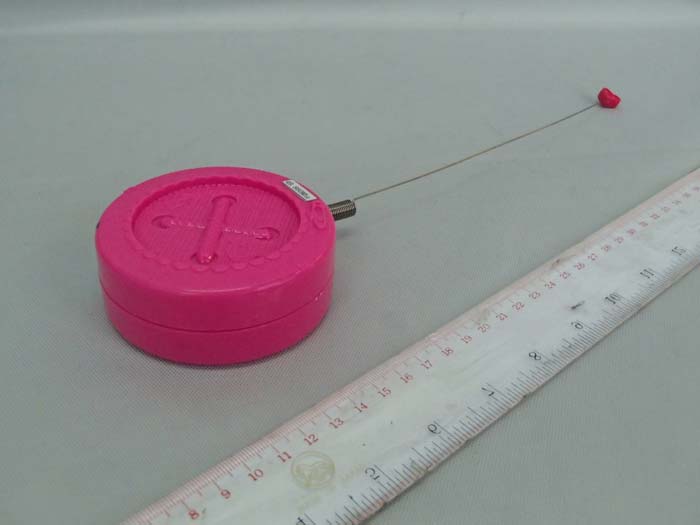

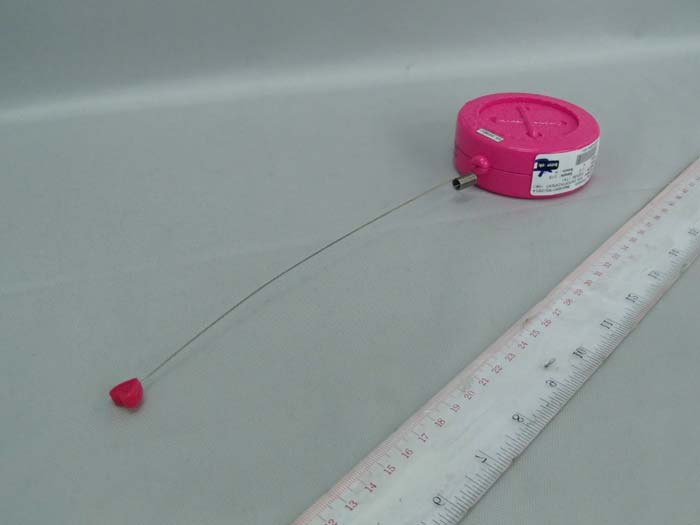

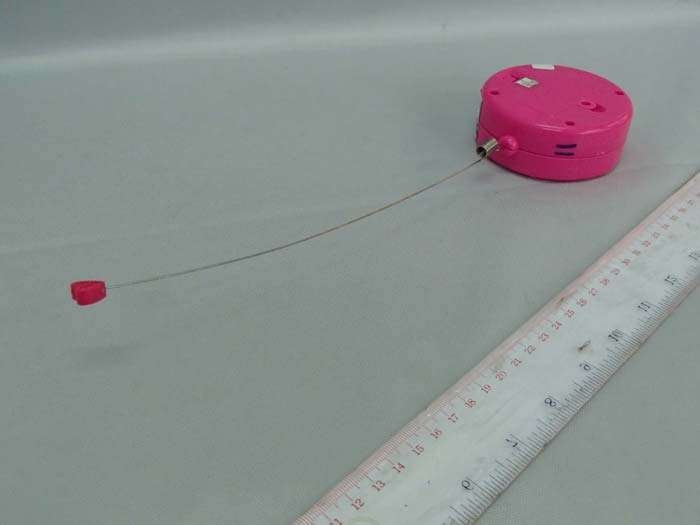

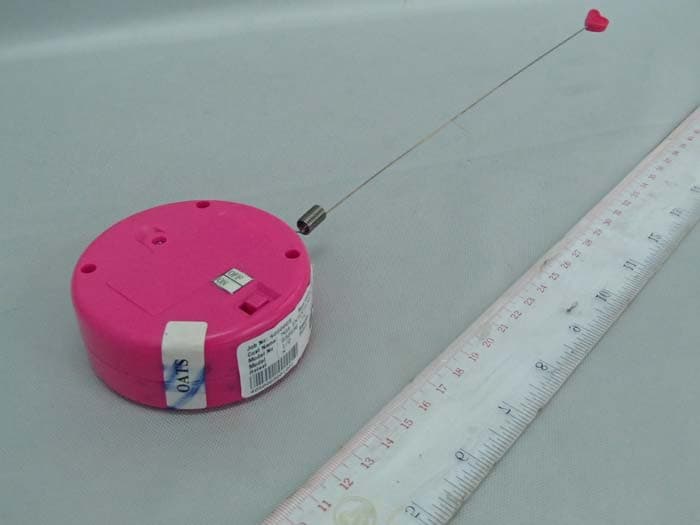

INTERTEK TESTING SERVICE Report No.: 14050069HKG-001 Equipment Photographs Model : 532538 (External) FCC ID: LU9532538 INTERTEK TESTING SERVICE Report No.: 14050069HKG-001 Equipment Photographs Model : 532538 (External) FCC ID: LU9532538

INTERTEK TESTING SERVICE Report No.: 14050069HKG-001 Equipment Photographs Model : 532538 (Internal) FCC ID: LU9532538 INTERTEK TESTING SERVICE Report No.: 14050069HKG-001 Equipment Photographs Model : 532538 (Internal) FCC ID: LU9532538 INTERTEK TESTING SERVICE Report No.: 14050069HKG-001 Equipment Photographs Model : 532538 (Internal) FCC ID: LU9532538

FCC ID: LU9532538 Model: 532538 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to move forward and backward. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: S1, S2 and U1 (TX-2B) 2. A RF Oscillator (49.860MHz) Consisting: Y1, Q1 3. A Filter Network Consisting: T1, L3, C12, C9, C10 4. A RF Modulator and Amplifier Consisting: Q2 5. A Power Supply Consisting: 3VDC (2 X “1.5V” AAA batteries) Antenna Gain: 0dBi Nominal rated field strength: 78.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 14050069HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 x 1.5V AAA batteries). The EUT has a on/off switch and a pair of control keys to control the RC Car to go forward and backward. After switching ON the EUT and the receiver of the RC Car, activating the control keys on the EUT can control the receiver moving forward and backward. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 78.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 81.9 dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0465mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0465mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

Title NumberRevisionSize A4 Date:26-Apr-2014Sheet of File:E:\product\530633\SCH\TX 49M.DDBDrawn By: RIG TEST GND BW FW TU SCSO VDD PC OSCO OSCI NC LEFT U1 TX-2B Q1 2SC1815 Q2 2SC1815 R1 240K R2 18K R4 47K R5 68R R6 NC Y1 49.860MHZ L1 0.82UH L2 1.0UH C13 0.1uF C2 1uF C4 15P C5 100P C6 0.01uF C7 180P C9100P C8 0.01uF R7 10R ANT 3V R8 1R 1 2 3 SW1 B+ GND 2014-04-25 530633SCH(49MHZ) 530633 REV 00 YSL 11 S1 B S2 F C1 NC C3 3P C10 33PC12 33P T1 6.5T L3 2.7uH

Report No.: 14050069HKG-001 MGA Entertainment (H.K.) Ltd. Application For Certification (Original Grant) (FCC ID: LU9532538) Transmitter Approved by: The test report only allws to be rêvisêd with¡n the relsntion period unless furthêr standard or the requiremenl was not¡æd. This report is for the exclusive use of lntertek's Cl¡ent and is prov¡ded pursuant to the agreêmsnt between lntertek and ¡ts Client. lntèrteKs respons¡bility and liab¡l¡ty arê limited to the tems and cond¡tions of the agreement. lntertek assumes no l¡ab¡lity to any party, other than to ths Cliênt in acærdanæ w¡th the agreement, for any loss, expense or damåge occasioned by the use of this reporl. Only thê Cl¡ent ¡s authorized to permit copying or d¡str¡but¡on of this report and then only in its entirêty. Any use of the lntertek namê or onê of its marks for the sale or advertisêmênt of the testsd mater¡al, product or seru¡ce must f¡rst be approved in writing by lntertek. The obseruâtions and test results in th¡s report are relevant only to the sample testêd. This report by itself dæs not imply that thê material, producl, or seruicê is or has ever been under an lntertek certifiæt¡on program. lntertek Testing Seruices Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax (852) 2785 5487 Website: www.hk.intertek-etlsemko.com I i I Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specif¡c laboratory activities as listed in the HOKLAS directory of accred¡ted laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. TEST REPORT Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Lead Engineer Date: May 26,2014 Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050069HKG-001 i FCC ID: LU9532538 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: MGA Entertainment (H.K.) Ltd. Grantee Address: 30th Floor, One Kowloon, 1 Wang Yuen Street, Kowloon Bay, Kowloon, Hong Kong. Contact Person: Edmond Lee Tel: (852) 2732 9200 Fax: (852) 2732 9242 e-mail: N/A Manufacturer: FoGang County Million Best Electronics Plastic ＆ Amp Co., Ltd. Manufacturer Address: Jiang'ao Village, Tangtang Town, Fogang County, Qingyuan City, Guangdong Province, China Brand Name: MGA Model: 532538 Asst. No.: 530633 Type of EUT: Transmitter Description of EUT: Lalaloopsy Girls RC Convertible - 49MHz Serial Number: N/A FCC ID: LU9532538 Date of Sample Submitted: April 30, 2014 Date of Test: April 30, 2014 to May 15, 2014 Report No.: 14050069HKG-001 Report Date: May 26, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050069HKG-001 ii FCC ID: LU9532538 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050069HKG-001 iii FCC ID: LU9532538 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ............................................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14050069HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 532538 FCC ID: LU9532538 INTERTEK TESTING SERVICE Report No: 14050069HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 532538 FCC ID: LU9532538
