LU9537236Bratz Remote Control Car-27MHz

ANT 27.145MHz Battery 3V RF OSC 27.145Mhz IC CODER CAR U1(TX-2B) IC Frequency:128Khz control key (F/B) RF MODULATOR AMP Block Diagram of TX unit

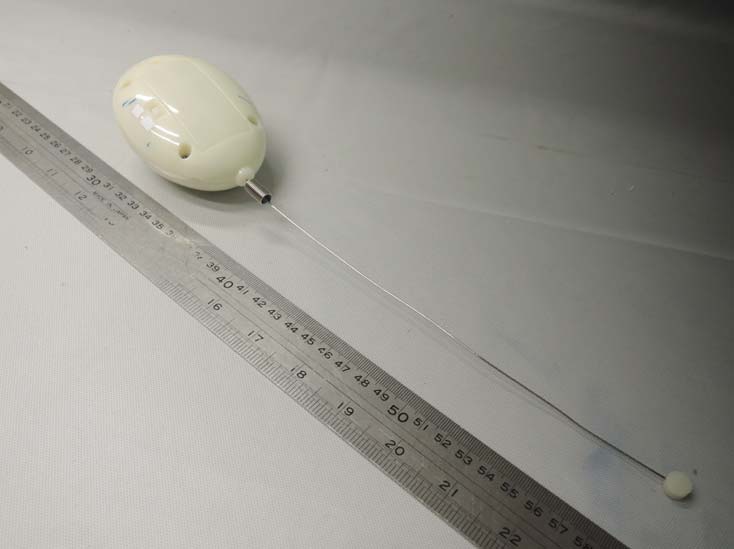

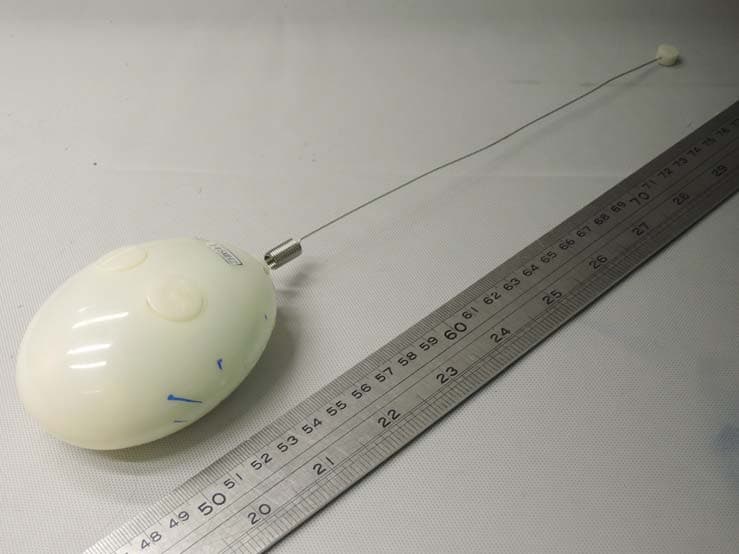

INTERTEK TESTING SERVICE Report No.: 15050992HKG-001 Equipment Photographs Model : 537236 (External) FCC ID: LU9537236

FCC ID: LU9537236 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: Label Size: 26mm x 2mm (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Size: 42mm x 14mm

INTERTEK TESTING SERVICE Report No.: 15050992HKG-001 Equipment Photographs Model : 537236 (Internal) FCC ID: LU9537236 INTERTEK TESTING SERVICE Report No.: 15050992HKG-001 Equipment Photographs Model : 537236 (Internal) FCC ID: LU9537236 INTERTEK TESTING SERVICE Report No.: 15050992HKG-001 Equipment Photographs Model : 537236 (Internal) FCC ID: LU9537236

FCC ID: LU9537236 Model: 537236 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward and backward. The circuit of the transmitter comprises of, 1. Control buttons: Consisting: S1, S2 and SW1 2. An Encoding circuit Consisting: U1 (TX-2B) 3. A RF Oscillator (27.145MHz) Consisting: Y1, Q1 4. A Filter Network Consisting: T1, L3, C12, C9, C16 5. A RF Modulator and Amplifier Consisting: Q2 6. A Power Supply Consisting: 3VDC (2 X “1.5V” AAA batteries) Antenna Gain: 0dBi Nominal rated field strength: 77.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 15050992HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 x 1.5V AAA batteries). The EUT has a on/off switch and a pair of control keys to control the RC Car to go forward, backward and turn right. After switching ON the EUT and the receiver of the RC Car, activating the control keys on the EUT can control the receiver moving forward and backward. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 77.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 80.8dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.03607mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.03607mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Title NumberRevisionSize A4 Date:30-May-2015Sheet of File:C:\Users\enga18\PCB\TX0027~1.DDBDrawn By: RIG TEST GND BW FW TU SCSO VDD PC OSCO OSCI NC LEFT U1 TX-2B Q1 2SC1815 Q2 2SC1815 R1 240K R2 18K R4 47K R5 68R R6 NC Y1 27.145MHZ L1 2.2UH L2 2.2UH C13 0.1uF C2 1uF C4 47P C5 100P C6 0.01uF C7 180P C9100P C8 0.01uF R7 10R ANT 3V R8 1R 1 2 3 SW1 B+ GND 2015-05-11 537229SCH(27MHZ) 537229 REV 00 YSL 11 S1 B S2 F C1 NC C3 18P C16 150PC12 82P T1 7.5T L3 7.5uH

l¡rtertek ValrcdQualþ. Deüvecd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specif¡c laboratory activit¡es as listed ¡n the HOKLAS d¡rectory ot accredited laboratories. Prepared and Checked by: TEST REPORT Report No.: 1 5050992HKG-001 MGA Entertainment (HK) Ltd. Application For Certification (Original Grant) (FCC lD: LU95372361 Transmitter Approved by: ú á".4*b Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Lead Engineer Date: June 29,2015 I lntertêk's standârd T6rms ând Condit¡ons cân bê obta¡nsd ât our webs¡te httpJ/ww intertek com/tems/ This rêport shâll not be reproducêd, êxcept in full, This report is for the êxclusive uso of lntêrtêk's Client and ¡s provided pursuant to the agreement betweên lntêrtek and ¡ts Client lnt€rtek's responsibility and liability are lim¡ted to the terms and condit¡ons of the agreement lntertek assumss no liability to any party, othêr than to the Client ¡n acærdance with the agrêemênt, for any loss, êxpensê or dâmegê occâs¡onêd by the use of this report Only the Client is authorized to permit copying or distribution of this report and then only in ¡ts ent¡rety Any use of the lntertek name or one of its marks for the sale or edvertisôment of the tested material, product or serviæ must f¡rst b€ approvedinwrit¡ngbylntertek Theobseruat¡onsandtestresults¡nthisrêportarorolevântonlytothesampletested Th¡srepodbyitsolfdo6snotimplythâtthe mat6riâ1, product, or ssrv¡cê is or hâs evêr beên under ãn lntertek certification program lntertek Testing Services Hong Kong Ltd. 2/F , Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050992HKG-001 i FCC ID: LU9537236 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: MGA Entertainment (HK) Ltd. Grantee Address: 30 th Floor, One Kowloon, 1 Wang Yuen Street, Kowloon Bay, Kowloon, Hong Kong. Contact Person: Roy Au Tel: (852) 2732 9200 Fax: (852) 2732 9242 e-mail: [email protected] Manufacturer: FoGang County Million Best Electronics Plastic & Amp Co., Ltd. Manufacturer Address: Jiang’ao Village, Tangtang Town, Fogang County, Qingyuan City, Guangdong Province, China Brand Name: MGA Model: 537236 Type of EUT: Transmitter Description of EUT: Bratz Remote Control Car-27MHz Serial Number: N/A FCC ID: LU9537236 Date of Sample Submitted: May 18, 2015 Date of Test: May 18, 2015 to June 28, 2015 Report No.: 15050992HKG-001 Report Date: June 29, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050992HKG-001 ii FCC ID: LU9537236 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050992HKG-001 iii FCC ID: LU9537236 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and Description............................................................. 2 3.0 Emission Results .…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15050992HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 537236 FCC ID: LU9537236 INTERTEK TESTING SERVICE Report No: 15050992HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 537236 FCC ID: LU9537236
