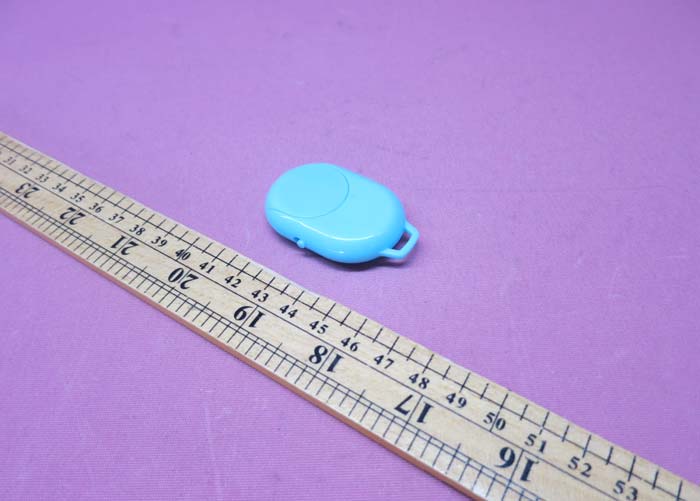

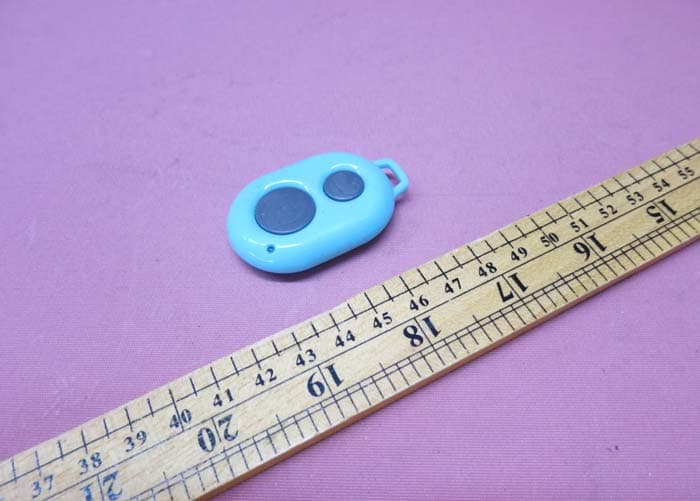

LU9539629Bratz Selfie Stick- Cloe/ Jade

DELANTE BOTÓN iOS BOTON ANDROID Fi g. 3 TAPA DEL COMPARTIMENTO DE LA PILA Botón on/off Fi g. 1 S-L-I-D-E DETRÁS PILA Fi g. 2 DETRÁS PILA DE LITIO, 3V FRONT iOS BUTTON ANDROID BUTTON Fi g. 3 BATTERY COMPARTMENT COVER ON/OFF SWITCH Fi g. 1 S-L-I-D-E BACK BATTERY Fi g. 2 BACK LITHIUM BATTERY, 3V ENG FRES 539650E4C, 539667E4C AGES 5+ YEARS ADULT SUPERVISION RECOMMENDED Illustrations are for reference only. Styles may vary from actual contents. CLOE ™ 539650 JADE™ 539667 #SelfieSnaps™ Stick E. G. F. E. F. G. A. • Use alkaline batteries for best performance and longer life. • Use only the type battery recommended for the unit. • Batteries should be replaced only by an adult. • Insert batteries with the correct polarity ( + and – ). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not short-circuit batteries. • When not used for an extended time, remove batteries to prevent possible leakage and damage to the unit. • Do not mix rechargeable and non-rechargeable batteries. • Rechargeable batteries are to be removed from the toy before charging. • Rechargeable batteries are to be recharged only under adult supervision. • Do not recharge non-rechargeable batteries. • Exhausted batteries are to be removed from the toy. • Do not dispose of batteries in fire as they may leak or explode. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 0359 0359 0359 [Hereby, MGA Entertainment (H.K.) Ltd. declares that this Bratz ® #SelfieSnaps™ Stick is in compliance with essential requirements and other provisions of Directive 1999/5/EC] “Let’s care for the environment!” The wheelie bin symbol indicates that the product must not be disposed of with other household waste. Please use designated collection points or recycling facilities when disposing of the item. Do not treat old batteries as household waste. Take them to a designated recycling facility. • Please be aware of any local or venue restrictions which may be in effect before using the Selfie Stick. • Always turn the wireless remote device “OFF” after playing to conserve battery life. • DO NOT allow water or liquid of any kind to come in contact with the wireless remote device. • DO NOT wash doll’s hair with water and/or soap. • DO NOT dry doll’s hair with a hair dryer or subject hair to very high heat in any manner as it will irreparably damage the hair. CAN ICES-3(B)/NMB-3(B) IMPORTANT NOTES SAFE BATTERY USAGE FCC COMPLIANCE H. C. D. B. D. CONTENTS A. 1 Bratz® #SelfieSnaps™ Stick with Lip attachment.B. 1 Cloe™ Doll w/Outfit C. 1 Jade™ Doll w/OutfitD. 1 Pair of ShoesE. 1 Pair of Earrings F. 1 Smart Phone (for doll)G. 1 Smart Phone Case (for Doll)H. Remote Control THUMB SCREW Fi g. 5 Before using your wireless remote device it must be paired with your iOS or Android phone. Here’s how: 1. After installing the battery, move the ON/OFF switch on the device to ON. (Fig. 1). The LED indicator light will flash. 2. Activate the wireless remote function on your phone by going to SETTINGS, tapping on “Bluetooth”, then tapping on “AB shutter 3” in your device list. The device will automatically pair with your phone in a few seconds. 3. The camera app built into your phone will now allow you to take photos by pressing on the larger button for iOS phones or the smaller button for Android Phones. 4. Loosen thumb screw and adjust phone to desired angle, then re-tighten screw. (Fig. 5) 1. Pull top of phone clamp upward and hold clamp open. (Fig. 4) 2. Fit cell phone into area as shown with screen facing outward. (Fig. 4) 3. Release phone clamp and make sure cell phone is firmly in place before proceeding. (Re-fit phone if necessary.) Fi g. 4 5. Hold Stick with one hand near camera clamp one hand at end of stick then twist in opposite directions to unlock telescoping portion of stick. 6. Expand telescoping portion of Stick as desired then twist ends of stick in opposite directions to lock into place. (Stick expands from 9” to 22 ½”. ) 7. Line up your selfie shot and press button on the bluetooth to take a photo. The wireless remote device is compatible with iOS 6.o or newer and Android 4.3 or newer: * Device names are trademarks of their respective owners. CAMERA 360 iOS CAMERA 360 iOS CAMERA 360 iOS CAMERA 360 iOS NO USE ANDROID INBUILT CAMERA APP CAMERA 360 APP Samsung Galaxy S2 / S3 /S4+ Note 1, Note 2, Note 3+ Tab 2, Note 8,10.1+ Moto X /Nexus 4,5,7+ Xiaomi 1A, 2A, 3+ Sony Xperia S/4.3 HTC Newest and X+ Other android phones COMPATIBILITY LIST *…

Text truncated - open the document above for the full version.

Battery 3VIC3231RF match circuit control key crystal 16M ANT Block Diagram

INTERTEK TESTING SERVICE Report No.: 15050265HKG-001 FCC ID: LU9539629 IC: 4504A-539629 Equipment Photographs Model : 539629 (FCC), 539629C3 (IC) (External)

INTERTEK TESTING SERVICE Report No.: 15050265HKG-001 FCC ID: LU9539629 IC: 4504A-539629 Equipment Photographs Model : 539629 (FCC), 539629C3 (IC) (Internal) INTERTEK TESTING SERVICE Report No.: 15050265HKG-001 FCC ID: LU9539629 IC: 4504A-539629 Equipment Photographs Model : 638541 (FCC) 638541E4C(TX) (IC) (Internal)

Technical Description The brief circuit description is listed as below: 1) U1 acts as a 2.4GHz IC (BK3231). 2) X1 acts as a Crystal for U1. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 85.2 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB BK3231 Datasheet Sep-2014 © 2013 Beken Corporation Proprietary and Confidential Page 1 of 1 BK3231 Bluetooth HID SoC Datasheet Preliminary Specification Beken Corporation 3A,1278KeyuanRd,Zhangjiang High-Tech Park Pudong New Distrinct,Shanghai,201203, China Tel: (86)21 51086811 Fax: (86)21 60871277 This document contains information that may be proprietary to, and/or secrets of, Beken Corporation. The contents of this document should not be disclosed outside the companies without specific written permission. Disclaimer: Descriptions of specific implementations are for illustrative purpose only, actual hardware implementation may differ. BK3231 Datasheet Sep-2014 © 2013 Beken Corporation Proprietary and Confidential Page 2 of 2 Table of Contens 1 General Description ............................................................................................................................ 3 2 Features................................................................................................................................................ 3 3 Pin Information ................................................................................................................................... 3 4 Memory Orgnization .......................................................................................................................... 8 5 Interrupt and Clock Unit ................................................................................................................... 8 6 MFC ................................................................................................................................................... 11 7 GPIO .................................................................................................................................................. 12 8 ADC .................................................................................................................................................... 14 9 UART ................................................................................................................................................. 16 10 I2C-SMBus ........................................................................................................................................ 18 11 SPI ...................................................................................................................................................... 20 12 PWM Timer ....................................................................................................................................... 22 13 Watch dog .......................................................................................................................................... 23 14 Electrical Specifications .................................................................................................................... 24 15 Package Information ........................................................................................................................ 25 15.1 QFN 7X7 56PIN: ........................................................................................................................ 25 15.2 QFN4X4 32PIN: ......................................................................................................................... 26 16 Application Schematic ...................................................................................................................... 27 16.1 QFN7X7 56PIN: ......................................................................................................................... 27 16.2 QFN4X4 32PIN: ......................................................................................................................... 27 17 Order Information ............................................................................................................................ 28 BK3231 Datasheet Sep-2014 © 2013 Beken Corporation Proprietary and Confidential Page 3 of 3 1 General Description The BK3231 chip is a highly integrated single-chip Bluetooth3.0HID device. It integrates the high-performance transceiver, rich features baseband processor, and Bluetooth HID profile. The FLASH program memory makes it suitable for customized application, and it is also possible for other Bluetooth aplication such as SPP controller. 2 Features z Operation voltage from 2.0V to 3.6 V z Bluetooth 3.0compliant z -86dBm sensitivity for 1 Mbps mode and 2 dBm transmit power z HID v1.0, and other light profile by request z 16 MHz crystal reference clock z 56-pin QFN 7mmx7mm package for keyboard z I2C, SPI and UART interface z 10-bit Battery monitor ADC z Three timers with PWM mode Figure 1 Block Diagram 3 Pin Information The next diagram shows QFN56 format for the full functions usage.It can be used as keyboard TX part and total 35 GPIO available. Other package type such as QFN40 or even QFN32 is also available by request with less GPIO. BK3231 Datasheet Sep-2014 © 2013 Beken Corporation Proprietary and Confidential Page 4 of 4 Figure 2BK3231QFN56Pin Assignment Figure 3BK3231QFN32Pin Assignment BK3231 Datasheet Sep-2014 © 2013 Beken Corporation Proprietary and Confidential Page 5 of 5 Table 1BK3231 QFN56 Pin Description PIN Name Pin Function Description 1 P44 Digital I/O General I/O 2 NC NC Not connected 3 PPROG Digital I/O FLASH programming selection 4 MBISTEN Digital I/O Test enable 5 P47 Digital I/O General I/O 6 P04 Digital I/O General I/O, or MOSI for SPI 7 P11 Digital I/O General I/O, or input for external active low interrupt 8 XTALN Analog output Oscillator output 9 XTALP Analog input Oscillator input 10 VCCXTAL Power supply 3 V supply 11…

Text truncated - open the document above for the full version.

Analysis Report The equipment under test (EUT) is a 2.4GHz Bluetooth 3.0 wireless remote device (i.e. Selfie Snaps). The EUT is powered by a 3VDC (CR2032). The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT contains 2 buttons, one is the iOS button and the other one is the Android button. After pairing with the ios/Android devices, you will be able to take photos by press these buttons. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 85.2 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 88.2dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.198mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =0.198mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

A B C D E F G H I J A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 Sheet: Size Shenzhen Baoan Fenda industrial CO.,LTD Description Approved Date Standardization PCB NO. Checked Model Designed Scale VER: 1/1 3 IN 4 GND 2 GND 1 OUT YB1 16M C3 22p C4 22p C6 1uf C10 1uf C12 1uf C13 1uf C15 1uf C18 4.3nh C19 0.5pf C20 NL C21 0.8p C24 1uf TP1 C7 1uf TP3 TP5 TP7 C2 0.1uf C8 10uf 1 2.4G-ANT K1 KEY2 KEY1 1 + 2 - BAT2 DC D1 R1 1K 1 MBISTEN 2 P04 3 P11 4 XTALN 5 XTALP 6 VCCRF 7 RFP 8 VDDPA 24 VSS 23 NC 22 PRSTN 21 P10 20 P27 19 VDDDSP 18 VDDSPI 17 VCCDIG 25 P05 26 P06 27 P07 28 P20 29 P21 30 P26 31 VSS 32 PPROG 16 CLK32K 15 P33 14 P32 13 P31 12 P30 11 P01 10 P00 9 VCCIF 33 GND U1 BK3231MB-4MM TP2 TP4 TP6 TP8 P01 P11 VPP GND GND AND KEY_VOL+/KEY_ENTER GND GND LED1 GND GND KVDD GND GND KVDD GND GND GND GND GND GND KVDD KVDD GND GND GND GND GND VPP GND GND P00 P01 KEY_VOL+/KEY_ENTER P10 P11 AND P00 P10 KVDD GND LED1

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050265HKG-001 i FCC ID: LU9539629 IC: 4504A-539626 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: MGA Entertainment (HK) Ltd. Grantee Address: 30 th Floor, One Kowloon, 1 Wang Yuen Street, Kowloon Bay, Kowloon, Hong Kong. Contact Person: Roy Au Tel: (852) 2732 9200 Fax: (852) 2732 9242 e-mail: [email protected] Manufacturer: Choi’s Early Light Technology (shenzhen) Company Ltd. Manufacturer Address: Early Light Industrial Zone, Nazl, Xin Xia Road, Shan Xia Village, Ping Hu Town, Long Gang District, Shenzhen, China Brand Name: MGA Model: 539629C3 Type of EUT: Transceiver Description of EUT: Bratz Selfie Stick - Cloe/Jade Serial Number: N/A FCC ID / IC: LU9539629 / 4504A-539629 Date of Sample Submitted: May 06, 2015 Date of Test: May 06, 2015 to May 29, 2015 Report No.: 15050265HKG-001 Report Date: Jun 30, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050265HKG-001 ii FCC ID: LU9539629 IC: 4504A-539626 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 / RSS-210 A2.9, RSS-210 2.5 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition RSS-210 Issue 8, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050265HKG-001 iii FCC ID: LU9539629 IC: 4504A-539626 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification.......................................................................................................... 2 2.2 EUT Exercising Software..................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Measurement Uncertainty.................................................................................... 2 2.5 Support Equipment List and Description.............................................................. 2 3.0 Emission Results .................................................................................................. 3 3.1 Field Strength Calculation.................................................................................... 3 3.2 Radiated Emission Configuration Photograph ..................................................... 4 3.3 Radiated Emission Data ...................................................................................... 4 4.0 Equipment Photographs ....................................................................................... 9 5.0 Product Labelling .................................................................................................. 9 6.0 Technical Specifications ...................................................................................... 9 7.0 Instruction Manual ................................................................................................ 9 8.0 Miscellaneous Information ................................................................................. 10 8.2 Discussion of Pulse Desensitization .................................................................. 13 8.3 Calculation of Average Factor............................................................................ 13 8.4 Emissions Test Procedures ............................................................................... 14 8.5 Occupied Bandwidth.......................................................................................... 17 9.0 Equipment List ........................................................…
