LU9600715Inductive Toy

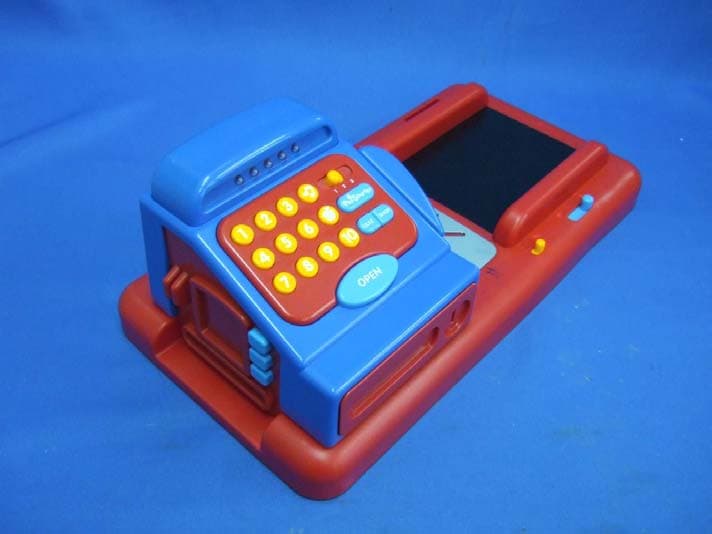

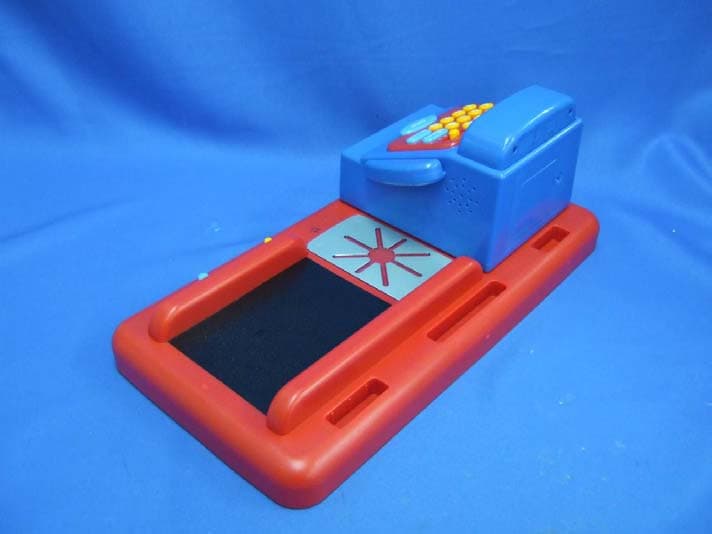

FCC ID: LU9600715 Ophoto1 Ophoto2 FCC ID: LU9600715 Ophoto3 Ophoto4 FCC ID: LU9600715 Ophoto5

FCC ID: LU9600715 Label location Label artwok and size

FCC ID: LU9600715 Iphoto1 Iphoto2 FCC ID: LU9600715 Iphoto3 Iphoto4 FCC ID: LU9600715 Iphoto5 Iphoto6 FCC ID: LU9600715 Iphoto7 Iphoto8 FCC ID: LU9600715 Iphoto9 Iphoto10 FCC ID: LU9600715 Iphoto11 Iphoto12 FCC ID: LU9600715 Iphoto13 Iphoto14 FCC ID: LU9600715 Iphoto15 Iphoto16 FCC ID: LU9600715 Iphoto17

FCC ID: LU9600715 Technical Description : The brief circuit description is listed as follows : - L1 acts as Loop Antenna. - U2 W55MID50 acts as RFID Reader. - X1 and associated circuit act as 13.56 MHz Oscillator. - U1 W588D300 acts as MCU and Sound Synthesizer. - Q1, Q2 and associated circuit act as Low Voltage Detection Circuit. - SW1 to SW15 and K1 to K3 act as Control Keys. Antenna Used : An integral loop antenna has been used.

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A3 Date:26-Jun-2007Sheet of File:E:\2007產品資料\600715 MGA 收銀機\600715 BLOCK Diagram.DdbDrawn By: SW3 3 SW1 1 SW2 2 SW4 4 SW5 5 BP20 BP20 W55MID50 D3 1 D2 2 D1 3 CMD 8 CLK 9 RESET 16 D0 4 TAGIN 17 XIN 5 XOUT 6 VDD 10 TX-VDD 20 RX-VDD 13 COIL 18 ENV 15 REG-VDD 11 REG-OUT 12 RX-VSS 14 TX-VSS 19 VSS 7 U2 W55MID50 R1 0 ohm C1 100uF/10V C2 0.1uF R5 390K SPK1 8ohm/0.25W X1 13.56MHZ C12 10pF C13 10pF C3 0.1uF C4 0.1uF C5 0.1uF C6 680pF C7 27pF C8 330pF C9 51pF C10 20pF D2 IN4148 D1 IN4148 L1 0.5mm x 5T x 5.4+/-0.1uH L2 2.2uH BT1 4.5V R2 270K ( D I P ) SW8 8 SW6 6 SW7 7 SW9 9 SW10 10 BP21 BP21 SW13 Smarter SW11 Music SW12 Speech SW14 Quiz SW15 Freeplay BP22 BP22 B P 1 0 B P 1 1 B P 1 2 B P 1 3 B P 1 4 R6 200 R7 200 R8 200 R9 200 R10 200 LED1RED LED2 RED LED3 RED LED4 RED LED5 RED BP23 Q1 9014 Q2 9014 R4 2M R3 2M VDD VR1 390K LOW_POWER BP00 6 BP01 7 BP02 8 BP03 9 BP04 10 BP05 11 BP06 12 BP07 13 BP10 15 BP11 16 BP12 17 BP13 1 BP14 2 BP15 3 BP16 4 RESET 33 VDD 14 VSS_SPK 47 OSCIN 25 X32I 31 X32O 32 TEST 42 VDD_SPK 45 VSS 43 PWM- 46 PWM+/DAC 44 W588D300 VDD_SIM 5 BP17 18 BP20 19 BP21 20 BP22 21 BP23 22 BP24 23 VSS 24 OSCOUT 26 CVDD 27 BP25 28 BP26 29 BP27 30 IP00 34 IP01 35 IP02 36 IP03 37 IP04 38 IP05 39 IP06 40 IP07 41 U1 W588D300 C15 0.1uF C14 0.1uF BP20 BP21 BP22 BP10 BP11 BP12 BP13 BP14 BP23 VCC VCC K1 Level Level1 Level2 Level3 K3 color number food K2 Open OPEN C11 0.1uF BP01 BP00 BP07 BP06 C16 120pF L3 GZ1608D800(FB)/Z=800 ohm + C17 10uF/16V VDD K4 ON/OFF R11 22 VDD VDD VDD (60mm x 75mm) Test C20 0.01uF C24 10pF L4 FHW0805UCR15/0.15uH C25 10pF VDD2 VDD3 L5 GZ1608D800(FB)/Z=800 ohm + C29 100uF/16V VDDVDD2 L6 GZ1608D800(FB)/Z=800 ohm + C33 100uF/16V VDDVDD3 L7 GZ1608D800(FB) + C19 10uF/16V BP01 BP00 BP07 BP06 BP00a BP01a BP06a BP07a T13 x 8 x H6 x 2.5T(Magnet) T13 x 8 x H6 x 2.5T(Magnet) C28 102 RS4 RS3 RS1 RS2 RS0 VSS COILOCOILI VDD W55MID15 1 U1 W55MID15 L1 0.4mm X 9T X 1.5uH+/-0.1uH C1 39pF C2 RS0 RS1 RS2 RS3 RS4 12345678910 0 1 1 1 1 1 1 1 1 1 1 11 1 1 X 0 1 1 0 1 0 0 0 0 0 0001 0 0 0 0 0 0 0 0XXXXXXX 011 1 1 1 = VDD 0 = VSS X =not Connect R12 0R R13 0R R14 0R R15 0R BP00 BP07 BP06 BP01 BP00a BP01a BP07a BP06a /Z=800 ohm

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : LU9600715 MGA Entertainment (HK) Ltd. Application For Certification (FCC ID: LU9600715) Transmitter Sample Description : Shop & Learn Market Model : 600715 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2005] 0713835 AC/at June 30, 2007 INTERTEK TESTING SERVICES FCC ID: LU9600715 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 : General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3 : Emission Results EXHIBIT 4 : Equipment Photographs EXHIBIT 5 : Product Labelling EXHIBIT 6 : Technical Specifications EXHIBIT 7 : Instruction Manual EXHIBIT 8 : Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: LU9600715 ii MEASUREMENT/TECHNICAL REPORT MGA Entertainment (HK) Ltd. - MODEL: 600715 FCC ID: LU9600715 June 30, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2005 Edition] provision. Report prepared by: Chan Kar Ming, Anthony Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: LU9600715 iii Table of Contents 1.0 General Description .................................................................................................. 2 1.1 Product Description ............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology.................................................................................................. 3 1.4 Test Facility........................................................................................................... 3 2.0 System Test Configuration ....................................................................................... 5 2.1 Justification............................................................................................................ 5 2.2 EUT Exercising Software....................................................................................... 5 2.3 Special Accessories .............................................................................................. 5 2.4 Equipment Modification ......................................................................................... 6 2.5 Support Equipment List and Description................................................................ 6 3.0 Emission Results ...................................................................................................... 8 3.1 Field Strength Calculation...................................................................................... 9 3.1 Field Strength Calculation (cont’d)....................................................................... 10 3.2 Radiated Emission Configuration Photograph ..................................................... 11 3.3 Radiated Emission Data ...................................................................................... 12 3.4 Frequency Tolerance........................................................................................... 15 4.0 Equipment Photographs ......................................................................................... 17 5.0 Product Labelling .................................................................................................... 19 6.0 Technical Specifications ......................................................................................... 21 7.0 Instruction Manual .................................................................................................. 23 8.0 Miscellaneous Information ..................................................................................... 25 8.1 Measured Bandwidth........................................................................................... 26 8.2 Emission Test Procedures .................................................................................. 27 8.2 Emission Test Procedures (Cont’d) ..................................................................... 28 INTERTEK TESTING SERVICES FCC ID: LU9600715 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: LU9600715 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: LU9600715 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for an inductive toy cash register (RFID toy reader) operating at 13.56 MHz which is controlled by a crystal. The EUT is powered by 3 AA batteries. This toy consists of a toy cash register (RFID tag reader) and ten toy food items (passive…

Text truncated - open the document above for the full version.

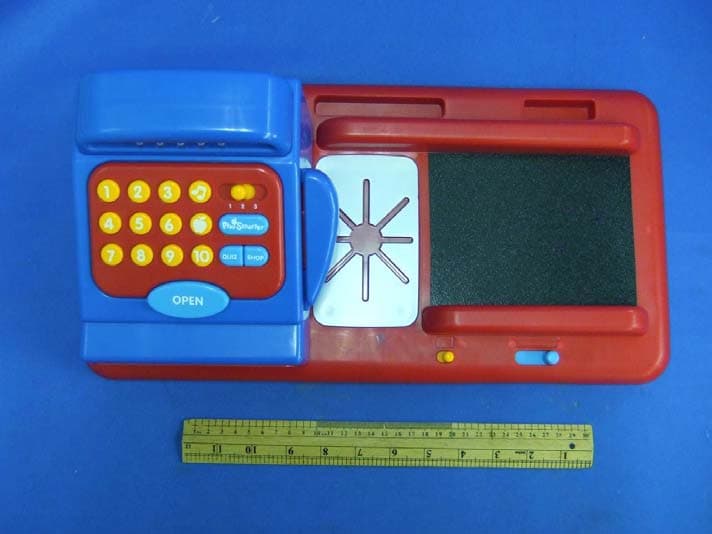

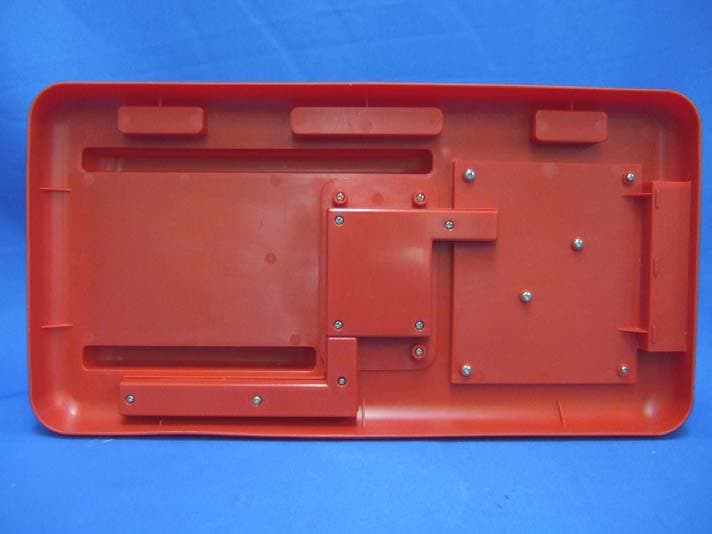

INTERTEK TESTING SERVICES Front View Back View
