LU9638541TXTire Twister

B. A. ‘Let’s care for the environment!’ The wheelie bin symbol indicates that the product must not be disposed of with other household waste. Please use designated collection points or recycling facilities when disposing of the item.Do not treat old batteries as household waste. Take them to a designated recycling facility. Please keep this manual as it contains important information. MGA Entertainment UK Ltd50 Presley WayCrownhillMilton KeynesMK8 0ESBucks, UK0800 521 558www.littletikes.comwww.littletikes.co.uk © The Little Tikes Company,an MGA Entertainment company. LITTLE TIKES® is a trademark of Little Tikes in the U.S. and other countries. All logos, names, characters, likenesses, images, slogans, and packaging appearance are the property of Little Tikes. Little Tikes Consumer Service 2180 Barlow Road Hudson, Ohio 44236 U.S.A.1-800-321-0183Printed in China 0515-0-E4C Visit our website at www.littletikes.com to register your product and to enter our sweepstakes. (No purchase necessary) [Hereby, MGA Entertainment (H.K.) Ltd, declares that this Little Tikes® RC Tire Twister™ is in compliance with essential requirements and other provisions of Directive 1999/5/EC.] 0359 X X Press both buttons forward, car will move forward. (Press both buttons back, car will move backward.) X Press right button forward, car will turn left. (Press right button backward, car will back left.) X Press left button forward, car will turn right. (Press left button backward, car will back right.) X X Press and hold buttons as shown, car will spin in a circle. (Press and hold opposite buttons, car will spin in the opposite direction.) DRIVE IT, SPIN IT, FLIP IT ! DRIVING THE TIRE TWISTER 1. Set the car inside the monster tire making sure the car tires straddle the ribs inside the monster tire.2. Place the monster tire on the floor.3. To assure your car will pick up the correct frequency, switch the car ON first, then switch the remote control ON.4. Follow the remote control patterns below. As the car inside the monster tire moves, the monster tire will turn, twist and spin! 5. While going forward, reverse the direction and the car will flip backward and forward inside the monster tire.NOTE: When finished playing, first turn off the car, then turn off the remote control. DRIVING THE RC CAR1. To assure your car will pick up the correct frequency, switch the car ON first, then switch the remote control ON.2. Place the car on the floor.3. Press the buttons on the remote control as shown in the diagrams below.NOTE: When finished playing, first turn off the car, then turn off the remote control. QUICK START 1. Using a Phillips screwdriver (not included) remove the screw and battery compartment cover from the underside of the remote. (Fig. 2)2. Install two (2) fresh 1.5V AA alkaline batteries (not included) making sure the (+) and (-) ends face the proper direction as indicated inside the battery compartment. (Fig. 2) 3. Replace the compartment cover and tighten the screw. Fig. 2 1.5V AA / LR6 1.5V AA / LR6 IMPORTANT NOTE: In the event of a malfunction, reset the item by removing and replacing the batteries. If function is still not restored, replace the batteries with fresh alkaline batteries. Fig. 1 1.5V AA / LR6 1.5V AA / LR6 RIBBON Before playing, an ADULT must install fresh alkaline batteries in the CAR and REMOTE. Here’s how: 1. Using a Phillips screwdriver (not included) remove the screw and battery compartment cover from the underside of the car. (Fig. 1)2. Install three (3) fresh 1.5V AA alkaline batteries (not included) in the car making sure the (+)and (-) ends face the proper direction as indicated inside the battery compartment. (Fig. 1) NOTE: Car batteries are layered with one battery inser ted on the bottom layer and the two remaining batteries above it. Position ribbon inside the battery compartment as shown before installing batteries. Ribbon will aid in battery removal when batteries need to be replaced. 3. Replace the compartment cover and tighten the screw. REMOTE CONTROL 638541E4C 638541E4C (TX), 638541E4C (RX) AGES 3+ YEARS ADULT SUPERVISION RECOMMENDED. ADULT BATTERY INSTALLATION REQUIRED. C. CONTENTS A. 1 Little Tikes® RC Tire Twister™ CarB. 1 Monster TireC. 1 Remote Control Illustrations are for reference only. Styles may vary from actual contents. BATTERY INSTALLATION RACE CAR IMPORTANT INFORMATION • DO NOT play with RC Tire Twister™ in the street or where there is vehicular traffic or in heavily traveled areas with pedestrians. • DO NOT stand on, sit on or throw RC Tire Twister™ as doing so can result in injury to the person and irreversible damage to the unit. • DO NOT attempt to use the “tire” portion of this toy as a wheel on any other toy or vehicle such as a wagon, tricycle, etc. or in any manner other than the manner described in this manual. • DO NOT run car/tire into furniture, walls, pets, people etc., as doing so may cause injury to the people and pets and irreparable damage to the unit. • DO NOT allow long hair or loose apparel such as shoestrings near the turning wheels of the car. • DO NOT drive car/tire through water, mud, etc. LIMITED WARRANTY The Little Tikes Company makes fun, high quality toys. We warrant to the original purchaser that this product is free of defects in materials or workmanship for one year * from the date of purchase (dated sales receipt is required for proof of purchase). At the sole election of The Little Tikes Company, the only remedies available under this warranty will be the replacement of the defective part or replacement of the product. This warranty is valid only if the product has been assembled and maintained per the instructions. This warranty does not cover abuse, accident, cosmetic issues such as fading or scratches from normal wear, or any other cause not arising from defects in material and workmanship. *The warranty period is three (3) months for daycare or commercial purchasers. U.S.A and Canada: For warranty service or replacement part inf…

Text truncated - open the document above for the full version.

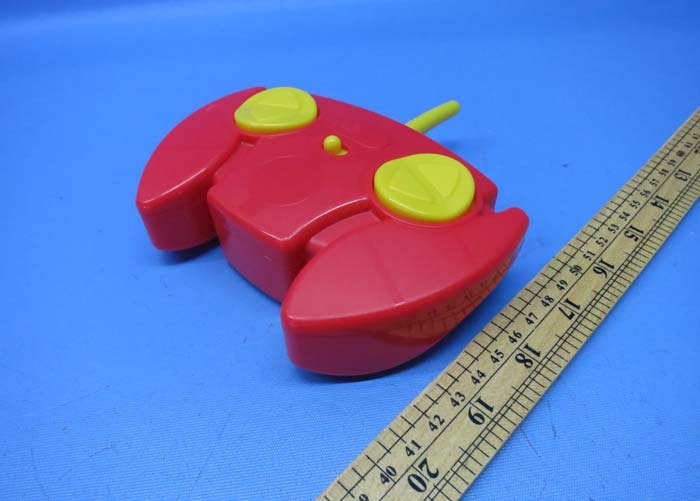

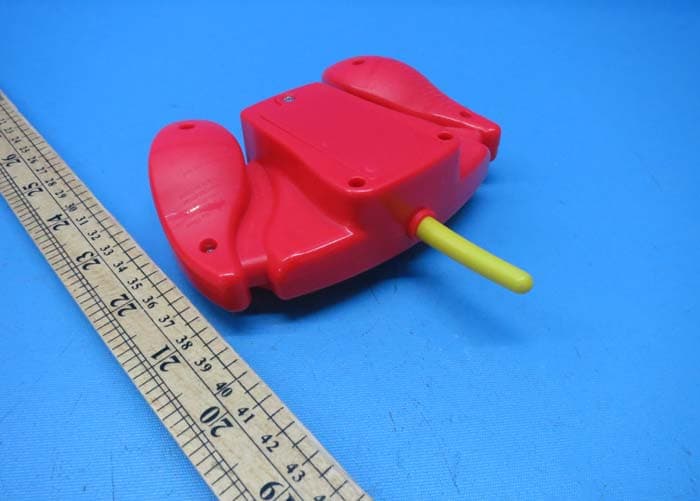

INTERTEK TESTING SERVICE Report No.: 15040508HKG-001 FCC ID: LU9638541TX IC: 4504A-638541TX Equipment Photographs Model : 638541 (FCC) 638541E4C(TX) (IC) (External)

INTERTEK TESTING SERVICE Report No.: 15040508HKG-001 FCC ID: LU9638541TX IC: 4504A-638541TX Equipment Photographs Model : 638541 (FCC) 638541E4C(TX) (IC) (Internal) INTERTEK TESTING SERVICE Report No.: 15040508HKG-001 FCC ID: LU9638541TX IC: 4504A-638541TX Equipment Photographs Model : 638541 (FCC) 638541E4C(TX) (IC) (Internal) INTERTEK TESTING SERVICE Report No.: 15040508HKG-001 FCC ID: LU9638541TX IC: 4504A-638541TX Equipment Photographs Model : 638541 (FCC) 638541E4C(TX) (IC) (Internal) INTERTEK TESTING SERVICE Report No.: 15040508HKG-001 FCC ID: LU9638541TX IC: 4504A-638541TX Equipment Photographs Model : 638541 (FCC) 638541E4C(TX) (IC) (Internal) INTERTEK TESTING SERVICE Report No.: 15040508HKG-001 FCC ID: LU9638541TX IC: 4504A-638541TX Equipment Photographs Model : 638541 (FCC) 638541E4C(TX) (IC) (Internal) INTERTEK TESTING SERVICE Report No.: 15040508HKG-001 FCC ID: LU9638541TX IC: 4504A-638541TX Equipment Photographs Model : 638541 (FCC) 638541E4C(TX) (IC) (Internal)

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz transceiver (i.e. Controller) for a RC Car. The EUT is powered by 2 X1.5V AA batteries. The operating frequency range is from 2412MHz to 2468MHz (57 channels with 1MHz channel spacing). After pairing with the car, the car can be controlled to run forward, backward and turn around. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 93.7 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 96.7dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.403mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =1.403mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.468) mW = 9.49 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040508HKG-001R1 i FCC ID: LU9638541TX IC: 4504A-638541TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: MGA Entertainment (HK) Ltd. Grantee Address: 30th Floor, One Kowloon, 1 Wang Yuen Street, Kowloon Bay, Kowloon, Hong Kong Contact Person: Kevin Woo Tel: 2732 9242 Fax: N/A e-mail: N/A Manufacturer: Sunlight Technology Electronic Manufacturing Co., Ltd. Manufacturer Address: New Asia Industrial City, Lin Village, Tangxia Town, Dongguan City, Guangdong Province, China. Brand Name: Little Tikes FCC Model: 638541 FCC Additional Model: 638541E4C IC Model: 638541E4C(TX) Type of EUT: Transceiver Description of EUT: Tire Twister Serial Number: N/A FCC ID / IC: LU9638541TX / 4504A-638541TX Date of Sample Submitted: April 10, 2015 Date of Test: April 10, 2015 to April 29, 2015 Report No.: 15040508HKG-001R1 Report Date: May 29, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040508HKG-001R1 ii FCC ID: LU9638541TX IC: 4504A-638541TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 / RSS-210 A2.9, RSS-210 2.5 Pass Radiated Emission in Restricted Bands 15.205 / RSS-210 2.2 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 4, December 2014 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15040508HKG-001R1 iii FCC ID: LU9638541TX IC: 4504A-638541TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification.......................................................................................................... 2 2.2 EUT Exercising Software..................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Measurement Uncertainty.................................................................................... 2 2.5 Support Equipment List and Description.............................................................. 2 3.0 Emission Results .................................................................................................. 3 3.1 Field Strength Calculation.................................................................................... 3 3.2 Radiated Emission Configuration Photograph ..................................................... 4 3.3 Radiated Emission Data ...................................................................................... 4 4.0 Equipment Photographs ....................................................................................... 8 5.0 Product Labelling .................................................................................................. 8 6.0 Technical Specifications ...................................................................................... 8 7.0 Instruction Manual ................................................................................................ 8 8.0 Miscellaneous Information ................................................................................... 9 8.1 Radiated Emission on the Bandedge................................................................... 9 8.2 Discussion of Pulse Desensitization .................................................................... 9 8.3 Calculation of Average Factor.............................................................................. 9 8.4 Emissions Test Procedures .....................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15040508HKG-001 FCC ID: LU9638541TX IC: 4504A-638541TX Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 638541 (FCC) 638541E4C(TX) (IC) INTERTEK TESTING SERVICE Report No: 15040508HKG-001 FCC ID: LU9638541TX IC: 4504A-638541TX Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 638541 (FCC) 638541E4C(TX) (IC)
