LU9655517TXMy First Helicopter

CONTENTS AGES 3+ YEARS Illustrations are for reference only. Styles may vary from actual contents. CAUTION: KEEP FINGERS AWAY FROM SPINNING PROPELLERS QUICK START NOTE: Please read all instructions before use and keep this manual for future reference. B. Before beginning, an adult must install fresh alkaline batteries. Here’s how: 1. Using a Phillips screwdriver (not included), remove the screw and battery compartment cover located on the back of the remote. 2. Install six (6) fresh 1.5V AA (LR6) alkaline batteries (not included) making sure the (+) and (-) ends face the proper direction as indicated inside the battery compartment. 3. Replace the compartment cover and tighten the screw. BATTERY INSTALLATION CHARGING THE HELICOPTER 6 x AA Batteries 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 POWER INDICATOR POWER SWITCH RIGHT TURN LANDING CHARGING PLUG EMERGENCY STOP TAKE OFF LEFT TURN Take out the charging cable from the bottom of the remote. 1 Turn the helicopter OFF (O/ ) and insert the cable into the charging station under the helicopter. I = ON O = OFF O O Turn ON (I / ) the remote control. The light on the remote control will turn red and blink. Once it has nished charging, the light on the remote will turn green. Unplug the charging cable and replace the cord in the unit. 2 3 Turn the helicopter ON (I). The power LEDs on the headlights will ash. 1 Place the helicopter on a at surface and stand three feet away. 2 Turn the remote control ON (I/ ). The power indicator will light up. 3 3 FEET O O EMERGENCY STOP: If the helicopter crashes, press the stop button to stop the propellers. Turn the helicopter and remote control o. Examine the helicopter for any damage before switching it on and ying again. I / I / I / I / HELICOPTER AND REMOTE CONTROL PARTS PROTECTIVE RINGS STABILIZER STABILIZER LINKAGE ROTOR BLADES CHARGING SOCKET POWER SWITCH SKID SENSOR O O FLYING LESSONS • If the helicopter crashes, switch the remote control and the helicopter to the OFF positions. Carefully check that no damage was done to the helicopter in the crash before turning the unit on again. • For best results, use the helicopter away from bright lights. • Do not cover the sensor on the helicopter. • Keep the remote control within 15 feet (5 meters) of the helicopter to avoid loss of reception. HELPFUL FLYING TIPS A. Replacement Parts C. D. E. F. G. A. 1 Helicopter B. 1 Remote Control C. Top Rotor Blade D. Bottom Rotor Blade E. 2 Wings F. Connector G. Screwdriver H. 5 Screws (One screw will be attached to the stem of the top rotor blade.) I. 2 Screws for the Wings H. ADULT SUPERVISION, ASSEMBLY, AND BATTERY INSTALLATION REQUIRED 1) Install 6 “AA” (LR6) batteries in the remote control. 2) Charge the helicopter’s battery for 30-40 minutes. 3) Turn on the helicopter. 4) Turn on the remote control. 5) Use the buttons on the remote control to y your helicopter in an open, indoor area. H. x4 I. x2 SKU: 655517E5C ENG 4 PRESS The landing button will make the helicopter y downward as well as land. Press the button once to lower the height. Press and hold the button for two seconds to land the helicopter. It will make a landing sound. 5 PRESS Press the left button to make the helicopter turn left. Holding the button will make the helicopter spin to the left. 6 PRESS Press the right button to make the helicopter turn right. Holding the button will make the helicopter spin to the right. 7 EMERGENCY STOP: If the helicopter crashes, press the stop button to stop the propellers. Turn the helicopter and remote control o. Examine the helicopter for any damage before switching it on and ying again. PRESS • Do not touch the running rotors. Keep hands, hair and loose clothing like shoestrings away from moving parts to avoid injury. • Never hold or throw any objects into the running rotors. • Risk of eye injuries. Keep a safety distance of at least 3 feet between you and the helicopter. • Do not y the helicopter around people or pets. • Use indoors only. Do not y the helicopter in the vicinity of water or power lines. • Never make modications to the product. • Before each use, examine the plug, enclosure, remote and other parts for damage. Never operate this product if it has damaged parts. • Always keep your eyes on the helicopter during use. • Do not land or crash the helicopter near your head, your body or other people or pets. • Stand while ying the helicopter to get out of the way quickly if necessary. • Warning! This toy produces ashes that may trigger epilepsy in sensitised individuals. WARNING: The Little Tikes Company makes fun, high quality toys. We warrant to the original purchaser that this product is free of defects in materials or workmanship for one year * from the date of purchase (dated sales receipt is required for proof of purchase). At the sole election of The Little Tikes Company, the only remedies available under this warranty will be the replacement of the defective part or replacement of the product. This warranty is valid only if the product has been assembled and maintained per the instructions. This warranty does not cover abuse, accident, cosmetic issues such as fading or scratches from normal wear, or any other cause not arising from defects in material and workmanship. *The warranty period is three (3) months for daycare or commercial purchasers. U.S.A and Canada: For warranty service or replacement part information, please visit our website at www.littletikes.com, call 1-800-321-0183 or write to: Consumer Service, The Little Tikes Company, 2180 Barlow Road, Hudson OH 44236, U.S.A. Some replacement parts may be available for purchase after warranty expires—contact us for details. Outside U.S.A and Canada: Contact place of purchase for warranty service. This warranty gives you specic legal rights, and you may also have other rights, which vary from country/state to country/state. Some countries/states do not allow the exclusion or limitation of incidental or co…

Text truncated - open the document above for the full version.


          !
"#$ ####%# & '()*( א伎⥚("+,-ᯩṸ(. (/  #&0,  1#0 2 3#4#& -#5% 6 7$ #8  9#":# 0.1#7 #,: 51# 0#; 8 $7 7#7 $7 7#.7  '#,- .1#7 #,!: "# <#&18$ 16MHz Oscillator

MGA Entertainment (H.K.) Limited Suite 301, 3/F., Chinachem Golden Plaza, No.77 Mody Road, Tsim Sha Tsui East, Kowloon. H.K. Tel: (852) 2732 9200 Fax: (852) 2732 9242 2018/01/30 To Whom It May Concern: I, an officer of MGA Entertainment (H.K.) Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862.

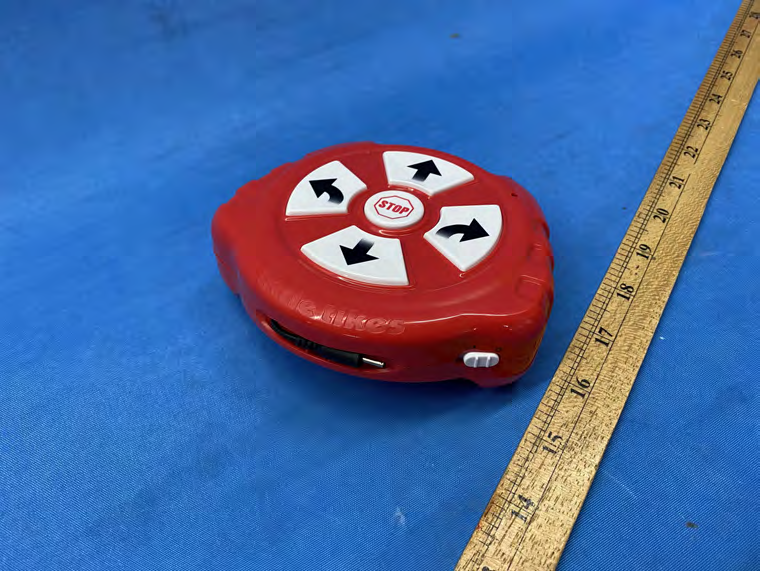

INTERTEK TESTING SERVICE FCC ID: LU9655517TX IC: 4504A-655517TX Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: LU9655517TX IC: 4504A-655517TX Equipment Photographs (External)

O 4504A-655517TX 655517/655517E4C 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 1.5V AA/LR6 P E N This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undesired operation. CAN ICES-3(B)/NMB-3(B) U. S. & other countries. 1-800-321-0183 Made in China www.littletikes.com 655517TX FCC ID:LU9655517TX

INTERTEK TESTING SERVICE FCC ID: LU9655517TX IC: 4504A-655517TX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: LU9655517TX IC: 4504A-655517TX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: LU9655517TX IC: 4504A-655517TX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: LU9655517TX IC: 4504A-655517TX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Controller Unit) for a RC Helicopter. The sample supplied operated on 55 channels, normally at 2418 - 2472MHz. The channels are separated with 1MHz channel spacing. The EUT is powered by 6 x 1.5V AA batteries. After switch on the EUT, the Helicopter will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 94.7dBμV/m at 3m Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 (OTP/SOP16) acts as MCU 2. U2 (XN297L) acts as RF Module 3. U3 (SUN4054) acts as Charging Module 4. U4 (AMS1117) and U5 (6206) act as Power Regulator 5. Y1 acts as 16MHz Oscillator 6. C8, C9, L1 and E1 act as Antenna Matching Circuit

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Controller Unit) for a RC Helicopter. The sample supplied operated on 55 channels, normally at 2418 - 2472MHz. The channels are separated with 1MHz channel spacing. The EUT is powered by 6 x 1.5V AA batteries. After switch on the EUT, the Helicopter will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 94.7dBμV/m at 3m Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 97.7dBμV/m at 3m in frequency 2.418GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 20-Apr-2020 Sheet of File: E:\ 工工 \655517\PCB\655517.ddb Drawn By: BT1BATTERY OUT 2 GND 1 VIN 3 U4AMS1117 C120.1uf C1110UF +5V VCC +9V SW5SW SPDT R61M1%R7330K 1% LB-DET(6.5V) 12 J15V Q12301 Q2 S8050 R810k D31N4148 C152.2uf R947K R131M power control LED charge detect VDD 1 PA7 2 PA6 3 PA5 4 PB7 5 PB4 6 PB5 7 PB6 8 PB2 9 PB0 10 PB1 11 PB3 12 PA3 13 PA4 14 PA0 15 GND 16 U1 OTP/SOP16 SW3 LAND SW4 Hight-CTRL R14.7K charge detectLB-DET(6.5V) SCK DATA power control C10.1uf F11N4007 C1310uf CSN 1 SCK 2 DATA 3 VDD1 4 XC1 5 XC2 6 GND 7 ANT 8 U2XN297L CSN C310uf C515pf C615pf Y1 16M/10PPM/20pF R2510R C70.5pf C82.7pf L11.8NH E1 ANT C9 NC C4 0.1uf R102.4K CHARGE 1 GND 2 BAT 3 VIN 4 PROG 5 U3 SUN4054 +5V C10 10uF VDD C16104 +5V Vin 3 GND 1 Vout 2 U56206 2.8V C2 10uF VDD VDD R41K VDD 1 G 2 R 3 D1 SW6 Stop SW7 Left SW8 Right

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 17 TEST REPORT Report No.: 20041099HKG‐001R1 MGA Entertainment (HK) Limited Application For Certification (Original Grant) FCC ID: LU9655517TX Transceiver This report supersedes previous report with report number 20041099HKG‐001 dated May 20, 2020. Please refer TY‐S20‐0103 Letter issued on July 06, 2020 for amendment/ supersede notification. Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: July 06, 2020 TEST REPORT MGA Entertainment (HK) Limited Intertek Report No: 20041099HKG‐001R1 Page 2 of 17 GENERAL INFORMATION Grantee: MGA Entertainment (HK) Limited Grantee Address: Suite 301, 3/F., Chinachem Golden Plaza, No.77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Julian Chung Tel: (852) 27329200 Fax: (852) 27329242 e‐mail: [email protected] Manufacturer: MGA Entertainment (HK) Limited Manufacturer Address: Suite 301, 3/F., Chinachem Golden Plaza, No.77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: My First Helicopter Model: 655517 Additional Model: 655517E5C Type of EUT: Transceiver Description of EUT: My First Helicopter Serial Number: N/A FCC ID: LU9655517TX Date of Sample Submitted: April 22, 2020 Date of Test: April 22, 2020 to May 14, 2020 Report No.: 20041099HKG‐001R1 Report Date: July 06, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT MGA Entertainment (HK) Limited Intertek Report No: 20041099HKG‐001R1 Page 3 of 17 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2018 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT MGA Entertainment (HK) Limited Intertek Report No: 20041099HKG‐001R1 Page 4 of 17 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants......................................................................................5 1.3 Test Methodology....................................................................................................5 1.4 Test Facility ..............................................................................................................5 2.0 SYSTEM TEST CONFIGURATION.....................................................................................6 2.1 Justification..............................................................................................................6 2.2 EUT Exercising Software...........................................................................................6 2.3 Special Accessories...................................................................................................6 2.4 Measurement Uncertainty.......................................................................................6 2.5 Support Equipment List and Description ..................................................................6 3.0 EMISSION RESULTS.......................................................................................................7 3.1 Field Strength Calculation.........................................................................................7 3.2 Radiated Emission Configuration Photograph...........................................................8 3.3 Radiated Emission Data............................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS ......................................................................................12 5.0 PRODUCT LABELLING..................................................................................................12 6.0 TECHNICAL SPECIFICATIONS ..........…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: LU9655517TX IC: 4504A-655517TX Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: LU9655517TX IC: 4504A-655517TX Configuration Photographs Worst-Case Radiated Emissions (Back View)
