March 12, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:DENSO International America, Inc. FCC ID: LXC-E120 Part 24/22 Certification Gentlemen: Attached herewith, on behalf of DENSO International America, Inc. is an application for Part 24/22 Certification of the following dual band Analog/PCS Phone: FCC ID:LXC-E120 TRADE NAME:DENSO MODEL(S):E120 EUT TYPE:Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range:1851.25 – 1908.75 MHz (CDMA) 824.04 – 848.97 MHz (AMPS) Max. Output Power:0.6 Watts ERP (AMPS) / 0.6 Watts EIRP (CDMA) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Steve Burrington Test & Verification Group DENSO International America, Inc.

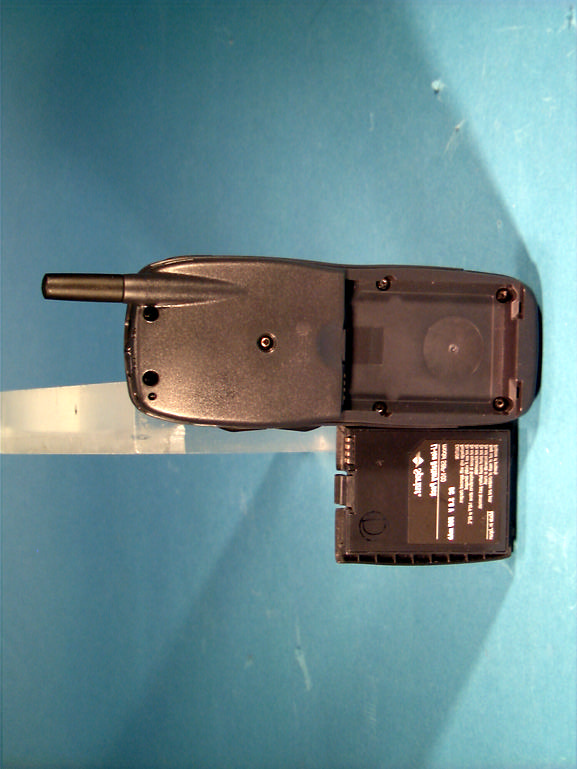

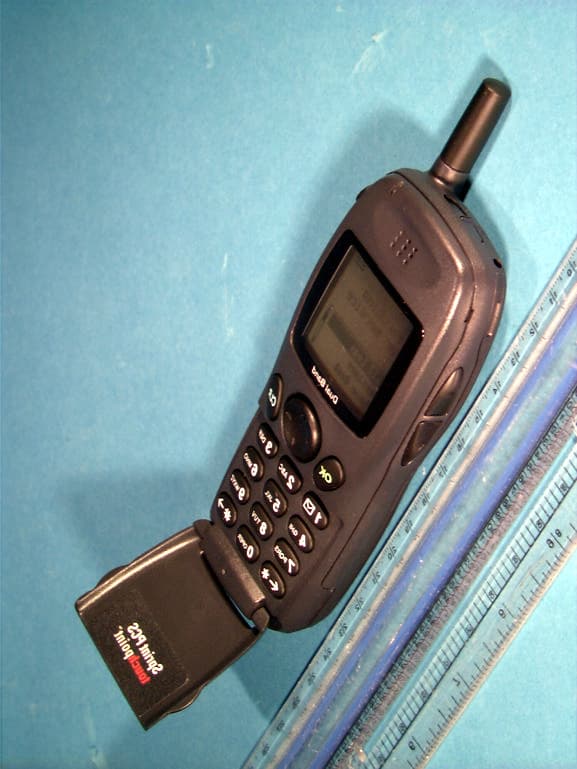

Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc.

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE) DENS0 INTERNATIONAL AMERICA, INC. LA laboratories 5770 Armada Drive, Carisbad, California 920084608 Tel: (760) 929-3300 Fax: (760) 929-3350, (760) 929-3355 Spfht PCS Phone ModeI No. E120 DC 3.6V Made in US with US & Foriegn Components FCC ID: LXC-E120 __--------T L -/T.imwad __-_---- 1 BCEO6CFC for laformalioa Call S rinl PCS Castoaer Care: l-888-PII-4PCS

Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: 24/22.990308149.LXCFCC Part 24 & 22 Test Date(s): March 08-12, 1999Certfication © 1998 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc.

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DENSO INTERNATIONAL AMERICA, INC.Dates of Tests: March 08-12, 1999 5770 Armada DriveTest Report S/N: SAR.990308150.LXC Carlsbad, CA 92008-4608Test Site: PCTEST Lab, Columbia MD Attention: Steve Burrington, Test & Verification Group FCC ID LXC-E120 APPLICANT DENSO INTERNATIONAL AMERICA, INC. EUT Type:Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency:1851.25 – 1908.75 MHz (CDMA) / 824.04 – 848.97 MHz (AMPS) Rx Frequency:1931.25 – 1988.75 MHz (CDMA) / 869.04 – 893.97 MHz (AMPS) Max Output Power:0.6 W ERP (AMPS) / 0.6 W EIRP (CDMA) Trade Name:DENSO Model:E120 FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E), 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990308150.LXC SAR Measurement ReportFCC Part 24/22 Certification © 1999 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13-14 SAR TEST EQUIPMENT LIST .............................................. 15 CONCLUSION / REFERENCES ...........................................16 Test Report S/N: SAR.990308150.LXCSAR Measurement Report Test Dates: March 08-12, 1999FCC Parts 24 & 22 Certification DENSO FCC ID: LXC-E120 (Model: E120) © 1999 PCTEST LabDual-Band Analog/PCS Phone (AMPS/CDMA)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:DENSO INTERNATIONAL AMERICA, INC. Address:5770 Armada Drive Carlsbad, CA 92008-4608 Attention:Steve Burrington, Test & Verification Group • EUT Type:Dual-Band Analog/PCS Phone • Trade Name:DENSO • FCC IDENTIFIER:LXC-E120 • Model(s):E120 • S/N:Pre-production • Tx Frequency: (AMPS)824.04 - 848.97 MHz (CDMA)1851.25 -1908.75 MHz • Rx Frequency: (AMPS)869.04 – 893.97 MHz (CDMA)1931.25 – 1988.75 MHz • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 24(E); § 22(H); § 2.1093, Docket 96-326 • Max. Output Power:0.6W ERP (AMPS) / 0.6W EIRP (CDMA) • Modulation :AMPS/CDMA • Antenna:Helical (λ/2) CDMA • Antenna Dimensions:3.4 cm. (Length) • Date of Test(s):March 08-12, 1999 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.990308150.LXC 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Set-up Test Report S/N: SAR.990308150.LXCSAR Measurement Report Test Dates: March 08-12, 1999FCC Parts 24 & 22 Certification DENSO FCC ID: LXC-E120 (Model: E120) © 1999 PCTEST LabDual-Band Analog/PCS Phone (AMPS/CDMA)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those reco…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99030802_ZOOM.VLT Start : 8-Mar-99 09:34:45 am End : 8-Mar-99 09:47:41 am Radio Type : DENSO Model Number : E-120 Serial Number : A121 Frequency : 824.04 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : DENSO DUAL BAND PHONE CHANNEL 991 FM MODE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 1.000, Y = 0.500, Z = 0.000 (cm) Value = 20.477 Measured Values (volts) = 2.039E-002 1.508E-002 1.241E-002 1.031E-002 8.615E-003 7.275E-003 6.296E-003 5.629E-003 5.139E-003 4.678E-003 4.390E-003 3.958E-003 3.469E-003 2.957E-003 2.338E-003 1.719E-003 1.132E-003 6.377E-004 4.584E-004 4.171E-004 5.632E-004 Calc. Voltage @ Surface (Vs) = 0.0262 Voltage @ 1.00 cm (Vt) = 0.0103 Ave. Voltage (Vs+Vt)/2 = 0.0182 Ave. SAR over 1 g (mW/g) = 1.3342 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 99030802_ZOOM Start : 8-Mar-99 09:34:45 am End : 8-Mar-99 09:47:41 am DENSO/E-120/A121;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 99030802_ZOOM Start : 8-Mar-99 09:34:45 am End : 8-Mar-99 09:47:41 am DENSO/E-120/A121;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.498 1.425 1.352 1.279 1.206 1.134 1.061 0.988 0.915 0.842 File : 99030802_ZOOM Start : 8-Mar-99 09:34:45 am End : 8-Mar-99 09:47:41 am DENSO/E-120/A121;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.498 1.425 1.352 1.279 1.206 1.134 1.061 0.988 0.915 0.842 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99030803_ZOOM.VLT Start : 8-Mar-99 09:54:29 am End : 8-Mar-99 10:02:46 am Radio Type : DENSO Model Number : E-120 Serial Number : A121 Frequency : 836.49 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : DENSO DUAL BAND PHONE CHANNEL 383 FM MODE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 1.500, Y = -0.250, Z = 0.000 (cm) Value = 19.878 Measured Values (volts) = 1.774E-002 1.393E-002 1.155E-002 9.813E-003 8.299E-003 7.126E-003 6.058E-003 5.469E-003 5.023E-003 4.709E-003 4.441E-003 4.080E-003 3.651E-003 3.126E-003 2.446E-003 1.926E-003 1.301E-003 8.605E-004 6.126E-004 5.877E-004 7.699E-004 Calc. Voltage @ Surface (Vs) = 0.0220 Voltage @ 1.00 cm (Vt) = 0.0098 Ave. Voltage (Vs+Vt)/2 = 0.0159 Ave. SAR over 1 g (mW/g) = 1.1635 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 99030803_ZOOM Start : 8-Mar-99 09:54:29 am End : 8-Mar-99 10:02:46 am DENSO/E-120/A121;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99030804_ZOOM.VLT Start : 8-Mar-99 10:10:03 am End : 8-Mar-99 10:18:20 am Radio Type : DENSO Model Number : E-120 Serial Number : A121 Frequency : 848.97 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : DENSO DUAL BAND PHONE CHANNEL 799 FM MODE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 0.750, Y = 0.000, Z = 0.000 (cm) Value = 19.586 Measured Values (volts) = 1.916E-002 1.515E-002 1.268E-002 1.066E-002 8.927E-003 7.471E-003 6.407E-003 5.654E-003 5.213E-003 4.813E-003 4.620E-003 4.197E-003 3.762E-003 3.313E-003 2.578E-003 1.863E-003 1.214E-003 8.315E-004 5.957E-004 6.331E-004 8.395E-004 Calc. Voltage @ Surface (Vs) = 0.0236 Voltage @ 1.00 cm (Vt) = 0.0107 Ave. Voltage (Vs+Vt)/2 = 0.0171 Ave. SAR over 1 g (mW/g) = 1.2514 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 99030804_ZOOM Start : 8-Mar-99 10:10:03 am End : 8-Mar-99 10:18:20 am DENSO/E-120/A121;848.97MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99030809_ZOOM.VLT Start : 8-Mar-99 12:05:19 pm End : 8-Mar-99 12:18:00 pm Radio Type : DENSO Model Number : E-120 Serial Number : A121 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : DENSO DUAL BAND PHONE CHANNEL 0025 PCS/CDMA MODE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 2.000, Y = -2.250, Z = 0.000 (cm) Value = 9.992 Measured Values (volts) = 9.817E-003 7.545E-003 5.827E-003 4.535E-003 3.500E-003 2.809E-003 2.213E-003 1.701E-003 1.284E-003 9.936E-004 7.627E-004 6.133E-004 4.550E-004 3.431E-004 2.612E-004 1.849E-004 1.547E-004 6.435E-005 8.980E-005 4.802E-005 7.513E-005 Calc. Voltage @ Surface (Vs) = 0.0127 Voltage @ 1.00 cm (Vt) = 0.0045 Ave. Voltage (Vs+Vt)/2 = 0.0086 Ave. SAR over 1 g (mW/g) = 0.9598 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z …

Text truncated - open the document above for the full version.

Test Report S/N: SAR.990308150.LXCSAR Measurement Report Test Date(s): March 08-12, 1999FCC Parts 24 & 22 Certification © 1999 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. 1 1 1 Peak SAR Value at the surface of the phantom @ Z=0 (not averaged over 1-gram of tissue). This is a computer simulation of the hot spot(s) of the phone. Test Report S/N: SAR.990308150.LXCSAR Measurement Report Test Date(s): March 08-12, 1999FCC Parts 24 & 22 Certification © 1999 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: SAR.990308150.LXCSAR Measurement Report Test Date(s): March 08-12, 1999FCC Parts 24 & 22 Certification © 1999 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: SAR.990308150.LXCSAR Measurement Report Test Date(s): March 08-12, 1999FCC Parts 24 & 22 Certification © 1999 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: SAR.990308150.LXCSAR Measurement Report Test Date(s): March 08-12, 1999FCC Parts 24 & 22 Certification © 1999 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc. Test Report S/N: SAR.990308150.LXCSAR Measurement Report Test Date(s): March 08-12, 1999FCC Parts 24 & 22 Certification © 1999 PCTEST LabFCC ID: LXC-E120 NVLAP Lab Code: 100431-0 DENSO International America, Inc.

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (Parts 24/22 Certification) DENSO INTERNATIONAL AMERICA, INC.Dates of Tests: March 08-12, 1999 5770 Armada DriveTest Report S/N: 24/22.990308149.LXC Carlsbad, CA 92008-4608Test Site: PCTEST Lab, Columbia MD Attention: Steve Burrington, Test & Verification Group FCC ID LXC-E120 APPLICANT DENSO INTERNATIONAL AMERICA, INC. Classification:Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s):§§§§24(E), 22(H), 2.983, 2.987 EUT Type:Dual-Band Analog/PCS Phone (AMPS/CDMA) Trade Name:DENSO Model:E120 Tx Frequency Range:1851.25MHz – 1908.75MHz (CDMA) / 824.04MHz – 848.97MHz (AMPS) Rx Frequency Range:1931.25MHz – 1988.75MHz (CDMA) / 869.04MHz – 893.97MHz (AMPS) Max Output Power:0.6 W ERP (AMPS) / 0.6 W EIRP (CDMA) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990308149.LXC FCC Parts 24 & 22Certification © 1999 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION 2 DESCRIPTION OF TESTS 3-7 EFFECTIVE RADIATED POWER OUTPUT 8 EQUIVALENT ISOTROPICALLY RADIATED POWER 9 RADIATED MEASUREMENTS 10-15 FREQUENCY STABILITY 16-19 PLOTS OF EMISSIONS 20 LIST OF TEST EQUIPMENT 21 SAMPLE CALCULATIONS 22 RECOMMENDATION / CONCLUSION 23 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L:PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M:USER’S MANUAL ATTACHMENT N:SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P:SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24/22.990308149.LXCFCC Parts 24 & 22 Dates of Tests: March 08-12, 1999Certification © 1999 PCTEST LabDENSO FCC ID: LXC-E120 (Model: E120)1 Dual-Band Analog/PCS Phone (AMPS/CDMA) MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name:DENSO INTERNATIONAL AMERICA, INC. Address:5770 Armada Drive Carlsbad, CA 92008-4608 Attention:Steve Burrington, Test & Verification Group • §2983(b) FCC ID:LXC-E120 • §2983(c) Quantity:Quantity production is planned • §2.983(d) Emission Designator:1M25F9W, 40K0F8W, 40K0F1D • §2.983(d) Tx Freq. Range:1851.25 – 1908.75 MHz (CDMA) 824.04 – 848.97 MHz (AMPS) • §2.983(d) Rx Freq. Range:1931.25 – 1988.75 MHz (CDMA) 869.04 – 893.97 MHz (AMPS) • §2.983(d) Max Power Rating:0.6 W EIRP (CDMA) / 0.6 W ERP (AMPS) • Battery Pack:3.6 VDC Li-Ion Battery Pack • AC Desktop Charger:Denso Model: DTC-100 • FCC Classification(s):Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type:Dual Band Analog/PCS Phone (AMPS/CDMA) • Frequency Tolerance:± 0.00025% (2.5 ppm) • FCC Rule Part(s):§§§§ 24(E), 22(H), 2.983, 2.987 • Dates of Tests:March 08-12, 1999 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N:24/22.990308149.LXC Test Report S/N: 24/22.990308149.LXCFCC Parts 24 & 22 Dates of Tests: March 08-12, 1999Certification © 1999 PCTEST LabDENSO FCC ID: LXC-E120 (Model: E120)2 Dual-Band Analog/PCS Phone (AMPS/CDMA) 1.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at 3-meter test range (see Figure2). The equipment under test is placed on the turntable connected to a RF wattmeter and a dummy RF load, and then its power is adjusted to its rated output. A receiving antenna located 2 meters from the turntable picks up any signal radiated from the transmitter. The turntable containing the system was rotated; the receiving antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. The testing procedure is repeated for both horizontal and vertical polarization of the receiving antenna. The actual radiated signal strength is obtained by substitution meth…

Text truncated - open the document above for the full version.

FIGURE 1: Transmit Audio Frequency Response and TOLR (CDMA) FIGURE 2: Send Audio Sidetone Frequency Response and SOLR (CDMA) FIGURE 3: Transmit Audio Frequency Response and TOLR (AMPS) FIGURE 4: Transmit Audio Sidetone Frequency Response and SOLR (AMPS) PCTEST Engineering Lab., Inc. Subject:Modulation CharacteristicsTest Report No.:24/22.990308149.LXC FCC Part 24/22Test Date:03.08.99 EUT:DENSO Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:E120 FCC ID:LXC-E120 MODE:Audio1V = 0dB @ 2.5 kHz Modulation Limiting 0 2000 4000 6000 8000 10000 12000 14000 -35-30-25-20-15-10-50 Audio Input Level (dBV) Deviation (Hz) DENSO Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: LXC-E120

PCTEST Engineering Lab., Inc. SUBJECT:Modulation Characteristics Test Report No.:24/22.990308149.LXC FCC Part 22Test Date:03.08.99 EUT:DENSO Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:E120 FCC ID:LXC-E120 REFERENCE:1 kHz = 0 dB Frequency Response of Audio Low Pass Filter -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 10k1k 100k DENSO Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: LXC-E120

Test Report S/N: 24/22.990308149.LXCFCC Parts 24 & 22 Dates of Tests: March 08-12, 1999Certification © 1999 PCTEST LabDENSO FCC ID: LXC-E120 (Model: E120)8 Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Data § 22.913Effective Radiated Power Output A. POWER: Low (Analog Mode) Freq. Tuned LEVELAFCLPOLF/SERPERPBattery (MHz)(dBm)(dB)(H/V)( μ V/m)(W)(dBm)Type 824.04-34.0031.65V1708150.005357.27Standard 836.49-34.5031.81V1641750.004946.93Standard 848.97-33.8031.96V1811780.006027.78Standard B. POWER: High (Analog Mode) Freq. Tuned LEVELAFCLPOLF/SERPERPBattery (MHz)(dBm)(dB)(H/V)( μ V/m)(W)(dBm)Type 824.04-14.0031.65V17081460.5350027.27Standard 836.49-14.5031.81V16417470.4942226.93Standard 848.97-13.8031.96V18117830.6018927.78Standard 824.04-14.2031.65V16692640.5109327.07Extended NOTES: The EUT is placed 3m. away from the receiving antenna and the ERP is calculated using the formula: ERP (dBm) = 10 Log 10 (((r(mV/m)/1 x 10 6 ) 2 / 49.2/1 x 10 -3 ) ERP (dBm) = 10 Log 10 [ (3 x FS/1 x 10 6 ) 2 / (49.2) x 1000] ERP (Watts) = {(3 x FS)/1 x 10 6 } 2 / 49.2 Test Report S/N: 24/22.990308149.LXCFCC Parts 24 & 22 Dates of Tests: March 08-12, 1999Certification © 1999 PCTEST LabDENSO FCC ID: LXC-E120 (Model: E120)9 Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Data § 24.232(b) Equivalent Isotropically Radiated Power (E.I.R.P.) The RF output power is measured via HP436A Power Meter Sensor. Supply Voltage: 3.6 VDC Modulation: CDMA FREQ. (MHz) Level (dBm) AFCL (dB) POL (H/V) Height (m) Azimuth (° angle) F/S (μV/m) Margin (dBm) EIRP (W) Battery Type 1851.25- 19.335.31V/H1.260141416527.780.60000Standard 1880.00- 19.635.48V/H1.260139315727.650.58226Standard 1908.75- 20.935.65V/H1.260110662425.650.43200Standard 1851.25- 19.535.31V/H1.260138197527.580.57431Extended Mobile / portable stations are limited to 2 watts e.i.r.p. peak power and the equipment must employ means to limit the power to the minimum necessary for successful communications The EUT is placed 3m. away from the receiving antenna and the EIRP is calculated using the formula: EIRP (dBm) = 10 Log 10 (((r(mV/m)/1 x 106)2 / 30.0/1 x 10-3) EIRP (dBm) = 10 Log 10 [ (3 x FS/1 x 106)2 / (30.0) x 1000] EIRP (dBm) = {(3 x FS)/1 x 106}2 / 30.0
