LXP-RK225Low Power Communication Device Transmitter

A000A01A-AATThis Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner. OWNER'S I.D. ORIGINAL OWNERADDRESSCITY STATE ZIP CODE DELIVERY DATE (Date Sold to Original Retail purchaser) DEALER NAME DEALER NO. ADDRESSCITY STATE ZIP CODE gkflhma-0.p65 9/8/04, 5:36 PM 2 OWNER'S MANUALA030A05F-AATOperationMaintenanceSpecificationsAll information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make chang es at any time so that our policy of continual product improvement may be carried out.This manual applies to all Hyundai Tiburon models and includes descriptions and explanations of optional as well as standard eq uipment. As a result, you may find material in this manual that does not apply to your specific vehicle. HGK037 gkflhma-0.p65 9/8/04, 5:36 PM 3 A010A02A-AAT WARRANTIES FOR YOUR HYUNDAI VEHICLE o New Vehicle 60 Months/60,000 Miles Limited Warrantyo New Vehicle 120 Months/100,000 Miles Limited Powertrain Warranty (original owner only)o Anti-Perforation Limited Warrantyo Emission Defect Warranty - Federal Vehicleo California Emission Control System Warranty (if applicable)o Emission Performance Warranty - Federal Vehicleo Replacement Parts and Accessories Limited WarrantyNOTE:Detailed warranty information is provided in your Hyundai Owner's Handbook.A020A01A-AAT RESPONSIBILITY FOR MAINTENANCE The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibilityto see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals.When the vehicle is used in severe driving conditions, more frequent maintenance is required for some operations.Maintenance requirements for severe operating conditions are also included in Section 5. gkflhma-0.p65 9/8/04, 5:36 PM 4 A040A01A-AAT FOREWORD Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people whodrive Hyundais. The advanced engineering and high-quality construction of each Hyundai we build is something of whichwe're very proud.Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you readit carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundaidealer. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that maybe required. A050A04A-AAT HYUNDAI MOTOR COMPANY Note : Because future owners will also need the information included in this manual, if you sell this Hyundai, please leave the manual in the vehicle for their use. Thank you. CAUTION: Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do notmeet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifica-tions listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual and which also appearin the Service Station Information on the back cover of the Owner's Manual.Copyright 2004 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced, stored inany retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai MotorCompany. ! gkflhma-0.p65 9/8/04, 5:36 PM 5 A070A01A-AAT CAUTION: MODIFICATIONS TO YOUR HYUNDAI Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safetyor durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle.Certain modifications may also be in violation of regulations established by the U.S. Department of Transportationand other federal or state agencies.A080A01S-AAT TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible for animproperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For thisreason, we recommend that you carefully follow the radio manufacturer's instructions or consult your Hyundaidealer for precautionary measures or special instructions if you choose to install one of these devices. ! gkflhma-0.p65 9/8/04, 5:36 PM 6 A090A01A-AAT SAFETY AND VEHICLE DAMAGE WARNING This manual includes information titled as WARNING, CAUTION and NOTE.These titles indicate the following: WARNING: This indicates that a condition may result in harm, serious injury or death to you or other persons ifthe warning is not heeded. Follow the advice provided with the warning. CAUTION: This indicates that a condition may result in damage to your vehicle or its equipment if the caution isnot heeded. Follow the advice provided with the caution.NOTE:This indicates that interesting or helpful information is being provided. ! ! gkflhma-0.p65 9/8/04, 5:36 PM 7 A100A03A-AATGUIDE TO HYUNDAI GENUINE PARTS1. What are Hyundai Genuine Parts? Hyundai Genuine Parts are the same partsused by Hyundai Motor Company to manu-facture vehicles. They are designed andtested for the optimum safety, performance,and reliability to our customers. 2. Why should you use genuine parts? Hyundai Genuine Parts are engineered andbuilt to meet rigid manufacturing require-ments. Using imitation, counterfeit or usedsalvage parts is not covered under theHyundai New Vehicle Limited Warranty orany other Hyundai warranty. In addition, anydamage to or failure of Genuine HyundaiParts caused by the installation or failure of an imitation, counterfeit or used salvage partis not covered by any Hyundai Warranty. 3. How can you tell if you are purchasing Hyundai Genuine Parts?Look for the Hyundai Genuine Parts Logo onthe package (see below).Hyundai Genuine Parts exporte…

Text truncated - open the document above for the full version.

FEATURES OF YOUR HYUNDAI 1 Fuel Recommendations ................................................ 1-2Breaking in Your New Hyundai ..................................... 1-3Keys .............................................................................. 1-3 Door (Teft-Alarm System) ...................................... 1-4, 1-6Power Windows ............................................................ 1-8Seats ..... ........................................................................ 1-9 Seat Belts .................................................................... 1-14 Child Restraint System ............................................... 1-20 Supplemental Restraint (AIRBAG) System (SRS) ..... 1-26 Instrument Cluster and Indicator Lights ..................... . 1-34 Warning and Indicator Lights ...................................... 1-36 Multi-Function Light Sw itch ......................................... 1-43 Windshield Wiper/Washer Switch ............................... 1-45 Sunroof ....................................................................... 1-51 Mirror ........................................................................... 1-54 Hood R elease ............................................................. 1-57 Cruise Con trol ............................................................. 1-63 Audio Remote Contro l Switc h ..................................... 1-65 Heating and Cooling Control ....................................... 1-67 Stereo Sound System ................................................. 1-84 Audio System .............................................................. 1-86 Antenna ..................................................................... 1-123 1 gkflhma-1a.p65 9/8/04, 5:39 PM 1 1 FEATURES OF YOUR HYUNDAI 2 FUEL RECOMMENDATIONS CAUTION: Your Hyundai's New Vehicle Limited War-ranty may not cover damage to the fuelsystem and any performance problems thatare caused by the use of fuels containingmethanol or fuels containing MTBE (MethylTertiary Butyl Ether) over 15.0% vol. (Oxy-gen Content 2.7% weight.) B010B01A-AATWhat About Gasohol?Gasohol (a mixture of 90% unleaded gasolineand 10% ethanol or grain alcohol) may be usedin your Hyundai. However, if your engine devel-ops driveability problems, the use of 100%unleaded gasoline is recommended. Fuels withunspecified quantities of alcohol, or alcoholsother than ethanol, should not be used. B010A01JM-AATUse Unleaded GasolineUnleaded gasoline with a Pump OctaneRating of 87 (Research Octane Number 91)or higher must be used in your Hyundai. B010D01A-AATDo Not Use MethanolFuels containing methanol (wood alcohol) shouldnot be used in your Hyundai. This type of fuelcan reduce vehicle performance and damagecomponents of the fuel system. ! B010A02GK UNLEADED FUEL ONLY B010C01A-AATUse of MTBEHyundai recommends that fuels containingMTBE (Methyl Tertiary Butyl Ether) over 15.0%vol. (Oxygen Content 2.7% weight) should notbe used in your Hyundai.Fuel containing MTBE over 15.0% vol. (OxygenContent 2.7% weight) may reduce vehicle per-formance and produce vapor lock or hardstarting. CAUTION: o Do not "TOP-OFF" after the first nozzle shut off when refueling. o The fuel cap must be tightened until cap clicks, otherwise " " light may illumi-nate. ! gkflhma-1a.p65 9/8/04, 5:39 PM 2 1 FEATURES OF YOUR HYUNDAI 3 BREAKING IN YOUR NEWHYUNDAI B010E01A-AATGasolines for Cleaner AirTo help contribute to cleaner air, Hyundai rec-ommends that you use gasolines treated withdetergent additives, which help prevent depositformation in the engine. These gasolines willhelp the engine run cleaner and enhance per-formance of the Emission Control System.B010F01A-AATOperation in Foreign CountriesIf you are going to drive your Hyundai in anothercountry, be sure to:o Observe all regulations regarding registra- tion and insurance. o Determine that acceptable fuel is available. B020A01S-AATDuring the First 1,200 Miles (2,000 Km)No formal "break-in" procedure is required withyour new Hyundai. However, you can contrib-ute to the economical operation and durability ofyour Hyundai by observing the following recom-mendations during the first 1,200 miles (2,000km).o Don't drive faster than 55 MPH (88 km/h).o While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000rpm and 4,000 rpm. o Use moderate acceleration. Don't start quickly or depress the accelerator pedalfully. o For the first 200 miles (300 km), try to avoid hard stops. o Don't lug the engine (in other words, don't drive so slowly in too high a gear that theengine "bucks"-shift to a lower gear). o Whether going fast or slow, vary your speed from time to time. o Don't let the engine idle longer than 3 minutes at one time. o Don't tow a trailer during the first 1,200 miles (2,000 km) of operation. KEYS B030A01A-AATFor greater convenience, the same key oper-ates all the locks in your Hyundai. However,because the doors can be locked without a key,carrying a spare key is recommended in caseyou accidentally lock one key inside the car. B030A01E gkflhma-1a.p65 9/8/04, 5:39 PM 3 1 FEATURES OF YOUR HYUNDAI 4 WARNING: o Unlocked doors can be dangerous. Be- fore you drive away (especially if thereare children in the car), be sure that all thedoors are securely closed and locked sothat the doors cannot be inadvertentlyopened from the inside. This helps en-sure that the doors will not be openedaccidentally. Also, when combined withthe proper use of seat belts, locking thedoors helps keep occupants from beingejected from the car in case of an acci-dent. o Before opening the door, always look for and avoid oncoming traffic. o In case of accident, the door is unlocked automatically (If installed). ! DOOR B040A02Y-AATDOOR LOCKS B030C01Y-AATILLUMINATED IGNITION SWITCH(If installed) Whenever a door is opened, the ignition switchwill be illuminated for your convenience, pro-vided the ignition switch is not in the "ON"position.The light will go off approximately 10 secondsafter clos…

Text truncated - open the document above for the full version.

1 FEATURES OF YOUR HYUNDAI 34 INSTRUMENT CLUSTER AND INDICATOR LIGHTS B260A02GK-AAT B260A02GK-A gkflhma-1a.p65 9/8/04, 5:40 PM 34 1 FEATURES OF YOUR HYUNDAI 35 1. Speedometer 2. Turn Signal Indicator Light 3. Odometer 4. Automatic Transaxle Position Indicator Light (If installed) 5. Coolant Temperature Gauge 6. Trip odometer 7. Fuel Gauge 8. Tachometer 9. Electronic Stability Program (ESP) Indicator Light (If installed)10. Trip Odometer Reset Knob11. Charging System Warning Light12. Supplemental Restraint System (SRS) Service Reminder Indicator (SRI) 13. Seat Belt Warning Light14. High Beam Indicator Light15. Low Oil Pressure Warning Light16. Malfunction Indicator Light (MIL)17. Low Fuel Warning Light18. Parking Brake/Low Brake Fluid Level Warning Light19. CRUISE Indicator Light (If installed)20. CRUISE SET Indicator Light (If installed)21. Tail Gate Open Warning Light22. Door Ajar Warning Light23. ABS Service Reminder Indicator (SRI) (If installed) gkflhma-1a.p65 9/8/04, 5:40 PM 35 1 FEATURES OF YOUR HYUNDAI 36 B260G01A-AAT Low Oil Pressure Warning Light CAUTION: If the oil pressure warning light stays onwhile the engine is running, serious enginedamage may result. The oil pressure warn-ing light comes on whenever there is insuf-ficient oil pressure. In normal operation, itshould come on when the ignition switchis turned on, then go out when the engineis started. If the oil pressure warning lightstays on while the engine is running, thereis a serious malfunction.If this happens, stop the car as soon as it issafe to do so, turn off the engine and checkthe oil level. If the oil level is low, fill theengine oil to the proper level and start theengine again. If the light stays on with theengine running, turn the engine off imme-diately. In any instance where the oil lightstays on when the engine is running, theengine should be checked by a Hyundaidealer before the car is driven again. ! ! WARNING AND INDICATOR LIGHTS B260P02Y-GAT ABS Service Reminder Indica-tor (SRI) (If Installed) When the key is turned to the "ON" position, theAnti-Lock Brake System SRI will come on andthen go off in a few seconds. If the ABS SRIremains on, comes on while driving, or does notcome on when the key is turned to the "ON"position, this indicates that there may be aproblem with the ABS.If this occurs, have your vehicle checked byyour Hyundai dealer as soon as possible. Thenormal braking system will still be operational,but without the assistance of the anti-lock brakesystem. WARNING: If the both ABS SRI and Parking Brake/Brake fluid level warning lights remain "ON"or come on while driving, there may be aproblem with E.B.D (Electronic Brake ForceDistribution).If this occurs, avoid sudden stops and haveyour vehicle checked by your Hyundai dealeras soon as possible. B260D01A-AAT Turn Signal Indicator Lights The blinking green arrows on the instrumentpanel show the direction indicated by the turnsignals. If the arrow comes on but does not blink,blinks more rapidly than normal, or does notilluminate at all, a malfunction in the turn signalsystem is indicated. Your dealer should beconsulted for repairs. B260F01A-AAT High Beam Indicator Light The high beam indicator light comes on when-ever the headlights are switched to the highbeam or flash position. gkflhma-1a.p65 9/8/04, 5:40 PM 36 1 FEATURES OF YOUR HYUNDAI 37 B260H01GK-AAT Parking Brake/Low Brake FluidLevel Warning Light CAUITON: If you suspect brake trouble, have yourbrakes checked by a Hyundai dealer assoon as possible. Driving your car with aproblem in either the brake electrical sys-tem or brake hydraulic system is danger-ous, and could result in a serious injury ordeath.Warning Light OperationThe parking brake/low brake fluid level warninglight should come on when the parking brake isapplied and the ignition switch is turned to "ON"or "START". After the engine is started, the lightshould go out in three seconds.If the parking brake is not applied, the warninglight should come on when the ignition switch isturned to "ON" or "START", then go out in threeseconds. If the light comes on at any other time,you should slow the vehicle and bring it to acomplete stop in a safe location off the roadway. The brake fluid level warning light indicates thatthe brake fluid level in the brake master cylinderis low and hydraulic brake fluid conforming toDOT 3 or DOT 4 specifications should beadded. After adding fluid, if no other trouble isfound, the car should be immediately and care-fully driven to a Hyundai dealer for inspection.If further trouble is experienced, the vehicleshould not be driven at all but taken to a dealerby a professional towing service or some othersafe method.Your Hyundai is equipped with dual-diagonalbraking systems. This means you still havebraking on two wheels even if one of the dualsystems should fail. With only one of the dualsystems working, more than normal pedal traveland greater pedal pressure are required to stopthe car. Also, the car will not stop in as short adistance with only half of the brake systemworking. If the brakes fail while you are driving,shift to a lower gear for additional engine brakingand stop the car as soon as it is safe to do so. ! B260J01A-AAT Charging System Warning Light The charging system warning light should comeon when the ignition is turned on, then go outwhen the engine is running. If the light stays onwhile the engine is running, there is a malfunc-tion in the electrical charging system. If the lightcomes on while you are driving, stop, turn off theengine and check under the hood. First, makecertain the generator drive belt is in place. If it is,check the tension of the belt. Do this as shownon page 6-23 by pushing down on the center ofthe belt. Have the system checked by yourHyundai dealer as soon as possible. gkflhma-1a.p65 9/8/04, 5:40 PM 37 1 FEATURES OF YOUR HYUNDAI 38 B260E01L-AAT Seat Belt Reminder Light AndChime Seat belt reminder light comes and stays on untilthe seat belt is fastened when the ignition…

Text truncated - open the document above for the full version.

Response TCB findings.txt From: "Donna" <[email protected]> To: <[email protected]> Subject: FW: FCC ID: LXP-RK225 Robert Bosch TCB findings Date: Thursday, October 07, 2004 7:41 PM Dear Barry, Please find response below to outstanding issues for the LXP-RK225. Regards Donna Cleary EMC Technologies Pty Ltd -----Original Message----- From: Curtis-Straus Certification Dept. [mailto:[email protected]] <mailto:[mailto:[email protected]]> Sent: Tuesday, 28 September 2004 5:07 AM To: Donna Cleary Subject: FCC ID: LXP-RK225 Robert Bosch TCB findings Hi Donna, These issues were found during our review of the application: 1. As the duty cycle was measured rather than calculated please confirm the theoretical worst case duty cycle was measured. The duty cycle of 50% was specified by the client. The worst case duty cycle over 100mS was measured and confirmed to be 50%. (zoom in plot was recorded (Appendix J), but, the plot of worst case duty cycle over 100mS was not recorded during the measurement). 2. Please supply details of the label material. The IRK label is made of plastic material that is attached on the device as sticker. The label is plastic sticker designed for the life of the project. It is definitely not paper label. On later stage we plan for IRK only to change plastic label to so called tampo printing on housing. Please note that the test report refers to an obsolete version of C63.4. Revised test report. Thank you. Best regards Barry C. Quinlan Certification Manager Curtis-Straus TCB Page 1 Response TCB findings.txt This e-mail was scanned for viruses using BitDefender. This e-mail was scanned for viruses using BitDefender. Page 2

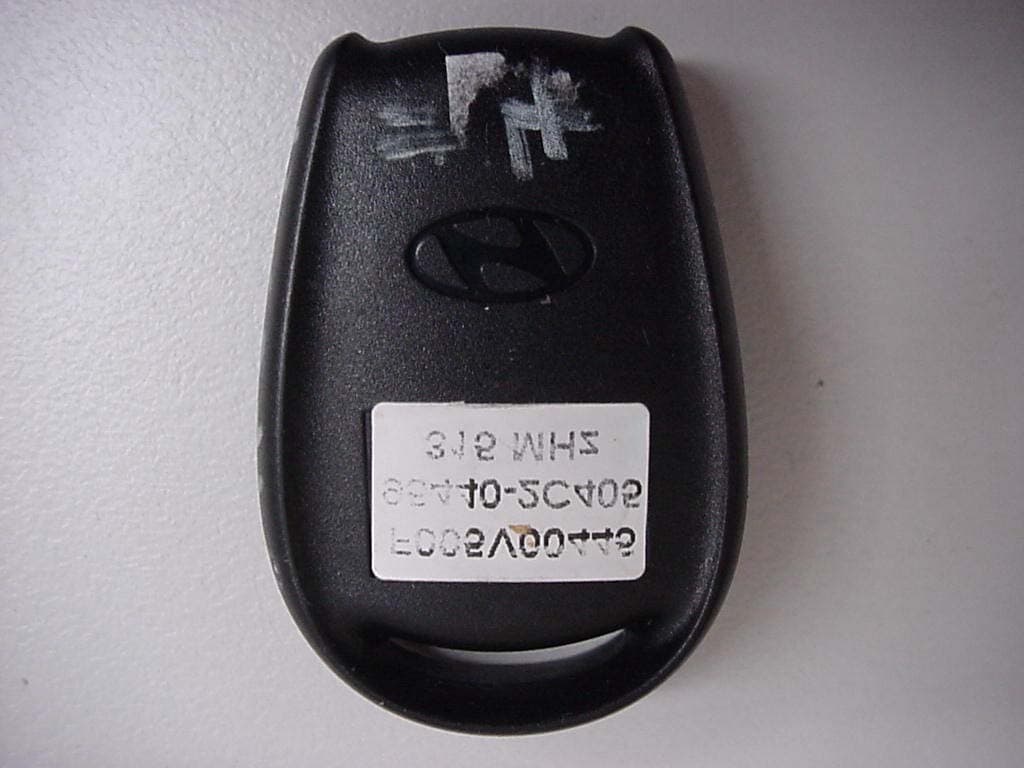

FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040611_Cert_Tx APPENDIX B1 – Test Sample Photographs (external) FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B1 – Test Sample Photographs (external)

FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_TX EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040611_Cert_Tx APPENDIX G – FCC LABELLING FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_TX EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au

FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040611_Cert_Tx APPENDIX B3 – Test Sample Internal & Antenna Location Photographs FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3 – Test Sample Internal & Antenna Location Photographs Antenna Track

FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8574B System Components 26/09/03 26/09/04 1 YEAR *2 EMI RECEIVER HP 8546A, Sn: 3549A00290 13/02/04 13/02/05 1 YEAR *2 EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 20/07/03 20/07/04 1 YEAR *3 ANTENNAS EMCO 93110B BICONICAL 20/08/03 20/08/04 1 YEAR *1 20 - 300 MHz Sn. 9804-3092 EMCO 93146A LOG PERIODIC 19/07/03 19/07/04 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd Note *3. NATA calibration by Rohde & Schwarz TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Feb 03 N/A N/A N/A Feb 04 N/A N/A N/A 1 Year *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/04 11/02/05 1 Year *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_TX EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040611_Cert_Tx APPENDIX H – GRAPHS OF EMI MEASUREMENT EMC Technologies Pty. Ltd. - Global Product Certification Job No:m040612 Test Date: 17-06-04 GRAPH No. 1 r:\PCF\m040611t_1.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Robert Bosch (Australia) Pty Ltd HYUNDAI - Remote Key Transmitter Radiated Emissions - Vertical Polarity Radiated Emissions (dBuV/m) m040611rm040611r # = Ambient Limits: Legend: Source: __ Vertical Emissions 2 3 4 5 6 15 16 17 35 36 37 38 39 19 20 21 Ver 5.5 Build 93radiated emissions site 1 lerderderg t:A1370704_10M c1:C1310105 c2:NONE p:NONE a:NONESite ID: OATS1,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak Qp Val dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 315.02 71.6 71.6 .0 71.6 2 630.06 40.0 40.0 .0 40.0 Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 80 90 v ^ 1 ~ v ^ 2 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product Certification Job No:m040612 Test Date: 17-06-04 GRAPH No. 2 r:\PCF\m040611t_2.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Robert Bosch (Australia) Pty Ltd HYUNDAI - Remote Key Transmitter Radiated Emissions - Horizontal Polarity Radiated Emissions (dBuV/m) m040611rm040611r # = Ambient Limits: Legend: Source: __ Horizontal Ambients __ Horizontal Emissions 7 8 9 10 11 12 13 14 30 31 32 33 34 24 26 27 Ver 5.5 Build 93radiated emissions site 1 lerderderg t:A1370704_10M c1:C1310105 c2:NONE p:NONE a:NONESite ID: OATS1,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak Qp Val dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 315.02 77.5 75.5 .0 75.5 2 630.06 40.4 39.8 .0 39.8 Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 80 90 v ^ 1 ~ v ^ 2 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_TX EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040611_Cert_Tx APPENDIX I – CHANNEL BANDWIDTH FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_TX EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 20 dB Bandwidth

FCC ID: LXP-RK225 (IC: 2298A-RK225 ) Report No. M040611_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040611_Cert_Tx APPENDIX J – Duty Cycle & Pulsewidth FCC ID: LXP-RK225 (IC: 2298A-RK225 ) Report No. M040611_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Duty Cycle Pulsewidth

EMI TEST REPORT for CERTIFICATION to FCC PART 15.231 & RSS-210 FCC ID: LXP-RK225 Industry Canada ID: 2298A-RK225 Test Sample: HMC GK Integrated Remote Key Transmitter Tested for: Robert Bosch Australia Report Number: M040611_Cert_Tx Issue Date: 17 th September 2004 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_Tx Page 2 of 10 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC Part 15.231 & RSS-210 EMC Technologies Report No. M040611_Cert_Tx Issue Date: 17 th September 2004 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION 3.0 CONDUCTED EMI MEASUREMENTS 4.0 RADIATED EMI MEASUREMENTS 5.0 BANDWIDTH 6.0 ANTENNA REQUIREMENT 7.0 COMPLIANCE STATEMENT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: TEST SAMPLE PHOTOGRAPHS APPENDIX C: OPERATIONAL DESCRIPTIONS APPENDIX D: TEST SAMPLE BLOCK DIAGRAM APPENDIX E: TEST SAMPLE SCHEMATIC APPENDIX F: TEST SAMPLE PCB LAYOUT APPENDIX G: FCC ID LABELLING APPENDIX H: GRAPHS of EMI MEASUREMENTS APPENDIX I: CHANNEL BANDWIDTH PLOTS APPENDIX J: PULSEWIDTH & DUTY CYCLE APPENDIX K: USER MANUAL FCC ID: LXP-RK225 (IC: 2298A-RK225) Report No. M040611_Cert_Tx Page 3 of 10 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.231 & RSS-210 Report Number: M040611_Cert_Tx Test Sample: HMC GK Integrated Remote Key Transmitter Manufacturer: Robert Bosch (Australia) Pty Ltd FCC ID: LXP-RK225 Industry Canada ID: 2298A-RK225 Equipment Type: Intentional Radiator Tested for: Robert Bosch (Australia) Pty Ltd Address: Cnr Centre & McNaughton Roads, Clayton VIC 3168, Australia Phone: +613 9541 5555 Fax: +613 9544 1137 Responsible Party: Marinko Basic Test Standards: FCC Part 15, Subpart C – Intentional Radiators FCC Part 15.231: Periodic operation in the band 40.66-40.70 MHz and above 70 MHz ANSI C63.4 – 1992 OET Bulletin No. 63 RSS-210 Issue 5 Low Power Licence-Exempt RadioCommunication Devices: 6.1.1: Momentarily Operated Devices Test Dates: 16 th June to 8 th July 2004 Test Officers: Chieu Huynh Jorge Lara B.Eng (Hons) Electronics Attestation: I h…

Text truncated - open the document above for the full version.
