Response to TCB Findings 1. Has fully featured CEG system been tested as stated in section 2.2 of the report? Please clarify. Testing was performed individually on each component of the CEG system (remote key, immobilizer and base station). Each component was setup with a test jig to simulate normal operation mode. Refer to operational description for all features of the system. 2. Does the device have any ports or cables for connection to other devices or loads? What was the operating state of the receiver to maximize emissions? Please clarify. The device was connected to a simulator to simulate the receiver in its normal operating mode. Refer to revised test set-up photos. The receiver was tested in wake-up mode, waiting for a transmit signal from the remote key transmitter to activate. The receiver was also checked in operating mode (remote key transmitter activated) and observed no significant differences in the emissions. 3. In the test set-up photo a cable is lying next to the device. Please describe the purpose of this cable. It is the receiving antenna. Refer to Appendix B2. 4. Section 4.4 of the report states that no emissions were found within 10dB of the limit. Any emissions within 20dB of the limit needs to be listed. Please clarify. No emissions were found within 20dB of the limit. 5. Do all the peaks seen in the EMI plots belong to ambient signals? Yes, all peaks in the EMI plots were ambient as marked with “#”. 6. Have fresh batteries been used during testing? Fresh battery was used during testing. 7. Test report states that average detector has been used above 1GHz on page 7 (section 4.1). Have peak readings complied with the provisions of 15.35(b) (20dB above average limit) ? Please clarify. Yes, the peak readings complied with the provisions of 15.35(b).

FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Rx APPENDIX B1 – Test Sample external Photograph FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – Porsche Base Station (Receiver)

FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Rx APPENDIX F – ( Rx ) FCC Labelling FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au

FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Rx APPENDIX B3 – Test Sample internal Photographs FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – Porsche Base Station (Receiver)

EMI TEST REPORT for CERTIFICATION to FCC PART 15.101 & RSS-210 FCC ID: LXP-VIM236 Industry Canada ID: 2298A-VIM236 Test Sample: Porsche Base Station (Receiver) Model: VIM236 Tested for: Robert Bosch Australia Report Number: M040113_Cert_Rx Issue Date: 5 th April 2004 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx Page 2 of 9 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC Part 15.101 & RSS-210 EMC Technologies Report No. M040113_Cert_Rx Issue Date: 5 th April 2004 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION 3.0 CONDUCTED EMI MEASUREMENTS 4.0 RADIATED EMI MEASUREMENTS 5.0 COMPLIANCE STATEMENT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: TEST SAMPLE PHOTOGRAPHS APPENDIX C: TEST SAMPLE BLOCK DIAGRAM APPENDIX D: TEST SAMPLE SCHEMATIC APPENDIX E: TEST SAMPLE PCB LAYOUT APPENDIX F: FCC ID LABELLING APPENDIX G: GRAPHS of EMI MEASUREMENTS APPENDIX H: USER MANUAL FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx Page 3 of 9 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.101 & RSS-210 Report Number: M040113_Cert_Rx Test Sample: Porsche Base Station (Receiver) Manufacturer: Robert Bosch (Australia) Pty Ltd FCC ID: LXP-VIM236 Industry Canada ID: 2298A-VIM236 Equipment Type: Unintentional Radiator Tested for: Robert Bosch (Australia) Pty Ltd Address: Cnr Centre & McNaughton Roads, Clayton VIC 3168, Australia Phone: +613 9541 5555 Fax: +613 9544 1137 Responsible Party: Bazil Rodricks Test Standards: FCC Part 15, Subpart B Section 101 ANSI C63.4 – 1992 OET Bulletin No. 63 RSS-210 Issue 5 Low Power Licence-Exempt RadioCommunication Devices: Clause 7: Receiver Tests and Certification. Test Dates: 19 th January – 20 th February 2004 Test Officer: Chieu Huynh B.Eng (Hons) Electronics Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx Page 4 of 9 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.101 & RSS-210 1.0 INTRODUCTION This report details the results of EMI tests and measurements performed on the Porsche Base Station (Receiver), Model VIM236. Test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations: 47 CFR, Part 15, Subpart B: Rules for unintentional radiators (particularly section 15.101) Section 15.107: Conducted Emission Limits Section 15.109: Radiated Emission Limits The test sample complied with the requirements of 47 CFR, Part 15 Subpart B - Section 15.101: Equipment Authorization of unintentional radiators. The test sample also complied with the Industry Canada RSS-210 issue 5 (Low Power Licence-Exempt Radiocommunication Devices (All Frequency Bands)) clause 7: Receiver Tests and Certification. The “Porsche Body Computer System” comprises the Remote Key (Transmitter), the Base Station (Receiver) and the Electronic Ignition Switch (Immobiliser). The results for the Base Station (Receiver) are reported in this test report. The results for Remote Key (Transmitter) and the Electronic Ignition Switch (Immobiliser) are reported separately (refer to EMC Technologies’ test reports: M040113_Cert_Tx and M040113_Cert_Immobiliser respectively). 1.1 Summary of Results FCC Part 15, Subpart B Clauses Industry Canada RSS-210 Clauses Test Performed Result 15.107 7.4 Conducted Emissions Not Applicable 15.109 7.3 Radiated Emissions Complies The measurement procedure used was in accordance with ANSI C63.4-1992 and OET Bulletin No. 96-43. The instrumentation conformed to the requirements of ANSI C63.2-1987. 1.2 Modifications by EMC Technologies No modifications were required. FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx Page 5 of 9 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. 2.0 GENERAL INFORMATION (Information supplie…

Text truncated - open the document above for the full version.

FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Rx APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8574B System Components 26/09/03 26/09/04 1 YEAR *2 EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 09/07/03 09/07/04 1 YEAR *3 ANTENNAS EMCO 93110B BICONICAL 20/08/03 20/08/04 1 YEAR *1 20 - 300 MHz Sn. 9804-3092 EMCO 93146A LOG PERIODIC 11/07/03 11/07/04 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd Note *3. NATA calibration by Rohde & Schwarz TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Feb 04 N/A N/A N/A Feb 05 N/A N/A N/A 1 Year *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/04 11/02/05 1 Year *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Rx APPENDIX G – ( Rx ) Graphs of EMI Measurement EMC Technologies Pty. Ltd. - Global Product Certification Job No:m040113 Test Date: 19-01-04 GRAPH No. 1 r:\PCF\m040113b_1.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Robert Bosch (Australia) Pty Ltd Porsche - Base Station Radiated Emissions - Vertical Polarity Radiated Emissions (dBuV/m) m040113r # = Ambient Limits: Legend: Source: _ FCC-B3 FCC CLASS B RAD 3M LIMITS __ Vertical Emissions 7 8 9 10 11 1 2 3 Ver 5.5 Build 93radiated emissions site 2 lerderderg t:A1360704_10M c1:C1700804 c2:NONE p:NONE a:NONESite ID: OATS2,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Chieu Huynh Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product Certification Job No:m040113 Test Date: 19-01-04 GRAPH No. 2 r:\PCF\m040113b_2.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Robert Bosch (Australia) Pty Ltd Porsche - Base Station Radiated Emissions - Horizontal Polarity Radiated Emissions (dBuV/m) m040113r # = Ambient Limits: Legend: Source: _ FCC-B3 FCC CLASS B RAD 3M LIMITS __ Horizontal Emissions 12 13 14 15 16 4 5 6 Ver 5.5 Build 93radiated emissions site 2 lerderderg t:A1360704_10M c1:C1700804 c2:NONE p:NONE a:NONESite ID: OATS2,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Chieu Huynh Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # ## # # # # # # # # # # # # # # # # # # # # # ## # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

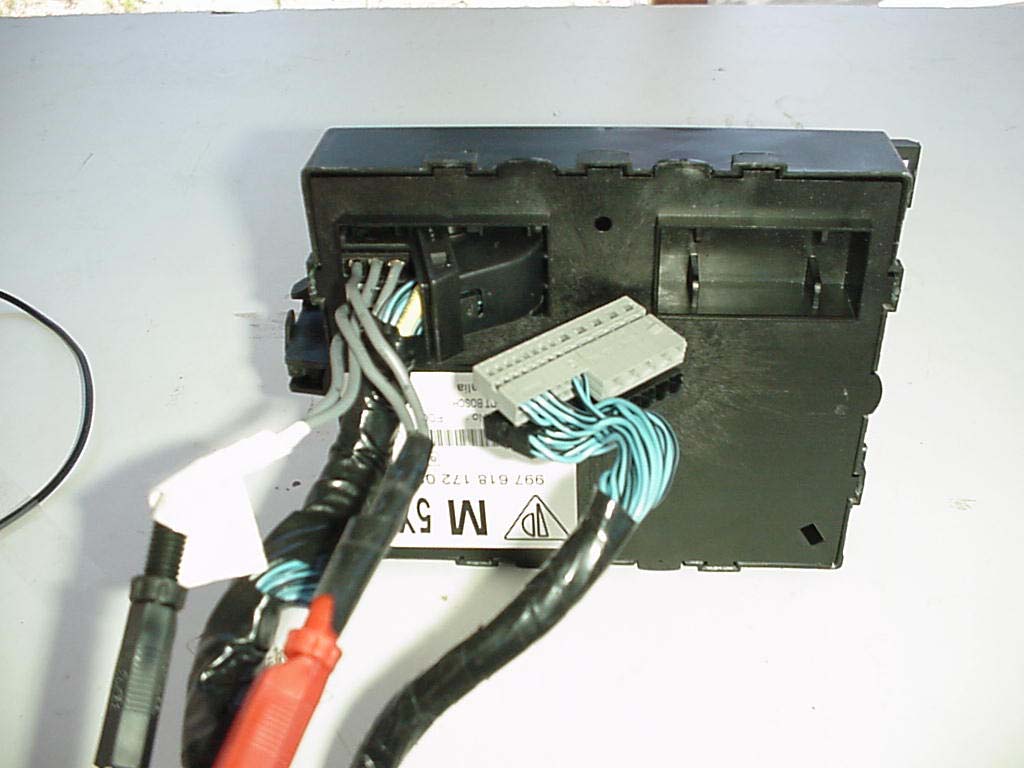

FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Rx APPENDIX B2 – Test Setup Photograph FCC ID: LXP-VIM236 (IC: 2298A-VIM236) Report No. M040113_Cert_Rx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au External stripped coaxial cable Antenna
